如何修改ggplot2中的比例標簽以防止重復？

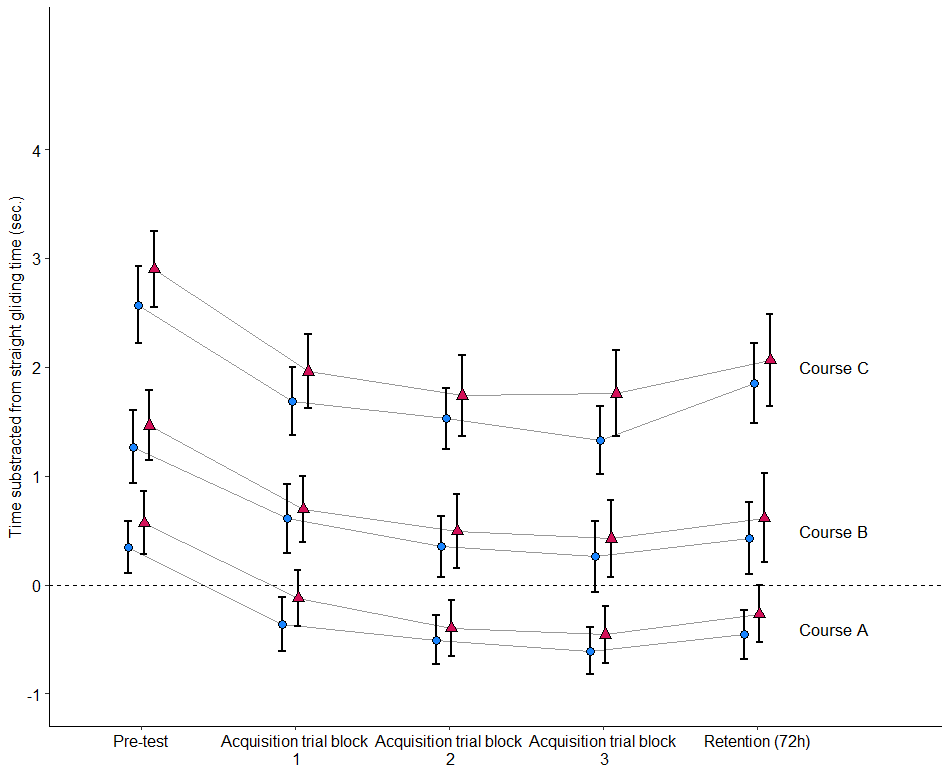

我用 ggplot2 創建了一個圖形，顯示了我所做實驗的一些資料點。但是，我找不到適合我的文本標簽的好的解決方案。現在，我將“Acqusitition trial blocks”重復三遍，所以我認為最好只寫一次，然后在刻度點處分別寫上 1、2 和 3。但是我找不到解決這個問題的好方法。最理想的是，我希望解決方案的 Acquisition 試驗塊低于 1、2 和 3。

trainingplot <- ggplot(sample_descriptive, aes(x=trainingblock, y=pointEstimate))
  theme_pubr()
  scale_y_continuous(name = "Time substracted from straight gliding time (sec.)", limits = c(-1, 5), breaks = c(-1, 0, 1, 2,3,4))
  scale_x_discrete(expand = expansion(add = c(.6, 1.2)), labels= c("Pre-test", "Acquisition trial block\n 1", "Acquisition trial block\n 2", "Acquisition trial block\n 3", "Retention (72h)"))
  annotate("text", x = 5.5, y = -0.4, label = "Course A", size=4.5)
  annotate("text", x = 5.5, y = 0.5, label = "Course B", size=4.5)
  annotate("text", x = 5.5, y = 2, label = "Course C", size=4.5)


  trainingplot  <- trainingplot
    geom_errorbar(data = sample_descriptive, aes(x=trainingblock, y = pointEstimate,  ymin = lower.CL,ymax = upper.CL,  group=interaction(course, group)), position = position_dodge(0.2), size=1, width=0.3)
    geom_line(data = sample_descriptive, aes(x=trainingblock, y = pointEstimate, group=interaction(course, group)), position = position_dodge(0.2), alpha=0.4)
    geom_point(data = sample_descriptive, aes(x=trainingblock, y=pointEstimate, shape=group, fill=group, group=interaction(course, group)),  position = position_dodge(0.2),  size=2.8, color="black")
    theme(legend.position="none",
         axis.title.x=element_blank())
    geom_hline(aes(yintercept = 0), linetype = "dashed", size=0.2)
    scale_fill_manual(values = c("#1A85FF", "#D41159", "#FFB000"))
    scale_shape_manual(values=c(21, 24))


uj5u.com熱心網友回復：

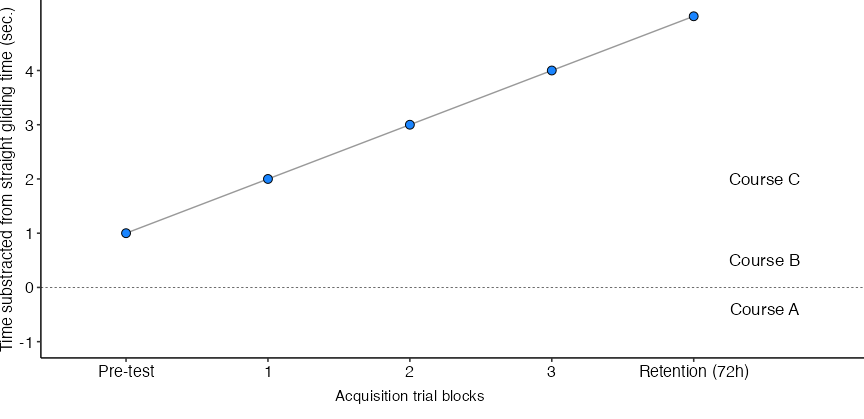

這是一個示例，使用一些編造的資料使其可復制給其他人。正如@tjebo 指出的那樣，您可以通過控制 y 限制coord_cartesian并關閉裁剪來在繪圖區域外進行注釋。

library(ggpubr); library(ggplot2)

sample_descriptive <- data.frame(
  trainingblock = LETTERS[1:5],
  pointEstimate = 1:5,
  course = "A",
  group = "Z"
)

ggplot(sample_descriptive, aes(x=trainingblock, y=pointEstimate))
  theme_pubr()
  scale_y_continuous(name = "Time substracted from straight gliding time (sec.)", breaks = c(-1, 0, 1, 2,3,4))
  scale_x_discrete(expand = expansion(add = c(.6, 1.2)), labels= c("Pre-test", "1", "2", "3", "Retention (72h)"))
  annotate("text", x = 5.5, y = -0.4, label = "Course A", size=4.5)
  annotate("text", x = 5.5, y = 0.5, label = "Course B", size=4.5)
  annotate("text", x = 5.5, y = 2, label = "Course C", size=4.5)
  annotate("text", x = 3, y = -2, label = "Acquisition trial blocks", size = 4 )
  # geom_errorbar(data = sample_descriptive, aes(x=trainingblock, y = pointEstimate,  ymin = lower.CL,ymax = upper.CL,  group=interaction(course, group)), position = position_dodge(0.2), size=1, width=0.3)
  geom_line(data = sample_descriptive, aes(x=trainingblock, y = pointEstimate, group=interaction(course, group)), position = position_dodge(0.2), alpha=0.4)
  geom_point(data = sample_descriptive, aes(x=trainingblock, y=pointEstimate, shape=group, fill=group, group=interaction(course, group)),  position = position_dodge(0.2),  size=2.8, color="black")
  theme(legend.position="none",
        axis.title.x=element_blank(), plot.margin = unit(c(0,0,2,0), "line"))
  coord_cartesian(ylim = c(-1, 5), clip = "off")

  geom_hline(aes(yintercept = 0), linetype = "dashed", size=0.2)
  scale_fill_manual(values = c("#1A85FF", "#D41159", "#FFB000"))
  scale_shape_manual(values=c(21, 24))
