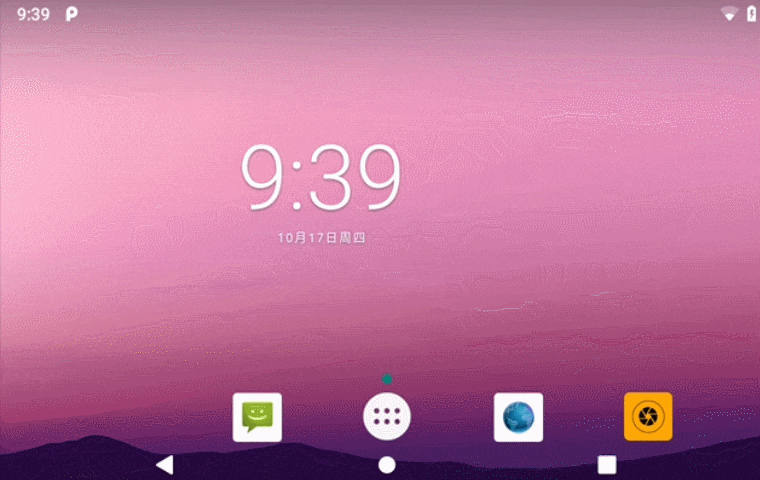

效果圖

在這里插入圖片描述

修改思路

1、增加全域控制變數 sys.launcher3.is_full_app，用來動態切換

2、增加兩套布局，對應有抽屜和無抽屜

3、去除 allAppsButton

4、將 AllAppsContainerView 中的圖示加載到 Workspace

5、新安裝的 app 自動添加圖示到 Workspace

6、替換 Workspace 圖示長按洗掉選項為取消

7、屏蔽上拉顯示抽屜頁面手勢

8、修改頁面指示線為圓點

上代碼

1、增加全域控制變數 sys.launcher3.is_full_app

在 LauncherAppState 中增加靜態方法 isDisableAllApps(), 通過修改 Settings 中自定義的值 sys.launcher3.is_full_app

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\LauncherAppState.java

   private static  Context mContext;

public static boolean isDisableAllApps() {
        if (mContext != null) {
            return Settings.System.getInt(mContext.getContentResolver(),
                "sys.launcher3.is_full_app", 0) == 1;
        }
        return true;
    }

vendor\mediatek\proprietary\packages\apps\Launcher3\AndroidManifest-common.xml

AndroidManifest-common.xml 中增加權限

<uses-permission android:name="android.permission.WRITE_SETTINGS" />

在 SettingsActivity 中增加 SwitchPreference 用以動態修改 sys.launcher3.is_full_app

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\SettingsActivity.java

在內部類 LauncherSettingsFragment 中重寫 onPreferenceTreeClick() 用以監聽 SwitchPreference 點擊

/**
     * This fragment shows the launcher preferences.
     */
    public static class LauncherSettingsFragment extends PreferenceFragment {

	.....

	@Override
    public void onCreate(Bundle savedInstanceState) {
            super.onCreate(savedInstanceState);

	....

			//讀取保存的值，初始化 SwitchPreference 的初始狀態，是否選中
			int isFull = Settings.System.getInt(getActivity().getContentResolver(),
                "sys.launcher3.is_full_app", 0);
            Log.d("Launcher3", "sys.launcher3.is_full_app="+isFull);
            SwitchPreference fullSwitch = (SwitchPreference) findPreference("pref_is_full_app");
            fullSwitch.setChecked(isFull==1);
     }



	//add for change is_full_app value
	@Override
    public boolean onPreferenceTreeClick(PreferenceScreen preferenceScreen, Preference preference) {
            boolean result = true;
            final String key = preference.getKey();

             if ("pref_is_full_app".equals(key)) {
                boolean checked = ((SwitchPreference) preference).isChecked();

                Settings.System.putInt(getActivity().getContentResolver(), "sys.launcher3.is_full_app",
                        checked ? 1 : 0);

                Log.e("Launcher3", "SwitchPreference checked="+checked);

                // Value has changed
                ProgressDialog.show(getActivity(),
                        null /* title */,
                        getActivity().getString(R.string.full_app_override_progress),
                        true /* indeterminate */,
                        false /* cancelable */);
                new LooperExecutor(LauncherModel.getWorkerLooper()).execute(
                        new OverrideApplyHandler(getActivity()));

            }
            return result;
        }

}

點擊 SwitchPreference 后需要保存 sys.launcher3.is_full_app 新值，同時清除 Launcher3 的快取，延時啟動并結束當前行程

清除快取方法 clearApplicationUserData 在 Launcher3 中編譯報錯，所以通過發送廣播到 Setting 中進行真正的清快取操作


	//add for change is_full_app value
	private static class OverrideApplyHandler implements Runnable {

        private final Context mContext;

        private OverrideApplyHandler(Context context) {
            mContext = context;
        }

        @Override
        public void run() {
            // Clear the icon cache.
            LauncherAppState.getInstance(mContext).getIconCache().clear();

            // Wait for it
            try {
                Thread.sleep(1000);
            } catch (Exception e) {
                Log.e("Launcher3", "Error waiting", e);
            }

            // Schedule an alarm before we kill ourself.
            Intent homeIntent = new Intent(Intent.ACTION_MAIN)
                    .addCategory(Intent.CATEGORY_HOME)
                    .setPackage(mContext.getPackageName())
                    .addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
            PendingIntent pi = PendingIntent.getActivity(mContext, 42,
                    homeIntent, PendingIntent.FLAG_CANCEL_CURRENT | PendingIntent.FLAG_ONE_SHOT);
            mContext.getSystemService(AlarmManager.class).setExact(
                    AlarmManager.ELAPSED_REALTIME, SystemClock.elapsedRealtime() + 50, pi);

            //clear data will kill process
            Intent intent = new Intent("com.android.action.CLEAR_APP_DATA");
            intent.putExtra("pkgName", "com.android.launcher3");
            intent.addFlags(0x01000000);
            mContext.sendBroadcast(intent);
            Log.i("Launcher3", "Clearing user data com.android.launcher3");

            // Kill process
            android.os.Process.killProcess(android.os.Process.myPid());
        }
    }

SettingsActivity 對應的 xml 檔案修改 launcher_preferences

vendor\mediatek\proprietary\packages\apps\Launcher3\res\xml\launcher_preferences.xml

 <SwitchPreference
        android:key="pref_is_full_app"
        android:title="@string/is_full_app_title"
        android:summary="@string/is_full_app_desc"
        android:defaultValue=https://www.cnblogs.com/cczheng-666/p/"false"
        android:persistent="true" />

對應的 string 檔案就不貼了，自己增加下就行

2、增加兩套布局，對應有抽屜和無抽屜

加載布局檔案對應的 xml 為 vendor\mediatek\proprietary\packages\apps\Launcher3\res\xml\device_profiles.xml

Launcher3 通過獲取 minWidthDps 和 minHeightDps 來確定加載哪一個 profile，我的平板解析度是 1280*800 的，增加兩個 profile 節點

 <profile
        launcher:name="Tablet"
        launcher:minWidthDps="376"
        launcher:minHeightDps="586"
        launcher:numRows="4"
        launcher:numColumns="5"
        launcher:numFolderRows="4"
        launcher:numFolderColumns="5"
        launcher:iconSize="50"
        launcher:iconTextSize="11"
        launcher:numHotseatIcons="5"
        launcher:defaultLayoutId="@xml/default_workspace_tb_5x6"
        />

    <profile
        launcher:name="Tablet_no_all_app"
        launcher:minWidthDps="380"
        launcher:minHeightDps="590"
        launcher:numRows="4"
        launcher:numColumns="5"
        launcher:numFolderRows="4"
        launcher:numFolderColumns="5"
        launcher:iconSize="50"
        launcher:iconTextSize="11"
        launcher:numHotseatIcons="4"
        launcher:defaultLayoutId="@xml/default_workspace_tb_5x6_no_all_app"
        />

對應的你需要在 xml 檔案下增加 4 個檔案，分別是 default_workspace_tb_5x6.xml dw_hotseat_tb.xml default_workspace_tb_5x6_no_all_app.xml dw_hotseat_tb_no_all_app.xml

這樣的好處是你可以自定義不同的布局檔案加載內容，上面的配置含義簡單說一下，分別是最小寬度、最小高度、布局的行和列、檔案夾中布局行和列、圖示大小、圖示文字大小、HotSeat 個數，加載的布局檔案

在 InvariantDeviceProfile() 判斷是否需要加載 Tablet_no_all_app profile

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\InvariantDeviceProfile.java

public InvariantDeviceProfile(Context context) {

 		WindowManager wm = (WindowManager) context.getSystemService(Context.WINDOW_SERVICE);
        Display display = wm.getDefaultDisplay();
        DisplayMetrics dm = new DisplayMetrics();
        display.getMetrics(dm);

        Point smallestSize = new Point();
        Point largestSize = new Point();
        display.getCurrentSizeRange(smallestSize, largestSize);

        // This guarantees that width < height
        minWidthDps = Utilities.dpiFromPx(Math.min(smallestSize.x, smallestSize.y), dm);
        minHeightDps = Utilities.dpiFromPx(Math.min(largestSize.x, largestSize.y), dm);
        Log.i("Launcher3.profiles", "orignalminWidthDps="+minWidthDps + "  orignalminHeightDps="+minHeightDps);

		//add for load no_all_app xml
        if (LauncherAppState.isDisableAllApps()) {
            Log.e("Launcher3.profiles", "load no all app profiles");
			//對應 device_profiles.xml 中 Tablet_no_all_app 的值
            minWidthDps = 380.0f;
            minHeightDps = 590.0f;
        }
		.....
}

3、去除 allAppsButton

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\Hotseat.java

將 resetLayout() 中 FeatureFlags.NO_ALL_APPS_ICON 替換為 LauncherAppState.isDisableAllApps()

void resetLayout(boolean hasVerticalHotseat) {
        mContent.removeAllViewsInLayout();
        mHasVerticalHotseat = hasVerticalHotseat;
        InvariantDeviceProfile idp = mLauncher.getDeviceProfile().inv;
        if (hasVerticalHotseat) {
            mContent.setGridSize(1, idp.numHotseatIcons);
        } else {
            mContent.setGridSize(idp.numHotseatIcons, 1);
        }

        //if (!FeatureFlags.NO_ALL_APPS_ICON) {
        /// add for check is need allappbutton
        if (!LauncherAppState.isDisableAllApps()) {
            // Add the Apps button
            Context context = getContext();
            DeviceProfile grid = mLauncher.getDeviceProfile();

		...
}

4、將 AllAppsContainerView 中的圖示加載到 Workspace

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\model\LoaderTask.java

run() 中增加判斷，添加 verifyApplications(), 修改 InstallShortcutReceiver 中 PendingInstallShortcutInfo 為 public

public void run() {
        synchronized (this) {
            // Skip fast if we are already stopped.
            if (mStopped) {
                return;
            }
        }
		....

		// second step
        TraceHelper.partitionSection(TAG, "step 2.1: loading all apps");
        loadAllApps();

        //add for load all app on workspace
        if (LauncherAppState.isDisableAllApps()) {
            android.util.Log.e("Launcher3", "verifyApplications()");
            verifyApplications();
        }

		....
}

 //add for load all app on workspace
private void verifyApplications() {
        final Context context = mApp.getContext();
        ArrayList<Pair<ItemInfo, Object>> installQueue = new ArrayList<>();
        final List<UserHandle> profiles = mUserManager.getUserProfiles();
        for (UserHandle user : profiles) {
            final List<LauncherActivityInfo> apps = mLauncherApps.getActivityList(null, user);
            ArrayList<InstallShortcutReceiver.PendingInstallShortcutInfo> added = new ArrayList<InstallShortcutReceiver.PendingInstallShortcutInfo>();
            synchronized (this) {
                for (LauncherActivityInfo app : apps) {
                    InstallShortcutReceiver.PendingInstallShortcutInfo pendingInstallShortcutInfo = new InstallShortcutReceiver.PendingInstallShortcutInfo(app, context);
                    added.add(pendingInstallShortcutInfo);
                    installQueue.add(pendingInstallShortcutInfo.getItemInfo());
                }
            }
            if (!added.isEmpty()) {
                mApp.getModel().addAndBindAddedWorkspaceItems(installQueue);
            }
        }
    }

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\model\BaseModelUpdateTask.java

注釋 run() 中的 return

@Override
    public final void run() {
        if (!mModel.isModelLoaded()) {
            if (DEBUG_TASKS) {
                Log.d(TAG, "Ignoring model task since loader is pending=" + this);
            }
            // Loader has not yet run.
            //annotaion for load all app on workspace
            // return;
        }
        execute(mApp, mDataModel, mAllAppsList);
    }

5、新安裝的 app 自動添加圖示到 Workspace

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\model\PackageUpdatedTask.java

execute() 中增加判斷，添加 updateToWorkSpace()

public void execute(LauncherAppState app, BgDataModel dataModel, AllAppsList appsList) {

	....

	 final ArrayList<AppInfo> addedOrModified = new ArrayList<>();
    addedOrModified.addAll(appsList.added);

    //add for load new install app on workspace
    if (LauncherAppState.isDisableAllApps()) {
        android.util.Log.e("cczLauncher3", "updateToWorkSpace()");
        updateToWorkSpace(context, app, appsList);
    }

	...
}

//add for load new install app on workspace
public void updateToWorkSpace(Context context, LauncherAppState app , AllAppsList appsList){
         ArrayList<Pair<ItemInfo, Object>> installQueue = new ArrayList<>();
        final List<UserHandle> profiles = UserManagerCompat.getInstance(context).getUserProfiles();
        ArrayList<InstallShortcutReceiver.PendingInstallShortcutInfo> added
        = new ArrayList<InstallShortcutReceiver.PendingInstallShortcutInfo>();

        for (UserHandle user : profiles) {
            final List<LauncherActivityInfo> apps = LauncherAppsCompat.getInstance(context).getActivityList(null, user);
            synchronized (this) {
                for (LauncherActivityInfo info : apps) {
                    for (AppInfo appInfo : appsList.added) {
                        if(info.getComponentName().equals(appInfo.componentName)){
                            InstallShortcutReceiver.PendingInstallShortcutInfo mPendingInstallShortcutInfo
                            =  new InstallShortcutReceiver.PendingInstallShortcutInfo(info,context);
                            added.add(mPendingInstallShortcutInfo);
                            installQueue.add(mPendingInstallShortcutInfo.getItemInfo());
                        }
                    }
                }
            }
        }
        if (!added.isEmpty()) {
            app.getModel().addAndBindAddedWorkspaceItems(installQueue);
        }
    }

6、替換 Workspace 圖示長按洗掉選項為取消

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\DeleteDropTarget.java

在 setTextBasedOnDragSource() 、setControlTypeBasedOnDragSource()、onAccessibilityDrop() 中分別增加判斷是否需要洗掉圖示

private void setTextBasedOnDragSource(ItemInfo item) {
        if (!TextUtils.isEmpty(mText)) {
            mText = getResources().getString(item.id != ItemInfo.NO_ID
                    ? R.string.remove_drop_target_label
                    : android.R.string.cancel);
            //add for hide deletedroptarget
            if (LauncherAppState.isDisableAllApps()) {
                android.util.Log.e("Launcher3", "hide delete drop target");
                mText = getResources().getString(isCanDrop(item)
                            ? R.string.remove_drop_target_label
                            : android.R.string.cancel);
            }

            requestLayout();
        }
    }

    private void setControlTypeBasedOnDragSource(ItemInfo item) {
        mControlType = item.id != ItemInfo.NO_ID ? ControlType.REMOVE_TARGET
                : ControlType.CANCEL_TARGET;

        //add for hide deletedroptarget [S]
        if (LauncherAppState.isDisableAllApps()) {
            mControlType = isCanDrop(item) ? ControlType.REMOVE_TARGET
                : ControlType.CANCEL_TARGET;
        }
    }

public void onAccessibilityDrop(View view, ItemInfo item) {
        // Remove the item from launcher and the db, we can ignore the containerInfo in this call
        // because we already remove the drag view from the folder (if the drag originated from
        // a folder) in Folder.beginDrag()
        //add if juge is need remove item from workspace
        if (!LauncherAppState.isDisableAllApps() || isCanDrop(item)) {
            mLauncher.removeItem(view, item, true /* deleteFromDb */);
            mLauncher.getWorkspace().stripEmptyScreens();
            mLauncher.getDragLayer()
                    .announceForAccessibility(getContext().getString(R.string.item_removed));
        }
}

private boolean isCanDrop(ItemInfo item){
        return !(item.itemType == LauncherSettings.Favorites.ITEM_TYPE_APPLICATION ||
                item.itemType == LauncherSettings.Favorites.ITEM_TYPE_FOLDER);
}

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\dragndrop\DragController.java

drop() 中增加判斷，取消當前拖拽操作

private void drop(DropTarget dropTarget, Runnable flingAnimation) {
	....

	boolean accepted = false;
        if (dropTarget != null) {
            dropTarget.onDragExit(mDragObject);
            if (dropTarget.acceptDrop(mDragObject)) {
                if (flingAnimation != null) {
                    flingAnimation.run();
                } else {
                    dropTarget.onDrop(mDragObject, mOptions);
                }
                accepted = true;

                //add for cancel canceldroptarget handle
                if (LauncherAppState.isDisableAllApps() && dropTarget instanceof DeleteDropTarget &&
                        isNeedCancelDrag(mDragObject.dragInfo)) {
                    cancelDrag();
                }
            }
        }
		...
}

private boolean isNeedCancelDrag(ItemInfo item){
        return (item.itemType == LauncherSettings.Favorites.ITEM_TYPE_APPLICATION ||
                item.itemType == LauncherSettings.Favorites.ITEM_TYPE_FOLDER);
 }

7、屏蔽上拉顯示抽屜頁面手勢

vendor\mediatek\proprietary\packages\apps\Launcher3\quickstep\src\com\android\launcher3\uioverrides\OverviewToAllAppsTouchController.java

canInterceptTouch() 中增加判斷是否直接攔截

@Override
    protected boolean canInterceptTouch(MotionEvent ev) {
        //add for forbidden workspace drag change GradientView alph
        if (LauncherAppState.isDisableAllApps()){
            android.util.Log.e("Launcher3", "canInterceptTouch()");
            return false;
        }

        if (mCurrentAnimation != null) {
            // If we are already animating from a previous state, we can intercept.
            return true;
        }
        if (AbstractFloatingView.getTopOpenView(mLauncher) != null) {
            return false;
        }
        if (mLauncher.isInState(ALL_APPS)) {
            // In all-apps only listen if the container cannot scroll itself
            return mLauncher.getAppsView().shouldContainerScroll(ev);
        } else if (mLauncher.isInState(NORMAL)) {
            return true;
        } else if (mLauncher.isInState(OVERVIEW)) {
            RecentsView rv = mLauncher.getOverviewPanel();
            return ev.getY() > (rv.getBottom() - rv.getPaddingBottom());
        } else {
            return false;
        }
    }

8、修改頁面指示線為圓點

vendor\mediatek\proprietary\packages\apps\Launcher3\res\layout\launcher.xml

WorkspacePageIndicator 改為 PageIndicatorDots

<com.android.launcher3.pageindicators.PageIndicatorDots
            android:id="@+id/page_indicator"
            android:layout_width="match_parent"
            android:layout_height="4dp"
            android:layout_gravity="bottom|center_horizontal"
            android:theme="@style/HomeScreenElementTheme" />

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\pageindicators\PageIndicatorDots.java

增加 PageIndicatorDots 繼承 Insettable，復寫setInsets(), 調整圓點的位置

public class PageIndicatorDots extends View implements PageIndicator, Insettable {

// add for change WorkspacePageIndicator line to dot
    @Override
    public void setInsets(Rect insets) {
        DeviceProfile grid = mLauncher.getDeviceProfile();
        FrameLayout.LayoutParams lp = (FrameLayout.LayoutParams) getLayoutParams();

        if (grid.isVerticalBarLayout()) {
            Rect padding = grid.workspacePadding;
            lp.leftMargin = padding.left + grid.workspaceCellPaddingXPx;
            lp.rightMargin = padding.right + grid.workspaceCellPaddingXPx;
            lp.bottomMargin = padding.bottom;
        } else {
            lp.leftMargin = lp.rightMargin = 0;
            lp.gravity = Gravity.CENTER_HORIZONTAL | Gravity.BOTTOM;
            lp.bottomMargin = grid.hotseatBarSizePx + insets.bottom;
        }
        setLayoutParams(lp);
    }

	@Override
    public void setScroll(int currentScroll, int totalScroll) {
        if (mNumPages > 1) {
            if (mIsRtl) {
                currentScroll = totalScroll - currentScroll;
            }
            int scrollPerPage = totalScroll / (mNumPages - 1);

            // add for change WorkspacePageIndicator line to dot
            if (scrollPerPage == 0) {
                return;
            }
            int pageToLeft = currentScroll / scrollPerPage;
            int pageToLeftScroll = pageToLeft * scrollPerPage;
            int pageToRightScroll = pageToLeftScroll + scrollPerPage;

     	...

}

vendor\mediatek\proprietary\packages\apps\Launcher3\src\com\android\launcher3\states\SpringLoadedState.java

注釋 setShouldAutoHide()，避免長按 workSpace 時發生崩潰

@Override
    public void onStateEnabled(Launcher launcher) {
        Workspace ws = launcher.getWorkspace();
        ws.showPageIndicatorAtCurrentScroll();
        //annotaion for WorkspacePageIndicator line to dot
        // ws.getPageIndicator().setShouldAutoHide(false);

        // Prevent any Un/InstallShortcutReceivers from updating the db while we are
        // in spring loaded mode
        InstallShortcutReceiver.enableInstallQueue(InstallShortcutReceiver.FLAG_DRAG_AND_DROP);
        launcher.getRotationHelper().setCurrentStateRequest(REQUEST_LOCK);
    }

    @Override
    public void onStateDisabled(final Launcher launcher) {
        //annotaion for WorkspacePageIndicator line to dot
        // launcher.getWorkspace().getPageIndicator().setShouldAutoHide(true);

        // Re-enable any Un/InstallShortcutReceiver and now process any queued items
        InstallShortcutReceiver.disableAndFlushInstallQueue(
                InstallShortcutReceiver.FLAG_DRAG_AND_DROP, launcher);
    }

歡迎關注我的英文公眾號【十句英文】，每日1首英文金曲+10句英文，伴你共同進步，

微信掃一掃下方二維碼即可關注：

轉載請註明出處，本文鏈接：https://www.uj5u.com/yidong/51804.html

標籤：Android

上一篇：求助，Qt軟體運行一段時間后崩潰（附core）

下一篇：monkey命令決議詳解

android 9.0 Launcher3 去掉抽屜式,顯示所有 app

效果圖

修改思路

上代碼

1、增加全域控制變數 sys.launcher3.is_full_app

2、增加兩套布局，對應有抽屜和無抽屜

3、去除 allAppsButton

4、將 AllAppsContainerView 中的圖示加載到 Workspace

5、新安裝的 app 自動添加圖示到 Workspace

6、替換 Workspace 圖示長按洗掉選項為取消

7、屏蔽上拉顯示抽屜頁面手勢

8、修改頁面指示線為圓點
