這里所指的分流插件非常類似于nginx的流量轉發功能,或者叫反向代理，
背景

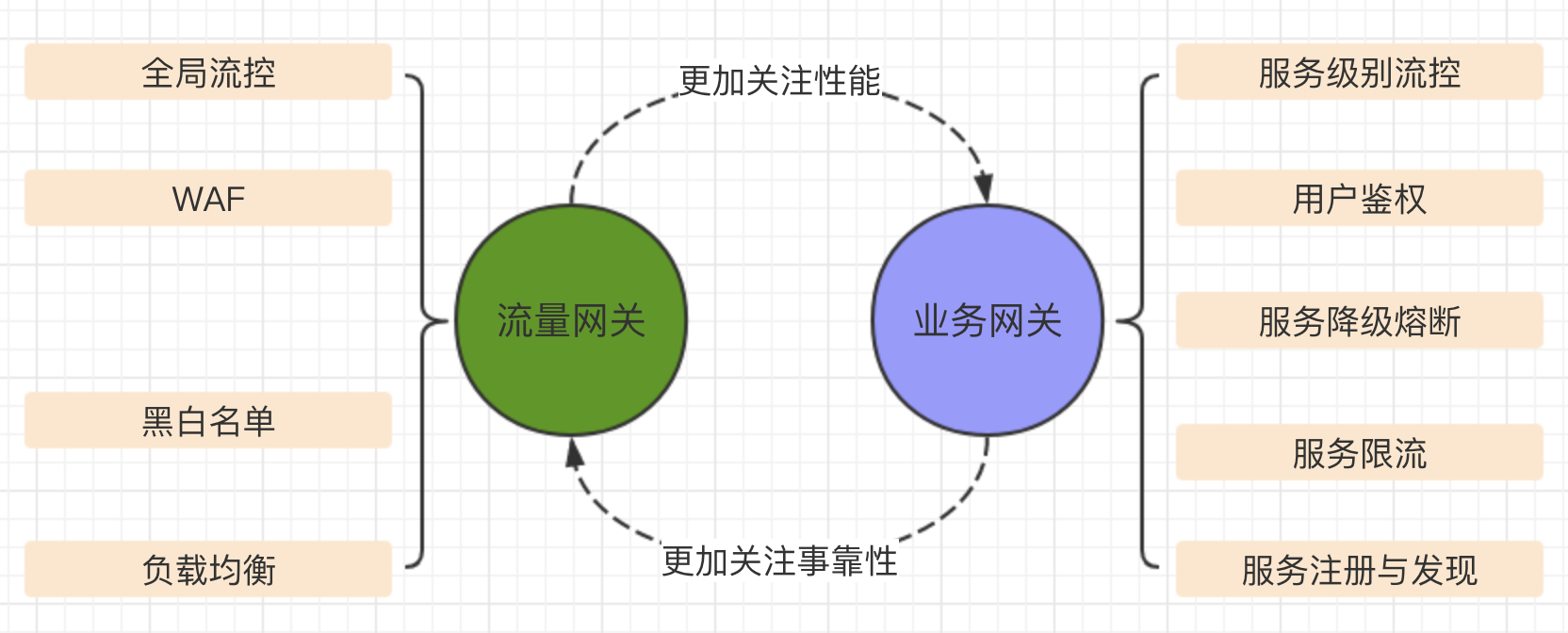

盡管nginx的流量轉發功能也很強大，但業務上的一些變化有可能出現會讓nginx的配置繁多，疲于應付，比如：某款APP隨業務發展演化出眾多業務線：酒店業務線，機票業務線，餐飲業務線，本地出行業務線，這些業務線的背后往往是不同的部門，不同的技術團隊組成，因此會提供不同的服務供APP對接，如果每增加一個新服務都需要去nginx做配置，nginx的配置會隨著業務的發展時間的推移變得沉重難以維護，因此我們可以將nginx定義為流量性的網關，與具體的業務無關，只負責基于域名的請求轉發，而后端業務線的不同服務的不同由業務網關負責，
另外就是對服務進行邏輯分組的需求，比如將一些重要的請求劃分到一組服務器，這組服務器是高性能的；其它邊緣業務的請求劃分的另外一組服務器，這組服務器配置相對低，再比如我們的灰度環境，均需要基本一定的規則來分配流量，
方案
捕獲WebFlux的流量，然后后臺將請求轉發到相應服務，最后將回應的結果回傳給客戶端，
實作
捕獲流量
實作自定義的WebHandler，
@Override
public Mono<Void> handle(final ServerWebExchange exchange) {
return new DefaultDiabloPluginChain(plugins).execute(exchange);
}實作一個插件職責鏈,呼叫不同的插件最侄訓傳回應結果，
private static class DefaultDiabloPluginChain implements DiabloPluginChain {
private int index;
private final List<DiabloPlugin> plugins;
DefaultDiabloPluginChain(final List<DiabloPlugin> plugins) {
this.plugins = plugins;
}
@Override
public Mono<Void> execute(final ServerWebExchange exchange) {
if (this.index < plugins.size()) {
DiabloPlugin plugin = plugins.get(this.index++);
try {
return plugin.execute(exchange, this);
} catch (Exception ex) {
log.error("DefaultDiabloPluginChain.execute, traceId: {}, uri: {}, error:{}", exchange.getAttribute(Constants.CLIENT_RESPONSE_TRACE_ID), exchange.getRequest().getURI().getPath(), Throwables.getStackTraceAsString(ex));
throw ex;
}
} else {
return Mono.empty(); // complete
}
}
}
分流插件實作
public class DividePlugin extends AbstractDiabloPlugin {
private final UpstreamCacheManager upstreamCacheManager;
private final WebClient webClient;
public DividePlugin(final LocalCacheManager localCacheManager, final UpstreamCacheManager upstreamCacheManager, final WebClient webClient) {
super(localCacheManager);
this.upstreamCacheManager = upstreamCacheManager;
this.webClient = webClient;
}
@Override
protected Mono<Void> doExecute(final ServerWebExchange exchange, final DiabloPluginChain chain, final SelectorData selector, final RuleData rule) {
final RequestDTO requestDTO = exchange.getAttribute(Constants.REQUESTDTO);
final String traceId = exchange.getAttribute(Constants.CLIENT_RESPONSE_TRACE_ID);
final DivideRuleHandle ruleHandle = GsonUtils.getInstance().fromJson(rule.getHandle(), DivideRuleHandle.class);
String ruleId = rule.getId();
final List<DivideUpstream> upstreamList = upstreamCacheManager.findUpstreamListByRuleId(ruleId);
if (CollectionUtils.isEmpty(upstreamList)) {
log.warn("DividePlugin.doExecute upstreamList is empty, traceId: {}, uri: {}, ruleName:{}", traceId, exchange.getRequest().getURI().getPath(), rule.getName());
exchange.getResponse().setStatusCode(HttpStatus.SERVICE_UNAVAILABLE);
return chain.execute(exchange);
}
final String ip = Objects.requireNonNull(exchange.getRequest().getRemoteAddress()).getAddress().getHostAddress();
DivideUpstream divideUpstream =
LoadBalanceUtils.selector(upstreamList, ruleHandle.getLoadBalance(), ip);
if (Objects.isNull(divideUpstream)) {
log.warn("DividePlugin.doExecute divideUpstream is empty, traceId: {}, uri: {}, loadBalance:{}, ruleName:{}, upstreamSize: {}", traceId, exchange.getRequest().getURI().getPath(), ruleHandle.getLoadBalance(), rule.getName(), upstreamList.size());
exchange.getResponse().setStatusCode(HttpStatus.SERVICE_UNAVAILABLE);
return chain.execute(exchange);
}
if (exchange.getAttributeOrDefault(Constants.GATEWAY_ALREADY_ROUTED_ATTR, false)) {
log.warn("DividePlugin.doExecute alread routed, traceId: {}, uri: {}, ruleName:{}", traceId, exchange.getRequest().getURI().getPath(), rule.getName());
exchange.getResponse().setStatusCode(HttpStatus.FORBIDDEN);
return chain.execute(exchange);
}
exchange.getAttributes().put(Constants.GATEWAY_ALREADY_ROUTED_ATTR, true);
exchange.getAttributes().put(Constants.GATEWAY_CONTEXT_UPSTREAM_HOST, divideUpstream.getUpstreamHost());
exchange.getAttributes().put(Constants.GATEWAY_CONTEXT_RULE_ID, ruleId);
HttpCommand command = new HttpCommand(exchange, chain,
requestDTO, divideUpstream, webClient, ruleHandle.getTimeout());
return command.doHttpInvoke();
}
public SelectorData filterSelector(final List<SelectorData> selectors, final ServerWebExchange exchange) {
return selectors.stream()
.filter(selector -> selector.getEnabled() && filterCustomSelector(selector, exchange))
.findFirst().orElse(null);
}
private Boolean filterCustomSelector(final SelectorData selector, final ServerWebExchange exchange) {
if (selector.getType() == SelectorTypeEnum.CUSTOM_FLOW.getCode()) {
List<ConditionData> conditionList = selector.getConditionList();
if (CollectionUtils.isEmpty(conditionList)) {
return false;
}
// 后臺初始定義為host且運算式為 =
if (MatchModeEnum.AND.getCode() == selector.getMatchMode()) {
ConditionData conditionData = https://www.cnblogs.com/ASPNET2008/p/conditionList.get(0);
return Objects.equals(exchange.getRequest().getHeaders().getFirst("Host"), conditionData.getParamValue().trim());
} else {
return conditionList.stream().anyMatch(c -> Objects.equals(exchange.getRequest().getHeaders().getFirst("Host"), c.getParamValue().trim()));
}
}
return true;
}
@Override
public String named() {
return PluginEnum.DIVIDE.getName();
}
@Override
public Boolean skip(final ServerWebExchange exchange) {
final RequestDTO body = exchange.getAttribute(Constants.REQUESTDTO);
return !Objects.equals(Objects.requireNonNull(body).getRpcType(), RpcTypeEnum.HTTP.getName());
}
@Override
public PluginTypeEnum pluginType() {
return PluginTypeEnum.FUNCTION;
}
@Override
public int getOrder() {
return PluginEnum.DIVIDE.getCode();
}
}
WebClient
將http請求轉發出去，主要依賴WebClient，它提供了回應式介面，具體的操作封裝在HttpCommand工具類中，核心代碼如下：
public Mono<Void> doHttpInvoke() {
URI uri = buildRealURL(divideUpstream, exchange);
traceId = exchange.getAttribute(Constants.CLIENT_RESPONSE_TRACE_ID);
if (uri == null) {
log.warn("HttpCommand.doNext real url is null, traceId: {}, uri: {}", traceId, exchange.getRequest().getURI().getPath());
exchange.getResponse().setStatusCode(HttpStatus.SERVICE_UNAVAILABLE);
return chain.execute(exchange).then(Mono.defer(() -> Mono.empty()));
}
// 后續有時間再加 todo 沒有清除掉
// IssRpcContext.commitParams(IssRpcContextParamKey.TRACE_ID, traceId);
if (requestDTO.getHttpMethod().equals(HttpMethodEnum.GET.getName())) {
return webClient.get().uri(f -> uri)
.headers(httpHeaders -> {
httpHeaders.add(Constants.TRACE_ID, traceId);
httpHeaders.addAll(exchange.getRequest().getHeaders());
})
.exchange()
// 默認doOnError例外會傳遞
.doOnError(e -> log.error("HttpCommand.doHttpInvoke Failed to webClient get execute, traceId: {}, uri: {}, cause:{}", traceId, uri, Throwables.getStackTraceAsString(e)))
.timeout(Duration.ofMillis(timeout))
.flatMap(this::doNext);
} else if (requestDTO.getHttpMethod().equals(HttpMethodEnum.POST.getName())) {
return webClient.post().uri(f -> uri)
.headers(httpHeaders -> {
httpHeaders.add(Constants.TRACE_ID, traceId);
httpHeaders.addAll(exchange.getRequest().getHeaders());
})
.contentType(buildMediaType())
.body(BodyInserters.fromDataBuffers(exchange.getRequest().getBody()))
.exchange()
.doOnError(e -> log.error("HttpCommand.doHttpInvoke Failed to webClient post execute, traceId: {}, uri: {}, cause:{}", traceId, uri, Throwables.getStackTraceAsString(e)))
.timeout(Duration.ofMillis(timeout))
.flatMap(this::doNext);
} else if (requestDTO.getHttpMethod().equals(HttpMethodEnum.OPTIONS.getName())) {
return webClient.options().uri(f -> uri)
.headers(httpHeaders -> {
httpHeaders.add(Constants.TRACE_ID, traceId);
httpHeaders.addAll(exchange.getRequest().getHeaders());
})
.exchange()
.doOnError(e -> log.error("HttpCommand.doHttpInvoke Failed to webClient options execute, traceId: {}, uri: {}, cause:{}", traceId, uri, Throwables.getStackTraceAsString(e)))
.timeout(Duration.ofMillis(timeout))
.flatMap(this::doNext);
} else if (requestDTO.getHttpMethod().equals(HttpMethodEnum.HEAD.getName())) {
return webClient.head().uri(f -> uri)
.headers(httpHeaders -> {
httpHeaders.add(Constants.TRACE_ID, traceId);
httpHeaders.addAll(exchange.getRequest().getHeaders());
})
.exchange()
.doOnError(e -> log.error("HttpCommand.doHttpInvoke Failed to webClient head execute, traceId: {}, uri: {}, cause:{}", traceId, uri, Throwables.getStackTraceAsString(e)))
.timeout(Duration.ofMillis(timeout))
.flatMap(this::doNext);
} else if (requestDTO.getHttpMethod().equals(HttpMethodEnum.PUT.getName())) {
return webClient.put().uri(f -> uri)
.headers(httpHeaders -> {
httpHeaders.add(Constants.TRACE_ID, traceId);
httpHeaders.addAll(exchange.getRequest().getHeaders());
})
.contentType(buildMediaType())
.body(BodyInserters.fromDataBuffers(exchange.getRequest().getBody()))
.exchange()
.doOnError(e -> log.error("HttpCommand.doHttpInvoke Failed to webClient put execute, traceId: {}, uri: {}, cause:{}", traceId, uri, Throwables.getStackTraceAsString(e)))
.timeout(Duration.ofMillis(timeout))
.flatMap(this::doNext);
} else if (requestDTO.getHttpMethod().equals(HttpMethodEnum.DELETE.getName())) {
return webClient.delete().uri(f -> uri)
.headers(httpHeaders -> {
httpHeaders.add(Constants.TRACE_ID, traceId);
httpHeaders.addAll(exchange.getRequest().getHeaders());
})
.exchange()
.doOnError(e -> log.error("HttpCommand.doHttpInvoke Failed to webClient delete execute, traceId: {}, uri: {}, cause:{}", traceId, uri, Throwables.getStackTraceAsString(e)))
.timeout(Duration.ofMillis(timeout))
.flatMap(this::doNext);
} else if (requestDTO.getHttpMethod().equals(HttpMethodEnum.PATCH.getName())) {
return webClient.patch().uri(f -> uri)
.headers(httpHeaders -> {
httpHeaders.add(Constants.TRACE_ID, traceId);
httpHeaders.addAll(exchange.getRequest().getHeaders());
})
.contentType(buildMediaType())
.body(BodyInserters.fromDataBuffers(exchange.getRequest().getBody()))
.exchange()
.doOnError(e -> log.error("HttpCommand.doHttpInvoke Failed to webClient patch execute, traceId: {}, uri: {}, cause:{}", traceId, uri, Throwables.getStackTraceAsString(e)))
.timeout(Duration.ofMillis(timeout))
.flatMap(this::doNext);
}
log.warn("HttpCommand doHttpInvoke Waring no match doHttpInvoke end, traceId: {}, httpMethod: {}, uri: {}", traceId, requestDTO.getHttpMethod(), uri.getPath());
return Mono.empty();
}
網關專案開源
以上內容基于業務網關的一個小模塊，詳細請看這里：diablo在這里
