一，前言

CocosCreator可以將開發的游戲發布到Android平臺，使用Android Studio可以構建和運行編譯目錄下(frameworks\runtime-src\proj.android-studio)的工程，但其生成的工程比較復雜，當我們需要從一個已有的Android專案啟動我們開發出的游戲時，整合的程序極其繁瑣，筆者整理了整合程序，供有需要的同志參考，

二，教程

1. CocosCreator構建發布

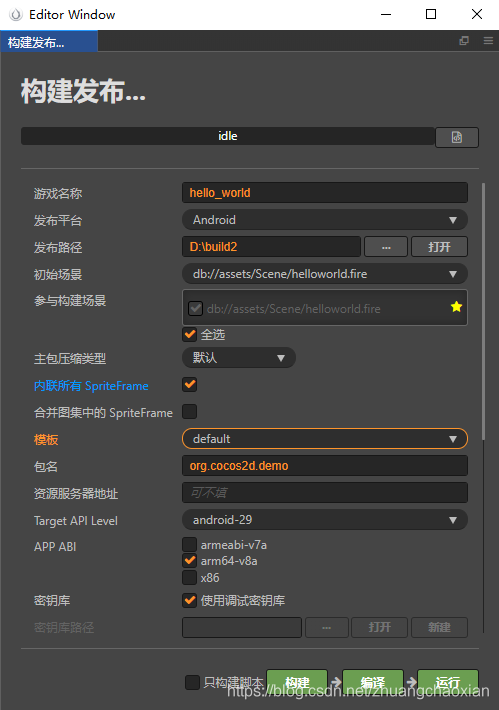

發布平臺選擇Android，模板選擇default，方便后續整合，APP ABI筆者選擇的是arm64-v8a，依次點擊下方的“構建”、“編譯“，編譯程序會比較慢，

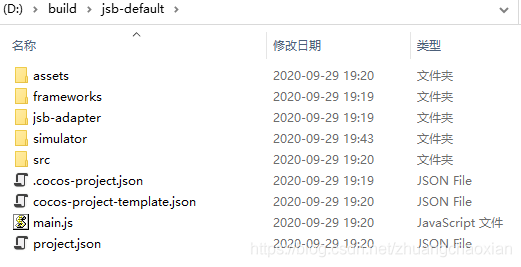

編譯成功后會在發布路徑生成jsb-default檔案夾，

2. 匯入libcocos2dx

將編譯路徑下的：frameworks\cocos2d-x 整個檔案夾整個拷貝到我們自己的安卓專案根目錄，然后在自己的安卓專案根目錄下的setting.gradle中添加如下代碼：

include ':libcocos2dx'
project(':libcocos2dx').projectDir = new File('cocos2d-x\\cocos\\platform\\android\\libcocos2dx')

3.修改gradle配置

將proj.android-studio\gradle.properties里的內容復制到我們自己的安卓專案對應的gradle.properties里：

# Android SDK version that will be used as the compile project
PROP_COMPILE_SDK_VERSION=29

# Android SDK version that will be used as the earliest version of android this application can run on
PROP_MIN_SDK_VERSION=16

# Android SDK version that will be used as the latest version of android this application has been tested on
PROP_TARGET_SDK_VERSION=29

# Android Build Tools version that will be used as the compile project
PROP_BUILD_TOOLS_VERSION=28.0.3

# List of CPU Archtexture to build that application with
# Available architextures (armeabi-v7a | arm64-v8a | x86)
# To build for multiple architexture, use the `:` between them
# Example - PROP_APP_ABI=arm64-v8a
PROP_APP_ABI=arm64-v8a

#這部分的內容注釋掉不用，有需要的可以自行探索
# fill in sign information for release mode
#RELEASE_STORE_FILE=D:/software/cocosDashboard/resources/.editors/Creator/2.4.2/resources/static/build-templates/native/debug.keystore
#RELEASE_STORE_PASSWORD=123456
#RELEASE_KEY_ALIAS=debug_keystore
#RELEASE_KEY_PASSWORD=123456

android.injected.testOnly=false

然后sync

將proj.android-studio\app\build.gradle里的內容復制到我們安卓目錄下的app\build.gradle

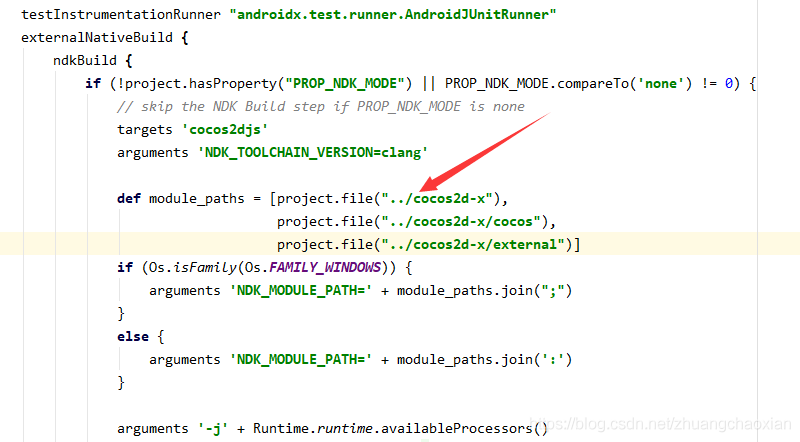

• externalNativeBuild


  externalNativeBuild這里要修改路徑

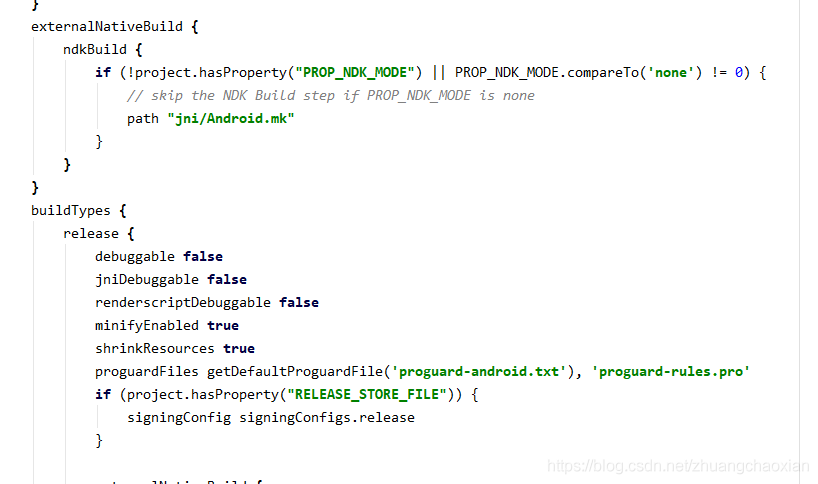

• 下面的externalNativeBuild和buildTypes照常復制過去


• android.applicationVariants.all 需要修改一下，并且修改sourceDir的路徑：

android.applicationVariants.all { variant ->
    // delete previous files first
    delete "${buildDir}/intermediates/merged_assets/${variant.dirName}"

    variant.mergeAssets.doLast {
        def sourceDir = "D:/build/jsb-default"//這里改成你的編譯路徑

// 以下幾行是舊的代碼，在新版Gradle下有問題
//        copy {
//            from "${sourceDir}/res"
//            into "${outputDir}/res"
//        }
//
//        copy {
//            from "${sourceDir}/src"
//            into "${outputDir}/src"
//        }
//
//        copy {
//            from "${sourceDir}/jsb-adapter"
//            into "${outputDir}/jsb-adapter"
//        }

// 新的拷貝檔案的方法，在新版Gradle可用
        copy{
            from "${sourceDir}"
            include "assets/**"
            include "res/**"
            include "src/**"
            include "jsb-adapter/**"

            into outputDir
        }

        copy {
            from "${sourceDir}/main.js"
            from "${sourceDir}/project.json"
            into outputDir
        }
    }
}

android.applicationVariants.all是將我們的游戲資源，包括代碼和圖片資源都復制到編譯輸出目錄，如果你的游戲啟動后資源沒加載出來，可能就是這里的路徑沒有配置好，

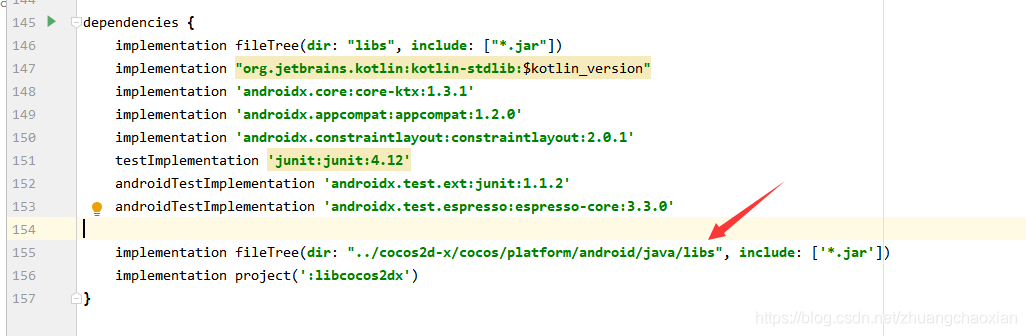

• 在dependencies里加入下面兩行匯入libcocos2dx（在這里是為專案匯入libcocos2dx，名字可以在第二步修改）：


此處貼一下我復制好后的app\build.gradle

import org.apache.tools.ant.taskdefs.condition.Os

apply plugin: 'com.android.application'
apply plugin: 'kotlin-android'
apply plugin: 'kotlin-android-extensions'

android {
    compileSdkVersion 29
    buildToolsVersion "28.0.3"

    defaultConfig {
        applicationId "com.example.testmw"
        minSdkVersion 23
        targetSdkVersion 29
        versionCode 1
        versionName "1.0"
        multiDexEnabled true
        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"

        externalNativeBuild {
            ndkBuild {
                if (!project.hasProperty("PROP_NDK_MODE") || PROP_NDK_MODE.compareTo('none') != 0) {
                    // skip the NDK Build step if PROP_NDK_MODE is none
                    targets 'cocos2djs'
                    arguments 'NDK_TOOLCHAIN_VERSION=clang'

                    def module_paths = [project.file("../cocos2d-x"),
                                        project.file("../cocos2d-x/cocos"),
                                        project.file("../cocos2d-x/external")]
                    if (Os.isFamily(Os.FAMILY_WINDOWS)) {
                        arguments 'NDK_MODULE_PATH=' + module_paths.join(";")
                    }
                    else {
                        arguments 'NDK_MODULE_PATH=' + module_paths.join(':')
                    }

                    arguments '-j' + Runtime.runtime.availableProcessors()
                    abiFilters.addAll(PROP_APP_ABI.split(':').collect{it as String})
                }
            }
        }


    }
    externalNativeBuild {
        ndkBuild {
            if (!project.hasProperty("PROP_NDK_MODE") || PROP_NDK_MODE.compareTo('none') != 0) {
                // skip the NDK Build step if PROP_NDK_MODE is none
                path "jni/Android.mk"
            }
        }
    }

    buildTypes {
        release {
            debuggable false
            jniDebuggable false
            renderscriptDebuggable false
            minifyEnabled true
            shrinkResources true
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
            if (project.hasProperty("RELEASE_STORE_FILE")) {
                signingConfig signingConfigs.release
            }

            externalNativeBuild {
                ndkBuild {
                    arguments 'NDK_DEBUG=0'
                }
            }
        }

        debug {
            debuggable true
            jniDebuggable true
            renderscriptDebuggable true
            externalNativeBuild {
                ndkBuild {
                    arguments 'NDK_DEBUG=1'
                }
            }
        }
    }

    compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }
    kotlinOptions {
        jvmTarget = '1.8'
    }

    sourceSets {
        main { jniLibs.srcDirs = ['libs'] }
    }
    packagingOptions {
        exclude 'META-INF/proguard/coroutines.pro'
        exclude 'META-INF/proguard/okhttp3.pro'
    }
}

android.applicationVariants.all { variant ->
    // delete previous files first
    delete "${buildDir}/intermediates/merged_assets/${variant.dirName}"

    variant.mergeAssets.doLast {
        def sourceDir = "D:/build/jsb-default"
//
//        copy {
//            from "${sourceDir}/assets"
//            into "${outputDir}/assets"
//        }
//
//        copy {
//            from "${sourceDir}/src"
//            into "${outputDir}/src"
//        }
//
//        copy {
//            from "${sourceDir}/jsb-adapter"
//            into "${outputDir}/jsb-adapter"
//        }
//
//        copy {
//            from "${sourceDir}/main.js"
//            from "${sourceDir}/project.json"
//            into outputDir
//        }

// 新的拷貝檔案的方法，在新版Gradle可用
        copy{
            from "${sourceDir}"
            include "assets/**"
            include "res/**"
            include "src/**"
            include "jsb-adapter/**"

            into outputDir
        }

        copy {
            from "${sourceDir}/main.js"
            from "${sourceDir}/project.json"
            into outputDir
        }
    }
}

dependencies {
    implementation fileTree(dir: "libs", include: ["*.jar"])
    implementation "org.jetbrains.kotlin:kotlin-stdlib:$kotlin_version"
    ......
    ......

    implementation fileTree(dir: "../cocos2d-x/cocos/platform/android/java/libs", include: ['*.jar'])
    implementation project(':libcocos2dx')
}

3.復制jni檔案夾

復制proj.android-studio/app/jni檔案夾到自己安卓目錄的app檔案夾里

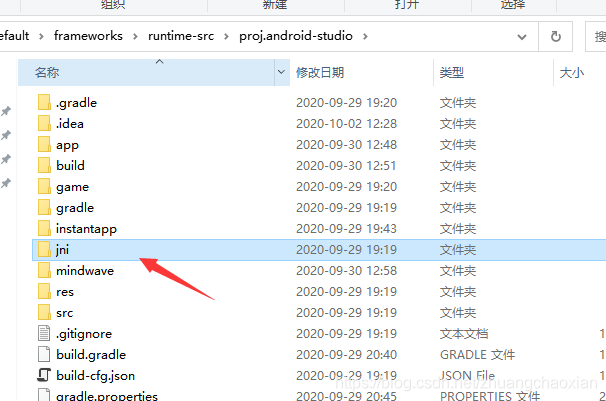

再復制proj.android-studio\jni整個檔案夾到自己的專案根目錄里

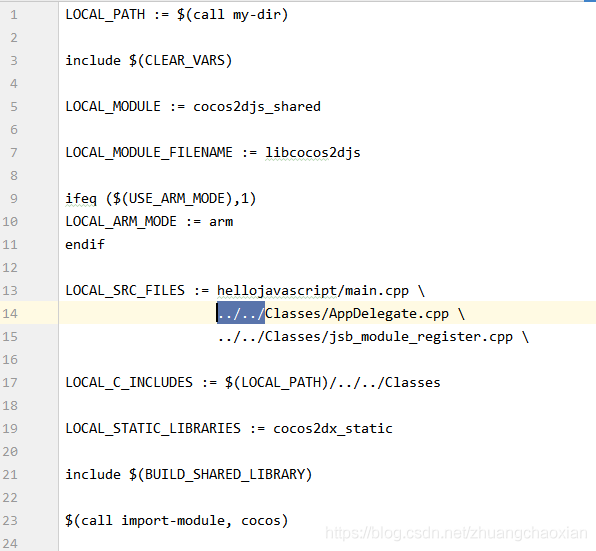

從jsb-default\frameworks\runtime-src里把Classes檔案夾拷貝到專案根目錄的jni檔案夾里，因為jni檔案夾里的CocosAndroid.mk定義了Classes的路徑(LOCAL_C_INCLUDES和LOCAL_SRC_FILES)，我們需要在這個檔案里重新修改為我們剛剛Classes所在的相對路徑，（或者不復制Classes檔案夾里的內容，使用絕對路徑）:
修改前：

修改后：

這一步后，我們自己的專案根目錄里多了個jni檔案夾：

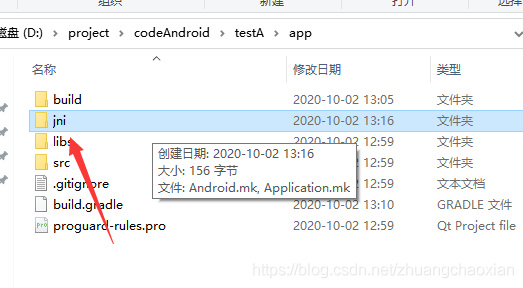

app目錄下多了個jni檔案夾

4. 復制Activity

修改版本

復制路徑proj.android-studio\src\org\cocos2dx\javascript下的檔案到專案里，修改相關的import資訊

將proj.android-studio\app\AndroidManifest.xml里對Activity的注冊和meta-data復制到我們自己的AndroidManifest.xml里

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    package="com.example.testapp1002">

    <uses-feature android:glEsVersion="0x00020000" />

    <uses-permission android:name="android.permission.INTERNET"/>
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE"/>

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <meta-data android:name="android.app.lib_name"
            android:value="cocos2djs" />
        <activity
            android:name=".AppActivity"
            android:screenOrientation="sensorLandscape"
            android:configChanges="orientation|keyboardHidden|screenSize|screenLayout"
            android:label="@string/app_name"
            android:theme="@android:style/Theme.NoTitleBar.Fullscreen"
            android:launchMode="singleTask"
            android:taskAffinity="" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity android:name=".MainActivity">
        </activity>
    </application>

</manifest>

5.編譯運行

上面的4步完成后可以開始在Android Studio里編譯運行，
然后會發現main.cpp報錯，這是因為AppDelegate.h檔案的include路徑錯誤，需要在/jni/hellojavascript/main.cpp原始碼里修改一下

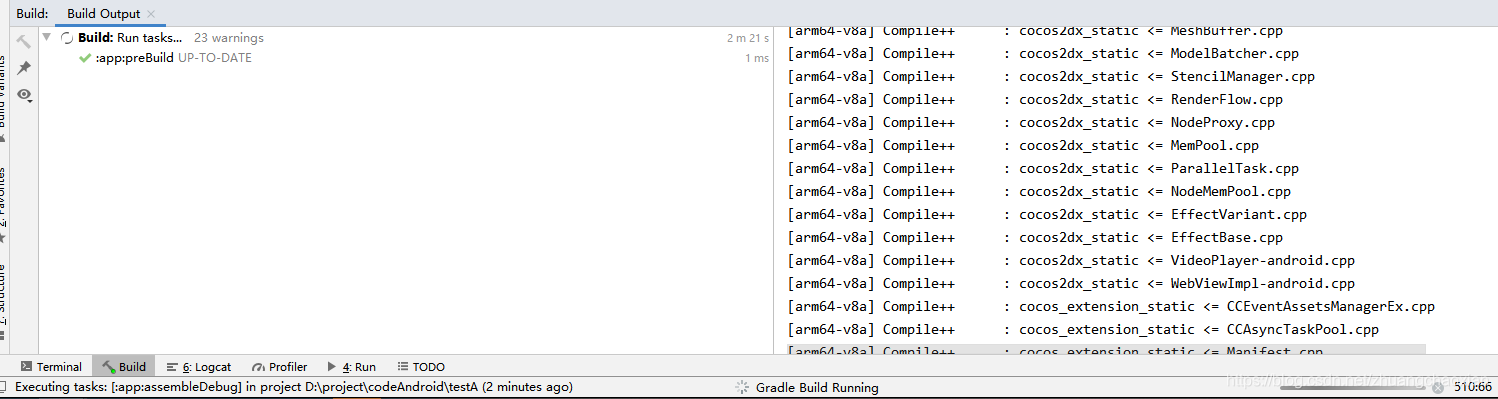

第一次編譯會比較久

6.出現的bug

當完成以上5個步驟后，我們可以在自己的專案里像使用Activity一樣啟動我們的游戲了，

Intent(that, AppActivity::class.java).apply { startActivity(this) }

但是可能會在打開這個Activity的時候閃退，我自己查看的日志顯示的原因是Cocos2dxHelper.registerBatteryLevelReceiver(this);這一行代碼出錯了，找不到靜態方法，我選擇將這個和BatteryLevelReceiver相關的代碼注釋掉，

即修改路徑cocos2d-x\cocos\platform\android\java\src\org\cocos2dx\lib下Cocos2dxActivity.java
注釋以下兩行代碼：

 Cocos2dxHelper.registerBatteryLevelReceiver(this);
 Cocos2dxHelper.unregisterBatteryLevelReceiver(this);;
