Hyperledger-Explorer實驗教程

Hyperledger-Explorer實驗教程

一、簡介

Hyperledger Explorer是一個簡單，功能強大，易于使用，高度可維護的開源瀏覽器，用于查看底層區塊鏈網路上的活動，

二、本機環境

系統：Ubuntu 16.04
docker： 19.03.12
docker-compose：1.26.2
node.js: v12.16.0
npm: 6.13.4
PostgreSQL:9.5.21

三、專案代碼地址

https://github.com/hyperledger/blockchain-explorer

四、安裝

1、安裝PostgreSQL方法

https://www.jianshu.com/p/40e35ff27e41

2、安裝node方法

安裝nvm

$ sudo apt update
$ curl -o- https://raw.githubusercontent.com/creationix/nvm/v0.33.10/install.sh | bash

$ export NVM_DIR="$HOME/.nvm"
$ [ -s "$NVM_DIR/nvm.sh" ] && \. "$NVM_DIR/nvm.sh"

安裝node

nvm install v12.16.0

npm換源

npm config set registry https://registry.npm.taobao.org   #換成淘寶的源

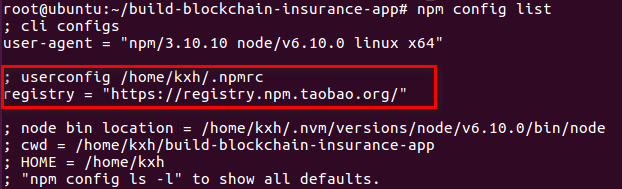

查看換源結果

npm config list

3、安裝docker以及docker-compose

安裝docker（^v1.13)

curl -sSL https://get.daocloud.io/docker | sh

安裝docker-compose(^1.8)

curl -L https://get.daocloud.io/docker/compose/releases/download/1.26.2/docker-compose-`uname -s`-`uname -m` > /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose

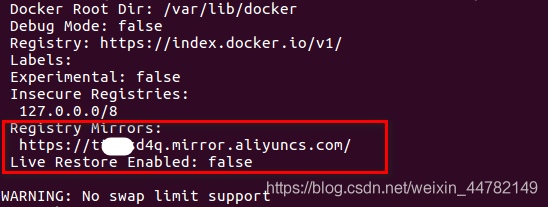

配置阿里云鏡像加速器

sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://ttbxsd4q.mirror.aliyuncs.com"]
}
EOF
sudo systemctl daemon-reload
sudo systemctl restart docker

4、安裝git

apt install git

5、安裝go

下載指定版本go

https://golang.google.cn/dl/go1.14.7.linux-amd64.tar.gz
#https://golang.google.cn/dl/

解壓縮

tar -C /usr/local -xzf go1.14.7.linux-amd64.tar.gz

配置環境變數

vim /etc/profile

加入以下內容

export PATH=$PATH:/usr/local/go/bin
export GOPATH=$HOME/go
export GOROOT=/usr/local/go

配置go mod

vim /etc/profile

加入以下內容

export GO111MODULE=on
export GOPROXY=https://mirrors.aliyun.com/goproxy/

五、操作步驟

0x01啟動測驗網路

1、下載fabric-samples

mkdir -p go/src/github.com/hyperledger
git clone -b v1.4.4 https://github.com/hyperledger/fabric-samples.git

2、安裝fabric

https://github.com/hyperledger/fabric/releases/download/v1.4.4/hyperledger-fabric-linux-amd64-1.4.4.tar.gz

(下載到本地解壓縮后放到hyperledger目錄下)

export PATH/home/kxh/go/src/github.com/hyperledger:$PATH   #配置環境變數

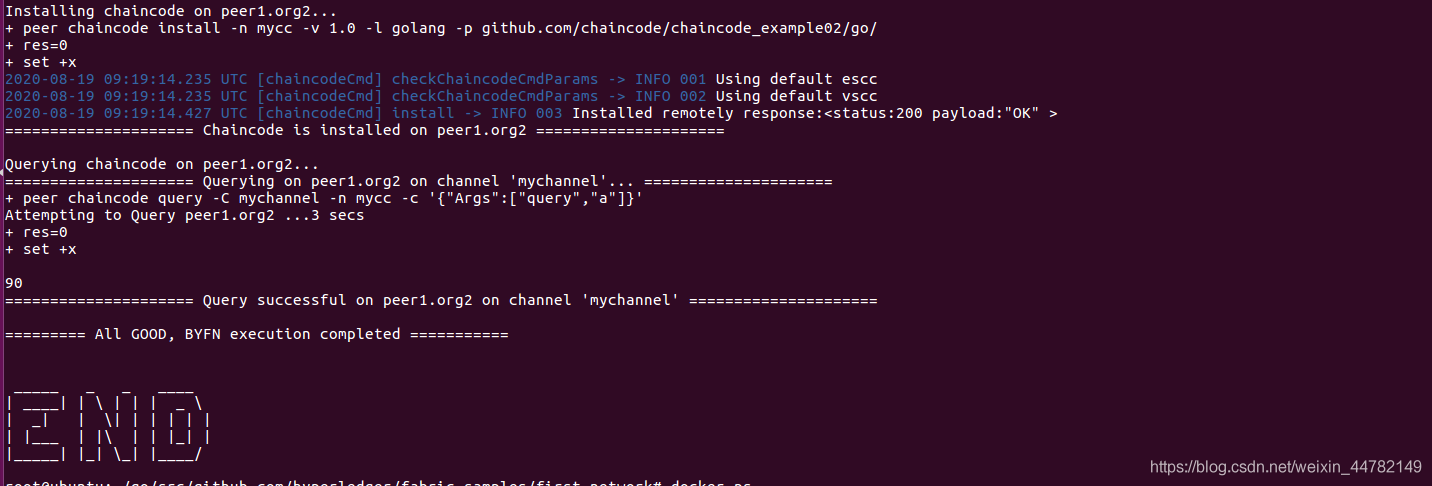

3、啟動測驗網路

cd fabric-samples/first-network
 ./byfn.sh -m generate     #生成證書和秘鑰
 ./byfn.sh -m up      # 啟動網路

0x02下載 blockchain-explorer

git clone -b v1.1.1 https://github.com/hyperledger/blockchain-explorer.git

0x03 資料庫設定

cd blockchain-explorer/app

1、修改 app/explorer/config.json 更新資料庫設定

"postgreSQL": {
    "host": "127.0.0.1",
    "port": "5432",          #可事先查看該埠有沒有被占用，如果被占用換一個可用埠
    "database": "fabricexplorer",
    "username": "hppoc",
    "passwd": "password"
}

0x04更新fabric網路連接組態檔

1、修改app/platform/fabric/config.json定義fabric網路連接組態檔

{
    "network-configs": {
        "first-network": {
            "name": "firstnetwork",
            "profile": "./connection-profile/first-network.json",    #定義了連接組態檔的地址，十分重要
            "enableAuthentication": false
        }
    },
    "license": "Apache-2.0"
}

2、修改first-network.json

{

	"organizations": {
		"Org1MSP": {
			"mspid": "Org1MSP",
			"adminPrivateKey": {
				"path": "/home/kxh/go/src/github.com/hyperledger/fabric-samples/first-network/crypto-config/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/keystore/8c800cc6a81e81162cabb954da90f3e71d2d9d41096fe0827ede935ca6f694c6_sk"
			},
			"peers": ["peer0.org1.example.com"],
			"signedCert": {
				"path": "/home/kxh/go/src/github.com/hyperledger/fabric-samples/first-network/crypto-config/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/signcerts/Admin@org1.example.com-cert.pem"
			}
		}
	},
	"peers": {
		"peer0.org1.example.com": {
			"tlsCACerts": {
				"path": "/home/kxh/go/src/github.com/hyperledger/fabric-samples/first-network/crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt"
			},
			"url": "grpcs://localhost:7051",
			"grpcOptions": {
				"ssl-target-name-override": "peer0.org1.example.com"
			}
		}
	},
	"certificateAuthorities": {
		"ca0": {
			"url": "https://localhost:7054",
			"httpOptions": {
				"verify": false
			},
			"tlsCACerts": {
				"path": "/home/kxh/go/src/github.com/hyperledger/fabric-samples/first-network/crypto-config/peerOrganizations/org1.example.com/ca/ca.org1.example.com-cert.pem"
			},
			"caName": "ca0-org1"
		}
	}
}

該檔案需要根據本機具體環境修改其中的 path值，該檔案定義了連接fabric網路的資訊

0x05創建資料庫

cd blockchain-explorer/app/persistence/fabric/postgreSQL/db
node processenv.js
sudo -u postgres ./createdb.sh  # 執行該命令之前，先將第六行的node processenv.js命令注釋掉

1、連接 PostgreSQL資料庫，運行資料庫命令

$ sudo -u postgres psql -c '\l'
                                List of databases
      Name      |  Owner   | Encoding | Collate |  Ctype  |   Access privileges
----------------+----------+----------+---------+---------+-----------------------
 fabricexplorer | hppoc    | UTF8     | C.UTF-8 | C.UTF-8 |
 postgres       | postgres | UTF8     | C.UTF-8 | C.UTF-8 |
 template0      | postgres | UTF8     | C.UTF-8 | C.UTF-8 | =c/postgres          +
                |          |          |         |         | postgres=CTc/postgres
 template1      | postgres | UTF8     | C.UTF-8 | C.UTF-8 | =c/postgres          +
                |          |          |         |         | postgres=CTc/postgres
(4 rows)

$ sudo -u postgres psql fabricexplorer -c '\d'
                   List of relations
 Schema |           Name            |   Type   | Owner
--------+---------------------------+----------+-------
 public | blocks                    | table    | hppoc
 public | blocks_id_seq             | sequence | hppoc
 public | chaincodes                | table    | hppoc
 public | chaincodes_id_seq         | sequence | hppoc
 public | channel                   | table    | hppoc
 public | channel_id_seq            | sequence | hppoc
 public | orderer                   | table    | hppoc
 public | orderer_id_seq            | sequence | hppoc
 public | peer                      | table    | hppoc
 public | peer_id_seq               | sequence | hppoc
 public | peer_ref_chaincode        | table    | hppoc
 public | peer_ref_chaincode_id_seq | sequence | hppoc
 public | peer_ref_channel          | table    | hppoc
 public | peer_ref_channel_id_seq   | sequence | hppoc
 public | transactions              | table    | hppoc
 public | transactions_id_seq       | sequence | hppoc
 public | write_lock                | table    | hppoc
 public | write_lock_write_lock_seq | sequence | hppoc

0x06 構建Hyperledger Explorer

./main.sh install # 在blockchain-explorer目錄下執行，改腳本檔案負責安裝依賴，運行test、構建專案

六、啟動網路

./start.sh         # 在blockchain-explorer目錄下執行

打開瀏覽器，輸入：http://localhost:8080 進入區塊鏈瀏覽器頁面

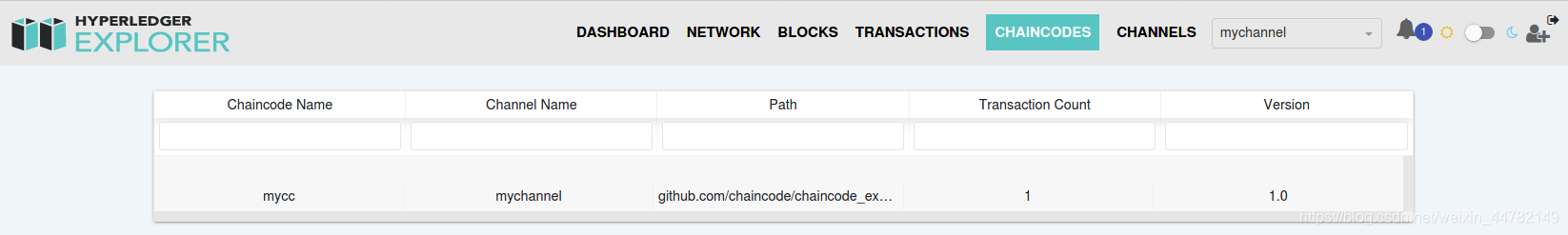

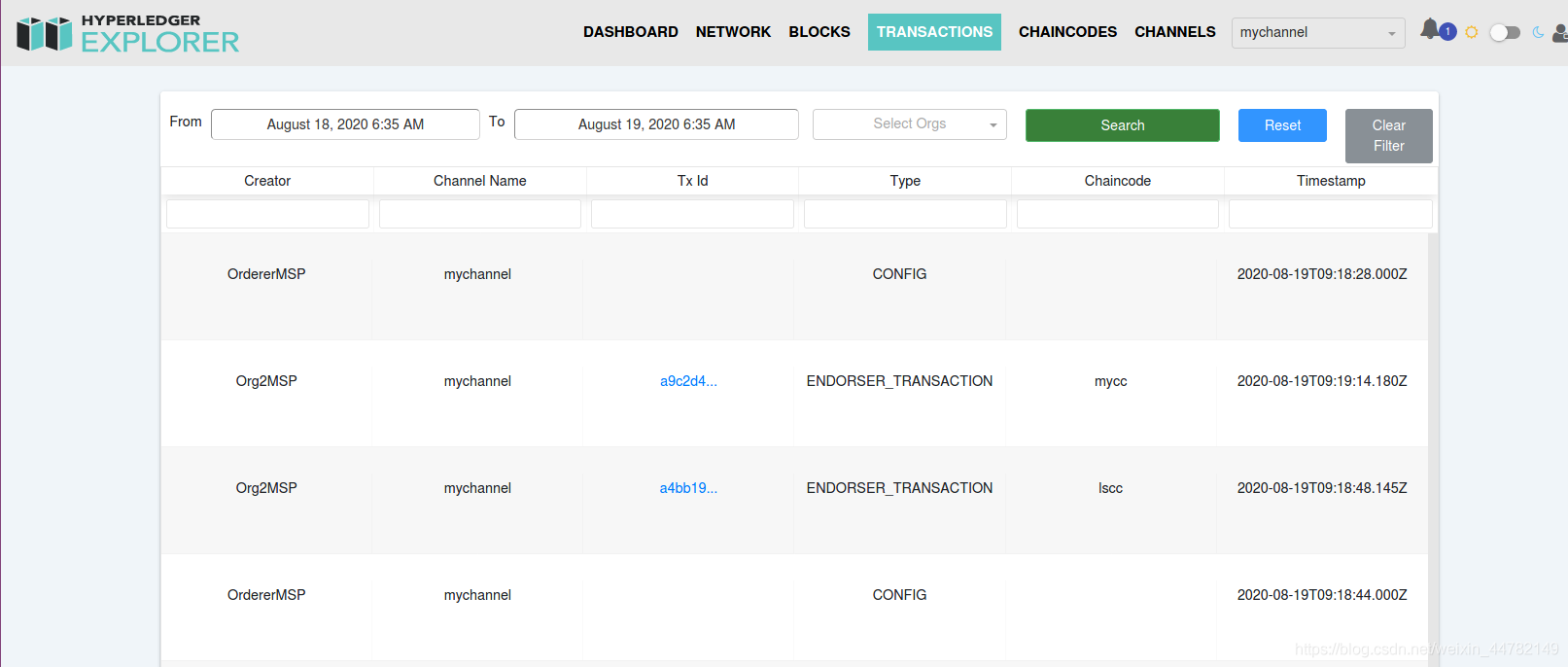

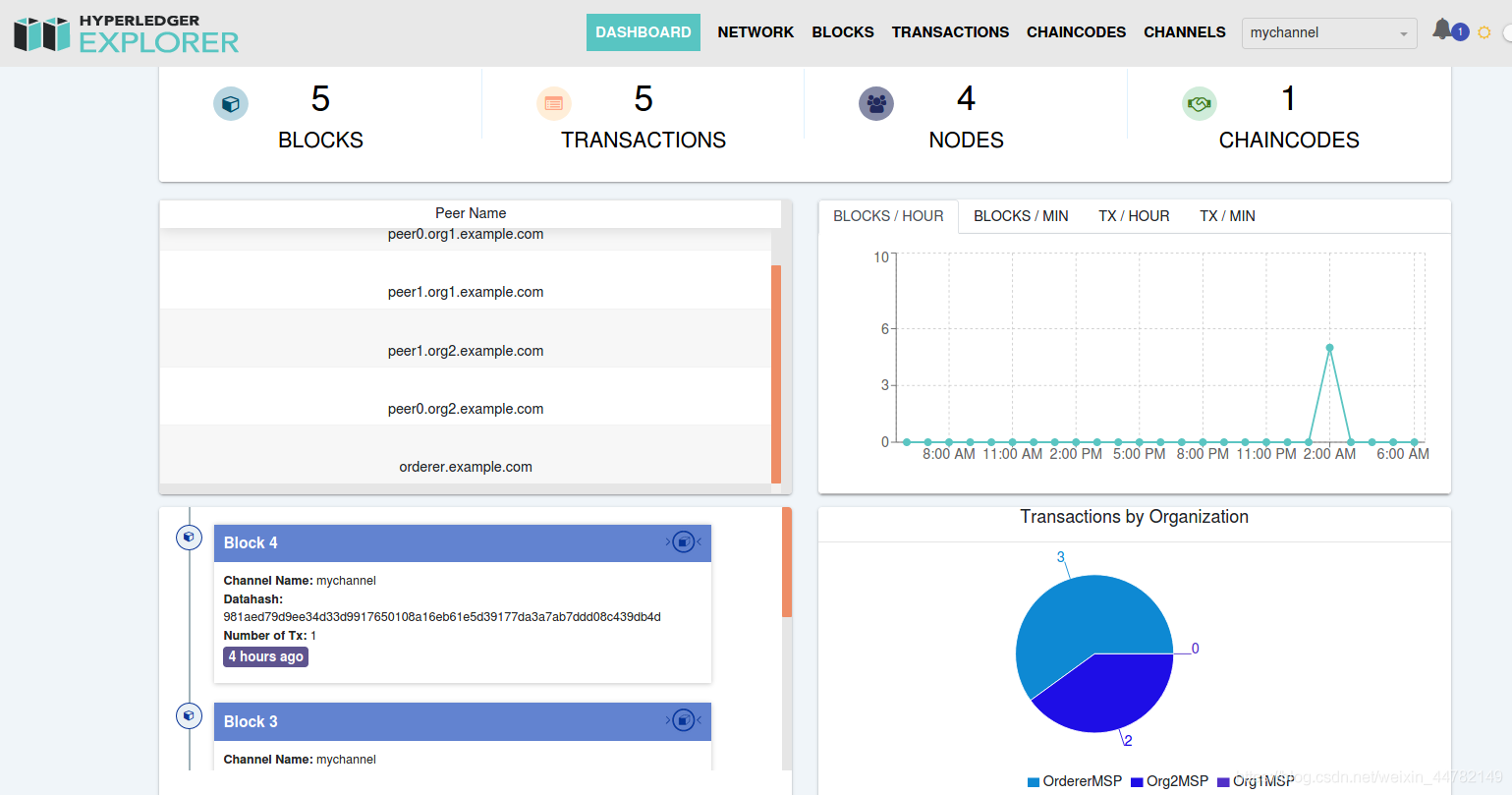

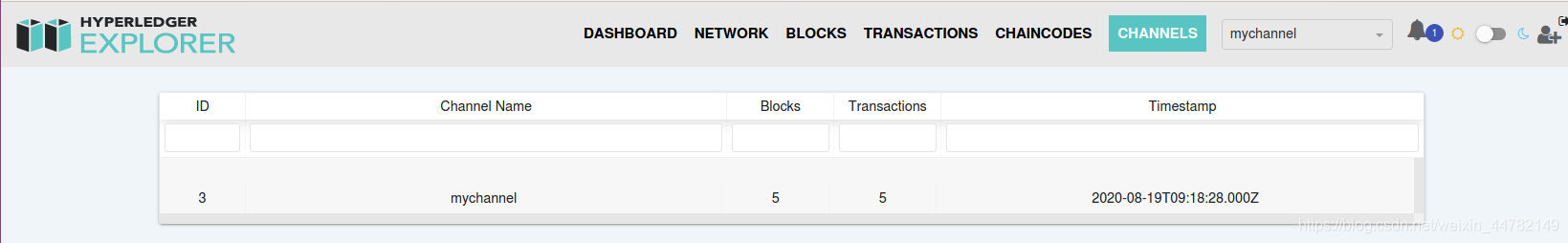

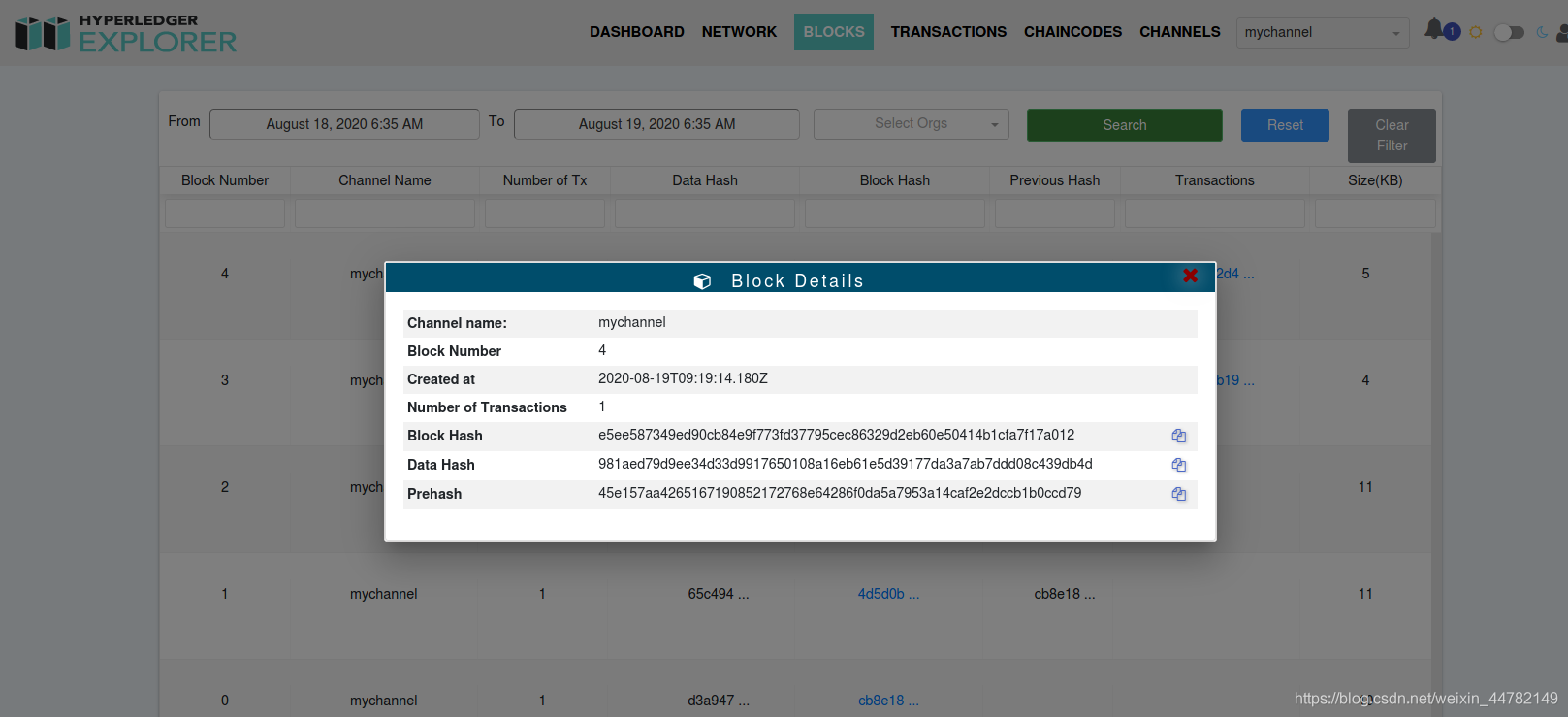

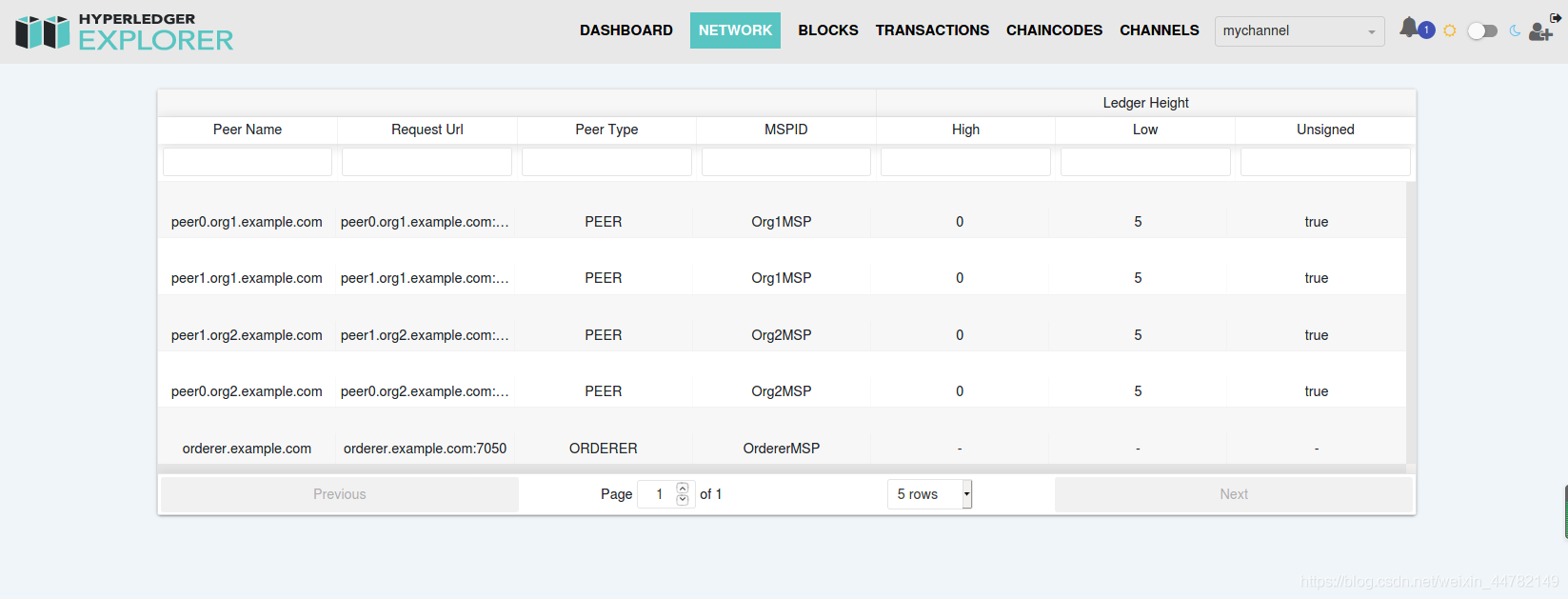

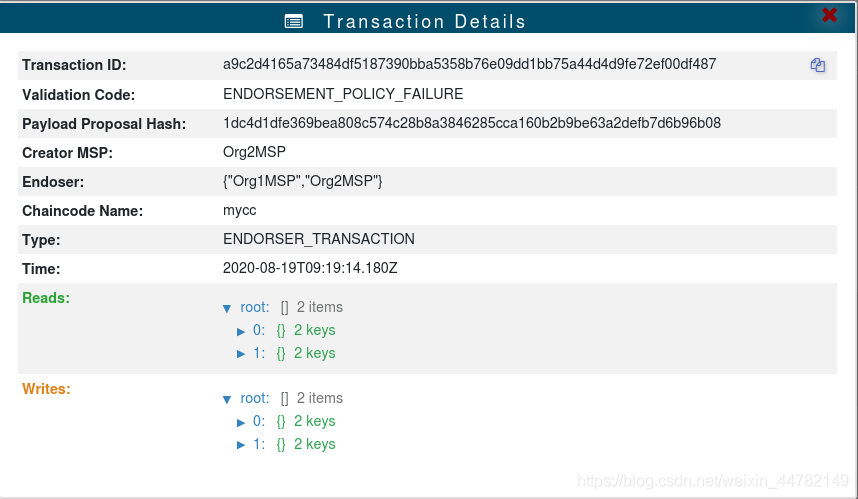

七、效果演示
