【HTML+CSS】完全脫離js實作倒計時效果-有解無憂

前言：這是一個非科班剛自學一個月前端的小白第一篇博客，當時在嘗試仿寫一個jd的靜態頁面時看到其主頁有個限時秒殺的倒計時，但是我還沒學到JS，于是強行用CSS實作了倒計時（600+行），看官們看個笑話就好，

一、實作效果

二、實作原理

看到上圖效果應該很容易猜到原理，純CSS的話使用輪播，通過改變圖片的margin-top，再加上億點點影片，億點點數字圖片，就實作了，

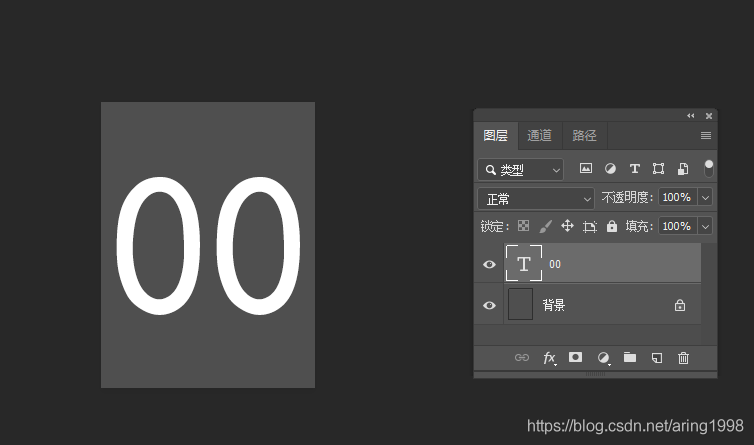

使用PS建數字圖片：

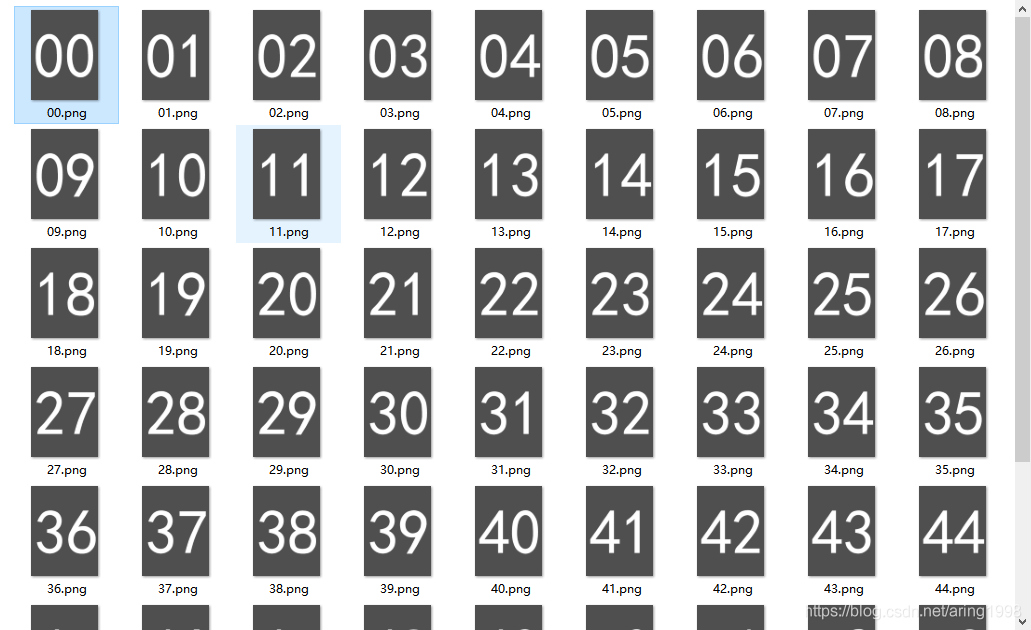

然后...

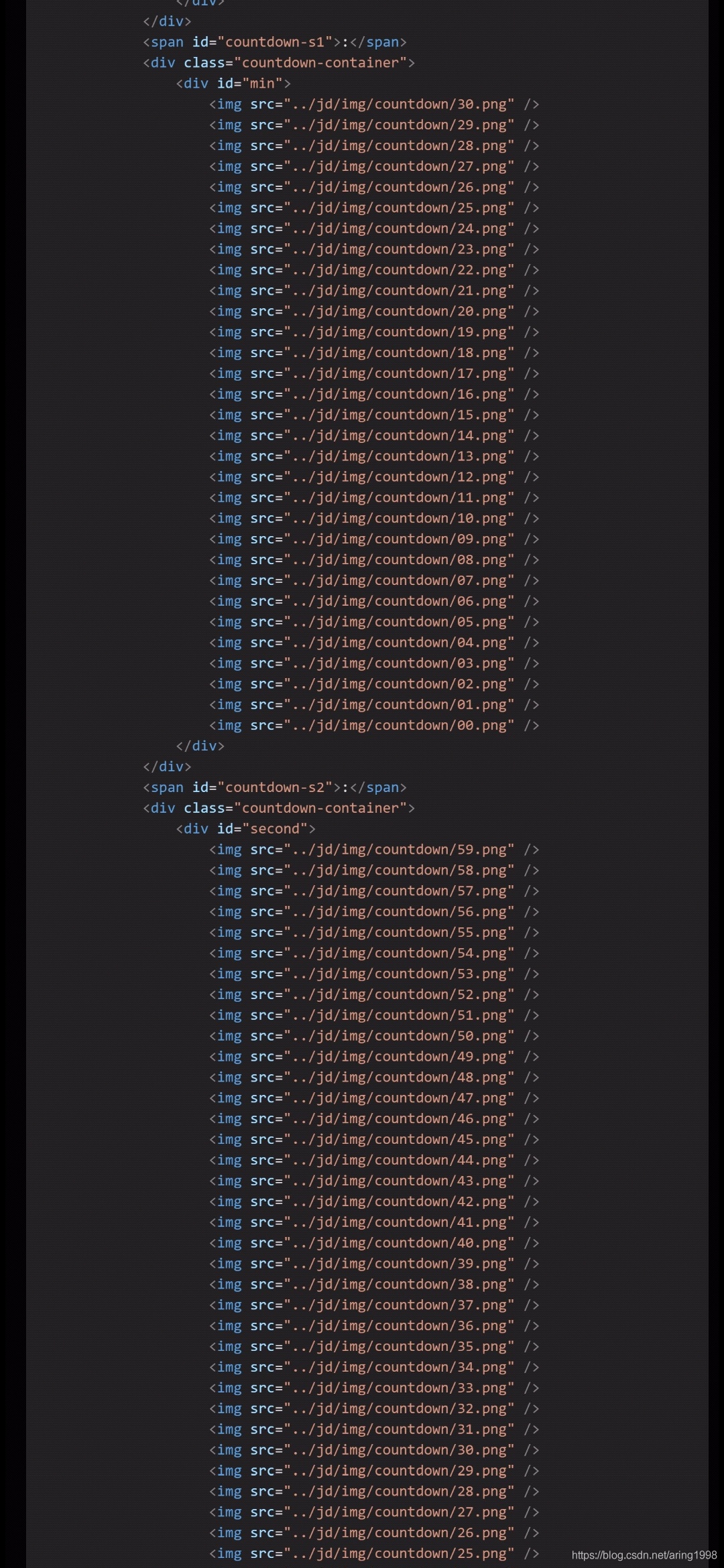

再然后架結構...

三、實作細節

1.純CSS輪播論壇里有很多這里就不細講啦！

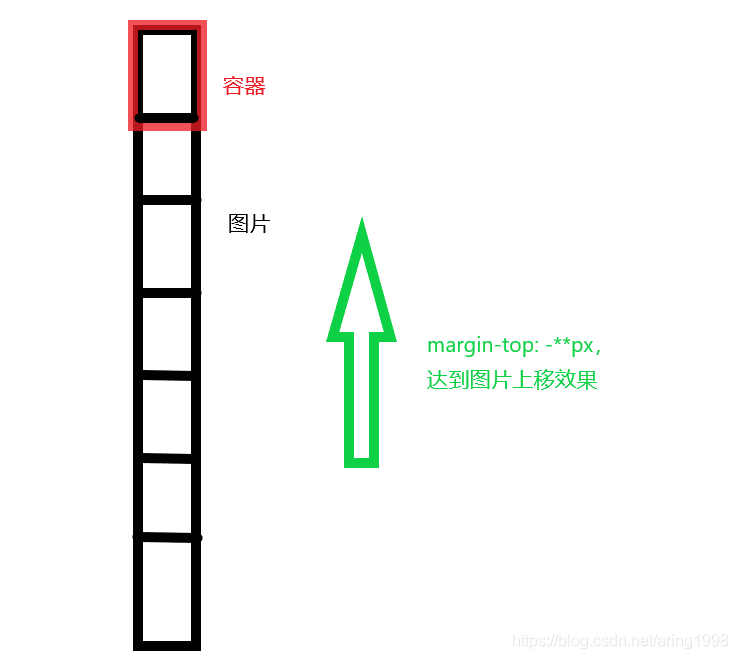

總之就是利用輪播的效果，讓圖片由下至上的影片實作

2.倒序擺放圖片，因為倒計時間是由大到小的~~（廢話）~~

<div class="countdown-container">
    <div id="countdown-container-min">
        <img src="../jd/img/countdown/30.png" />
        <img src="../jd/img/countdown/29.png" />
        <img src="../jd/img/countdown/28.png" />
    </div>
</div>

3.給圖片設定一個邊框，平移時效果更佳

假設使用float: top 圖片上下之間會出現一些間隔，但使用float: left 同時使用容器限制，使每一張圖片換行，不會出現任何間隔

.countdown-container img{
    box-sizing: border-box;
    width: 25px;
    height: 40px;
    border: gray 1px solid;
    float: left;
}

4.小時和分鐘的數字切換不能一股腦讓他勻速切，得在中間加上停滯，最后用0.1%的時間讓其完成切換

@keyframes min{
    0%,
    3.13%,
    3.23% {
        margin-top: 0;
    }

    3.23%,
    6.36%,
    6.46% {
        margin-top: -40px;
    }

5.時、分、秒容器的高度=圖片數量*圖片高度，影片的總時長= （圖片數量+1) * 60(h/m/s) ，記得轉換成秒哈

使用ease-out屬性值，使切圖時更加絲滑~

#countdown-container-min{
    height: 2400px;
    animation: min 1860s ease-out infinite;
}

四、原始碼奉上

1.結構部分(HTML)

<!DOCTYPE html>
<html lang="zh">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>倒計時</title>
    <link rel="stylesheet" href="./css/countdown.css">
    <style>
        html{
            background-color: black;
        }
    </style>
</head>
<body>
    <div class="countdown">
        <div class="countdown-container">
            <div id="countdown-container-hour">
                <img src="../jd/img/countdown/00.png">
            </div>
        </div>
        <span id="countdown-s1">:</span>
        <div class="countdown-container">
            <div id="countdown-container-min">
                <img src="../jd/img/countdown/30.png" />
                <img src="../jd/img/countdown/29.png" />
                <img src="../jd/img/countdown/28.png" />
                <img src="../jd/img/countdown/27.png" />
                <img src="../jd/img/countdown/26.png" />
                <img src="../jd/img/countdown/25.png" />
                <img src="../jd/img/countdown/24.png" />
                <img src="../jd/img/countdown/23.png" />
                <img src="../jd/img/countdown/22.png" />
                <img src="../jd/img/countdown/21.png" />
                <img src="../jd/img/countdown/20.png" />
                <img src="../jd/img/countdown/19.png" />
                <img src="../jd/img/countdown/18.png" />
                <img src="../jd/img/countdown/17.png" />
                <img src="../jd/img/countdown/16.png" />
                <img src="../jd/img/countdown/15.png" />
                <img src="../jd/img/countdown/14.png" />
                <img src="../jd/img/countdown/13.png" />
                <img src="../jd/img/countdown/12.png" />
                <img src="../jd/img/countdown/11.png" />
                <img src="../jd/img/countdown/10.png" />
                <img src="../jd/img/countdown/09.png" />
                <img src="../jd/img/countdown/08.png" />
                <img src="../jd/img/countdown/07.png" />
                <img src="../jd/img/countdown/06.png" />
                <img src="../jd/img/countdown/05.png" />
                <img src="../jd/img/countdown/04.png" />
                <img src="../jd/img/countdown/03.png" />
                <img src="../jd/img/countdown/02.png" />
                <img src="../jd/img/countdown/01.png" />
                <img src="../jd/img/countdown/00.png" />
            </div>
        </div>
        <span id="countdown-s2">:</span>
        <div class="countdown-container">
            <div id="countdown-container-second">
                <img src="../jd/img/countdown/59.png" />
                <img src="../jd/img/countdown/58.png" />
                <img src="../jd/img/countdown/57.png" />
                <img src="../jd/img/countdown/56.png" />
                <img src="../jd/img/countdown/55.png" />
                <img src="../jd/img/countdown/54.png" />
                <img src="../jd/img/countdown/53.png" />
                <img src="../jd/img/countdown/52.png" />
                <img src="../jd/img/countdown/51.png" />
                <img src="../jd/img/countdown/50.png" />
                <img src="../jd/img/countdown/49.png" />
                <img src="../jd/img/countdown/48.png" />
                <img src="../jd/img/countdown/47.png" />
                <img src="../jd/img/countdown/46.png" />
                <img src="../jd/img/countdown/45.png" />
                <img src="../jd/img/countdown/44.png" />
                <img src="../jd/img/countdown/43.png" />
                <img src="../jd/img/countdown/42.png" />
                <img src="../jd/img/countdown/41.png" />
                <img src="../jd/img/countdown/40.png" />
                <img src="../jd/img/countdown/39.png" />
                <img src="../jd/img/countdown/38.png" />
                <img src="../jd/img/countdown/37.png" />
                <img src="../jd/img/countdown/36.png" />
                <img src="../jd/img/countdown/35.png" />
                <img src="../jd/img/countdown/34.png" />
                <img src="../jd/img/countdown/33.png" />
                <img src="../jd/img/countdown/32.png" />
                <img src="../jd/img/countdown/31.png" />
                <img src="../jd/img/countdown/30.png" />
                <img src="../jd/img/countdown/29.png" />
                <img src="../jd/img/countdown/28.png" />
                <img src="../jd/img/countdown/27.png" />
                <img src="../jd/img/countdown/26.png" />
                <img src="../jd/img/countdown/25.png" />
                <img src="../jd/img/countdown/24.png" />
                <img src="../jd/img/countdown/23.png" />
                <img src="../jd/img/countdown/22.png" />
                <img src="../jd/img/countdown/21.png" />
                <img src="../jd/img/countdown/20.png" />
                <img src="../jd/img/countdown/19.png" />
                <img src="../jd/img/countdown/18.png" />
                <img src="../jd/img/countdown/17.png" />
                <img src="../jd/img/countdown/16.png" />
                <img src="../jd/img/countdown/15.png" />
                <img src="../jd/img/countdown/14.png" />
                <img src="../jd/img/countdown/13.png" />
                <img src="../jd/img/countdown/12.png" />
                <img src="../jd/img/countdown/11.png" />
                <img src="../jd/img/countdown/10.png" />
                <img src="../jd/img/countdown/09.png" />
                <img src="../jd/img/countdown/08.png" />
                <img src="../jd/img/countdown/07.png" />
                <img src="../jd/img/countdown/06.png" />
                <img src="../jd/img/countdown/05.png" />
                <img src="../jd/img/countdown/04.png" />
                <img src="../jd/img/countdown/03.png" />
                <img src="../jd/img/countdown/02.png" />
                <img src="../jd/img/countdown/01.png" />
                <img src="../jd/img/countdown/00.png" />
            </div>
        </div>
    </div>
</body>
</html>

2.樣式部分(CSS)

/* 倒計時器 */
.countdown{
    position: relative;
    height: 100px;
    width: 200px;
    margin: 50px;
}

/* 小時、分鐘、秒之間的分號 : */
#countdown-s1{
    font-size: 30px;
    color: white;
    position: absolute;
    left: 67px;
    top: -3px;
}

#countdown-s2{
    font-size: 30px;
    color: white;
    position: absolute;
    left: 120px;
    top: -3px;
}

/* 倒計時器容器 */
.countdown-container{
    width: 25px;
    height: 40px;
    overflow: hidden;
    float: left;
    margin-left: 30px;
}

.countdown-container img{
    box-sizing: border-box;
    float: left;
    width: 25px;
    height: 40px;
    border: gray 1px solid;
}

/* 分鐘輪播 */
#countdown-container-min{
    height: 2400px;
    /* 31min，需播放1860s, ease-out用于圖片之間慢速停頓過渡*/
    animation: min 1860s ease-out infinite;
}

@keyframes min{
    0%,
    3.13%,      /*  加入停滯，使切換時的速度為0.1% */
    3.23% {
        margin-top: 0;
    }

    3.23%,
    6.36%,
    6.46% {
        margin-top: -40px;
    }

    6.46%,
    9.59%,
    9.69% {
        margin-top: -80px;
    }

    9.69%,
    12.82%,
    12.92%  {
        margin-top: -120px;
    }

    12.92%,
    16.05%,
    16.15% {
        margin-top: -160px;
    }

    16.15%,
    19.28%,
    19.38% {
        margin-top: -200px;
    }

    19.38%,
    22.51%,
    22.61% {
        margin-top: -240px;
    }

    22.61%,
    25.74%,
    25.84% {
        margin-top: -280px;
    }

    25.84%,
    28.97%,
    29.07% {
        margin-top: -320px;
    }

    29.07%,
    32.20%,
    32.30% {
        margin-top: -360px;
    }

    32.30%,
    35.43%,
    35.53% {
        margin-top: -400px;
    }

    35.53%,
    38.66%,
    38.76% {
        margin-top: -440px;
    }

    38.76%,
    41.89%,
    41.99% {
        margin-top: -480px;
    }

    41.99%,
    45.12%,
    45.22% {
        margin-top: -520px;
    }

    45.22%,
    48.35%,
    48.45% {
        margin-top: -560px;
    }

    48.45%,
    51.58%,
    51.68% {
        margin-top: -600px;
    }

    51.68%,
    54.81%,
    54.91% {
        margin-top: -640px;
    }

    54.91%,
    58.04%,
    58.14% {
        margin-top: -680px;
    }

    58.14%,
    61.27%,
    61.37% {
        margin-top: -720px;
    }

    61.37%,
    64.50%,
    64.60% {
        margin-top: -760px;
    }

    64.60%,
    67.73%,
    67.83% {
        margin-top: -800px;
    }

    67.83%,
    70.96%,
    71.06% {
        margin-top: -840px;
    }

    71.06%,
    74.19%,
    74.29% {
        margin-top: -880px;
    }

    74.29%,
    77.42%,
    77.52% {
        margin-top: -920px;
    }

    77.52%,
    80.65%,
    80.75% {
        margin-top: -960px;
    }

    80.75%,
    83.88%,
    83.98% {
        margin-top: -1000px;
    }

    83.98%,
    87.11%,
    87.21% {
        margin-top: -1040px;
    }

    87.21%,
    90.34%,
    90.44% {
        margin-top: -1080px;
    }

    90.44%,
    93.57%,
    93.67% {
        margin-top: -1120px;
    }

    93.67%,
    96.80%,
    96.90% {
        margin-top: -1160px;
    }

    96.90%,
    99.90%,
    100% {
        margin-top: -1200px;
    }
}

/* 秒輪播 */
#countdown-container-second{
    height: 2400px;
    animation: second 60s ease-out infinite;
}

@keyframes second {
    0%,
    1.66% {
        margin-top: 0;
    }

    1.66%,
    3.32% {
        margin-top: -40px;
    }

    3.32%,
    4.98% {
        margin-top: -80px;
    }

    4.98%,
    6.64% {
        margin-top: -120px;
    }

    6.64%,
    8.30% {
        margin-top: -160px;
    }

    8.30%,
    9.96% {
        margin-top: -200px;
    }

    9.96%,
    11.62% {
        margin-top: -240px;
    }

    11.62%,
    13.28% {
        margin-top: -280px;
    }

    13.28%,
    14.94% {
        margin-top: -320px;
    }

    14.94%,
    16.60% {
        margin-top: -360px;
    }

    16.60%,
    18.26% {
        margin-top: -400px;
    }

    18.26%,
    19.92% {
        margin-top: -440px;
    }

    19.92%,
    21.58% {
        margin-top: -480px;
    }

    21.58%,
    23.24% {
        margin-top: -520px;
    }

    23.24%,
    24.90% {
        margin-top: -560px;
    }

    24.90%,
    26.56% {
        margin-top: -600px;
    }

    26.56%,
    28.22% {
        margin-top: -640px;
    }

    28.22%,
    29.88% {
        margin-top: -680px;
    }

    29.88%,
    31.54% {
        margin-top: -720px;
    }

    31.54%,
    33.2% {
        margin-top: -760px;
    }

    33.20%,
    34.86% {
        margin-top: -800px;
    }

    34.86%,
    36.52% {
        margin-top: -840px;
    }

    36.52%,
    38.18% {
        margin-top: -880px;
    }

    38.18%,
    39.84% {
        margin-top: -920px;
    }

    39.84%,
    41.50% {
        margin-top: -960px;
    }

    41.50%,
    43.16% {
        margin-top: -1000px;
    }

    43.16%,
    44.82% {
        margin-top: -1040px;
    }

    44.82%,
    46.48% {
        margin-top: -1080px;
    }

    46.48%,
    48.14% {
        margin-top: -1120px;
    }

    48.14%,
    49.80% {
        margin-top: -1160px;
    }

    49.80%,
    51.46% {
        margin-top: -1200px;
    }

    51.46%,
    53.12% {
        margin-top: -1240px;
    }

    53.12%,
    54.78% {
        margin-top: -1280px;
    }

    54.78%,
    56.44% {
        margin-top: -1320px;
    }

    56.44%,
    58.10% {
        margin-top: -1360px;
    }

    58.10%,
    59.76% {
        margin-top: -1400px;
    }

    59.76%,
    61.42% {
        margin-top: -1440px;
    }

    61.42%,
    63.08% {
        margin-top: -1480px;
    }

    63.08%,
    64.74% {
        margin-top: -1520px;
    }

    64.74%,
    66.40% {
        margin-top: -1560px;
    }

    66.40%,
    68.06% {
        margin-top: -1600px;
    }

    68.06%,
    69.72% {
        margin-top: -1640px;
    }

    69.72%,
    71.38% {
        margin-top: -1680px;
    }

    71.38%,
    73.04% {
        margin-top: -1720px;
    }

    73.04%,
    74.70% {
        margin-top: -1760px;
    }

    74.70%,
    76.36% {
        margin-top: -1800px;
    }

    76.36%,
    78.02% {
        margin-top: -1840px;
    }

    78.02%,
    79.68% {
        margin-top: -1880px;
    }

    79.68%,
    81.34% {
        margin-top: -1920px;
    }

    81.34%,
    83.00% {
        margin-top: -1960px;
    }

    83.00%,
    84.66% {
        margin-top: -2000px;
    }

    84.66%,
    86.32% {
        margin-top: -2040px;
    }

    86.32%,
    87.98% {
        margin-top: -2080px;
    }

    87.98%,
    89.64% {
        margin-top: -2120px;
    }

    89.64%,
    91.30% {
        margin-top: -2160px;
    }

    91.30%,
    92.96% {
        margin-top: -2200px;
    }

    92.96%,
    94.62% {
        margin-top: -2240px;
    }

    94.62%,
    96.28% {
        margin-top: -2280px;
    }

    96.28%,
    97.94% {
        margin-top: -2320px;
    }

    97.94%,
    100% {
        margin-top: -2360px;
    }
}

轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/188077.html

標籤：其他

上一篇：2020-10-21 支付寶雙11活動，回圈點擊貓獲得金幣

下一篇：虛幻引擎的像素流技術：邊緣計算與RTC架構的設計思路

【HTML+CSS】完全脫離js實作 倒計時 效果

一、實作效果

二、實作原理

三、實作細節

四、原始碼奉上

【HTML+CSS】完全脫離js實作倒計時效果
