Vivado與Modelsim聯合仿真

筆者在學習FPGA程序中遇到了如何使用Vivado和Modelsim進行聯合仿真的問題，特此記錄，

首先確定版本

筆者Vivado用的是2018.3版本，先是隨便下了個Modelsim10.1c 的版本，到編譯庫檔案時報錯了，后來發現是倆款軟體的版本不匹配，所以大家在進行聯合仿真之前先核對兩個軟體的版本是否對應，不用到最后再卸載重裝，
具體的版本對應情況放到檔案末尾，大家可翻到文末查看，
筆者用的是Vivado2018.3，查詢的對應的Modelsim版本為10.6c，

Modelsim破解

準備Modelsim10.6c的安裝包

下載鏈接

步驟如下：

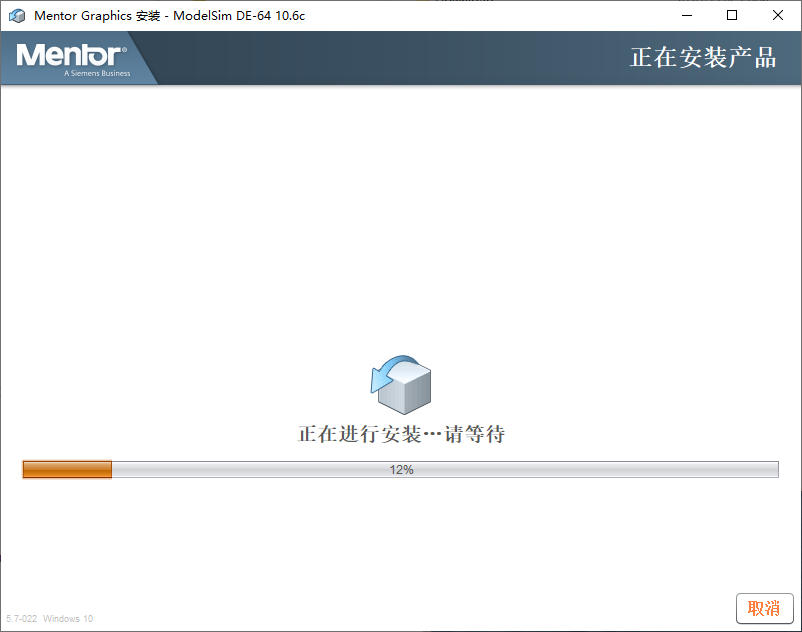

(1)、安裝軟體，注意安裝路徑中不要出現中文或空格，安裝程序中一直點擊YES即可，

(2)、把crack.bat、MentorKG.exe一起拷貝到modelsim安裝目錄的win64檔案夾下，例如D:\modelsim_dlx64_10.6c\win64pe

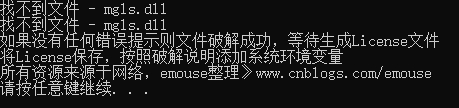

(3)、雙擊crack.bat，若出現下圖所示問題，則將mgls64.dll重命名為mgls.dll再次重新運行crack.bat即可，

(4)、將生成的LICENSE.TXT放在modelsim的安裝路徑下，如D:\modelsim_dlx64_10.6c，若前面修改了mgls64.dll檔案的名稱，則生成完LICENSE檔案后應當把名字改回去，

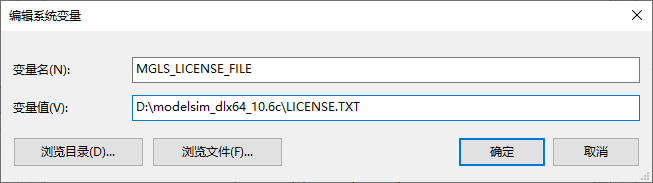

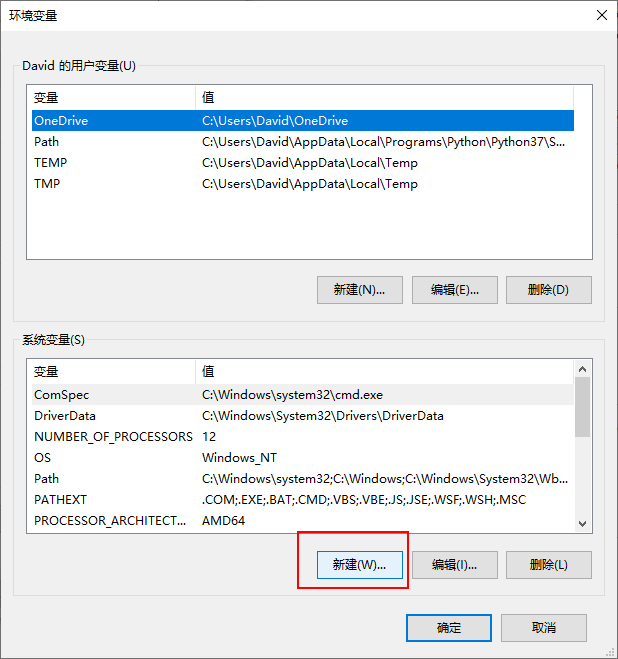

(5)、新建環境變數MGLS_LICENSE_FILE，變數值為LICENSE放置的路徑，如D:\modelsim_dlx64_10.6c\LICENSE.TXT，在win10中，右鍵此電腦->屬性->高級系統設定->環境變數，進行環境變數的添加，

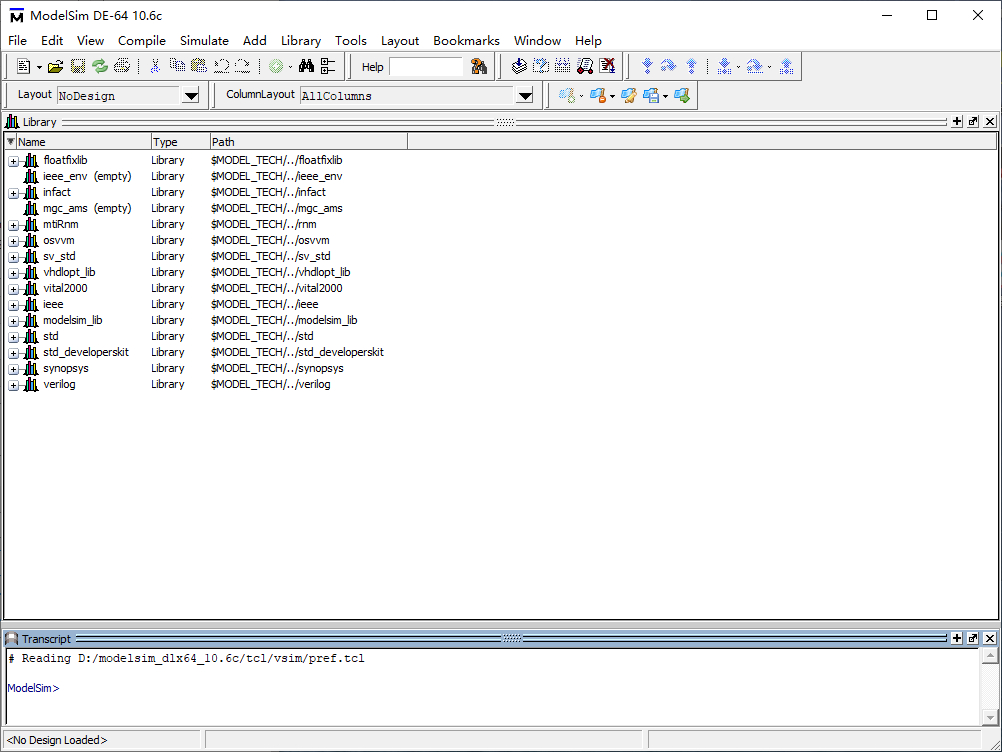

(6)、打開Modelsim軟體，安裝破解結束，

聯合仿真

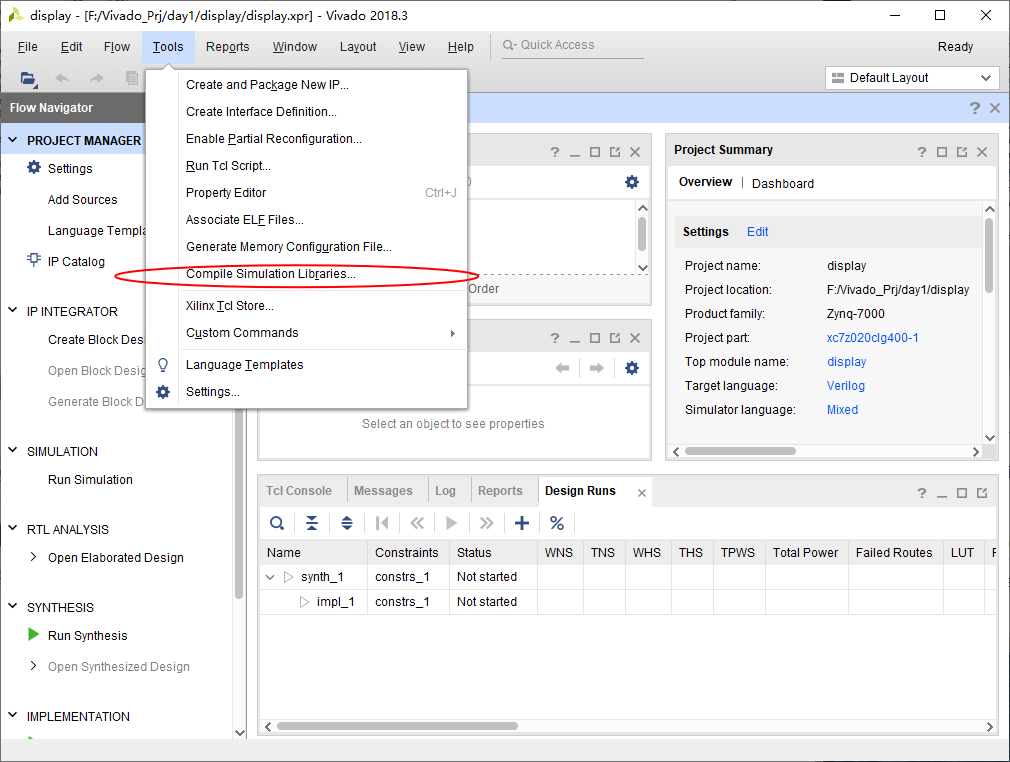

(1)、打開任意一個vivado工程，再按下圖所示點擊編譯Xilinx的仿真庫，

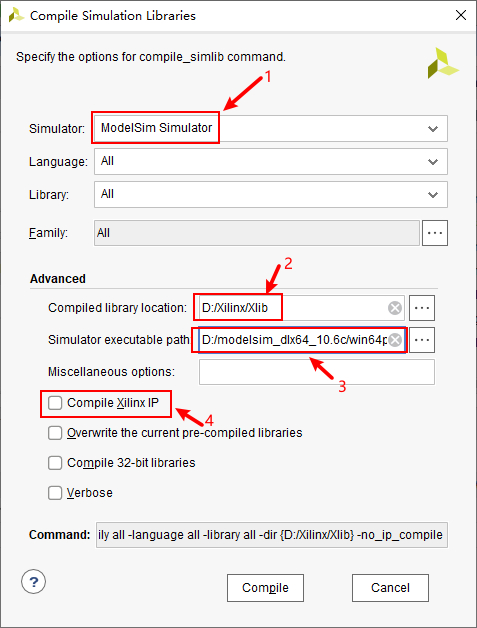

注意：Simulator選Modelsim Simulator，編譯庫Compiled library location放入新建的檔案夾D:\Xilinx\Xlib中(可自己指定)，Simulator executable path選擇modelsim安裝路徑下的win64pe，注意Compile Xilinx IP選項不勾選，

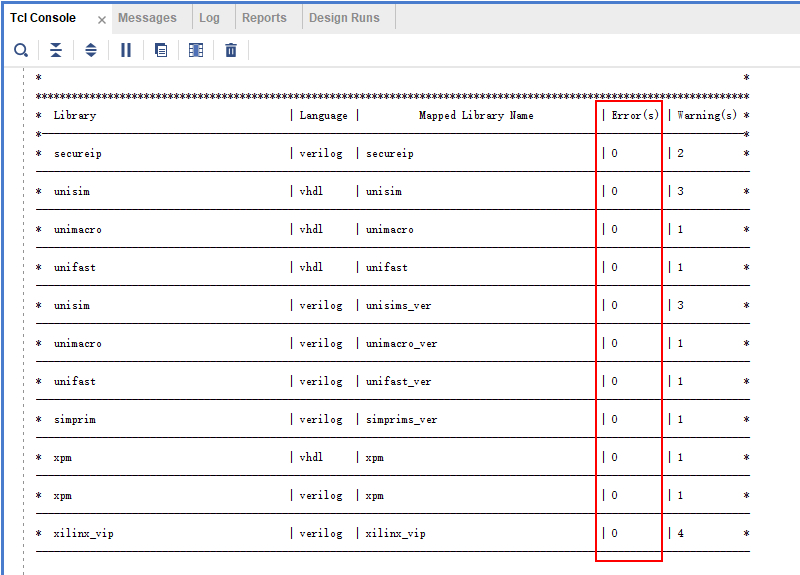

編譯結果從Vivado中的Tcl Console中可知，無Errors，蕪湖起飛！

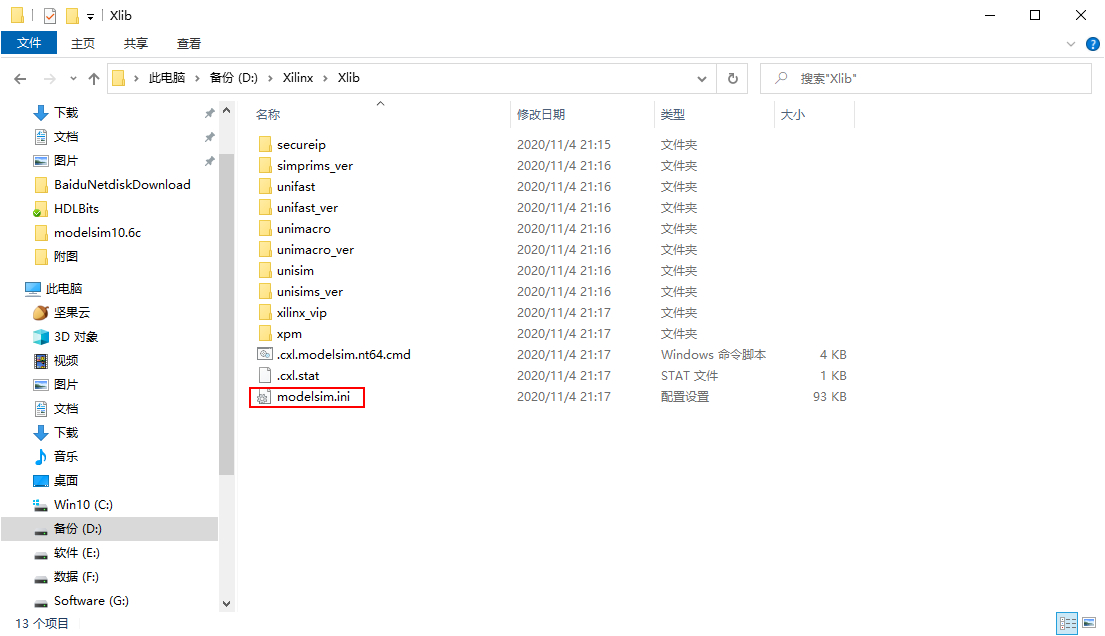

(2)查看編譯庫Compiled library location路徑下，應該出現modelsim.ini檔案，

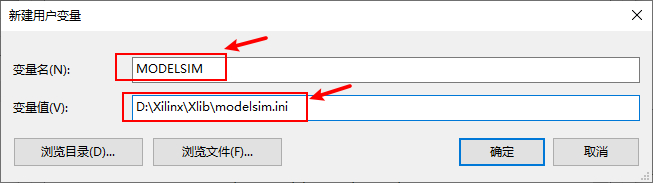

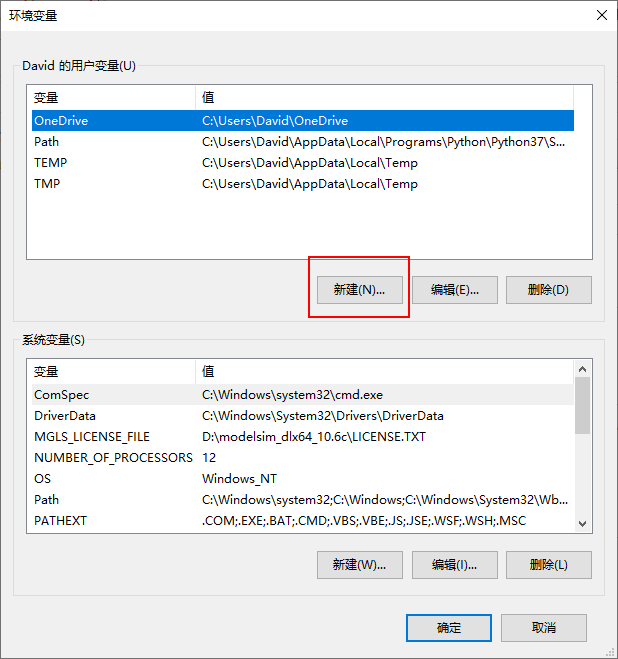

我們將其設定為用戶的全域變數，這樣下次就不需要再編譯庫檔案了，步驟如下圖所示：

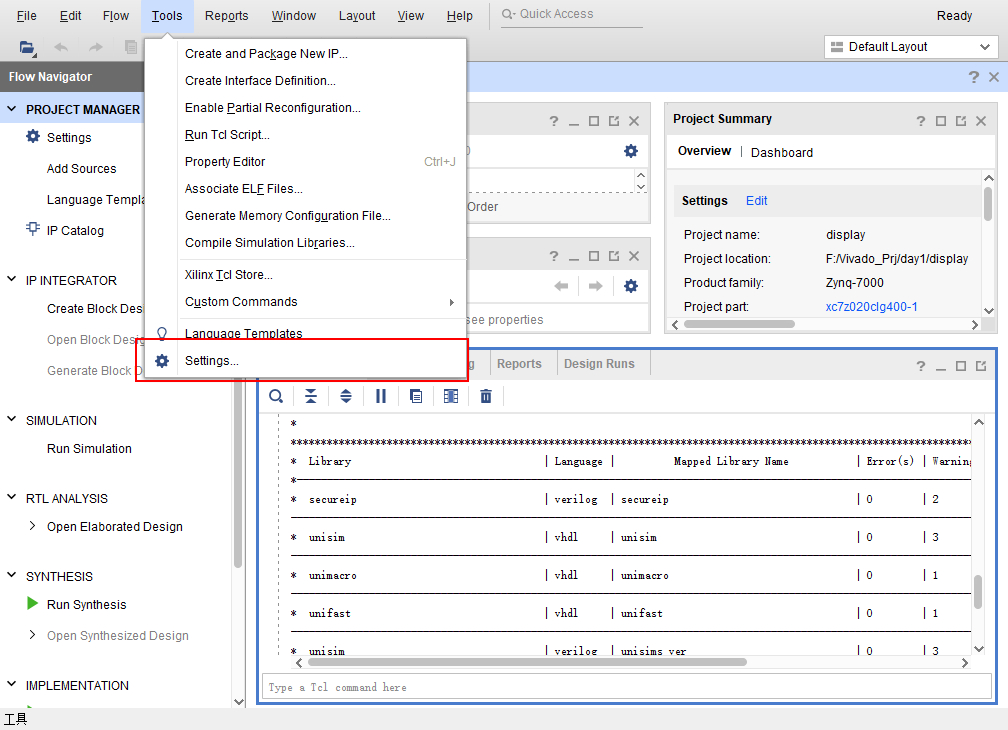

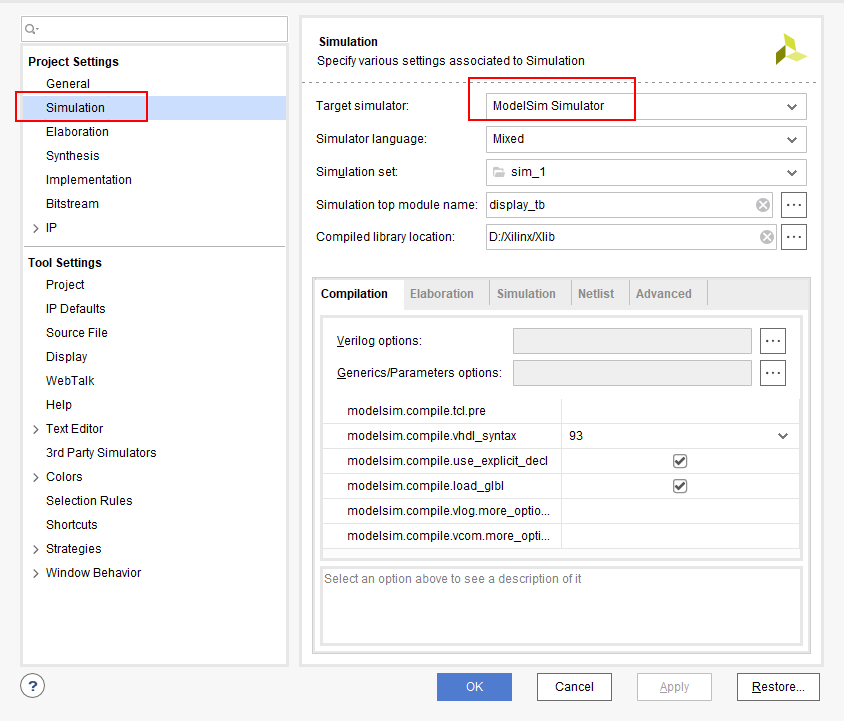

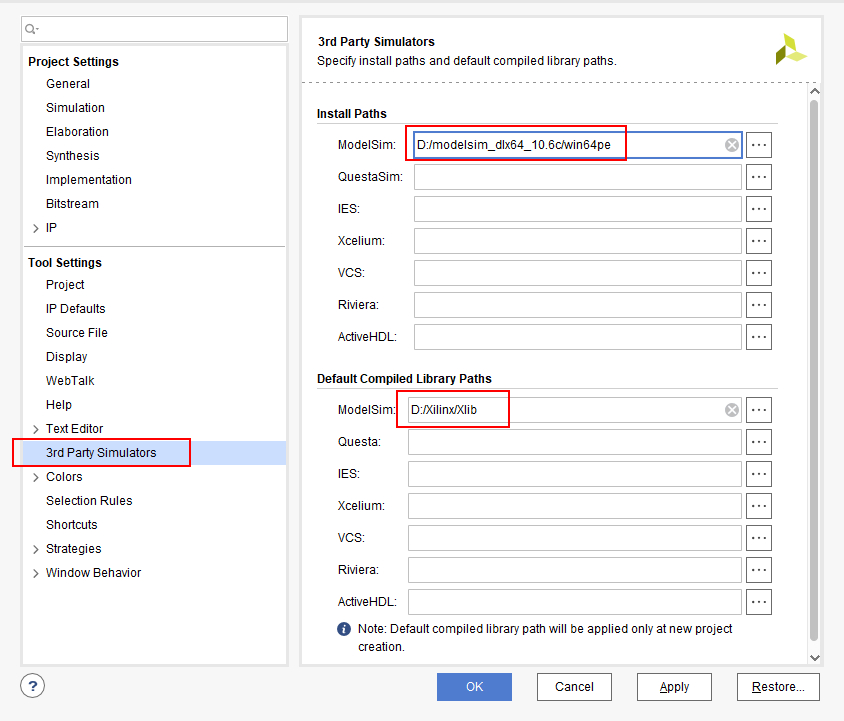

(3)、設定第三方仿真軟體的安裝路徑與編譯庫的路徑，具體步驟如下圖所示

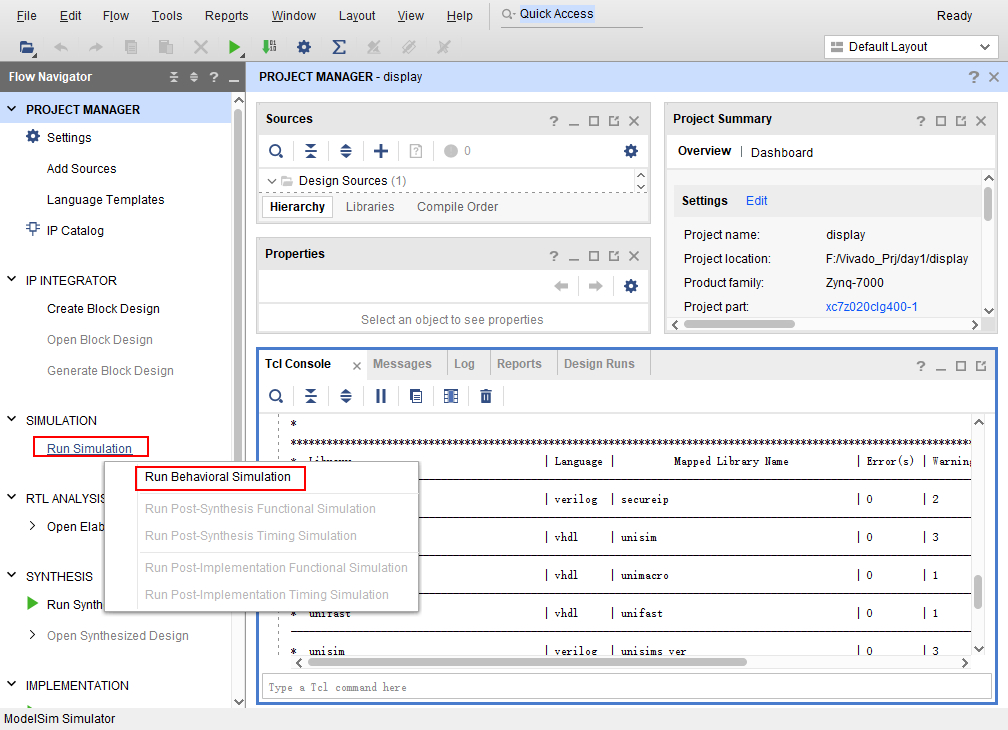

(4)、全部準備就緒后，點擊Run Simulation中的Run Behavioral Simulation，

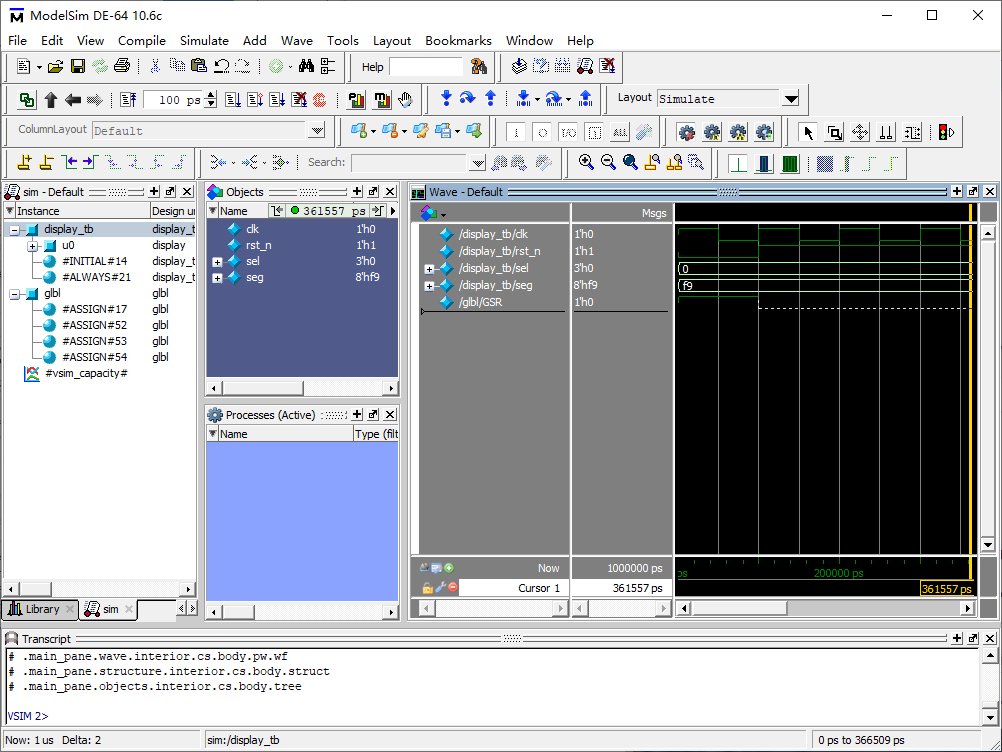

自動彈出Modelsim，并顯示波形，游戲結束，

Vivado與Modelsim對應版本

Vivado Design Suite 2018.3

Mentor Graphics ModelSim SE/DE/PE (10.6c)
Mentor Graphics Questa Advanced Simulator (10.6c)
Cadence Incisive Enterprise Simulator (IES) (15.20.053)
Cadence Xcelium Parallel Simulator (18.03.005)
Synopsys VCS and VCS MX (N-2017.12-SP2)
Aldec Active-HDL (10.5) Aldec Riviera-PRO (2018.02)

Vivado Design Suite 2018.2

Mentor Graphics ModelSim SE/DE/PE (10.6c)
Mentor Graphics Questa Advanced Simulator (10.6c)
Cadence Incisive Enterprise Simulator (IES) (15.20.042)
Cadence Xcelium Parallel Simulator (17.10.005)
Synopsys VCS and VCS MX (N-2017.12)
Aldec Active-HDL (10.4a) Aldec Riviera-PRO (2017.10)

Vivado Design Suite 2018.1

Mentor Graphics ModelSim SE/DE/PE (10.6c)
Mentor Graphics Questa Advanced Simulator (10.6c)
Cadence Incisive Enterprise Simulator (IES) (15.20.042)
Cadence Xcelium Parallel Simulator (17.10.005)
Synopsys VCS and VCS MX (N-2017.12)
Aldec Active-HDL (10.4a) Aldec Riviera-PRO (2017.10)

Vivado Design Suite 2017.4

Mentor Graphics ModelSim SE/DE/PE (10.6b)
Mentor Graphics Questa Advanced Simulator (10.6b)
Cadence Incisive Enterprise Simulator (IES) (15.20.028)
Synopsys VCS and VCS MX (M-2017.03-SP1)
Aldec Active-HDL (10.4a) Aldec Riviera-PRO (2017.02)

Vivado Design Suite 2017.3

Mentor Graphics ModelSim SE/DE/PE (10.6b)
Mentor Graphics Questa Advanced Simulator (10.6b)
Cadence Incisive Enterprise Simulator (IES) (15.20.028)
Synopsys VCS and VCS MX (M-2017.03-SP1)
Aldec Active-HDL (10.4a) Aldec Riviera-PRO (2017.02)

Vivado Design Suite 2017.2

Mentor Graphics ModelSim SE/DE/PE (10.5c)
Mentor Graphics Questa Advanced Simulator (10.5c)
Cadence Incisive Enterprise Simulator (IES) (15.20.014)
Synopsys VCS and VCS MX (L-2016.06-SP1)
Aldec Active-HDL (10.4) Aldec Riviera-PRO (2016.10)

Vivado Design Suite 2017.1

Mentor Graphics ModelSim SE/DE/PE (10.5c)
Mentor Graphics Questa Advanced Simulator (10.5c)
Cadence Incisive Enterprise Simulator (IES) (15.20.014)
Synopsys VCS and VCS MX (L-2016.06-SP1)
Aldec Active-HDL (10.4) Aldec Riviera-PRO (2016.10)

Vivado Design Suite 2016.4

Mentor Graphics ModelSim SE/DE/PE (10.5c)
Mentor Graphics Questa Advanced Simulator (10.5c)
Cadence Incisive Enterprise Simulator (IES) (15.20.005)
Synopsys VCS and VCS MX (L-2016.06)
Aldec Active-HDL (10.3) Aldec Riviera-PRO (2016.06)

Vivado Design Suite 2016.3

Mentor Graphics ModelSim SE/DE/PE (10.5c)
Mentor Graphics Questa Advanced Simulator (10.5c)
Cadence Incisive Enterprise Simulator (IES) (15.20.005)
Synopsys VCS and VCS MX (L-2016.06)
Aldec Active-HDL (10.3) Aldec Riviera-PRO (2016.06)

Vivado Design Suite 2016.2, 2016.1

Mentor Graphics ModelSim SE/DE/PE (10.4d)
Mentor Graphics Questa Advanced Simulator (10.4d)
Cadence Incisive Enterprise Simulator (IES) (15.10.013)
Synopsys VCS and VCS MX (K-2015.09)
Aldec Active-HDL (10.3) Aldec Riviera-PRO (2015.10)

Vivado Design Suite 2015.4, 2015.3

Mentor Graphics ModelSim SE/DE/PE (10.4b)
Mentor Graphics Questa Advanced Simulator (10.4b)
Cadence Incisive Enterprise Simulator (IES) (14.20.006)
Synopsys VCS and VCS MX (J-2014.12-SP2)
Aldec Active-HDL (10.2 SP2) Aldec Riviera-PRO (2015.06)

Vivado Design Suite 2015.2, 2015.1

Mentor Graphics ModelSim SE/DE/PE (10.3d)
Mentor Graphics Questa Advanced Simulator (10.3d)
Cadence Incisive Enterprise Simulator (IES) (14.10.011)
Synopsys VCS and VCS MX (I-2014.03-SP1)
Aldec Active-HDL (10.1 SP1) Aldec Riviera-PRO (2015.02)

Vivado Design Suite 2014.4

Mentor Graphics ModelSim SE/DE/PE (10.3b)
Mentor Graphics Questa Advanced Simulator (10.3b)
Cadence Incisive Enterprise Simulator (IES) (13.20.005)
Synopsys VCS and VCS MX (I-2014.03)
Aldec Active-HDL (9.3 SP1) Aldec Riviera-PRO (2014.02)

Vivado Design Suite 2014.3

Mentor Graphics ModelSim SE/DE/PE (10.3b)
Mentor Graphics Questa Advanced Simulator (10.3b)
Cadence Incisive Enterprise Simulator (IES) (13.20.005)
Synopsys VCS and VCS MX (I-2014.03)
Aldec Active-HDL (9.2 SP1) Aldec Riviera-PRO (2014.02)

Vivado Design Suite 2014.2, 2014.1

Mentor Graphics ModelSim SE/DE/PE (10.2a)
Mentor Graphics Questa Advanced Simulator (10.2a)
Cadence Incisive Enterprise Simulator (IES) (12.2-016)
Synopsys VCS and VCS MX (H-2013.06-SP1)
Aldec Active-HDL (9.3 SP1) Aldec Riviera-PRO (2014.02)

Vivado Design Suite 2013.4

Mentor Graphics ModelSim SE/DE/PE (10.2a)
Mentor Graphics Questa Advanced Simulator (10.2a)
Cadence Incisive Enterprise Simulator (IES) (12.2-016)
Synopsys VCS and VCS MX (H-2013.06)
Aldec Active-HDL (9.2 SP1) Aldec Riviera-PRO (2013.06)

Vivado Design Suite 2013.3

Mentor Graphics ModelSim SE/DE/PE (10.2a)
Mentor Graphics Questa Advanced Simulator (10.2a)
Cadence Incisive Enterprise Simulator (IES) (12.2-016)
Synopsys VCS and VCS MX (H-2013.06-3)
Aldec Active-HDL (9.2) Aldec Riviera-PRO (2013.02)

Vivado Design Suite 2013.1, 2013.2

Mentor Graphics ModelSim SE/DE/PE (10.1b)
Mentor Graphics Questa Advanced Simulator (10.1b)
Cadence Incisive Enterprise Simulator (IES) (12.2)
Synopsys VCS and VCS MX (G-2012.09)
Aldec Active-HDL (9.2) Aldec Riviera-PRO (2012.10)
