文章目錄

一、崩潰資訊描述
二、手機命令列操作
三、電腦命令列操作
四、Tombstone 內容

Tombstone 報錯資訊日志檔案被保存在了 /data/tombstones/ 目錄下 , 先 ROOT 再說 , 沒有 ROOT 權限無法訪問該目錄中的資訊 ;

使用 Pixel 2 手機進行除錯 , 其它 ROOT 后的手機也可以使用 ;

ROOT 前先解鎖 Bootloader , 參考博客【Android】Pixel 2 解鎖 Bootloader

ROOT 操作 , 參考博客【Android】Pixel 2 Android 9 系統 ROOT 操作 ( TWRP 下載 | Magisk Manager 下載 | 線刷包下載 | 線刷 9.0 系統 | ROOT 操作 )

一、崩潰資訊描述

2020-11-12 09:21:47.476 11561-11575/com.tombstone.demo A/libc: Fatal signal 11 (SIGSEGV), code 1 (SEGV_MAPERR), fault addr 0xc in tid 11575 (Binder:11561_3), pid 11561 (process)
2020-11-12 09:21:47.539 11606-11606/? A/DEBUG: *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG: Build fingerprint: 'google/walleye/walleye:9/PQ3A.190801.002/5670241:user/release-keys'
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG: Revision: 'MP1'
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG: ABI: 'arm64'
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG: pid: 11561, tid: 11575, name: Binder:11561_3  >>> com.tombstone.demo:process <<<
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG: signal 11 (SIGSEGV), code 1 (SEGV_MAPERR), fault addr 0xc
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG: Cause: null pointer dereference
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG: Abort message: 'art_method.cc:611] Check failed: existing_entry_point != nullptr void android.accessibilityservice.AccessibilityService.<init>()@0x7e70e6f588'
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     x0  0000000000000000  x1  0000000000000000  x2  0000007e86085ca1  x3  0000000000000000
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     x4  0000000000000000  x5  0000007e7dc69b6f  x6  000000000000000a  x7  000000000000000a
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     x8  7af92b4d5bbf85bd  x9  7af92b4d5bbf85bd  x10 0000000000000000  x11 0000007f068804a8
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     x12 20646c6568207c20  x13 3d7365786574756d  x14 00000000ffffffff  x15 0000007f0687fc18
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     x16 0000007e8612bef0  x17 0000007f097679b0  x18 0000007f0687f69a  x19 0000007f06880480
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     x20 0000000000000000  x21 0000007e86051f10  x22 0000000000000000  x23 0000007e70e6f588
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     x24 0000000000000001  x25 0000000000000000  x26 0000000000000000  x27 0000007e863434a0
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     x28 0000000000000001  x29 0000007f068802c0
2020-11-12 09:21:47.540 11606-11606/? A/DEBUG:     sp  0000007f068802b0  lr  0000007e85f9162c  pc  0000007e85f91630
2020-11-12 09:21:47.566 11606-11606/? A/DEBUG: backtrace:
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #00 pc 00000000004a5630  /system/lib64/libart.so (art::CurrentMethodVisitor::VisitFrame()+24)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #01 pc 0000000000484608  /system/lib64/libart.so (_ZN3art12StackVisitor9WalkStackILNS0_16CountTransitionsE0EEEvb+1656)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #02 pc 0000000000495d9c  /system/lib64/libart.so (art::Thread::DumpStack(std::__1::basic_ostream<char, std::__1::char_traits<char>>&, bool, BacktraceMap*, bool) const+316)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #03 pc 00000000004afd5c  /system/lib64/libart.so (art::DumpCheckpoint::Run(art::Thread*)+844)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #04 pc 00000000004a8a9c  /system/lib64/libart.so (art::ThreadList::RunCheckpoint(art::Closure*, art::Closure*)+476)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #05 pc 00000000004a7cd4  /system/lib64/libart.so (art::ThreadList::Dump(std::__1::basic_ostream<char, std::__1::char_traits<char>>&, bool)+500)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #06 pc 000000000046a9d0  /system/lib64/libart.so (art::Runtime::Abort(char const*)+392)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #07 pc 0000000000008d2c  /system/lib64/libbase.so (android::base::LogMessage::~LogMessage()+724)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #08 pc 00000000000d07f0  /system/lib64/libart.so (art::ArtMethod::GetOatQuickMethodHeader(unsigned long)+608)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #09 pc 00000000001a0d0c  /system/lib64/libart.so (art::FaultManager::IsInGeneratedCode(siginfo*, void*, bool)+908)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #10 pc 00000000001a0654  /system/lib64/libart.so (art::FaultManager::HandleFault(int, siginfo*, void*)+92)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #11 pc 0000000000002b80  /system/bin/app_process64 (art::SignalChain::Handler(int, siginfo*, void*)+568)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #12 pc 000000000000088c  [vdso:0000007f0bc35000]
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #13 pc 0000000000553bcc  /system/lib64/libart.so (ExecuteMterpImpl+33356)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #14 pc 0000000000390f46  /system/framework/boot-framework.vdex (android.app.ContextImpl.sendBroadcast+94)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #15 pc 0000000000255e68  /system/lib64/libart.so (_ZN3art11interpreterL7ExecuteEPNS_6ThreadERKNS_20CodeItemDataAccessorERNS_11ShadowFrameENS_6JValueEb.llvm.2088410233+496)
2020-11-12 09:21:47.567 11606-11606/? A/DEBUG:     #16 pc 000000000025b9e8  /system/lib64/libart.so (art::interpreter::ArtInterpreterToInterpreterBridge(art::Thread*, art::CodeItemDataAccessor const&, art::ShadowFrame*, art::JValue*)+216)
2020-11-12 09:21:47.781 941-941/? E//system/bin/tombstoned: Tombstone written to: /data/tombstones/tombstone_00

在上述崩潰資訊的最后給出了提示 “Tombstone written to: /data/tombstones/tombstone_00” , 崩潰日志資訊被保存到了 /data/tombstones/tombstone_00 檔案中 ;

二、手機命令列操作

進入手機的命令列 ;

adb shell

獲取 root 權限 ;

su

進入 /data/tombstones/ 目錄 ;

cd /data/tombstones/

查看該目錄下的崩潰日志檔案 ;

ls

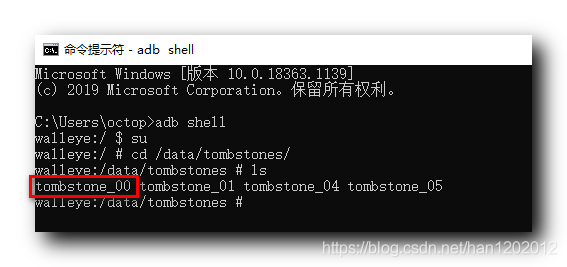

下面的截圖中可以看到 , 上述崩潰日志 tombstone_00 ;

在這里插入圖片描述

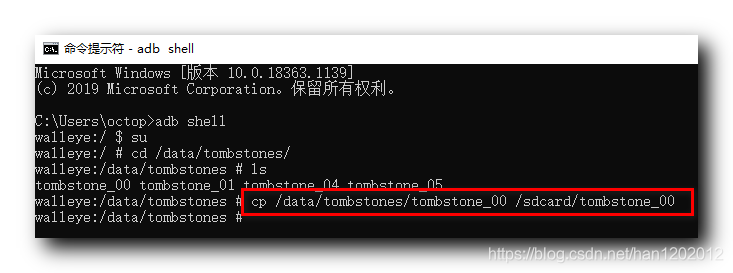

首先將該日志檔案拷貝到 /sdcard/ 目錄 ;

cp /data/tombstones/tombstone_00 /sdcard/tombstone_00

在這里插入圖片描述

手機命令列操作完畢 , 執行兩次 exit , 第一次退出 root 模式 , 第二次退出手機命令列 ;

exit
exit

三、電腦命令列操作

之前在手機命令列中 , 我們將 /data/tombstones/tombstone_00 的崩潰日志檔案拷貝到了 sd 卡中 , /sdcard/tombstone_00 ;

adb pull 命令無法從 /data/ 目錄中直接拉取檔案 , 拷貝到 sd 卡中 , 就可以從 sd 卡拉取該檔案 ;

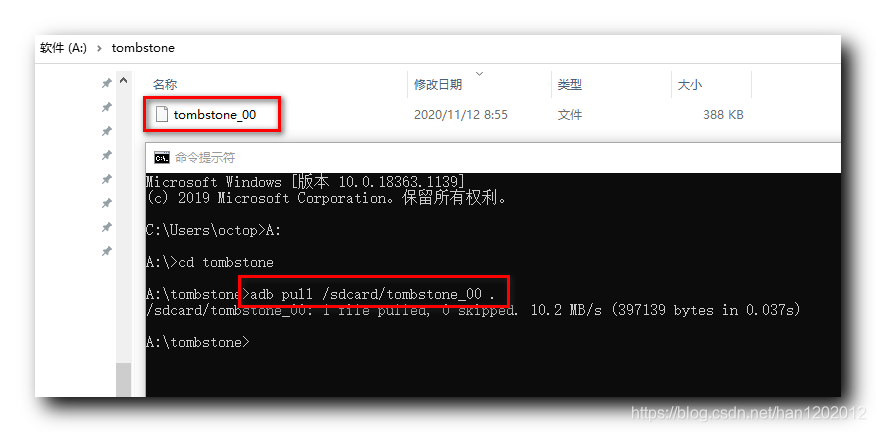

將 /sdcard/tombstone_00 崩潰日志檔案拉取到本地 ;

adb pull /sdcard/tombstone_00 .

在這里插入圖片描述

這樣就獲取到了 tombstone_00 檔案 ;

四、Tombstone 內容

打開后查看其中的大致內容 :

*** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***
Build fingerprint: 'google/walleye/walleye:9/PQ3A.190801.002/5670241:user/release-keys'
Revision: 'MP1'
ABI: 'arm64'
pid: 11561, tid: 11575, name: Binder:11561_3  >>> com.tombstone.demo:process <<<
signal 11 (SIGSEGV), code 1 (SEGV_MAPERR), fault addr 0xc
Cause: null pointer dereference
Abort message: 'art_method.cc:611] Check failed: existing_entry_point != nullptr void android.accessibilityservice.AccessibilityService.<init>()@0x7e70e6f588'
    x0  0000000000000000  x1  0000000000000000  x2  0000007e86085ca1  x3  0000000000000000
    x4  0000000000000000  x5  0000007e7dc69b6f  x6  000000000000000a  x7  000000000000000a
    x8  7af92b4d5bbf85bd  x9  7af92b4d5bbf85bd  x10 0000000000000000  x11 0000007f068804a8
    x12 20646c6568207c20  x13 3d7365786574756d  x14 00000000ffffffff  x15 0000007f0687fc18
    x16 0000007e8612bef0  x17 0000007f097679b0  x18 0000007f0687f69a  x19 0000007f06880480
    x20 0000000000000000  x21 0000007e86051f10  x22 0000000000000000  x23 0000007e70e6f588
    x24 0000000000000001  x25 0000000000000000  x26 0000000000000000  x27 0000007e863434a0
    x28 0000000000000001  x29 0000007f068802c0
    sp  0000007f068802b0  lr  0000007e85f9162c  pc  0000007e85f91630

backtrace:
    #00 pc 00000000004a5630  /system/lib64/libart.so (art::CurrentMethodVisitor::VisitFrame()+24)
    #01 pc 0000000000484608  /system/lib64/libart.so (_ZN3art12StackVisitor9WalkStackILNS0_16CountTransitionsE0EEEvb+1656)
    #02 pc 0000000000495d9c  /system/lib64/libart.so (art::Thread::DumpStack(std::__1::basic_ostream<char, std::__1::char_traits<char>>&, bool, BacktraceMap*, bool) const+316)
    #03 pc 00000000004afd5c  /system/lib64/libart.so (art::DumpCheckpoint::Run(art::Thread*)+844)
    #04 pc 00000000004a8a9c  /system/lib64/libart.so (art::ThreadList::RunCheckpoint(art::Closure*, art::Closure*)+476)
    #05 pc 00000000004a7cd4  /system/lib64/libart.so (art::ThreadList::Dump(std::__1::basic_ostream<char, std::__1::char_traits<char>>&, bool)+500)
    #06 pc 000000000046a9d0  /system/lib64/libart.so (art::Runtime::Abort(char const*)+392)
    #07 pc 0000000000008d2c  /system/lib64/libbase.so (android::base::LogMessage::~LogMessage()+724)
    #08 pc 00000000000d07f0  /system/lib64/libart.so (art::ArtMethod::GetOatQuickMethodHeader(unsigned long)+608)
    #09 pc 00000000001a0d0c  /system/lib64/libart.so (art::FaultManager::IsInGeneratedCode(siginfo*, void*, bool)+908)
    #10 pc 00000000001a0654  /system/lib64/libart.so (art::FaultManager::HandleFault(int, siginfo*, void*)+92)
    #11 pc 0000000000002b80  /system/bin/app_process64 (art::SignalChain::Handler(int, siginfo*, void*)+568)
    #12 pc 000000000000088c  [vdso:0000007f0bc35000]
    #13 pc 0000000000553bcc  /system/lib64/libart.so (ExecuteMterpImpl+33356)
    #14 pc 0000000000390f46  /system/framework/boot-framework.vdex (android.app.ContextImpl.sendBroadcast+94)
    #15 pc 0000000000255e68  /system/lib64/libart.so (_ZN3art11interpreterL7ExecuteEPNS_6ThreadERKNS_20CodeItemDataAccessorERNS_11ShadowFrameENS_6JValueEb.llvm.2088410233+496)
    #16 pc 000000000025b9e8  /system/lib64/libart.so (art::interpreter::ArtInterpreterToInterpreterBridge(art::Thread*, art::CodeItemDataAccessor const&, art::ShadowFrame*, art::JValue*)+216)

stack:
         0000007f06880230  0000007e86343400  [anon:libc_malloc]
         0000007f06880238  000000000000000b
         0000007f06880240  0000000000002d37
         0000007f06880248  0000007e86059197  /system/lib64/libart.so
         0000007f06880250  0000007f06880580  [anon:thread signal stack]
         0000007f06880258  7af92b4d5bbf85bd
         0000007f06880260  0000000000000001
         0000007f06880268  0000007e70e6f588  <anonymous:0000007e70d74000>
         0000007f06880270  0000000000000001
         0000007f06880278  0000007e70e6f588  <anonymous:0000007e70d74000>
         0000007f06880280  0000000000000000
         0000007f06880288  0000007e86051f10  /system/lib64/libart.so (art_quick_instrumentation_exit)
         0000007f06880290  0000000000000000
         0000007f06880298  0000007f06880480  [anon:thread signal stack]
         0000007f068802a0  0000007f068802c0  [anon:thread signal stack]
         0000007f068802a8  0000007e85f9162c  /system/lib64/libart.so (_ZN3art20CurrentMethodVisitor10VisitFrameEv+20)
    #00  0000007f068802b0  0000000000000000
         ........  ........
    #01  0000007f068802d0  0000040000000000
         ........  ........
    #02  0000007f06880480  0000007e86123170  /system/lib64/libart.so
         ........  ........
    #03  0000007f06880540  615b202020202020
         ........  ........
    #04  0000007f068806f0  0000007f068809e8  [anon:thread signal stack]
         ........  ........
    #05  0000007f06880940  0000007f068809c0  [anon:thread signal stack]
         ........  ........
    #06  0000007f06880a80  0000000b86057ea1
         ........  ........
    #07  0000007f06880b00  0000007f06880b70  [anon:thread signal stack]
         ........  ........
    #08  0000007f06880b80  0000000000000000
         ........  ........
    #09  0000007f06880c00  0000007e70e6c9b0  <anonymous:0000007e70d74000>
         ........  ........
    #10  0000007f06880c90  0000000000000002
         ........  ........
    #11  0000007f06880d10  0000007f06880da0  [anon:thread signal stack]
         ........  ........
    #12  0000007f06880da0  000000000000000b
         ........  ........
    #13  0000007e70e6c9b0  0000007e70e6f588  <anonymous:0000007e70d74000>
         ........  ........
    #14  0000007e70e6ca00  0000007e86343400  [anon:libc_malloc]
         ........  ........
    #15  0000007e70e6ca00  0000007e86343400  [anon:libc_malloc]
         ........  ........
    #16  0000007e70e6cac0  0000000000000008
         0000007e70e6cac8  0000007e6e9e5268  /data/app/com.tombstone.demo-h00jR9L0Nz3hIKifxKrl5Q==/lib/arm64/liboboe.so (Java_com_tombstone_demo_OboePlayer_play+388)
         0000007e70e6cad0  0000000000000000
         0000007e70e6cad8  0000000000000000
         0000007e70e6cae0  0000000000000000
         0000007e70e6cae8  0000000000000000
         0000007e70e6caf0  0000000000000000
         0000007e70e6caf8  0000000000000000
         0000007e70e6cb00  0000000000000000
         0000007e70e6cb08  0000000000000000
         0000007e70e6cb10  0000000000000000
         0000007e70e6cb18  0000000000000000
         0000007e70e6cb20  0000000000000000
         0000007e70e6cb28  0000000000000000
         0000007e70e6cb30  0000000000000000
         0000007e70e6cb38  0000000000000000

memory near x2 (/system/lib64/libart.so):
    0000007e86085c80 6f6e207361772064 6863617474612074  d was not attach
    0000007e86085c90 7572206f74206465 0a2921656d69746e  ed to runtime!).
    0000007e86085ca0 656e72656b202000 726f624100203a6c  .  kernel: .Abor
    0000007e86085cb0 72687420676e6974 7544000a3a646165  ting thread:..Du
    0000007e86085cc0 6c6120676e69706d 646165726874206c  mping all thread
    0000007e86085cd0 756f687469772073 706f727070612074  s without approp
    0000007e86085ce0 6f6c206574616972 646c656820736b63  riate locks held
    0000007e86085cf0 616572687420003a 6c207473696c2064  :. thread list l
    0000007e86085d00 74756d20006b636f 636f6c20726f7461  ock. mutator loc
    0000007e86085d10 6874206c6c41006b 000a3a7364616572  k.All threads:..
    0000007e86085d20 20676e69646e6550 6f69747065637865  Pending exceptio
    0000007e86085d30 424147495300206e 5542474953005452  n .SIGABRT.SIGBU
    0000007e86085d40 4550464749530053 004c4c4947495300  S.SIGFPE.SIGILL.
    0000007e86085d50 0045504950474953 0056474553474953  SIGPIPE.SIGSEGV.
    0000007e86085d60 4c464b5453474953 4152544749530054  SIGSTKFLT.SIGTRA
    0000007e86085d70 4c4c49003f3f0050 0043504f4c4c495f  P.??.ILL_ILLOPC.

memory near x5 ([anon:libc_malloc]):
    0000007e7dc69b48 636f6c2074726f62 6174756d2220226b  bort lock" "muta
    0000007e7dc69b58 6b636f6c20726f74 6465726168732822  tor lock"(shared
    0000007e7dc69b68 000a29646c656820 0000000000000000   held)..........
    0000007e7dc69b78 0000000000000000 c110000040e00000  ...........@....
    0000007e7dc69b88 0000000000000000 00000000c1600000  ..........`.....
    0000007e7dc69b98 00000000c1600000 00000000bf8d6000  ..`......`......
    0000007e7dc69ba8 3f654000c0000000 40000000c0000000  .....@e?.......@
    0000007e7dc69bb8 0000000000000000 4160000000000000  ..............`A
    0000007e7dc69bc8 4160000000000000 3f8d600000000000  ......`A.....`.?
    0000007e7dc69bd8 400000003f654000 4000000040000000  .@e?...@...@...@
    0000007e7dc69be8 0000000000000000 0000000041600000  ..........`A....
    0000007e7dc69bf8 0000000041600000 000000003f8d6000  ..`A.....`.?....
    0000007e7dc69c08 bf65400040000000 c000000040000000  ...@.@e....@....
    0000007e7dc69c18 0000000000000000 c160000000000000  ..............`.
    0000007e7dc69c28 c160000000000000 bf8d600000000000  ......`......`..
    0000007e7dc69c38 c0000000bf654000 c0000000c0000000  .@e.............

分析上述 Stack , 基本可以根據如下日志 , 將錯誤定位到 NDK 方法 Java_com_tombstone_demo_OboePlayer_play 中 ;

    #16  0000007e70e6cac0  0000000000000008
         0000007e70e6cac8  0000007e6e9e5268  /data/app/com.tombstone.demo-h00jR9L0Nz3hIKifxKrl5Q==/lib/arm64/liboboe.so (Java_com_tombstone_demo_OboePlayer_play+388)
