spring cloud Feign+Hystrix實作Fallback多級降級，Timeout降級，Request Cache減壓

Hystrix介紹

Hystrix是一個用于處理分布式系統的延遲和容錯的開源庫，在分布式系統里，許多依賴不可避免的會呼叫失敗，比如超時、例外等，Hystrix能保證在一個依賴出問題的情況下，不會導致整體服務失敗，避免級聯故障，以提高分布式系統的彈性，

“斷路器”本身是一種開關裝置，當某個服務單元發生故障之后，通過斷路器的故障監控（類似熔斷保險絲），向呼叫方回傳一個符合預期的、可處理的備選回應（FallBack），而不長時間的等待或者拋出呼叫方法無法處理的例外，這樣就保證了服務呼叫方的執行緒不會被長時間、不必要地占用，從而避免了故障在分布式系統中的蔓延，乃至雪崩，

github地址：https://github.com/Netflix/Hystrix

服務降級

所謂降級，就是當某個服務出現例外之后，服務器將不再被呼叫，此時服務端可以自己準備一個本地的fallback回呼，回傳一個預設值， 這樣做，雖然服務水平下降，但好歹可用，比直接掛掉要強，當然這也要看適合的業務場景，

可能出現服務降級的情況：

1. 程式運行例外
2. 服務超時
3. 服務熔斷出發服務降級
4. 執行緒池/信號量打滿也會導致服務降級

版本說明

Java : 1.8
Spring Boot : 2.1.5.RELEASE
Spring Cloud: Greenwich.SR1

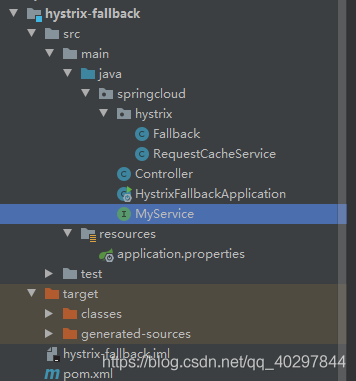

專案說明

eureka-server：eureka服務中心
feign-client ：feign生產者
feign-client-intf：feign介面提供者
hystrix-fallback：hystrix降級demo

eureka-server 前面文章已經提供不在粘貼出來了

feign-client-intf：feign介面提供者

pom.xml

 <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
    </dependencies>

server介面提供

@FeignClient("feign-client")
public interface IService {

    @GetMapping("/sayHi")
    public String sayHi();

    @PostMapping("/sayHi")
    public Friend sayHiPost(@RequestBody Friend friend);

    @GetMapping("/retry")
    public String retry(@RequestParam(name = "timeout") int timeout);

    @GetMapping("/error")
    public String error();

}

Friend物體類

@Data
public class Friend {

    private String name;

    private String port;

}

feign-client ：feign生產者

pom.xml

dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>

    <dependency>
        <groupId>com.imooc</groupId>
        <artifactId>feign-client-intf</artifactId>
        <version>${project.version}</version>
    </dependency>

</dependencies>

application.properties

spring.application.name=feign-client
server.port=40006


eureka.client.serviceUrl.defaultZone=http://localhost:20000/eureka/

Controller

@RestController
public class Controller implements IService {
    Logger log = LoggerFactory.getLogger(Controller.class);

    @Value("${server.port}")
    private String port;


    @GetMapping("/sayHi2")
    public String sayHi2() {
        return "This is " + port;
    }

    @Override
    public String sayHi() {
        return "This is " + port;
    }

    @Override

    public Friend sayHiPost(@RequestBody Friend friend) {
        log.info("You are " + friend.getName());
        friend.setPort(port);
        return friend;
    }

    @Override
    public String retry(@RequestParam(name = "timeout") int timeout) {
        System.out.println("timeout"+timeout);
        while (--timeout >= 0) {
            try {
                Thread.sleep(1000);
            } catch (InterruptedException e) {
            }
        }
        log.info("retry " + port);
        return port;
    }

    @Override
    public String error() {
        throw new RuntimeException("black sheep");
    }
}

FeignClientApplication啟動類

@EnableDiscoveryClient
@SpringBootApplication
public class FeignClientApplication {

    public static void main(String[] args) {
        new SpringApplicationBuilder(FeignClientApplication.class)
                .web(WebApplicationType.SERVLET)
                .run(args);
    }

}

hystrix-fallback：hystrix降級demo

pom.xml

dependencies>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>com.imooc</groupId>
            <artifactId>feign-client-intf</artifactId>
            <version>${project.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
        </dependency>
    </dependencies>

application.properties

spring.application.name=hystrix-consumer
server.port=50001
spring.main.allow-bean-definition-overriding=true
eureka.client.serviceUrl.defaultZone=http://localhost:20000/eureka/

# 開啟Feign下面的Hystrix功能
feign.hystrix.enabled=true
# 是否開啟服務降級
hystrix.command.default.fallback.enabled=true

# 全域超時
hystrix.command.default.execution.timeout.enabled=true
# 超時時間
hystrix.command.default.execution.isolation.thread.timeoutInMilliseconds=3000
# 超時以后終止執行緒
hystrix.command.default.execution.isolation.thread.interruptOnTimeout=true
# 取消的時候終止執行緒
hystrix.command.default.execution.isolation.thread.interruptOnFutureCancel=true
# hystrix.command.MyService#retry(int).execution.isolation.thread.timeoutInMilliseconds=3000



# 每臺機器最大重試次數
feign-client.ribbon.MaxAutoRetries=0
# 可以再重試幾臺機器
feign-client.ribbon.MaxAutoRetriesNextServer=0
# 連接超時
feign-client.ribbon.ConnectTimeout=1000
# 業務處理超時
feign-client.ribbon.ReadTimeout=8000
# 在所有HTTP Method進行重試
feign-client.ribbon.OkToRetryOnAllOperations=false

Controller

@RestController
public class Controller {

    @Autowired
    private MyService myService;

    @Autowired
    private RequestCacheService requestCacheService;

    @GetMapping("/fallback")
    public String fallback() {
        return myService.error();
    }

    @GetMapping("/timeout")
    public String timeout(Integer timeout) {
        System.out.println(timeout);
        return myService.retry(timeout);
    }

    @GetMapping("/timeout2")
    @HystrixCommand(
            fallbackMethod = "timeoutFallback",
            commandProperties = {
               @HystrixProperty(name = "execution.isolation.thread.timeoutInMilliseconds", value="3000")
            }
    )
    public String timeout2(Integer timeout) {
        return myService.retry(timeout);
    }

    public String timeoutFallback(Integer timeout) {
        return "success";
    }

    @GetMapping("/cache")
    public Friend cache(String name) {
        @Cleanup HystrixRequestContext context =
                HystrixRequestContext.initializeContext();

        Friend friend = requestCacheService.requestCache(name);
        friend = requestCacheService.requestCache(name);
        return friend;
    }

}

MyService

@FeignClient(name = "feign-client", fallback = Fallback.class)
public interface MyService extends IService {

}

Fallback 降級處理類

@Slf4j
@Component
public class Fallback implements MyService {

    @Override
    //@HystrixCommand(fallbackMethod = "fallback2")
    public String error() {
        log.info("Fallback: I'm not a black sheep any more");
        throw new RuntimeException("first fallback");
    }

    @HystrixCommand(fallbackMethod = "fallback3")
    public String fallback2() {
        log.info("fallback again");
        throw new RuntimeException("fallback again");
    }

    public String fallback3() {
        log.info("fallback again and again");
        return "success";
    }


    @Override
    public String sayHi() {
        return null;
    }

    @Override
    public Friend sayHiPost(@RequestBody Friend friend) {
        return null;
    }

    @Override
    public String retry(@RequestParam(name = "timeout") int timeout) {
        return "You are late !";
    }

}

RequestCacheService Request Cache減壓

@Slf4j
@Service
public class RequestCacheService {

    @Autowired
    private MyService service;

    @CacheResult
    @HystrixCommand(commandKey = "cacheKey")
    public Friend requestCache(@CacheKey String name) {
        log.info("request cache " + name);
        Friend friend = new Friend();
        friend.setName(name);
        friend = service.sayHiPost(friend);
        log.info("after requesting cache " + name);
        return friend;
    }

}

HystrixFallbackApplication啟動類

@EnableDiscoveryClient
@SpringBootApplication
@EnableFeignClients
@EnableCircuitBreaker
public class HystrixFallbackApplication {

    public static void main(String[] args) throws NoSuchMethodException {
        new SpringApplicationBuilder(HystrixFallbackApplication.class)
                .web(WebApplicationType.SERVLET)
                .run(args);

//        System.out.println(Feign.configKey(MyService.class,
//                MyService.class.getMethod("retry", int.class)));
    }

}

測驗

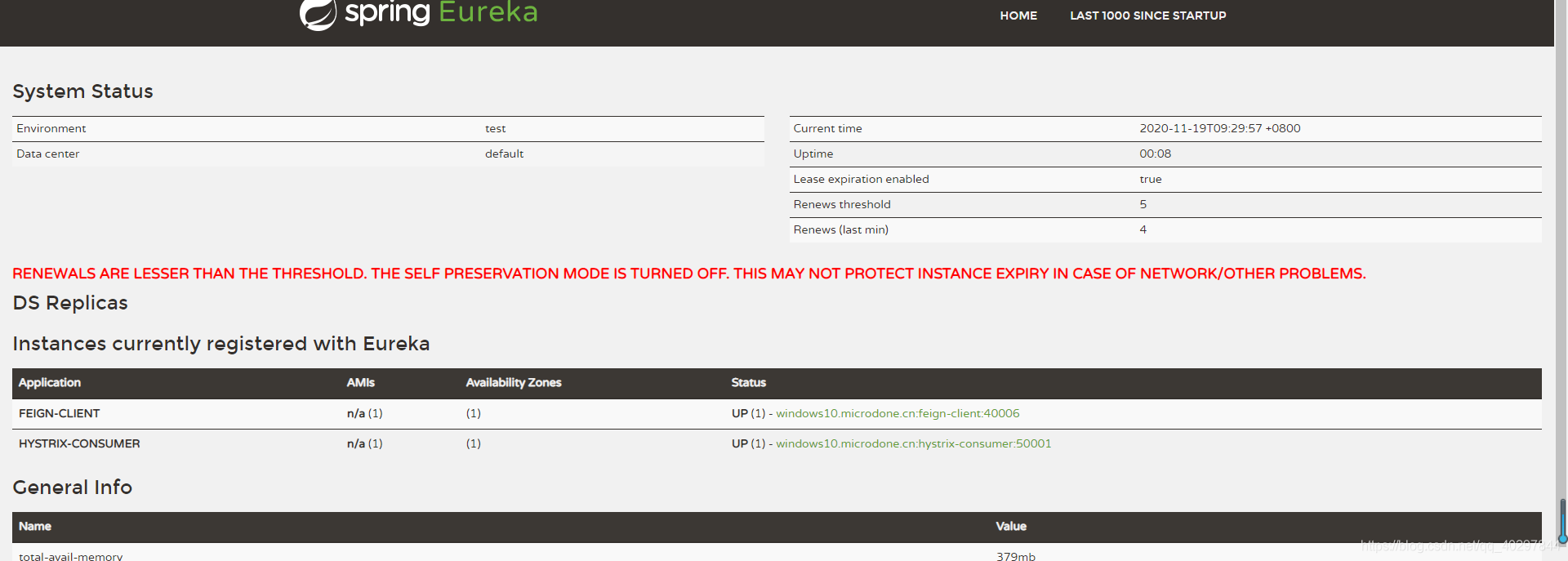

依次啟動：
eureka-server：eureka服務中心
feign-client ：feign生產者
hystrix-fallback：hystrix降級demo

Fallback多級降級測驗

測驗步驟：

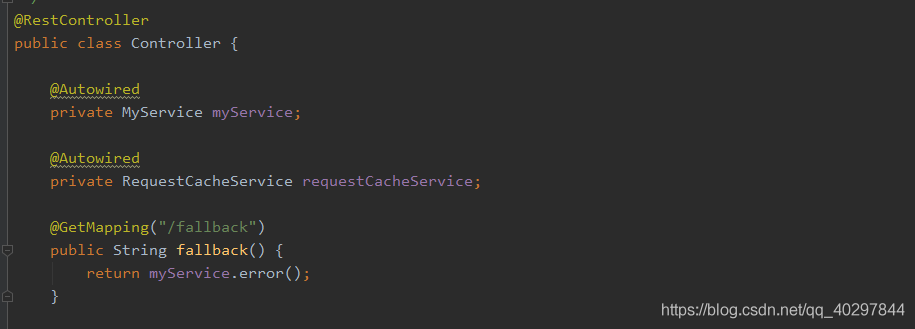

1.通過postman來呼叫hystrix-fallback fallback介面

2.然后通過feign來呼叫feign-client的error介面來獲取一個例外看看能不能降級，

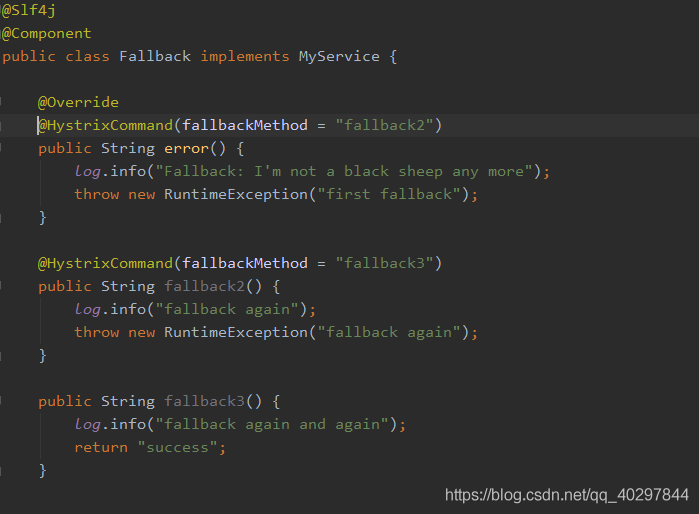

3.多級降級處理

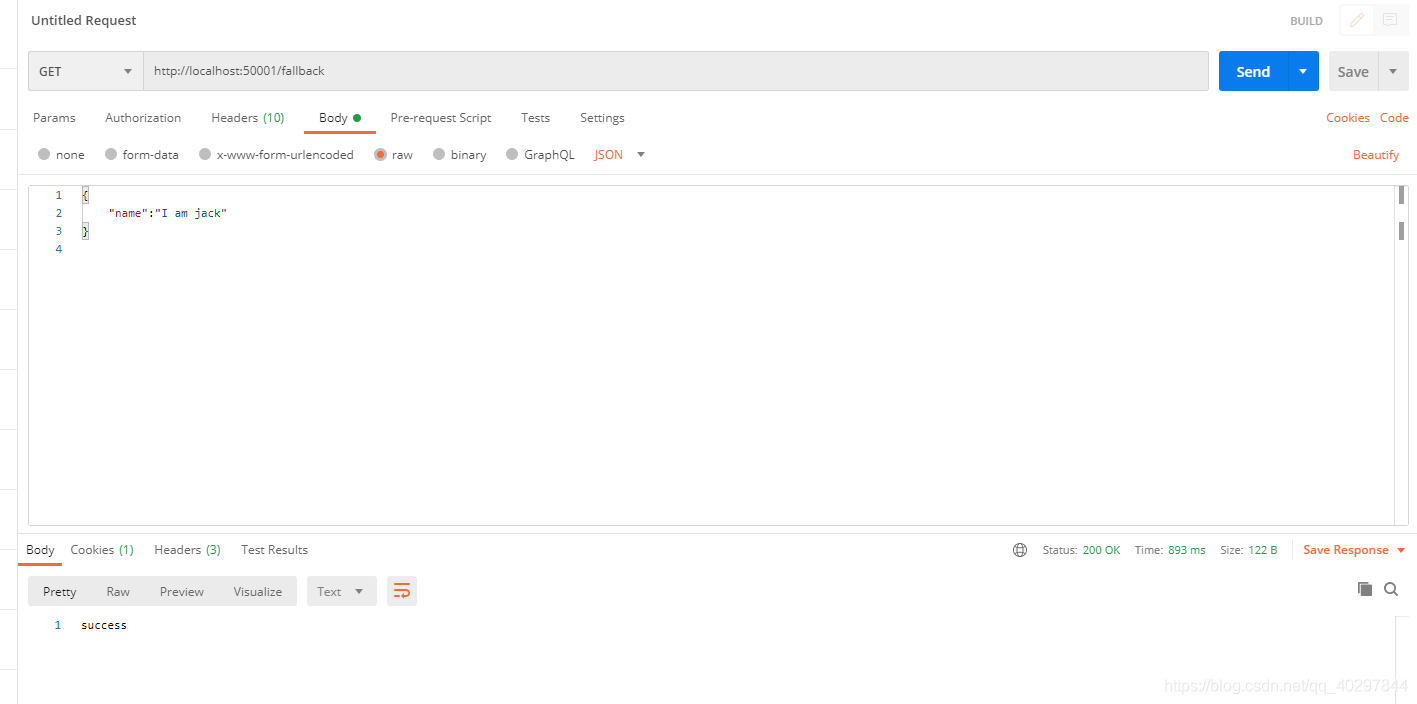

postman 放回的結果，然后分析一下結果，

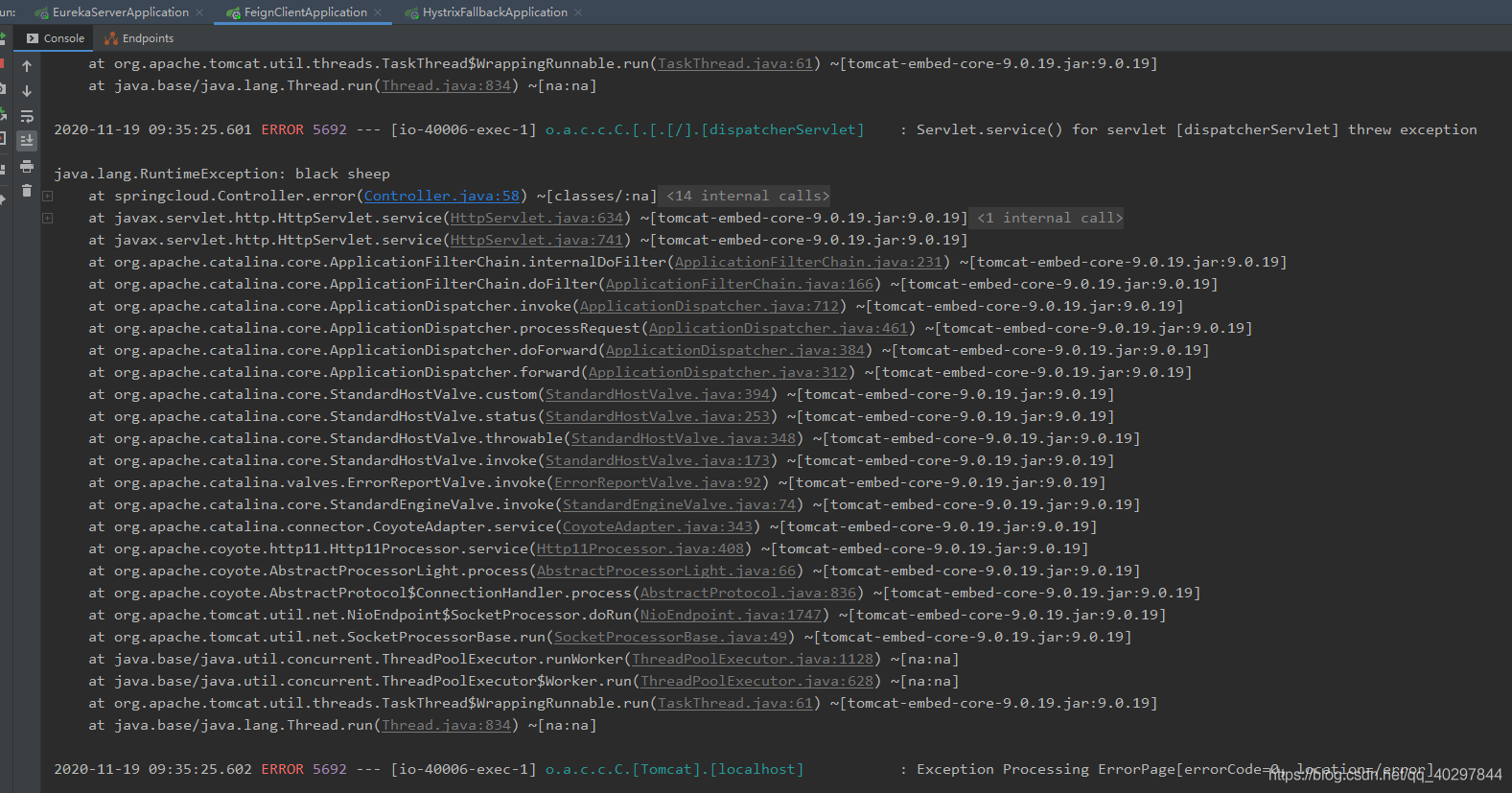

在feign-client當中 拋出了一個RuntimeException的錯誤，然后會被hystrix進行降級處理，

我們再去hystrix-fallback的控制臺看看有沒有被降級，

這三條輸出對應的就是之前多級處理的列印的結果說明 多級降級是成功的，

Timeout降級測驗

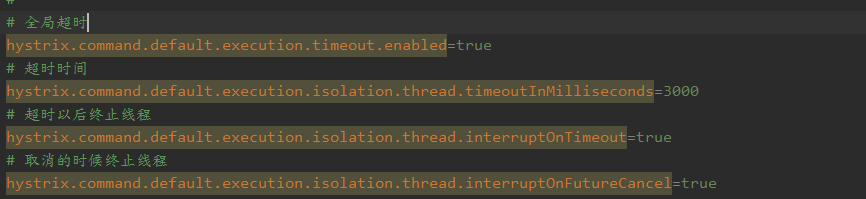

1.設定全域的超時時間 超過時間就會Timeout降級 這里我是設定的3s

2通過postman來呼叫hystrix-fallback timeout介面

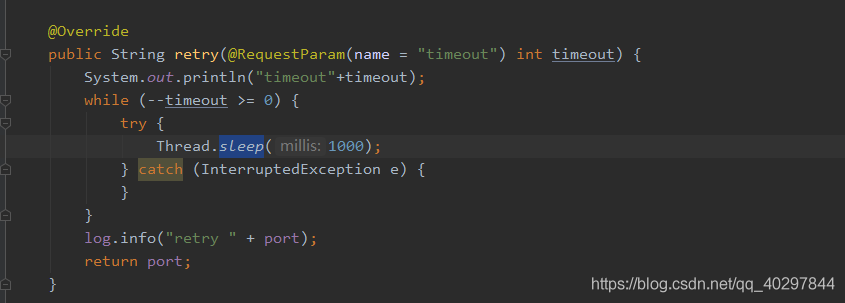

3.然后通過feign來呼叫feign-client的retry介面讓執行緒sleep相應的時間

4.如果沒有超時就會retrun 出feign-clien埠號 超時了的話就會進入timeout降級處理類

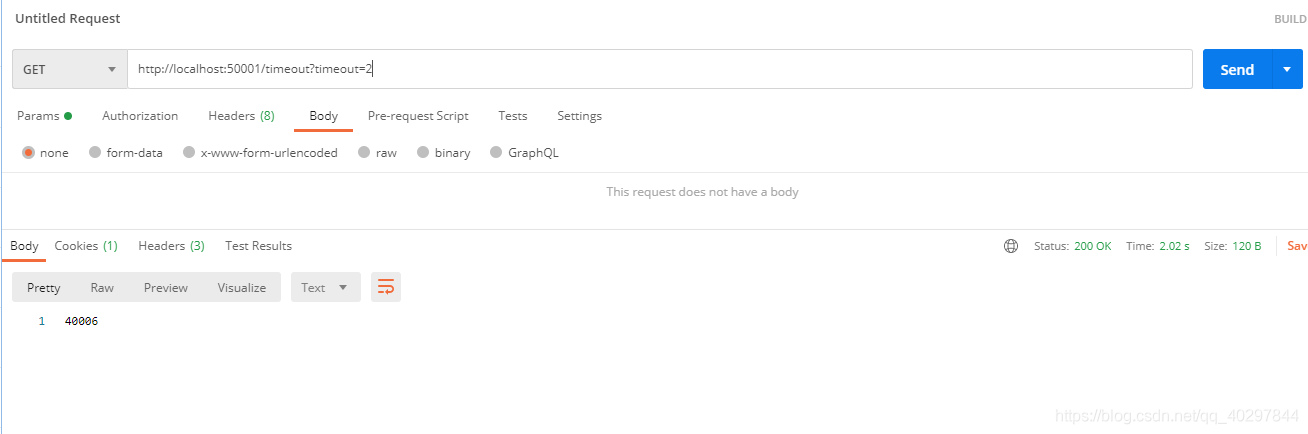

5.先測驗2s 沒有超時的結果

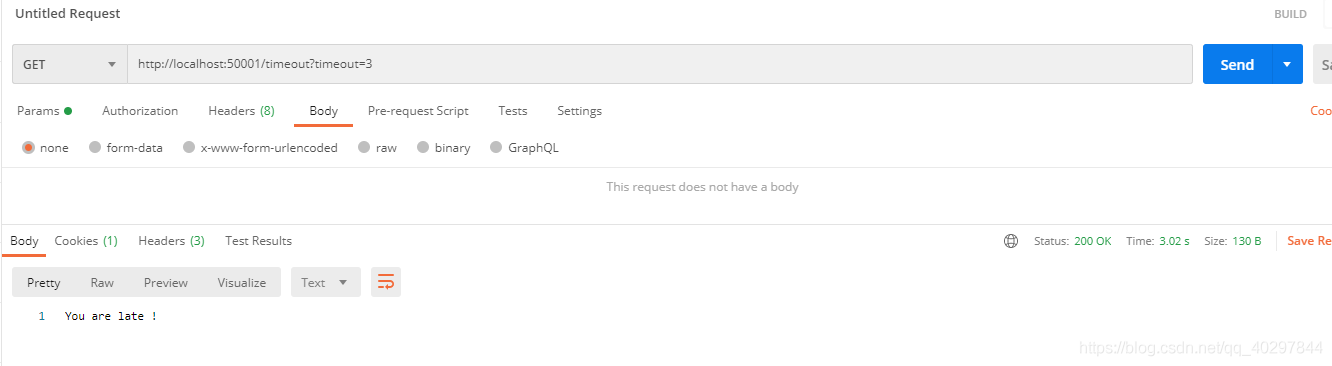

6.先然后測驗3s 超時的結果

Request Cache減壓測驗

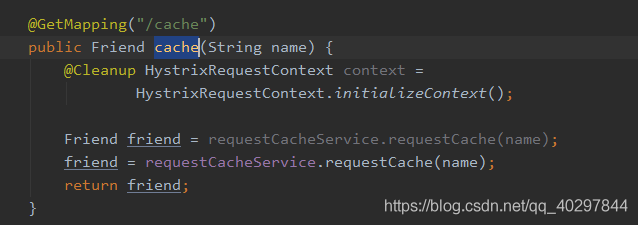

1.通過postman來呼叫hystrix-fallback cache介面，然后介面里面連續呼叫了 兩次requestCacheService.requestCache(name);
如果列印兩遍相同的log說明沒有被快取到本地，解壓失敗，
如果只列印一遍og說明有被快取到本地，解壓成功，

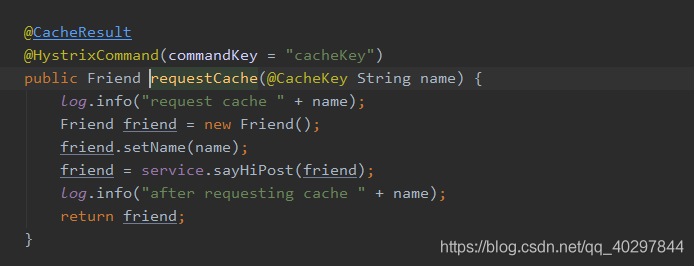

requestCacheService.requestCache

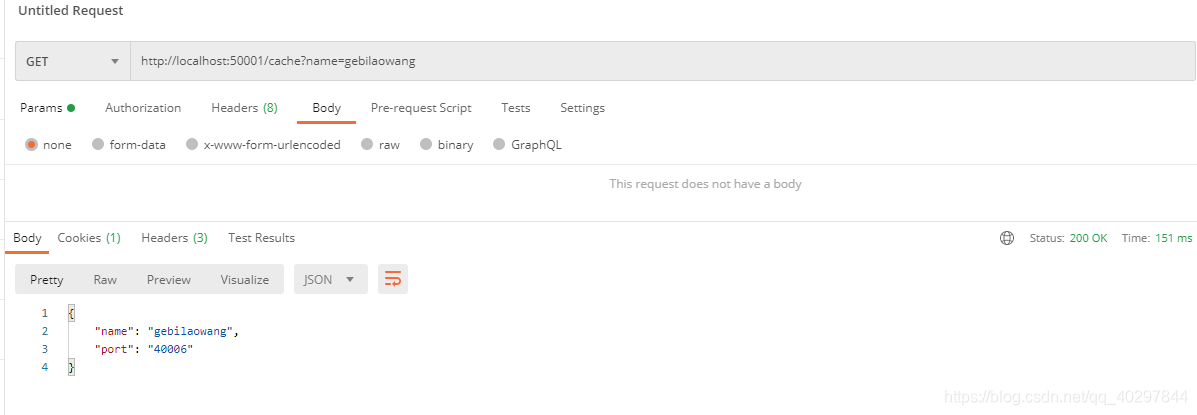

呼叫介面

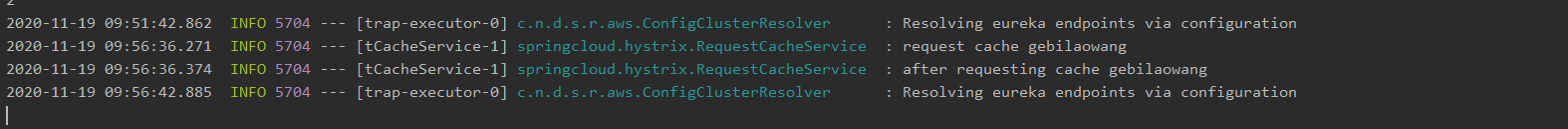

只列印了一遍Log說明解壓成功

以上有問題請指出來！交流學習
