MyBatis

一款優秀的持久層框架，它支持定制化 SQL、存盤程序以及高級映射，MyBatis 避免了幾乎所有的 JDBC 代碼和手動設定引數以及獲取結果集，MyBatis 可以使用簡單的 XML 或注解來配置和映射原生型別、介面和 Java 的 POJO（Plain Old Java Objects，普通老式 Java 物件）為資料庫中的記錄，（摘抄至官網）

前言：如果您對MyBatis的底層感興趣，想知道發起一條Sql陳述句執行，底層走了什么操作，那您可以花點時間，認真閱讀下本篇文章，相信會給你不少識訓的，本篇文章步驟條例很清晰的，

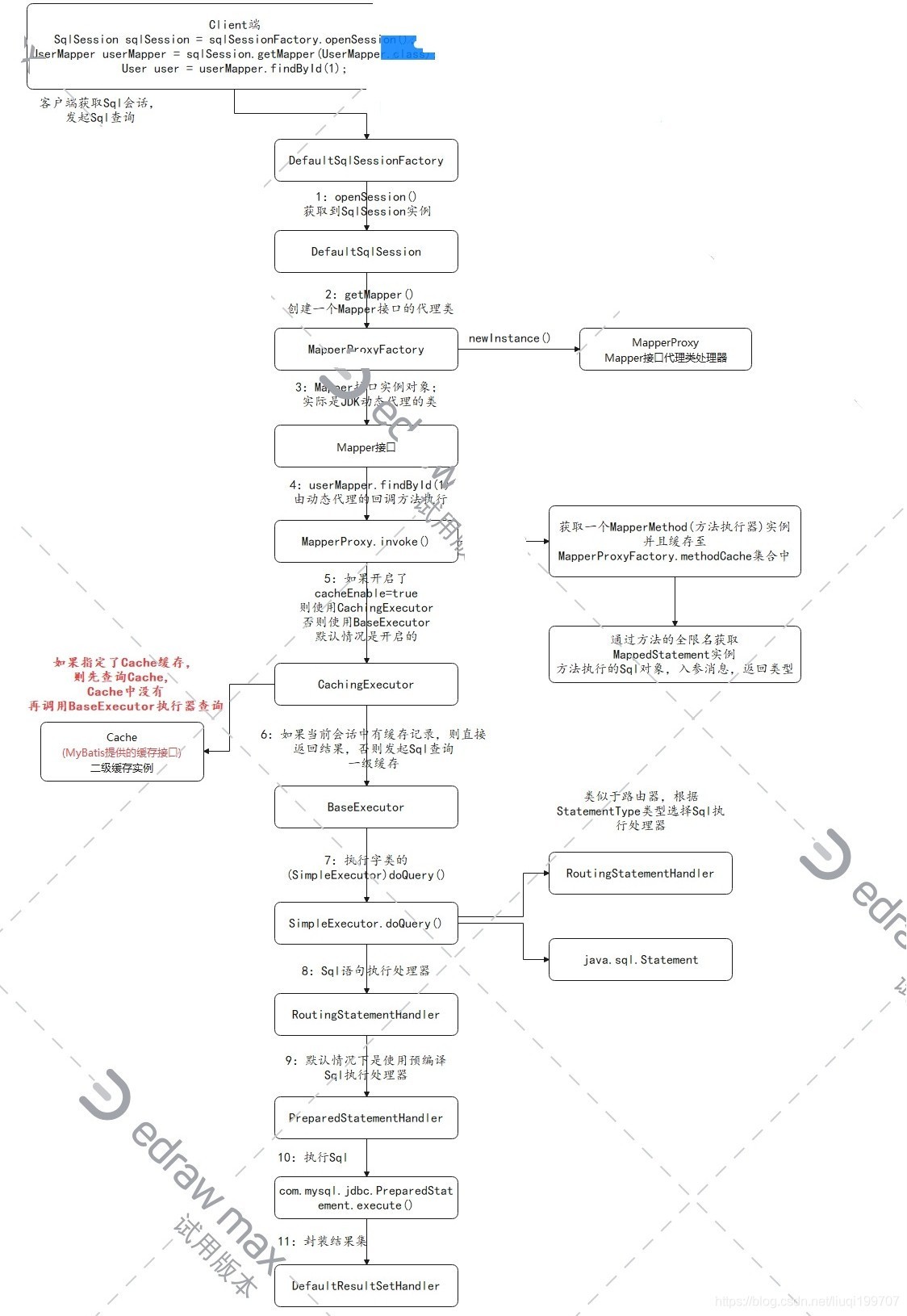

MyBatis底層是怎么運行的呢？

public static void main(String[] args) throws IOException {
        String configName = "mybatis_config.xml";
        Reader reader = Resources.getResourceAsReader(configName);
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(reader);
    }

1：啟動，加載組態檔

1. new SqlSessionFactoryBuilder().build(reader)，SqlSessionFactoryBuilder創建出SqlSessionFactory，reader引數接收一個mybatis-config.xml的流檔案，
2. 創建 XMLConfigBuilder：config.xml決議器，
3. 實體化 XMLConfigBuilder父類(BaseBuilder)的Configuration類，
4. 決議config.xml資料，加載到Configuration物件中，
5. new DefaultSqlSessionFactory(config) 創建一個SqlSessionFactory實體，默認是DefaultSqlSessionFactory，

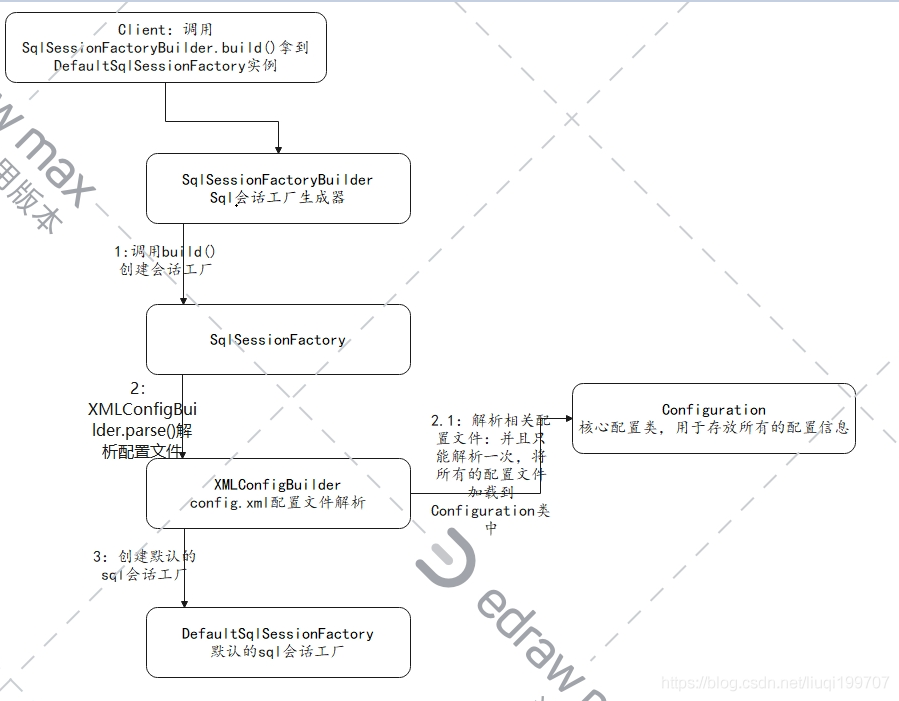

如圖所示

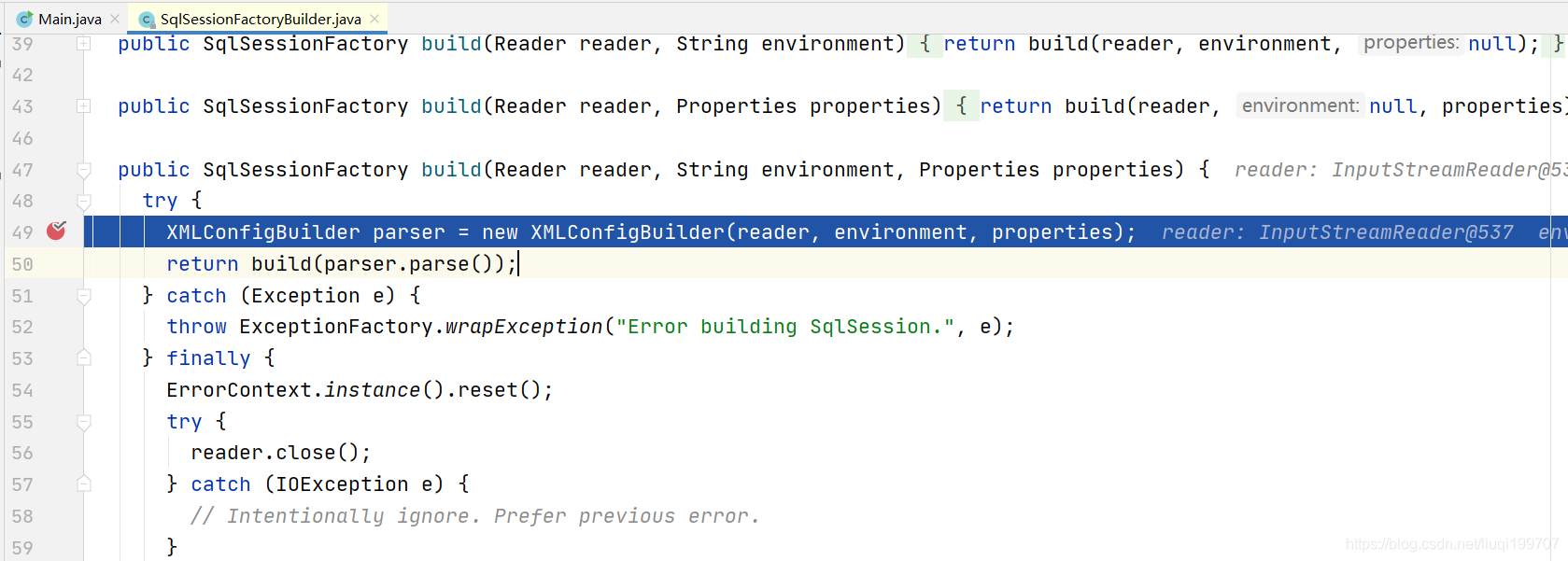

1.1：new SqlSessionFactoryBuilder().build(reader)

創建SqlSessionFactory物件實體

1.2：new XMLConfigBuilder(reader, environment, properties);

決議 mybatis-config.xml檔案

public class XMLConfigBuilder extends BaseBuilder {

    /* 標記是否已經決議過組態檔 */
    private boolean parsed;
    /* 決議器 */
    private final XPathParser parser;
    /**
     * 資料源，SqlSessionFactoryBuilder.build(Reader reader, String environment, Properties properties)
     * 不指定為空
     */
    private String environment;

    public XMLConfigBuilder(XPathParser parser, String environment, Properties props) {
        /* 初始化 Configuration */
        super(new Configuration());
        ErrorContext.instance().resource("SQL Mapper Configuration");
        /* 設定格外的屬性 */
        this.configuration.setVariables(props);
        /* 標記初始化為 false */
        this.parsed = false;
        this.environment = environment;
        this.parser = parser;
    }
}

1.3：new Configuration()

創建 Configuration 實體

public class Configuration {
    /**
     * 型別別名注冊
     * 比如 <dataSource type="POOLED">
     * 其中的 type="POOLED" 會使用 PooledDataSourceFactory類創建資料源連接池
     */
    protected final TypeAliasRegistry typeAliasRegistry = new TypeAliasRegistry();
    protected final LanguageDriverRegistry languageRegistry = new LanguageDriverRegistry();

    public Configuration() {
        /**
         * JDBC 對應使用的 事務工廠類
         * <transactionManager type="JDBC"></transactionManager>
         */
        typeAliasRegistry.registerAlias("JDBC", JdbcTransactionFactory.class);
        /**
         * MANAGED 對應使用的 事務工廠類
         */
        typeAliasRegistry.registerAlias("MANAGED", ManagedTransactionFactory.class);

        /**
         * JNDI 對應使用的 資料源
         */
        typeAliasRegistry.registerAlias("JNDI", JndiDataSourceFactory.class);
        /**
         * POOLED 對應使用的 資料源
         * <dataSource type="POOLED">
         */
        typeAliasRegistry.registerAlias("POOLED", PooledDataSourceFactory.class);
        /**
         * UNPOOLED 對應使用的 資料源
         */
        typeAliasRegistry.registerAlias("UNPOOLED", UnpooledDataSourceFactory.class);

        /**
         * 快取策略
         */
        typeAliasRegistry.registerAlias("PERPETUAL", PerpetualCache.class);
        typeAliasRegistry.registerAlias("FIFO", FifoCache.class);
        typeAliasRegistry.registerAlias("LRU", LruCache.class);
        typeAliasRegistry.registerAlias("SOFT", SoftCache.class);
        typeAliasRegistry.registerAlias("WEAK", WeakCache.class);

        typeAliasRegistry.registerAlias("DB_VENDOR", VendorDatabaseIdProvider.class);

        typeAliasRegistry.registerAlias("XML", XMLLanguageDriver.class);
        typeAliasRegistry.registerAlias("RAW", RawLanguageDriver.class);

        /**
         * 日志
         */
        typeAliasRegistry.registerAlias("SLF4J", Slf4jImpl.class);
        typeAliasRegistry.registerAlias("COMMONS_LOGGING", JakartaCommonsLoggingImpl.class);
        typeAliasRegistry.registerAlias("LOG4J", Log4jImpl.class);
        typeAliasRegistry.registerAlias("LOG4J2", Log4j2Impl.class);
        typeAliasRegistry.registerAlias("JDK_LOGGING", Jdk14LoggingImpl.class);
        typeAliasRegistry.registerAlias("STDOUT_LOGGING", StdOutImpl.class);
        typeAliasRegistry.registerAlias("NO_LOGGING", NoLoggingImpl.class);

        typeAliasRegistry.registerAlias("CGLIB", CglibProxyFactory.class);
        typeAliasRegistry.registerAlias("JAVASSIST", JavassistProxyFactory.class);

        languageRegistry.setDefaultDriverClass(XMLLanguageDriver.class);
        languageRegistry.register(RawLanguageDriver.class);
    }
}

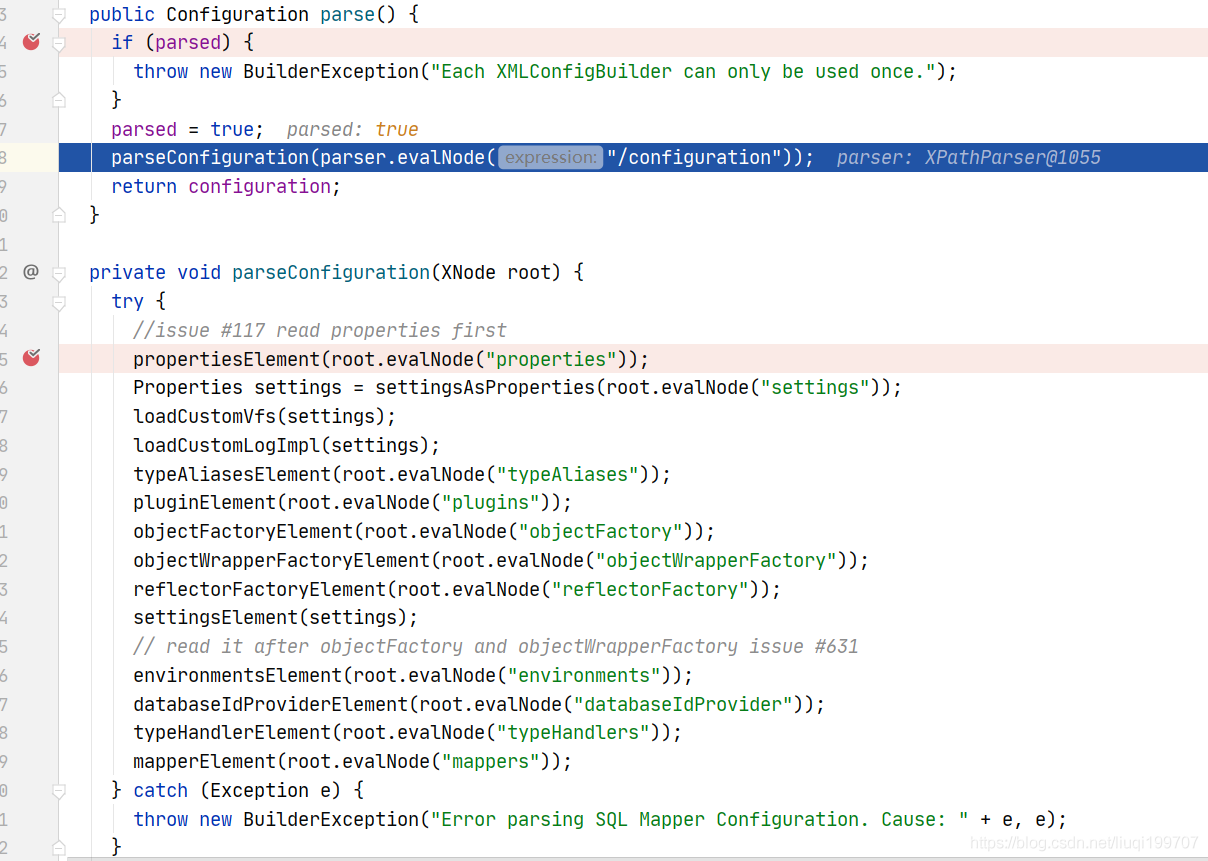

1.4 XMLConfigBuilder.parse()

決議 mybatis-config.xml

private void parseConfiguration(XNode root) {
        try {
        //issue #117 read properties first
        /**
         * 決議 <properties resource="my.properties" /> 組態檔
         */
        propertiesElement(root.evalNode("properties"));

        /**
         * 決議settings組態檔
         * <settings>
         *    <setting name="logImpl" value="STDOUT_LOGGING"/>
         * </settings>
         */
        Properties settings = settingsAsProperties(root.evalNode("settings"));
        loadCustomVfs(settings);
        loadCustomLogImpl(settings);
        /**
         * 決議 typeAliases組態檔
         */
        typeAliasesElement(root.evalNode("typeAliases"));

        /**
         * 決議 plugins 組態檔
         * 這個是插件，可以動態的攔截sql執行
         */
        pluginElement(root.evalNode("plugins"));
        objectFactoryElement(root.evalNode("objectFactory"));
        objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
        reflectorFactoryElement(root.evalNode("reflectorFactory"));
        settingsElement(settings);
        // read it after objectFactory and objectWrapperFactory issue #631
        environmentsElement(root.evalNode("environments"));
        databaseIdProviderElement(root.evalNode("databaseIdProvider"));
        typeHandlerElement(root.evalNode("typeHandlers"));

        /**
         * 加載 mapper.xml 檔案
         */
        mapperElement(root.evalNode("mappers"));
        } catch (Exception e) {
        throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
        }
}

1.4.1： mapperElement(root.evalNode(“mappers”));

決議mapper.xml檔案，以及介面方法的注解

public class XMLConfigBuilder extends BaseBuilder {
    /**
     * mapper隱射檔案決議
     * @param parent
     * @throws Exception
     */
    private void mapperElement(XNode parent) throws Exception {
        if (parent != null) {
            for (XNode child : parent.getChildren()) {
                /**
                 * 決議  <package
                 * <mappers>
                 *   <package name="com.mapper"/>
                 * </mappers>
                 */
                if ("package".equals(child.getName())) {
                    String mapperPackage = child.getStringAttribute("name");
                    /**
                     * 添加所有包下的介面
                     * 實際呼叫 configuration.addMapper(mapperInterface);
                     */
                    configuration.addMappers(mapperPackage);
                } else {
                    String resource = child.getStringAttribute("resource");
                    String url = child.getStringAttribute("url");
                    String mapperClass = child.getStringAttribute("class");
                    /**
                     * 決議 <mapper resource
                     *     <mappers>
                     *         <mapper resource="mapper/UserMapper.xml"/>
                     *     </mappers>
                     */
                    if (resource != null && url == null && mapperClass == null) {
                        ErrorContext.instance().resource(resource);
                        InputStream inputStream = Resources.getResourceAsStream(resource);
                        /**
                         * mapper.xml 決議器
                         */
                        XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
                        /**
                         * 開始決議 mapper.xml檔案
                         * 重點分析這個 同樣也會呼叫 configuration.addMapper(mapperInterface); 這個方法
                         */
                        mapperParser.parse();
                    } else if (resource == null && url != null && mapperClass == null) {
                        /**
                         * 決議 <mapper url
                         */
                        ErrorContext.instance().resource(url);
                        InputStream inputStream = Resources.getUrlAsStream(url);
                        XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
                        mapperParser.parse();
                    } else if (resource == null && url == null && mapperClass != null) {
                        /**
                         * 決議 <mapper class
                         */
                        Class<?> mapperInterface = Resources.classForName(mapperClass);
                        configuration.addMapper(mapperInterface);
                    } else {
                        /**
                         * 以下代碼可以看出 url resource class 三個屬性只能選擇一個，否則就會報錯
                         */
                        throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
                    }
                }
            }
        }
    }
}

1.4.2：mapperParser.parse();決議

我的UserMapper.xml檔案內容為：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.mapper.UserMapper">
    <select id="findById" resultType="com.entity.User">
        select * from `user` where userId = #{userId}
    </select>
</mapper>

UserMapper介面內容為：

package com.mapper;

import com.entity.User;
import org.apache.ibatis.annotations.Select;

public interface UserMapper {
    @Select("select * from `user` where userId = 2")
    User findById(int userId);
}

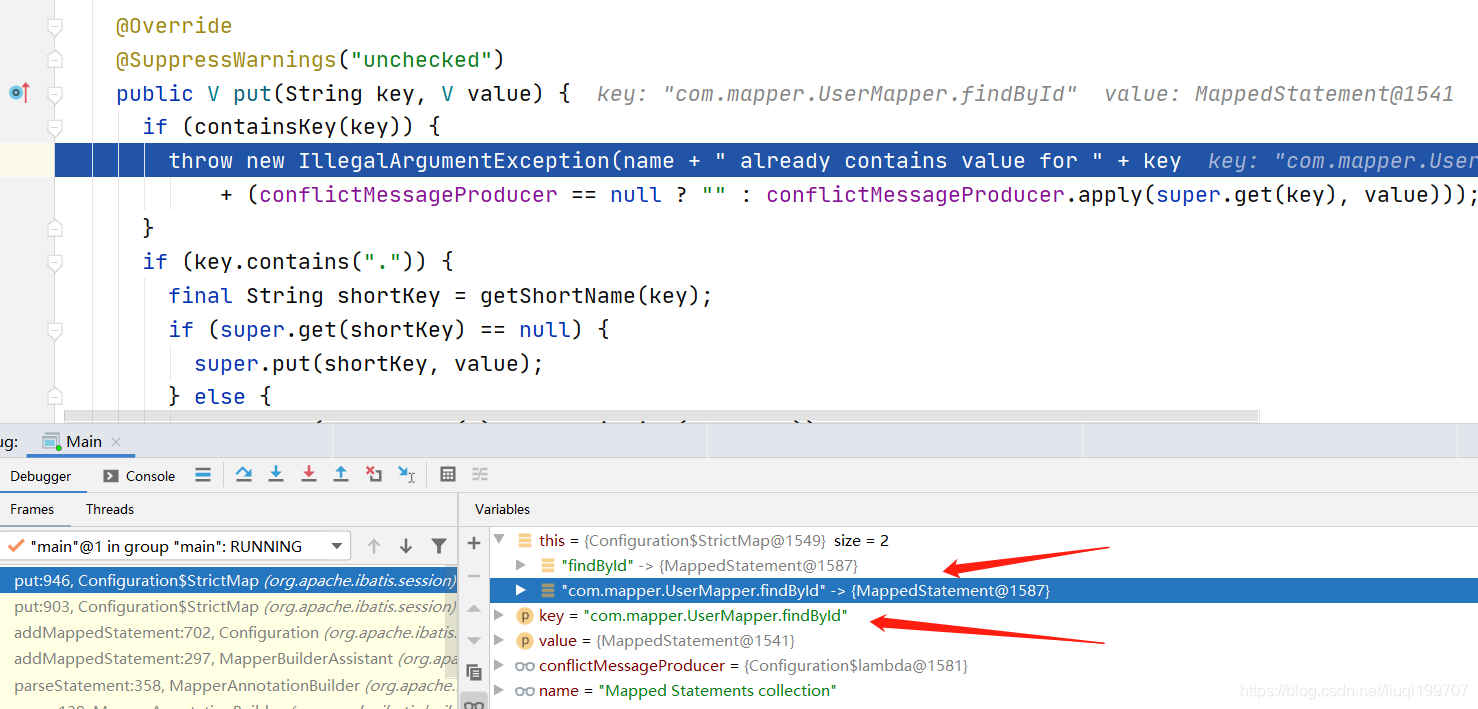

疑問？UserMapper.xml有<select id=“findById”，而在介面中的findById方法我又加了一個@Select注解；那么執行會選擇哪一條Sql執行還是報錯呢？

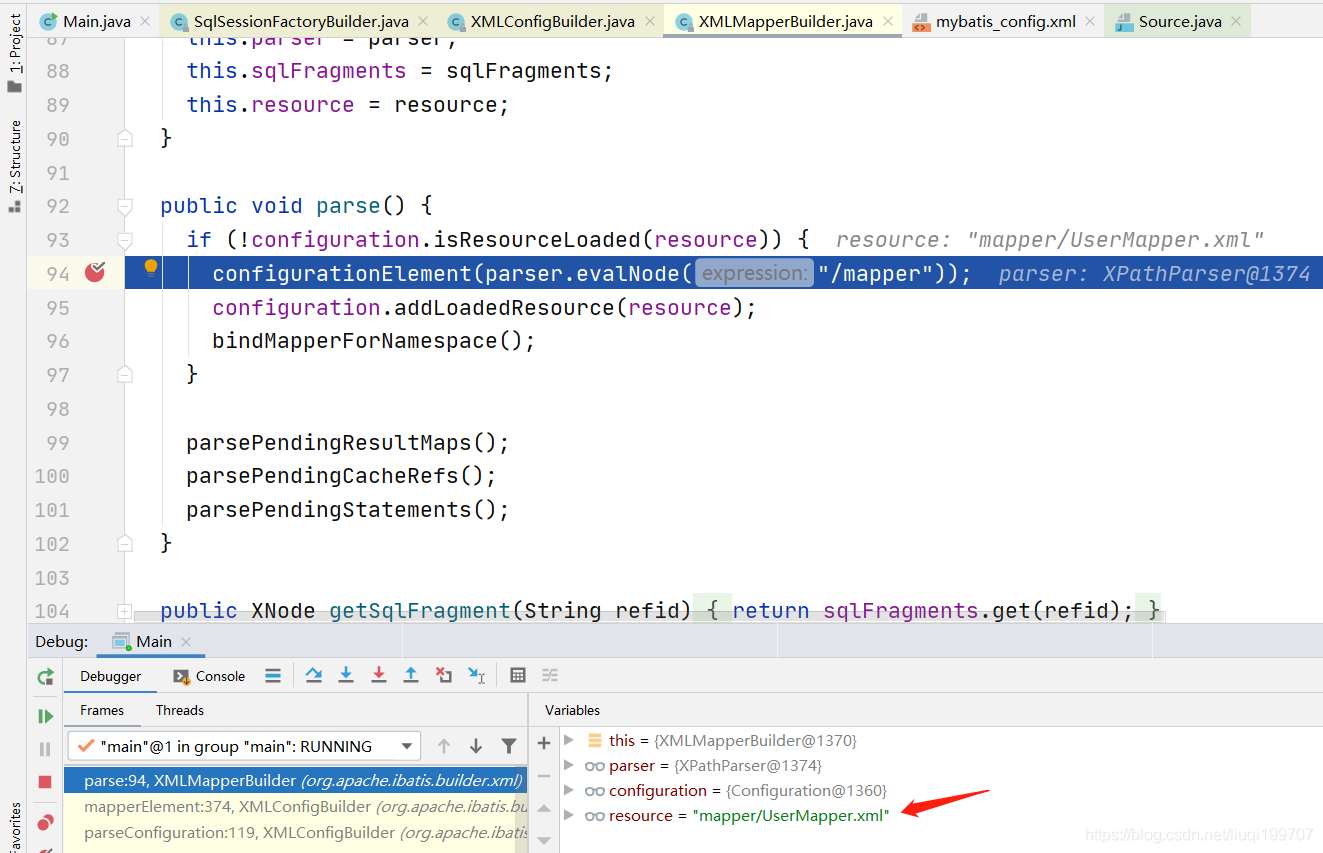

以UserMapper.xml為例子決議，可以看到 resource = mapper/UserMapper.xml

public class XMLMapperBuilder extends BaseBuilder {
    public void parse() {
        if (!configuration.isResourceLoaded(resource)) {
            /**
             * 決議 mapper.xml檔案內容
             */
            configurationElement(parser.evalNode("/mapper"));
            configuration.addLoadedResource(resource);
            /**
             * 決議 mapper.xml的<mapper namespace="com.mapper.UserMapper">
             * namespace指定的{UserMapper}介面的注解資訊
             */
            bindMapperForNamespace();
        }

        parsePendingResultMaps();
        parsePendingCacheRefs();
        parsePendingStatements();
    }
}

1.4.3：configurationElement(parser.evalNode("/mapper"));

決議 mapper.xml檔案內容

public class XMLMapperBuilder extends BaseBuilder {
    private void configurationElement(XNode context) {
        try {
            /**
             * namespace屬性
             */
            String namespace = context.getStringAttribute("namespace");
            if (namespace == null || namespace.equals("")) {
                /**
                 * 不指定 namespace會報錯哦 由此得知 namespace屬性是必須指定的
                 */
                throw new BuilderException("Mapper's namespace cannot be empty");
            }
            builderAssistant.setCurrentNamespace(namespace);
            /**
             * 決議 cache-ref
             */
            cacheRefElement(context.evalNode("cache-ref"));
            /**
             * 決議 cache
             */
            cacheElement(context.evalNode("cache"));
            /**
             * 決議 parameterMap
             */
            parameterMapElement(context.evalNodes("/mapper/parameterMap"));
            /**
             * 決議 resultMap
             */
            resultMapElements(context.evalNodes("/mapper/resultMap"));
            /**
             * 決議 sql
             */
            sqlElement(context.evalNodes("/mapper/sql"));
            /**
             * 決議 sql陳述句 select|insert|update|delete
             * 重點分析這里，這里的決議會關聯到 mapper介面的執行方法 sql陳述句映射
             */
            buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
        } catch (Exception e) {
            throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
        }
    }
}

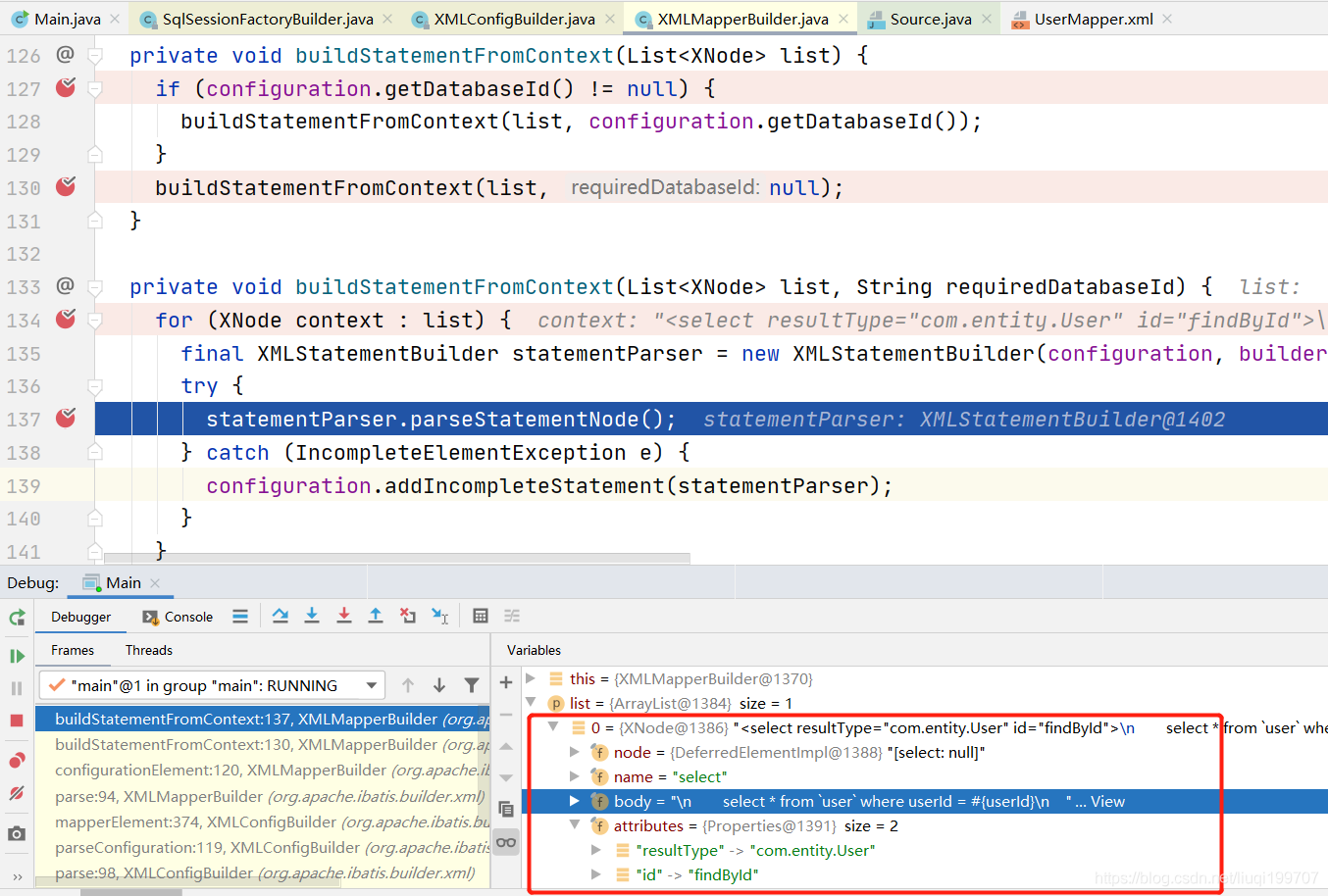

1.4.4：buildStatementFromContext(context.evalNodes(“select|insert|update|delete”));

決議 sql陳述句 select|insert|update|delete；list引數內容是select|insert|update|delete的Sql陳述句
XMLStatementBuilder Sql陳述句的決議器

1.4.5：statementParser.parseStatementNode();決議Sql陳述句

builderAssistant.addMappedStatement,并不是添加一個mapper.xml檔案隱射的實體，而是為每一個Sql陳述句創建一個實體

public class XMLStatementBuilder extends BaseBuilder {
	private final MapperBuilderAssistant builderAssistant;
    public void parseStatementNode() {
        /**
         * 此處省略一大推代碼...
         */
        /**
         * <select id="findById" resultType="com.entity.User">
         *    select * from `user` where userId = #{userId}
         * </select>
         * 引數決議
         *
         * id：標簽指定的id = findById
         * sqlSource：Sql陳述句，Sql引數占位
         * statementType：sql執行型別 參考{@link StatementType}
         *                  STATEMENT: 直接操作sql，不進行預編譯  ${}
         *                  PREPARED: 預處理，引數，進行預編譯    #{}
         *                  CALLABLE: 執行存盤程序
         * sqlCommandType：sql陳述句型別 參考{@link SqlCommandType}
         *                  UNKNOWN：未知，INSERT：新增，UPDATE：修改，DELETE：洗掉，SELECT：查詢，FLUSH：重繪
         *
         * 其他引數可查看官網：https://mybatis.org/mybatis-3/zh/sqlmap-xml.html
         */
        builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
                fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
                resultSetTypeEnum, flushCache, useCache, resultOrdered,
                keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
    }
}

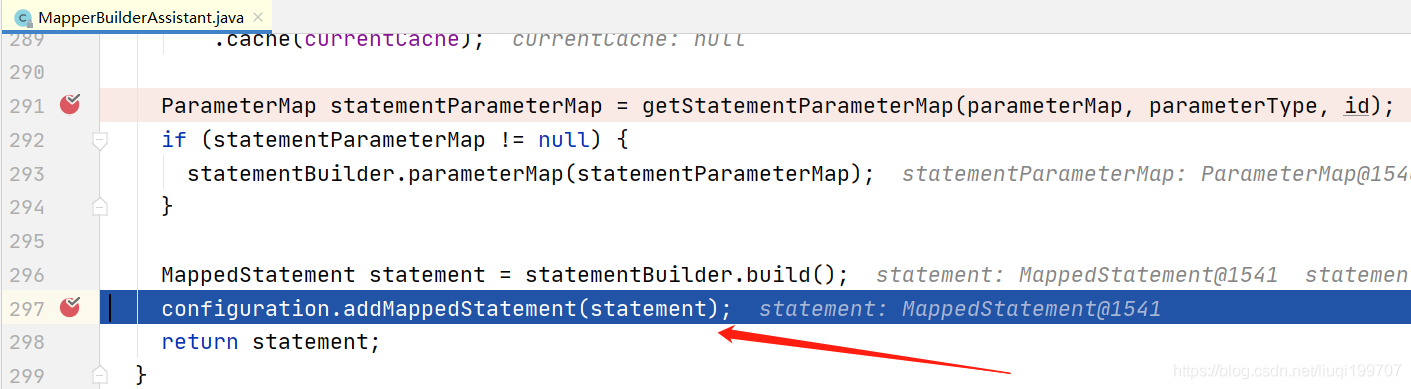

1.4.6：builderAssistant.addMappedStatement();

創建一個MappedStatement實體添加到 Configuration.mappedStatements的Map集合中

public class XMLStatementBuilder extends BaseBuilder {
    public MappedStatement addMappedStatement() {
        /**
         * 此處省略一大推代碼...
         */
        MappedStatement.Builder statementBuilder = new MappedStatement.Builder(configuration, id, sqlSource, sqlCommandType)
        /**
         * 建造者模式
         * 用于設定 MappedStatement的屬性
         * 此處省略一大推代碼...
         */

        /**
         * 設定引數入參型別  parameterType屬性
         * <select id="findById" parameterType="int" resultType="com.entity.User">
         *    select * from `user` where userId = #{userId}
         * </select>
         */
        ParameterMap statementParameterMap = getStatementParameterMap(parameterMap, parameterType, id);
        if (statementParameterMap != null) {
            statementBuilder.parameterMap(statementParameterMap);
        }

        /**
         * 創建一個 {@link MappedStatement} 實體
         */
        MappedStatement statement = statementBuilder.build();

        /**
         * MappedStatement實體添加到 {@link #configuration.mappedStatements} Map集合中
         * MappedStatement 是對應一個Sql陳述句的實體物件
         *
         * configuration.mappedStatements 存放所有的MappedStatement實體，后面會詳細介紹
         */
        configuration.addMappedStatement(statement);
        return statement;
    }
}

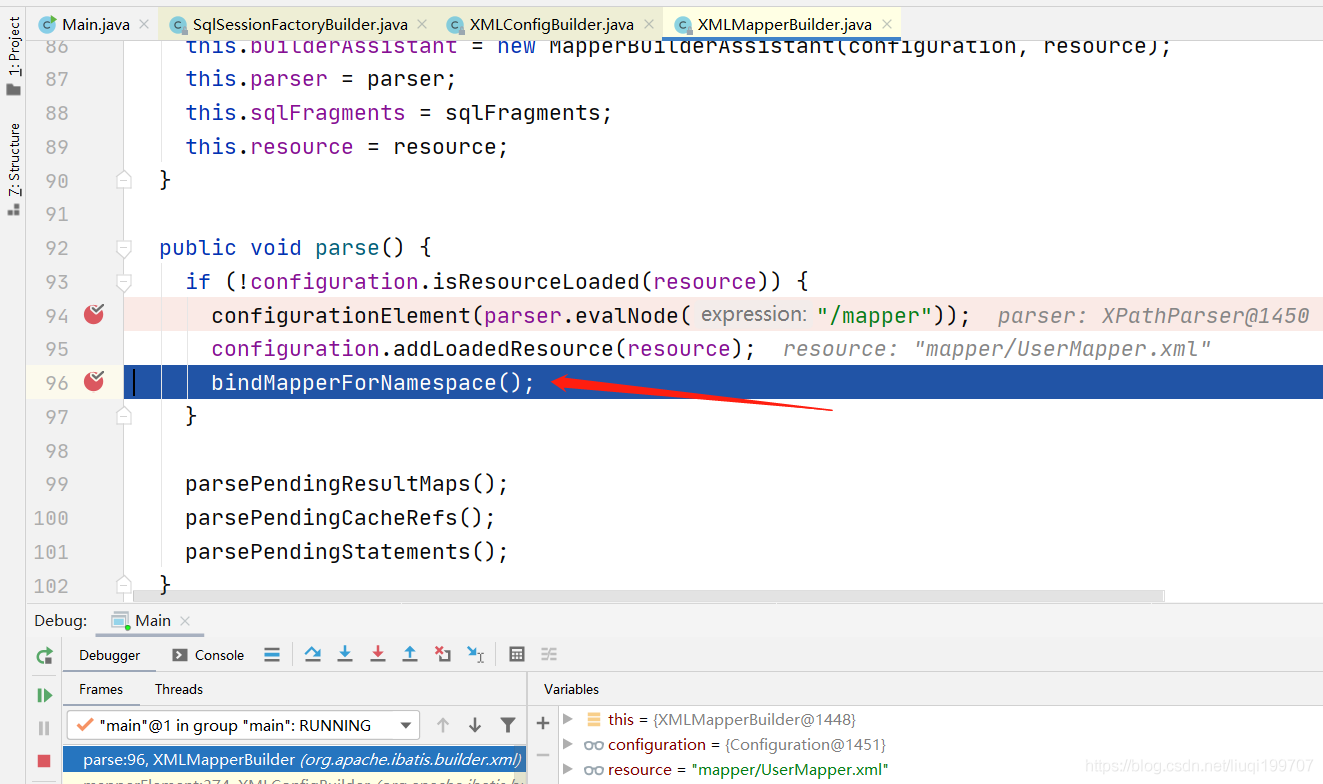

以上流程執行完后，又回到1.4.2：mapperParser.parse();決議，現在開始決議 namespace指定的介面的注解資訊，并創建該介面的代理工廠物件，UserMapper介面，

1.4.7：bindMapperForNamespace();

開始決議介面注解，并添加一個MapperProxyFactory代理工廠的物件到configuration.mapperRegistry.knownMappers；key是Mapper介面

public class XMLMapperBuilder extends BaseBuilder {
    private void bindMapperForNamespace() {
        String namespace = builderAssistant.getCurrentNamespace();
        if (namespace != null) {
            Class<?> boundType = null;
            try {
                /**
                 * java 反射 Class.classForName
                 */
                boundType = Resources.classForName(namespace);
            } catch (ClassNotFoundException e) {
                /**
                 * 這里并沒有拋出例外，說明 namespace 可以指定一個不存在的介面
                 */
                //ignore, bound type is not required  忽略，系結型別不是必需的
            }
            if (boundType != null) {
                if (!configuration.hasMapper(boundType)) {
                    // Spring may not know the real resource name so we set a flag
                    // to prevent loading again this resource from the mapper interface
                    // look at MapperAnnotationBuilder#loadXmlResource
                    configuration.addLoadedResource("namespace:" + namespace);
                    /**
                     * 添加一個Mapper介面的代理工廠物件到configuration.mapperRegistry.knownMappers集合中
                     * 參考 {@link Configuration#mapperRegistry},
                     *     {@link MapperRegistry#knownMappers}
                     */
                    configuration.addMapper(boundType);
                }
            }
        }
    }
}

1.4.8：configuration.addMapper(boundType);

public class Configuration {
    protected final MapperRegistry mapperRegistry = new MapperRegistry(this);
    public <T> void addMapper(Class<T> type) {
        /**
         * mapperRegistry = {@link MapperRegistry} mapper介面注冊器，存放所有的mapper介面資訊
         */
        mapperRegistry.addMapper(type);
    }
}

mapperRegistry.addMapper(type)；
為Mapper介面創建一個代理工廠，方便后期使用Mapper介面時創建代理類
決議mapper介面的注解資訊

public class MapperRegistry {
    public <T> void addMapper(Class<T> type) {
        if (type.isInterface()) {
            if (hasMapper(type)) {
                throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
            }
            boolean loadCompleted = false;
            try {
                /**
                 * {@link MapperProxyFactory} 代理介面工廠
                 */
                knownMappers.put(type, new MapperProxyFactory<>(type));
                // It's important that the type is added before the parser is run
                // otherwise the binding may automatically be attempted by the
                // mapper parser. If the type is already known, it won't try.
                /**
                 * {@link MapperAnnotationBuilder} mapper介面注解決議器
                 */
                MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
                /* 開始決議 */
                parser.parse();
                loadCompleted = true;
            } finally {
                if (!loadCompleted) {
                    knownMappers.remove(type);
                }
            }
        }
    }
}

1.4.9 parser.parse(); MapperAnnotationBuilder.parse()

決議mapper介面的注解資訊，parseStatement(method)主要在這個方法中完成

public class MapperAnnotationBuilder {
    public void parse() {
        String resource = type.toString();
        if (!configuration.isResourceLoaded(resource)) {
            loadXmlResource();
            configuration.addLoadedResource(resource);
            assistant.setCurrentNamespace(type.getName());
            /**
             * 決議 @CacheNamespace 注解
             */
            parseCache();
            /**
             * 決議 CacheNamespaceRef 注解
             */
            parseCacheRef();
            Method[] methods = type.getMethods();
            for (Method method : methods) {
                try {
                    // issue #237
                    if (!method.isBridge()) {
                        /**
                         * 決議Sql相關注解 列如 @Select|@Update 之類的注解
                         *
                         * 重點關注
                         */
                        parseStatement(method);
                    }
                } catch (IncompleteElementException e) {
                    configuration.addIncompleteMethod(new MethodResolver(this, method));
                }
            }
        }
        /**
         * 決議待定方法
         */
        parsePendingMethods();
    }
}

1.5.0：parseStatement(method)；

創建一個MappedStatement實體添加到 Configuration.mappedStatements的Map集合中

public class MapperAnnotationBuilder {
	private final MapperBuilderAssistant assistant;
    void parseStatement(Method method) {
        /**
         * 此處省略一大推代碼...
         */
        assistant.addMappedStatement(
                    mappedStatementId,
                    sqlSource,
                    statementType,
                    sqlCommandType,
                    fetchSize,
                    timeout,
                    // ParameterMapID
                    null,
                    parameterTypeClass,
                    resultMapId,
                    getReturnType(method),
                    resultSetType,
                    flushCache,
                    useCache,
                    // TODO gcode issue #577
                    false,
                    keyGenerator,
                    keyProperty,
                    keyColumn,
                    // DatabaseID
                    null,
                    languageDriver,
                    // ResultSets
                    options != null ? nullOrEmpty(options.resultSets()) : null);
        }
    }

1.5.1：assistant.addMappedStatement();

這里可以參考1.4.6：builderAssistant.addMappedStatement();一模一樣的操作
都呼叫了configuration.addMappedStatement(statement);

這里重點分析Configuration.addMappedStatement(statement);在做什么操作，并且解決 1.4.2留下的疑點；UserMapper.xml和UserMapper介面都有findById的Sql陳述句定義

public class Configuration {
public void addMappedStatement(MappedStatement ms) {
    mappedStatements.put(ms.getId(), ms);
  }
}

mappedStatements.put(ms.getId(), ms); 實際呼叫 Configuration.StrictMap.put()方法
Configuration.StrictMap是一個重寫的HashMap，put方法會先校驗key是否存在

public class Configuration {
    /**
     * mappedStatements Sql陳述句的物件
     *
     * Configuration.StrictMap 實作了HashMap
     */
    protected final Map<String, MappedStatement> mappedStatements = new Configuration.StrictMap<MappedStatement>("Mapped Statements collection")
            .conflictMessageProducer((savedValue, targetValue) ->
                    ". please check " + savedValue.getResource() + " and " + targetValue.getResource());

    protected static class StrictMap<V> extends HashMap<String, V> {
        @Override
        @SuppressWarnings("unchecked")
        public V put(String key, V value) {
            /**
             * key 是否存在 存在就拋出例外
             *
             * 由此得知，方法映射Sql陳述句只能定義一個，要么在 mapper.xml中定義，要么就注解定義
             */
            if (containsKey(key)) {
                throw new IllegalArgumentException(name + " already contains value for " + key
                        + (conflictMessageProducer == null ? "" : conflictMessageProducer.apply(super.get(key), value)));
            }
            if (key.contains(".")) {
                final String shortKey = getShortName(key);
                if (super.get(shortKey) == null) {
                    super.put(shortKey, value);
                } else {
                    super.put(shortKey, (V) new org.apache.ibatis.session.Configuration.StrictMap.Ambiguity(shortKey));
                }
            }
            return super.put(key, value);
        }
    }
}

debug除錯，key已經存在，就會報錯，由此得知，方法映射Sql陳述句只能定義一個，要么在 mapper.xml中定義，要么就注解定義

到此，MyBatis的啟動流程就走完了，

2：接下來就來看下是如何執行Sql查詢的，

public class Main {
    public static void main(String[] args) throws IOException {
        String configName = "mybatis_config.xml";
        Reader reader = Resources.getResourceAsReader(configName);
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(reader);

        /**
         * 獲取一個會話連接
         */
        SqlSession sqlSession = sqlSessionFactory.openSession();

        /**
         * 拿到 UserMapper 的代理類
         */
        UserMapper userMapper = sqlSession.getMapper(UserMapper.class);

        /**
         * 執行Sql查詢
         */
        User user = userMapper.findById(1);
        System.out.println(user);
    }
}

輸出結果：User{userId=1, username=‘張三’, sex=‘男’, age=12}

一行代碼的查詢，底層既然走了那么多流程；

流程圖：

2.1：sqlSessionFactory.openSession();打開會話連接

呼叫DefaultSqlSessionFactory.openSessionFromDataSource();

public class DefaultSqlSessionFactory implements SqlSessionFactory {
    private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
        Transaction tx = null;
        try {
            /**
             * mybatis_config.xml配置的
             * <environment>資料源<environment/>
             */
            final Environment environment = configuration.getEnvironment();

            /**
             * transactionManager 配置的事務管理器工廠   type="JDBC"  {@link JdbcTransactionFactory}
             *<environments default="developmentss">
             *    <environment id="developmentss">
             *        <transactionManager type="JDBC"></transactionManager>
             *    </environment>
             *  </environments>
             */
            final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);

            /**
             * 創建事務管理器，由于上面指定的事務管理器工廠是 {@link JdbcTransactionFactory}
             * 所以創建的事務管理器是  {@link JdbcTransaction}
             *
             * @param level 事務隔離級別
             * @param autoCommit 是否自動提交事務
             */
            tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);

            /**
             * 創建Sql執行器
             *
             * @param execType 創建執行器型別 defaultExecutorType如果不指定 默認就是 SIMPLE
             *                 <settings>
             *                     <setting name="defaultExecutorType" value="SIMPLE"/>
             *                 </settings>
             */
            final Executor executor = configuration.newExecutor(tx, execType);

            /**
             * 創建一個默認的 SqlSession實體
             */
            return new DefaultSqlSession(configuration, executor, autoCommit);
        } catch (Exception e) {
            closeTransaction(tx); // may have fetched a connection so lets call close()
            throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
        } finally {
            ErrorContext.instance().reset();
        }
    }
}

2.2：configuration.newExecutor(tx, execType);創建執行器

public class Configuration {
    public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
        executorType = executorType == null ? defaultExecutorType : executorType;
        executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
        Executor executor;
        if (ExecutorType.BATCH == executorType) {
            /**
             * 執行器不僅重用陳述句還會執行批量更新
             */
            executor = new BatchExecutor(this, transaction);
            /**
             * 執行器會重用預處理陳述句（PreparedStatement）
             */
        } else if (ExecutorType.REUSE == executorType) {
            executor = new ReuseExecutor(this, transaction);
        } else {
            /**
             * 普通的執行器 也是默認的執行器
             */
            executor = new SimpleExecutor(this, transaction);
        }
        /**
         * 如果開啟了二級快取 cacheEnabled，創建一個CachingExecutor快取執行器
         * cacheEnabled 默認為true
         * <settings>
         *     <setting name="cacheEnabled" value="true"/>
         * </settings>
         */
        if (cacheEnabled) {
            executor = new CachingExecutor(executor);
        }
        executor = (Executor) interceptorChain.pluginAll(executor);
        return executor;
    }
}

2.3：sqlSession.getMapper(UserMapper.class);

獲取Mapper介面代理類實體

public class DefaultSqlSession implements SqlSession {
    @Override
    public <T> T getMapper(Class<T> type) {
        /**
         * 用 Configuration 類的 getMapper方法
         */
        return configuration.getMapper(type, this);
    }
}

public class Configuration {
    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        /**
         * 呼叫 MapperRegistry Mapper介面注冊器
         */
        return mapperRegistry.getMapper(type, sqlSession);
    }
}

public class MapperRegistry {
    private final Configuration config;
    private final Map<Class<?>, MapperProxyFactory<?>> knownMappers = new HashMap<>();

    public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        /**
         * knownMappers 從快取中獲取 MapperProxyFactory Mapper介面代理工廠
         * 如果沒有找到就會拋出例外，
         * 說明獲取Mapper介面代理實體時，需要事先定義好  -->  相當于Spring的掃包
         */
        final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
        if (mapperProxyFactory == null) {
            throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
        }
        try {
            /**
             * 創建代理實體
             */
            return mapperProxyFactory.newInstance(sqlSession);
        } catch (Exception e) {
            throw new BindingException("Error getting mapper instance. Cause: " + e, e);
        }
    }
}

2.3.1：使用JDK代理創建Mapper介面代理

InvocationHandler是MapperProxy

public class MapperProxyFactory<T> {

    private final Class<T> mapperInterface;
    /**
     * MapperMethod 快取
     */
    private final Map<Method, MapperMethod> methodCache = new ConcurrentHashMap<>();

    public MapperProxyFactory(Class<T> mapperInterface) {
        this.mapperInterface = mapperInterface;
    }

    @SuppressWarnings("unchecked")
    protected T newInstance(MapperProxy<T> mapperProxy) {
        /**
         * JDK 生產代理類
         */
        return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
    }

    public T newInstance(SqlSession sqlSession) {
        /**
         * 代理類回呼介面
         */
        final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
        return newInstance(mapperProxy);
    }
}

2.4：userMapper.findById(1); 呼叫Mapper介面方法Sql查詢

會走代理類 MapperProxy.invoke

public class MapperProxy<T> implements InvocationHandler, Serializable {

    private static final long serialVersionUID = -6424540398559729838L;
    private final SqlSession sqlSession;
    private final Class<T> mapperInterface;
    private final Map<Method, MapperMethod> methodCache;

    public MapperProxy(SqlSession sqlSession, Class<T> mapperInterface, Map<Method, MapperMethod> methodCache) {
        this.sqlSession = sqlSession;
        this.mapperInterface = mapperInterface;
        this.methodCache = methodCache;
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        try {
            if (Object.class.equals(method.getDeclaringClass())) {
                return method.invoke(this, args);
            } else if (method.isDefault()) {
                return invokeDefaultMethod(proxy, method, args);
            }
        } catch (Throwable t) {
            throw ExceptionUtil.unwrapThrowable(t);
        }
        /**
         * 根據方法全限名 獲取一個MapperMethod實體，并且快取
         *
         * 注意：這里的 methodCache 只是一個參考，快取的所有物件都在 {@link MapperProxyFactory#methodCache}中
         */
        final MapperMethod mapperMethod = cachedMapperMethod(method);
        /**
         * 開始執行
         */
        return mapperMethod.execute(sqlSession, args);
    }

    /**
     * 添加到快取 methodCache {@link MapperProxyFactory#methodCache}中
     * computeIfAbsent   HashMap  存在就獲取，不存在就新增
     * @param method
     * @return
     */
    private MapperMethod cachedMapperMethod(Method method) {
        return methodCache.computeIfAbsent(method, k -> new MapperMethod(mapperInterface, method, sqlSession.getConfiguration()));
    }
}

2.5：mapperMethod.execute(sqlSession, args);

執行Sql陳述句查詢，由于我的回傳結果是一個 User物件，所以會走到
result = sqlSession.selectOne(command.getName(), param);這一行，查詢一條記錄
實際走到 DefaultSqlSession.selectOne()

public class MapperMethod {

    private final org.apache.ibatis.binding.MapperMethod.SqlCommand command;
    private final org.apache.ibatis.binding.MapperMethod.MethodSignature method;

    public MapperMethod(Class<?> mapperInterface, Method method, Configuration config) {
        this.command = new org.apache.ibatis.binding.MapperMethod.SqlCommand(config, mapperInterface, method);
        this.method = new org.apache.ibatis.binding.MapperMethod.MethodSignature(config, mapperInterface, method);
    }
    /**
    * 開始執行Sql查詢
    */
    public Object execute(SqlSession sqlSession, Object[] args) {
        Object result;
        switch (command.getType()) {
            case INSERT: {
                // 省略代碼...   執行 insert陳述句 <insert>/@Insert
                break;
            }
            case UPDATE: {
                // 省略代碼...   執行 insert陳述句 <update>/@Update
                break;
            }
            case DELETE: {
                // 省略代碼...   執行 delete陳述句 <delete>/@Delete
                break;
            }
            case SELECT:      // 執行 select陳述句 <select>/@Select
                if (method.returnsVoid() && method.hasResultHandler()) {
                    // 回傳型別是否為空 一般情況做Sql操作都要有回傳結果的
                    executeWithResultHandler(sqlSession, args);
                    result = null;
                } else if (method.returnsMany()) {
                    /**
                     * 是否回傳多個結果集  {@link Collection}集合/陣列
                     */
                    result = executeForMany(sqlSession, args);
                } else if (method.returnsMap()) {
                    /**
                     * 回傳型別是否為 Map 集合
                     */
                    result = executeForMap(sqlSession, args);
                } else if (method.returnsCursor()) {
                    /**
                     * 回傳型別是否是 游標  {@link org.apache.ibatis.cursor.Cursor}
                     */
                    result = executeForCursor(sqlSession, args);
                } else {
                    /**
                     * 將引數轉換為Sql命令引數
                     */
                    Object param = method.convertArgsToSqlCommandParam(args);
                    /**
                     * 發起查詢  呼叫的是 sqlSession中的方法
                     */
                    result = sqlSession.selectOne(command.getName(), param);
                    if (method.returnsOptional()
                            && (result == null || !method.getReturnType().equals(result.getClass()))) {
                        result = Optional.ofNullable(result);
                    }
                }
                break;
            case FLUSH:  // 重繪
                result = sqlSession.flushStatements();
                break;
            default:
                throw new BindingException("Unknown execution method for: " + command.getName());
        }
        if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
            throw new BindingException("Mapper method '" + command.getName()
                    + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
        }
        return result;
    }
}

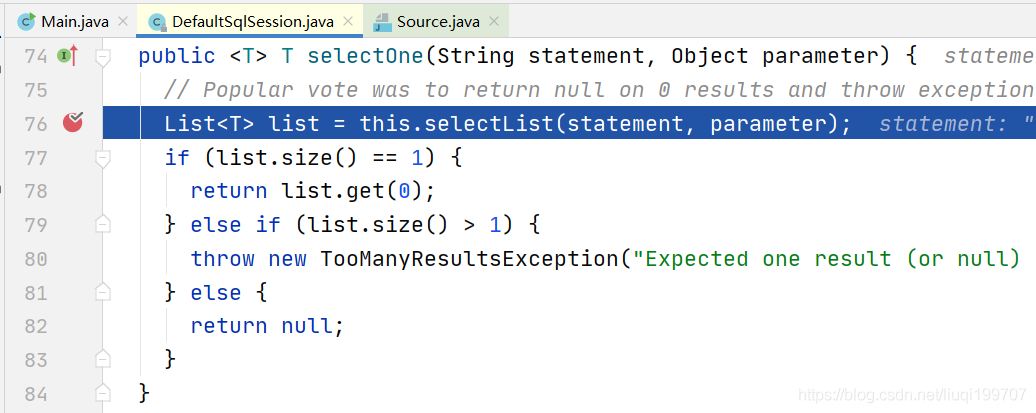

DefaultSqlSession.selectOne()可以看出實際是呼叫selectList()，而且如果回傳了多個結果集就會報錯，錯誤資訊如下
Expected one result (or null) to be returned by selectOne(), but found: 2

2.6：DefaultSqlSession.selectList()

查詢多結果集

public class DefaultSqlSession implements SqlSession {
    /**
     *
     * @param statement 方法全限名 比如：com.mapper.UserMapper.findById
     * @param parameter 引數
     * @param rowBounds 分頁
     * @param <E>
     * @return
     */
    @Override
    public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
        try {
            /**
             * 根據方法全限名在 configuration.mappedStatements快取集合中拿到方法對應的Sql Statement物件實體
             */
            MappedStatement ms = configuration.getMappedStatement(statement);
            /**
             * 使用執行器執行 由當前設定的執行器執行
             * <setting name="defaultExecutorType" value="SIMPLE"/>
             *
             * <setting name="cacheEnabled" value="true"/>
             * 注意：cacheEnabled由于開啟二級快取默認為true，會先使用 {@link CachingExecutor} 快取執行器查詢
             */
            return executor.query(ms, wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
        } catch (Exception e) {
            throw ExceptionFactory.wrapException("Error querying database.  Cause: " + e, e);
        } finally {
            ErrorContext.instance().reset();
        }
    }
}

2.7：executor.query執行器查詢

執行器的創建查看 2.2：configuration.newExecutor(tx, execType);創建執行器

/**
 * 二級快取執行器
 */
public class CachingExecutor implements Executor {
    @Override
    public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql)
            throws SQLException {
        /**
         * 獲取指定的二級快取
         * mapper.xml 指定的 <cache type="com.domain.something.MyCustomCache"/>
         * Mapper介面的 @CacheNamespace
         */
        Cache cache = ms.getCache();
        if (cache != null) {
            /* 是否需要重繪二級快取 */
            flushCacheIfRequired(ms);
            if (ms.isUseCache() && resultHandler == null) {
                ensureNoOutParams(ms, boundSql);
                @SuppressWarnings("unchecked")
                /**
                 * 獲取二級快取
                 */
                List<E> list = (List<E>) tcm.getObject(cache, key);
                if (list == null) {
                    /**
                     * 如果沒有資料查詢Sql
                     */
                    list = delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
                    /**
                     * 設定快取
                     */
                    tcm.putObject(cache, key, list); // issue #578 and #116
                }
                return list;
            }
        }
        /**
         * delegate = SimpleExecutor
         */
        return delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
    }
}

2.8：delegate.query(); delegate = SimpleExecutor

因為我沒有指定二級快取，所以直接走向delegate.query, 因為SimpleExecutor繼承了BaseExecutor但是沒有重寫query方法，所以走的是BaseExecutor.query()

public abstract class BaseExecutor implements Executor {
    @Override
    public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
        ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
        if (closed) {
            throw new ExecutorException("Executor was closed.");
        }
        /**
         * 是否需要清空一級快取 flushCache設定為true生效
         * <select flushCache="true"></select>
         */
        if (queryStack == 0 && ms.isFlushCacheRequired()) {
            clearLocalCache();
        }
        List<E> list;
        try {
            // 防止多執行緒重復呼叫處理
            queryStack++;
            /**
             * localCache.getObject(key) 獲取一級快取
             * {@link BaseExecutor.localCache} 型別 org.apache.ibatis.cache.impl.PerpetualCache
             */
            list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
            if (list != null) {
                handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
            } else {
                /**
                 * 發起資料庫查詢
                 */
                list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
            }
        } finally {
            queryStack--;
        }
        if (queryStack == 0) {
            for (org.apache.ibatis.executor.BaseExecutor.DeferredLoad deferredLoad : deferredLoads) {
                deferredLoad.load();
            }
            // issue #601
            deferredLoads.clear();
            if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
                // issue #482
                clearLocalCache();
            }
        }
        return list;
    }
}

2.9：queryFromDatabase()，

資料庫查詢 會執行到子類的doQuery()方法，這里的字類是SimpleExecutor 所以執行 SimpleExecutor.doQuery()

public abstract class BaseExecutor implements Executor {
    private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
        List<E> list;
        /**
         * 一級快取占位
         */
        localCache.putObject(key, EXECUTION_PLACEHOLDER);
        try {
            /**
             * 呼叫子類的 doQuery()方法
             *
             * 這里的字類是SimpleExecutor 所以執行 SimpleExecutor.doQuery()
             */
            list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);
        } finally {
            localCache.removeObject(key);
        }
        /**
         * 添加一級快取
         */
        localCache.putObject(key, list);
        if (ms.getStatementType() == StatementType.CALLABLE) {
            localOutputParameterCache.putObject(key, parameter);
        }
        return list;
    }
}

2.9.1：SimpleExecutor.doQuery()

執行資料庫查詢

public class SimpleExecutor extends BaseExecutor {
    public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
        Statement stmt = null;
        try {
            Configuration configuration = ms.getConfiguration();
            /**
             * 創建 RoutingStatementHandler Sql陳述句執行型別處理器
             */
            StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
            /**
             * 創建 java.sql.Statement
             */
            stmt = prepareStatement(handler, ms.getStatementLog());
            /**
             * 發起資料庫查詢
             */
            return handler.query(stmt, resultHandler);
        } finally {
            closeStatement(stmt);
        }
    }
}

2.9.2：configuration.newStatementHandler();

創建 RoutingStatementHandler Sql陳述句執行型別處理器

public class RoutingStatementHandler implements StatementHandler {

    private final StatementHandler delegate;

    public RoutingStatementHandler(Executor executor, MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {

        switch (ms.getStatementType()) {
            case STATEMENT:
                /**
                 * 簡單的Sql執行處理器
                 */
                delegate = new SimpleStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
                break;
            case PREPARED:
                /**
                 * 預編譯的Sql執行處理器
                 * 這是默認的
                 */
                delegate = new PreparedStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
                break;
            case CALLABLE:
                /**
                 * 存盤程序執行的Sql執行處理器
                 */
                delegate = new CallableStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
                break;
            default:
                throw new ExecutorException("Unknown statement type: " + ms.getStatementType());
        }

    }
}

2.9.3：prepareStatement()

創建 java.sql.Statement

private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
    Statement stmt;
    Connection connection = getConnection(statementLog);
    stmt = handler.prepare(connection, transaction.getTimeout());
    handler.parameterize(stmt);
    return stmt;
  }

3.0：handler.query(stmt, resultHandler);

delegate 參考2.9.2：configuration.newStatementHandler()

public class RoutingStatementHandler implements StatementHandler {
    private final StatementHandler delegate;
    @Override
    public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
        /**
         * 當前的 delegate = PreparedStatementHandler
         */
        return delegate.query(statement, resultHandler);
    }
}

3.1：delegate.query(statement, resultHandler);

執行 PreparedStatementHandler.query()

public class PreparedStatementHandler extends BaseStatementHandler {
    @Override
    public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
        PreparedStatement ps = (PreparedStatement) statement;
        /**
         * 發起資料庫查詢
         */
        ps.execute();
        /**
         * 封裝結果集 resultSetHandler = DefaultResultSetHandler
         */
        return resultSetHandler.handleResultSets(ps);
    }
}

3.2：resultSetHandler.handleResultSets(ps);

封裝結果集

public class DefaultResultSetHandler implements ResultSetHandler {
    /**
     * 封裝結果集
     * @param stmt
     * @return
     * @throws SQLException
     */
    @Override
    public List<Object> handleResultSets(Statement stmt) throws SQLException {
        ErrorContext.instance().activity("handling results").object(mappedStatement.getId());

        final List<Object> multipleResults = new ArrayList<>();

        int resultSetCount = 0;
        /**
         * 包裝 ResultSet
         */
        ResultSetWrapper rsw = getFirstResultSet(stmt);

        List<ResultMap> resultMaps = mappedStatement.getResultMaps();
        int resultMapCount = resultMaps.size();
        validateResultMapsCount(rsw, resultMapCount);
        while (rsw != null && resultMapCount > resultSetCount) {
            ResultMap resultMap = resultMaps.get(resultSetCount);
            handleResultSet(rsw, resultMap, multipleResults, null);
            rsw = getNextResultSet(stmt);
            cleanUpAfterHandlingResultSet();
            resultSetCount++;
        }

        String[] resultSets = mappedStatement.getResultSets();
        if (resultSets != null) {
            while (rsw != null && resultSetCount < resultSets.length) {
                ResultMapping parentMapping = nextResultMaps.get(resultSets[resultSetCount]);
                if (parentMapping != null) {
                    String nestedResultMapId = parentMapping.getNestedResultMapId();
                    ResultMap resultMap = configuration.getResultMap(nestedResultMapId);
                    handleResultSet(rsw, resultMap, null, parentMapping);
                }
                rsw = getNextResultSet(stmt);
                cleanUpAfterHandlingResultSet();
                resultSetCount++;
            }
        }
        /**
         * 包裝成 List
         */
        return collapseSingleResultList(multipleResults);
    }
}

到這里MyBatis的Sql查詢就結束了，同理添加，修改，洗掉也是同樣的流程，
可以自己跟著以上步驟，斷點除錯追蹤下原始碼，一切迷霧都將會撥開的，

總結：

• 核心依賴于動態代理模式創建Mapper介面代理實體
• SqlSessionFactory負責創建SqlSession，全域唯一實體(類似于單例)
• Configuration 核心中的核心，走到哪里都有它的存在，而且是全域唯一實體(類似于單例)

下一篇分析下MyBatis的核心類，及它們的作用，

覺得對您有幫助，就點個贊唄，😀
