車輛網專案架構設計
- 系統概述
- 系統架構圖
- 組件功能簡介
- 專案工程結構
- Authren認證服務器
- 后臺服務器配置
- OpenFeign工程配置
- 網關專案
- 接收終端資料專案
- 軌跡決議服務
系統概述
本系統主要使用Spring Cloud技術，包含的模塊 Gateway(網關)，Nacos(微服務注冊與發現)，OpenFeign（HTTP+Restful客戶端）,Hystrix(斷路器)，ribbon（負載均衡），Security+OAuth2(安全認證)，Kafka（訊息佇列）,MybatisPlus(物件關系映射)，Redis(快取資料庫)，Netty等組件，

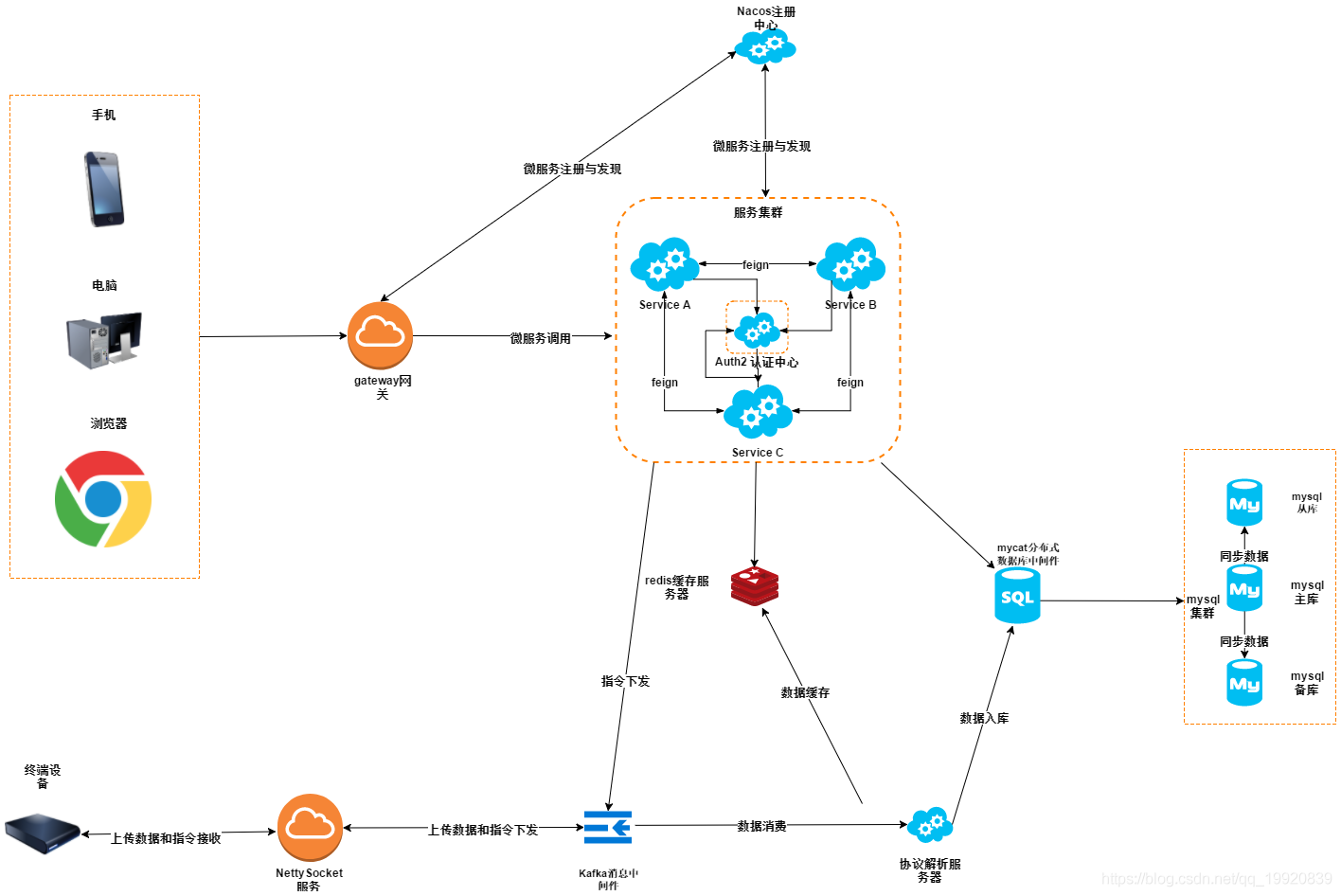

系統架構圖
組件功能簡介
Gateway：Web服務的統一入口，進行訊息的轉發和限流操作
Nacos：微服務的注冊中心和資料中心，提供服務的發現和注冊，資料的統一配置
OpenFeign：HTTP+Restfull客戶端，實作服務之間的呼叫
Hystrix：斷路器，實作服務的熔斷和降級
Ribbon：微服務呼叫的負載均衡
Security+OAuth2：提供微服務呼叫的認證和授權
Kafka：訊息中間件，快取終端資料，支持大并發
MybatisPlus：物件關系映射，用于訪問資料庫
Redis：資料快取服務器，記憶體資料庫，并發量大
Netty：JavaNio架構，實作終端的Socket連接，支持更大的連接數

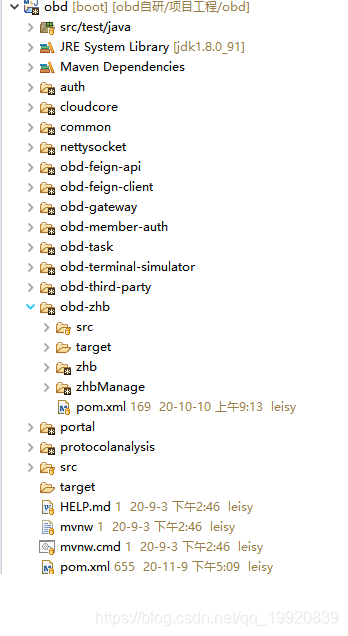

專案工程結構
- obd車聯網專案
- auth 認證服務器
- cloudcore Spring cloud 核心專案
- common 工具類專案
- nettysocket 終端資料接收專案
- obd-feign-api OpenFeign介面專案
- obd-feign-client OpenFeign客戶端專案
- obd-gateway 網關
- obd-member-auth app賬戶認證中心
- obd-task 定時任務
- obd-terminal-simulator 終端模擬器
- obd-third-park 三方服務專案
- obd-zhb 真惠保專案
- 真惠保APP服務專案
- 真惠保后臺管理專案
- portal 車輛網后臺專案
- protoolanalysis 協議分析器
Authren認證服務器
- 客戶端認證配置
@EnableAuthorizationServer
@Configuration
public class AuthServerConfig extends AuthorizationServerConfigurerAdapter{
@Autowired
AuthenticationManager authenticationManager;
@Autowired
RedisConnectionFactory connectionFactory;
@Autowired
private DataSource dataSource;
@Override
public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
clients.jdbc(dataSource);
}
//配置AuthorizationServer tokenServices
@Override
public void configure(AuthorizationServerEndpointsConfigurer endpoints)throws Exception {
endpoints.tokenStore(redisTokenStore())
.accessTokenConverter(accessTokenConverter())
.authenticationManager(authenticationManager)
//禁用重繪令牌
.reuseRefreshTokens(false);
}
//定義TokenStore 使用redis存盤token
@Bean
public TokenStore redisTokenStore() {
RedisTokenStore redisTokenStore = new RedisTokenStore(connectionFactory);
//token key生成規則
redisTokenStore.setAuthenticationKeyGenerator(oAuth2Authentication -> UUID.randomUUID().toString());
return redisTokenStore;
}
//token 封裝
@Bean
public JwtAccessTokenConverter accessTokenConverter() {
JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
converter.setSigningKey("******");
return converter;
}
//認證請求設定
@Override
public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
//允許所有人請求令牌
//以驗證的客戶端才能請求check_token
security.tokenKeyAccess("permitAll()")
.checkTokenAccess("isAuthenticated()")
.allowFormAuthenticationForClients();
}
}
- 登錄賬戶認證設定
@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {
@Autowired
private UserDetailsService userDetailsService;
@Override
protected void configure(AuthenticationManagerBuilder auth) throws Exception {
//設定服務認證提供者
auth.authenticationProvider(authenticationProvider());
}
/**
* @return 封裝身份認證提供者
*/
@Bean
public DaoAuthenticationProvider authenticationProvider() {
DaoAuthenticationProvider authenticationProvider = new DaoAuthenticationProvider();
//設定用戶加載服務類
authenticationProvider.setUserDetailsService(userDetailsService);
//設定加密類
authenticationProvider.setPasswordEncoder(passwordEncoder());
return authenticationProvider;
}
@Bean
@Override
public AuthenticationManager authenticationManagerBean() throws Exception {
//使用父級認證管理器
AuthenticationManager manager = super.authenticationManagerBean();
return manager;
}
@Override
protected void configure(HttpSecurity http) throws Exception {
//允許訪問/oauth授權介面
http.csrf().disable()
//設定會話管理器，不是用HttpSession
.sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
.and()
.requestMatchers().anyRequest()
.and()
.formLogin().permitAll()
.and()
.authorizeRequests()
//呼叫認證介面 不需要認證
.antMatchers("/oauth/*").permitAll()
.and();
}
//配置密碼解碼器
@Bean
public BCryptPasswordEncoder passwordEncoder() {
return new MyPasswordEncoder();
}
}
- 用戶加載服務類設定
@Service
public class MyUserDetailsService implements UserDetailsService {
@Autowired
private SUserInfoMapper userInfoMapper;
@Override
public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
QueryWrapper<SUserInfo> qw = new QueryWrapper<SUserInfo>();
qw.eq("userName", username);
qw.ne("status", 9);
SUserInfo sysUser = userInfoMapper.selectOne(qw);
if(sysUser == null) {
throw new UsernameNotFoundException("用戶不存在");
}
User user = new User();
user.setSysUser(sysUser);
//不提供授權
user.setAuthorities(new ArrayList<>());
return user;
}
}
后臺服務器配置
- 資源服務器設定
@Configuration
@EnableResourceServer//開啟資源服務器
@EnableGlobalMethodSecurity(prePostEnabled = true)//開啟方法級別的校驗 https://www.cnblogs.com/felordcn/p/12142497.html
public class ResourceServerConfig extends ResourceServerConfigurerAdapter{
@Autowired
RestTemplate resourceRestTemplate;
//本地授權服務
@Autowired
MyLocalUserAuthoritiesService userAuthoritiesService;
@Override
public void configure(ResourceServerSecurityConfigurer resources) {
resources
.tokenStore(new JwtTokenStore(accessTokenConverter()))
.stateless(true);
//配置RemoteTokenServices, 用于向AuthorizationServer驗證令牌
MyRemoteTokenServices tokenServices = new MyRemoteTokenServices(userAuthoritiesService);
tokenServices.setAccessTokenConverter(accessTokenConverter());
//為restTemplate配置例外處理器，忽略400錯誤
resourceRestTemplate.setErrorHandler(new DefaultResponseErrorHandler() {
@Override
//忽略 400
public void handleError(ClientHttpResponse response) throws IOException {
if(response.getRawStatusCode() != 400) {
super.handleError(response);
}
}
});
tokenServices.setRestTemplate(resourceRestTemplate);
//設定認證服務器地址
tokenServices.setCheckTokenEndpointUrl("http://"+NacosServerHostConstant.AUTH_SERVER_NAME+NacosServerHostConstant.AUTH_SERVER_ADDRESS+"/oauth/check_token");
//客戶端id
tokenServices.setClientId(OAuth2ClientEnum.OBD_PORTAL.getClientId());
//客戶端密碼
tokenServices.setClientSecret(OAuth2ClientEnum.OBD_PORTAL.getPassword());
//無狀態
resources.tokenServices(tokenServices).stateless(true);
//設定資源服務id
resources.resourceId(OAuth2ClientEnum.OBD_PORTAL.getClientId());
}
//token封裝
@Bean
public JwtAccessTokenConverter accessTokenConverter() {
JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
converter.setSigningKey("*****");
return converter;
}
@LoadBalanced
@Bean
public RestTemplate resourceRestTemplate() {
return new RestTemplate();
}
//資源請求路徑設定
@Override
public void configure(HttpSecurity http) throws Exception {
//允許跨域
http.cors();
//配置資源服務器攔截規則
http.sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
.and()
.requestMatchers().anyRequest()
.and()
.anonymous()
.and()
.authorizeRequests()
//設定不需要認證的請求路徑
.antMatchers("/login/loginByPassword.vue","/**/*.vueNologin").permitAll()
.anyRequest().authenticated()
.and()
.exceptionHandling().accessDeniedHandler(new OAuth2AccessDeniedHandler());
}
}
- 本地授權服務
@Component
public class MyLocalUserAuthoritiesServiceImpl implements MyLocalUserAuthoritiesService {
@Autowired
private SUserInfoMapper sysUserMapper;
@Autowired
private SMenuMapper sysMenuMapper;
/**
* redis客戶端
*/
@Autowired
private RedisClient redisClient;
@SuppressWarnings("unchecked")
@Override
public List<String> loadUserAuthoritiesByUserName(String accessToken ,String userName) {
//快取中獲取權限串列
List<String> authorityList = (List<String>) redisClient.getValue(RedisKeyPreConstant.USER_LOGIN_OAUTH, accessToken);
//快取中沒有 從資料庫中獲取
if(authorityList == null) {
QueryWrapper<SUserInfo> qw = new QueryWrapper<SUserInfo>();
qw.eq("userName", userName);
SUserInfo sysUser = sysUserMapper.selectOne(qw);
if(sysUser == null) {
throw new UsernameNotFoundException("用戶不存在");
}
authorityList = sysMenuMapper.getPermsListByUserId(sysUser.getUserId());
//獲取token物件
AuthAccessToken saveToken = (AuthAccessToken) redisClient.getValue(RedisKeyPreConstant.USER_LOGIN_TOKEN, accessToken);
if(saveToken != null) {
//有效時間和token的有效時間一直
redisClient.setValue(RedisKeyPreConstant.USER_LOGIN_OAUTH, accessToken,authorityList,saveToken.getExpires_in()-(System.currentTimeMillis()-saveToken.getCreate_time()));
}else {
//設定默認的有效時間
redisClient.setValue(RedisKeyPreConstant.USER_LOGIN_OAUTH, accessToken,authorityList,Constant.AUNTH_MESSAGE_IN_REDIS_TIME);
}
}
return authorityList;
}
}
- 控制類設定
@RestController
@RequestMapping("sys/user")
public class UserController extends BaseController{
@Autowired
private UserService userService;
/**
* 用戶分頁查詢
* @param loginUser 登錄用戶
* @param userName 用戶名
* @param pageModel 分頁引數
* @return
*/
@RequestMapping("getSysUserPageList.vue")
//設定求情權限
@PreAuthorize("hasAuthority('user:view')")
//設定事物級別為只讀
@Transactional(readOnly = true)
public ReturnModel getUserPageList(@ModelAttribute("loginUser") LoginUser loginUser,String userName,String useMan,String linkPhone,Date beginTime,Date endTime,PageModel pageModel) {
ReturnModel returnModel = new ReturnModel();
returnModel.setData(userService.getPageList(getLoginUserOrganizationFullId(loginUser),userName, useMan, linkPhone, beginTime, endTime, pageModel));
return returnModel;
}
/**
* 新增用戶
* @param loginUser 登錄用戶
* @param user 添加用戶物件
* @return
*/
@PostMapping("addSysUser.vue")
//開啟事物
@Transactional
//設定請求權限
@PreAuthorize("hasAuthority('user:add')")
public ReturnModel addRole(HttpServletRequest request,SUserInfo user,/*自動注入登錄用戶物件*/@ModelAttribute("loginUser") LoginUser loginUser) {
ReturnModel returnModel = new ReturnModel();
SUserInfo oldUser = userService.getUserByUserName(user.getUserName());
if(oldUser != null) {
returnModel.setResultCode(ResponseCodeConstant.EXISTED);
returnModel.setResultMessage("用戶名名稱不能重復");
return returnModel;
}
oldUser = userService.getUser(user.getUseMan(),user.getOrganizeId());
if(oldUser != null) {
returnModel.setResultCode(ResponseCodeConstant.EXISTED);
returnModel.setResultMessage("使用人不能重復");
return returnModel;
}
//正常狀態
user.setStatus(1);
user.setCreaterId(loginUser.getUser().getUserId());
user.setCreaterName(loginUser.getUser().getUseMan());
user.setOperatorId(loginUser.getUser().getUserId());
user.setOperatorName(loginUser.getUser().getUseMan());
userService.addUser(user);
return returnModel;
}
}
- 服務類設定
@Service
public class UserService {
@Autowired
private SUserInfoMapper userInfoMapper;
/**
* 添加用戶資訊
* @param user 用戶物件
* @return
*/
//添加日志注解 查詢功能可以不添加
@Log("新增用戶")
public int addUser(SUserInfo user) {
Date now = new Date();
user.setCreateTime(now);
user.setModifiedTime(now);
return userInfoMapper.insert(user);
}
}
OpenFeign工程配置
- 介面定義
@RequestMapping("feign/location")
public interface IFeignLocationService {
/**
* 根據矩陣獲及車輛id串列取gps資訊
*
* @param organizeId 機構Id
* @param bounds 矩陣 右上角精度，右上角維度|左下角精度，左下角維度
* @return
*/
@RequestMapping("getVehicleInMap")
ReturnModel getVehicleInMap(@RequestBody String vehicleIds, @RequestParam(required=false) String bounds);
}
- 客戶端配置
@FeignClient(/**客戶端名稱 對應nacos注冊中心的服務名稱*/name = NacosServerHostConstant.OBD_PORTAL_NAME,/**呼叫介面例外，快速失敗了*/fallback= FeignLocationServiceFallback.class,/**config類*/configuration = OAuth2FeignAutoConfig.class)
//實作IFeignLocationService介面
public interface FeignLocationService extends IFeignLocationService{
}
- fallback類
//注冊spring bean
@Component
//多載父類映射路徑 避免發生路徑沖突
@RequestMapping("feign/locationback")
public class FeignLocationServiceFallback implements FeignLocationService {
@Override
public ReturnModel getVehicleInMap(String vehicleIds,String bounds) {
return ReturnModel.feignFail();
}
@Override
public ReturnModel getVehicleRealTimeStatus(int vehicleId) {
return ReturnModel.feignFail();
}
@Override
public ReturnModel getVehicleLocation(String vehicleIds) {
return ReturnModel.feignFail();
}
}
- config類
public class OAuth2FeignAutoConfig {
//獲取Auth2token類
private CloudTokenService cloudTokenService;
public OAuth2FeignAutoConfig(CloudTokenService cloudTokenService) {
this.cloudTokenService = cloudTokenService;
}
//feign請求攔截器
@Bean
public RequestInterceptor OAuth2FeignRequestInterceptor() {
return new OAuth2FeignRequestInterceptor(cloudTokenService);
}
}
- Fegin控制器實作類（服務端）
@RestController
public class FeignLocationController extends ClientBaseController implements IFeignLocationService{
@Autowired
private VehicleMonitorService vehicleMonitorService;
/**
* 獲取矩形區域內的車輛資訊
* @param organizeId 機構Id
* @param bounds 矩陣 右上角精度，右上角維度|左下角精度，左下角維度
* @return
*/
@Override
public ReturnModel getVehicleInMap(String vehicleIds, String bounds) {
ReturnModel model = new ReturnModel();
model.setData(vehicleMonitorService.getVehicleInMap(JSONArray.parseArray(vehicleIds), bounds));
return model;
}
}
網關專案
- 路由配置
server:
port: 8080 #服務埠號
tomcat:
max-http-form-post-size: 20971520
spring:
profiles:
active:
- prod
application:
#微服務注冊名稱
name: obd-gateway
cloud:
gateway:
#默認過濾器 處理跨域
default-filters:
- DedupeResponseHeader=Access-Control-Allow-Origin, RETAIN_UNIQUE
globalcors:
cors-configurations:
'[/**]':
allowedHeaders: "*"
allowedOrigins: "*"
allowedMethods: "*"
discovery:
locator:
enabled: true
routes:
#基于服務發現配置 portal
- id: portal
#lb 負載均衡 obd-portal 呼叫微服務的名稱
uri: lb://obd-portal
predicates:
- Path=/obd-portal/**
filters:
- StripPrefix=1 #應用路由截掉路徑的第一部分前綴
- name: Hystrix #熔斷降級
args:
name: fallbackcmd
fallbackUri: forward:/hystrixFallback?a=test
# 限流配置
# - name: RequestRateLimiter
# args:
# 速率
# redis-rate-limiter.replenishRate: 10
#容量
# redis-rate-limiter.burstCapacity: 20
#基于服務發現配置 manage
#基于服務發現配置 zhb
- id: zhb
uri: lb://obd-zhb
predicates:
- Path=/obd-zhb/**
filters:
- StripPrefix=1 #應用路由截掉路徑的第一部分前綴
- name: Hystrix #熔斷降級
args:
name: fallbackcmd
fallbackUri: forward:/hystrixFallback?a=test
#基于服務發現配置 zhbManage
- id: zhbManage
uri: lb://obd-zhb-manage
predicates:
- Path=/obd-zhb-manage/**
filters:
- StripPrefix=1 #應用路由截掉路徑的第一部分前綴
接收終端資料專案
- 啟動socket專案
@Component
@Sharable
@Slf4j
public class OBDServer {
@Autowired
private MessageHandler messageHandler;
@Autowired
private TerminalAuthHandler terminalAuthHandler;
@Autowired
private TerminalCommonResponse terminalCommonResponse;
@Autowired
private TerminalRegisterHandler terminalRegisterHandler;
public void bind(int port) {
log.info("OBDNettySocket啟動 port="+port);
//創建NIO執行緒組 實際上是reactor執行緒組
//用于接收客戶端連接
EventLoopGroup boosGroup = new NioEventLoopGroup();
//用于進行SocketChnnel的網路讀寫
EventLoopGroup workerGroup = new NioEventLoopGroup();
try {
//啟用nio服務物件
ServerBootstrap b = new ServerBootstrap();
//系結nio執行緒
b.group(boosGroup, workerGroup)
//設定channel 為NioServerSocketChannel 對應java nio中的ServerSocketChannel
.channel(NioServerSocketChannel.class)
//設定NioServerSocketChannel的TCP引數 backlog
.option(ChannelOption.SO_BACKLOG, 1024)
//系結nio事件處理類 作用類似于reactor模式中的handler
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ch.pipeline().addLast(new OBDNettyMessageDecoder());
ch.pipeline().addLast(new OBDNettyMessageEncoder());
ch.pipeline().addLast(terminalRegisterHandler);
ch.pipeline().addLast(terminalAuthHandler);
ch.pipeline().addLast(terminalCommonResponse);
ch.pipeline().addLast(new HeartBeatHandler());
//必須放到最后
ch.pipeline().addLast(messageHandler);
}
});
//系結埠 同步等待成功
ChannelFuture f = b.bind(port).sync();
//等待服務監聽埠關閉
f.channel().closeFuture().sync();
} catch (InterruptedException e) {
e.printStackTrace();
}finally {
log.info("OBDNettySocket關閉 port="+port);
//優雅退出 釋放執行緒資源
boosGroup.shutdownGracefully();
workerGroup.shutdownGracefully();
}
}
}
- 終端注冊
@Component
@Sharable
@Slf4j
public class TerminalRegisterHandler extends BaseHandler{
/**
* 終端注冊 256
*/
private final int TERMINAL_REGISTER = 0x0100;
/**
* 終端注冊 應答 33024
*/
private final int TERMINAL_REGISTER_RESPONSE = 0x8100;
@Autowired
private CheckTerminalIdIsCanUseService checkTerminalIdIsCanUseService;
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
byte[] array = (byte[]) msg;
int messageId = OBDUtil.getIntFromODBIntArray(array, 0, 2);
if(messageId == TERMINAL_REGISTER) {
String terminalId = OBDUtil.getTerminalNumber(array);
//失敗
byte status = 1;
String authCode = null;
if(checkTerminalIdIsCanUseService.check(terminalId)) {
status = 0;
//認證碼 用于終端認證 目前沒有使用
authCode = OBDConstant.TERMINAL_REGISTER_AUTH_CODE;
log.info("注冊成功：terminalId="+terminalId);
}else {
log.info("注冊失敗：terminalId="+terminalId);
}
//發送注冊結果
ctx.writeAndFlush(getTerminalRegisterResponse(array,new byte[] {array[10],array[11]}, status,authCode));
}
ctx.fireChannelRead(msg);
}
- 終端認證
@Component
@Sharable
@Slf4j
public class TerminalAuthHandler extends BaseHandler{
/**
* 終端鑒權 258
*/
private final static int TERMINAL_AUTH = 0x0102;
/**
* 鑒權終端是否可用服務類
*/
@Autowired
private CheckTerminalIdIsCanUseService checkTerminalIdIsCanUseService;
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
byte[] array = (byte[]) msg;
//訊息id
int messageId = OBDUtil.getIntFromODBIntArray(array, 0, 2);
if(messageId == TERMINAL_AUTH) {
//終端號
String terminalId = OBDUtil.getTerminalNumber(array);
//失敗
byte status = 1;
//認證成功
if(checkTerminalIdIsCanUseService.check(terminalId)) {
status = 0;
//沒有保存鏈路資訊
if(SocketConfig.getSocketModel(terminalId) == null) {
//心跳檢查定時任務
HeartBeatTask task = new HeartBeatTask(terminalId);
ctx.executor().schedule(task, OBDConstant.HEART_BEAT_INTERVAL, TimeUnit.MILLISECONDS);
}
//保存鏈路資訊
SocketConfig.putSocket(terminalId, new SocketModel(ctx));
log.info("認證成功：terminalId="+terminalId);
}else {
log.info("認證失敗：terminalId="+terminalId);
}
//回傳認證結果
ctx.writeAndFlush(OBDCommonResponseUtil.getOBDCommonResponse(array,new byte[] {array[10],array[11]}, status));
}else {
ctx.fireChannelRead(msg);
}
}
}
- 訊息處理
@Component
@Sharable
@Slf4j
public class MessageHandler extends BaseHandler{
@Autowired
private DealMessageService dealMessageService;
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
byte[] array = (byte[]) msg;
int messageId = OBDUtil.getIntFromODBIntArray(array, 0, 2);
String terminalId = OBDUtil.getTerminalNumber(array);
//log.info("收到終端訊息：terminalId="+terminalId+" messageId="+messageId);
SocketModel socketModel = SocketConfig.getSocketModel(terminalId);
//有鏈路資訊 說明終端設備認證
if(socketModel != null) {
//處理訊息
dealMessageService.dealMessage(String.valueOf(messageId),array);
socketModel.resetHeartNoRespCount();
ctx.writeAndFlush(OBDCommonResponseUtil.getOBDCommonResponse(array, new byte[] {array[10],array[11]}, (byte)0));
}else {
System.out.println(messageId);
log.info("終端未認證 terminalId="+terminalId);
//沒有發現終端
ctx.writeAndFlush(OBDCommonResponseUtil.getOBDCommonResponse(array,new byte[] {array[10],array[11]}, (byte)5));
}
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
System.out.println(ctx);
ctx.close();
cause.printStackTrace();
log.error("鏈路例外關閉");
}
}
軌跡決議服務
- 從kafa中獲取資料
@Slf4j
@Component
public class KafkaConsumer {
@Autowired
private GpsVehicleTraceService gpsVehicleTraceService;
@Autowired
private TerminalNumberVehicleService terminalNumberVehicleService;
@Autowired
private RedisClient redisClient;
//處理軌跡上傳資料
@KafkaListener(id="gpsLocation1",topics= KafkaTopicConstant.GPS_LOCATION)
public void onGPSLocation(ConsumerRecord<String, byte[]> record) {
//協議決議
OBDModel obd = ProtocolAnalysis.parse(record.value());
if(obd != null) {
String terminalNumber = obd.getTerminalNumber();
//獲取系結車輛資訊
Integer vehicleId = terminalNumberVehicleService.getVehicleIdByTerminalNumber(terminalNumber);
if(vehicleId != null) {
PositionModel positionModel = (PositionModel)obd.getBody();
if(positionModel != null) {
//處理軌跡
gpsVehicleTraceService.dealGpsVehicle(vehicleId, positionModel,false);
}
}else {
log.info("未找到系結資訊 terminalNumber ="+terminalNumber);
}
}
}
//軌跡補傳處理
@KafkaListener(id="gpsLocationBeath1",topics=KafkaTopicConstant.GPS_LOCATION_BEATCH)
public void onGPSLocationBeath(ConsumerRecord<String, byte[]> record) {
OBDModel obd = ProtocolAnalysis.parse(record.value());
if(obd != null) {
String terminalNumber = obd.getTerminalNumber();
Integer vehicleId = terminalNumberVehicleService.getVehicleIdByTerminalNumber(terminalNumber);
if(vehicleId != null) {
LocationBatchModel positionBatch = (LocationBatchModel)obd.getBody();
if(positionBatch != null) {
List<PositionModel> list = positionBatch.getList();
if(list != null && !list.isEmpty()) {
for (PositionModel positionModel : list) {
gpsVehicleTraceService.dealGpsVehicle(vehicleId, positionModel,true);
}
}
}
}
}
}
//終端注冊
@KafkaListener(id="terminalRegister",topics=KafkaTopicConstant.TERMINAL_REGISTER)
public void onTerminalRegister(ConsumerRecord<String, byte[]> record) {
ProtocolAnalysis.parse(record.value());
}
//終端注銷
@KafkaListener(id="terminalUnRegister",topics=KafkaTopicConstant.TERMINAL_UNREGISTER)
public void onTerminalUnRegister(ConsumerRecord<String, byte[]> record) {
ProtocolAnalysis.parse(record.value());
}
/**
* 查詢終端引數
*/
@KafkaListener(id="terminalAnswer",topics=KafkaTopicConstant.TERMINAL_ANSWER)
public void getTerminalAnswer(ConsumerRecord<String, byte[]> record){
OBDModel obd = ProtocolAnalysis.parse(record.value());
if(obd != null){
String terminalNumber = obd.getTerminalNumber();
TerminalAnswerData answerData = (TerminalAnswerData)obd.getBody();
List<TerminalAnswerValue> answerValue = (List<TerminalAnswerValue>)answerData.getValue();
redisClient.setValue(RedisKeyPreConstant.TERMINAL_DATA, terminalNumber, answerValue);
}
}
}
- 協議決議類
public class ProtocolAnalysis {
//協議決議類map
private final static Map<Integer,DealMessageService> dealMessageServiceMap = new HashMap<>();
static {
//初始化
dealMessageServiceMap.put(OBDConstant.MessageId.TERMINAL_AUTH, new TerminalAuthDealMessageServiceImpl());
dealMessageServiceMap.put(OBDConstant.MessageId.POSSITION, new PositionBaseDealMessageServiceImpl());
dealMessageServiceMap.put(OBDConstant.MessageId.TERMINAL_GENER_RESPONSE, new TerminalGeneralResponseDealMessageServiceImpl());
dealMessageServiceMap.put(OBDConstant.MessageId.POSSITION_BATCH, new PossitionBatchDealMassageServiceImpl());
dealMessageServiceMap.put(OBDConstant.MessageId.TERMINAL_REGISTER, new TerminalRegisterDealMessageServiceImpl());
dealMessageServiceMap.put(OBDConstant.MessageId.TERMINAL_ANSWER, new TerminalAnswerDealMessageImpl());
dealMessageServiceMap.put(OBDConstant.MessageId.ALARM_INFO, new AlarmDealMessageServiceImpl());
}
// public static void main(String[] args) {
// byte[] data = new byte[] {0, 1, 0, 5, 1, 65, 68, 120, 116, -107, 0, 33, 0, 1, -126, 7, 0, 60};
//
// OBDModel obdModel =parse(data);
// System.out.println(obdModel);
// System.out.println(Integer.toHexString(obdModel.getMessageId()));
// }
public static OBDModel parse(byte[] chars) {
//轉化為整行
int[] dataArray = new int[chars.length];
for(int i=0;i<dataArray.length;i++) {
if(chars[i] < 0 ) {
//資料修正 傳輸資料為無符號數
dataArray[i] = OBDUtil.obdDataCorrection(chars[i]);
}else {
dataArray[i] = chars[i];
}
}
OBDModel obdModel = new OBDModel();
//訊息 ID 占用兩個位元組 高八位0 低八位 1
obdModel.setMessageId(OBDUtil.getIntFromODBIntArray(dataArray, 0, 2));
//訊息體屬性 占用兩個位元組 高八位2 低八位3
obdModel.setBodyDescribe(getBodyDescribe(OBDUtil.getIntFromODBIntArray(dataArray, 2, 2)));
//終端號 占用 4~9位
obdModel.setTerminalNumber(getTerminalNumber(dataArray));
//訊息流水號 占用兩個位元組 高八位10低八位11
obdModel.setSerialNumber(OBDUtil.getIntFromODBIntArray(dataArray, 10, 2));
int bodyIndex = 12;
if(obdModel.getBodyDescribe().getIsSubpackage()) {
//訊息總包數 占用兩個位元組 高八位12低八位13
obdModel.setTotalPackage(OBDUtil.getIntFromODBIntArray(dataArray, 12, 2));
//包序號 占用兩個位元組 高八位14低八位15
obdModel.setPackageNum(OBDUtil.getIntFromODBIntArray(dataArray, 14, 2));
bodyIndex += 4;
}
int bodyLength = obdModel.getBodyDescribe().getBodyLength();
if(bodyLength>0) {
if(OBDConstant.TOP_MIN_LENGTH + bodyLength <= dataArray.length) {
int[] bodyIntArray = new int[bodyLength];
System.arraycopy(dataArray, bodyIndex, bodyIntArray, 0, bodyLength);
//設定訊息體
obdModel.setBody(getBody(obdModel.getMessageId(),bodyIntArray));
}
}
return obdModel;
};
/**
* 獲取body資訊
*/
public static Object getBody(int messageid,int[] bodyArray) {
//是否支持該訊息型別的決議
if(dealMessageServiceMap.containsKey(messageid)) {
return dealMessageServiceMap.get(messageid).getBody(bodyArray);
}else {
return Arrays.toString(bodyArray);
}
}
/**
* 獲取終端號 BCD[6] 4-9
*/
public static String getTerminalNumber(int[] dataArray) {
String result = "";
for(int i=4;i<=9;i++) {
result += OBDUtil.getBCDStr(dataArray[i]);
}
return result;
}
/**
* 獲取訊息體屬性
*/
public static BodyDescribe getBodyDescribe(int bodyInt) {
BodyDescribe bodyDescribe = new BodyDescribe();
//低9為位元組表示長度
bodyDescribe.setBodyLength(bodyInt % (1<<10));
//第10-12位元組全為0表示訊息不加密
bodyDescribe.setIsEncryption((bodyInt&((1<<10)+(1<<11)+(1<<12)))!=0);
//第10位元組為1表示RSA加密
bodyDescribe.setEncryptionType(OBDUtil.checkIntBitIsOne(bodyInt, 10)?1:null);
//第13位為1表示分包傳輸
bodyDescribe.setIsSubpackage(OBDUtil.checkIntBitIsOne(bodyInt, 13));
return bodyDescribe;
}
/**
* 驗證碼校驗
*/
public static boolean check(int[] dataArray) {
int result = dataArray[dataArray.length-1];
int calR = dataArray[0] ^ dataArray[1];
for(int i=2;i<dataArray.length-1;i++) {
calR = calR^dataArray[i];
}
return calR == result;
}
- 認證訊息型別決議
public class TerminalAuthDealMessageServiceImpl implements DealMessageService{
@Override
public Object getBody(int[] bodyArray) {
return new String(bodyArray,0,bodyArray.length);
}
}
轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/237220.html
標籤：其他
上一篇：資料湖初識
下一篇：CUDA編譯程序
