Kubernetes - Xshell連接虛擬機 & 搭建Kubernetes基礎集群
博主將會搭建一個master節點，兩個作業節點的Kubernetes基礎集群，
博主的虛擬機：
- 三臺
CentOS7系統的虛擬機， master節點虛擬記憶體是2G，作業節點虛擬記憶體是1G，雖然Kubernetes官方建議記憶體最好2G及以上，但博主電腦的記憶體不太夠，況且博主只是為了演示，并不是生產環境；作業節點虛擬記憶體偏小，可以通過一些引數來避免出現問題，這里大家不用擔心（畢竟博主因為虛擬記憶體分配過小的原因，已經重新搭建了好幾次，master節點虛擬記憶體最好不要低于2G，不然kubectl get node這樣的命令不能正常使用，至少博主出現了這樣的情況），- 虛擬硬碟都是
8G，
創建虛擬機：
- VirtualBox安裝CentOS7
現在假設大家已經創建好了三臺虛擬機，
使用Xshell連接虛擬機
在VirtualBox中操作虛擬機來執行命令總是感覺不太方便，比如在虛擬機的命令列中不能復制和粘貼命令，還有就是虛擬機總是要獨占滑鼠和鍵盤，
所以博主使用Xshell來連接這些虛擬機，
想要使用Xshell來連接這些虛擬機，先要獲取這些虛擬機的IP地址：ip addr命令介紹，
啟動虛擬機，執行ip addr命令，
IP地址為192.168.1.238/24，這臺虛擬機會是Kubernetes集群的master節點，

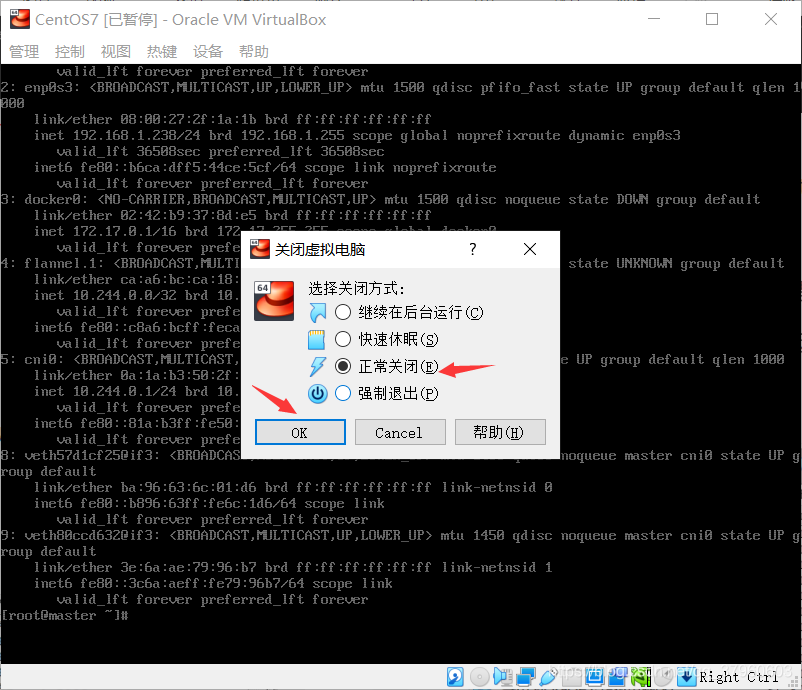

然后正常關閉該虛擬機即可，
另外兩臺虛擬機的IP地址查詢就不演示了，是一樣的操作，

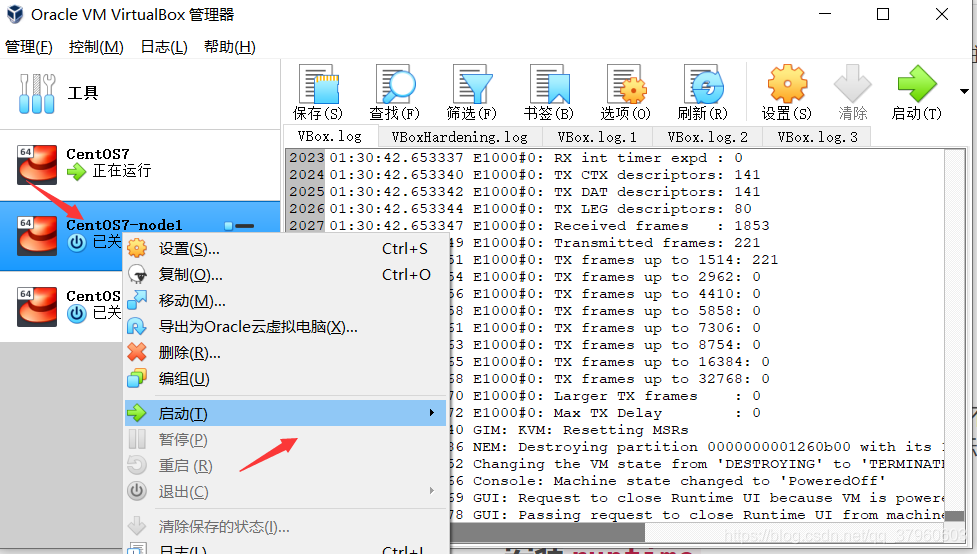

右擊虛擬機，點擊啟動，選擇無界面啟動，因為我們使用Xshell來提供虛擬機的界面，

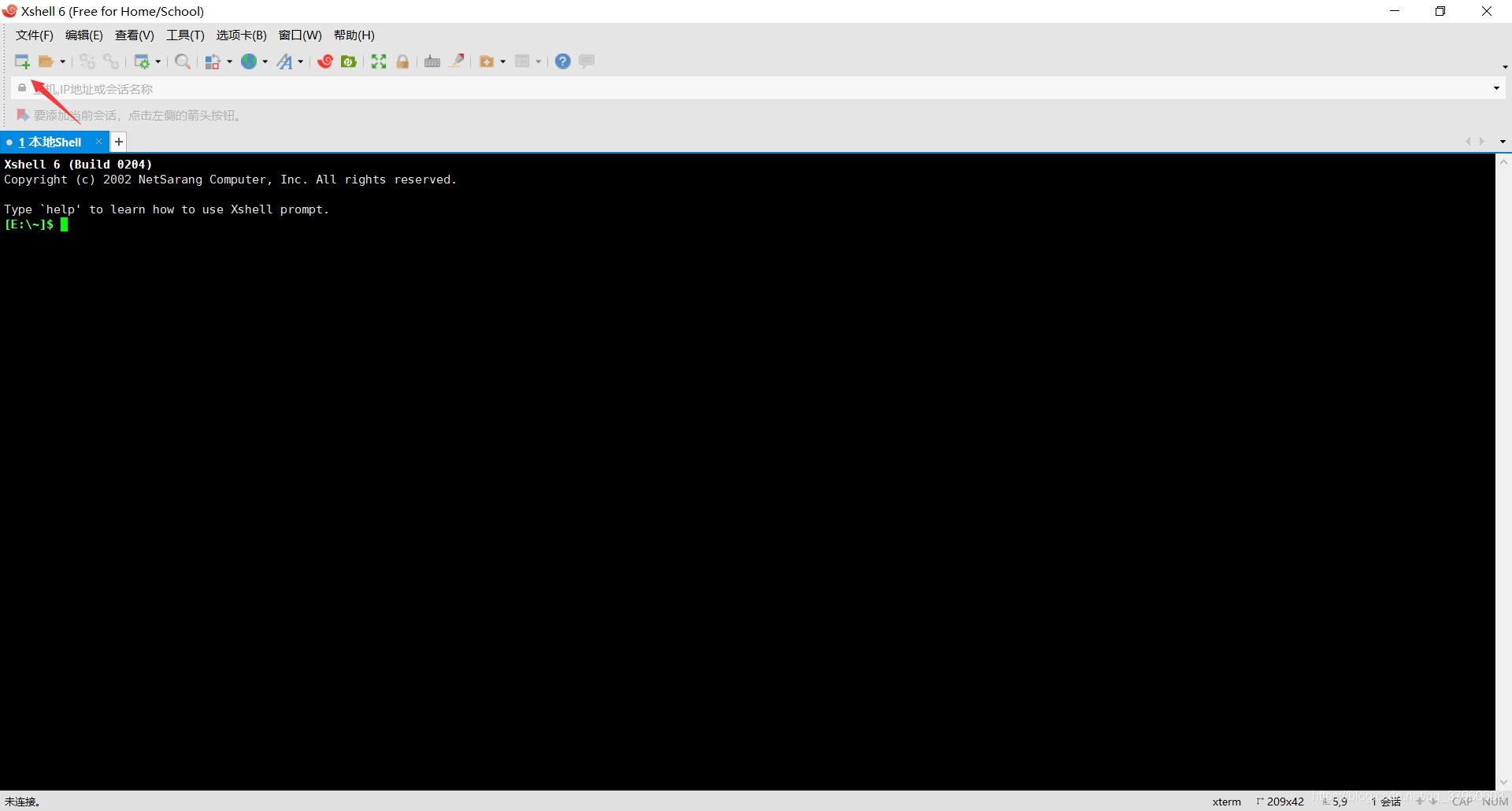

打開Xshell，點擊新建圖示，

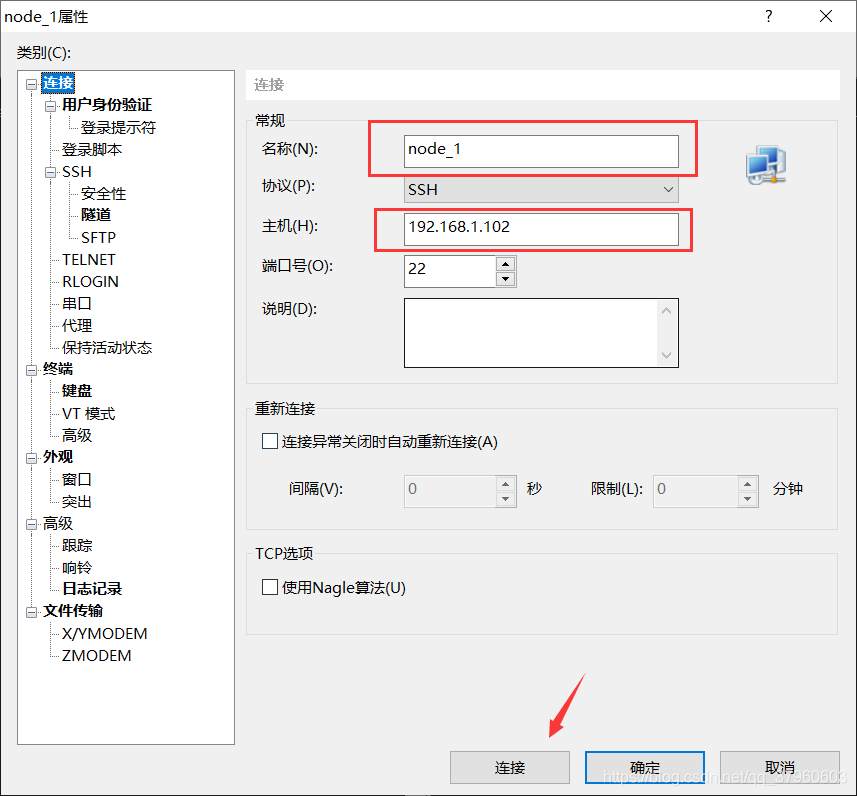

輸入名稱和虛擬機IP地址，點擊連接，

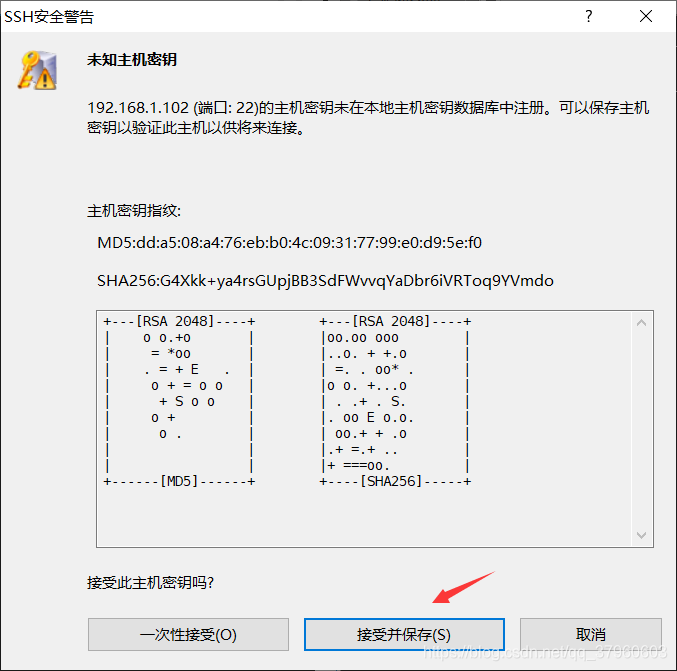

點擊接受并保存，

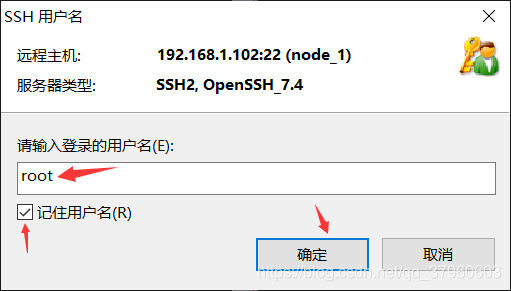

輸入用戶名（一般是root），選擇記住用戶名，點擊確定，

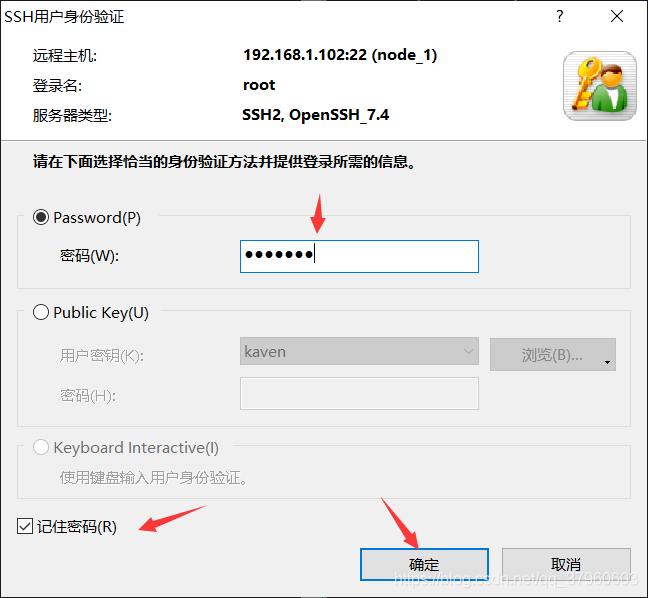

輸入密碼，選擇記住密碼，點擊確定，
Xshell成功連接虛擬機，

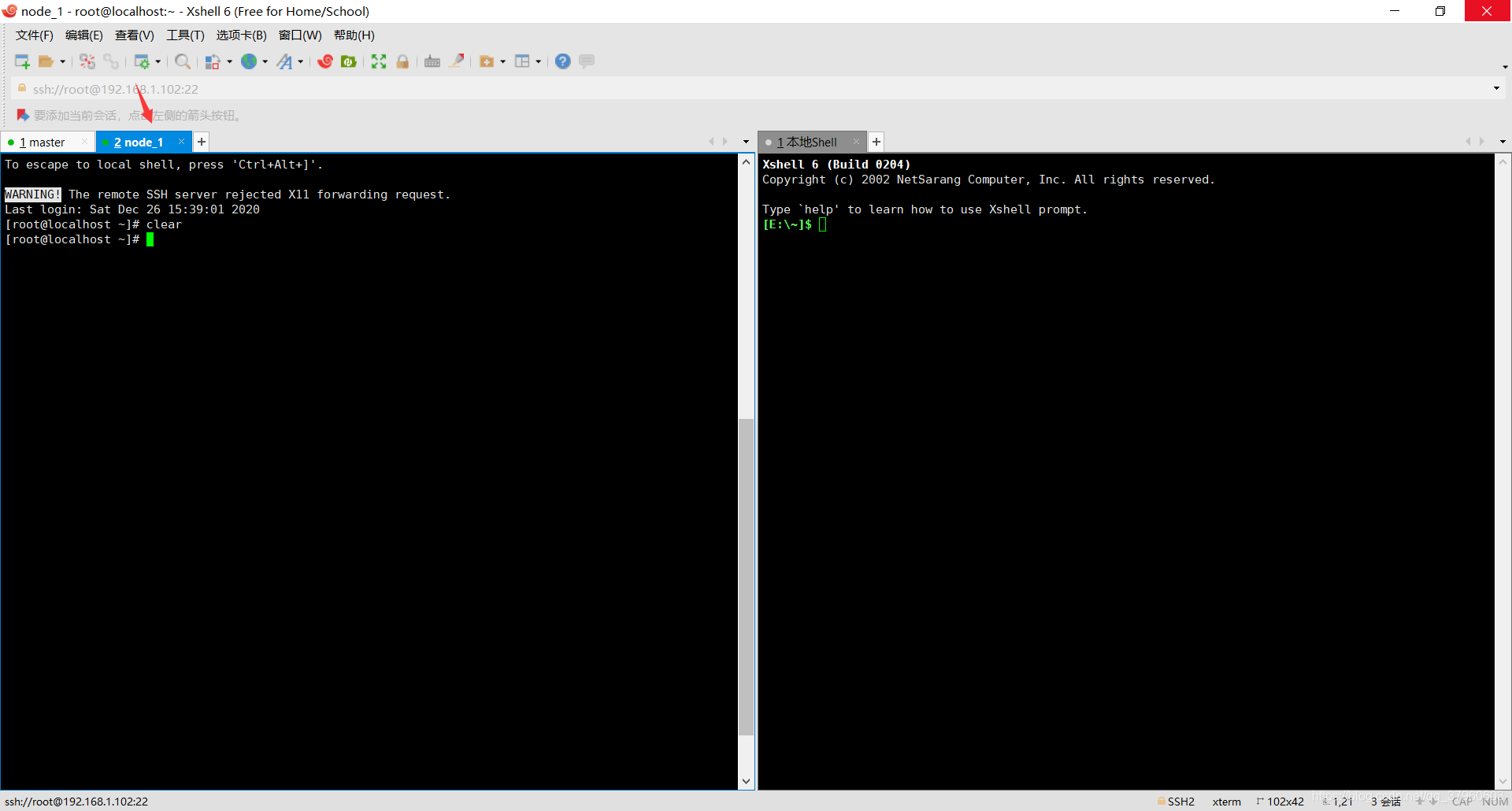

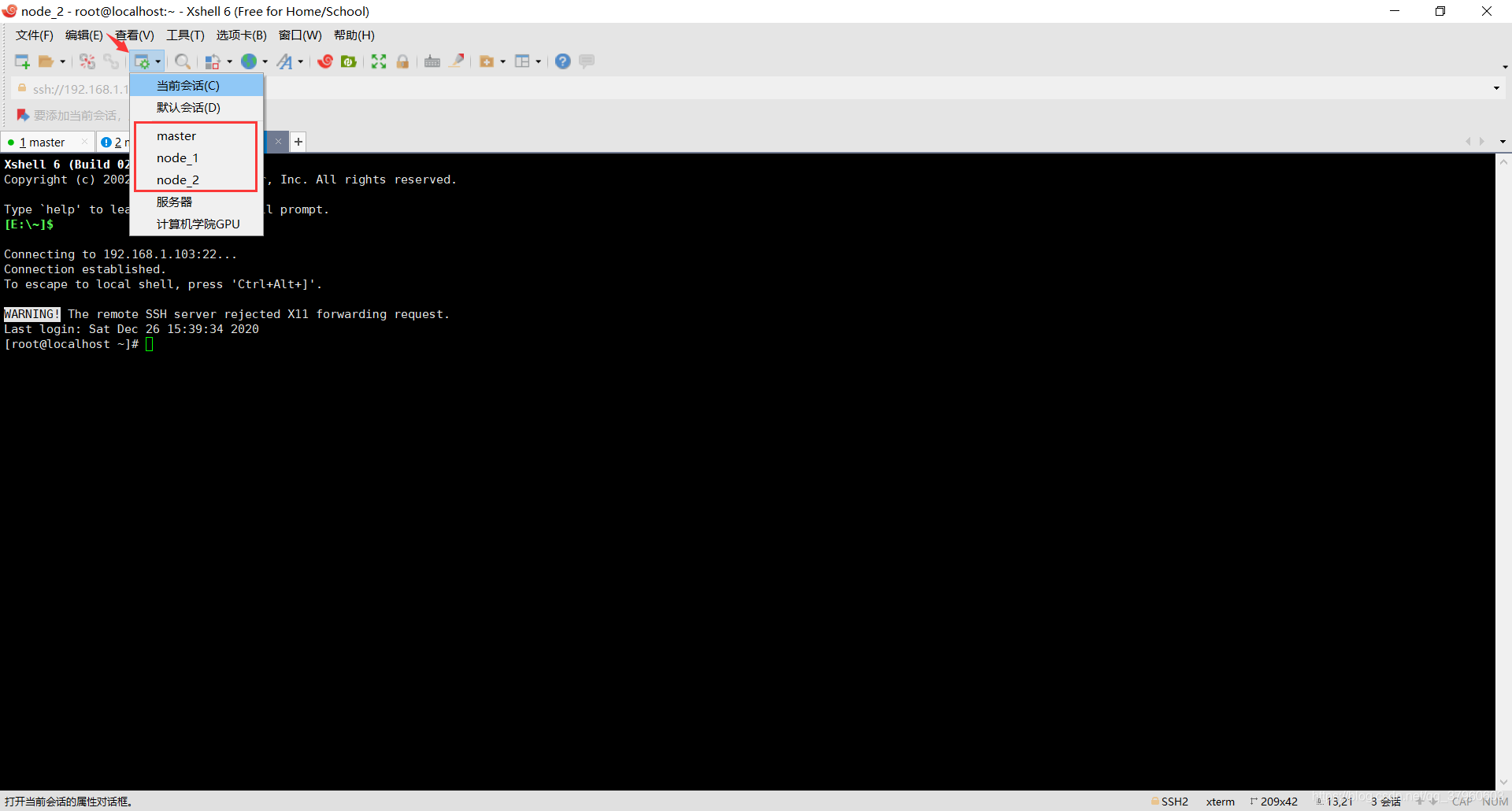

點擊這個圖示，可以在一個Xshell界面里面創建多個會話，
另外兩臺虛擬機的連接就不演示了，
修改兩個作業節點的主機名分別為node-1、node-3，這些名稱大家可以隨便起，但連接符不能使用_，可以使用-和.，修改作業節點的主機名，是為了三臺虛擬機的主機名都不一樣，否則會出現問題，如果大家三臺機器的主機名已經各不一樣，就不需要這些操作了，
hostnamectl set-hostname node-1
[root@localhost ~]# hostnamectl set-hostname node-1
[root@node-1 ~]#
hostnamectl set-hostname node-3
[root@localhost ~]# hostnamectl set-hostname node-3
[root@node-3 ~]#
安裝runtime
三臺虛擬機都要安裝runtime，
從v1.14.0版本起，kubeadm將通過觀察已知的UNIX域套接字來自動檢測Linux節點上的runtime， 下表中是可檢測到的正在運行的runtime和socket路徑，
runtime | 域套接字 |
|---|---|
Docker | /var/run/docker.sock |
containerd | /run/containerd/containerd.sock |
CRI-O | /var/run/crio/crio.sock |
博主這里選擇安裝Docker，CentOS7安裝Docker可以看一下下面這篇博客，建議大家不要使用腳本自動安裝，最好手動安裝指定版本的Docker，博主這里安裝的Docker版本是19.03.13，大家也可以安裝一樣的版本，因為Kubernetes和Docker兩者的版本有可能會導致兼容問題，
- CentOS7.3安裝Docker
現在假設大家都安裝好了Docker，
出現下面這個問題，應該是Docker沒有啟動，博主使用的是root用戶，如果不是root用戶，可以在命令前面加sudo，sudo是Linux系統管理指令，是允許系統管理員讓普通用戶執行一些或者全部的root命令的一個工具，
[root@localhost ~]# docker version
Client: Docker Engine - Community
Version: 19.03.13
API version: 1.40
Go version: go1.13.15
Git commit: 4484c46d9d
Built: Wed Sep 16 17:03:45 2020
OS/Arch: linux/amd64
Experimental: false
Cannot connect to the Docker daemon at unix:///var/run/docker.sock. Is the docker daemon running?
直接啟動Docker即可，
[root@localhost ~]# service docker start
Redirecting to /bin/systemctl start docker.service
[root@localhost ~]# docker version
Client: Docker Engine - Community
Version: 19.03.13
API version: 1.40
Go version: go1.13.15
Git commit: 4484c46d9d
Built: Wed Sep 16 17:03:45 2020
OS/Arch: linux/amd64
Experimental: false
Server: Docker Engine - Community
Engine:
Version: 19.03.13
API version: 1.40 (minimum version 1.12)
Go version: go1.13.15
Git commit: 4484c46d9d
Built: Wed Sep 16 17:02:21 2020
OS/Arch: linux/amd64
Experimental: false
containerd:
Version: 1.3.7
GitCommit: 8fba4e9a7d01810a393d5d25a3621dc101981175
runc:
Version: 1.0.0-rc10
GitCommit: dc9208a3303feef5b3839f4323d9beb36df0a9dd
docker-init:
Version: 0.18.0
GitCommit: fec3683
安裝kubeadm、kubelet和kubectl
需要在每臺虛擬機上安裝以下的軟體包：
kubeadm：用來初始化集群的指令，kubelet：在集群的每個節點上，用來啟動pod和容器等，kubectl：用來與集群通信的命令列工具，
使用阿里云的yum鏡像倉庫，官方的yum鏡像倉庫安裝會超時：
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
[root@localhost ~]# cat <<EOF > /etc/yum.repos.d/kubernetes.repo
> [kubernetes]
> name=Kubernetes
> baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
> enabled=1
> gpgcheck=0
> repo_gpgcheck=0
> gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
> http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
> EOF
將SELinux設定為permissive模式（相當于將其禁用）， 這是允許容器訪問主機檔案系統所必須的，例如正常使用pod網路， 你必須這么做，直到kubelet做出升級支持SELinux為止，
setenforce 0
sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config
[root@localhost ~]# setenforce 0
[root@localhost ~]# sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config
接下來安裝kubeadm、kubelet和kubectl，
yum install -y kubelet kubeadm kubectl --disableexcludes=kubernetes
[root@localhost ~]# yum install -y kubelet kubeadm kubectl --disableexcludes=kubernetes
已加載插件：fastestmirror
Loading mirror speeds from cached hostfile
* base: mirrors.163.com
* extras: mirrors.163.com
* updates: mirrors.163.com
base | 3.6 kB 00:00:00
docker-ce-stable | 3.5 kB 00:00:00
extras | 2.9 kB 00:00:00
kubernetes | 1.4 kB 00:00:00
updates | 2.9 kB 00:00:00
kubernetes/primary | 83 kB 00:00:00
kubernetes 612/612
正在解決依賴關系
--> 正在檢查事務
---> 軟體包 kubeadm.x86_64.0.1.20.1-0 將被 安裝
--> 正在處理依賴關系 kubernetes-cni >= 0.8.6，它被軟體包 kubeadm-1.20.1-0.x86_64 需要
--> 正在處理依賴關系 cri-tools >= 1.13.0，它被軟體包 kubeadm-1.20.1-0.x86_64 需要
---> 軟體包 kubectl.x86_64.0.1.20.1-0 將被 安裝
---> 軟體包 kubelet.x86_64.0.1.20.1-0 將被 安裝
--> 正在處理依賴關系 socat，它被軟體包 kubelet-1.20.1-0.x86_64 需要
--> 正在處理依賴關系 conntrack，它被軟體包 kubelet-1.20.1-0.x86_64 需要
--> 正在檢查事務
---> 軟體包 conntrack-tools.x86_64.0.1.4.4-7.el7 將被 安裝
--> 正在處理依賴關系 libnetfilter_cttimeout.so.1(LIBNETFILTER_CTTIMEOUT_1.1)(64bit)，它被軟體包 conntrack-tools-1.4.4-7.el7.x86_64 需要
--> 正在處理依賴關系 libnetfilter_cttimeout.so.1(LIBNETFILTER_CTTIMEOUT_1.0)(64bit)，它被軟體包 conntrack-tools-1.4.4-7.el7.x86_64 需要
--> 正在處理依賴關系 libnetfilter_cthelper.so.0(LIBNETFILTER_CTHELPER_1.0)(64bit)，它被軟體包 conntrack-tools-1.4.4-7.el7.x86_64 需要
--> 正在處理依賴關系 libnetfilter_queue.so.1()(64bit)，它被軟體包 conntrack-tools-1.4.4-7.el7.x86_64 需要
--> 正在處理依賴關系 libnetfilter_cttimeout.so.1()(64bit)，它被軟體包 conntrack-tools-1.4.4-7.el7.x86_64 需要
--> 正在處理依賴關系 libnetfilter_cthelper.so.0()(64bit)，它被軟體包 conntrack-tools-1.4.4-7.el7.x86_64 需要
---> 軟體包 cri-tools.x86_64.0.1.13.0-0 將被 安裝
---> 軟體包 kubernetes-cni.x86_64.0.0.8.7-0 將被 安裝
---> 軟體包 socat.x86_64.0.1.7.3.2-2.el7 將被 安裝
--> 正在檢查事務
---> 軟體包 libnetfilter_cthelper.x86_64.0.1.0.0-11.el7 將被 安裝
---> 軟體包 libnetfilter_cttimeout.x86_64.0.1.0.0-7.el7 將被 安裝
---> 軟體包 libnetfilter_queue.x86_64.0.1.0.2-2.el7_2 將被 安裝
--> 解決依賴關系完成
依賴關系解決
=================================================================================================================================================================================================================
Package 架構 版本 源 大小
=================================================================================================================================================================================================================
正在安裝:
kubeadm x86_64 1.20.1-0 kubernetes 8.3 M
kubectl x86_64 1.20.1-0 kubernetes 8.5 M
kubelet x86_64 1.20.1-0 kubernetes 20 M
為依賴而安裝:
conntrack-tools x86_64 1.4.4-7.el7 base 187 k
cri-tools x86_64 1.13.0-0 kubernetes 5.1 M
kubernetes-cni x86_64 0.8.7-0 kubernetes 19 M
libnetfilter_cthelper x86_64 1.0.0-11.el7 base 18 k
libnetfilter_cttimeout x86_64 1.0.0-7.el7 base 18 k
libnetfilter_queue x86_64 1.0.2-2.el7_2 base 23 k
socat x86_64 1.7.3.2-2.el7 base 290 k
事務概要
=================================================================================================================================================================================================================
安裝 3 軟體包 (+7 依賴軟體包)
總下載量：61 M
安裝大小：262 M
Downloading packages:
(1/10): conntrack-tools-1.4.4-7.el7.x86_64.rpm | 187 kB 00:00:00
(2/10): e4c317024d29cf4972b71bde08e7bde5648beb1897005d3f3ebfe363d4d89b1b-kubeadm-1.20.1-0.x86_64.rpm | 8.3 MB 00:00:01
(3/10): f431ef4494e7301b760c73f9e2ea3048c7d6a443bf71602b41c86190a604a479-kubectl-1.20.1-0.x86_64.rpm | 8.5 MB 00:00:01
(4/10): 15c57dcc3d83abca74b887cba9e53c0be2b3329bcf4a0c534b99a76653971810-kubelet-1.20.1-0.x86_64.rpm | 20 MB 00:00:02
(5/10): libnetfilter_cttimeout-1.0.0-7.el7.x86_64.rpm | 18 kB 00:00:00
(6/10): libnetfilter_queue-1.0.2-2.el7_2.x86_64.rpm | 23 kB 00:00:00
(7/10): socat-1.7.3.2-2.el7.x86_64.rpm | 290 kB 00:00:00
(8/10): libnetfilter_cthelper-1.0.0-11.el7.x86_64.rpm | 18 kB 00:00:00
(9/10): db7cb5cb0b3f6875f54d10f02e625573988e3e91fd4fc5eef0b1876bb18604ad-kubernetes-cni-0.8.7-0.x86_64.rpm | 19 MB 00:00:02
(10/10): 14bfe6e75a9efc8eca3f638eb22c7e2ce759c67f95b43b16fae4ebabde1549f3-cri-tools-1.13.0-0.x86_64.rpm | 5.1 MB 00:00:08
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
總計 7.4 MB/s | 61 MB 00:00:08
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
正在安裝 : libnetfilter_cthelper-1.0.0-11.el7.x86_64 1/10
正在安裝 : socat-1.7.3.2-2.el7.x86_64 2/10
正在安裝 : libnetfilter_cttimeout-1.0.0-7.el7.x86_64 3/10
正在安裝 : cri-tools-1.13.0-0.x86_64 4/10
正在安裝 : kubectl-1.20.1-0.x86_64 5/10
正在安裝 : libnetfilter_queue-1.0.2-2.el7_2.x86_64 6/10
正在安裝 : conntrack-tools-1.4.4-7.el7.x86_64 7/10
正在安裝 : kubernetes-cni-0.8.7-0.x86_64 8/10
正在安裝 : kubelet-1.20.1-0.x86_64 9/10
正在安裝 : kubeadm-1.20.1-0.x86_64 10/10
驗證中 : conntrack-tools-1.4.4-7.el7.x86_64 1/10
驗證中 : kubernetes-cni-0.8.7-0.x86_64 2/10
驗證中 : libnetfilter_queue-1.0.2-2.el7_2.x86_64 3/10
驗證中 : kubectl-1.20.1-0.x86_64 4/10
驗證中 : kubeadm-1.20.1-0.x86_64 5/10
驗證中 : cri-tools-1.13.0-0.x86_64 6/10
驗證中 : libnetfilter_cttimeout-1.0.0-7.el7.x86_64 7/10
驗證中 : socat-1.7.3.2-2.el7.x86_64 8/10
驗證中 : libnetfilter_cthelper-1.0.0-11.el7.x86_64 9/10
驗證中 : kubelet-1.20.1-0.x86_64 10/10
已安裝:
kubeadm.x86_64 0:1.20.1-0 kubectl.x86_64 0:1.20.1-0 kubelet.x86_64 0:1.20.1-0
作為依賴被安裝:
conntrack-tools.x86_64 0:1.4.4-7.el7 cri-tools.x86_64 0:1.13.0-0 kubernetes-cni.x86_64 0:0.8.7-0 libnetfilter_cthelper.x86_64 0:1.0.0-11.el7 libnetfilter_cttimeout.x86_64 0:1.0.0-7.el7
libnetfilter_queue.x86_64 0:1.0.2-2.el7_2 socat.x86_64 0:1.7.3.2-2.el7
完畢！
啟動kubelet，
systemctl enable --now kubelet
[root@localhost ~]# systemctl enable --now kubelet
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.
配置虛擬機環境
三臺虛擬機都要配置環境，
關閉虛擬機的防火墻，
systemctl stop firewalld
查看虛擬機防火墻的狀態，
systemctl status firewalld
[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; enabled; vendor preset: enabled)
Active: inactive (dead) since 六 2020-12-26 21:41:39 CST; 48min ago
Docs: man:firewalld(1)
Main PID: 658 (code=exited, status=0/SUCCESS)
12月 26 21:39:29 localhost.localdomain firewalld[658]: WARNING: COMMAND_FAILED: '/usr/sbin/iptables -w10 -t nat -D OUTPUT -m addrtype --dst-type LOCAL -j DOCKER' failed: iptables: No chain/tar...by that name.
12月 26 21:39:29 localhost.localdomain firewalld[658]: WARNING: COMMAND_FAILED: '/usr/sbin/iptables -w10 -t nat -D PREROUTING' failed: iptables: Bad rule (does a matching rule exist in that chain?).
12月 26 21:39:29 localhost.localdomain firewalld[658]: WARNING: COMMAND_FAILED: '/usr/sbin/iptables -w10 -t nat -D OUTPUT' failed: iptables: Bad rule (does a matching rule exist in that chain?).
12月 26 21:39:29 localhost.localdomain firewalld[658]: WARNING: COMMAND_FAILED: '/usr/sbin/iptables -w10 -t filter -X DOCKER' failed: iptables: Too many links.
12月 26 21:39:29 localhost.localdomain firewalld[658]: WARNING: COMMAND_FAILED: '/usr/sbin/iptables -w10 -t filter -X DOCKER-ISOLATION-STAGE-1' failed: iptables: Too many links.
12月 26 21:39:29 localhost.localdomain firewalld[658]: WARNING: COMMAND_FAILED: '/usr/sbin/iptables -w10 -t filter -F DOCKER-ISOLATION' failed: iptables: No chain/target/match by that name.
12月 26 21:39:29 localhost.localdomain firewalld[658]: WARNING: COMMAND_FAILED: '/usr/sbin/iptables -w10 -t filter -X DOCKER-ISOLATION' failed: iptables: No chain/target/match by that name.
12月 26 21:39:29 localhost.localdomain firewalld[658]: WARNING: COMMAND_FAILED: '/usr/sbin/iptables -w10 -D FORWARD -i docker0 -o docker0 -j DROP' failed: iptables: Bad rule (does a matching r...that chain?).
12月 26 21:41:39 localhost.localdomain systemd[1]: Stopping firewalld - dynamic firewall daemon...
12月 26 21:41:39 localhost.localdomain systemd[1]: Stopped firewalld - dynamic firewall daemon.
Hint: Some lines were ellipsized, use -l to show in full.
再執行下面這條命令，
systemctl enable docker.service
再創建daemon.json，
vi /etc/docker/daemon.json
輸入以下內容：
{
"exec-opts":["native.cgroupdriver=systemd"]
}
重啟Docker，再查看Docker運行狀態，
systemctl restart docker
systemctl status docker
[root@localhost ~]# systemctl status docker
● docker.service - Docker Application Container Engine
Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
Active: active (running) since 六 2020-12-26 22:38:39 CST; 8s ago
Docs: https://docs.docker.com
Main PID: 15618 (dockerd)
Tasks: 21
Memory: 76.2M
CGroup: /system.slice/docker.service
└─15618 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.233733538+08:00" level=info msg="ignoring event" module=libcontainerd namespace=moby topic=/tasks/delete type="...s.TaskDelete"
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.233762335+08:00" level=info msg="ignoring event" module=libcontainerd namespace=moby topic=/tasks/delete type="...s.TaskDelete"
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.427987979+08:00" level=info msg="Removing stale sandbox f97dd1457382757e80c758b2e96a099dc36b43fb1203fa55402ecf7...c703891c889)"
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.434206692+08:00" level=warning msg="Error (Unable to complete atomic operation, key modified) deleting object [...retrying...."
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.449258659+08:00" level=info msg="There are old running containers, the network config will not take affect"
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.483874720+08:00" level=info msg="Loading containers: done."
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.517010578+08:00" level=info msg="Docker daemon" commit=4484c46d9d graphdriver(s)=overlay2 version=19.03.13
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.517959158+08:00" level=info msg="Daemon has completed initialization"
12月 26 22:38:39 localhost.localdomain dockerd[15618]: time="2020-12-26T22:38:39.543602109+08:00" level=info msg="API listen on /var/run/docker.sock"
12月 26 22:38:39 localhost.localdomain systemd[1]: Started Docker Application Container Engine.
Hint: Some lines were ellipsized, use -l to show in full.
再執行下面這條命令，
#禁用當前的 swap
swapoff -a
使用kubeadm創建集群
在master節點使用kubeadm創建集群，作業節點不需要執行下面的各種命令，
博主假設大家在三臺虛擬機上都配置好了環境，接下來需要在master節點使用kubeadm創建集群，
查看kubeadm命令有哪些引數，
kubeadm --help
[root@localhost ~]# kubeadm --help
┌──────────────────────────────────────────────────────────┐
│ KUBEADM │
│ Easily bootstrap a secure Kubernetes cluster │
│ │
│ Please give us feedback at: │
│ https://github.com/kubernetes/kubeadm/issues │
└──────────────────────────────────────────────────────────┘
Usage:
kubeadm [command]
Available Commands:
alpha Kubeadm experimental sub-commands
certs Commands related to handling kubernetes certificates
completion Output shell completion code for the specified shell (bash or zsh)
config Manage configuration for a kubeadm cluster persisted in a ConfigMap in the cluster
help Help about any command
init Run this command in order to set up the Kubernetes control plane
join Run this on any machine you wish to join an existing cluster
reset Performs a best effort revert of changes made to this host by 'kubeadm init' or 'kubeadm join'
token Manage bootstrap tokens
upgrade Upgrade your cluster smoothly to a newer version with this command
version Print the version of kubeadm
Flags:
--add-dir-header If true, adds the file directory to the header of the log messages
-h, --help help for kubeadm
--log-file string If non-empty, use this log file
--log-file-max-size uint Defines the maximum size a log file can grow to. Unit is megabytes. If the value is 0, the maximum file size is unlimited. (default 1800)
--one-output If true, only write logs to their native severity level (vs also writing to each lower severity level
--rootfs string [EXPERIMENTAL] The path to the 'real' host root filesystem.
--skip-headers If true, avoid header prefixes in the log messages
--skip-log-headers If true, avoid headers when opening log files
-v, --v Level number for the log level verbosity
Use "kubeadm [command] --help" for more information about a command.
示例用法：創建一個雙節點集群，一個控制平面節點（即master節點，用來控制集群）和一個作業節點（你的作業負載，如Pods和Deployments的運行），這里提到了兩個命令：kubeadm init（控制平面節點） 和kubeadm join <arguments-returned-from-init> （作業節點），
Example usage:
Create a two-machine cluster with one control-plane node
(which controls the cluster), and one worker node
(where your workloads, like Pods and Deployments run).
┌──────────────────────────────────────────────────────────┐
│ On the first machine: │
├──────────────────────────────────────────────────────────┤
│ control-plane# kubeadm init │
└──────────────────────────────────────────────────────────┘
┌──────────────────────────────────────────────────────────┐
│ On the second machine: │
├──────────────────────────────────────────────────────────┤
│ worker# kubeadm join <arguments-returned-from-init> │
└──────────────────────────────────────────────────────────┘
You can then repeat the second step on as many other machines as you like.
kubeadm init：執行此命令，初始化Kubernetes集群的控制平面，kubeadm join：執行此命令，加入到現有的Kubernetes集群中，
查看kubeadm init命令的引數，
kubeadm init --help
引數比較多，這里就不列舉了，就介紹一下kubeadm init命令常用的引數：
--kubernetes-version：指定Kubernetes的版本，博主選擇v1.20.1這個版本，因為該版本的Kubernetes和博主安裝的Docker版本兼容，--pod-network-cidr: 指定pod網路的IP地址，它的值取決于你選擇哪個網路，比如博主選擇的是Flannel網路，因此值需要指定為10.244.0.0/16，因為Flannel網路相對于其他網路要簡單一些，對于剛開始搭建Kubernetes集群比較友好，需要的配置較少，功能也較為完善，--apiserver-advertise-address: 指定master節點發布的IP地址，如果不指定，則會自動檢測網路介面，通常是內網IP，--ignore-preflight-errors：檢查錯誤將顯示為檢查的警告串列，值為all會忽略所有檢查中的錯誤，--image-repository：選擇一個Container Registry從中拉取控制平面鏡像（默認為k8s.gcr.io，這個Container Registry拉取鏡像特別慢，會導致超時，博主會換成阿里云的Container Registry），
Kubernetes集群需要的硬體資源，如果本地環境沒辦法滿足，可以通過設定--ignore-preflight-errors=all來避免出現問題，
現在終于可以執行kubeadm init命令了，博主搭建的Kubernetes集群的master節點IP地址為192.168.1.238，大家這里填自己master節點的IP地址即可，
kubeadm init --kubernetes-version=v1.20.1 --pod-network-cidr=10.244.0.0/16 --apiserver-advertise-address=192.168.1.238 --ignore-preflight-errors=all --image-repository=registry.aliyuncs.com/google_containers
[root@localhost ~]# kubeadm init --kubernetes-version=v1.20.1 --pod-network-cidr=10.244.0.0/16 --apiserver-advertise-address=192.168.1.238 --ignore-preflight-errors=all --image-repository=registry.aliyuncs.com/google_containers
[init] Using Kubernetes version: v1.20.1
[preflight] Running pre-flight checks
[WARNING NumCPU]: the number of available CPUs 1 is less than the required 2
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local localhost.localdomain] and IPs [10.96.0.1 192.168.1.238]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [localhost localhost.localdomain] and IPs [192.168.1.238 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [localhost localhost.localdomain] and IPs [192.168.1.238 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 19.501884 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.20" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node localhost.localdomain as control-plane by adding the labels "node-role.kubernetes.io/master=''" and "node-role.kubernetes.io/control-plane='' (deprecated)"
[mark-control-plane] Marking the node localhost.localdomain as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: ramuta.ko6wlounsq2uxzyt
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.1.238:6443 --token ramuta.ko6wlounsq2uxzyt \
--discovery-token-ca-cert-hash sha256:aacb271cc8b80f1eda32aef55158c83ce69ba391138fd14533f4c05400bbc5c4
如果是root用戶，執行下面這條命令，
export KUBECONFIG=/etc/kubernetes/admin.conf
如果不是root用戶，執行下面這些命令，
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
再執行下面這條命令，
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
出現問題，如果你沒有出現問題，就不需要下面這些操作，
[root@localhost ~]# kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
The connection to the server raw.githubusercontent.com was refused - did you specify the right host or port?

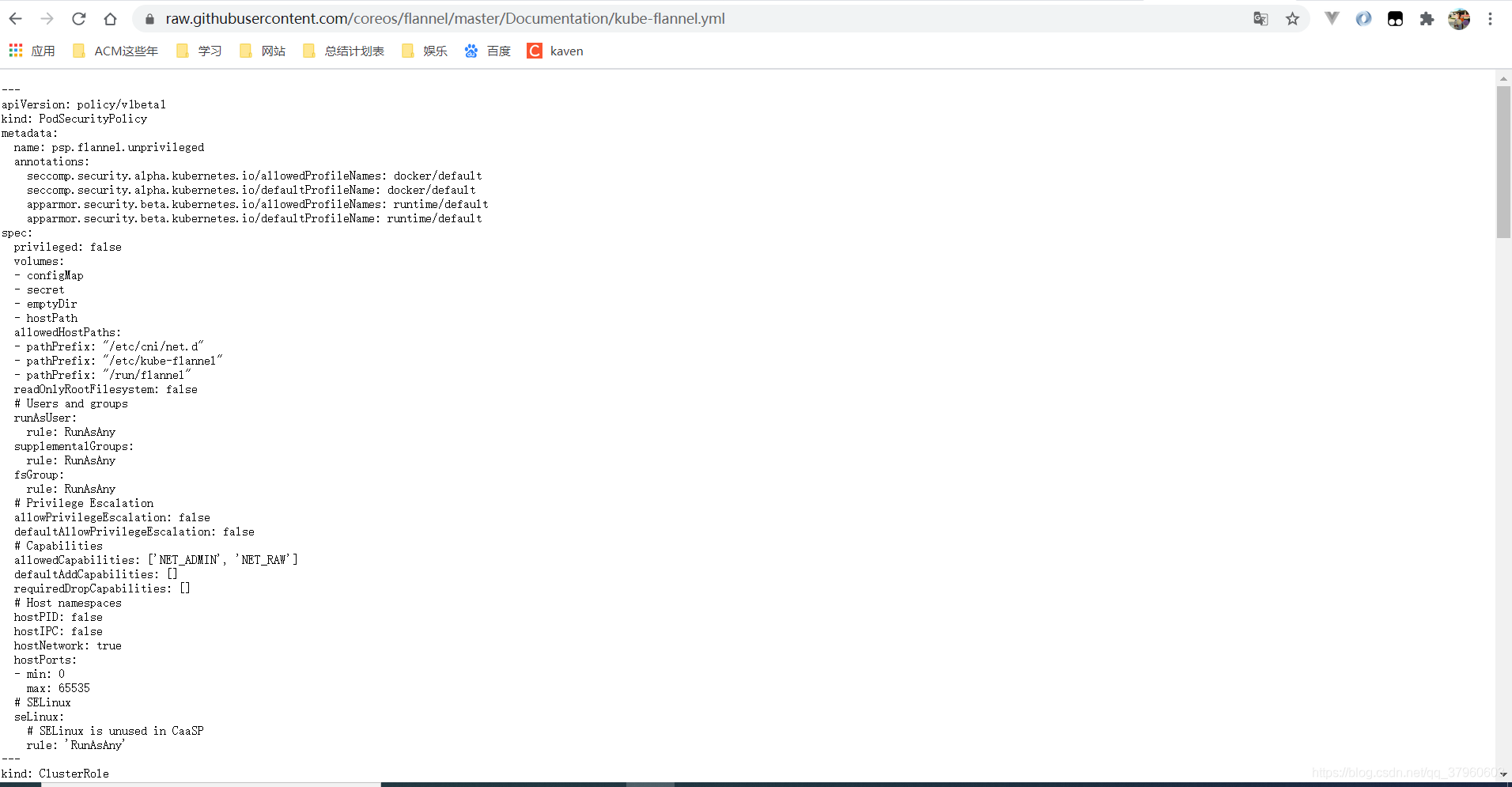

網上很多辦法都不行（打開VPN也不行），博主打開VPN直接訪問https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml，再復制里面的內容，

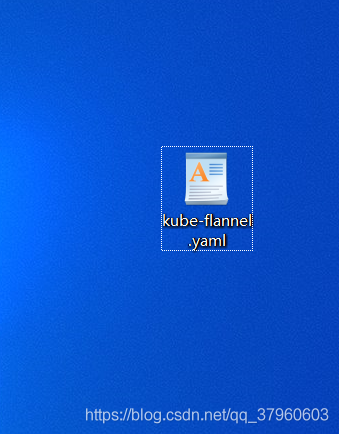

在本地直接創建一個yaml檔案，

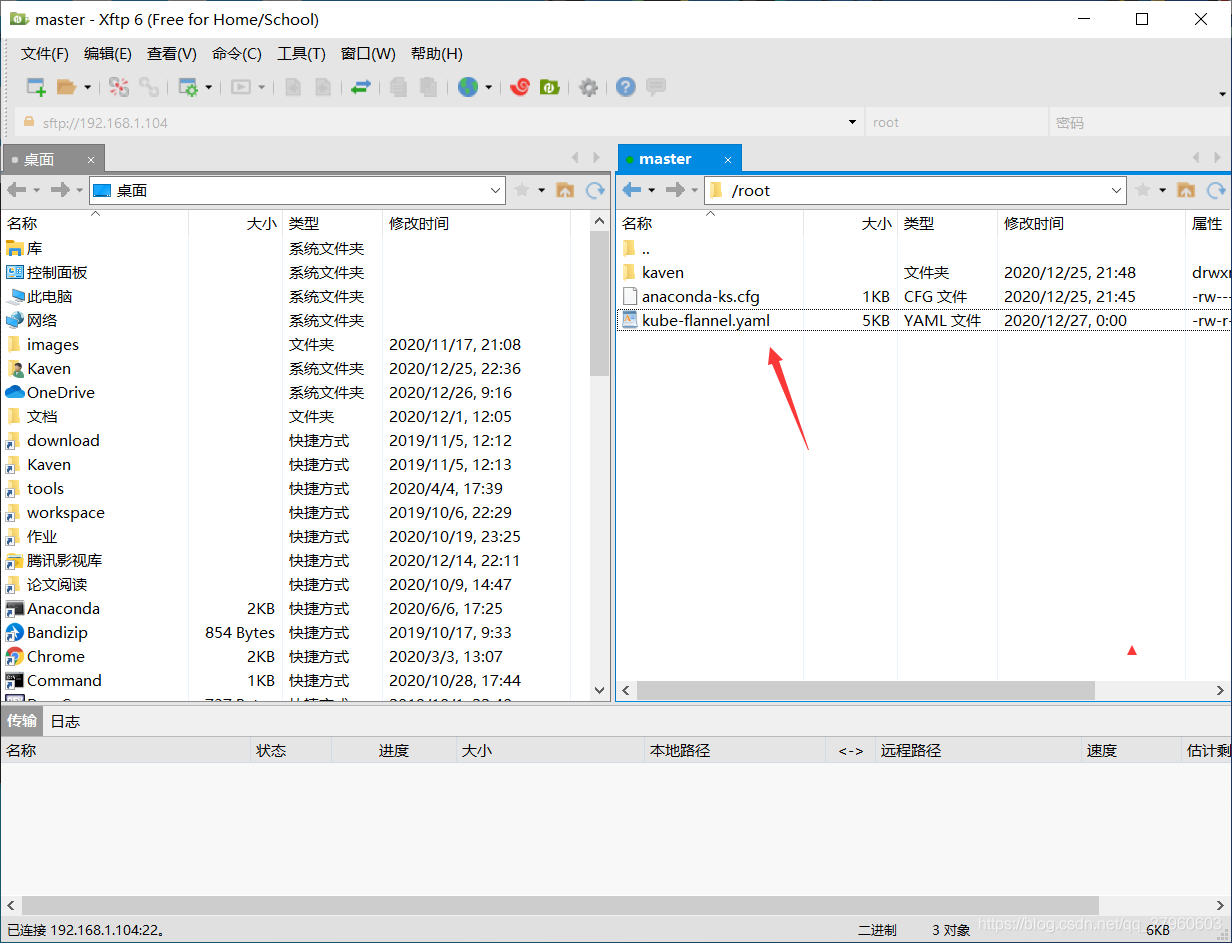

點擊下方圖示，本地需要安裝Xftp，
直接使用Xftp拖進去即可，
[root@localhost ~]# ll
總用量 8
-rw-------. 1 root root 1245 12月 25 21:45 anaconda-ks.cfg
-rw-r--r--. 1 root root 5042 12月 27 00:00 kube-flannel.yaml
[root@localhost ~]# kubectl apply -f kube-flannel.yaml
podsecuritypolicy.policy/psp.flannel.unprivileged created
clusterrole.rbac.authorization.k8s.io/flannel created
clusterrolebinding.rbac.authorization.k8s.io/flannel created
serviceaccount/flannel created
configmap/kube-flannel-cfg created
daemonset.apps/kube-flannel-ds created
這樣一個master節點的Kubernetes集群就搭建好了，之后就需要往Kubernetes集群中加入作業節點了，
作業節點加入Kubernetes集群
作業節點加入Kubernetes集群，兩臺作業節點虛擬機需要執行下面這些命令要，
默認情況下，令牌會在24小時后過期，如果要在當前令牌過期后將節點加入集群， 則可以通過在控制平面節點上運行以下命令來創建新令牌：
kubeadm token create
輸出類似于以下內容：
5didvk.d09sbcov8ph2amjw
如果你沒有--discovery-token-ca-cert-hash的值，則可以通過在控制平面節點上執行以下命令鏈來獲取它：
openssl x509 -pubkey -in /etc/kubernetes/pki/ca.crt | openssl rsa -pubin -outform der 2>/dev/null | \
openssl dgst -sha256 -hex | sed 's/^.* //'
輸出類似于以下內容：
8cb2de97839780a412b93877f8507ad6c94f73add17d5d7058e91741c9d5ec78
在兩臺作業節點虛擬機中執行下面命令，將作業節點加入到Kubernetes集群中，大家這里填自己的--token和--discovery-token-ca-cert-hash，
kubeadm join 192.168.1.238:6443 --token ramuta.ko6wlounsq2uxzyt \
--discovery-token-ca-cert-hash sha256:aacb271cc8b80f1eda32aef55158c83ce69ba391138fd14533f4c05400bbc5c4 \
--ignore-preflight-errors=all
node-1加入Kubernetes集群，
[root@localhost ~]# kubeadm join 192.168.1.238:6443 --token ramuta.ko6wlounsq2uxzyt \
> --discovery-token-ca-cert-hash sha256:aacb271cc8b80f1eda32aef55158c83ce69ba391138fd14533f4c05400bbc5c4 \
> --ignore-preflight-errors=all
[preflight] Running pre-flight checks
[WARNING Hostname]: hostname "node-1" could not be reached
[WARNING Hostname]: hostname "node-1": lookup node-1 on 192.168.1.1:53: no such host
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
node-2加入Kubernetes集群，
[root@localhost ~]# kubeadm join 192.168.1.238:6443 --token ramuta.ko6wlounsq2uxzyt \
> --discovery-token-ca-cert-hash sha256:aacb271cc8b80f1eda32aef55158c83ce69ba391138fd14533f4c05400bbc5c4 \
> --ignore-preflight-errors=all
[preflight] Running pre-flight checks
[WARNING FileAvailable--etc-kubernetes-kubelet.conf]: /etc/kubernetes/kubelet.conf already exists
[WARNING FileAvailable--etc-kubernetes-bootstrap-kubelet.conf]: /etc/kubernetes/bootstrap-kubelet.conf already exists
[WARNING Hostname]: hostname "node-3" could not be reached
[WARNING Hostname]: hostname "node-3": lookup node-3 on 192.168.1.1:53: no such host
[WARNING Port-10250]: Port 10250 is in use
[WARNING FileAvailable--etc-kubernetes-pki-ca.crt]: /etc/kubernetes/pki/ca.crt already exists
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
在master節點上執行下面這條命令，可以獲取Kubernetes集群的所有節點，
kubectl get node
[root@localhost ~]# kubectl get node
NAME STATUS ROLES AGE VERSION
localhost.localdomain Ready control-plane,master 25m v1.20.1
node-1 Ready <none> 18m v1.20.1
node-3 Ready <none> 6m31s v1.20.1
Xshell連接虛擬機和搭建Kubernetes基礎集群就介紹到這里，
大家可能會因為硬體、網路各種原因，導致出現各種各樣博主沒有踩到過的坑，大家可以留言，博主會盡量解決，
寫博客是博主記錄自己的學習程序，如果有錯誤，請指正，謝謝！
轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/241490.html
標籤：其他
