XX管理系統

- 摘要
- 1 技術選型
- - 1.1 Mysql8
- 1.2 springboot2
- 1.3 模板引擎thymeleaf
- 2 專案構建
- - 2.1 創建專案
  - 2.2 建表
- 3 專案實作
- - 3.1 專案效果
  - 3.2 專案結構
- 4 代碼實作
- - 4.1 前臺頁面
  - 4.2 后臺業務實作
  - - 4.2.1 物體類Employee
    - 4.2.2 資料庫操作層repo
    - 4.2.3 業務代碼service
    - 4.2.4 Web介面
  - 4.3 組態檔
- 5 總結

摘要

對企業來說，人、物資、能源、資金、資訊是5大重要資源，人、物資、能源、資金這些都是可見的有形資源，而資訊是一種無形的資源，以前人們比較看重有形的資源，進入資訊社會和知識經濟時代以后，資訊資源就顯得日益重要，因為資訊資源決定了如何更有效地利用物資資源，資訊資源是人類與自然的斗爭中得出的知識結晶，掌握了資訊資源，就可以更好地利用有形資源，使有形資源發揮更好的效益， ¹

由此可見，諸如各類管理系統還是很有價值的，筆者經歷的公司內部都有自己實作的管理系統，可能有些非互聯網的公司是依靠其他公司提供的資訊管理服務，ERP系統至今還發揮著重要作用，筆者下班后連忙帶趕，經歷數個小時的鏖戰，終于做完了此xx管理系統，在此與諸位分享，

1 技術選型

1.1 Mysql8

為什么是mysql8，不是5版本的，沒錯就是喜新厭舊啦！！！
mysql8有何特別之處呢！
1.性能就是好，沒錯它就是強，所以當然上Mysql8，快點上8，
就是強呀
2.Mysql8還支持各種牛逼的功能：SQL視窗函式，GIS，JSON擴展語法等等，總之這些功能聽著就挺牛，由于筆者自己還沒弄明白，就不贅述了，

1.2 springboot2

當前主流的web開發框架，不二之選，沒有比這更方便的了，為什么選這個，它就是無敵，沒有競爭對手啊，自動裝配，父級依賴，嵌入tomcat等等，就是無敵呀，
無敵的我又回來了

1.3 模板引擎thymeleaf

用模板引擎也實屬無奈，筆者不會前端呀，畢竟人的精力是有限的，不過這個東西還是挺好用的，趕腳用著和幾年前學寫jsp也差不多，

2 專案構建

2.1 創建專案

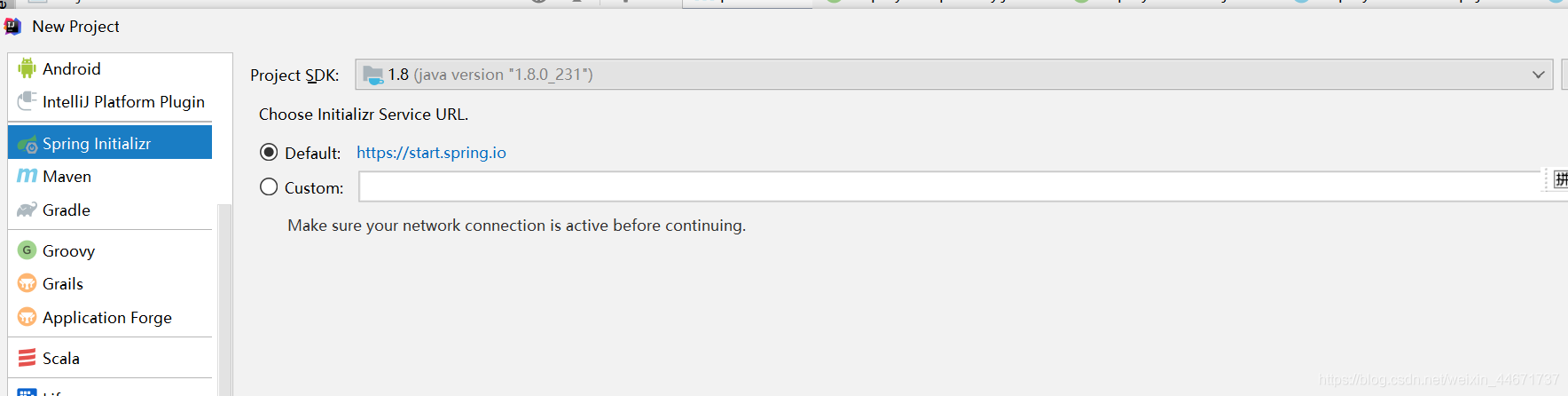

spring initializer
在這里插入圖片描述

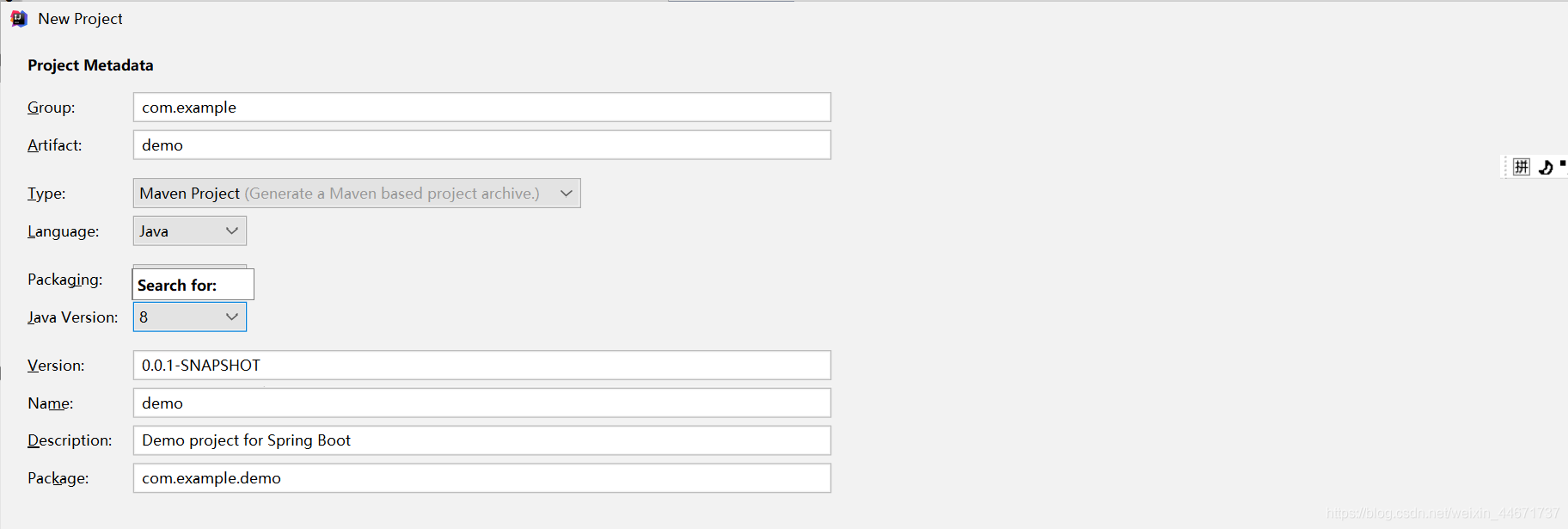

取個心愛的專案名字

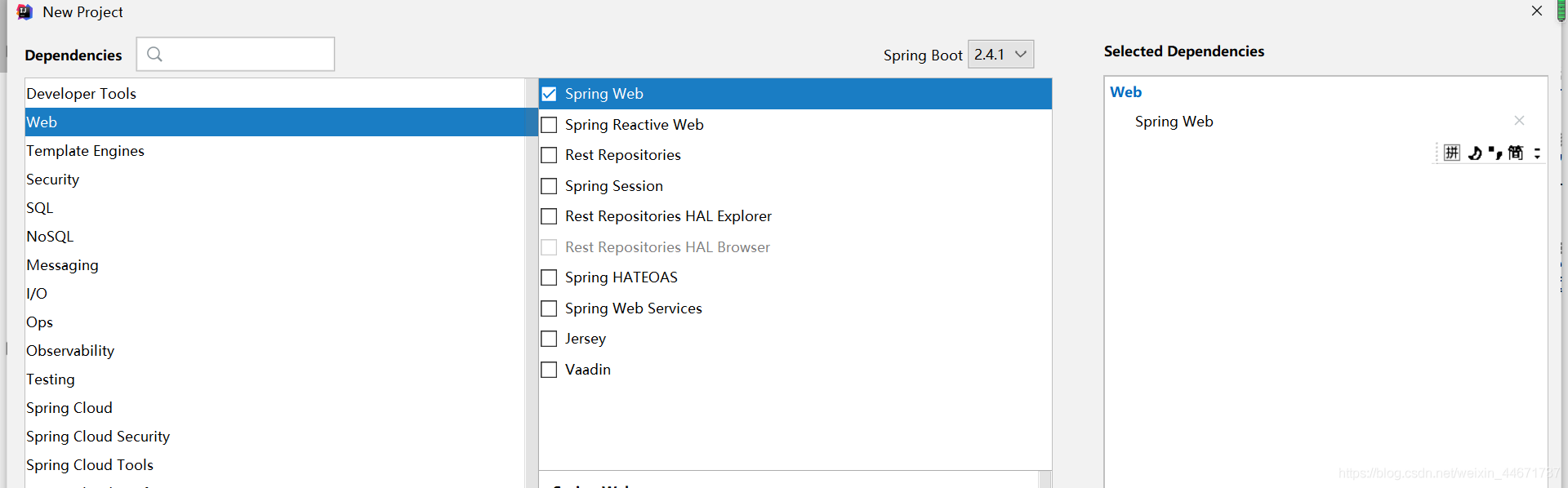

勾選需要的依賴，mysql，thymeleaf，jpa

2.2 建表

好吧，筆者為了偷懶，沒有建表ddl，直接上jpa，先建一個需要的庫，create database，做完這些，專案開始的準備作業就已經完了，馬上又帶了激動人心的擼代碼環節了，

3 專案實作

3.1 專案效果

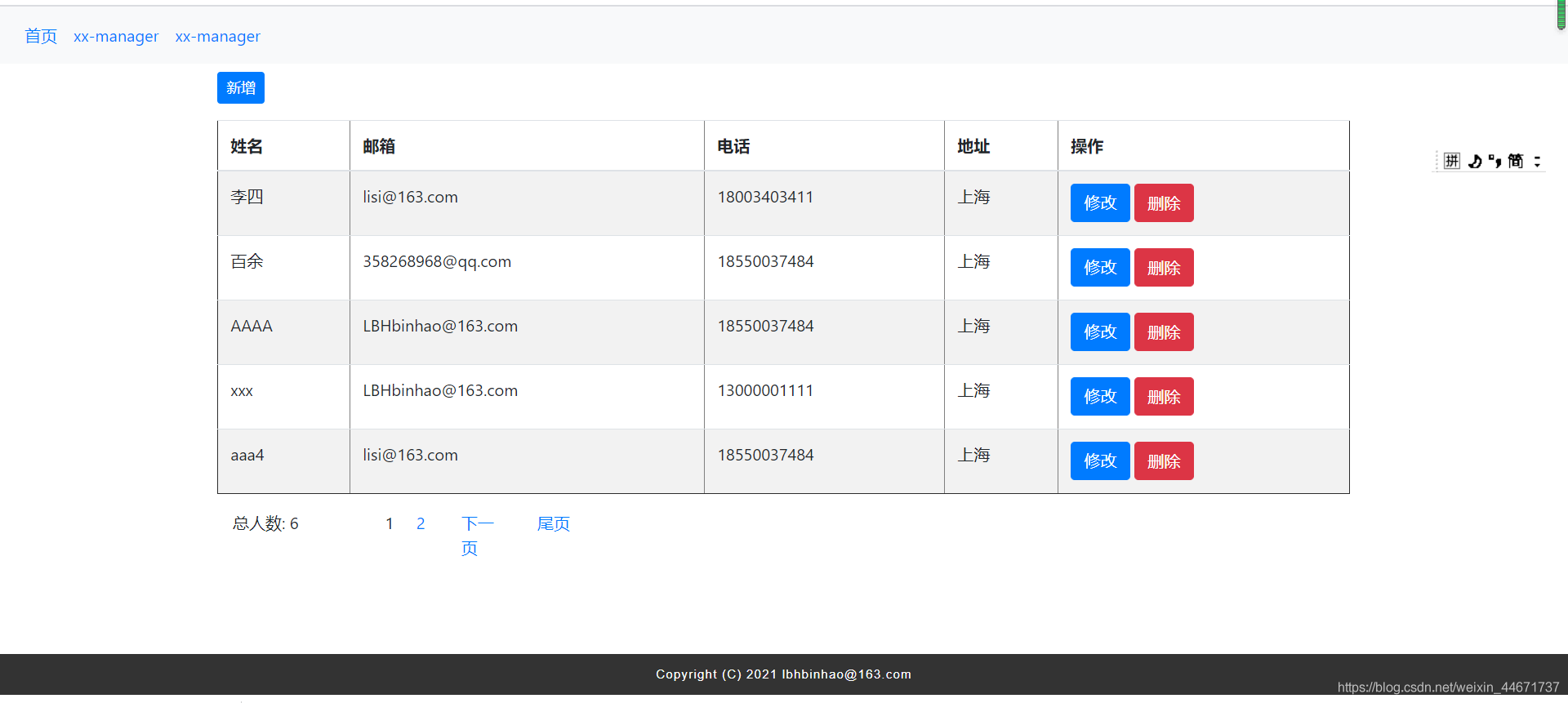

主頁面
在這里插入圖片描述
就是這樣滴，如此就已然發揮了筆者百分之兩百的前端功力了，各種查閱資料，復制copy加代碼修改，修修改改終于有了上邊的模樣，應該不算太丑吧！好吧，我承認了，

3.2 專案結構

和主流web開發專案的結構基本大同小異：
對應資料庫物體的entity包，對應資料庫操作的repo目錄，對應業務代碼的service目錄，對應restful api的controller目錄，

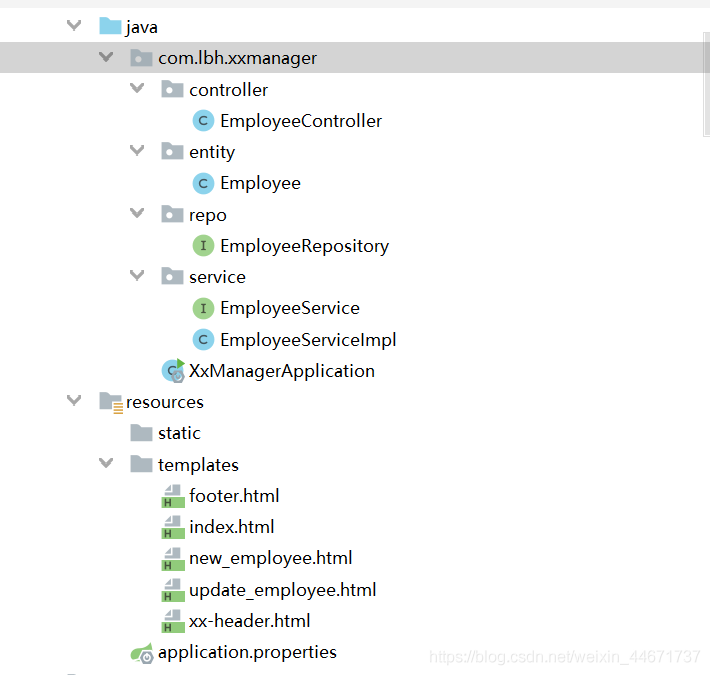

專案結構

4 代碼實作

4.1 前臺頁面

首頁面，就是上邊看到的那個帥氣的首頁！

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">
    <meta charset="UTF-8">
    <title>xx-manager</title>
</head>
<body>
<header th:replace="xx-header.html"></header>
<div class="container my-2">
    <a th:href="@{/newEmployee}" class="btn btn-primary btn-sm mb-3"> 新增 </a>
    <table border="1" class = "table table-striped table-responsive-md">
        <thead>
        <tr>
            <th>姓名</th>
            <th>郵箱</th>
            <th>電話</th>
            <th>地址</th>
            <th>操作</th>
        </tr>
        </thead>
        <tbody>
        <tr th:each="employee : ${employees}">
            <td th:text="${employee.name}"></td>
            <td th:text="${employee.email}"></td>
            <td th:text="${employee.mobile}"></td>
            <td th:text="${employee.location}"></td>
            <td><a th:href="@{/updateEmployee/{id}(id=${employee.id})}" class="btn btn-primary">修改</a>
                <a th:href="@{/deleteEmployee/{id}(id=${employee.id})}" class="btn btn-danger">洗掉</a></td>
        </tr>
        </tbody>
    </table>

    <div th:if="${totalPages > 1}">
        <div class="row col-sm-10">
            <div class="col-sm-2">
                總人數: [[${items}]]
            </div>
            <div class="col-sm-1">
                    <span th:each="i: ${#numbers.sequence(1, totalPages)}">
      <a th:if="${currentPage != i}" th:href="@{'/page/' + ${i}}">[[${i}]]</a>
      <span th:unless="${currentPage != i}">[[${i}]]</span> &nbsp; &nbsp;
                    </span>
            </div>
            <div class="col-sm-1">
                <a th:if="${currentPage < totalPages}" th:href="@{'/page/' + ${currentPage + 1}}">下一頁</a>
                <span th:unless="${currentPage < totalPages}">下一頁</span>
            </div>

            <div class="col-sm-1">
                <a th:if="${currentPage < totalPages}" th:href="@{'/page/' + ${totalPages}}">尾頁</a>
                <span th:unless="${currentPage < totalPages}">尾頁</span>
            </div>
        </div>
    </div>
</div>
<footer th:replace="footer.html"></footer>
</body>
</html>

新增功能頁面

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">
    <meta charset="UTF-8">
    <title>xx-manager</title>
</head>
<body>
<header th:replace="xx-header.html"></header>
<div class="container">
    <h1>xx-manager</h1>
    <hr>
    <h2>保存</h2>

    <form action="#" th:action="@{/saveEmployee}" th:object="${employee}" method="POST">
        <input type="text" th:field="*{name}" placeholder="姓名" class="form-control mb-4 col-4">

        <input type="text" th:field="*{email}" placeholder="郵箱" class="form-control mb-4 col-4">

        <input type="text" th:field="*{mobile}" placeholder="電話" class="form-control mb-4 col-4">

        <input type="text" th:field="*{location}" placeholder="住址" class="form-control mb-4 col-4">

        <button type="submit" class="btn btn-info col-2">保存</button>
    </form>

    <hr>

    <a th:href="@{/}">回退</a>
</div>
<footer th:replace="footer.html"></footer>
</body>
</html>

修改功能頁面

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <link rel="stylesheet" href="https://cdn.staticfile.org/twitter-bootstrap/4.3.1/css/bootstrap.min.css">
    <meta charset="UTF-8">
    <title>xx-manager</title>
</head>
<body>
<header th:replace="xx-header.html"></header>
<div class="container">
    <h1>xx-manager</h1>
    <hr>
    <h2>更新</h2>

    <form action="#" th:action="@{/saveEmployee}" th:object="${employee}" method="POST">

        <input type="hidden" th:field="*{id}" />

        <input type="text" th:field="*{name}" class="form-control mb-4 col-4">

        <input type="text" th:field="*{email}" class="form-control mb-4 col-4">

        <input type="text" th:field="*{mobile}" class="form-control mb-4 col-4">

        <input type="text" th:field="*{location}" class="form-control mb-4 col-4">

        <button type="submit" class="btn btn-info col-2">修改</button>

    </form>

    <hr>

    <a th:href="@{/}">回退</a>
</div>
<footer th:replace="footer.html"></footer>
</body>
</html>

4.2 后臺業務實作

4.2.1 物體類Employee

對應資料庫中的表

package com.lbh.xxmanager.entity;

import javax.persistence.*;

/**
 * Copyright(c)lbhbinhao@163.com
 * @author liubinhao
 * @date 2021/1/7
 * ++++ ______                           ______             ______
 * +++/     /|                         /     /|           /     /|
 * +/_____/  |                       /_____/  |         /_____/  |
 * |     |   |                      |     |   |        |     |   |
 * |     |   |                      |     |   |________|     |   |
 * |     |   |                      |     |  /         |     |   |
 * |     |   |                      |     |/___________|     |   |
 * |     |   |___________________   |     |____________|     |   |
 * |     |  /                  / |  |     |   |        |     |   |
 * |     |/ _________________/  /   |     |  /         |     |  /
 * |_________________________|/b    |_____|/           |_____|/
 */
@Entity
@Table(name = "xx_employee")
public class Employee {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private long id;
    @Column(name = "name")
    private String name;
    @Column(name = "email")
    private String email;
    @Column(name = "mobile")
    private String mobile;
    @Column(name = "location")
    private String location;
    @Column(name="status")
    private int status;


    public long getId() {
        return id;
    }

    public void setId(long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getMobile() {
        return mobile;
    }

    public void setMobile(String mobile) {
        this.mobile = mobile;
    }

    public String getLocation() {
        return location;
    }

    public void setLocation(String location) {
        this.location = location;
    }

    public int getStatus() {
        return status;
    }

    public void setStatus(int status) {
        this.status = status;
    }
}

4.2.2 資料庫操作層repo

package com.lbh.xxmanager.repo;

import com.lbh.xxmanager.entity.Employee;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import java.util.List;

/**
 * Copyright(c)lbhbinhao@163.com
 * @author liubinhao
 * @date 2021/1/7
 * ++++ ______                           ______             ______
 * +++/     /|                         /     /|           /     /|
 * +/_____/  |                       /_____/  |         /_____/  |
 * |     |   |                      |     |   |        |     |   |
 * |     |   |                      |     |   |________|     |   |
 * |     |   |                      |     |  /         |     |   |
 * |     |   |                      |     |/___________|     |   |
 * |     |   |___________________   |     |____________|     |   |
 * |     |  /                  / |  |     |   |        |     |   |
 * |     |/ _________________/  /   |     |  /         |     |  /
 * |_________________________|/b    |_____|/           |_____|/
 */
@Repository
public interface EmployeeRepository extends JpaRepository<Employee,Long> {

    List<Employee> findAllByStatus(int status);

    Page<Employee> findAllByStatus(int status, Pageable pageable);

    Page<Employee> findAllByStatusAndLocationLikeOrNameLikeOrEmailLike(int status,String locaion,String name,String email, Pageable pageable);

}

4.2.3 業務代碼service

介面：

package com.lbh.xxmanager.service;

import com.lbh.xxmanager.entity.Employee;
import org.springframework.data.domain.Page;

import java.util.List;

/**
 * Copyright(c)lbhbinhao@163.com
 * @author liubinhao
 * @date 2021/1/7
 * ++++ ______                           ______             ______
 * +++/     /|                         /     /|           /     /|
 * +/_____/  |                       /_____/  |         /_____/  |
 * |     |   |                      |     |   |        |     |   |
 * |     |   |                      |     |   |________|     |   |
 * |     |   |                      |     |  /         |     |   |
 * |     |   |                      |     |/___________|     |   |
 * |     |   |___________________   |     |____________|     |   |
 * |     |  /                  / |  |     |   |        |     |   |
 * |     |/ _________________/  /   |     |  /         |     |  /
 * |_________________________|/b    |_____|/           |_____|/
 */
public interface EmployeeService {

    List<Employee> findAllEmployees();

    void saveEmployee(Employee employee);

    Employee getEmployeeById(long id);

    void deleteEmployeeById(long id);

    Page<Employee> findPaging(int no,int size);

    Page<Employee> findPaging(int no,int size,String searchKey);
}

業務實作類：

package com.lbh.xxmanager.service;

import com.lbh.xxmanager.entity.Employee;
import com.lbh.xxmanager.repo.EmployeeRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Optional;

/**
 * Copyright(c)lbhbinhao@163.com
 *
 * @author liubinhao
 * @date 2021/1/7
 * ++++ ______                           ______             ______
 * +++/     /|                         /     /|           /     /|
 * +/_____/  |                       /_____/  |         /_____/  |
 * |     |   |                      |     |   |        |     |   |
 * |     |   |                      |     |   |________|     |   |
 * |     |   |                      |     |  /         |     |   |
 * |     |   |                      |     |/___________|     |   |
 * |     |   |___________________   |     |____________|     |   |
 * |     |  /                  / |  |     |   |        |     |   |
 * |     |/ _________________/  /   |     |  /         |     |  /
 * |_________________________|/b    |_____|/           |_____|/
 */
@Service
public class EmployeeServiceImpl implements EmployeeService {

    @Autowired
    private EmployeeRepository employeeRepository;

    @Override
    public List<Employee> findAllEmployees() {
        return employeeRepository.findAllByStatus(0);
    }

    @Override
    public void saveEmployee(Employee employee) {
        employee.setStatus(0);
        employeeRepository.save(employee);
    }

    @Override
    public Employee getEmployeeById(long id) {
        Optional<Employee> byId = employeeRepository.findById(id);
        Employee employee = null;
        if (byId.isPresent()){
            employee = byId.get();
        }else {
            throw new RuntimeException("該id員工不存在!");
        }
        return employee;
    }

    @Override
    public void deleteEmployeeById(long id) {
        Employee employeeById = getEmployeeById(id);
        employeeById.setStatus(1);
        employeeRepository.save(employeeById);
    }

    @Override
    public Page<Employee> findPaging(int no, int size) {
        Pageable pageable = PageRequest.of(no - 1,size);
        return employeeRepository.findAllByStatus(0,pageable);
    }

    @Override
    public Page<Employee> findPaging(int no, int size, String searchKey) {
        String key = "%"+searchKey+"%";
        Pageable pageable = PageRequest.of(no - 1,size);
        return employeeRepository.findAllByStatusAndLocationLikeOrNameLikeOrEmailLike(0,key,key,key,pageable);
    }
}

4.2.4 Web介面

package com.lbh.xxmanager.controller;

import com.lbh.xxmanager.entity.Employee;
import com.lbh.xxmanager.service.EmployeeService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.*;
import org.thymeleaf.util.StringUtils;

import java.util.List;

/**
 * Copyright(c)lbhbinhao@163.com
 * @author liubinhao
 * @date 2021/1/7
 * ++++ ______                           ______             ______
 * +++/     /|                         /     /|           /     /|
 * +/_____/  |                       /_____/  |         /_____/  |
 * |     |   |                      |     |   |        |     |   |
 * |     |   |                      |     |   |________|     |   |
 * |     |   |                      |     |  /         |     |   |
 * |     |   |                      |     |/___________|     |   |
 * |     |   |___________________   |     |____________|     |   |
 * |     |  /                  / |  |     |   |        |     |   |
 * |     |/ _________________/  /   |     |  /         |     |  /
 * |_________________________|/b    |_____|/           |_____|/
 */
@Controller
public class EmployeeController {

    @Autowired
    private EmployeeService employeeService;

    @GetMapping("/")
    public String index(Model model){
        model.addAttribute("employees",employeeService.findAllEmployees());
        return "redirect:/page/1";
    }

    @GetMapping("/newEmployee")
    public String newEmployee(Model model){
        Employee employee = new Employee();
        model.addAttribute("employee",employee);
        return "new_employee";
    }

    @PostMapping("/saveEmployee")
    public String saveEmployee(@ModelAttribute Employee employee){
        employeeService.saveEmployee(employee);
        return "redirect:/";
    }

    @GetMapping("/updateEmployee/{id}")
    public String updateEmployee(@PathVariable Long id,Model model){
        Employee employeeById = employeeService.getEmployeeById(id);
        model.addAttribute("employee",employeeById);
        return "update_employee";
    }

    @GetMapping("/deleteEmployee/{id}")
    public String deleteEmployee(@PathVariable Long id){
        employeeService.deleteEmployeeById(id);
        return "redirect:/";
    }

    @GetMapping("/page/{pageNo}")
    public String findPaging(@PathVariable int pageNo, @RequestParam(required = false) String key, Model model){
        Page<Employee> paging = null;
        if (StringUtils.isEmpty(key)) {
            paging = employeeService.findPaging(pageNo, 5);
        }
        else{
            paging = employeeService.findPaging(pageNo, 5,key);
        }
        List<Employee> content = paging.getContent();
        model.addAttribute("currentPage",pageNo);
        model.addAttribute("totalPages",paging.getTotalPages());
        model.addAttribute("items",paging.getTotalElements());
        model.addAttribute("employees",content);
        return "index";
    }
}

4.3 組態檔

springboot的組態檔

server.port=9001
spring.datasource.username=root
spring.datasource.password=你的資料庫密碼
spring.datasource.url=jdbc:mysql://localhost:3303/xx-manager?serverTimezone=Asia/Shanghai&zeroDateTimeBehavior=CONVERT_TO_NULL&autoReconnect=true&useSSL=false&failOverReadOnly=false

spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

# The SQL dialect makes Hibernate generate better SQL for the chosen database
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.MySQL5InnoDBDialect
# update 這樣寫可以自動建表，更新表
# Hibernate ddl auto (create, create-drop, validate, update)
spring.jpa.hibernate.ddl-auto=update

logging.level.org.hibernate.SQL=DEBUG
logging.level.org.hibernate.type=TRACE

5 總結

寫一個這樣簡單的后臺資訊管理還是不難，看來筆者還是寶刀未老，下班回家開始做，在這里插入圖片描述
不過寫博客是真滴難，都過了12點還沒有寫完，寫博客和我寫代碼的時間也相差無幾了，哎，我這可憐的頭發啊，

百度百科詞條.資訊管理系統 ??

轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/246595.html

標籤：其他

上一篇：Serverless+云資料庫輕松打造后端(一)---使用騰訊云SCF做一個介面(查詢資料庫)

下一篇：資料結構期末考試重點2020年
