1.專案概述

1.1專案背景介紹

傳智健康管理系統是一款應用于健康管理機構的業務系統，實作健康管理機構作業內容可視化、會員管理專業化、健康評估數字化、健康干預流程化、知識庫集成化，從而提高健康管理師的作業效率，加強與會員間的互動，增強管理者對健康管理機構運營情況的了解，

1.2專案架構

前端技術堆疊：htmls;bootstrap;elementui;Vue.js;ajax
分布式架構及權限技術堆疊：zookeeper+dubbo;SpringMVC;SpringSecurity
分布式版本控制及報表技術堆疊：
Git;ApachePOI（處理Excel表格）;Echarts（圖形報表）
持久化技術堆疊：
Mybatis;MySQL
第三方服務：
阿里云通信（短信服務）；七牛云（存盤服務）；微信開發平臺（公眾號）等

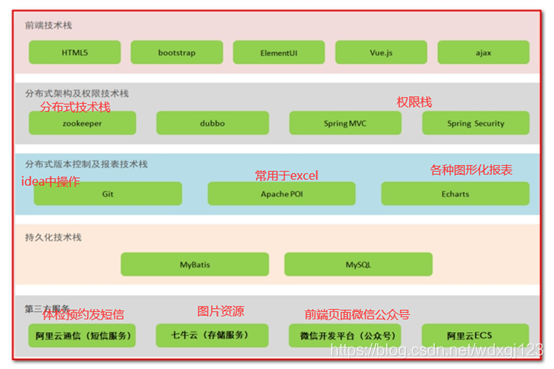

具體如下圖所示：
傳智健康專案架構

1.3功能架構

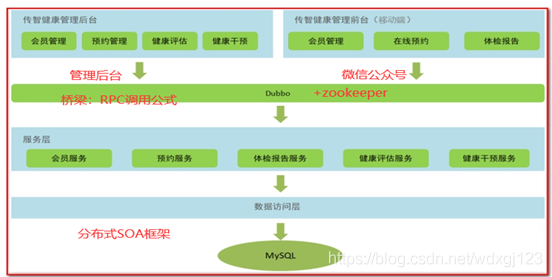

傳智健康專案主要分管理后臺和管理前端（移動端），具體功能架構如下圖所示，
在這里插入圖片描述

1.4軟體開發流程

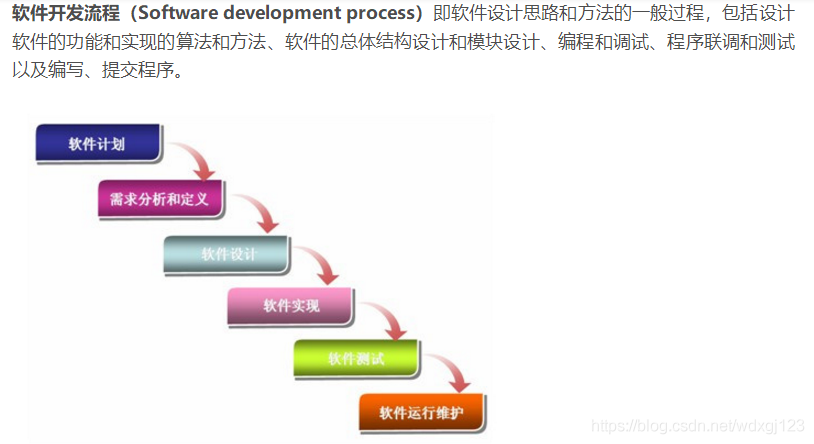

在專案開發中，了解軟體開發流程是十分必要的，瀑布模型如下圖所示，
在這里插入圖片描述

2.環境搭建

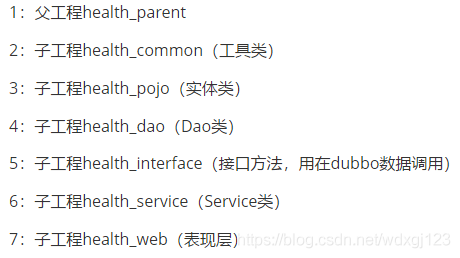

2.1專案結構

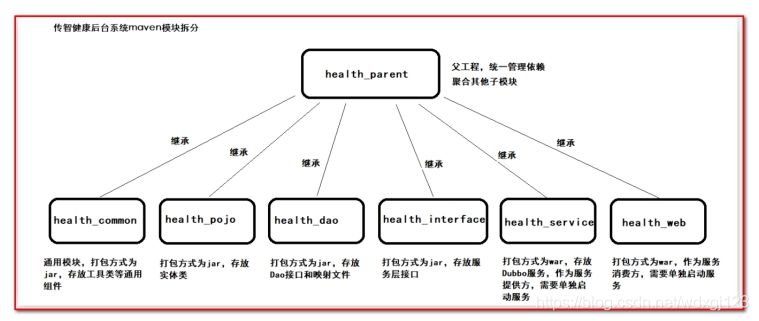

本專案采用maven分模塊開發方式，即對整個專案拆分為幾個maven工程，每個maven工程存放特定的一類代碼，具體如下：
在這里插入圖片描述

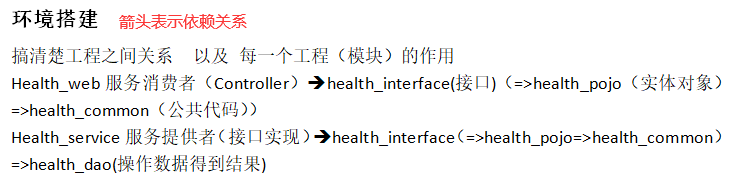

各模塊職責定位：

health_parent：父工程，打包方式為pom，統一鎖定依賴的版本，同時聚合其他子模塊便于統一執行maven命令

health_common：通用模塊，打包方式為jar，存放專案中使用到的一些工具類和常量類

health_pojo：打包方式為jar，存放物體類和回傳結果類等

health_dao：持久層模塊，打包方式為jar，存放Dao介面和Mapper映射檔案等

health_interface：打包方式為jar，存放服務介面

health_service：Dubbo服務模塊，打包方式為war，存放服務實作類，作為服務提供方，需要部署到tomcat運行

health_web：打包方式為war，作為Dubbo服務消費方，存放Controller、HTML頁面、js、css、spring組態檔等，需要部署到tomcat運行

2.1.1 health_parent

其pom.xml如下：主要涉及子模塊中要用的依賴的版本鎖定，

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.itheima</groupId>
    <artifactId>health_parent</artifactId>
    <version>1.0-SNAPSHOT</version>

    <packaging>pom</packaging>

    <!-- 集中定義依賴版本號 -->
    <properties>
        <junit.version>4.12</junit.version>
        <spring.version>5.0.5.RELEASE</spring.version>
        <pagehelper.version>4.1.4</pagehelper.version>
        <servlet-api.version>2.5</servlet-api.version>
        <dubbo.version>2.6.0</dubbo.version>
        <zookeeper.version>3.4.7</zookeeper.version>
        <zkclient.version>0.1</zkclient.version>
        <mybatis.version>3.4.5</mybatis.version>
        <mybatis.spring.version>1.3.1</mybatis.spring.version>
        <mybatis.paginator.version>1.2.15</mybatis.paginator.version>
        <mysql.version>5.1.32</mysql.version>
        <druid.version>1.0.9</druid.version>
        <commons-fileupload.version>1.3.1</commons-fileupload.version>
        <spring.security.version>5.0.5.RELEASE</spring.security.version>
        <poi.version>3.14</poi.version>
        <jedis.version>2.9.0</jedis.version>
        <quartz.version>2.2.1</quartz.version>
    </properties>
    <!-- 依賴管理標簽  必須加 -->
    <dependencyManagement>
        <dependencies>
            <!-- Spring -->
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-context</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-beans</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <!--springmvc-->
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-web</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-webmvc</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-jdbc</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-aspects</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-jms</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-context-support</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-test</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <!-- dubbo相關 -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>dubbo</artifactId>
                <version>${dubbo.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.zookeeper</groupId>
                <artifactId>zookeeper</artifactId>
                <version>${zookeeper.version}</version>
            </dependency>
            <dependency>
                <groupId>com.github.sgroschupf</groupId>
                <artifactId>zkclient</artifactId>
                <version>${zkclient.version}</version>
            </dependency>
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>4.12</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>1.2.47</version>
            </dependency>
            <dependency>
                <groupId>javassist</groupId>
                <artifactId>javassist</artifactId>
                <version>3.12.1.GA</version>
            </dependency>
            <dependency>
                <groupId>commons-codec</groupId>
                <artifactId>commons-codec</artifactId>
                <version>1.10</version>
            </dependency>
            <!--mybatis的分頁插件-->
            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper</artifactId>
                <version>${pagehelper.version}</version>
            </dependency>
            <!-- Mybatis -->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis</artifactId>
                <version>${mybatis.version}</version>
            </dependency>
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis-spring</artifactId>
                <version>${mybatis.spring.version}</version>
            </dependency>
            <dependency>
                <groupId>com.github.miemiedev</groupId>
                <artifactId>mybatis-paginator</artifactId>
                <version>${mybatis.paginator.version}</version>
            </dependency>
            <!-- MySql -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!-- 連接池 -->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <!-- 檔案上傳組件 -->
            <dependency>
                <groupId>commons-fileupload</groupId>
                <artifactId>commons-fileupload</artifactId>
                <version>${commons-fileupload.version}</version>
            </dependency>
            <!--任務調度-->
            <dependency>
                <groupId>org.quartz-scheduler</groupId>
                <artifactId>quartz</artifactId>
                <version>${quartz.version}</version>
            </dependency>
            <dependency>
                <groupId>org.quartz-scheduler</groupId>
                <artifactId>quartz-jobs</artifactId>
                <version>${quartz.version}</version>
            </dependency>
            <dependency>
                <groupId>com.sun.jersey</groupId>
                <artifactId>jersey-client</artifactId>
                <version>1.18.1</version>
            </dependency>
            <!--七牛云服務平臺，第三方服務（圖片上傳）-->
            <dependency>
                <groupId>com.qiniu</groupId>
                <artifactId>qiniu-java-sdk</artifactId>
                <version>7.2.0</version>
            </dependency>
            <!--POI報表（EXCEL）-->
            <dependency>
                <groupId>org.apache.poi</groupId>
                <artifactId>poi</artifactId>
                <version>${poi.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.poi</groupId>
                <artifactId>poi-ooxml</artifactId>
                <version>${poi.version}</version>
            </dependency>
            <!--redis-->
            <dependency>
                <groupId>redis.clients</groupId>
                <artifactId>jedis</artifactId>
                <version>${jedis.version}</version>
            </dependency>
            <!-- spring security安全框架 -->
            <dependency>
                <groupId>org.springframework.security</groupId>
                <artifactId>spring-security-web</artifactId>
                <version>${spring.security.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework.security</groupId>
                <artifactId>spring-security-config</artifactId>
                <version>${spring.security.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework.security</groupId>
                <artifactId>spring-security-taglibs</artifactId>
                <version>${spring.security.version}</version>
            </dependency>
            <dependency>
                <groupId>com.github.penggle</groupId>
                <artifactId>kaptcha</artifactId>
                <version>2.3.2</version>
                <exclusions>
                    <exclusion>
                        <groupId>javax.servlet</groupId>
                        <artifactId>javax.servlet-api</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>dom4j</groupId>
                <artifactId>dom4j</artifactId>
                <version>1.6.1</version>
            </dependency>
            <dependency>
                <groupId>xml-apis</groupId>
                <artifactId>xml-apis</artifactId>
                <version>1.4.01</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>${servlet-api.version}</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <!-- java編譯插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.2</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

2.1.2 health_common

health_common，子工程，打包方式為jar，存放通用組件，例如工具類等，繼承父工程health_parent，其pom.xml如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>health_parent</artifactId>
        <groupId>com.itheima</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>health_common</artifactId>

    <packaging>jar</packaging>

    <dependencies>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
        </dependency>
        <!-- Mybatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
        </dependency>
        <dependency>
            <groupId>com.github.miemiedev</groupId>
            <artifactId>mybatis-paginator</artifactId>
        </dependency>
        <!-- MySql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!-- 連接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
        </dependency>
        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jms</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
        </dependency>
        <!-- dubbo相關 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
        </dependency>
        <dependency>
            <groupId>com.github.sgroschupf</groupId>
            <artifactId>zkclient</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
        <dependency>
            <groupId>javassist</groupId>
            <artifactId>javassist</artifactId>
        </dependency>
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
        </dependency>
        <!--POI報表-->
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml</artifactId>
        </dependency>
        <!--Redis-->
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
        </dependency>
        <!--七牛-->
        <dependency>
            <groupId>com.qiniu</groupId>
            <artifactId>qiniu-java-sdk</artifactId>
        </dependency>
        <dependency>
            <groupId>com.sun.jersey</groupId>
            <artifactId>jersey-client</artifactId>
        </dependency>
        <!--springSecurity-->
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-taglibs</artifactId>
        </dependency>
    </dependencies>
</project>

2.1.3 health_pojo

子工程，打包方式為jar，存放POJO物體類，繼承父工程、依賴health_common，其pom.xml檔案如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>health_parent</artifactId>
        <groupId>com.itheima</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>health_pojo</artifactId>

    <packaging>jar</packaging>
    <dependencies>
        <dependency>
            <groupId>com.itheima</groupId>
            <artifactId>health_common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>
</project>

2.1.4 health_dao

2.1.4.1 pom.xml

創建health_dao，子工程，打包方式為jar，存放Dao介面和Mybatis映射檔案，繼承父工程、依賴health_pojo，其pom.xml檔案如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>health_parent</artifactId>
        <groupId>com.itheima</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>health_dao</artifactId>

    <packaging>jar</packaging>
    <dependencies>
        <dependency>
            <groupId>com.itheima</groupId>
            <artifactId>health_pojo</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>
</project>

2.1.4.2 log4j.properties

### direct log messages to stdout ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.err
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n

### direct messages to file mylog.log ###
log4j.appender.file=org.apache.log4j.FileAppender
log4j.appender.file.File=c:\\mylog.log
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n

### set log levels - for more verbose logging change 'info' to 'debug' ###

log4j.rootLogger=debug, stdout

2.1.4.3 sqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <plugins>
        <!-- com.github.pagehelper 為 PageHelper 類所在包名 -->
        <plugin interceptor="com.github.pagehelper.PageHelper">
            <!-- 設定資料庫型別 Oracle,Mysql,MariaDB,SQLite,Hsqldb,PostgreSQL 六種資料庫-->
            <property name="dialect" value="mysql"/>
        </plugin>
    </plugins>
</configuration>

2.1.4.4 sqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                     http://www.springframework.org/schema/beans/spring-beans.xsd
                     http://www.springframework.org/schema/context
                     http://www.springframework.org/schema/context/spring-context.xsd
                     http://www.springframework.org/schema/aop
                     http://www.springframework.org/schema/aop/spring-aop.xsd
                     http://www.springframework.org/schema/tx
                     http://www.springframework.org/schema/tx/spring-tx.xsd
                     http://www.springframework.org/schema/util
                     http://www.springframework.org/schema/util/spring-util.xsd">

    <!--資料源-->
    <bean id="dataSource"
          class="com.alibaba.druid.pool.DruidDataSource" destroy-method="close">
        <property name="username" value="root" />
        <property name="password" value="root" />
        <property name="driverClassName" value="com.mysql.jdbc.Driver" />
        <property name="url" value="jdbc:mysql://localhost:3306/itcasthealth" />
    </bean>
    <!--spring和mybatis整合的工廠bean-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <property name="configLocation" value="classpath:sqlMapConfig.xml" />
    </bean>
    <!--批量掃描介面生成代理物件-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--指定介面所在的包-->
        <property name="basePackage" value="com.itheima.health.dao" />
    </bean>
</beans>
<!--SqlSessionFactoryBean-->
<bean id="sqlSessionFactoryBean" class="org.mybatis.spring.SqlSessionFactoryBean">
    <!--注入資料源-->
    <property name="dataSource" ref="dataSource" />
    <!--配置mybatis分頁插件-->
    <property name="plugins">
        <array>
            <bean class="com.github.pagehelper.PageHelper">
                <property name="properties">
                    <!--使用下面的方式配置引數，一行配置一個 -->
                    <props>
                        <!--選擇合適的分頁方式為mysql-->
                        <prop key="dialect">mysql</prop>
                    </props>
                </property>
            </bean>
        </array>
    </property>
    <!--使用別名-->
    <property name="typeAliasesPackage" value="com.itheima.health.pojo"></property>
</bean>

2.1.5 health_interface

創建health_interface，子工程，打包方式為jar，存放服務介面，用于dubbo在服務提供者和服務消費者中使用，繼承父工程，依賴health_pojo,其pom.xml檔案如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>health_parent</artifactId>
        <groupId>com.itheima</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>health_interface</artifactId>
    <packaging>jar</packaging>
    <dependencies>
        <dependency>
            <groupId>com.itheima</groupId>
            <artifactId>health_pojo</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

2.1.6 health_service

2.1.6.1 pom.xml

創建health_service，子工程，打包方式為war，作為服務單獨部署，存放服務類，繼承父工程、依賴health_interface、health_dao其pom.xml檔案如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>health_parent</artifactId>
        <groupId>com.itheima</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>health_service</artifactId>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>com.itheima</groupId>
            <artifactId>health_interface</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.itheima</groupId>
            <artifactId>health_dao</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <configuration>
                    <!-- 指定埠 -->
                    <port>81</port>
                    <!-- 請求路徑 -->
                    <path>/</path>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

2.1.6.2 log4j.properties


如上

2.1.6.3 applicationContext-tx.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc.xsd
                        http://www.springframework.org/schema/tx
                        http://www.springframework.org/schema/tx/spring-tx.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 事務管理器  -->
    <bean id="transactionManager"
          class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--
        開啟事務控制的注解支持
        注意：此處必須加入proxy-target-class="true"，
              需要進行事務控制，會由Spring框架產生代理物件，
              Dubbo需要將Service發布為服務，要求必須使用cglib創建代理物件，
    -->
    <tx:annotation-driven transaction-manager="transactionManager" proxy-target-class="true"/>
</beans>

2.1.6.4 applicationContext-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                            http://www.springframework.org/schema/beans/spring-beans.xsd
                            http://www.springframework.org/schema/mvc
                            http://www.springframework.org/schema/mvc/spring-mvc.xsd
                            http://code.alibabatech.com/schema/dubbo
                            http://code.alibabatech.com/schema/dubbo/dubbo.xsd
                            http://www.springframework.org/schema/context
                            http://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 指定應用名稱 -->
    <dubbo:application name="health_service"/>
    <!--指定暴露服務的埠，如果不指定默認為20880-->
    <dubbo:protocol name="dubbo" port="20887"/>
    <!--指定服務注冊中心地址-->
    <dubbo:registry address="zookeeper://127.0.0.1:2181"/>
    <!--批量掃描，發布服務-->
    <dubbo:annotation package="com.itheima.health.service"/>
</beans>

2.1.6.5 web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         id="WebApp_ID" version="3.0">
    <display-name>Archetype Created Web Application</display-name>
    <!-- 加載spring容器 ，沒有*表示當前專案的根路徑，有*表示依賴所有專案的根路徑-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath*:applicationContext*.xml</param-value>
    </context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
</web-app>

2.1.7 health_web

創建health_web，子工程，打包方式為war，單獨部署，存放Controller,繼承父工程、依賴health_interface，

2.1.7.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>health_parent</artifactId>
        <groupId>com.itheima</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>health_web</artifactId>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>com.itheima</groupId>
            <artifactId>health_interface</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <configuration>
                    <!-- 指定埠 -->
                    <port>82</port>
                    <!-- 請求路徑 -->
                    <path>/</path>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

2.1.7.2 log4j.properties（如上）

2.1.7.3 springmvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                  http://www.springframework.org/schema/beans/spring-beans.xsd
                  http://www.springframework.org/schema/mvc
                  http://www.springframework.org/schema/mvc/spring-mvc.xsd
                  http://code.alibabatech.com/schema/dubbo
                  http://code.alibabatech.com/schema/dubbo/dubbo.xsd
                  http://www.springframework.org/schema/context
                  http://www.springframework.org/schema/context/spring-context.xsd">
    <mvc:annotation-driven>
        <mvc:message-converters register-defaults="true">
            <!--不需要視圖決議器，專案中的所有的請求都回傳json資料結構-->
            <bean class="com.alibaba.fastjson.support.spring.FastJsonHttpMessageConverter">
                <property name="supportedMediaTypes" value="application/json"/>
                <property name="features">
                    <list>
                        <!--Map型別格式化，接收引數允許空值-->
                        <value>WriteMapNullValue</value>
                        <!--日期型別格式化-->
                        <value>WriteDateUseDateFormat</value>
                    </list>
                </property>
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>
    <!-- 指定應用名稱 -->
    <dubbo:application name="health_web" />
    <!--指定服務注冊中心地址-->
    <dubbo:registry address="zookeeper://127.0.0.1:2181"/>
    <!--批量掃描-->
    <dubbo:annotation package="com.itheima.health.controller" />
    <!--
        超時全域設定 10分鐘
        check=false 不檢查服務提供方，開發階段建議設定為false
        check=true 啟動時檢查服務提供方，如果服務提供方沒有啟動則報錯
    -->
    <dubbo:consumer timeout="600000" check="false"/>
    <!--檔案上傳組件-->
    <bean id="multipartResolver"
          class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <property name="maxUploadSize" value="104857600" />
        <property name="maxInMemorySize" value="4096" />
        <property name="defaultEncoding" value="UTF-8"/>
    </bean>
</beans>

2.1.7.4 web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         id="WebApp_ID" version="3.0">
    <display-name>Archetype Created Web Application</display-name>
    <!-- 解決post亂碼 -->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- 指定加載的組態檔 ，通過引數contextConfigLocation加載 -->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:springmvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>
</web-app>

2.1.8 專案搭建效果圖

在這里插入圖片描述

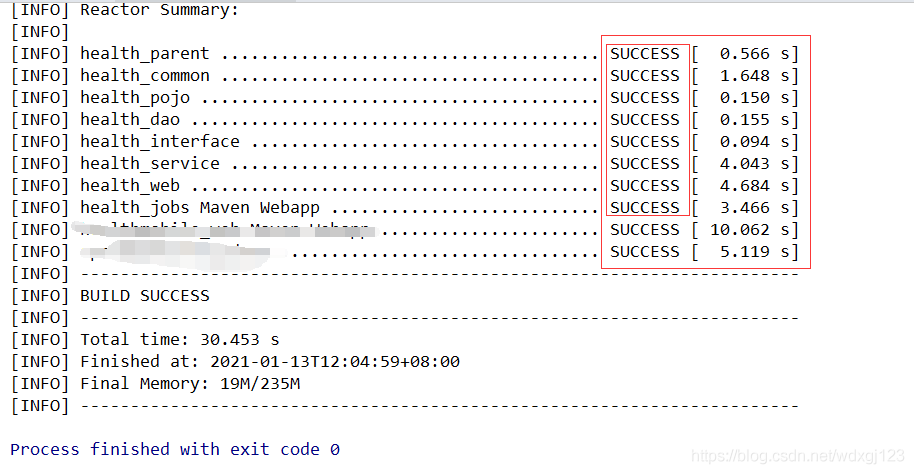

2.1.9 專案發布測驗

在這里插入圖片描述

2.1.10 專案結構總結

在這里插入圖片描述

轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/248581.html

標籤：其他

上一篇：LNMP(Nginx服務,MySQL 服務,安裝PHP服務手動安裝技術檔案)

下一篇：高通Camera驅動（1）--Camx架構介紹

傳智健康——一、專案概述和環境搭建

文章目錄

1.專案概述

1.1專案背景介紹

1.2專案架構

1.3功能架構

1.4軟體開發流程

2.環境搭建

2.1專案結構

2.1.1 health_parent

2.1.2 health_common

2.1.3 health_pojo

2.1.4 health_dao

2.1.4.1 pom.xml

2.1.4.2 log4j.properties

2.1.4.3 sqlMapConfig.xml

2.1.4.4 sqlMapConfig.xml

2.1.5 health_interface

2.1.6 health_service

2.1.6.1 pom.xml

2.1.6.2 log4j.properties

2.1.6.3 applicationContext-tx.xml

2.1.6.4 applicationContext-service.xml

2.1.6.5 web.xml

2.1.7 health_web

2.1.7.1 pom.xml

2.1.7.2 log4j.properties（如上）

2.1.7.3 springmvc.xml

2.1.7.4 web.xml

2.1.8 專案搭建效果圖

2.1.9 專案發布測驗

2.1.10 專案結構總結
