1. 簡介

定義
- 使用共享物件可有效地支持大量的細粒度的物件，
解決問題
- 面向物件技術可以很好地解決一些靈活性或可擴展性問題，但在很多情況下需要在系統中增加類和物件的個數，當物件數量太多時，將導致運行代價過高，帶來性能下降等問題，享元模式正是為解決這一類問題而誕生的，
原理
- 享元模式其實就是工廠模式的一個改進機制，享元模式同樣要求創建一個或一組物件，并且就是通過工廠方法生成物件的，只不過享元模式中為工廠方法增加了快取這一功能，

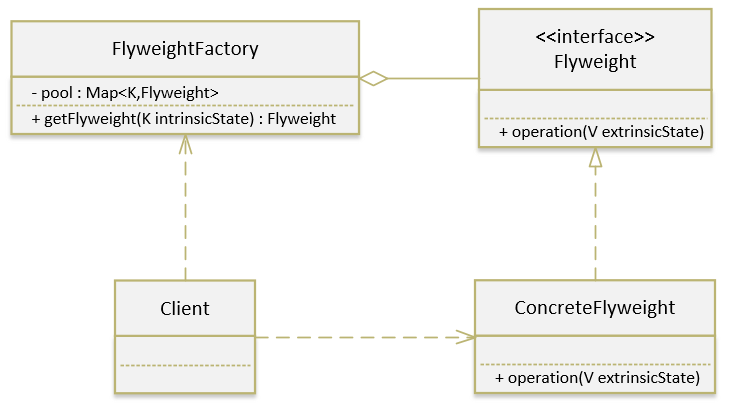

類圖
典型的例子，如：string物件，Type物件等，都是使用享元模式設計，

2. 示例

/// <summary>
/// The 'Flyweight' class.
/// </summary>
public class Character
{
    // intrinsic state
    protected char _symbol;
    protected int _size;
    protected string _font;
    // extrinsic state
    protected Position _position;

    public void Display(Position position)
    {
        Console.WriteLine(
            String.Format("Symbol: {0} Size: {1} Font: {2} Position: {3} {4}",
            _symbol, _size, _font, position._x, position._y));
    }

}

/// <summary>
/// A 'ConcreteFlyweight' class
/// </summary>
public class CharacterA : Character
{
    public CharacterA()
    {
        _symbol = 'A';
        _size = 10;
        _font = "宋體";
        //_position = new Position(0, 1);
    }
}

/// <summary>
/// The 'FlyweightFactory' class
/// </summary>
public class CharacterFactory
{
    // Keeps the character object by specifying key/value.
    private Dictionary<char, Character> _characters =
        new Dictionary<char, Character>();

    public Character this[char key]
    {
        get
        {
            Character character = null;
            // Checked the character whether existed or not,
            // if the character existed, then directly returns,
            // otherwise, instantiates a character object.
            if (_characters.ContainsKey(key))
            {
                character = _characters[key];
            }
            else
            {
                string name = this.GetType().Namespace + "." +
                              "Character" + key.ToString();
                    character = Activator.CreateInstance(
                        Type.GetType(name)) as Character;
                _characters.Add(key, character);
            }
            return character;
        }
    }
}

/// <summary>
/// The client.
/// </summary>
/// <param name="args">The args.</param>
static void Main(string[] args)
{
    string text = "ABZABBZZ";
    char[] letters = text.ToCharArray();

    var characterFactory = new CharacterFactory();

    // Creates random position ranges 0 to 100.
    var rd = new Random();

    foreach (char c in letters)
    {
        Character character = characterFactory[c];
        var p = new Position(rd.Next(0, 100), rd.Next(0, 100));
        character.Display(p);
    }
    Console.ReadKey();
}
