1、回顧JDBC

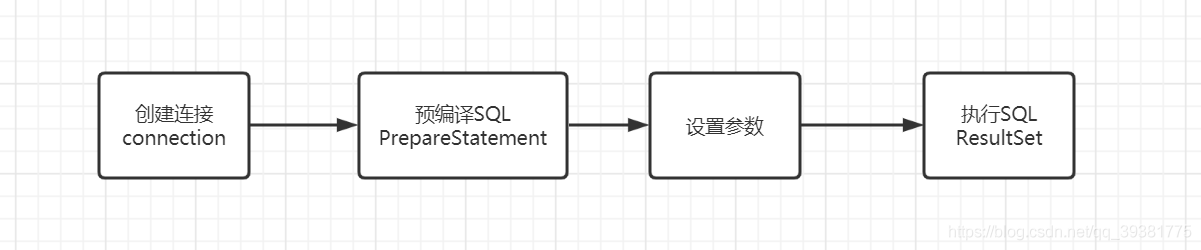

1.1 jdbc執行流程

實作代碼：

/*第一步，獲取連接*/
Connection connection = DriverManager.getConnection(JDBC.URL,JDBC.USER,JDBC.PASSWORD);
/*第二步，預編譯SQL*/
PreparedStatement statement = connection.prepareStatment("SELECT * FROM USER");
/*第三步，執行SQL*/
ResultSet resultSet = statement.executeQuery(statement);
/*第四步，獲取結果集*/
readResultSet(resultSet);

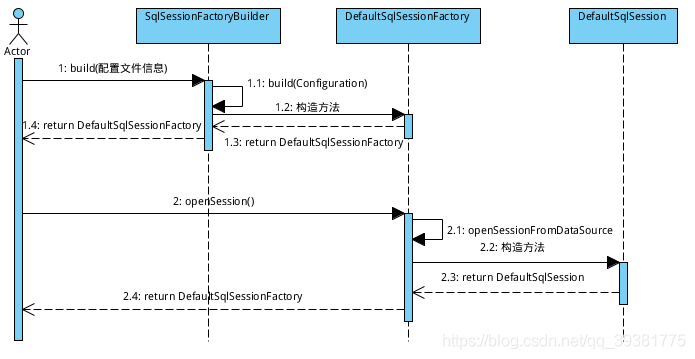

1.2 SqlSessionFactory & SqlSession

1.2.1 獲取SqlSession

1.2.1.1 原始碼決議

1. SqlSessionFactoryBuilder.build();

public class SqlSessionFactoryBuilder {

  public SqlSessionFactory build(Reader reader) {
    /**呼叫內部build方法*/
    return build(reader, null, null);
  }

  public SqlSessionFactory build(Reader reader, String environment) {
    return build(reader, environment, null);
  }

  public SqlSessionFactory build(Reader reader, Properties properties) {
    return build(reader, null, properties);
  }
}

2. SqlSessionFactoryBuilder內部build()一個DefaultSqlSessionFactory

public SqlSessionFactory build(Reader reader, String environment, Properties properties) {
    try {
      /**決議XML決議器*/
      XMLConfigBuilder parser = new XMLConfigBuilder(reader, environment, properties);
      /**parser.parse() 獲取Configuration,build一個DefaultSqlSessionFactory*/
      return build(parser.parse());
    } catch (Exception e) {
      throw ExceptionFactory.wrapException("Error building SqlSession.", e);
    } finally {
      ErrorContext.instance().reset();
      try {
        reader.close();
      } catch (IOException e) {
        // Intentionally ignore. Prefer previous error.
      }
    }
  }
  public SqlSessionFactory build(Configuration config) {
    return new DefaultSqlSessionFactory(config);
  }
}

3. 獲取到SqlSessionFactory后通過SqlSessionFactory獲取SqlSession物件

/**SqlSessionFactory物件中的openSession方法最終都會呼叫openSessionFromDataSource方法*/
 private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
    Transaction tx = null;
    try {
      //通過Configuration獲取mybatis的配置資訊
      final Environment environment = configuration.getEnvironment();
      final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
      tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
      //結合JDBC的執行流程來看 與資料庫相互是statement物件，實際上executor是對于statement的封裝，也就是說executor是statement的一個執行器
      final Executor executor = configuration.newExecutor(tx, execType);
      // 重點！！   創建了一個DefaultSqlSession物件
      return new DefaultSqlSession(configuration, executor, autoCommit);
    } catch (Exception e) {
      closeTransaction(tx); // may have fetched a connection so lets call close()
      throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
    } finally {
      ErrorContext.instance().reset();
    }
  }

4. 通過以上步驟，我們已經獲取到了一個SqlSession，按照JDBC的步驟來說我們應該去執行sql了,結合以下Demo理解

SqlSessionFactory sqlSessionFactory = new SqlSessionFactory();
String resource = "classpath:mybatis-config.xml"
try{
	//SqlSessionFactoryBuilder讀取組態檔
	sqlSessionFactory = new SqlSessionFactoryBuilder().build(Resources.getResourceAsReader(resource));
} catch(IOException e){
	e.printStackTrace();
}
//獲取sqlSession
SqlSession sqlSession = sqlSessionFactory.openSession()

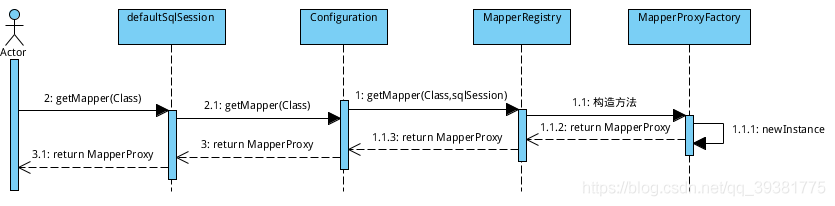

1.3 MapperProxy

1. 到目前為止我們寫的.mapper檔案還沒有使用！！！，下面介紹 MapperPorxy

   在mybatis中我的寫的dao層的介面其實是MapperProxy在代理，也就是說我們在執行dao層中的方法是，其實是在執行MapperProxy
2. 我們通過SqlSession從Configuration中找到一個getMapper方法

  public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
  	// mapperRegistry是什么？見名知意 應該是mapper注冊機之類的東西，接著往下走看看這個mapperRegister是什么
    return mapperRegistry.getMapper(type, sqlSession);
  }

3. 我們看下MapperRegistry是什么

// MapperRegistry實際上就是一個注冊機用來呼叫MapperProxyFactory工廠的
public class MapperRegistry {

  private final Configuration config;
  //
  private final Map<Class<?>, MapperProxyFactory<?>> knownMappers = new HashMap<>();

  public MapperRegistry(Configuration config) {
    this.config = config;
  }

  @SuppressWarnings("unchecked")
  public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
    // 這里定了一個MapperProxyFactory的工廠
    final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
    if (mapperProxyFactory == null) {
      throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
    }
    try {
      //代理工廠的實體 回傳了一個mapper的代理物件工廠的實體，這是不是就是我們想要的dao層物件呢？我們繼續往下看MapperProxyFactory
      return mapperProxyFactory.newInstance(sqlSession);
    } catch (Exception e) {
      throw new BindingException("Error getting mapper instance. Cause: " + e, e);
    }
  }
}

4. MapperProxyFactory的作用是什么

/**部分代碼*/
public class MapperProxyFactory<T> {
  private final Class<T> mapperInterface;
  private final Map<Method, MapperMethodInvoker> methodCache = new ConcurrentHashMap<>();

  public MapperProxyFactory(Class<T> mapperInterface) {
    this.mapperInterface = mapperInterface;
  }

  public Class<T> getMapperInterface() {
    return mapperInterface;
  }

  public Map<Method, MapperMethodInvoker> getMethodCache() {
    return methodCache;
  }

  @SuppressWarnings("unchecked")
  protected T newInstance(MapperProxy<T> mapperProxy) {
    //！！！重點來了 這里代理到了我們寫的Dao層介面
    return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
  }

  public T newInstance(SqlSession sqlSession) {
    final MapperProxy<T> mapperProxy = new MapperProxy<>(sqlSession, mapperInterface, methodCache);
    return newInstance(mapperProxy);
  }

}

通過以上的動態代理就可以獲取到我們的Dao層

//獲取Dao物件
TestDao dao = sqlSession.getMapper(TestDao.class);

有個疑問，我們定義的Dao是介面（Interface）,按理說介面是不能實體物件的，那我們這個物件是怎么得到的呢？
答：建議補習java的動態代理，劃重點–>Proxy.newProxyInstance() AOP也是基于動態代理實作的！

1.4 Excutor

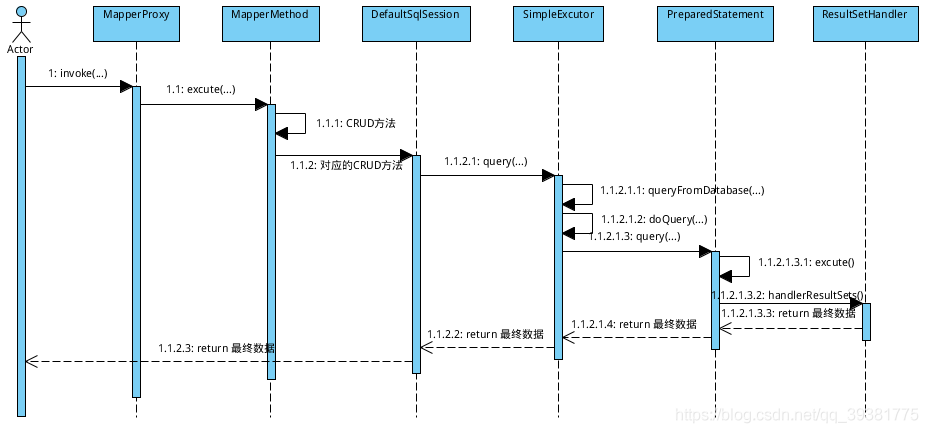

1.4.1 執行流程

到這里我們獲取到了SqlSession 和 我們的mapper介面，那接下來應該做什么呢？ 沒錯！ 執行SQL ，我們去看下真正的SQL執行流程

1.4.2 MapperProxy

上面提到 我們通過MapperProxyFactory拿到了MapperProxy，我們都知道每一個MapperProxy都是對應的我們的dao層介面

  //MapperProxy在執行的時候會觸發此方法
  interface MapperMethodInvoker {
    Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable;
  }

  private static class PlainMethodInvoker implements MapperMethodInvoker {
    private final MapperMethod mapperMethod;

    @Override
    public Object invoke(Object proxy, Method method, Object[] args, SqlSession sqlSession) throws Throwable {
      // 這里交給mapperMethod去處理
      return mapperMethod.execute(sqlSession, args);
    }
  }

//這里是對資料庫操作型別的判斷，最侄訓是回傳了SqlSession,那我們去看看SqlSession的CRUD方法
public Object execute(SqlSession sqlSession, Object[] args) {
    Object result;
    switch (command.getType()) {
      case INSERT: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.insert(command.getName(), param));
        break;
      }
      case UPDATE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.update(command.getName(), param));
        break;
      }
      case DELETE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.delete(command.getName(), param));
        break;
      }
      case SELECT:
        if (method.returnsVoid() && method.hasResultHandler()) {
          executeWithResultHandler(sqlSession, args);
          result = null;
        } else if (method.returnsMany()) {
          result = executeForMany(sqlSession, args);
        } else if (method.returnsMap()) {
          result = executeForMap(sqlSession, args);
        } else if (method.returnsCursor()) {
          result = executeForCursor(sqlSession, args);
        } else {
          Object param = method.convertArgsToSqlCommandParam(args);
          result = sqlSession.selectOne(command.getName(), param);
          if (method.returnsOptional()
              && (result == null || !method.getReturnType().equals(result.getClass()))) {
            result = Optional.ofNullable(result);
          }
        }
        break;
      case FLUSH:
        result = sqlSession.flushStatements();
        break;
      default:
        throw new BindingException("Unknown execution method for: " + command.getName());
    }
    if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
      throw new BindingException("Mapper method '" + command.getName()
          + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
    }
    return result;
  }

我們進入到SqlSession的實作類DefaultSqlSession隨便找一個方法我們進行查看 我這里選擇了SelectOne

  @Override
  public <T> T selectOne(String statement, Object parameter) {
    // Popular vote was to return null on 0 results and throw exception on too many.
    // 我們點擊selectList方法一直點 我們最終可以發現
    List<T> list = this.selectList(statement, parameter);
    if (list.size() == 1) {
      return list.get(0);
    } else if (list.size() > 1) {
      // 粗心的小伙伴一定見過這段例外
      throw new TooManyResultsException("Expected one result (or null) to be returned by selectOne(), but found: " + list.size());
    } else {
      return null;
    }
  }

我們隨著this.selectList()方法一直查看最終我們會在SimpleExecutor這個類看到這塊內容

 @Override
  public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Statement stmt = null;
    try {
      Configuration configuration = ms.getConfiguration();
      StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
      stmt = prepareStatement(handler, ms.getStatementLog());
      return handler.query(stmt, resultHandler);
    } finally {
      closeStatement(stmt);
    }
  }

  @Override
  protected <E> Cursor<E> doQueryCursor(MappedStatement ms, Object parameter, RowBounds rowBounds, BoundSql boundSql) throws SQLException {
    Configuration configuration = ms.getConfiguration();
    StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, null, boundSql);
    Statement stmt = prepareStatement(handler, ms.getStatementLog());
    Cursor<E> cursor = handler.queryCursor(stmt);
    stmt.closeOnCompletion();
    return cursor;
  }

  @Override
  public List<BatchResult> doFlushStatements(boolean isRollback) {
    return Collections.emptyList();
  }
  //有沒有發現這里很熟悉？，這就是我們創建連接獲取Statement的操作！這下就這真相大白了！
  private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
    Statement stmt;
    Connection connection = getConnection(statementLog);
    stmt = handler.prepare(connection, transaction.getTimeout());
    handler.parameterize(stmt);
    return stmt;
  }

下期詳細講解Mybatis中用到的設計模式，以及具體實作
