整合spring和mybatis框架第一個案例-有解無憂

1）新建maven專案
1.創建一個空工程，new–project–empty project

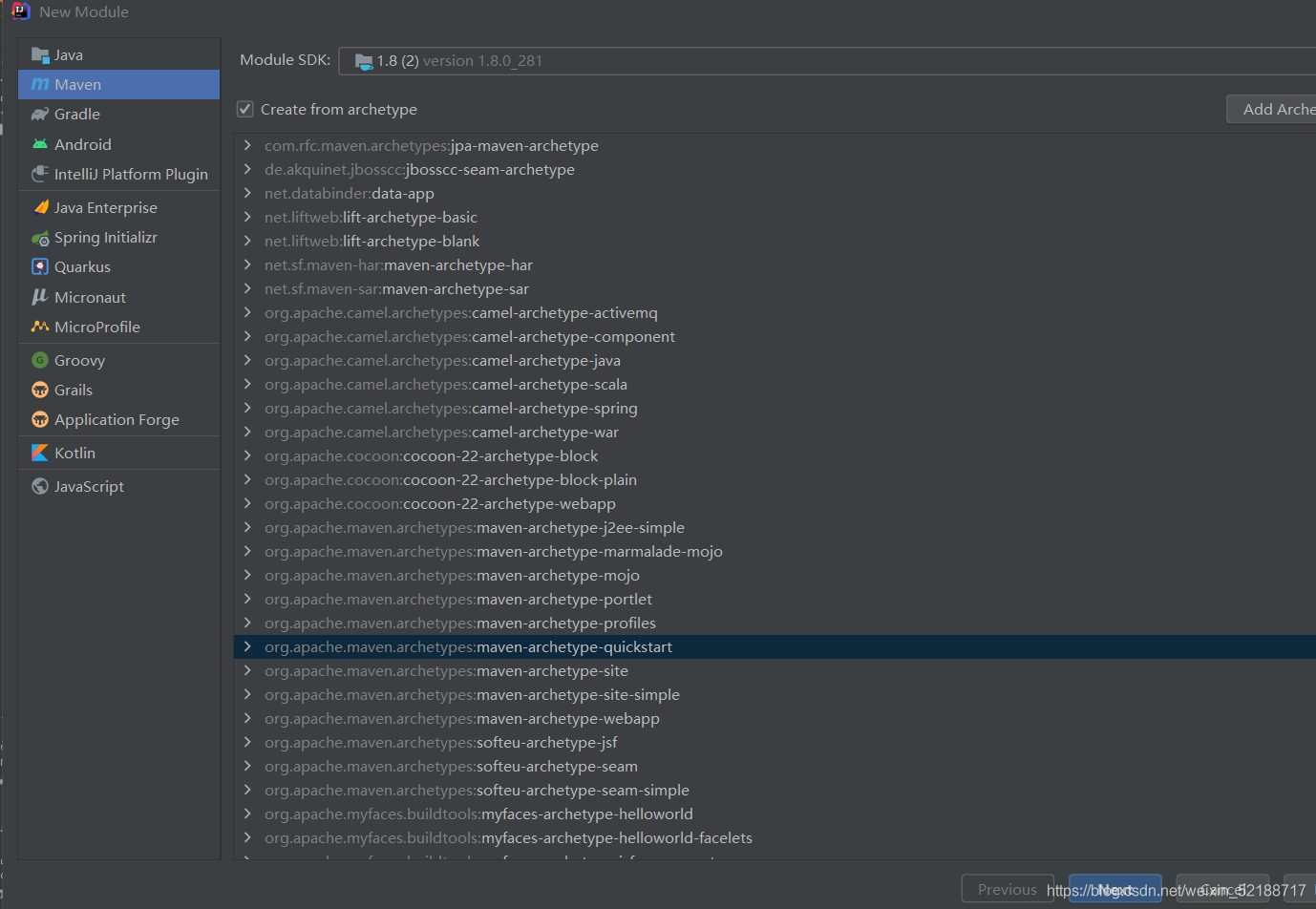

2.new moudle–maven,配置jdk，選擇模塊quickstart
在這里插入圖片描述 3.一路next,finish,就會開始自動匯入，這是要耐心等一會

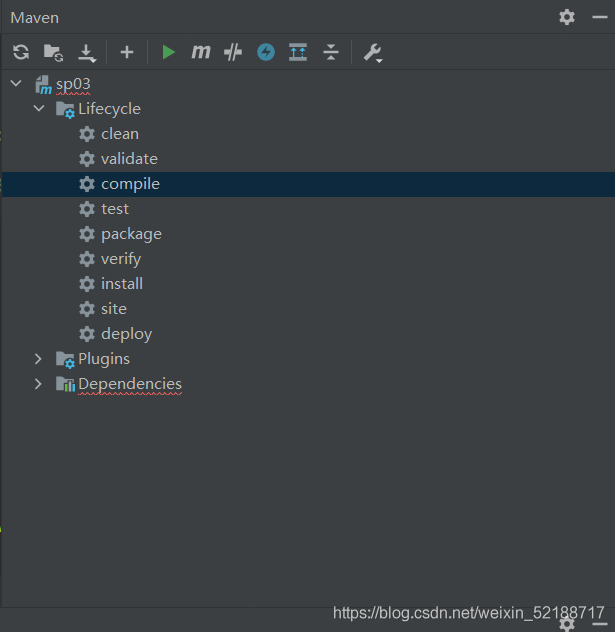

這時如果中途被打斷，重繪maven就可以解決，下圖為重繪maven
點擊compile就可以解決，

4.在main檔案目錄下添加resources檔案并mark as resources file

2）加入maven依賴，修改pom.xml檔案
1.spring依賴

<dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>5.2.5.RELEASE</version>
    </dependency>

2.mybatis依賴

<dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.1</version>
    </dependency>

3.mysql驅動

 <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.49</version>
    </dependency>

4.spring事務的依賴

<dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>5.2.5.RELEASE</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.2.5.RELEASE</version>
    </dependency>

5.spring和mybatis的集成依賴

<dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.1</version>
    </dependency>

6.連接池

<dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.1.12</version>
    </dependency>

3）創建物體類

public class Student {
    private Integer id;
    private String name;
    private String email;
    private Integer age;
}

4）創建dao介面和mapper檔案
首先開始配置mybatis

dao介面：

import org.omg.PortableInterceptor.INACTIVE;
import zjc.javaweb.entity.Student;

import java.util.List;

public interface StudentDao {
    Integer insertStudent(Student stu);
    Integer updateStudent(Student stu);
    Integer deleteStudentById(Integer id);
    List<Student> selectAllStudent();
}

StudentDao.xml（dao介面組態檔）

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
		PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
		"http://mybatis.org/dtd/mybatis-3-mapper.dtd">


<mapper namespace="zjc.javaweb.dao.StudentDao">
	<!--這個位置namespace要改成介面名字相對路徑-->


	<insert id="insertStudent">
		insert into Student values (#{stuid},#{stuname},#{stuemail},#{stuage})
	</insert>

	<update id="updateStudent">
		update Student set name =#{stuname},
		email=#{stuemail},age=#{stuage}
		where id=#{id}
	</update>

	<delete id="deleteStudentById">
		delete from Student where id=#{stuid}
	</delete>

	<select id="selectAllStudent" resultType="zjc.javaweb.entity.Student">
		select * from Student;
	</select>
</mapper>

mapper檔案

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
		PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
		"http://mybatis.org/dtd/mybatis-3-mapper.dtd">


<mapper namespace="zjc.javaweb.dao.StudentDao">
	<!--這個位置namespace要改成介面名字相對路徑-->


	<insert id="insertStudent">
		insert into Student values (#{stuid},#{stuname},#{stuemail},#{stuage})
	</insert>

	<update id="updateStudent">
		update Student set name =#{stuname},
		email=#{stuemail},age=#{stuage}
		where id=#{id}
	</update>

	<delete id="deleteStudentById">
		delete from Student where id=#{stuid}
	</delete>

	<select id="selectAllStudent" resultType="zjc.javaweb.entity.Student">
		select * from Student;
	</select>
</mapper>

5）創建mybatis主組態檔
main目錄下創建resources檔案，mark as–resources root

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <settings>
        <!--這里是設定輸出日志-->
        <setting name="logImpl" value="STDOUT_LOGGING"/>
    </settings>

    <typeAliases>
        <!--物體類的包名-->
        <package name="zjc.javaweb.entity.Student"/>
    </typeAliases>



    <mappers>
        <!--將路徑改為寫sql陳述句的xml檔案的路徑，用/，不用.-->
        <!--<mapper resource="zjc/javaweb/dao/studentDao.xml"/>-->

        <!--是xml檔案的包名-->
        <package name="zjc.javaweb.dao"/>
    </mappers>


</configuration>

這段代碼就是我們以后可以一直用的mybatis組態檔的模板，學習怎樣使用將一段代碼設定為模板檔案，可以參考我的這篇文章

6）創建service介面和實作類，屬性是dao
這里就開始配置spring了

service介面

package zjc.javaweb.Service;
import zjc.javaweb.entity.Student;
import java.util.List;
public interface StudentService {
Integer addStudent(Student stu);
}

實作類：

package zjc.javaweb.Service;

import zjc.javaweb.dao.StudentDao;
import zjc.javaweb.entity.Student;

import java.util.List;

public class StudentServiceImp implements StudentService{

    //為了獲取mybatis的操作
    private StudentDao studao;

  /*  public void setStudao(StudentDao studao) {
        this.studao = studao;
    }為了set注入賦值，不懂*/

    @Override
    public Integer addStudent(Student stu) {
        int nums=studao.insertStudent(stu);
        return null;
    }

   @Override
    public Integer modifyStudent(Student stu) {

        return null;
    }

    @Override
    public Integer removeStudent(Integer id) {
        return null;
    }

    @Override
    public List<Student> findAllStudent() {
        return null;
    }
}

7）創建spring的組態檔：宣告mybatis的物件交給spring創建
1.資料源
此處是配置druid資料源

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="datasource" class="com.alibaba.druid.pool.DruidDataSource"
    init-method="init" destroy-method="close">
    <!--weile為了便于維護，需要在<property/>的 value 屬性中使用${ }，-->
	<!--value改成自己資料庫的位置，賬號和密碼-->
        <property name="url" value="${jdbc:mysql://localhost:3306/ssm}"/>
        <property name="username" value="root"/>
        <property name="password" value="333"/>
    </bean>
</beans>

	2.SqlSessionFactory

<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="datasource"/>
<!--value改成classpath:mybatis主組態檔的名字-->
       <property name="configLocation" value="classpath:mybatis.xml"/>
    </bean>

	3.Dao物件

 <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
		<!--指定dao的路徑-->
        <property name="basePackage" value="zjc.javaweb.dao"/>
    </bean>

	4.宣告自定義的service

<bean id="StudentService" class="zjc.javaweb.Service.StudentServiceImp">
<!--在創建StudentServiceImp實作類時，為了set注入，設定了一個StudentDao的物件StudentDao studao,ref后面就是dao介面的名字-->
        <property name="studao" ref="studentDao"/>
    </bean>

8）創建測驗類：獲取Service物件，通過Service呼叫dao完成資料庫的訪問，
1.宣告Service，在applicationContext.xml檔案中添加

<bean id="studentService" class="zjc.javaweb.Service.StudentServiceImp">
           <property name="studao" ref="studentDao" />
    </bean>

@Test
    public void test03(){
        ApplicationContext ac=new ClassPathXmlApplicationContext("applicationContext.xml");
        StudentService studentService=(StudentService) ac.getBean("studentService");
        Student stu2=new Student();
        stu2.setName("zsg");
        stu2.setId(3);
        stu2.setEmail("521");
        stu2.setAge(18);
       studentService.addStudent(stu2);

    }
