服務卡片概述

服務卡片（以下簡稱“卡片”）是FA的一種界面展示形式，將FA的重要資訊或操作前置到卡片，以達到服務直達，減少體驗層級的目的，

卡片常用于嵌入到其他應用（當前只支持系統應用）中作為其界面的一部分顯示，并支持拉起頁面，發送訊息等基礎的互動功能，卡片使用方負責顯示卡片，

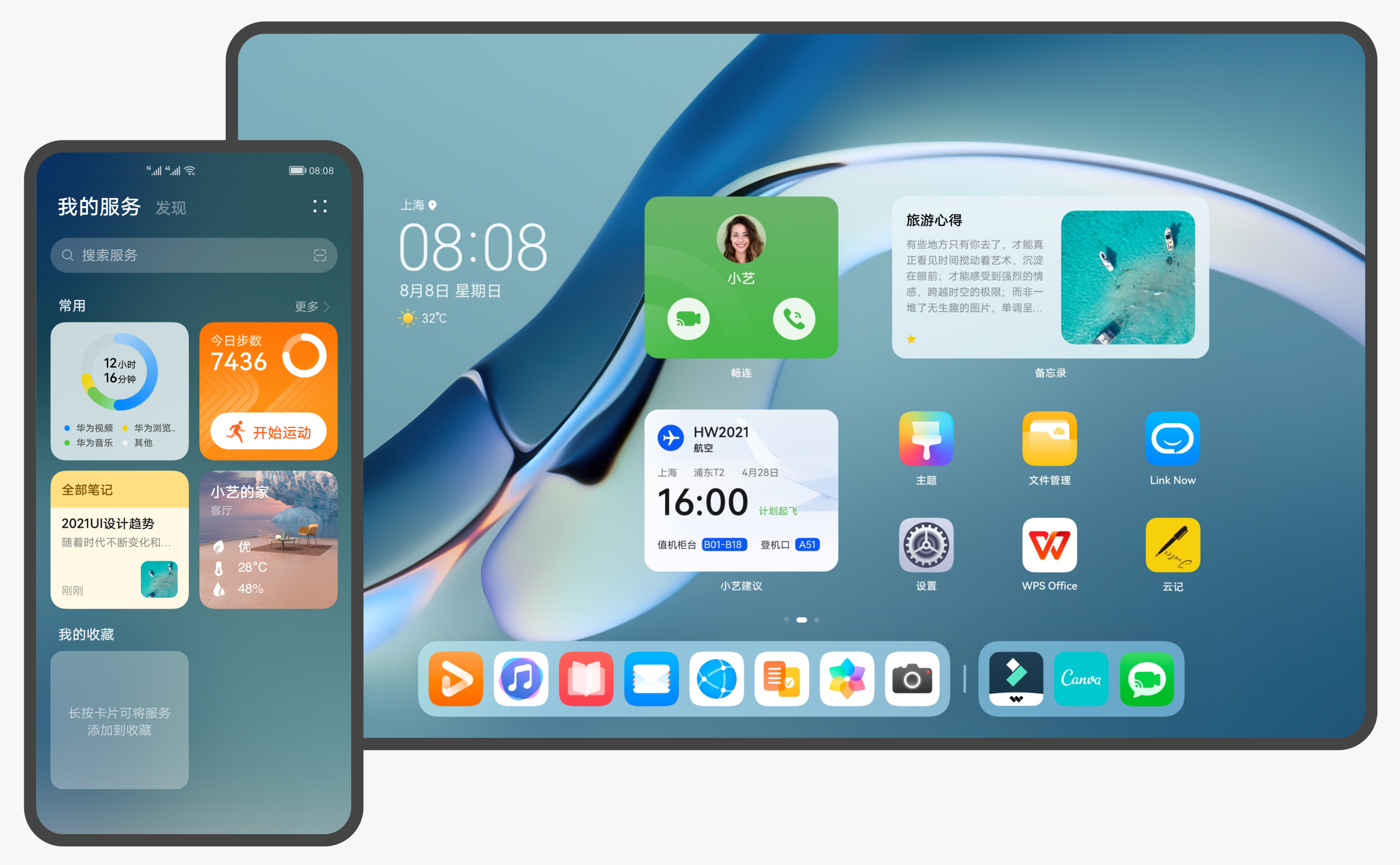

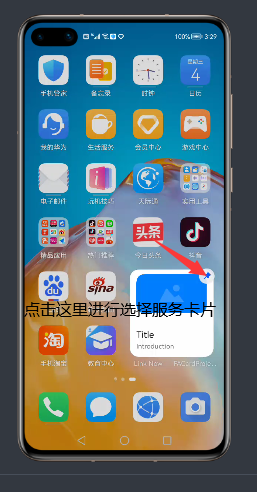

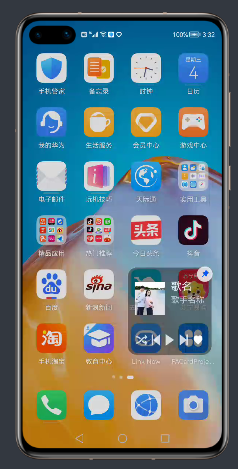

FA示例如下圖所示，

基本概念

• 卡片提供方

  提供卡片顯示內容的HarmonyOS應用或原子化服務，控制卡片的顯示內容、控制元件布局以及控制元件點擊事件，

• 卡片使用方

  顯示卡片內容的宿主應用，控制卡片在宿主中展示的位置，

• 卡片管理服務

  用于管理系統中所添加卡片的常駐代理服務，包括卡片物件的管理與使用，以及卡片周期性重繪等，

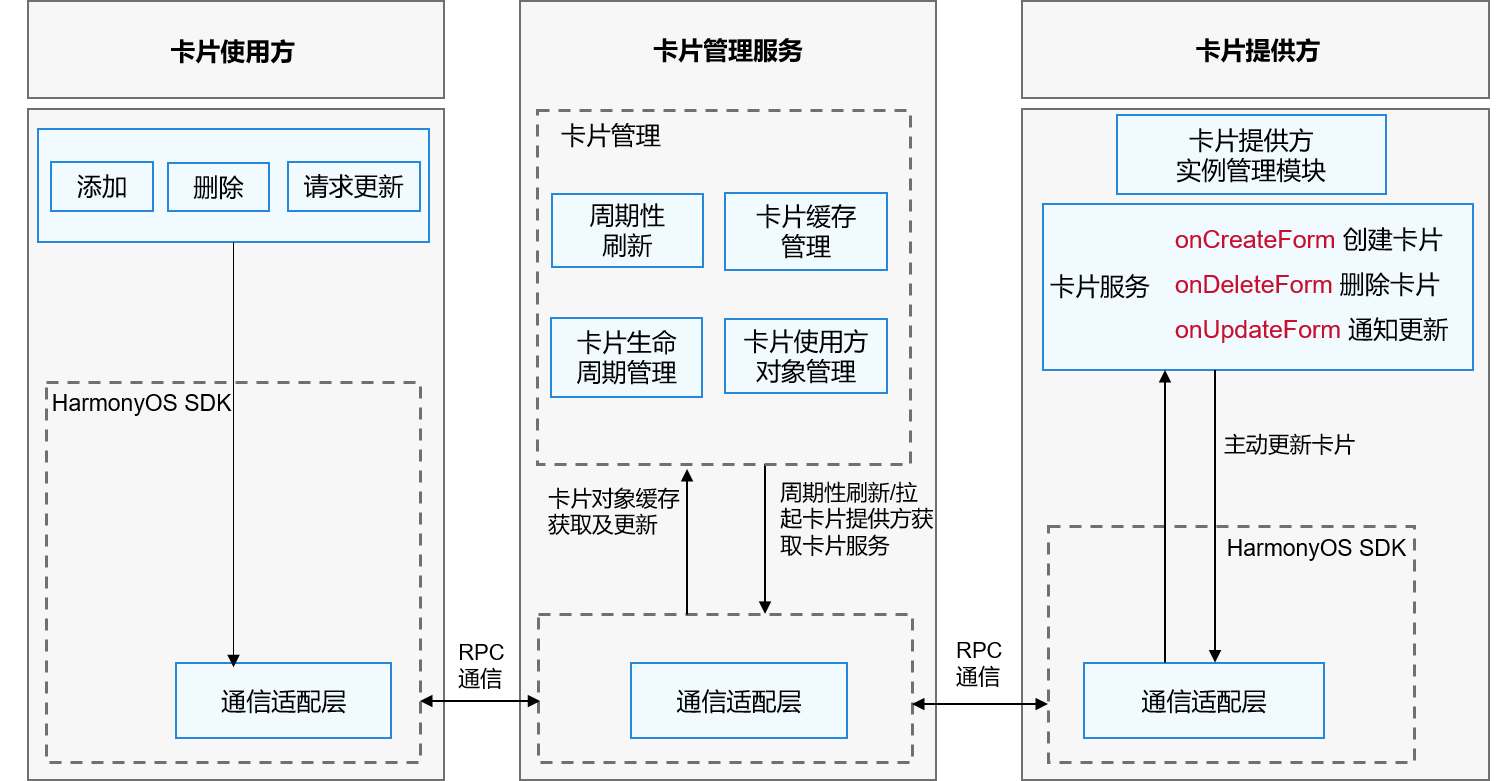

運作機制

卡片管理服務包含以下模塊：

• 周期性重繪：在卡片添加后，根據卡片的重繪策略啟動定時任務周期性觸發卡片的重繪，
• 卡片快取管理：在卡片添加到卡片管理服務后，對卡片的視圖資訊進行快取，以便下次獲取卡片時可以直接回傳快取資料，降低時延，
• 卡片生命周期管理：對于卡片切換到后臺或者被遮擋時，暫停卡片的重繪；以及卡片的升級/卸載場景下對卡片資料的更新和清理，
• 卡片使用方物件管理：對卡片使用方的RPC物件進行管理，用于使用方請求進行校驗以及對卡片更新后的回呼處理，
• 通信適配層：負責與卡片使用方和提供方進行RPC通信，

卡片提供方包含以下模塊：

• 卡片服務：由卡片提供方開發者實作，開發者實作onCreateForm、onUpdateForm和onDeleteForm處理創建卡片、更新卡片以及洗掉卡片等請求，提供相應的卡片服務，
• 卡片提供方實體管理模塊：由卡片提供方開發者實作，負責對卡片管理服務分配的卡片實體進行持久化管理，
• 通信適配層：由HarmonyOS SDK提供，負責與卡片管理服務通信，用于將卡片的更新資料主動推送到卡片管理服務，

1.基礎步驟

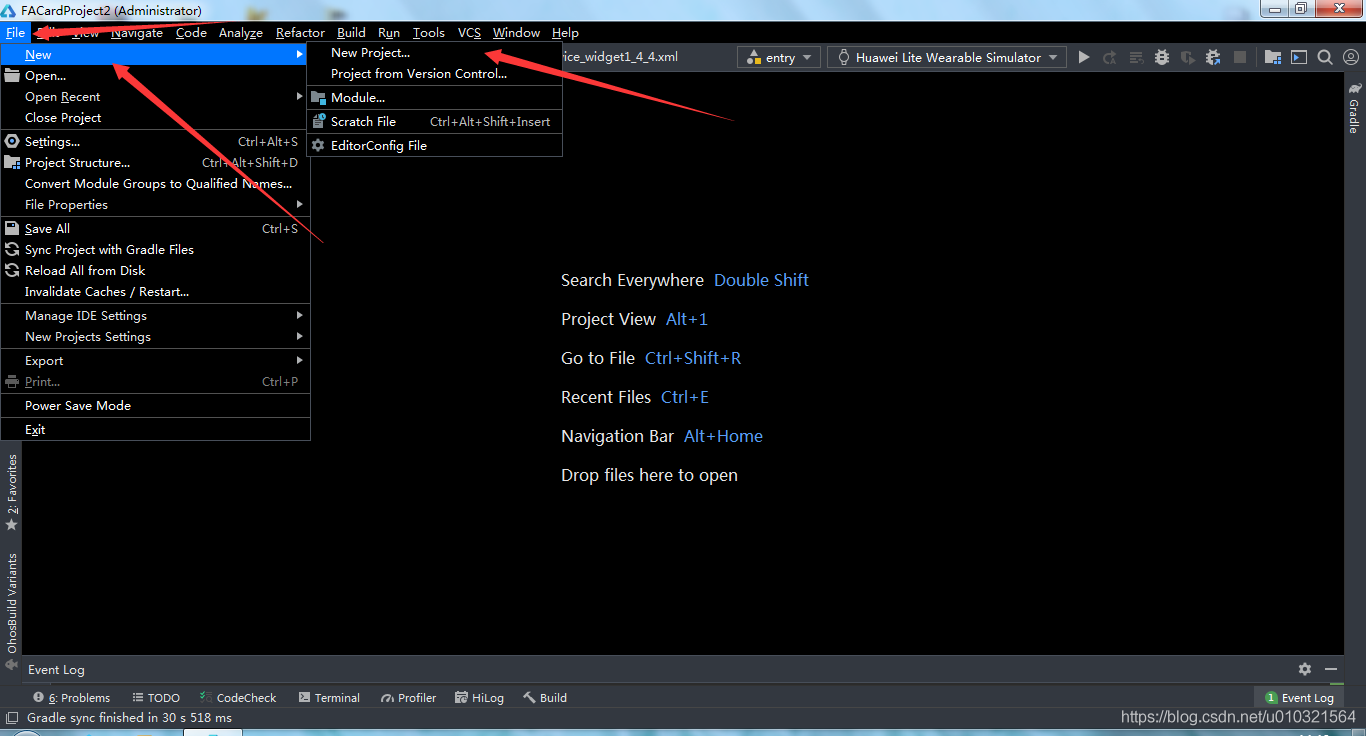

• 打開DevEco Studio軟體，新建專案

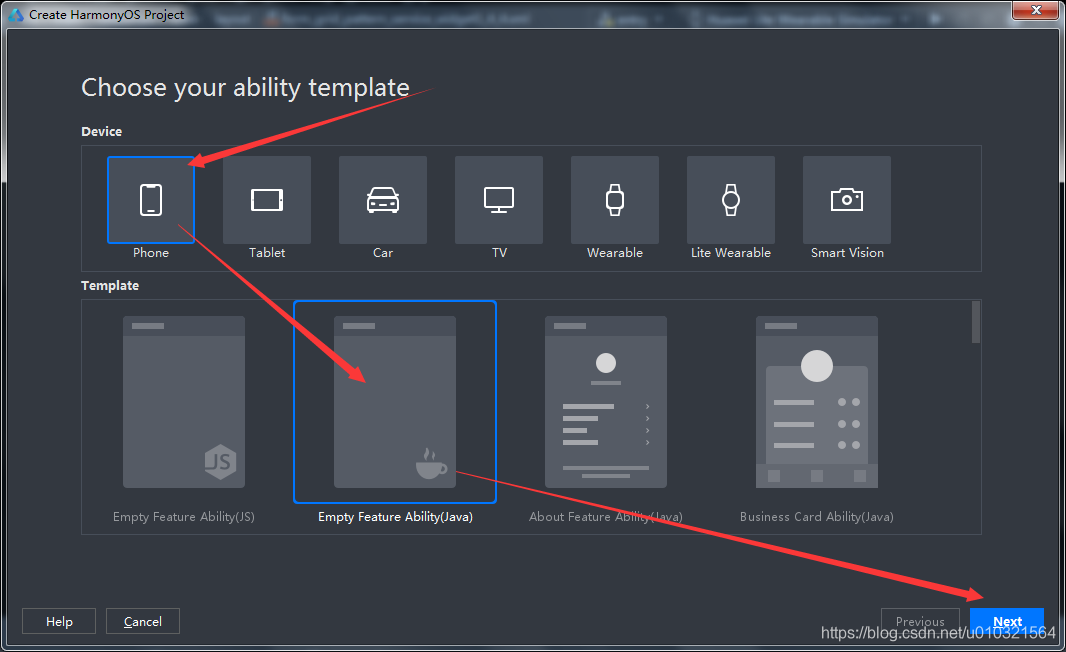

• 創建手機應用，使用java編程語言

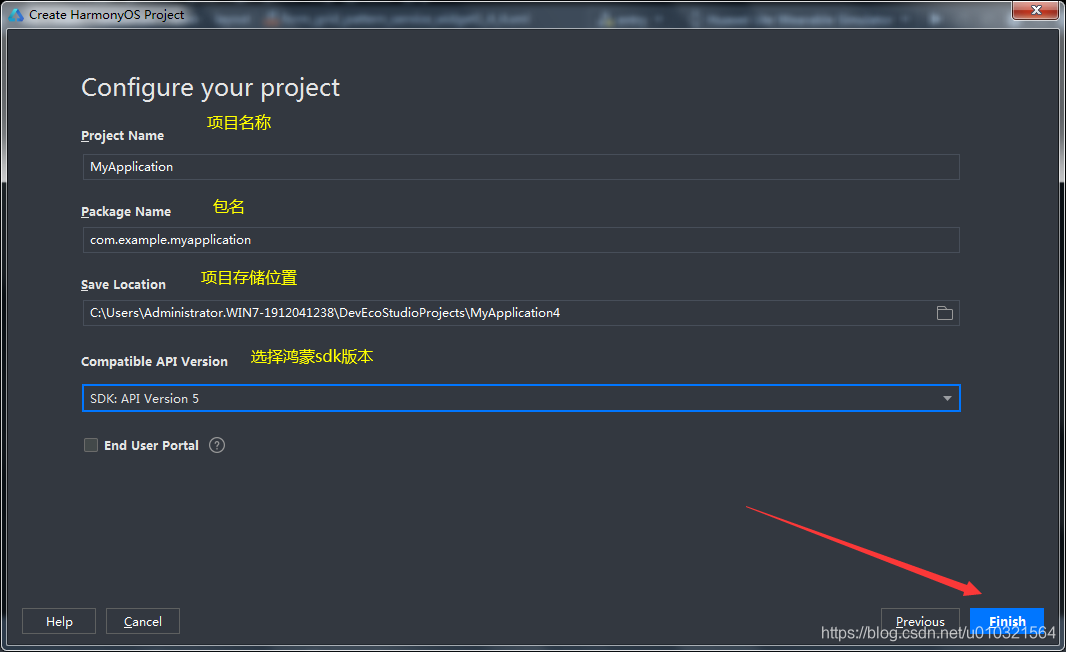

• 填寫專案資訊

• 展示專案目錄串列

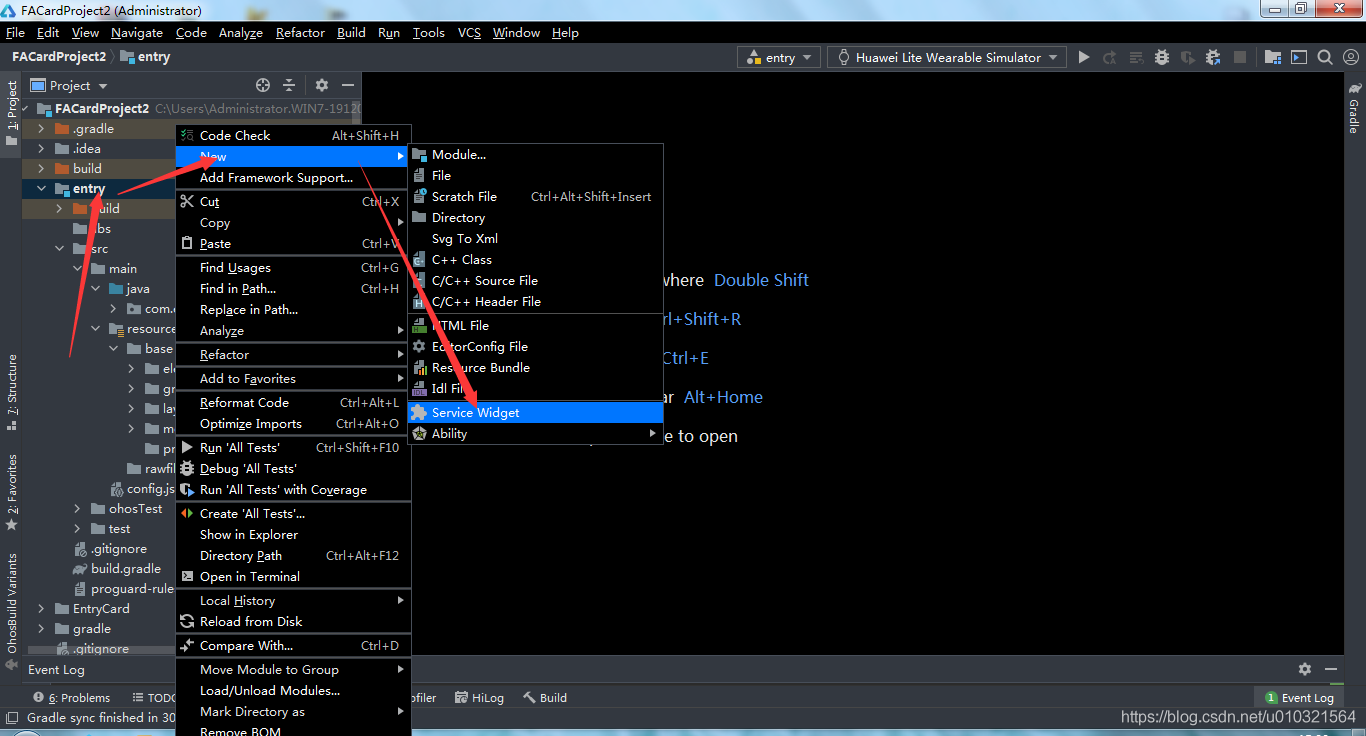

2.創建服務卡片

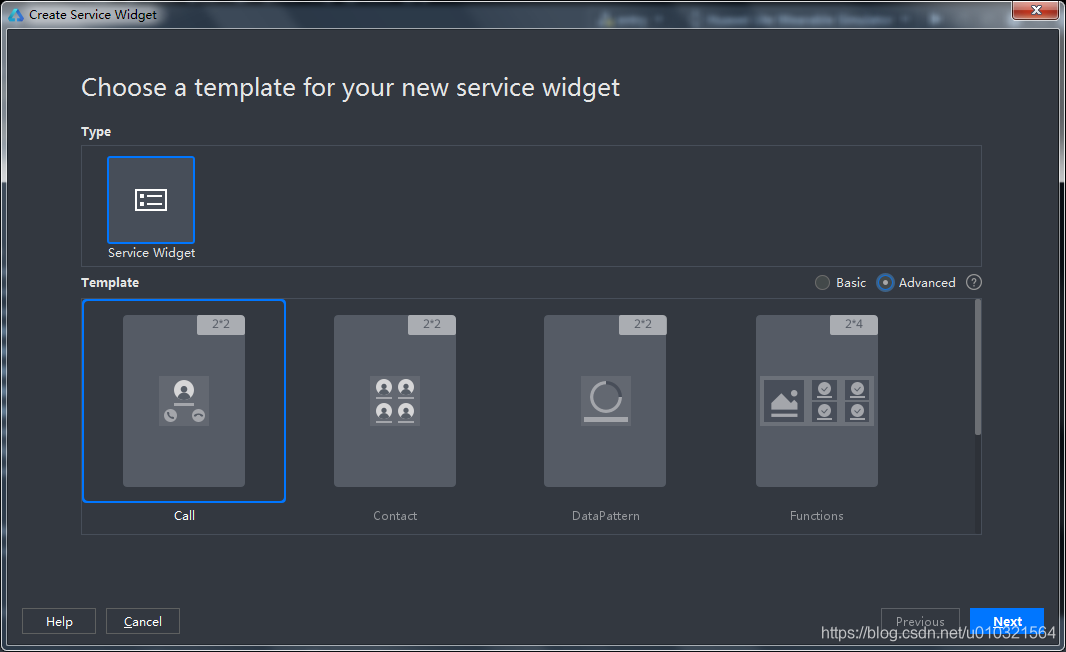

• 鴻蒙系統開發提供了很多卡片樣式供開發者選擇

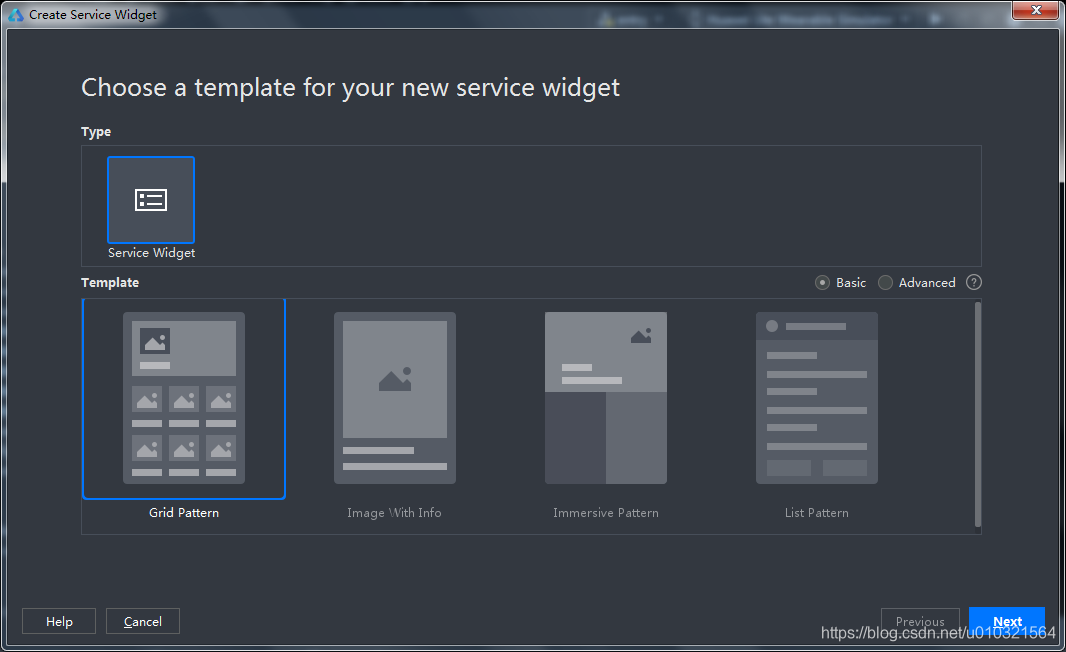

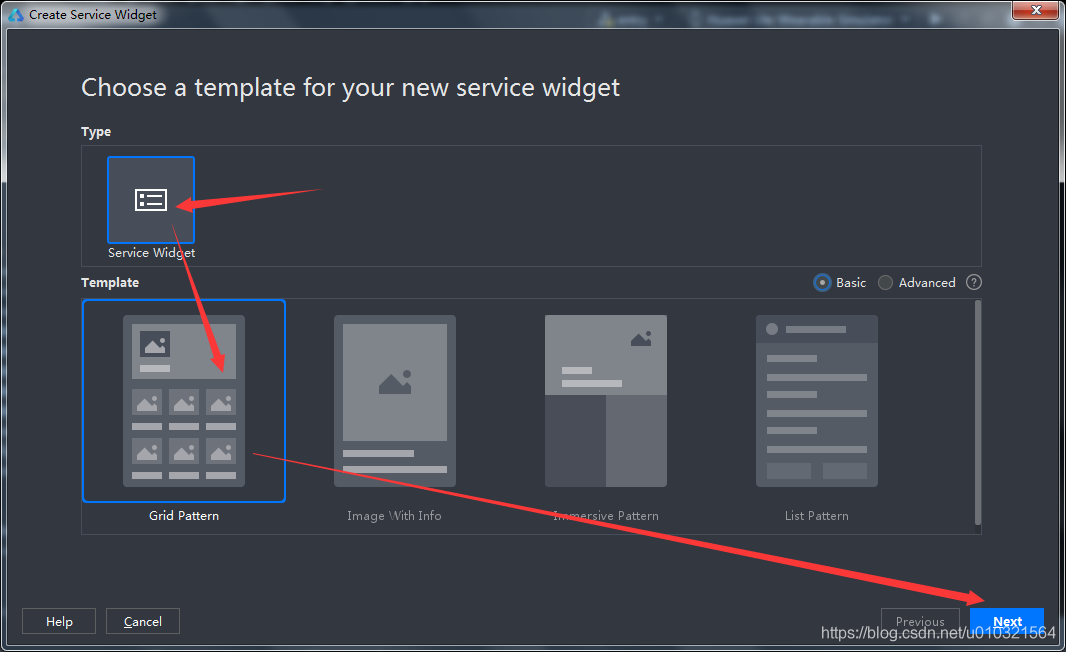

• 這里選擇網格卡片樣式

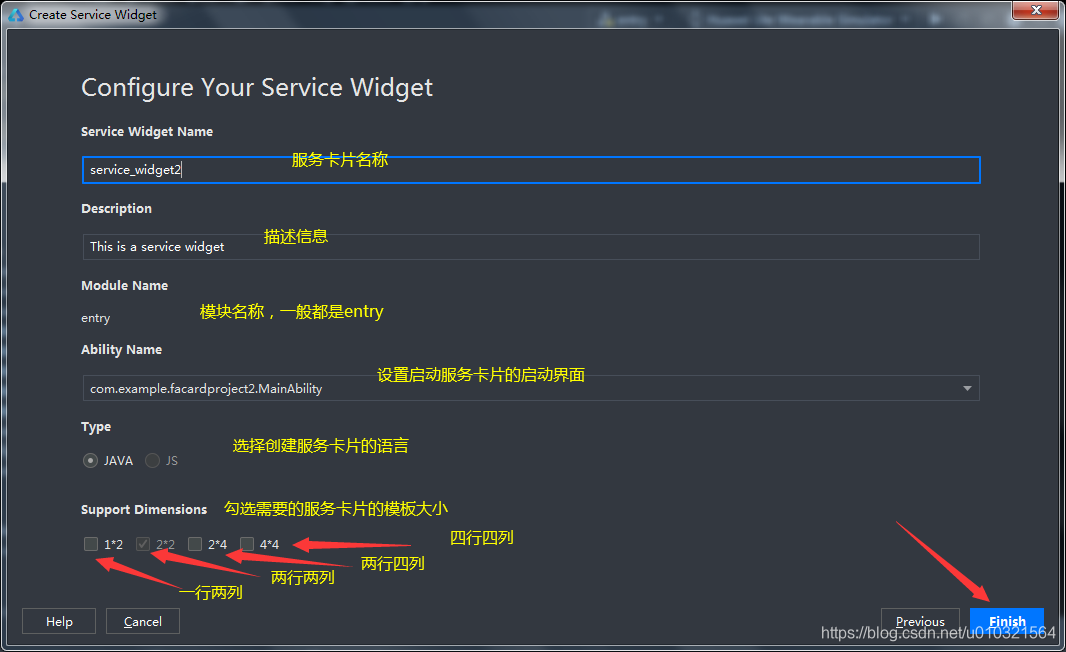

• 填寫設定卡片資訊

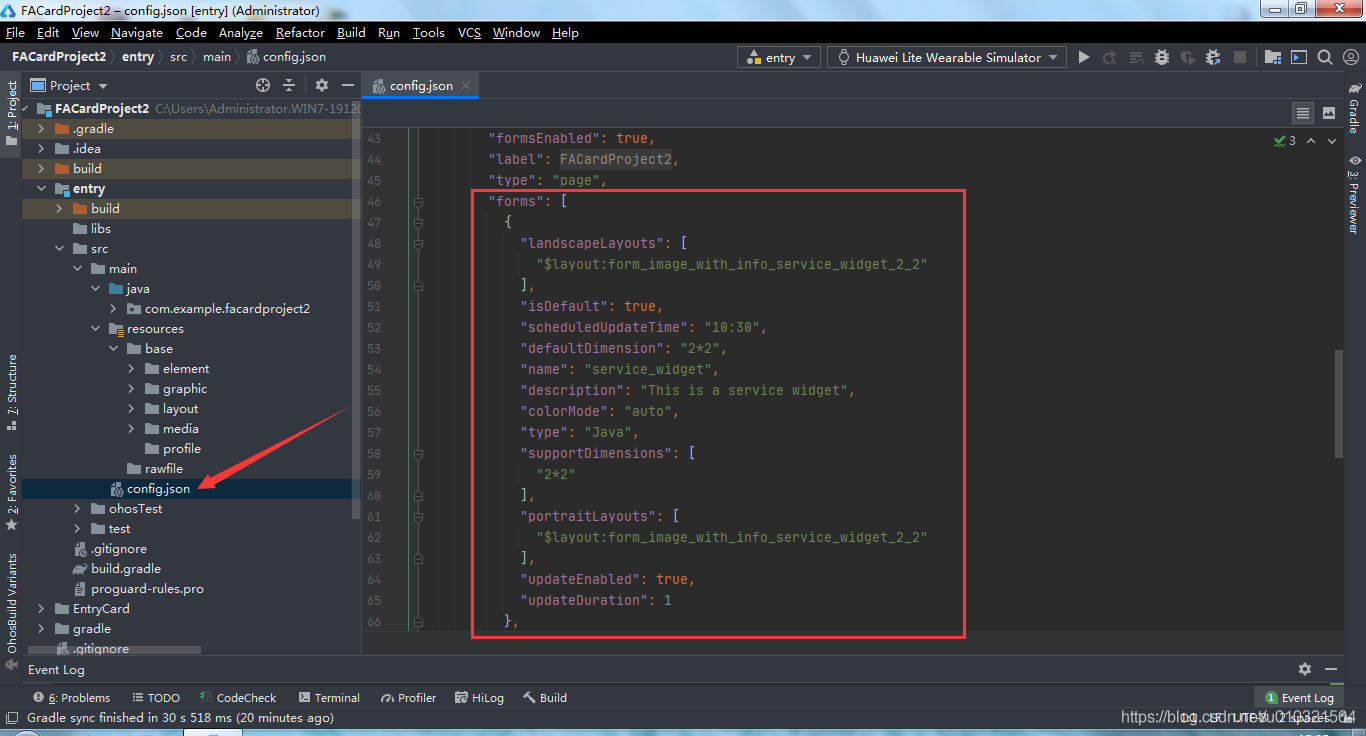

• 這里我選擇了2*2和2*4的卡片，卡片創建完成后，在config.json專案組態檔中會發到卡片的配置資訊

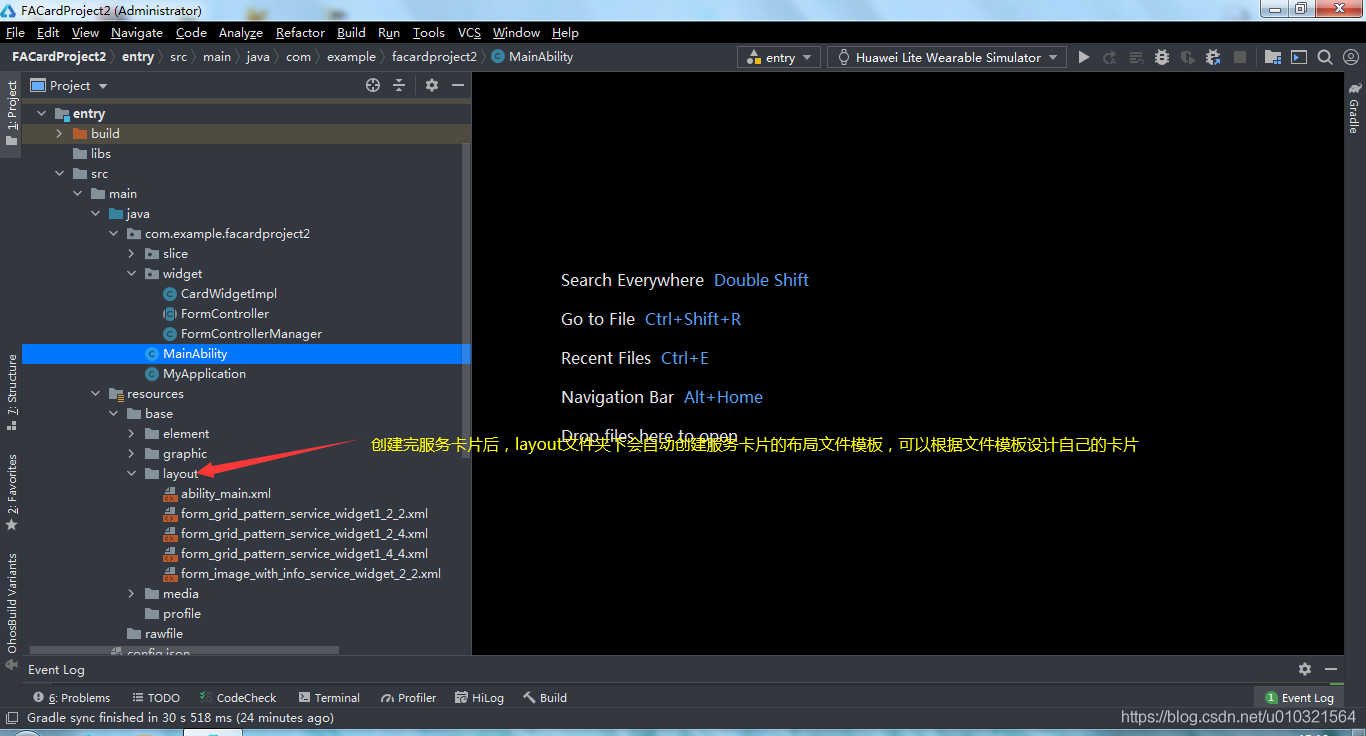

• 在layout檔案夾下可以看到系統自動創建的所選擇的卡片布局檔案，開發者可以直接在該布局上設計自己的卡片效果

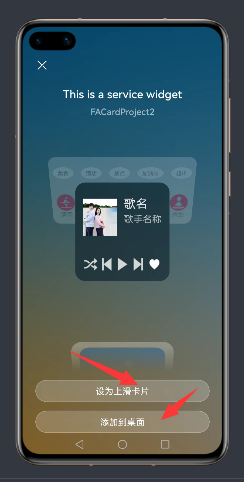

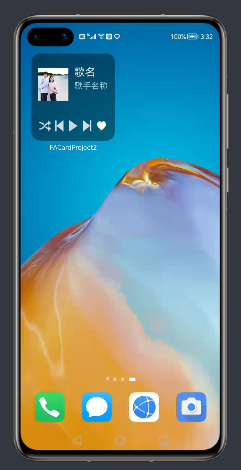

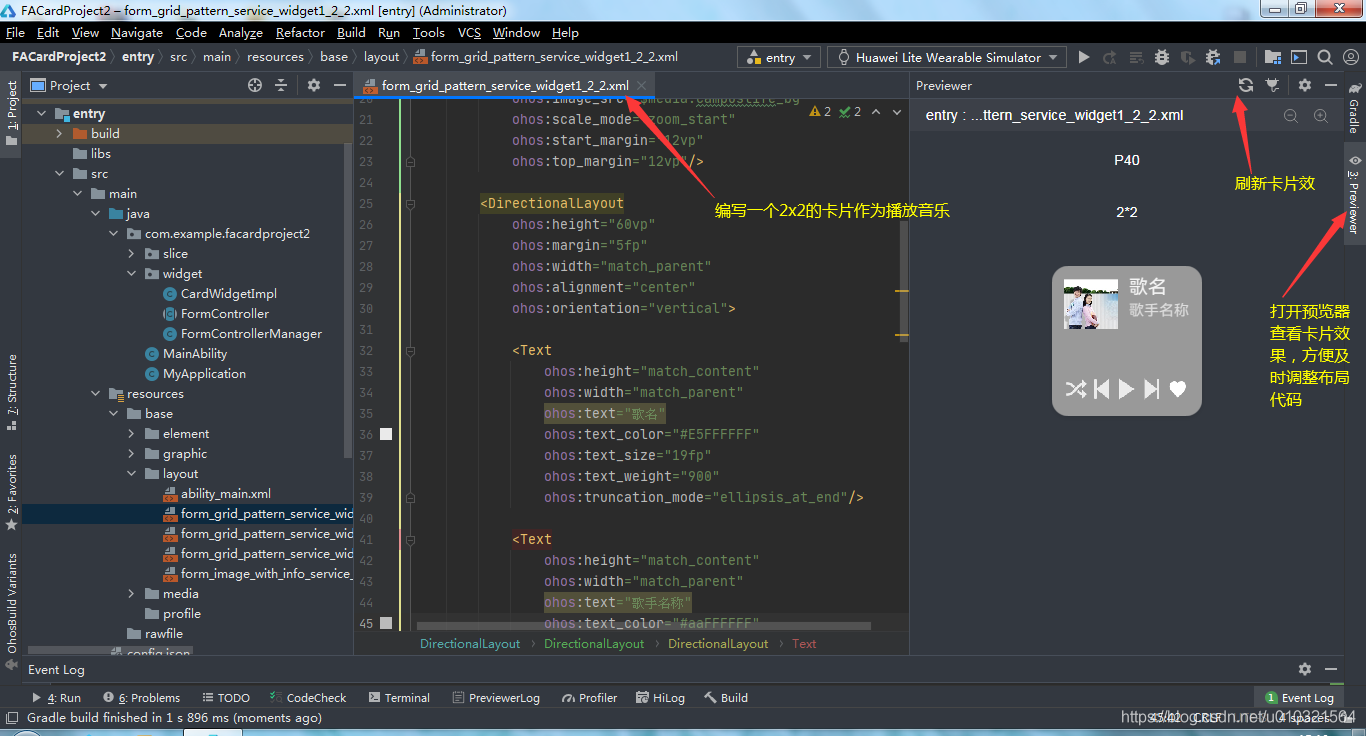

3. 2*2的音樂卡片設計

• 其對應的布局代碼如下

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
    xmlns:ohos="http://schemas.huawei.com/res/ohos"
    ohos:height="match_parent"
    ohos:width="match_parent"
    ohos:background_element="#66000000"
    ohos:orientation="vertical"
    ohos:remote="true">

    <DirectionalLayout
        ohos:height="match_content"
        ohos:width="match_parent"
        ohos:alignment="vertical_center"
        ohos:orientation="horizontal"
        ohos:weight="1">

        <Image
            ohos:height="60vp"
            ohos:width="60vp"
            ohos:image_src="$media:campuslife_bg"
            ohos:scale_mode="zoom_start"
            ohos:start_margin="12vp"
            ohos:top_margin="12vp"/>

        <DirectionalLayout
            ohos:height="60vp"
            ohos:margin="5fp"
            ohos:width="match_parent"
            ohos:alignment="center"
            ohos:orientation="vertical">

            <Text
                ohos:height="match_content"
                ohos:width="match_parent"
                ohos:text="歌名"
                ohos:text_color="#E5FFFFFF"
                ohos:text_size="19fp"
                ohos:text_weight="900"
                ohos:truncation_mode="ellipsis_at_end"/>

            <Text
                ohos:height="match_content"
                ohos:width="match_parent"
                ohos:text="歌手名稱"
                ohos:text_color="#aaFFFFFF"
                ohos:text_size="15fp"
                ohos:text_weight="600"
                ohos:top_margin="2vp"
                ohos:truncation_mode="ellipsis_at_end"/>
        </DirectionalLayout>
    </DirectionalLayout>


    <DirectionalLayout
        ohos:height="match_content"
        ohos:width="match_parent"
        ohos:alignment="bottom"
        ohos:margin="12vp"
        ohos:orientation="horizontal"
        ohos:weight="1">

        <Image
            ohos:height="30vp"
            ohos:width="30vp"
            ohos:image_src="$media:button_playmode_shuffle"
            ohos:scale_mode="stretch"
            ohos:weight="1"/>

        <Image
            ohos:height="30vp"
            ohos:width="30vp"
            ohos:image_src="$media:button_previous"
            ohos:scale_mode="stretch"
            ohos:weight="1"/>

        <Image
            ohos:height="30vp"
            ohos:width="30vp"
            ohos:image_src="$media:button_play"
            ohos:scale_mode="stretch"
            ohos:weight="1"/>

        <Image
            ohos:height="30vp"
            ohos:width="30vp"
            ohos:image_src="$media:button_next"
            ohos:scale_mode="stretch"
            ohos:weight="1"/>

        <Image
            ohos:height="30vp"
            ohos:width="30vp"
            ohos:image_src="$media:button_favorite"
            ohos:scale_mode="stretch"
            ohos:weight="1"/>
    </DirectionalLayout>

</DirectionalLayout>

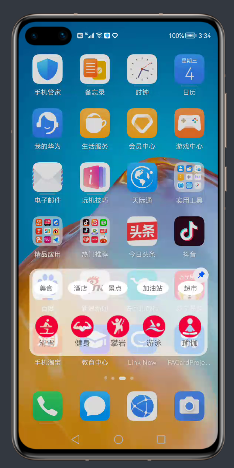

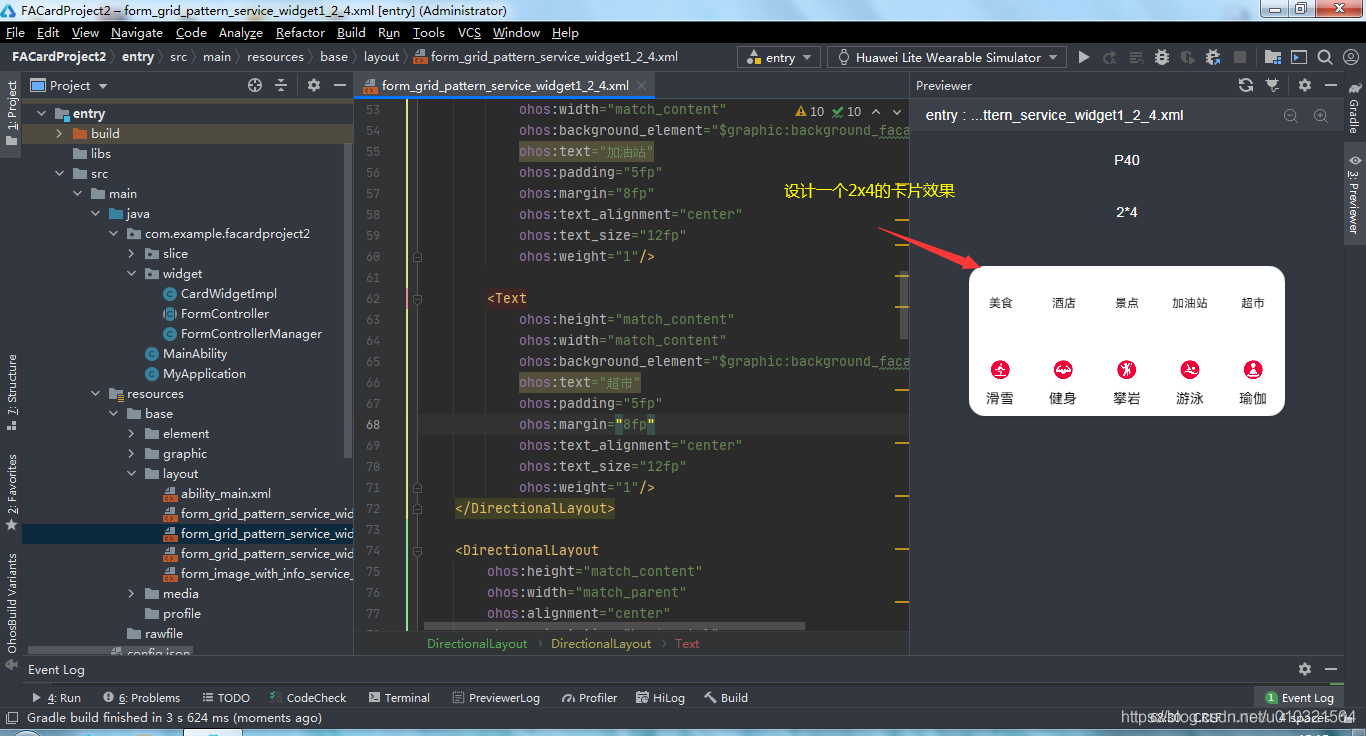

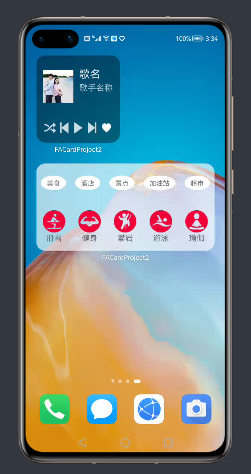

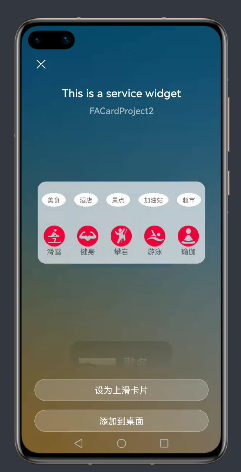

4. 2*4的運動出行卡片

• 其2*4卡片的xml布局代碼如下:

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
    xmlns:ohos="http://schemas.huawei.com/res/ohos"
    ohos:height="match_parent"
    ohos:width="match_parent"
    ohos:background_element="#aaffffff"
    ohos:margin="10fp"
    ohos:orientation="vertical"
    ohos:remote="true">

    <DirectionalLayout
        ohos:height="match_content"
        ohos:width="match_parent"
        ohos:alignment="center"
        ohos:orientation="horizontal"
        ohos:weight="1">

        <Text
            ohos:height="match_content"
            ohos:width="match_content"
            ohos:background_element="$graphic:background_facard_text"
            ohos:text="美食"
            ohos:padding="5fp"
            ohos:margin="8fp"
            ohos:text_alignment="center"
            ohos:text_size="12fp"
            ohos:weight="1"/>

        <Text
            ohos:height="match_content"
            ohos:width="match_content"
            ohos:background_element="$graphic:background_facard_text"
            ohos:padding="5fp"
            ohos:margin="8fp"
            ohos:text="酒店"
            ohos:text_alignment="center"
            ohos:text_size="12fp"
            ohos:weight="1"/>

        <Text
            ohos:height="match_content"
            ohos:width="match_content"
            ohos:background_element="$graphic:background_facard_text"
            ohos:text="景點"
            ohos:padding="5fp"
            ohos:margin="8fp"
            ohos:text_alignment="center"
            ohos:text_size="12fp"
            ohos:weight="1"/>

        <Text
            ohos:height="match_content"
            ohos:width="match_content"
            ohos:background_element="$graphic:background_facard_text"
            ohos:text="加油站"
            ohos:padding="5fp"
            ohos:margin="8fp"
            ohos:text_alignment="center"
            ohos:text_size="12fp"
            ohos:weight="1"/>

        <Text
            ohos:height="match_content"
            ohos:width="match_content"
            ohos:background_element="$graphic:background_facard_text"
            ohos:text="超市"
            ohos:padding="5fp"
            ohos:margin="8fp"
            ohos:text_alignment="center"
            ohos:text_size="12fp"
            ohos:weight="1"/>
    </DirectionalLayout>

    <DirectionalLayout
        ohos:height="match_content"
        ohos:width="match_parent"
        ohos:alignment="center"
        ohos:orientation="horizontal"
        ohos:weight="1">

        <DirectionalLayout
            ohos:height="match_parent"
            ohos:width="match_content"
            ohos:alignment="center"
            ohos:orientation="vertical"
            ohos:weight="1">

            <Image
                ohos:height="40vp"
                ohos:width="40vp"
                ohos:image_src="$media:ic_sport_hauxue2"/>

            <Text
                ohos:height="match_content"
                ohos:width="match_content"
                ohos:text="滑雪"
                ohos:text_size="14fp"/>
        </DirectionalLayout>

        <DirectionalLayout
            ohos:height="match_parent"
            ohos:width="match_content"
            ohos:alignment="center"
            ohos:orientation="vertical"
            ohos:weight="1">

            <Image
                ohos:height="40vp"
                ohos:width="40vp"
                ohos:image_src="$media:ic_sport_jianshen2"/>

            <Text
                ohos:height="match_content"
                ohos:width="match_content"
                ohos:text="健身"
                ohos:text_size="14fp"/>
        </DirectionalLayout>

        <DirectionalLayout
            ohos:height="match_parent"
            ohos:width="match_content"
            ohos:alignment="center"
            ohos:orientation="vertical"
            ohos:weight="1">

            <Image
                ohos:height="40vp"
                ohos:width="40vp"
                ohos:image_src="$media:ic_sport_panyan2"/>

            <Text
                ohos:height="match_content"
                ohos:width="match_content"
                ohos:text="攀巖"
                ohos:text_size="14fp"/>
        </DirectionalLayout>

        <DirectionalLayout
            ohos:height="match_parent"
            ohos:width="match_content"
            ohos:alignment="center"
            ohos:orientation="vertical"
            ohos:weight="1">

            <Image
                ohos:height="40vp"
                ohos:width="40vp"
                ohos:image_src="$media:ic_sport_youyong2"/>

            <Text
                ohos:height="match_content"
                ohos:width="match_content"
                ohos:text="游泳"
                ohos:text_size="14fp"/>
        </DirectionalLayout>

        <DirectionalLayout
            ohos:height="match_parent"
            ohos:width="match_content"
            ohos:alignment="center"
            ohos:orientation="vertical"
            ohos:weight="1">

            <Image
                ohos:height="40vp"
                ohos:width="40vp"
                ohos:image_src="$media:ic_sport_yujia2"/>

            <Text
                ohos:height="match_content"
                ohos:width="match_content"
                ohos:text="瑜伽"
                ohos:text_size="14fp"/>
        </DirectionalLayout>
    </DirectionalLayout>
</DirectionalLayout>

5.修改應用啟動卡片代碼

我們有點鴻蒙基礎的知道，專案的啟動需要指定MainAbility界面，我們需要修改MainAbility界面，指定其默認展示的卡片，以及加載我們設計的多個服務卡片

其MainAbility代碼如下

package com.example.facardproject2;

import com.example.facardproject2.slice.MainAbilitySlice;
import com.example.facardproject2.widget.FormController;
import com.example.facardproject2.widget.FormControllerManager;
import ohos.aafwk.ability.Ability;
import ohos.aafwk.content.Intent;
import ohos.aafwk.ability.AbilitySlice;
import ohos.aafwk.ability.ProviderFormInfo;
import ohos.hiviewdfx.HiLog;
import ohos.hiviewdfx.HiLogLabel;

public class MainAbility extends Ability {
    public static final int DEFAULT_DIMENSION_2X4 = 2;
    public static final int DIMENSION_2X2 = 1;
    public static final int DIMENSION_4X4 = 3;
    //public static final int DIMENSION_4X4 = 4;
    private static final int INVALID_FORM_ID = -1;
    private static final HiLogLabel TAG = new HiLogLabel(HiLog.DEBUG, 0x0, MainAbility.class.getName());
    private String topWidgetSlice;

    @Override
    public void onStart(Intent intent) {
        super.onStart(intent);
        super.setMainRoute(MainAbilitySlice.class.getName());
        if (intentFromWidget(intent)) {
            topWidgetSlice = getRoutePageSlice(intent);
            if (topWidgetSlice != null) {
                setMainRoute(topWidgetSlice);
            }
        }
        stopAbility(intent);
    }

    //創建卡片資訊并回傳卡片內容
    @Override
    protected ProviderFormInfo onCreateForm(Intent intent) {
        HiLog.info(TAG, "onCreateForm");
        long formId = intent.getLongParam(AbilitySlice.PARAM_FORM_IDENTITY_KEY, INVALID_FORM_ID);
        String formName = intent.getStringParam(AbilitySlice.PARAM_FORM_NAME_KEY);
        int dimension = intent.getIntParam(AbilitySlice.PARAM_FORM_DIMENSION_KEY, DEFAULT_DIMENSION_2X4);
        HiLog.info(TAG, "onCreateForm: formId=" + formId + ",formName=" + formName);
        FormControllerManager formControllerManager = FormControllerManager.getInstance(this);
        FormController formController = formControllerManager.getController(formId);
        //通過呼叫布局Id將卡片布局與卡片資訊進行系結
        formController = (formController == null) ? formControllerManager.createFormController(formId,
                formName, dimension) : formController;
        if (formController == null) {
            HiLog.error(TAG, "Get null controller. formId: " + formId + ", formName: " + formName);
            return null;
        }
        return formController.bindFormData();
    }

    //更新卡片資訊
    @Override
    protected void onUpdateForm(long formId) {
        HiLog.info(TAG, "onUpdateForm");
        super.onUpdateForm(formId);
        FormControllerManager formControllerManager = FormControllerManager.getInstance(this);
        FormController formController = formControllerManager.getController(formId);
        formController.updateFormData(formId);
    }

    //洗掉卡片
    @Override
    protected void onDeleteForm(long formId) {
        HiLog.info(TAG, "onDeleteForm: formId=" + formId);
        super.onDeleteForm(formId);
        FormControllerManager formControllerManager = FormControllerManager.getInstance(this);
        formControllerManager.deleteFormController(formId);
    }

    //卡片手勢觸發
    @Override
    protected void onTriggerFormEvent(long formId, String message) {
        HiLog.info(TAG, "onTriggerFormEvent: " + message);
        super.onTriggerFormEvent(formId, message);
        FormControllerManager formControllerManager = FormControllerManager.getInstance(this);
        FormController formController = formControllerManager.getController(formId);
        formController.onTriggerFormEvent(formId, message);
    }

    @Override
    public void onNewIntent(Intent intent) {
        if (intentFromWidget(intent)) { // Only response to it when starting from a service widget.
            String newWidgetSlice = getRoutePageSlice(intent);
            if (topWidgetSlice == null || !topWidgetSlice.equals(newWidgetSlice)) {
                topWidgetSlice = newWidgetSlice;
                restart();
            }
        }
    }

    private boolean intentFromWidget(Intent intent) {
        long formId = intent.getLongParam(AbilitySlice.PARAM_FORM_IDENTITY_KEY, INVALID_FORM_ID);
        return formId != INVALID_FORM_ID;
    }

    //跳轉至對應的卡片界面
    private String getRoutePageSlice(Intent intent) {
        long formId = intent.getLongParam(AbilitySlice.PARAM_FORM_IDENTITY_KEY, INVALID_FORM_ID);
        if (formId == INVALID_FORM_ID) {
            return null;
        }
        FormControllerManager formControllerManager = FormControllerManager.getInstance(this);
        FormController formController = formControllerManager.getController(formId);
        if (formController == null) {
            return null;
        }
        Class<? extends AbilitySlice> clazz = formController.getRoutePageSlice(intent);
        if (clazz == null) {
            return null;
        }
        return clazz.getName();
    }
}

6.創建服務卡片控制代碼

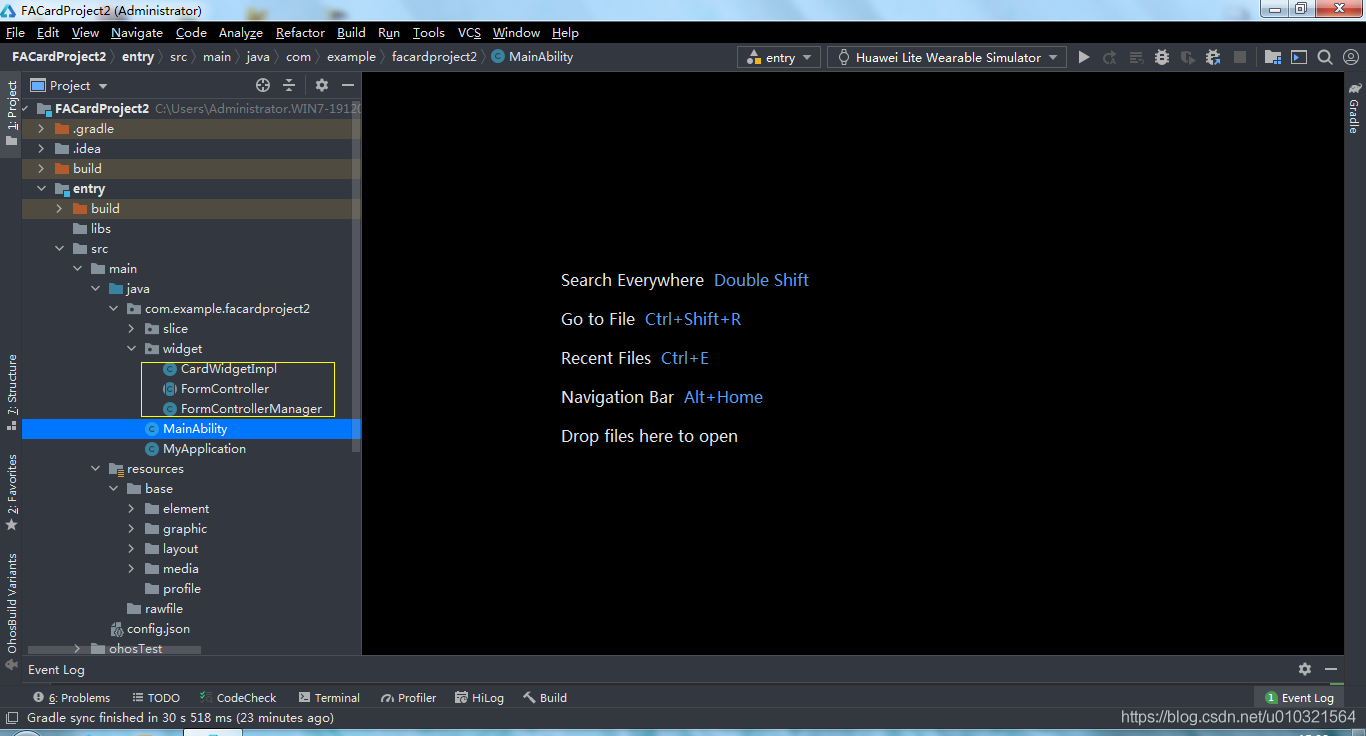

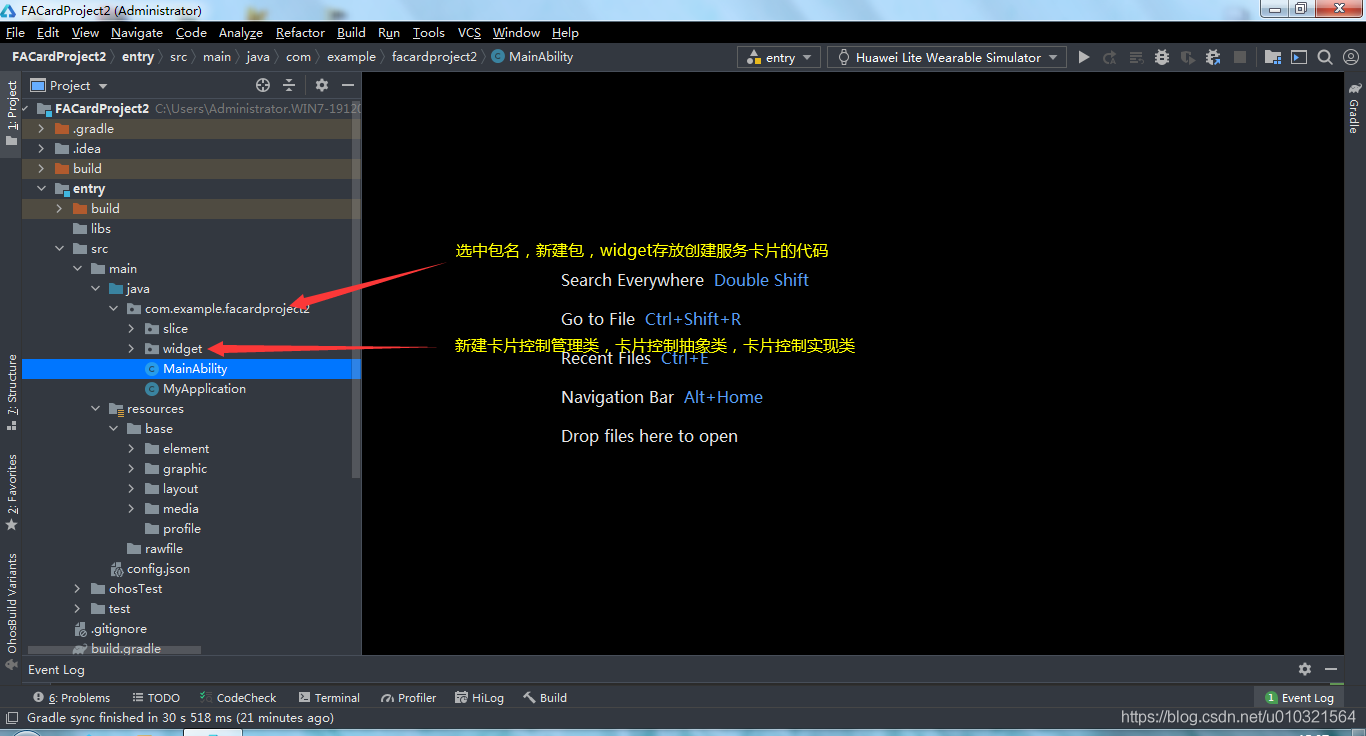

在專案的包中，新建widget包名，并創建服務卡片控制管理器類，服務卡片控制抽象類以及服務卡片實作類

創建卡片控制器，用于創建卡片，加載卡片，更新卡片和洗掉卡片

package com.example.facardproject2.widget;

import ohos.aafwk.ability.AbilitySlice;
import ohos.aafwk.ability.ProviderFormInfo;
import ohos.aafwk.content.Intent;
import ohos.app.Context;

public abstract class FormController {

    protected final Context context;


    protected final String formName;


    protected final int dimension;

    public FormController(Context context, String formName, Integer dimension) {
        this.context = context;
        this.formName = formName;
        this.dimension = dimension;
    }

    /**
     * 創建卡片資訊提供者
     */
    public abstract ProviderFormInfo bindFormData();

    /**
     * 更新卡片資訊
     */
    public abstract void updateFormData(long formId, Object... vars);

    /**
     * 在接收服務小部件訊息事件時呼叫
     */
    public abstract void onTriggerFormEvent(long formId, String message);

    /**
     * 獲取路由的目標界面
     */
    public abstract Class<? extends AbilitySlice> getRoutePageSlice(Intent intent);

}

創建卡片實作類，用于根據實際創建的卡片樣式加載卡片物件

package com.example.facardproject2.widget;

import com.example.facardproject2.ResourceTable;
import ohos.aafwk.ability.AbilitySlice;
import ohos.aafwk.ability.ProviderFormInfo;
import ohos.aafwk.content.Intent;
import ohos.app.Context;
import ohos.hiviewdfx.HiLog;
import ohos.hiviewdfx.HiLogLabel;

import java.util.HashMap;
import java.util.Map;

public class CardWidgetImpl extends FormController {
    public static final int DIMENSION_2X2 = 1;
    public static final int DIMENSION_4X4 = 3;
    private static final HiLogLabel TAG = new HiLogLabel(HiLog.DEBUG, 0x0, CardWidgetImpl.class.getName());
    private static final int DEFAULT_DIMENSION_2X4 = 2;
    private static final Map<Integer, Integer> RESOURCE_ID_MAP = new HashMap<>();

    static {
        RESOURCE_ID_MAP.put(DIMENSION_2X2, ResourceTable.Layout_form_grid_pattern_service_widget1_2_2);
        RESOURCE_ID_MAP.put(DEFAULT_DIMENSION_2X4, ResourceTable.Layout_form_grid_pattern_service_widget1_2_4);
        RESOURCE_ID_MAP.put(DIMENSION_4X4, ResourceTable.Layout_form_grid_pattern_service_widget1_4_4);
    }

    public CardWidgetImpl(Context context, String formName, Integer dimension) {
        super(context, formName, dimension);
    }

    //創建好卡片服務后，在界面展示卡片
    @Override
    public ProviderFormInfo bindFormData() {
        HiLog.info(TAG, "bind form data when create form");
        return new ProviderFormInfo(RESOURCE_ID_MAP.get(dimension), context);
    }

    //更新卡片資訊
    @Override
    public void updateFormData(long formId, Object... vars) {
        HiLog.info(TAG, "update form data timing, default 30 minutes");
    }

    //卡片中內容手勢觸發方法
    @Override
    public void onTriggerFormEvent(long formId, String message) {
        HiLog.info(TAG, "handle card click event.");
    }

    @Override
    public Class<? extends AbilitySlice> getRoutePageSlice(Intent intent) {
        HiLog.info(TAG, "get the default page to route when you click card.");
        return null;
    }
}

創建卡片控制管理器類，用于呼叫用戶選擇的卡片顯示效果，以及觸發組件事件

package com.example.facardproject2.widget;

import ohos.app.Context;
import ohos.data.DatabaseHelper;
import ohos.data.preferences.Preferences;
import ohos.hiviewdfx.HiLog;
import ohos.hiviewdfx.HiLogLabel;
import ohos.utils.zson.ZSONObject;

import java.lang.reflect.InvocationTargetException;
import java.util.*;

public class FormControllerManager {
    private static final HiLogLabel TAG = new HiLogLabel(HiLog.DEBUG, 0x0, FormControllerManager.class.getName());
    private static final String PACKAGE_PATH = "com.example.carddemo.widget";
    private static final String SHARED_SP_NAME = "form_info_sp.xml";
    private static final String FORM_NAME = "formName";
    private static final String DIMENSION = "dimension";
    private static FormControllerManager managerInstance = null;
    private final HashMap<Long, com.example.facardproject2.widget.FormController> controllerHashMap = new HashMap<>();

    private final Context context;

    private final Preferences preferences;

    /**
     * 初始化構造器
     *
     * @param context instance of Context.
     */
    private FormControllerManager(Context context) {
        this.context = context;
        DatabaseHelper databaseHelper = new DatabaseHelper(this.context.getApplicationContext());
        preferences = databaseHelper.getPreferences(SHARED_SP_NAME);
    }

    /**
     * FormControllerManager 實體化
     *
     * @param context instance of Context.
     * @return FormControllerManager instance.
     */
    public static FormControllerManager getInstance(Context context) {
        if (managerInstance == null) {
            synchronized (FormControllerManager.class) {
                if (managerInstance == null) {
                    managerInstance = new FormControllerManager(context);
                }
            }
        }
        return managerInstance;
    }

    /**
     * 通過構造器將傳入的卡片資訊進行封裝，回傳卡片服務
     *
     * @param formId    form id.
     * @param formName  form name.
     * @param dimension form dimension
     * @return FormController form controller
     */
    public FormController createFormController(long formId, String formName, int dimension) {
        synchronized (controllerHashMap) {
            if (formId < 0 || formName.isEmpty()) {
                return null;
            }
            HiLog.info(TAG,
                    "saveFormId() formId: " + formId + ", formName: " + formName + ", preferences: " + preferences);
            if (preferences != null) {
                ZSONObject formObj = new ZSONObject();
                formObj.put(FORM_NAME, formName);
                formObj.put(DIMENSION, dimension);
                preferences.putString(Long.toString(formId), ZSONObject.toZSONString(formObj));
                preferences.flushSync();
            }

            // Create controller instance.
            FormController controller = newInstance(formName, dimension, context);

            // Cache the controller.
            if (controller != null) {
                if (!controllerHashMap.containsKey(formId)) {
                    controllerHashMap.put(formId, controller);
                }
            }

            return controller;
        }
    }

    /**
     * 獲取卡片控制器實體
     *
     * @param formId form id.
     * @return the instance of form controller.
     */
    public FormController getController(long formId) {
        synchronized (controllerHashMap) {
            if (controllerHashMap.containsKey(formId)) {
                return controllerHashMap.get(formId);
            }
            Map<String, ?> forms = preferences.getAll();
            String formIdString = Long.toString(formId);
            if (forms.containsKey(formIdString)) {
                ZSONObject formObj = ZSONObject.stringToZSON((String) forms.get(formIdString));
                String formName = formObj.getString(FORM_NAME);
                int dimension = formObj.getIntValue(DIMENSION);
                FormController controller = newInstance(formName, dimension, context);
                controllerHashMap.put(formId, controller);
            }
            return controllerHashMap.get(formId);
        }
    }

    private FormController newInstance(String formName, int dimension, Context context) {
        FormController ctrInstance = null;
        if (formName == null || formName.isEmpty()) {
            HiLog.error(TAG, "newInstance() get empty form name");
            return ctrInstance;
        }
        try {
            String className = PACKAGE_PATH + "." + formName.toLowerCase(Locale.ROOT) + "."
                    + getClassNameByFormName(formName);
            Class<?> clazz = Class.forName(className);
            if (clazz != null) {
                Object controllerInstance = clazz.getConstructor(Context.class, String.class, Integer.class)
                        .newInstance(context, formName, dimension);
                if (controllerInstance instanceof FormController) {
                    ctrInstance = (FormController) controllerInstance;
                }
            }
        } catch (NoSuchMethodException | InstantiationException | IllegalArgumentException | InvocationTargetException
                | IllegalAccessException | ClassNotFoundException | SecurityException exception) {
            HiLog.error(TAG, "newInstance() get exception: " + exception.getMessage());
        }
        return ctrInstance;
    }

    /**
     * 從陣列中獲取所有卡片id
     *
     * @return form id list
     */
    public List<Long> getAllFormIdFromSharePreference() {
        List<Long> result = new ArrayList<>();
        Map<String, ?> forms = preferences.getAll();
        for (String formId : forms.keySet()) {
            result.add(Long.parseLong(formId));
        }
        return result;
    }

    /**
     * 洗掉卡片服務
     *
     * @param formId form id
     */
    public void deleteFormController(long formId) {
        synchronized (controllerHashMap) {
            preferences.delete(Long.toString(formId));
            preferences.flushSync();
            controllerHashMap.remove(formId);
        }
    }

    private String getClassNameByFormName(String formName) {
        String[] strings = formName.split("_");
        StringBuilder result = new StringBuilder();
        for (String string : strings) {
            result.append(string);
        }
        char[] charResult = result.toString().toCharArray();
        charResult[0] = (charResult[0] >= 'a' && charResult[0] <= 'z') ? (char) (charResult[0] - 32) : charResult[0];
        return String.copyValueOf(charResult) + "Impl";
    }
}

7.運行步驟

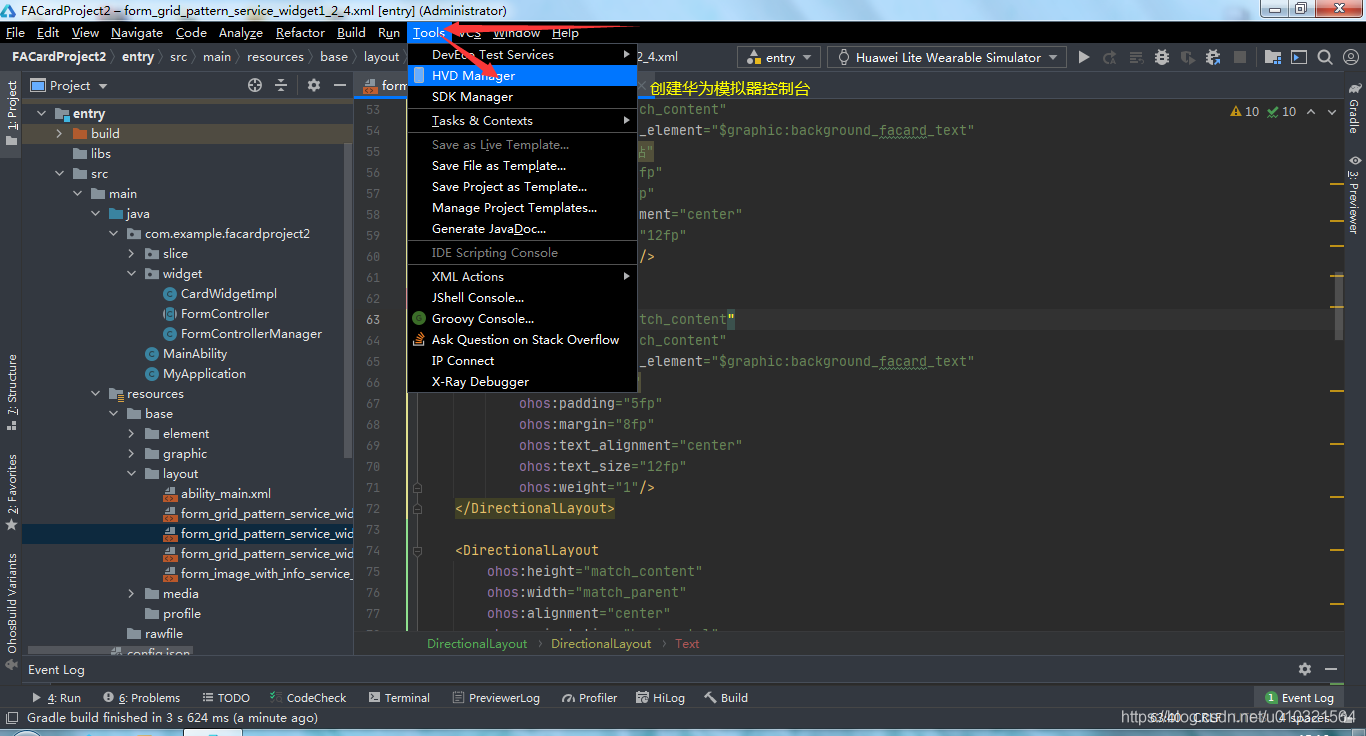

選擇Tools->HVD Manager開啟華為模擬器

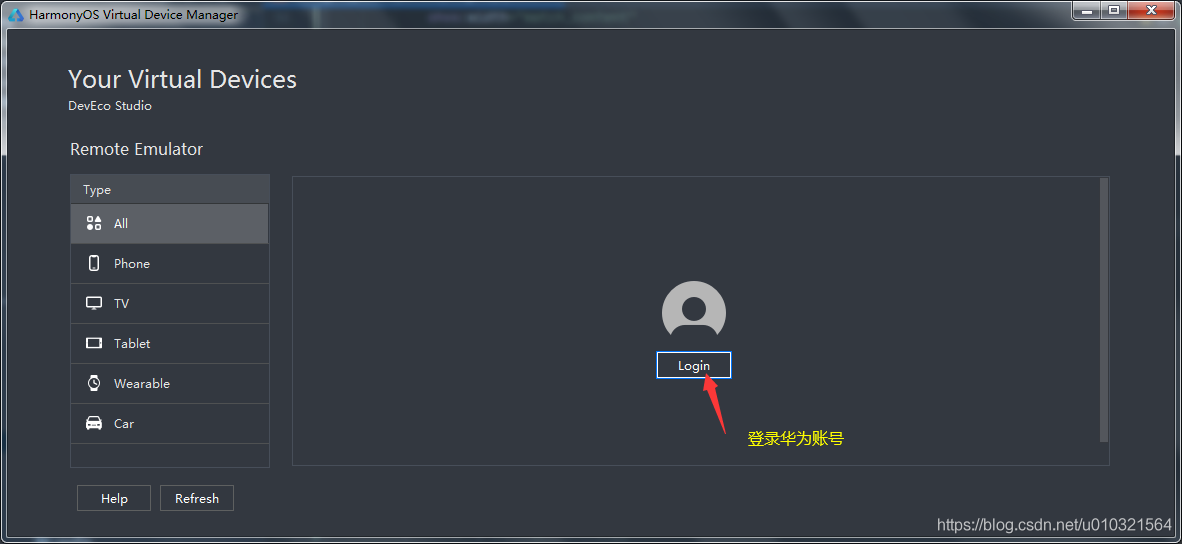

彈出登錄華為賬號控制臺

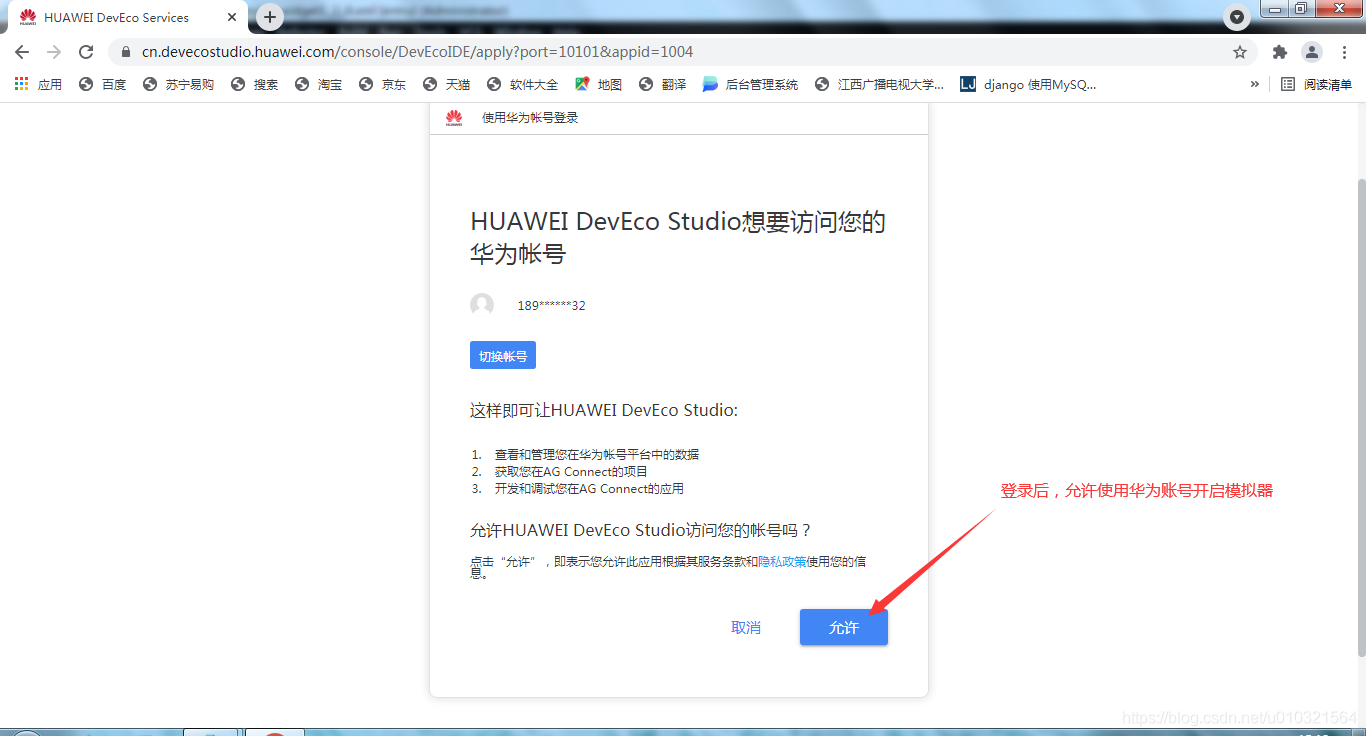

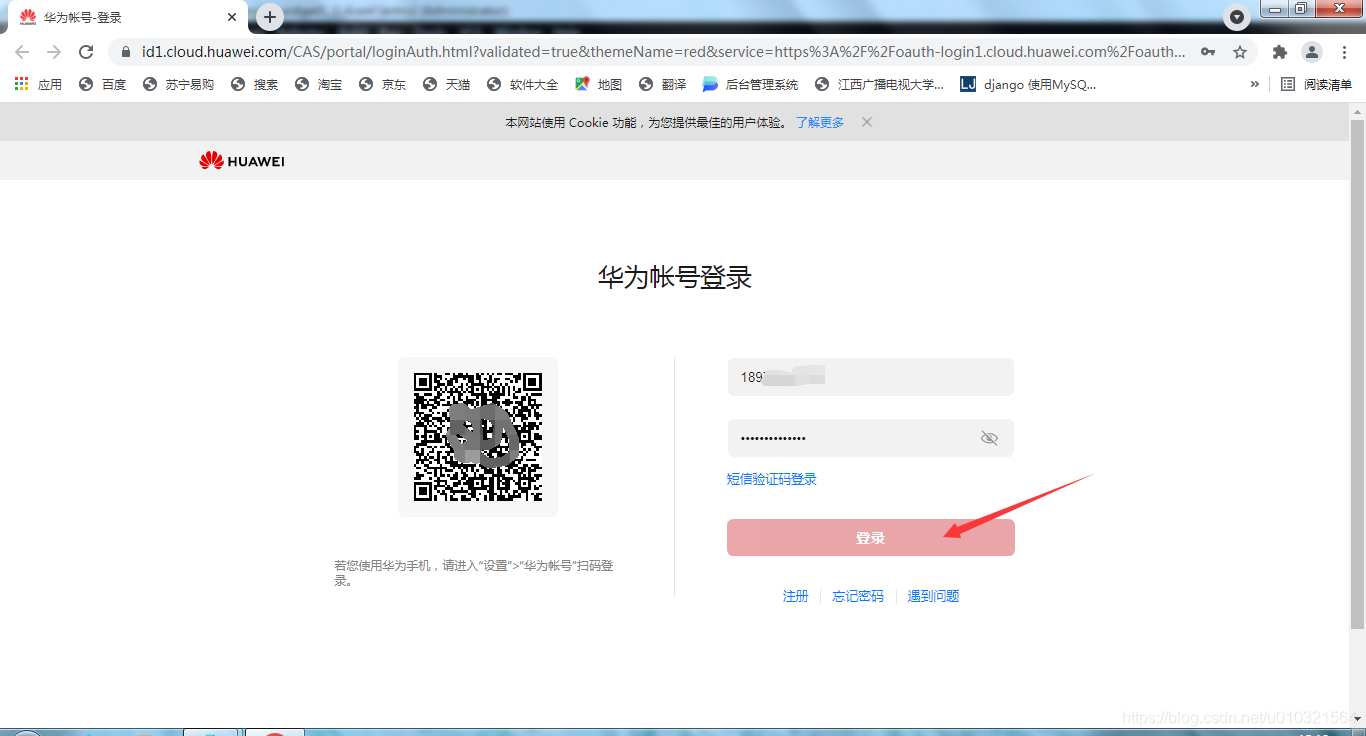

跳轉網站，進入華為官網，登錄華為賬號

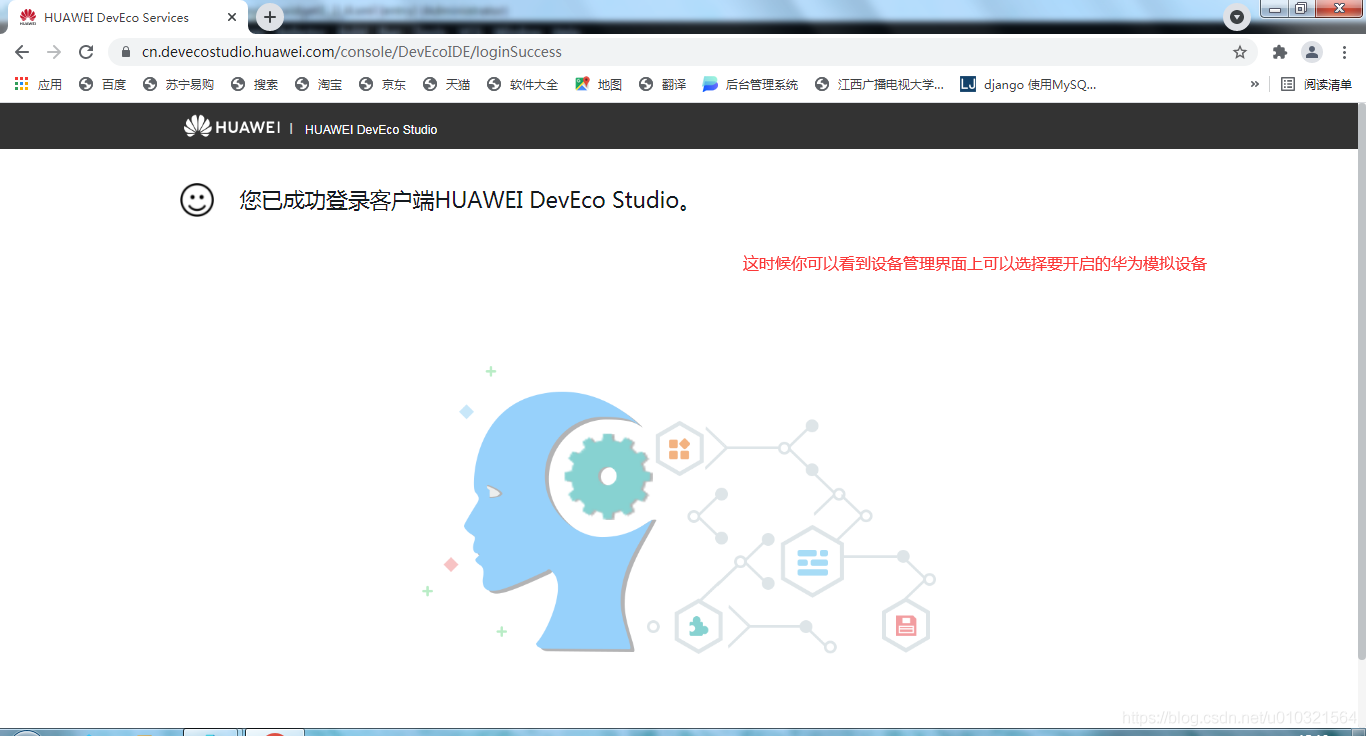

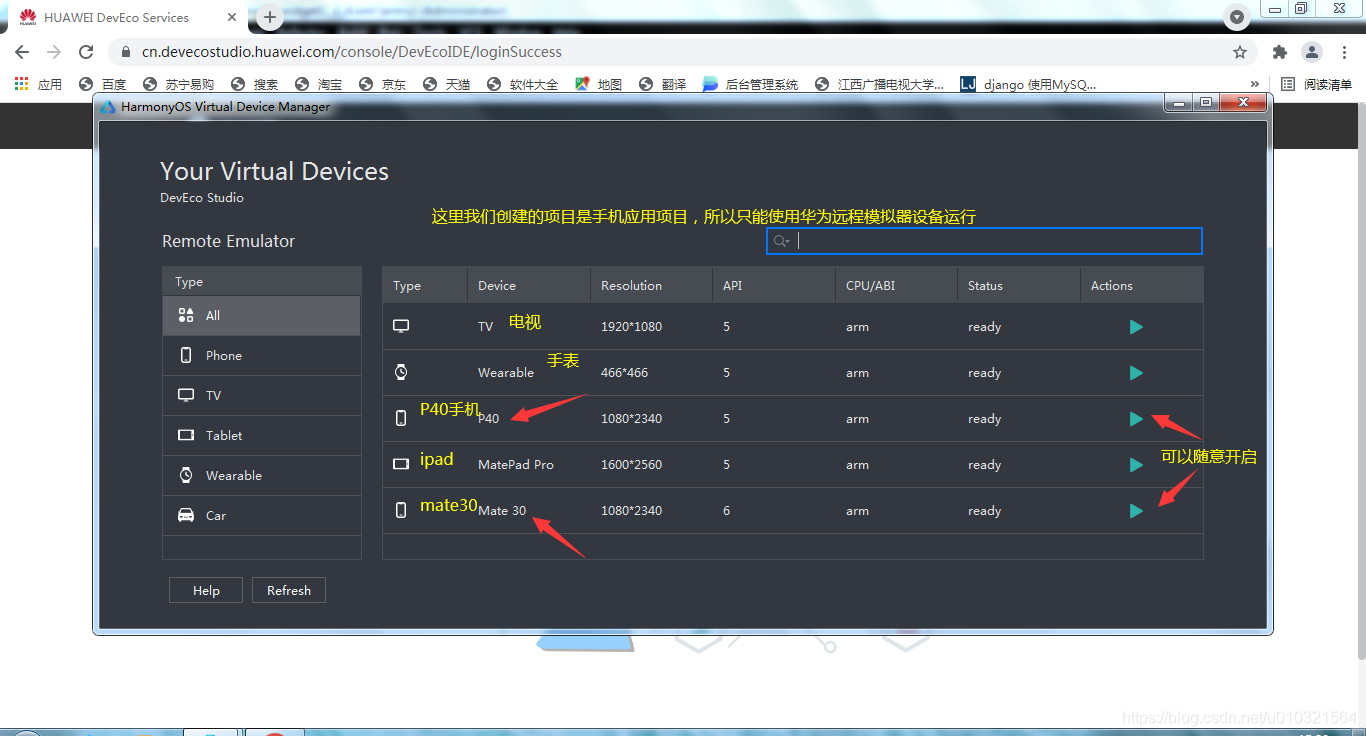

登錄成功后，DevEco Studio會展示可以使用的不同設備的遠程模擬器

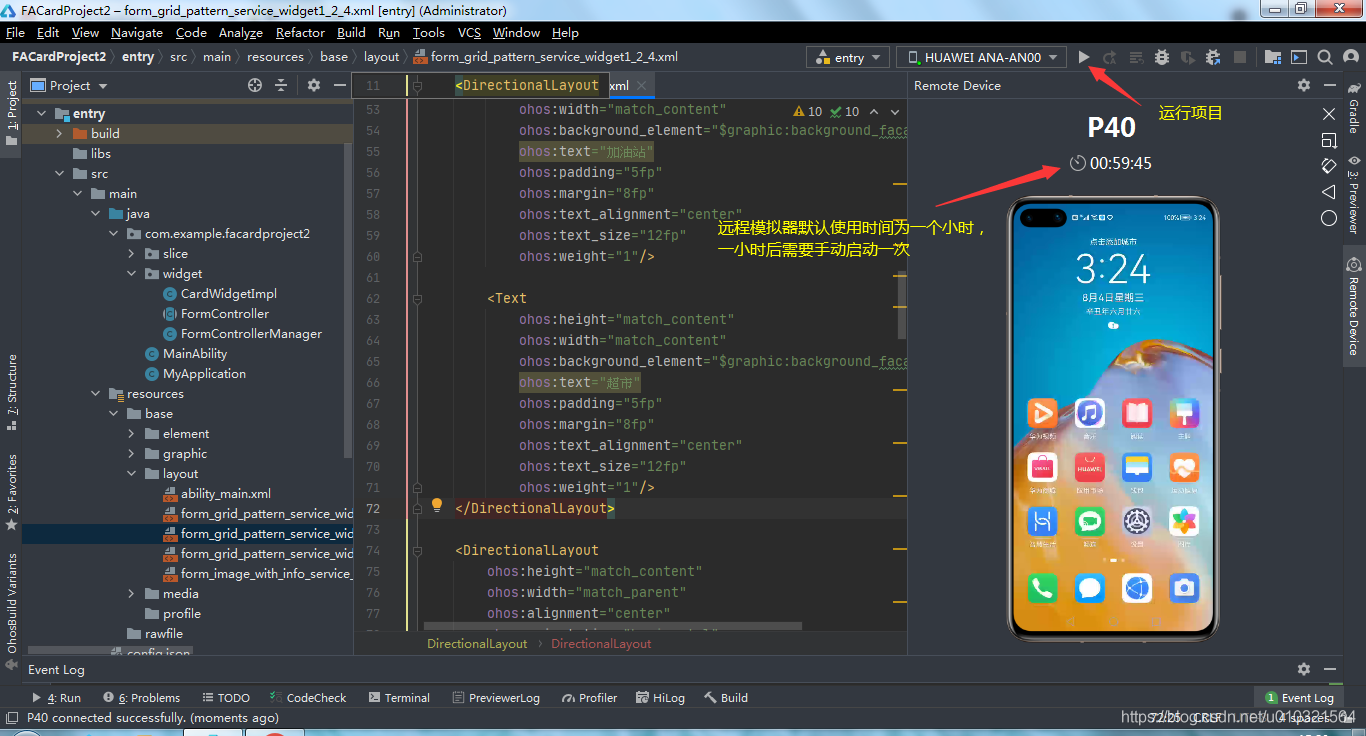

這里我選擇P40模擬器

8.運行效果

運行后，模擬器上會發現多了一個應用

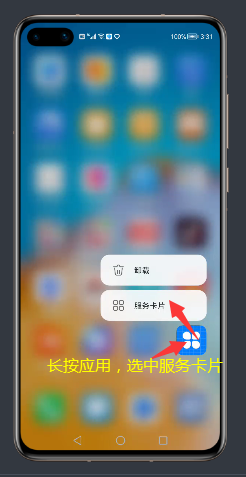

長按應用圖示，彈出“服務卡片”選項

在服務卡片中，你能找到“音樂卡片”和“運動出行卡片”

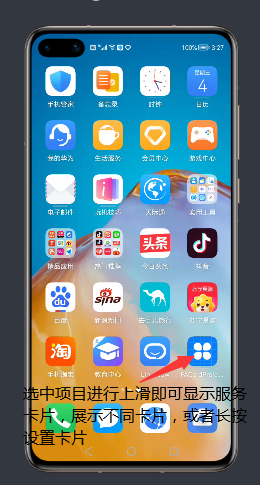

可以將喜歡的卡片設定為默認卡片，設定為默認的卡片，可以在點擊應用圖示上滑顯示

點擊右上角可以將該卡片添加在桌面上，作為進入應用的快捷方式

本文到這里就結束了，希望對大家學習服務卡片功能提供幫助，

需要代碼案例的請在這里下載

[本文正在參與“有獎征文| HarmonyOS征文大賽”活動]
