七夕節快到了，教你用MATLAB繪制blingbling的大鉆石

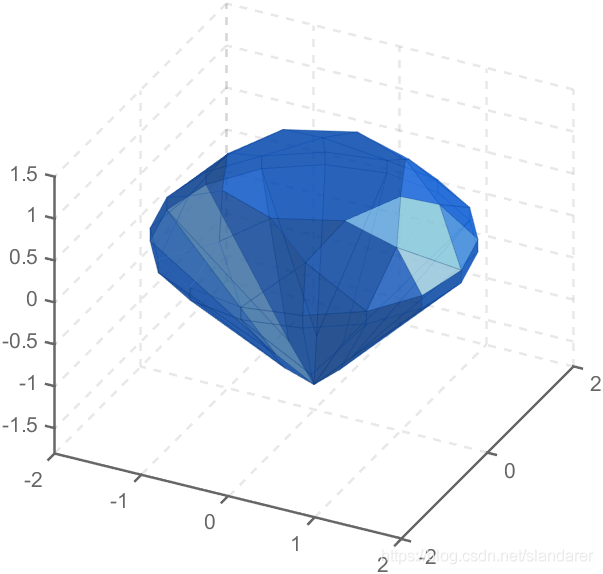

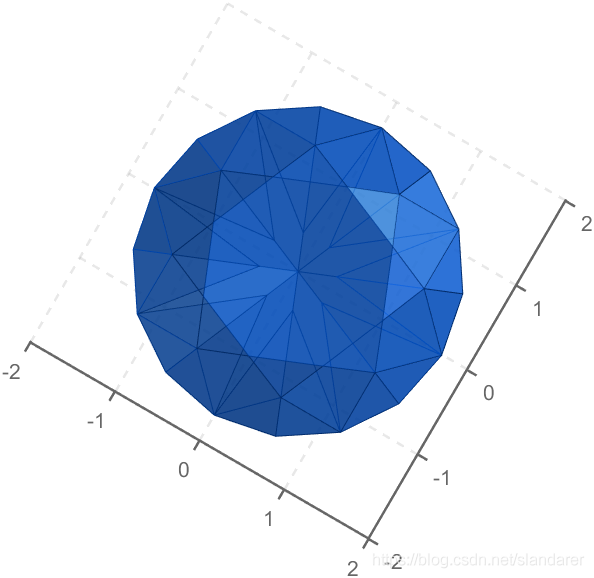

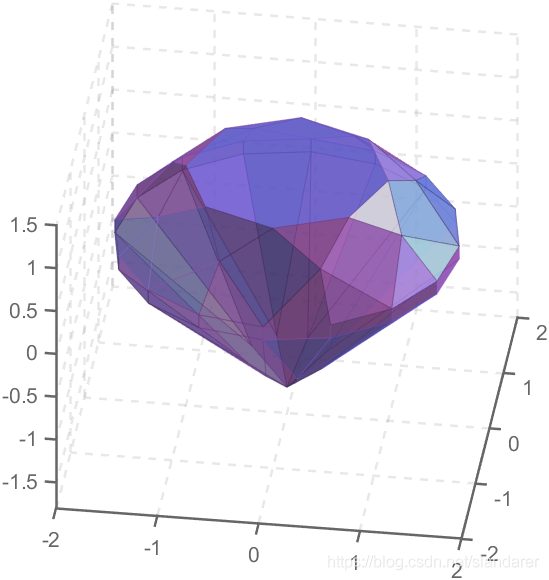

1效果

2程式說明

其實非常簡單，只需要計算出各個頂點位置，并用fill3繪制一個個面出來即可，為了鉆石的色彩更加豐富，我們用light函式設定了光照并為fill3創建出的PATCH物件設定了以下屬性，

• FaceAlpha 面透明度
• EdgeAlpha 邊透明度
• FaceLighting 面照亮方式(是整個面相同顏色還是通過插值不同位置不同顏色)
• EdgeLighting 邊照亮方式(與面照亮方式類似)
• SpecularStrength 鏡面反射的強度
• DiffuseStrength 散射光的強度
• AmbientStrength 環境光的強度

其中：
若將PATCH屬性由：

faceColor=[0 71 177];
facePara={faceColor./255,'FaceAlpha',0.6,'EdgeColor',faceColor./255.*0.8,'EdgeAlpha',0.3,...
      'FaceLighting','gouraud','EdgeLighting','gouraud',...
      'SpecularStrength',0.9,'DiffuseStrength',0.7,'AmbientStrength',0.7};  % 面引數

改為：

faceColor=[237 64 153];
facePara={faceColor./255,'FaceAlpha',0.4,'EdgeColor',faceColor./255.*0.8,'EdgeAlpha',0.2,...
      'FaceLighting','gouraud','EdgeLighting','gouraud',...
      'SpecularStrength',0.9,'DiffuseStrength',0.7,'AmbientStrength',0.6}; % 面引數

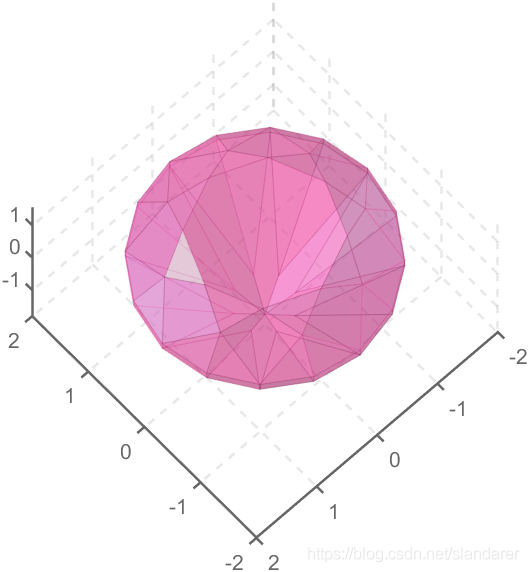

則鉆石變成這個樣子：

另：

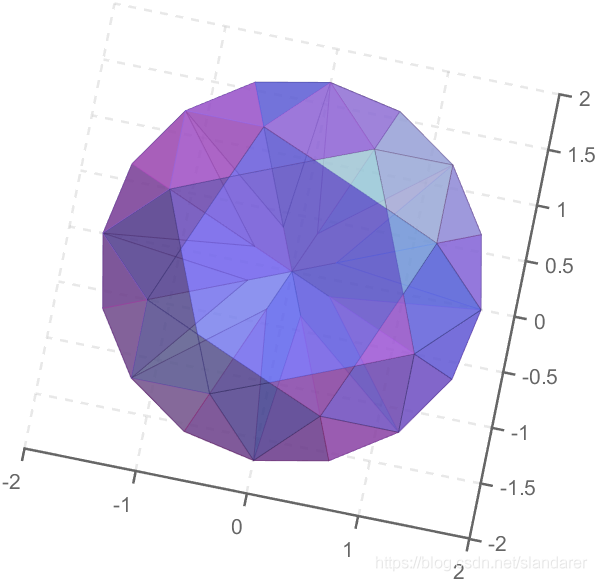

大家可以猜猜下面這個鉆石是咋畫的：

3完整代碼

function diamond
hold on
ax=gca;
axis equal
grid on
ax.GridLineStyle='--';
ax.LineWidth=1.2;
ax.XLim=[-2,2];
ax.YLim=[-2,2];
ax.ZLim=[-1.8,1.5];
ax.XColor=[1,1,1].*0.4;
ax.YColor=[1,1,1].*0.4;
ax.ZColor=[1,1,1].*0.4;
ax.DataAspectRatio=[1,1,1];
ax.DataAspectRatioMode='manual';
ax.CameraPosition=[-67.6287 -204.5276   82.7879];

light('Position',[5,6,5])

thetaSet8=linspace(0,2*pi-pi/4,8)';
thetaSet16=linspace(0,2*pi-pi/8,16)';

faceColor=[0 71 177];
facePara={faceColor./255,'FaceAlpha',0.6,'EdgeColor',faceColor./255.*0.8,'EdgeAlpha',0.3,...
      'FaceLighting','gouraud','EdgeLighting','gouraud',...
      'SpecularStrength',0.9,'DiffuseStrength',0.7,'AmbientStrength',0.7};  % 面引數

% faceColor=[237 64 153];
% facePara={faceColor./255,'FaceAlpha',0.4,'EdgeColor',faceColor./255.*0.8,'EdgeAlpha',0.2,...
%       'FaceLighting','gouraud','EdgeLighting','gouraud',...
%       'SpecularStrength',0.9,'DiffuseStrength',0.7,'AmbientStrength',0.6}; % 面引數

% 繪制最上方八邊形
pntSet1=[cos(thetaSet8),sin(thetaSet8),ones(8,1)];
fill3(pntSet1(:,1),pntSet1(:,2),pntSet1(:,3),facePara{:})

% 一圈8個三角形
pntSet2=[cos(thetaSet8+pi/8).*1.3,sin(thetaSet8+pi/8).*1.3,ones(8,1).*0.7];
for i=1:8
    p1=i;
    p2=mod(i,8)+1;
    p3=i;
    fill3([pntSet1([p1,p2],1);pntSet2(p3,1)],...
          [pntSet1([p1,p2],2);pntSet2(p3,2)],...
          [pntSet1([p1,p2],3);pntSet2(p3,3)],facePara{:})
end

% 一圈8個四邊形
pntSet3=[cos(thetaSet8).*1.7,sin(thetaSet8).*1.7,ones(8,1).*0.3];
for i=1:8
    p1=mod(i,8)+1;
    p2=i;
    p3=p1;
    p4=p1;
    fill3([pntSet1(p1,1);pntSet2(p2,1);pntSet3(p3,1);pntSet2(p4,1)],...
          [pntSet1(p1,2);pntSet2(p2,2);pntSet3(p3,2);pntSet2(p4,2)],...
          [pntSet1(p1,3);pntSet2(p2,3);pntSet3(p3,3);pntSet2(p4,3)],facePara{:})
end

% 一圈16個三角形
pntSet4=[cos(thetaSet16).*1.7,sin(thetaSet16).*1.7,ones(16,1).*0.3];
for i=1:8
    p1=i;
    p2=2*i-1;
    p3=2*i;
    fill3([pntSet2(p1,1);pntSet4([p2,p3],1)],...
          [pntSet2(p1,2);pntSet4([p2,p3],2)],...
          [pntSet2(p1,3);pntSet4([p2,p3],3)],facePara{:})
    p2=2*i;
    p3=mod(2*i,16)+1;
    fill3([pntSet2(p1,1);pntSet4([p2,p3],1)],...
          [pntSet2(p1,2);pntSet4([p2,p3],2)],...
          [pntSet2(p1,3);pntSet4([p2,p3],3)],facePara{:})
end

% 一圈16個四邊角形
pntSet5=[cos(thetaSet16).*1.7,sin(thetaSet16).*1.7,ones(16,1).*0.15];
for i=1:16
    p1=i;p2=mod(i,16)+1;
    p3=mod(i,16)+1;p4=i;
    fill3([pntSet4(p1,1);pntSet4(p2,1);pntSet5(p3,1);pntSet5(p4,1)],...
          [pntSet4(p1,2);pntSet4(p2,2);pntSet5(p3,2);pntSet5(p4,2)],...
          [pntSet4(p1,3);pntSet4(p2,3);pntSet5(p3,3);pntSet5(p4,3)],facePara{:})
end
pntSet6=[cos(thetaSet8+pi/8).*0.4,sin(thetaSet8+pi/8).*0.4,ones(8,1).*(-1.15)];

% 一圈16個長三角形
for i=1:8
    p1=i;
    p2=2*i-1;
    p3=2*i;
    fill3([pntSet6(p1,1);pntSet5([p2,p3],1)],...
          [pntSet6(p1,2);pntSet5([p2,p3],2)],...
          [pntSet6(p1,3);pntSet5([p2,p3],3)],facePara{:})
    p2=2*i;
    p3=mod(2*i,16)+1;
    fill3([pntSet6(p1,1);pntSet5([p2,p3],1)],...
          [pntSet6(p1,2);pntSet5([p2,p3],2)],...
          [pntSet6(p1,3);pntSet5([p2,p3],3)],facePara{:})
end

% 一圈8個長四邊形
pntSet7=[cos(thetaSet8).*1.7,sin(thetaSet8).*1.7,ones(8,1).*0.15];
for i=1:8
    p1=mod(i,8)+1;
    p2=i;
    p4=mod(i,8)+1;
    fill3([pntSet7(p1,1);pntSet6(p2,1);0;pntSet6(p4,1)],...
          [pntSet7(p1,2);pntSet6(p2,2);0;pntSet6(p4,2)],...
          [pntSet7(p1,3);pntSet6(p2,3);-1.5;pntSet6(p4,3)],facePara{:})

end
end

4其他過節可能會用到的程式

↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
！！！！點擊圖片跳轉連接！！！！
↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑

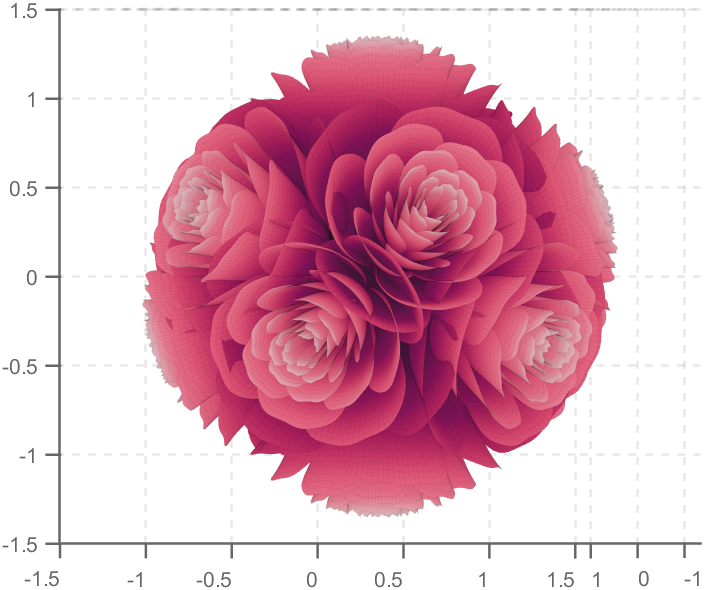

4.1玫瑰花球

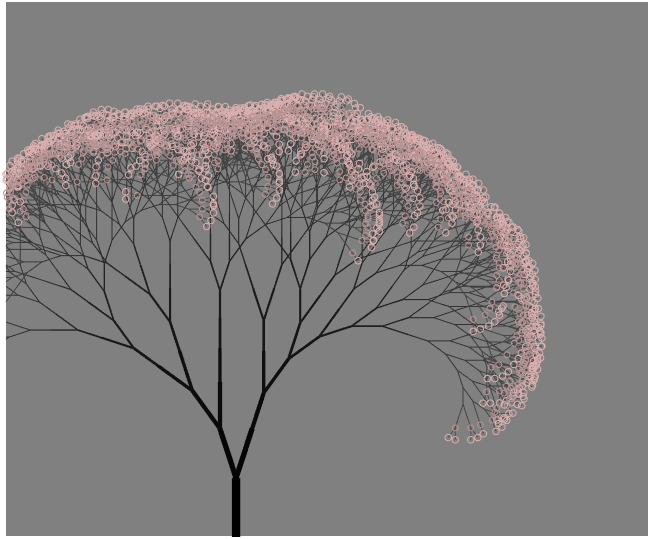

4.2櫻花樹

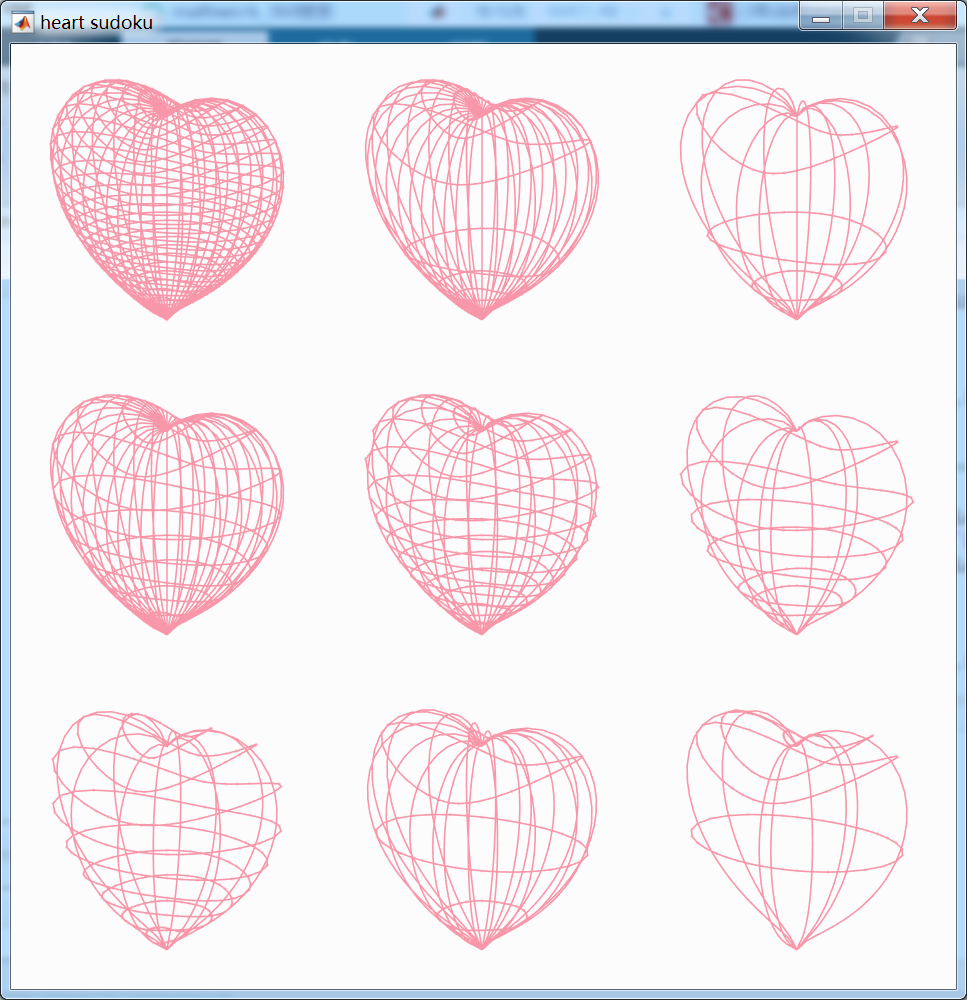

4.3立體愛心九宮格

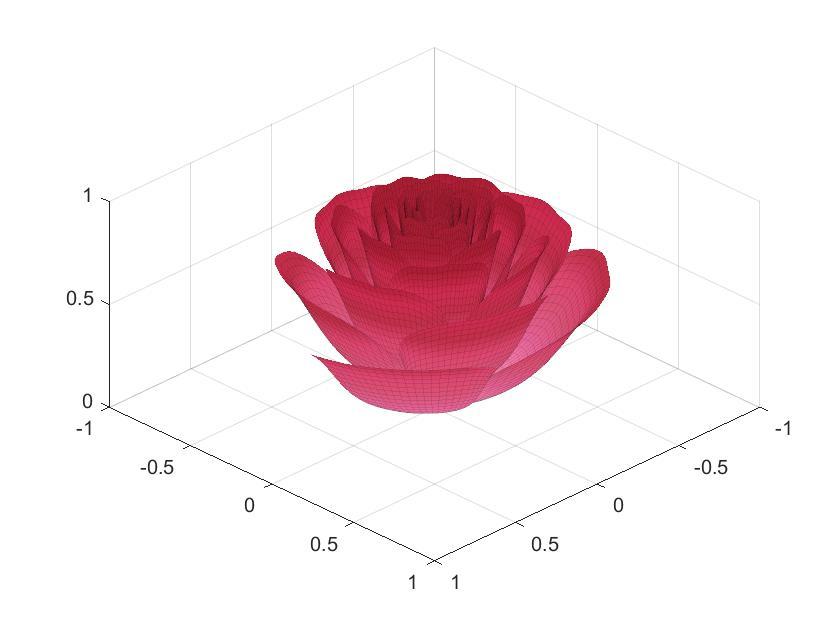

4.4立體玫瑰花

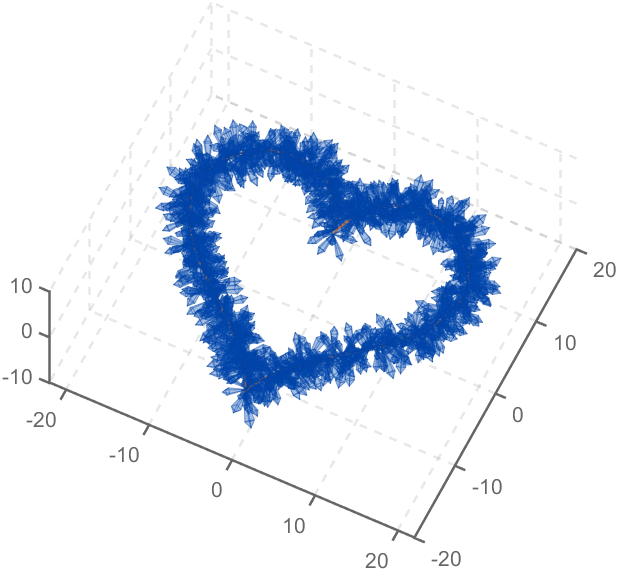

4.5水晶愛心

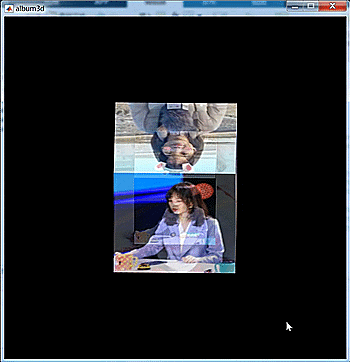

4.6兩款相冊
