ELK收集Nginx訪問日志實戰案例-有解無憂

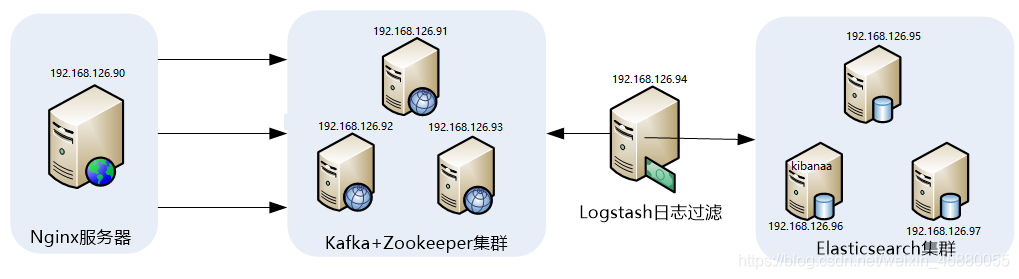

ELK收集Nginx訪問日志應用架構

在這里插入圖片描述

Nginx的日志格式與日志變數

Nginx跟Apache一樣，都支持自定義輸出日志格式，在進行Nginx日志格式定義前，有必要先了解一下關于多層代理獲取用戶真實IP的幾個概念，

remote_addr：表示客戶端地址，但有個條件，如果沒有使用代理，這個地址就是客戶端的真實IP，如果使用了代理，這個地址就是上層代理的IP，相當于apache日志變數%a
X-Forwarded-For：簡稱XFF，這是一個HTTP擴展頭，格式為 X-Forwarded-For: client, proxy1, proxy2，如果一個HTTP請求到達服務器之前，經過了三個代理 Proxy1、Proxy2、Proxy3，IP 分別為 IP1、IP2、IP3，用戶真實IP為 IP0，那么按照 XFF標準，服務端最侄訓收到以下資訊：X-Forwarded-For: IP0, IP1, IP2

由此可知，IP3這個地址X-Forwarded-For并沒有獲取到，而remote_addr剛好獲取的就是IP3的地址，

還要幾個容易混淆的變數，這里也列出來做下說明：

$remote_addr ：此變數如果走代理訪問，那么將獲取上層代理的IP，如果不走代理，那么就是客戶端真實IP地址，相當于apache日志中的%a
$http_x_forwarded_for：此變數獲取的就是X-Forwarded-For的值，
$proxy_add_x_forwarded_for：此變數是$http_x_forwarded_for和$remote_addr兩個變數之和，

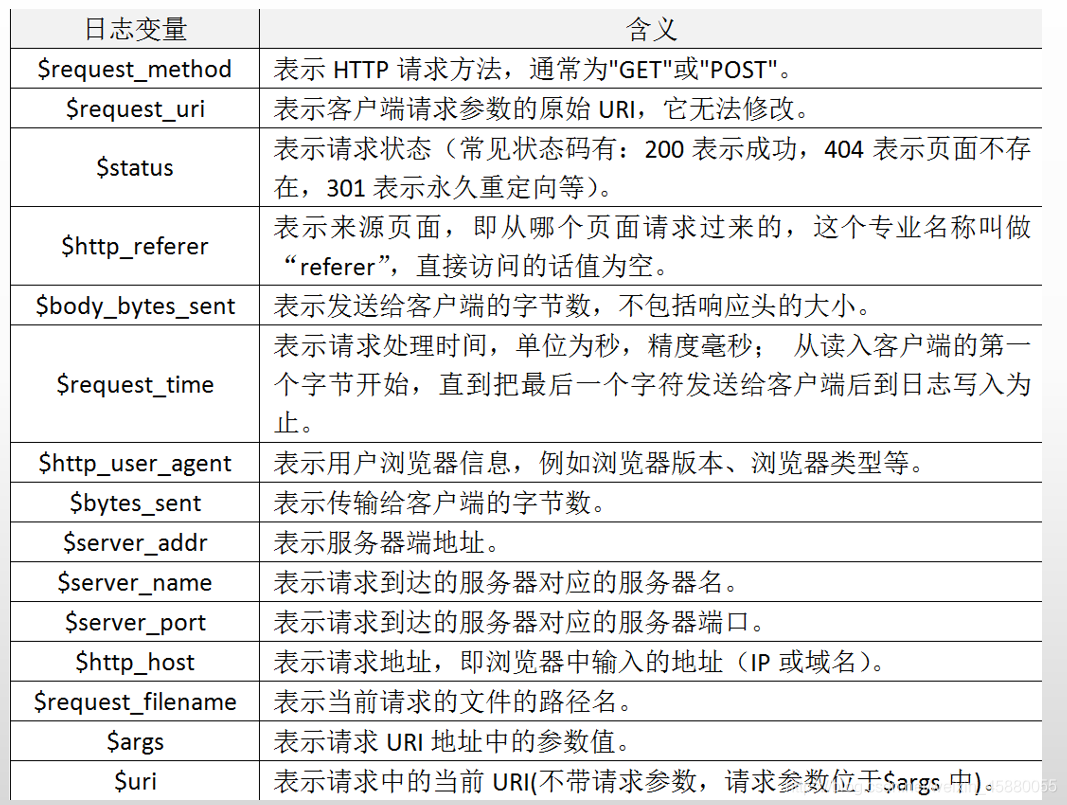

在這里插入圖片描述系統默認定義和參考的日志格式為main：

[root@filebeatserver nginx]# grep -A 4 'log_format' /etc/nginx/nginx.conf
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

自定義Nginx日志格式

在掌握了Nginx日志變數的含義后，接著開始對它輸出的日志格式進行改造，這里我們仍將Nginx日志輸出設定為json格式，下面僅列出Nginx組態檔nginx.conf中日志格式和日志檔案定義部分，定義好的日志格式與日志檔案如下：

    map $http_x_forwarded_for $clientRealIp {	# 定義日志變數clientRealIp
        "" $remote_addr;						# 當$http_x_forwarded_for變數為空時，將$remote_addr變數的值賦值給$clientRealIp變數
        ~^(?P<firstAddr>[0-9\.]+),?.*$ $firstAddr;	# 當$http_x_forwarded_for變數非空時，使用正則運算式取出$http_x_forwarded_for變數中的第一個IP值并賦值給$firstAddr變數，最后$firstAddr變數的值再賦值給$clientRealIp變數
    }		# 所以map指令整段配置就是要獲取到真正的客戶端IP地址并將其賦值給$clientRealIp變數，$clientRealIp變數會在下面定義日志格式時參考

# 以下為自定義nginx日志格式
[root@filebeatserver ~]# vim /etc/nginx/nginx.conf
    log_format nginx_log_json '{"accessip_list":"$proxy_add_x_forwarded_for","client_ip":"$clientRealIp","http_host":"$host","@timestamp":"$time_iso8601","method":"$request_method","url":"$request_uri","status":"$status","http_referer":"$http_referer","body_bytes_sent":"$body_bytes_sent","request_time":"$request_time","http_user_agent":"$http_user_agent","total_bytes_sent":"$bytes_sent","server_ip":"$server_addr"}';

    access_log  /var/log/nginx/access.log  nginx_log_json;

驗證日志輸出

[root@filebeatserver ~]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@filebeatserver ~]# systemctl restart nginx
[root@filebeatserver ~]# ifconfig ens32 | awk 'NR==2 {print $2}'
192.168.126.90

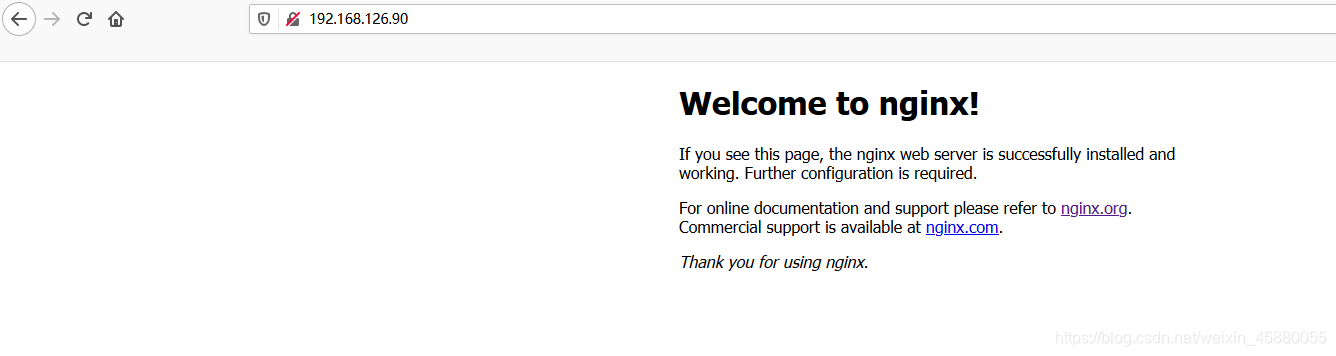

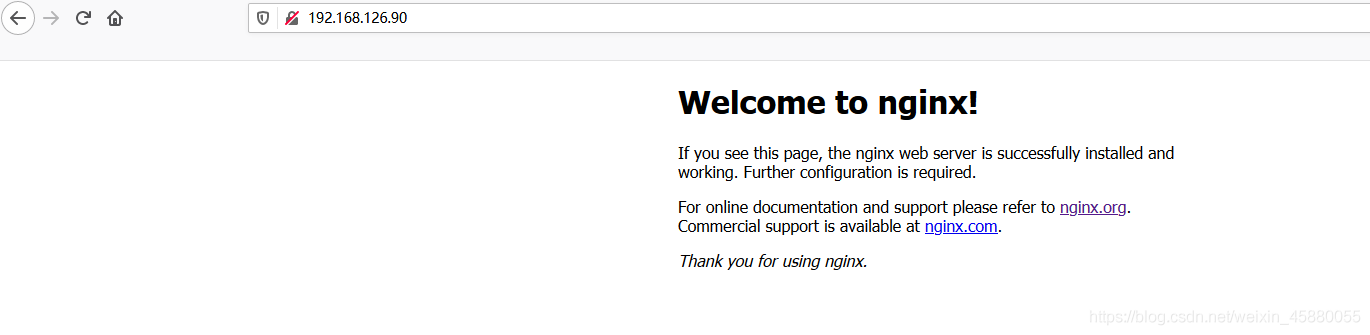

瀏覽器訪問 http://192.168.126.90
在這里插入圖片描述

查看nginx日志

[root@filebeatserver ~]# tailf /var/log/nginx/access.log
{"accessip_list":"192.168.126.1","client_ip":"192.168.126.1","http_host":"192.168.126.90","@timestamp":"2021-08-14T22:54:46+08:00","method":"GET","url":"/","status":"200","http_referer":"-","body_bytes_sent":"612","request_time":"0.000","http_user_agent":"Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:78.0) Gecko/20100101 Firefox/78.0","total_bytes_sent":"850","server_ip":"192.168.126.90"}
{"accessip_list":"192.168.126.1","client_ip":"192.168.126.1","http_host":"192.168.126.90","@timestamp":"2021-08-14T22:54:46+08:00","method":"GET","url":"/favicon.ico","status":"404","http_referer":"-","body_bytes_sent":"153","request_time":"0.000","http_user_agent":"Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:78.0) Gecko/20100101 Firefox/78.0","total_bytes_sent":"308","server_ip":"192.168.126.90"}

為nginx服務器設定一層反向代理

[root@kafkazk1 ~]# ifconfig ens32 | awk 'NR==2 {print $2}'
192.168.126.91
[root@kafkazk1 ~]# vim /etc/httpd/conf/httpd.conf
ProxyPass / http://192.168.126.90
ProxyPassReverse / http://192.168.126.90/
[root@kafkazk1 ~]# systemctl restart httpd

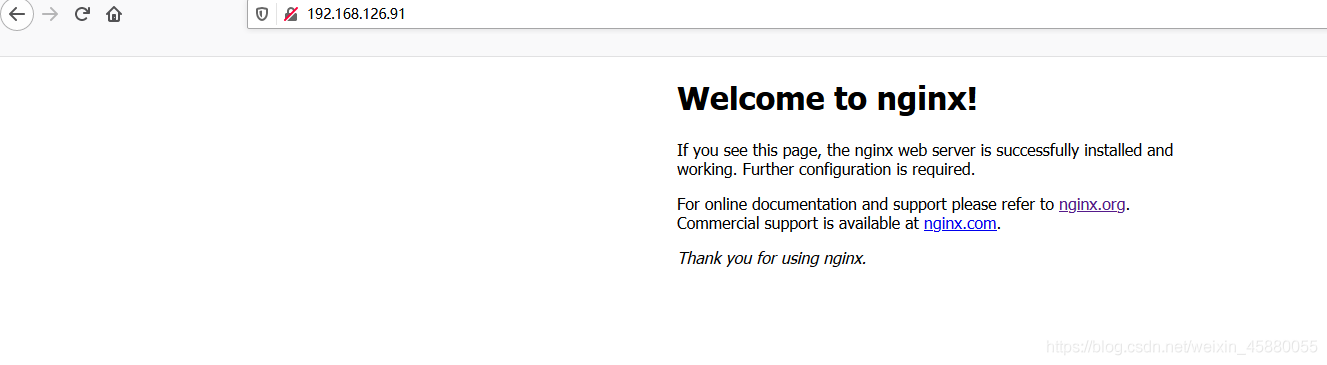

瀏覽器訪問 http://192.168.126.91

在這里插入圖片描述查看nginx日志

[root@filebeatserver ~]# tailf /var/log/nginx/access.log
{"accessip_list":"192.168.126.1, 192.168.126.91","client_ip":"192.168.126.1","http_host":"192.168.126.90","@timestamp":"2021-08-14T23:02:48+08:00","method":"GET","url":"/","status":"200","http_referer":"-","body_bytes_sent":"612","request_time":"0.000","http_user_agent":"Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:78.0) Gecko/20100101 Firefox/78.0","total_bytes_sent":"850","server_ip":"192.168.126.90"}
# 可以看到此時"accessip_list"欄位是兩個IP，第一個是客戶端真實IP，第二個是代理IP；"client_ip"欄位為真實客戶端IP

在一層的基礎上設定二層反向代理

[root@kafkazk2 ~]# ifconfig ens32 | awk 'NR==2 {print $2}'
192.168.126.92
[root@kafkazk2 ~]# vim /etc/httpd/conf/httpd.conf
ProxyPass / http://192.168.126.91
ProxyPassReverse / http://192.168.126.91/
[root@kafkazk2 ~]# systemctl restart httpd

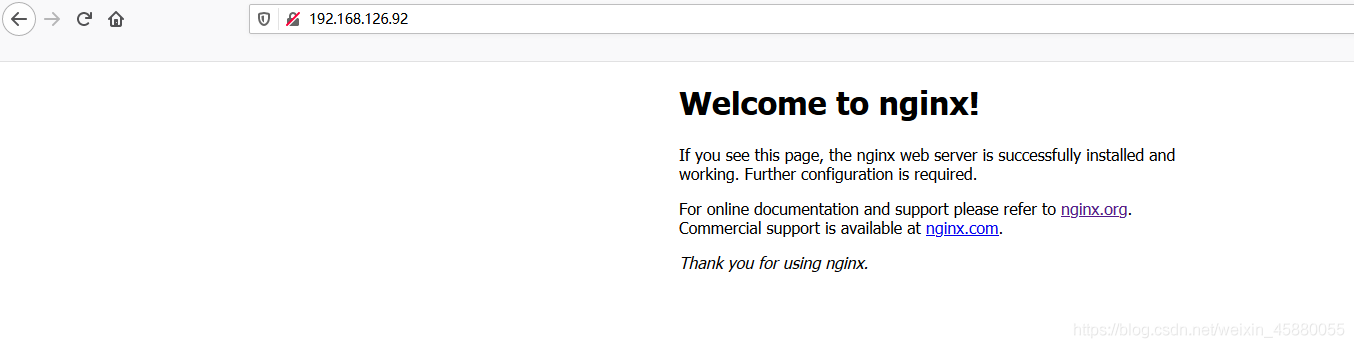

瀏覽器訪問 http://192.168.126.92
在這里插入圖片描述
查看nginx日志

[root@filebeatserver ~]# tailf /var/log/nginx/access.log
{"accessip_list":"192.168.126.1, 192.168.126.92, 192.168.126.91","client_ip":"192.168.126.1","http_host":"192.168.126.90","@timestamp":"2021-08-14T23:08:11+08:00","method":"GET","url":"/","status":"200","http_referer":"-","body_bytes_sent":"612","request_time":"0.000","http_user_agent":"Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:78.0) Gecko/20100101 Firefox/78.0","total_bytes_sent":"850","server_ip":"192.168.126.90"}
# 可以看到此時"accessip_list"欄位是三個IP，第一個是客戶端真實IP，第一個IP是第一層代理IP，第二個IP是第二層代理IP；"client_ip"欄位為真實客戶端IP

在這個輸出中，可以看到，client_ip和accessip_list輸出的異同，client_ip欄位輸出的就是真實的客戶端IP地址，而accessip_list輸出是代理疊加而成的IP串列，第一條日志，是直接訪問http://192.168.126.90不經過任何代理得到的輸出日志，第二條日志，是經過一層代理訪問http://192.168.126.91 而輸出的日志，第三條日志，是經過二層代理訪問http://192.168.126.92得到的日志輸出，

Nginx中獲取客戶端真實IP的方法很簡單，無需做特殊處理，這也給后面撰寫logstash的事件組態檔減少了很多作業量，

配置filebeat

filebeat是安裝在Nginx服務器上的，這里給出配置好的filebeat.yml檔案的內容：

[root@filebeatserver filebeat]# vim /usr/local/filebeat/filebeat.yml
filebeat.inputs:
- type: log
  enabled: true
  paths:
    - /var/log/nginx/access.log
  fields:
    log_topic: nginxlogs
name: "192.168.126.90"
output.kafka:
  enabled: true
  hosts: ["192.168.126.91:9092", "192.168.126.92:9092", "192.168.126.93:9092"]
  version: "0.10"
  topic: '%{[fields][log_topic]}'
  partition.round_robin:
    reachable_only: true
  worker: 2
  required_acks: 1
  compression: gzip
  max_message_bytes: 10000000
logging.level: debug

# 啟動
[root@filebeatserver filebeat]# nohup /usr/local/filebeat/filebeat -e -c /usr/local/filebeat/filebeat.yml &
[1] 1056
 nohup: ignoring input and appending output to ‘nohup.out’

啟動kafka+zookeeper集群

/usr/local/zookeeper/bin/zkServer.sh start
nohup /usr/local/kafka/bin/kafka-server-start.sh /usr/local/kafka/config/server.properties &

瀏覽器訪問nginx
在這里插入圖片描述

查看nginx訪問日志

[root@filebeatserver filebeat]# tailf /var/log/nginx/access.log
{"accessip_list":"192.168.126.1","client_ip":"192.168.126.1","http_host":"192.168.126.90","@timestamp":"2021-08-15T15:10:23+08:00","method":"GET","url":"/","status":"304","http_referer":"-","body_bytes_sent":"0","request_time":"0.000","http_user_agent":"Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:78.0) Gecko/20100101 Firefox/78.0","total_bytes_sent":"180","server_ip":"192.168.126.90"}

同時驗證filebeat采集日志資料

2021-08-15T15:10:32.294+0800	DEBUG	[publish]	pipeline/processor.go:308	Publish event: {
  "@timestamp": "2021-08-15T07:10:32.292Z",
  "@metadata": {
    "beat": "filebeat",
    "type": "doc",
    "version": "6.5.4"
  },
  "offset": 2007,
  "message": "{\"accessip_list\":\"192.168.126.1\",\"client_ip\":\"192.168.126.1\",\"http_host\":\"192.168.126.90\",\"@timestamp\":\"2021-08-15T15:10:23+08:00\",\"method\":\"GET\",\"url\":\"/\",\"status\":\"304\",\"http_referer\":\"-\",\"body_bytes_sent\":\"0\",\"request_time\":\"0.000\",\"http_user_agent\":\"Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:78.0) Gecko/20100101 Firefox/78.0\",\"total_bytes_sent\":\"180\",\"server_ip\":\"192.168.126.90\"}",
  "fields": {
    "log_topic": "nginxlogs"
  },
  "prospector": {
    "type": "log"
  },
  "input": {
    "type": "log"
  },
  "beat": {
    "name": "192.168.126.90",
    "hostname": "filebeatserver",
    "version": "6.5.4"
  },
  "host": {
    "name": "192.168.126.90"
  },
  "source": "/var/log/nginx/access.log"
}

驗證kafka集群是否能消費到

[root@kafkazk1 ~]# /usr/local/kafka/bin/kafka-console-consumer.sh --zookeeper 192.168.126.91:2181,192.168.126.92:2181,192.168.126.93:2181 --topic nginxlogs
{"@timestamp":"2021-08-15T07:10:32.292Z","@metadata":{"beat":"filebeat","type":"doc","version":"6.5.4","topic":"nginxlogs"},"prospector":{"type":"log"},"input":{"type":"log"},"beat":{"name":"192.168.126.90","hostname":"filebeatserver","version":"6.5.4"},"host":{"name":"192.168.126.90"},"source":"/var/log/nginx/access.log","offset":2007,"message":"{\"accessip_list\":\"192.168.126.1\",\"client_ip\":\"192.168.126.1\",\"http_host\":\"192.168.126.90\",\"@timestamp\":\"2021-08-15T15:10:23+08:00\",\"method\":\"GET\",\"url\":\"/\",\"status\":\"304\",\"http_referer\":\"-\",\"body_bytes_sent\":\"0\",\"request_time\":\"0.000\",\"http_user_agent\":\"Mozilla/5.0 (Windows NT 6.1; Win64; x64; rv:78.0) Gecko/20100101 Firefox/78.0\",\"total_bytes_sent\":\"180\",\"server_ip\":\"192.168.126.90\"}","fields":{"log_topic":"nginxlogs"}}

均能正確收集到日志資訊

配置logstash

由于在Nginx輸出日志中已經定義好了日志格式，因此在logstash中就不需要對日志進行過濾和分析操作了，下面直接給出logstash事件組態檔kafka_nginx_into_es.conf的內容：

[root@logstashserver ~]# vim /usr/local/logstash/config/kafka_nginx_into_es.conf
input {
    kafka {
        bootstrap_servers => "192.168.126.91:9092,192.168.126.92:9092,192.168.126.93:9092"
        topics => "nginxlogs"		#指定輸入源中需要從哪個topic中讀取資料，這里會自動新建一個名為nginxlogs的topic
        group_id => "logstash"
        codec => json {
           charset => "UTF-8"
        }
        add_field => { "[@metadata][myid]" => "nginxaccess-log" }   #增加一個欄位，用于標識和判斷，在output輸出中會用到，
    }
}

filter {
    if [@metadata][myid] == "nginxaccess-log" {
      mutate {
        gsub => ["message","\\x","\\\x"]  # 這里的message就是message欄位，也就是日志的內容，這個插件的作用是將message欄位內容中UTF-8單位元組編碼做替換處理，這是為了應對URL有中文出現的情況，
      }
      if ('method":"HEAD' in [message]) {    # 如果message欄位中有HEAD請求，就洗掉此條資訊，
           drop{}
      }
      json {
            source => "message"
            remove_field => "prospector"
            remove_field => "beat"
            remove_field => "source"
            remove_field => "input"
            remove_field => "offset"
            remove_field => "fields"
            remove_field => "host"
            remove_field => "@version"
            remove_field => "message"
     }
  }
}

output {
    if [@metadata][myid] == "nginxaccess-log" {
        elasticsearch {
            hosts => ["192.168.126.95:9200","192.168.126.96:9200","192.168.126.97:9200"]
            index => "logstash_nginxlogs-%{+YYYY.MM.dd}"   #指定Nginx日志在elasticsearch中索引的名稱，這個名稱會在Kibana中用到，索引的名稱推薦以logstash開頭，后面跟上索引標識和時間，
        }
    }
}

這個logstash事件組態檔非常簡單，沒對日志格式或邏輯做任何特殊處理，由于整個組態檔跟elk收集apache日志的組態檔基本相同，所有配置完成后，就可以啟動logstash了，執行如下命令：

[root@logstashserver ~]# nohup /usr/local/logstash/bin/logstash -f /usr/local/logstash/config/kafka_nginx_into_es.conf &
[1] 1084
nohup: ignoring input and appending output to ‘nohup.out’

啟動es集群

su - elasticsearch
/usr/local/elasticsearch/bin/elasticsearch -d

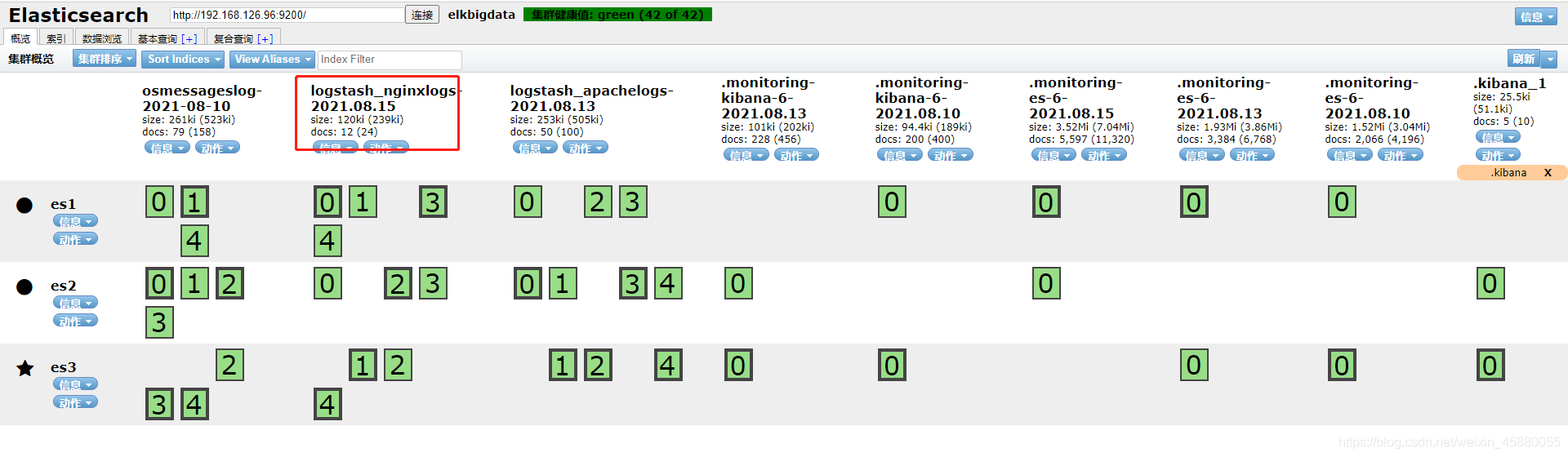

訪問nginx使其產生日志，并查看es集群是否生成對應的索引（生成索引需要一定的時間）

在這里插入圖片描述

配置Kibana

Filebeat從nginx上收集資料到kafka，然后logstash從kafka拉取資料，如果資料能夠正確發送到elasticsearch，我們就可以在Kibana中配置索引了，

[root@es2 ~]# ifconfig | awk 'NR==2 {print $2}'
192.168.126.96
# 啟動
[root@es2 ~]# nohup /usr/local/kibana/bin/kibana &
[1] 1495
nohup: ignoring input and appending output to ‘nohup.out’

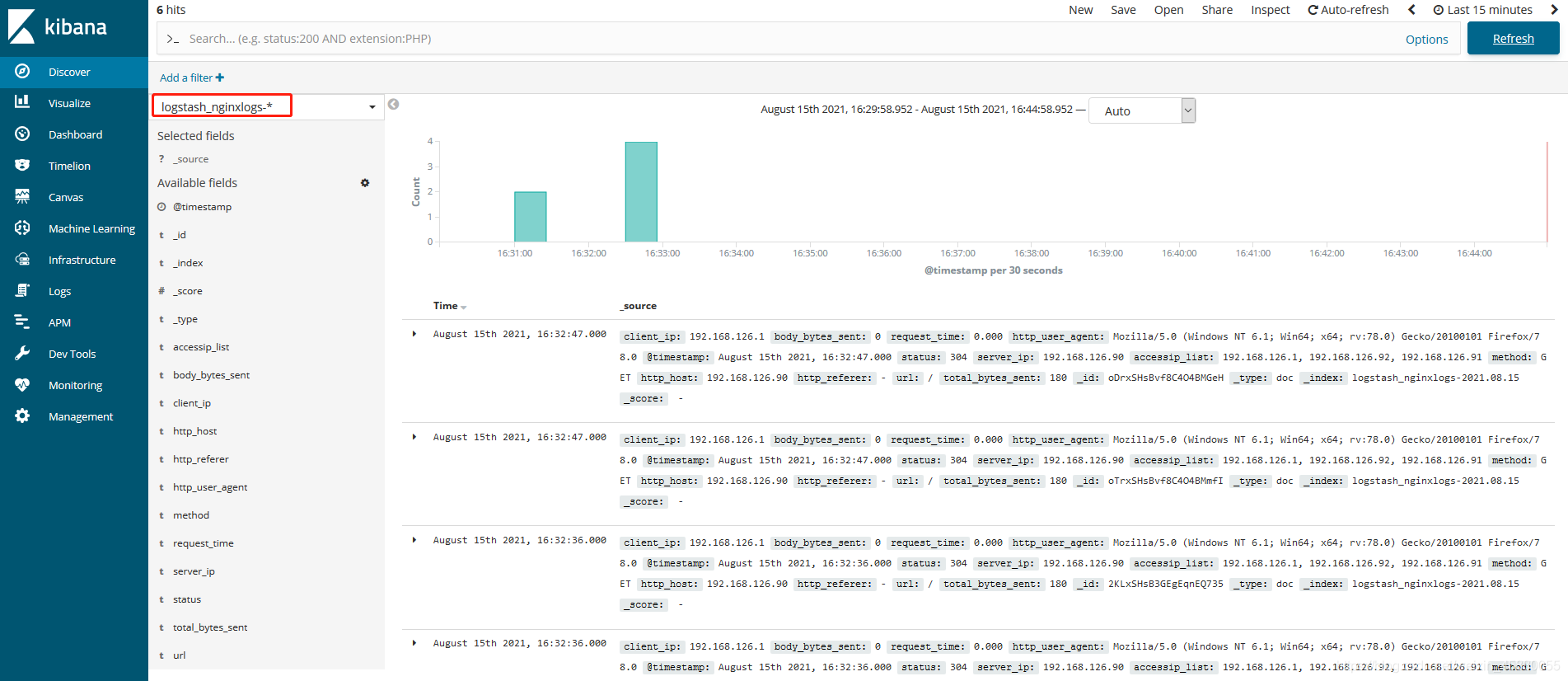

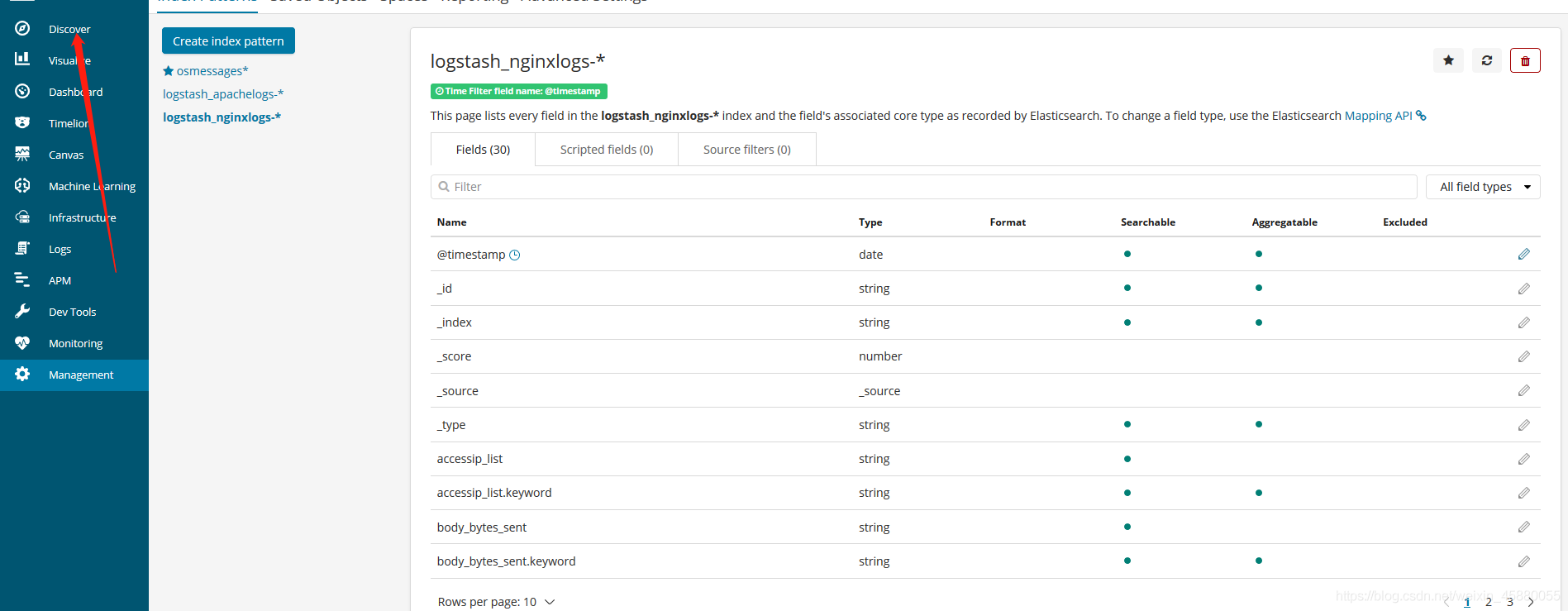

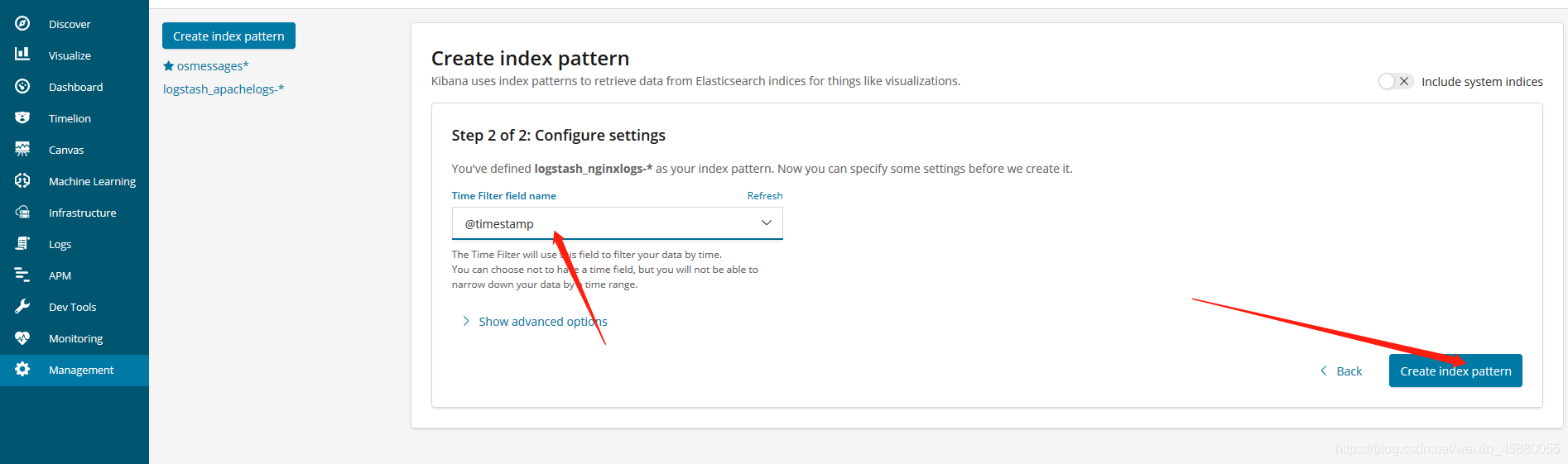

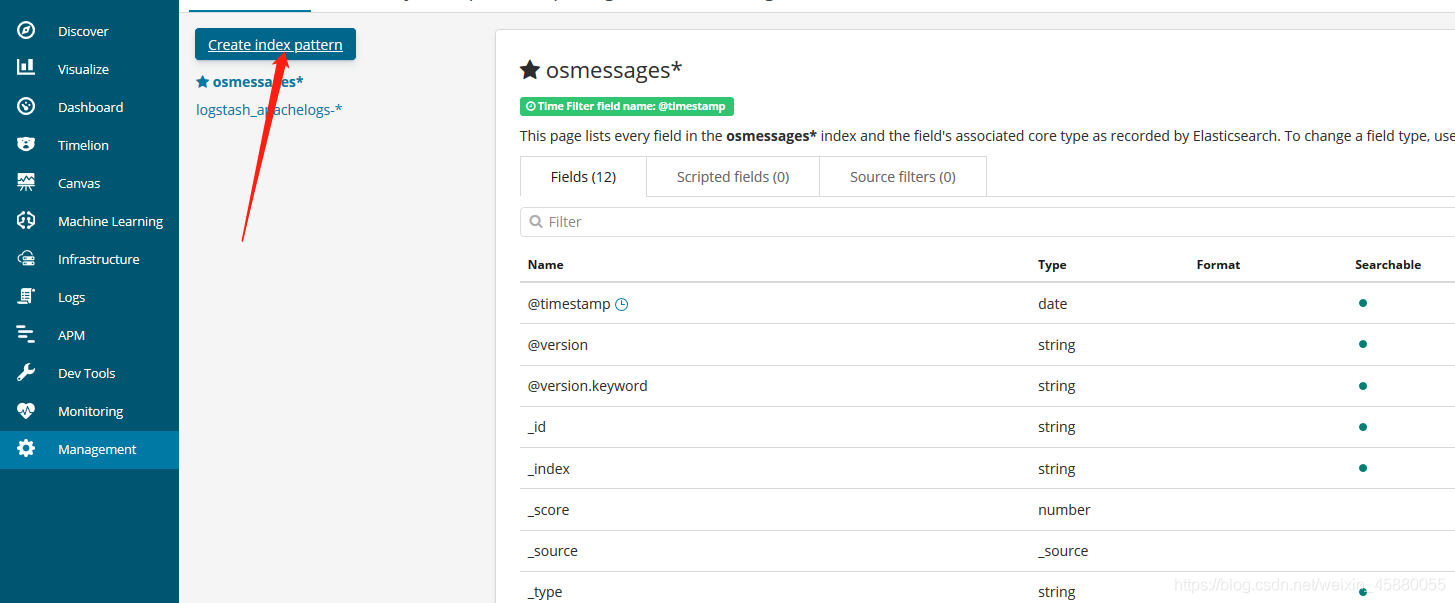

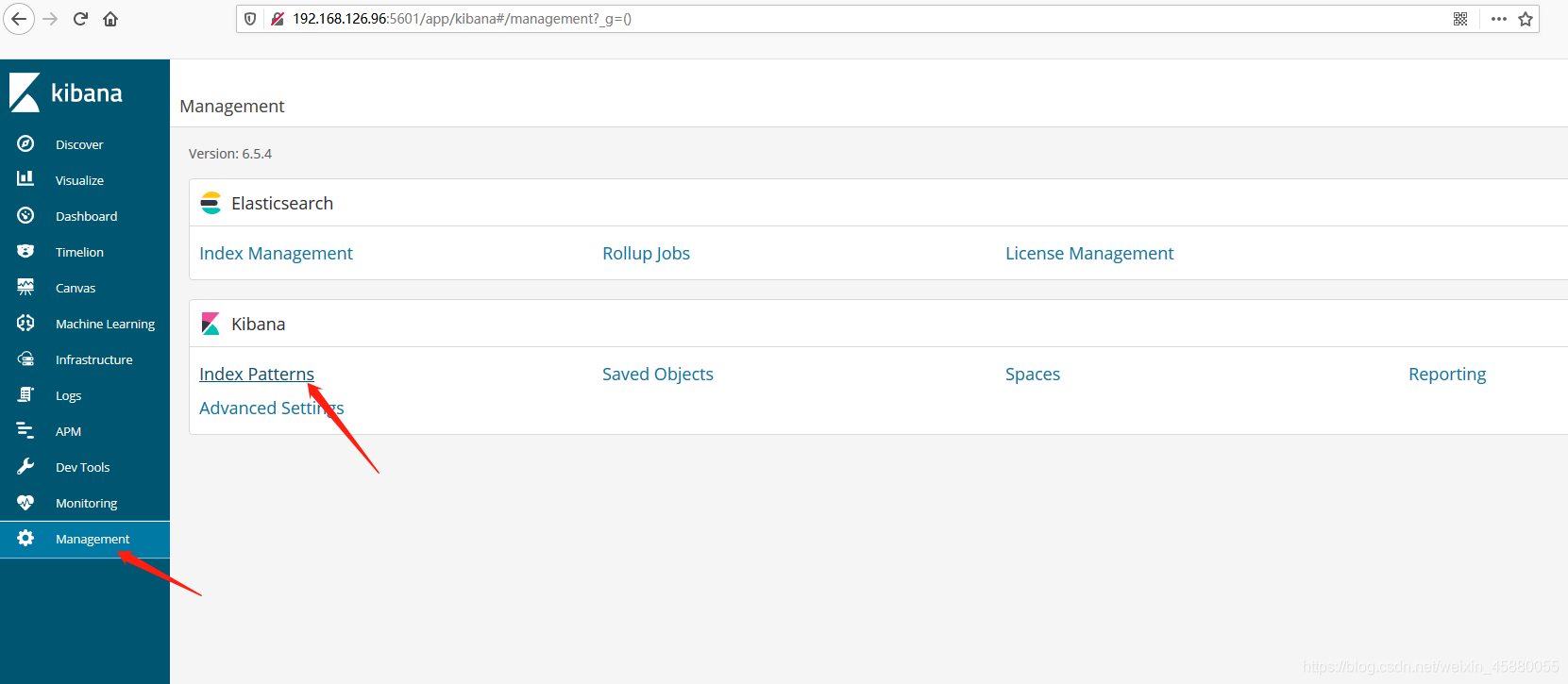

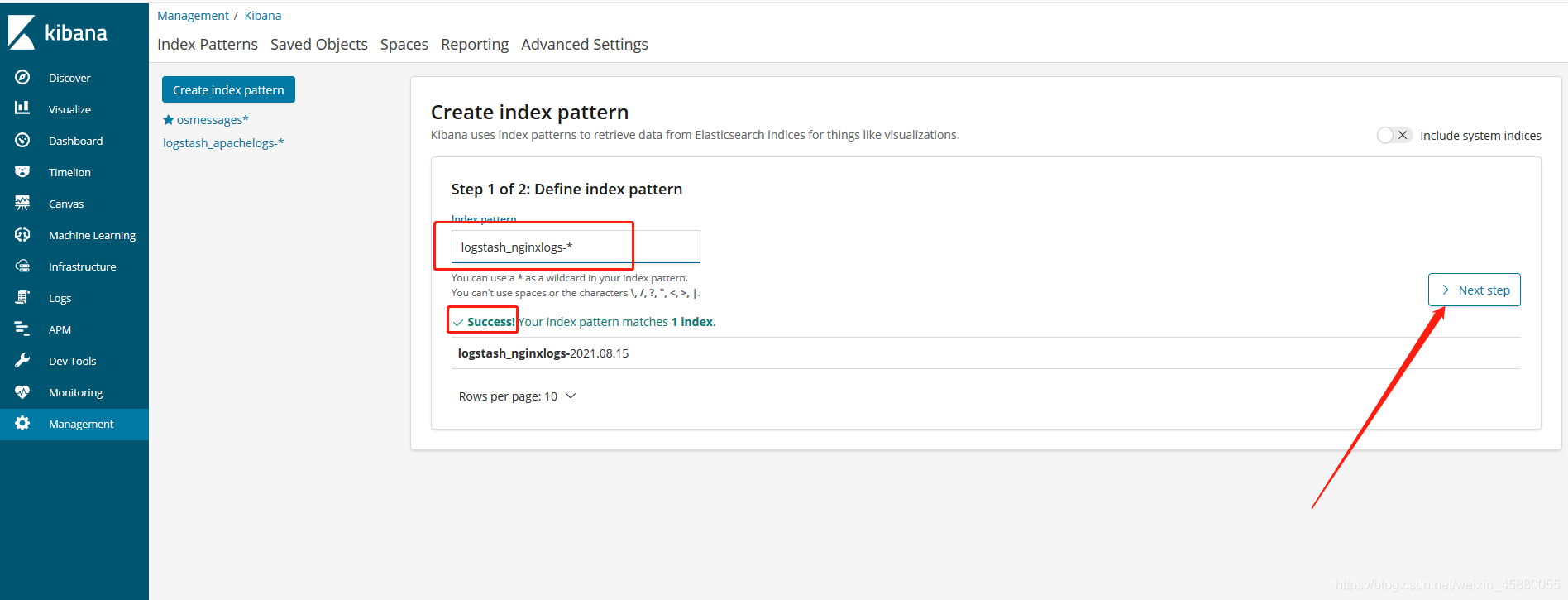

瀏覽器訪問 http://192.168.126.96:5601 登錄Kibana，首先配置一個index_pattern，點擊kibana左側導航中的Management選單，然后選擇右側的Index Patterns按鈕，最后點擊左上角的Create index pattern，
在這里插入圖片描述
