萬字長文決議洗掉Topic流程領導再也不用擔心我排查生產環境問題了(附教學視頻,建議收藏!!!)

日常運維 、問題排查 怎么能夠少了滴滴開源的
滴滴開源LogiKM一站式Kafka監控與管控平臺

洗掉Topic命令

bin/kafka-topics.sh --bootstrap-server localhost:9092 --delete --topic test

支持正則運算式匹配Topic來進行洗掉,只需要將topic 用雙引號包裹起來
例如: 洗掉以create_topic_byhand_zk為開頭的topic;

bin/kafka-topics.sh --bootstrap-server localhost:9092 --delete --topic “create_topic_byhand_zk.*”
.表示任意匹配除換行符 \n 之外的任何單字符，要匹配 . ，請使用 . ，
·*·：匹配前面的子運算式零次或多次，要匹配 * 字符，請使用 *，
.* : 任意字符

洗掉任意Topic (慎用)

bin/kafka-topics.sh --bootstrap-server localhost:9092 --delete --topic “.*?”

更多的用法請參考正則運算式

相關配置

原始碼決議

如果覺得閱讀原始碼決議太枯燥,請直接看 原始碼總結及其后面部分

1. 客戶端發起洗掉Topic的請求

在【kafka原始碼】TopicCommand之創建Topic原始碼決議 里面已經分析過了整個請求流程; 所以這里就不再詳細的分析請求的程序了,直接看重點;

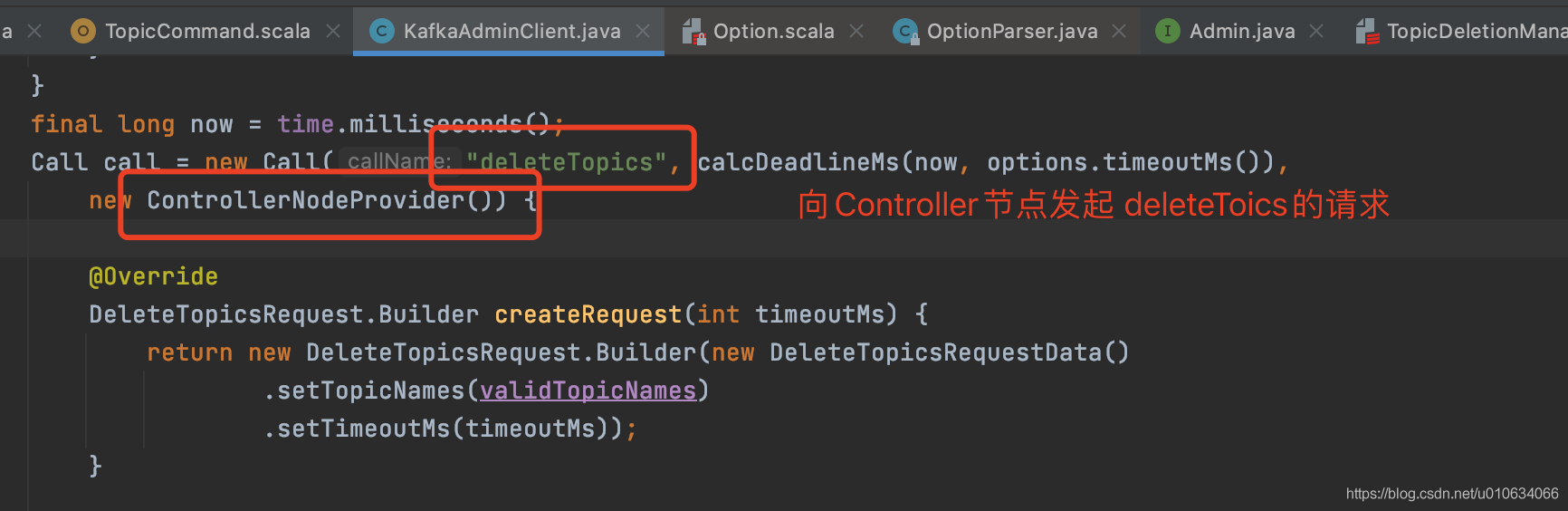

向Controller發起 deleteTopics請求

2. Controller處理deleteTopics的請求

KafkaApis.handle
AdminManager.deleteTopics

  /**
    * Delete topics and wait until the topics have been completely deleted.
    * The callback function will be triggered either when timeout, error or the topics are deleted.
    */
  def deleteTopics(timeout: Int,
                   topics: Set[String],
                   responseCallback: Map[String, Errors] => Unit): Unit = {

    // 1. map over topics calling the asynchronous delete
    val metadata = topics.map { topic =>
        try {
          // zk中寫入資料 標記要被洗掉的topic /admin/delete_topics/Topic名稱
          adminZkClient.deleteTopic(topic)
          DeleteTopicMetadata(topic, Errors.NONE)
        } catch {
          case _: TopicAlreadyMarkedForDeletionException =>
            // swallow the exception, and still track deletion allowing multiple calls to wait for deletion
            DeleteTopicMetadata(topic, Errors.NONE)
          case e: Throwable =>
            error(s"Error processing delete topic request for topic $topic", e)
            DeleteTopicMetadata(topic, Errors.forException(e))
        }
    }

    // 2. 如果客戶端傳過來的timeout<=0或者 寫入zk資料程序例外了 則執行下面的,直接回傳例外
    if (timeout <= 0 || !metadata.exists(_.error == Errors.NONE)) {
      val results = metadata.map { deleteTopicMetadata =>
        // ignore topics that already have errors
        if (deleteTopicMetadata.error == Errors.NONE) {
          (deleteTopicMetadata.topic, Errors.REQUEST_TIMED_OUT)
        } else {
          (deleteTopicMetadata.topic, deleteTopicMetadata.error)
        }
      }.toMap
      responseCallback(results)
    } else {
      // 3. else pass the topics and errors to the delayed operation and set the keys
      val delayedDelete = new DelayedDeleteTopics(timeout, metadata.toSeq, this, responseCallback)
      val delayedDeleteKeys = topics.map(new TopicKey(_)).toSeq
      // try to complete the request immediately, otherwise put it into the purgatory
      topicPurgatory.tryCompleteElseWatch(delayedDelete, delayedDeleteKeys)
    }
  }

1. zk中寫入資料topic/admin/delete_topics/Topic名稱； 標記要被洗掉的Topic
2. 如果客戶端傳過來的timeout<=0或者 寫入zk資料程序例外了 則直接回傳例外

3. Controller監聽zk變更 執行洗掉Topic流程

KafkaController.processTopicDeletion

  private def processTopicDeletion(): Unit = {
    if (!isActive) return
    var topicsToBeDeleted = zkClient.getTopicDeletions.toSet
    val nonExistentTopics = topicsToBeDeleted -- controllerContext.allTopics
    if (nonExistentTopics.nonEmpty) {
      warn(s"Ignoring request to delete non-existing topics ${nonExistentTopics.mkString(",")}")
      zkClient.deleteTopicDeletions(nonExistentTopics.toSeq, controllerContext.epochZkVersion)
    }
    topicsToBeDeleted --= nonExistentTopics
    if (config.deleteTopicEnable) {
      if (topicsToBeDeleted.nonEmpty) {
        info(s"Starting topic deletion for topics ${topicsToBeDeleted.mkString(",")}")
        // 標記暫時不可洗掉的Topic
        topicsToBeDeleted.foreach { topic =>
          val partitionReassignmentInProgress =
            controllerContext.partitionsBeingReassigned.map(_.topic).contains(topic)
          if (partitionReassignmentInProgress)
            topicDeletionManager.markTopicIneligibleForDeletion(Set(topic),
              reason = "topic reassignment in progress")
        }
        // add topic to deletion list
        topicDeletionManager.enqueueTopicsForDeletion(topicsToBeDeleted)
      }
    } else {
      // If delete topic is disabled remove entries under zookeeper path : /admin/delete_topics
      info(s"Removing $topicsToBeDeleted since delete topic is disabled")
      zkClient.deleteTopicDeletions(topicsToBeDeleted.toSeq, controllerContext.epochZkVersion)
    }
  }

1. 如果/admin/delete_topics/下面的節點有不存在的Topic,則清理掉
2. 如果配置了delete.topic.enable=false不可洗掉Topic的話,則將/admin/delete_topics/下面的節點全部洗掉,然后流程結束
3. delete.topic.enable=true; 將主題標記為不符合洗掉條件,放到topicsIneligibleForDeletion中; 不符合洗掉條件的是:Topic磁區正在進行磁區重分配
4. 將Topic添加到洗掉Topic串列topicsToBeDeleted中;
5. 然后呼叫TopicDeletionManager.resumeDeletions()方法執行洗掉操作

3.1 resumeDeletions 執行洗掉方法

TopicDeletionManager.resumeDeletions()

  private def resumeDeletions(): Unit = {
    val topicsQueuedForDeletion = Set.empty[String] ++ controllerContext.topicsToBeDeleted
    val topicsEligibleForRetry = mutable.Set.empty[String]
    val topicsEligibleForDeletion = mutable.Set.empty[String]

    if (topicsQueuedForDeletion.nonEmpty)
    topicsQueuedForDeletion.foreach { topic =>
      // if all replicas are marked as deleted successfully, then topic deletion is done
      //如果所有副本都被標記為洗掉成功了,然后執行洗掉Topic成功操作;
      if (controllerContext.areAllReplicasInState(topic, ReplicaDeletionSuccessful)) {
        // clear up all state for this topic from controller cache and zookeeper
        //執行洗掉Topic成功之后的操作;
        completeDeleteTopic(topic)
        info(s"Deletion of topic $topic successfully completed")
      } else if (!controllerContext.isAnyReplicaInState(topic, ReplicaDeletionStarted)) {
        // if you come here, then no replica is in TopicDeletionStarted and all replicas are not in
        // TopicDeletionSuccessful. That means, that either given topic haven't initiated deletion
        // or there is at least one failed replica (which means topic deletion should be retried).
        if (controllerContext.isAnyReplicaInState(topic, ReplicaDeletionIneligible)) {
          topicsEligibleForRetry += topic
        }
      }

      // Add topic to the eligible set if it is eligible for deletion.
      if (isTopicEligibleForDeletion(topic)) {
        info(s"Deletion of topic $topic (re)started")
        topicsEligibleForDeletion += topic
      }
    }

    // topic deletion retry will be kicked off
    if (topicsEligibleForRetry.nonEmpty) {
      retryDeletionForIneligibleReplicas(topicsEligibleForRetry)
    }

    // topic deletion will be kicked off
    if (topicsEligibleForDeletion.nonEmpty) {
      //洗掉Topic,發送UpdataMetaData請求
      onTopicDeletion(topicsEligibleForDeletion)
    }
  }
}

1. 重點看看onTopicDeletion方法,標記所有待洗掉磁區;向Brokers發送updateMetadataRequest請求,告知Brokers這個主題正在被洗掉,并將Leader設定為LeaderAndIsrLeaderDuringDelete；

   1. 將待洗掉的Topic的所有磁區,執行磁區狀態機的轉換 ;當前狀態–>OfflinePartition->NonExistentPartition ; 這兩個狀態轉換只是在當前Controller記憶體中更新了一下狀態; 關于狀態機請看 【kafka原始碼】Controller中的狀態機TODO…;
   2. client.sendMetadataUpdate(topics.flatMap(controllerContext.partitionsForTopic)) 向待洗掉Topic磁區發送UpdateMetadata請求; 這個時候更新了什么資料呢?

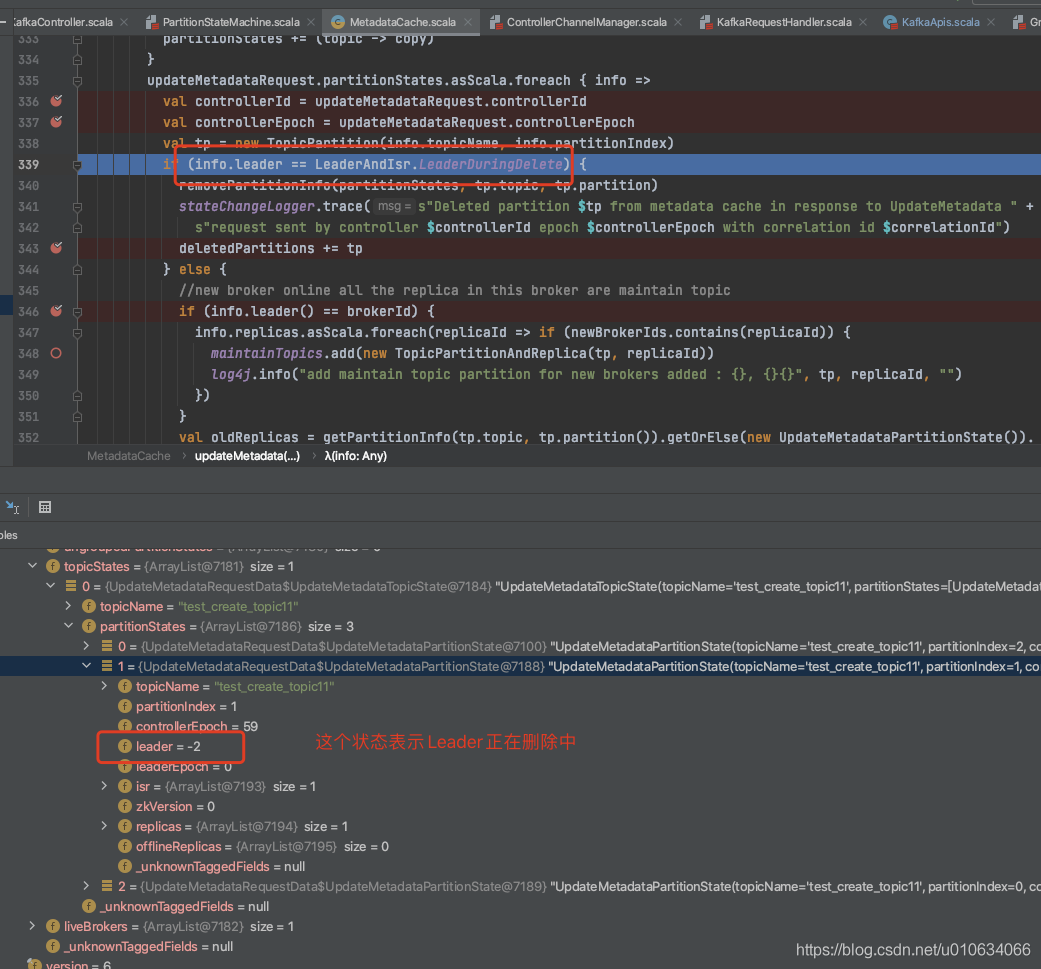

      看上面圖片原始碼, 發送UpdateMetadata請求的時候把磁區的Leader= -2; 表示這個磁區正在被洗掉;那么所有正在被洗掉的磁區就被找到了;拿到這些待洗掉磁區之后干嘛呢？
      1. 更新一下限流相關資訊
      2. 呼叫groupCoordinator.handleDeletedPartitions(deletedPartitions): 清除給定的deletedPartitions的組偏移量以及執行偏移量洗掉的函式；就是現在該磁區不能提供服務啦,不能被消費啦

   詳細請看 Kafka的元資料更新UpdateMetadata

   4. 呼叫TopicDeletionManager.onPartitionDeletion介面如下;

3.2 TopicDeletionManager.onPartitionDeletion

1. 將所有Dead replicas 副本直接移動到ReplicaDeletionIneligible狀態，如果某些副本已死，也將相應的主題標記為不適合洗掉，因為它無論如何都不會成功完成

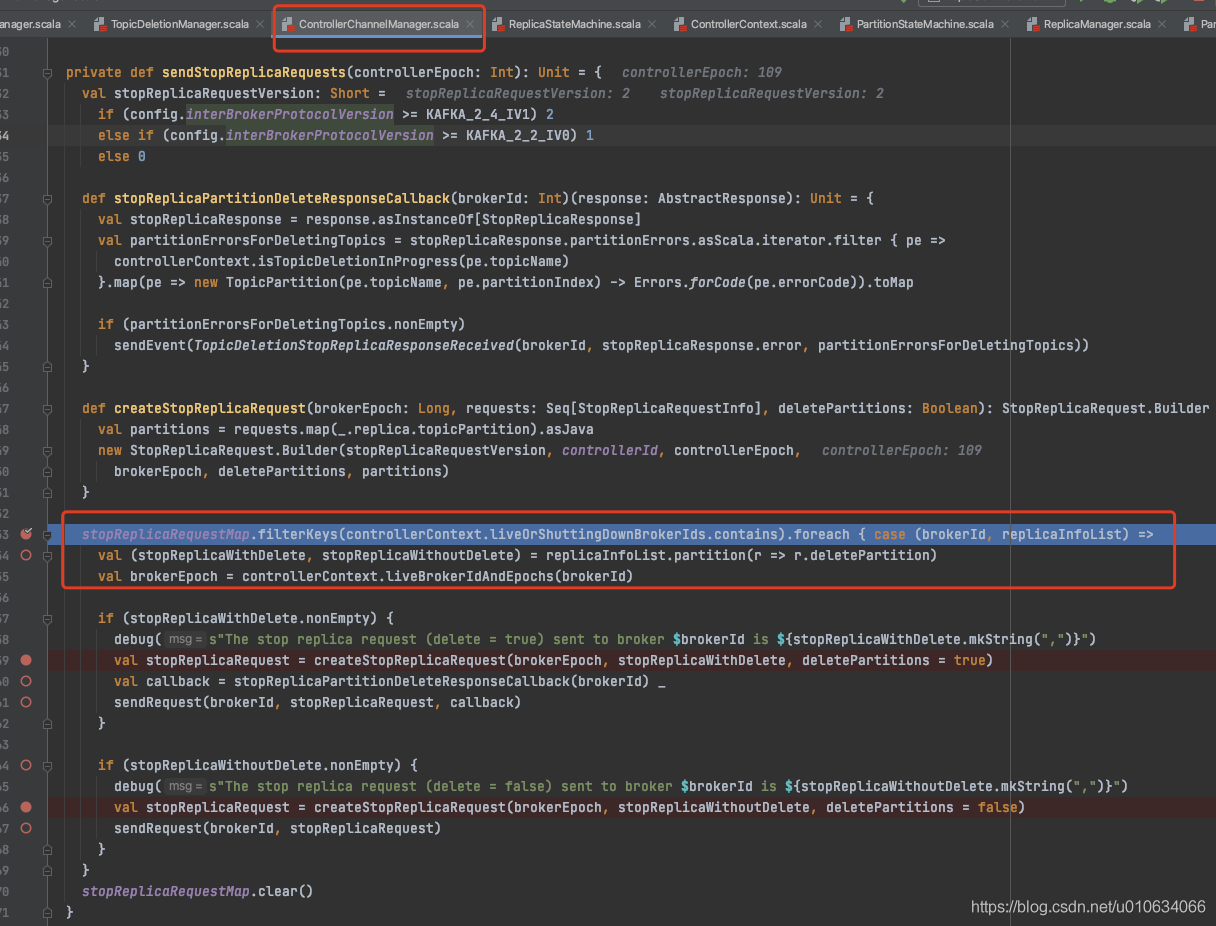

2. 副本狀態轉換成OfflineReplica; 這個時候會對該Topic的所有副本所在Broker發起StopReplicaRequest 請求;（引數deletePartitions = false,表示還不執行洗掉操作）; 以便他們停止向Leader發送fetch請求; 關于狀態機請看 【kafka原始碼】Controller中的狀態機TODO…;
3. 副本狀態轉換成 ReplicaDeletionStarted狀態，這個時候會對該Topic的所有副本所在Broker發起StopReplicaRequest 請求;（引數deletePartitions = true,表示執行洗掉操作），這將發送帶有 deletePartition=true 的 StopReplicaRequest ，并將洗掉相應磁區的所有副本中的所有持久資料

4. Brokers 接受StopReplica請求

最終呼叫的是介面
ReplicaManager.stopReplica ==> LogManager.asyncDelete

將給定主題磁區“logdir”的目錄重命名為“logdir.uuid.delete”，并將其添加到洗掉佇列中
例如 :

def asyncDelete(topicPartition: TopicPartition, isFuture: Boolean = false): Log = {
    val removedLog: Log = logCreationOrDeletionLock synchronized {
      //將待洗掉的partition在 Logs中洗掉掉
      if (isFuture)
        futureLogs.remove(topicPartition)
      else
        currentLogs.remove(topicPartition)
    }
    if (removedLog != null) {
      //我們需要等到要洗掉的日志上沒有更多的清理任務，然后才能真正洗掉它，
      if (cleaner != null && !isFuture) {
        cleaner.abortCleaning(topicPartition)
        cleaner.updateCheckpoints(removedLog.dir.getParentFile)
      }
      //重命名topic副本檔案夾 命名規則 topic-uuid-delete
      removedLog.renameDir(Log.logDeleteDirName(topicPartition))
      checkpointRecoveryOffsetsAndCleanSnapshot(removedLog.dir.getParentFile, ArrayBuffer.empty)
      checkpointLogStartOffsetsInDir(removedLog.dir.getParentFile)
      //將Log添加到待洗掉Log佇列中,等待洗掉
      addLogToBeDeleted(removedLog)

    } else if (offlineLogDirs.nonEmpty) {
      throw new KafkaStorageException(s"Failed to delete log for ${if (isFuture) "future" else ""} $topicPartition because it may be in one of the offline directories ${offlineLogDirs.mkString(",")}")
    }
    removedLog
  }

4.1 日志清理定時執行緒

上面我們知道最終是將待洗掉的Log添加到了logsToBeDeleted這個佇列中; 這個佇列就是待洗掉Log佇列，有一個執行緒 kafka-delete-logs專門來處理的;我們來看看這個執行緒怎么作業的

LogManager.startup 啟動的時候 ,啟動了一個定時執行緒

   scheduler.schedule("kafka-delete-logs", // will be rescheduled after each delete logs with a dynamic period
                         deleteLogs _,
                         delay = InitialTaskDelayMs,
                         unit = TimeUnit.MILLISECONDS)

洗掉日志的執行緒

  /**
   *  Delete logs marked for deletion. Delete all logs for which `currentDefaultConfig.fileDeleteDelayMs`
   *  has elapsed after the delete was scheduled. Logs for which this interval has not yet elapsed will be
   *  considered for deletion in the next iteration of `deleteLogs`. The next iteration will be executed
   *  after the remaining time for the first log that is not deleted. If there are no more `logsToBeDeleted`,
   *  `deleteLogs` will be executed after `currentDefaultConfig.fileDeleteDelayMs`.
   * 洗掉標記為洗掉的日志檔案;
   * file.delete.delay.ms 檔案延遲洗掉時間 默認60000毫秒
   *
   */
  private def deleteLogs(): Unit = {
    var nextDelayMs = 0L
    try {
      def nextDeleteDelayMs: Long = {
        if (!logsToBeDeleted.isEmpty) {
          val (_, scheduleTimeMs) = logsToBeDeleted.peek()
          scheduleTimeMs + currentDefaultConfig.fileDeleteDelayMs - time.milliseconds()
        } else
          currentDefaultConfig.fileDeleteDelayMs
      }

      while ({nextDelayMs = nextDeleteDelayMs; nextDelayMs <= 0}) {
        val (removedLog, _) = logsToBeDeleted.take()
        if (removedLog != null) {
          try {
            //立即徹底洗掉此日志目錄和檔案系統中的所有內容
            removedLog.delete()
            info(s"Deleted log for partition ${removedLog.topicPartition} in ${removedLog.dir.getAbsolutePath}.")
          } catch {
            case e: KafkaStorageException =>
              error(s"Exception while deleting $removedLog in dir ${removedLog.dir.getParent}.", e)
          }
        }
      }
    } catch {
      case e: Throwable =>
        error(s"Exception in kafka-delete-logs thread.", e)
    } finally {
      try {
        scheduler.schedule("kafka-delete-logs",
          deleteLogs _,
          delay = nextDelayMs,
          unit = TimeUnit.MILLISECONDS)
      } catch {
        case e: Throwable =>
          if (scheduler.isStarted) {
            // No errors should occur unless scheduler has been shutdown
            error(s"Failed to schedule next delete in kafka-delete-logs thread", e)
          }
      }
    }
  }

file.delete.delay.ms 決定延遲多久洗掉

5.StopReplica 請求成功 執行回呼介面

Topic洗掉完成, 清理相關資訊

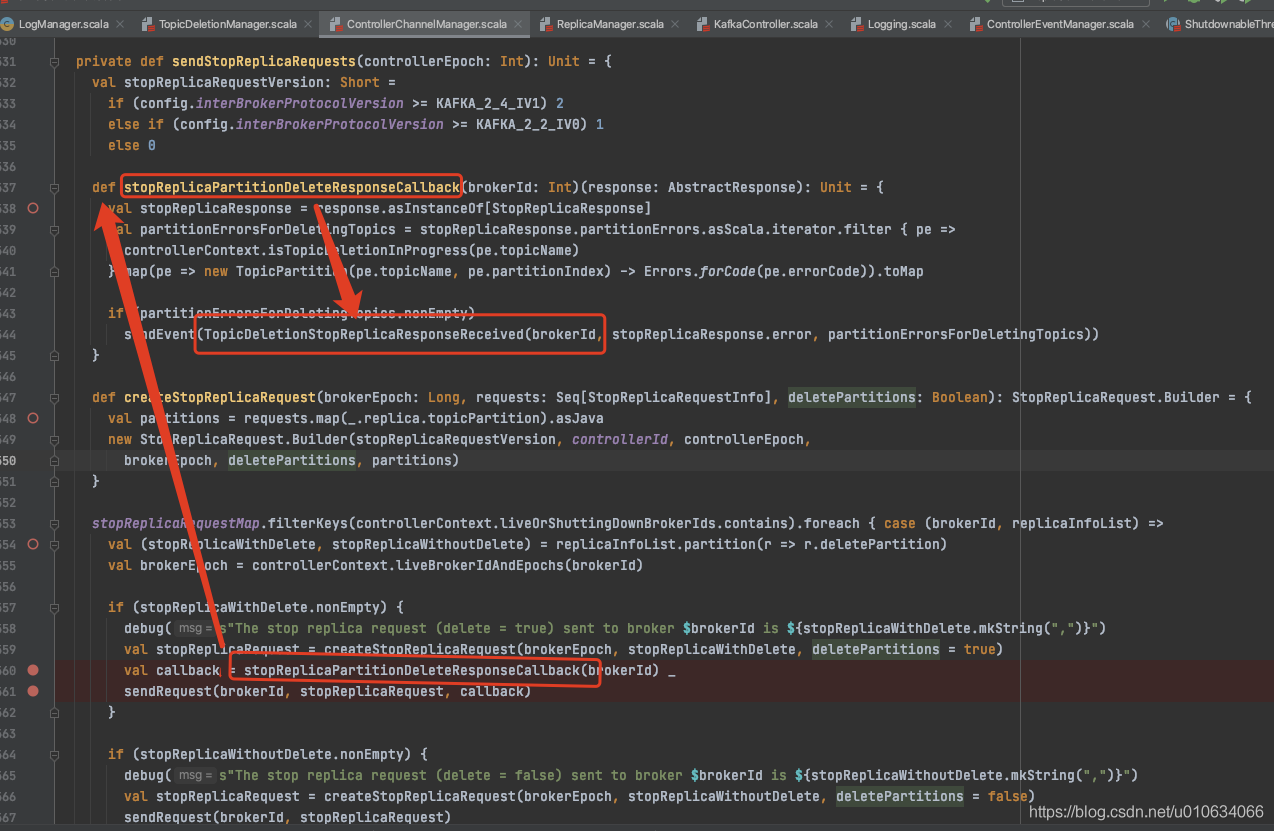

觸發這個介面的地方是: 每個Broker執行洗掉StopReplica成功之后,都會執行一個回呼函式;TopicDeletionStopReplicaResponseReceived ; 當然呼叫方是Controller,回呼到的也就是Controller;

傳入回呼函式的地方

執行回呼函式 KafkaController.processTopicDeletionStopReplicaResponseReceived

1. 如果回呼有例外,洗掉失敗則將副本狀態轉換成==》ReplicaDeletionIneligible，并且重新執行resumeDeletions方法;

2. 如果回呼正常,則變更狀態 ReplicaDeletionStarted==》ReplicaDeletionSuccessful；并且重新執行resumeDeletions方法;

3. resumeDeletions方法會判斷所有副本是否均被洗掉,如果全部洗掉了就會執行下面的completeDeleteTopic代碼;否則會繼續洗掉未被成功洗掉的副本

     private def completeDeleteTopic(topic: String): Unit = {
       // deregister partition change listener on the deleted topic. This is to prevent the partition change listener
       // firing before the new topic listener when a deleted topic gets auto created
       client.mutePartitionModifications(topic)
       val replicasForDeletedTopic = controllerContext.replicasInState(topic, ReplicaDeletionSuccessful)
       // controller will remove this replica from the state machine as well as its partition assignment cache
       replicaStateMachine.handleStateChanges(replicasForDeletedTopic.toSeq, NonExistentReplica)
       controllerContext.topicsToBeDeleted -= topic
       controllerContext.topicsWithDeletionStarted -= topic
       client.deleteTopic(topic, controllerContext.epochZkVersion)
       controllerContext.removeTopic(topic)
     }


   1. 清理記憶體中相關資訊
   2. 取消注冊被洗掉Topic的相關節點監聽器;節點是/brokers/topics/Topic名稱
   3. 洗掉zk中的資料包括;/brokers/topics/Topic名稱、/config/topics/Topic名稱 、/admin/delete_topics/Topic名稱

6. Controller啟動時候 嘗試繼續處理待洗掉的Topic

我們之前分析Controller上線的時候有看到
KafkaController.onControllerFailover
以下省略部分代碼

 private def onControllerFailover(): Unit = {
    // 獲取哪些Topic需要被洗掉，哪些暫時還不能洗掉
     val (topicsToBeDeleted, topicsIneligibleForDeletion) = fetchTopicDeletionsInProgress()

    info("Initializing topic deletion manager")
    //Topic洗掉管理器初始化
    topicDeletionManager.init(topicsToBeDeleted, topicsIneligibleForDeletion)

    //Topic洗掉管理器 嘗試開始洗掉Topi
    topicDeletionManager.tryTopicDeletion()

6.1 獲取需要被洗掉的Topic和暫時不能洗掉的Topic

fetchTopicDeletionsInProgress

1. topicsToBeDeleted所有需要被洗掉的Topic從zk中/admin/delete_topics 獲取

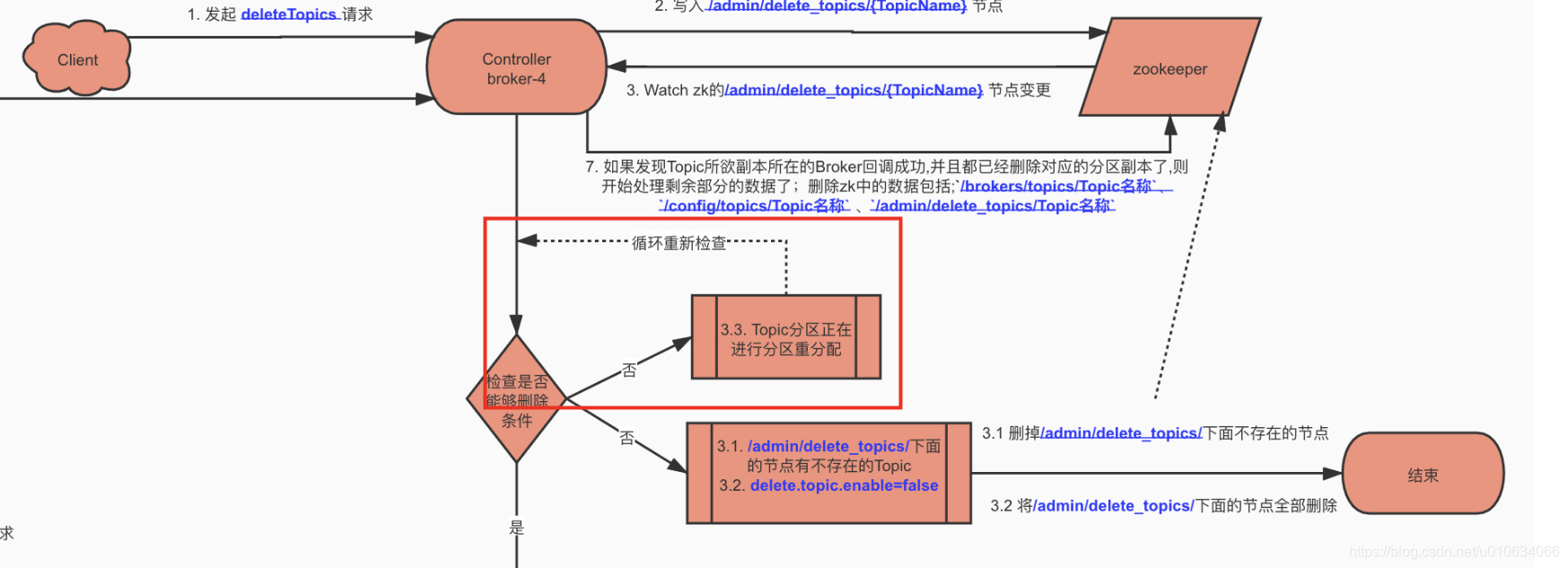

2. topicsIneligibleForDeletion有一部分Topic還暫時不能被洗掉:
   ①. Topic任意磁區正在進行副本重分配
   ②. Topic任意磁區副本存在不在線的情況(只有topic有一個副本所在的Broker例外就不能能洗掉)
3. 將得到的資料存在在controllerContext記憶體中

6.2 topicDeletionManager.init初始化洗掉管理器

1. 如果服務器配置delete.topic.enable=false不允許洗掉topic的話,則洗掉/admin/delete_topics 中的節點; 這個節點下面的資料是標記topic需要被洗掉的意思;

6.3 topicDeletionManager.tryTopicDeletion嘗試恢復洗掉

這里又回到了上面分析過的resumeDeletions啦；恢復洗掉操作

  def tryTopicDeletion(): Unit = {
    if (isDeleteTopicEnabled) {
      resumeDeletions()
    }
  }

原始碼總結

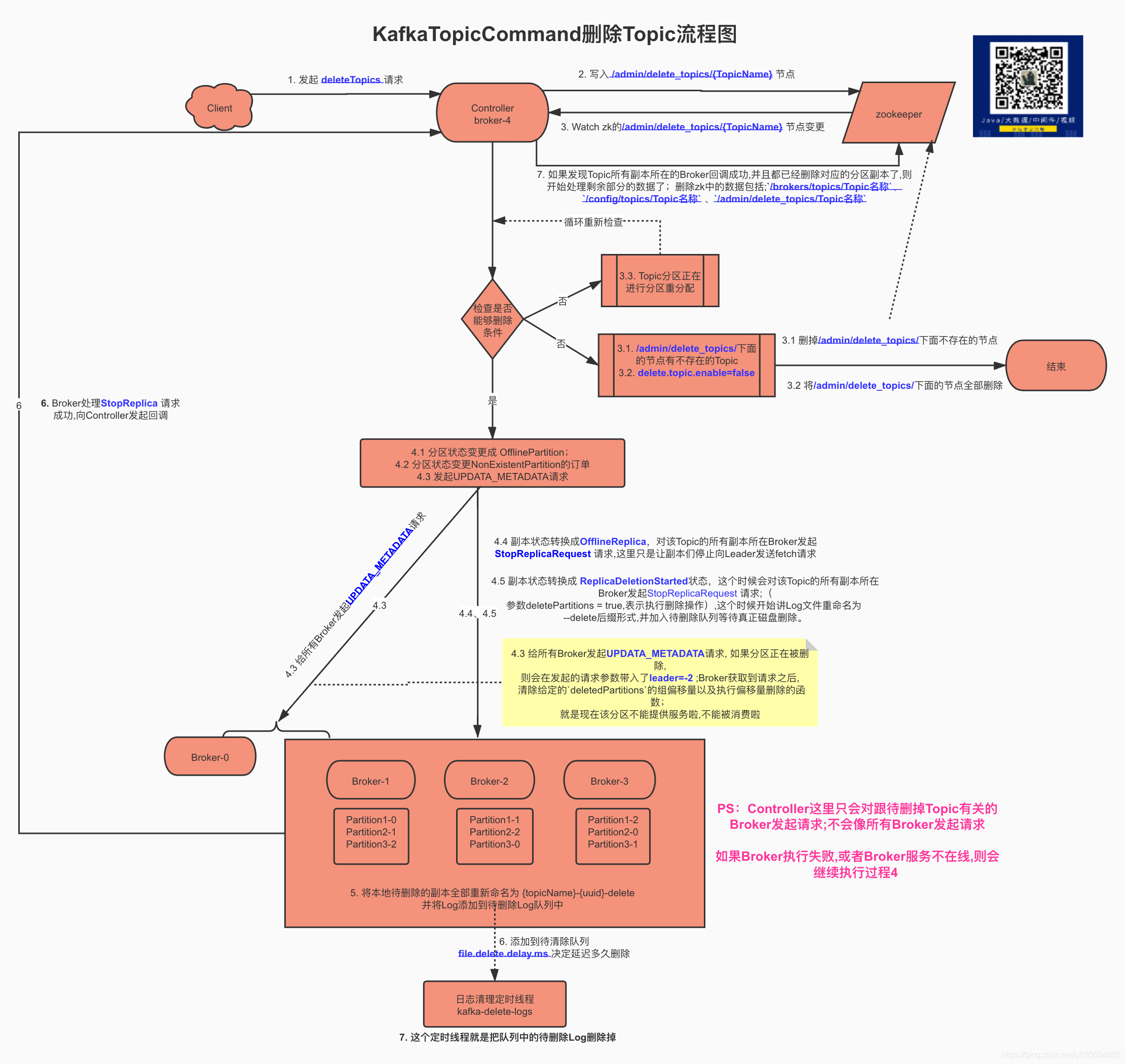

整個Topic洗掉, 請看下圖

幾個注意點:

1. Controller 也是Broker
2. Controller發起洗掉請求的時候,只是跟相關聯的Broker發起洗掉請求;
3. Broker不在線或者洗掉失敗,Controller會持續進行洗掉操作; 或者Broker上線之后繼續進行洗掉操作

Q&A

列舉在此主題下比較常見的問題; 如果讀者有其他問題可以在評論區評論, 博主會不定期更新

什么時候在/admin/delete_topics寫入節點的

客戶端發起洗掉操作deleteTopics的時候,Controller回應deleteTopics請求, 這個時候Controller就將待洗掉Topic寫入了zk的/admin/delete_topics/Topic名稱節點中了;

什么時候真正執行洗掉Topic磁盤日志

Controller監聽到zk節點/admin/delete_topics之后,向所有存活的Broker發送洗掉Topic的請求; Broker收到請求之后將待洗掉副本標記為–delete后綴; 然后會有專門日志清理現場來進行真正的洗掉操作; 延遲多久洗掉是靠file.delete.delay.ms來決定的；默認是60000毫秒 = 一分鐘

為什么正在重新分配的Topic不能被洗掉

正在重新分配的Topic,你都不知道它具體會落在哪個地方,所以肯定也就不知道啥時候洗掉啊;
等分配完畢之后,就會繼續洗掉流程

如果在/admin/delete_topics/中手動寫入一個節點會不會正常洗掉

如果寫入的節點,并不是一個真實存在的Topic；則將會直接被洗掉
當然要注意如果配置了delete.topic.enable=false不可洗掉Topic的話,則將/admin/delete_topics/下面的節點全部洗掉,然后流程結束
如果寫入的節點是一個真實存在的Topic; 則將會執行洗掉Topic的流程; 本質上跟用Kafka客戶端執行洗掉Topic操作沒有什么不同

如果直接洗掉ZK上的/brokers/topics/{topicName}節點會怎樣

TODO…

Controller通知Brokers 執行StopReplica是通知所有的Broker還是只通知跟被洗掉Topic有關聯的Broker？

只是通知跟被洗掉Topic有關聯的Broker;
請看下圖原始碼,可以看到所有需要被StopReplica的副本都是被過濾了一遍,獲取它們所在的BrokerId; 最后呼叫的時候也是sendRequest(brokerId, stopReplicaRequest) ;根據獲取到的BrokerId發起的請求

洗掉程序有Broker不在線 或者執行失敗怎么辦

Controller會繼續洗掉操作；或者等Broker上線然后繼續洗掉操作; 反正就是一定會保證所有的磁區都被洗掉(被標記了–delete)之后才會把zk上的資料清理掉;

ReplicaStateMachine 副本狀態機

請看 【kafka原始碼】Controller中的狀態機TODO

在重新分配的程序中,如果執行洗掉操作會怎么樣

洗掉操作會等待,等待重新分配完成之后,繼續進行洗掉操作

Finally: 本文閱讀原始碼為 Kafka-2.5
