k8s 發布專案實作 nginx 和 tomcat 動靜分離（2）-有解無憂

kubead 部署 kubernetes 請查看

3 部署 dashboard

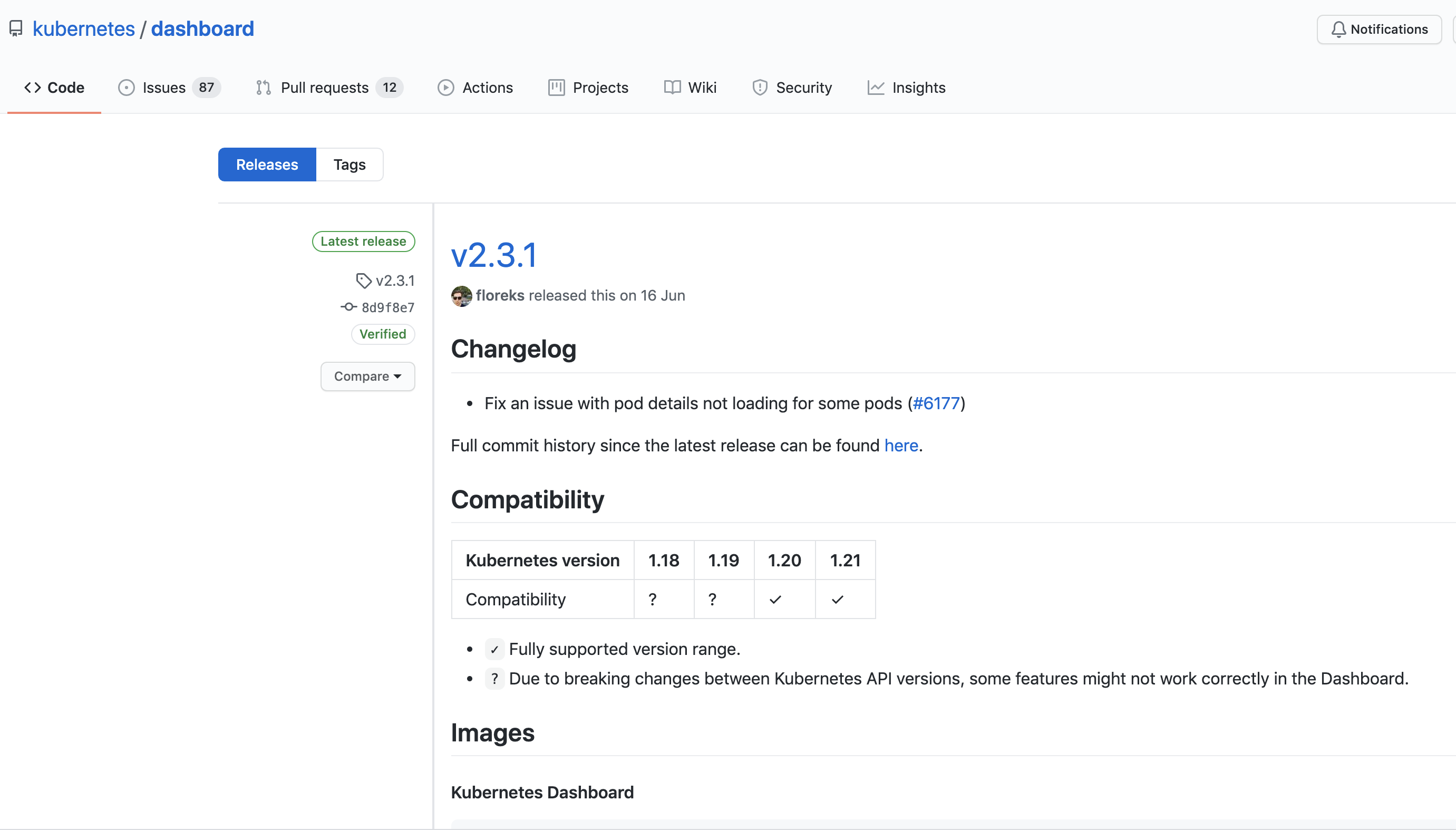

https://github.com/kubernetes/dashboard

3.1 部署 dashboard v2.3.1

[root@K8s-master1 ~]# wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml

[root@K8s-master1 ~]# mv recommended.yaml dashboard-2.3.1.yaml

# 修改 dashboard-2.3.1.yaml ，在檔案的 40 行
[root@K8s-master1 ~]# cat dashboard-2.3.1.yaml
......
32 kind: Service
 33 apiVersion: v1
 34 metadata:
 35   labels:
 36     k8s-app: kubernetes-dashboard
 37   name: kubernetes-dashboard
 38   namespace: kubernetes-dashboard
 39 spec:
 40   type: NodePort        # 增加此行
 41   ports:
 42     - port: 443
 43       targetPort: 8443
 44       nodePort: 30002    # 增加此行
 45   selector:
 46     k8s-app: kubernetes-dashboard
......


[root@K8s-master1 ~]# cat admin-user.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard
[root@K8s-master1 ~]#

[root@K8s-master1 ~]# kubectl apply -f dashboard-2.3.1.yaml -f admin-user.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created
[root@K8s-master1 ~]#

[root@K8s-master1 ~]# kubectl get svc -n kubernetes-dashboard
NAME                        TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
dashboard-metrics-scraper   ClusterIP   10.200.131.55   <none>        8000/TCP        12m
kubernetes-dashboard        NodePort    10.200.39.13    <none>        443:30002/TCP   12m
[root@K8s-master1 ~]#


[root@K8s-master1 ~]# ss -tnl|grep 30002
LISTEN   0         128                 0.0.0.0:30002            0.0.0.0:*
[root@K8s-master1 ~]#

查看 dashboard 狀態

[root@K8s-master1 ~]# kubectl get pod -A | grep kubernetes-dashboard
kubernetes-dashboard   dashboard-metrics-scraper-79c5968bdc-tkch8   1/1     Running   0          22m
kubernetes-dashboard   kubernetes-dashboard-658485d5c7-t6g7k        1/1     Running   0          22m
[root@K8s-master1 ~]#

3.2 訪問 dashboard

# 任意 node 節點的IP + port（30002）

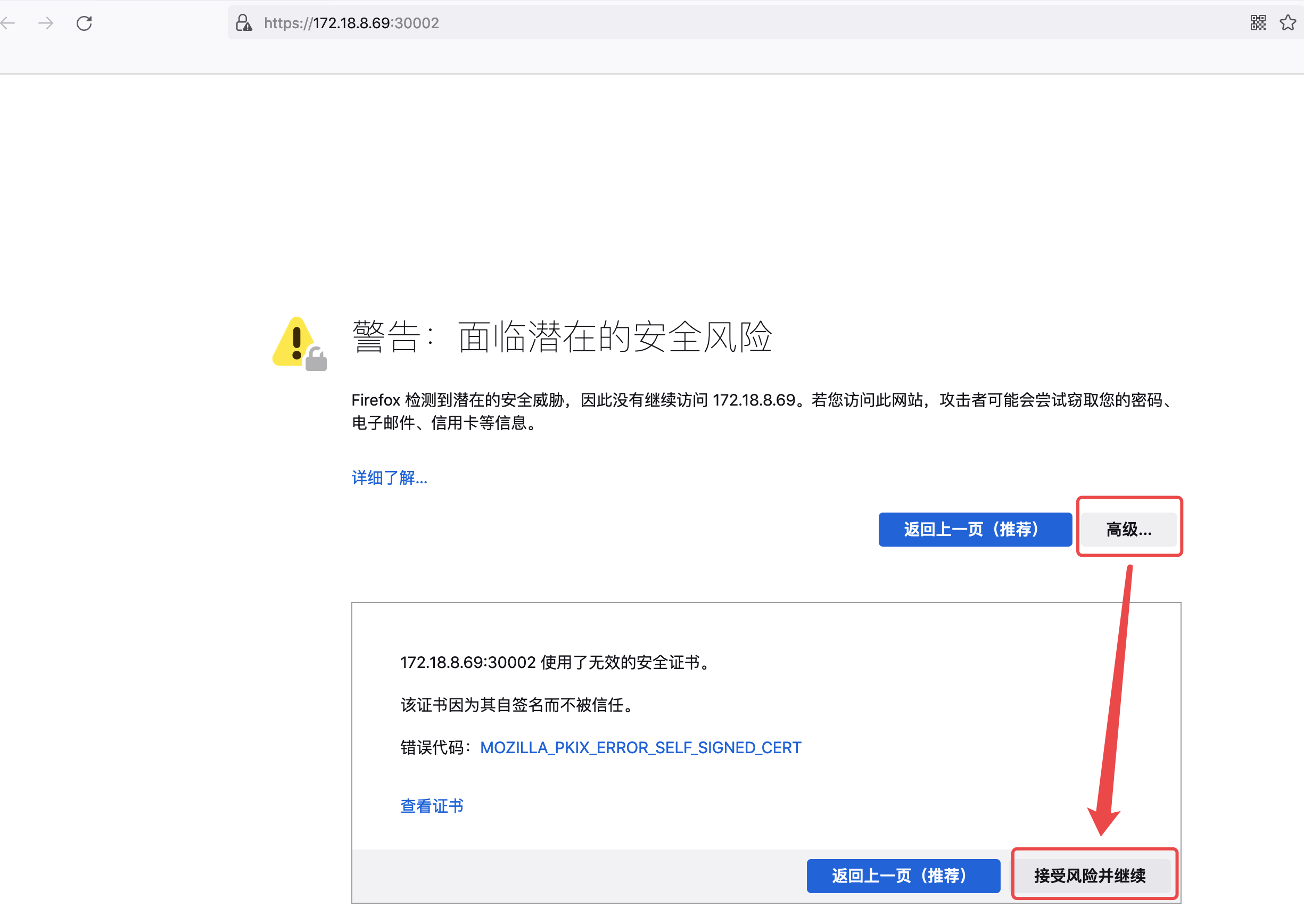

https://172.18.8.69:30002/

3.3 獲取登錄 token

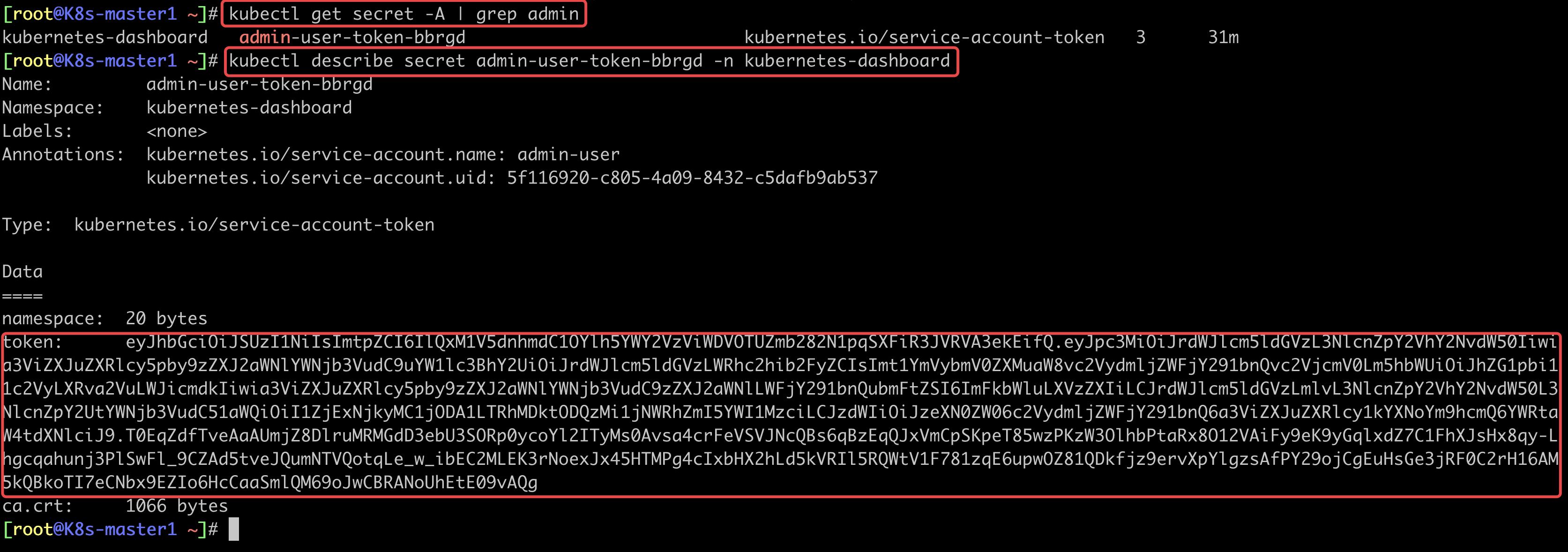

[root@K8s-master1 ~]# kubectl get secret -A | grep admin
kubernetes-dashboard   admin-user-token-bbrgd                           kubernetes.io/service-account-token   3      31m
[root@K8s-master1 ~]# kubectl describe secret admin-user-token-bbrgd -n kubernetes-dashboard
Name:         admin-user-token-bbrgd
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: 5f116920-c805-4a09-8432-c5dafb9ab537

Type:  kubernetes.io/service-account-token

Data
====
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IlQxM1V5dnhmdC1OYlh5YWY2VzViWDVOTUZmb282N1pqSXFiR3JVRVA3ekEifQ.
eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Ii
wia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1l
c3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1Ym
VybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hb
WUiOiJhZG1pbi11c2VyLXRva2VuLWJicmdkIiwia3ViZXJu
ZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY2
91bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVz
LmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC
51aWQiOiI1ZjExNjkyMC1jODA1LTRhMDktODQzMi1jNWRh
ZmI5YWI1MzciLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY29
1bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlci
J9.T0EqZdfTveAaAUmjZ8DlruMRMGdD3ebU3SORp0ycoYl2
ITyMs0Avsa4crFeVSVJNcQBs6qBzEqQJxVmCpSKpeT85wzPK
zW3OlhbPtaRx8O12VAiFy9eK9yGqlxdZ7C1FhXJsHx8qy-Lh
gcqahunj3PlSwFl_9CZAd5tveJQumNTVQotqLe_w_ibEC2ML
EK3rNoexJx45HTMPg4cIxbHX2hLd5kVRIl5RQWtV1F781zqE
6upwOZ81QDkfjz9ervXpYlgzsAfPY29ojCgEuHsGe3jRF0C2
rH16AM5kQBkoTI7eCNbx9EZIo6HcCaaSmlQM69oJwCBRANoUhEtE09vAQg
ca.crt:     1066 bytes
[root@K8s-master1 ~]#

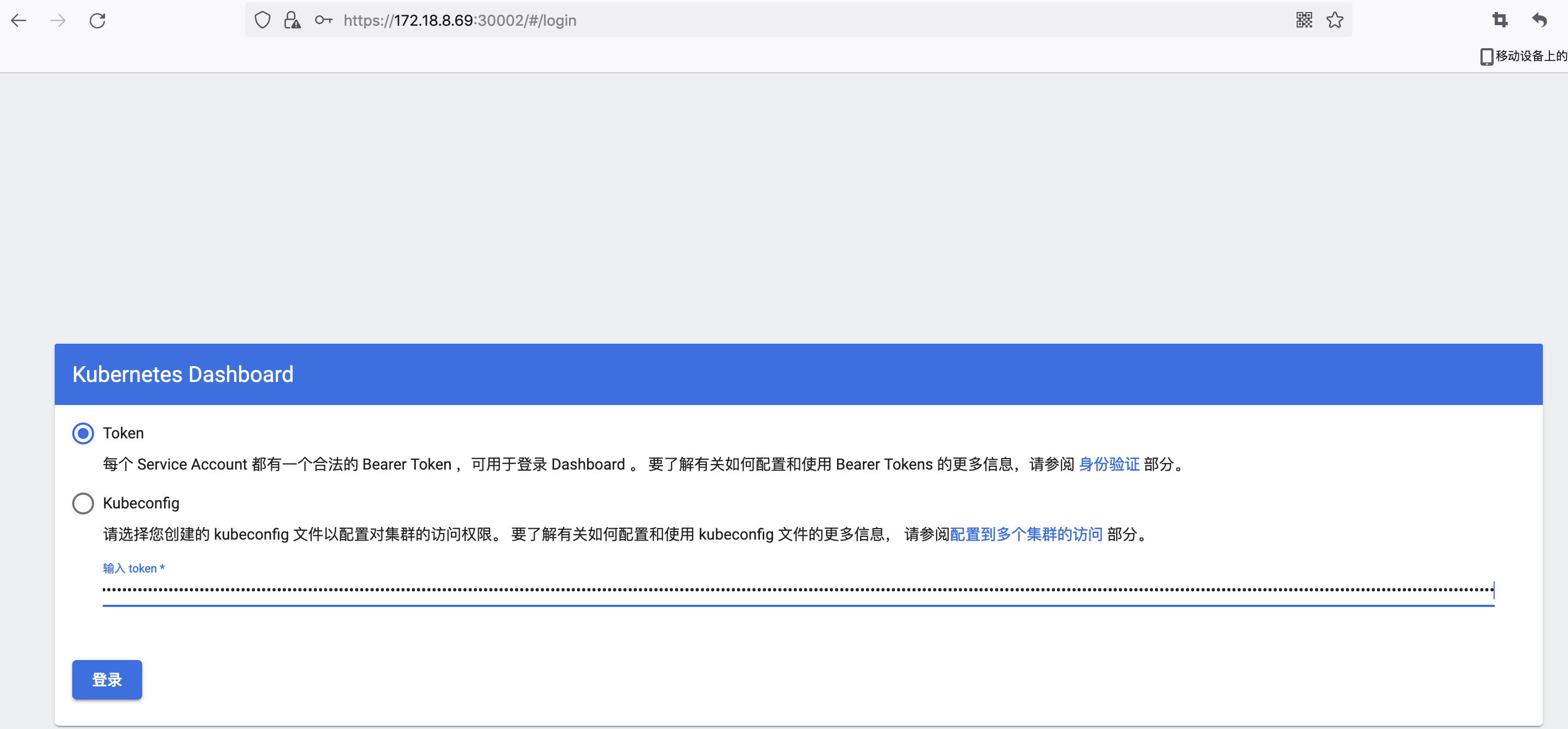

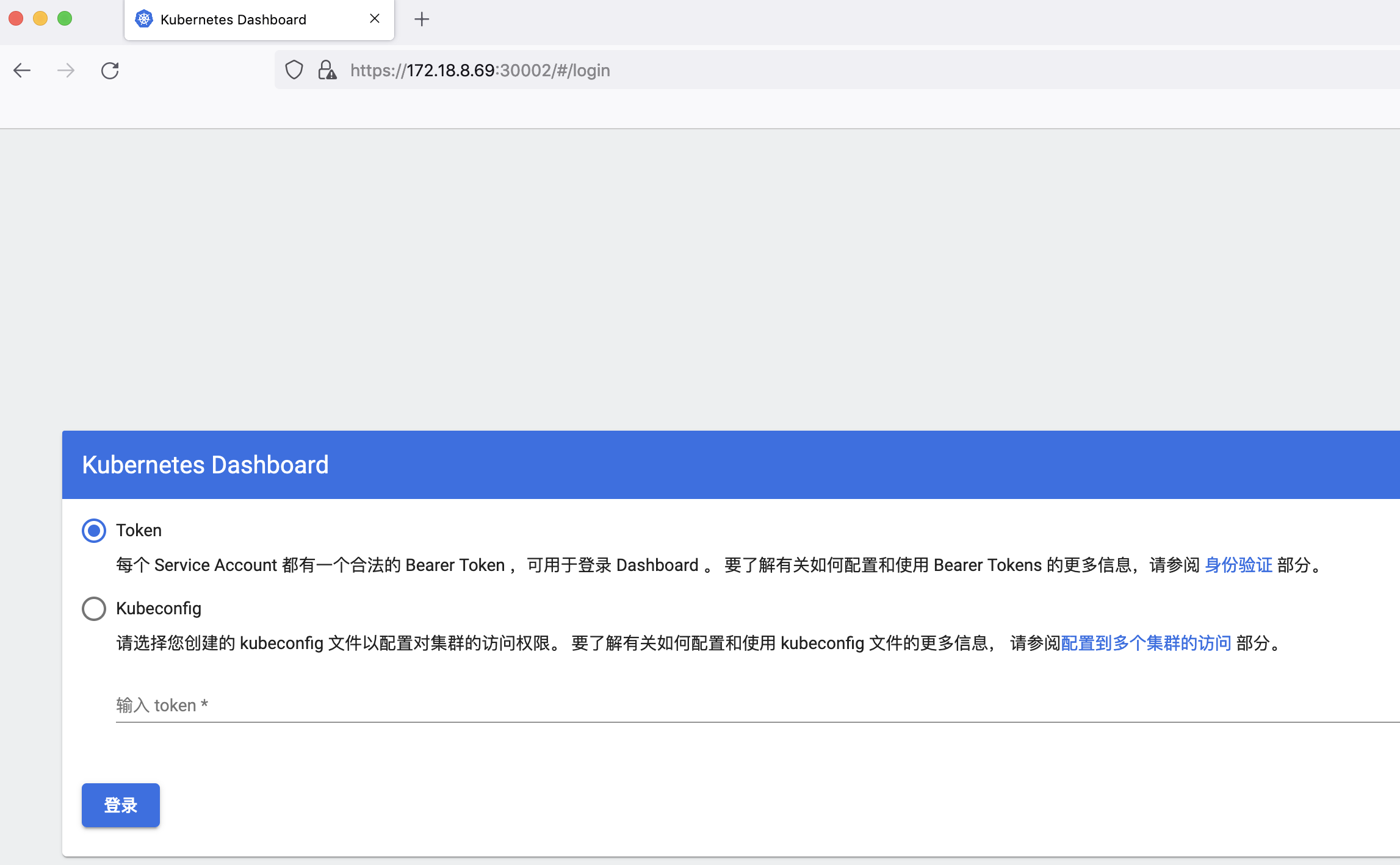

將 token 拷貝到頁面中即可登錄 dashboard

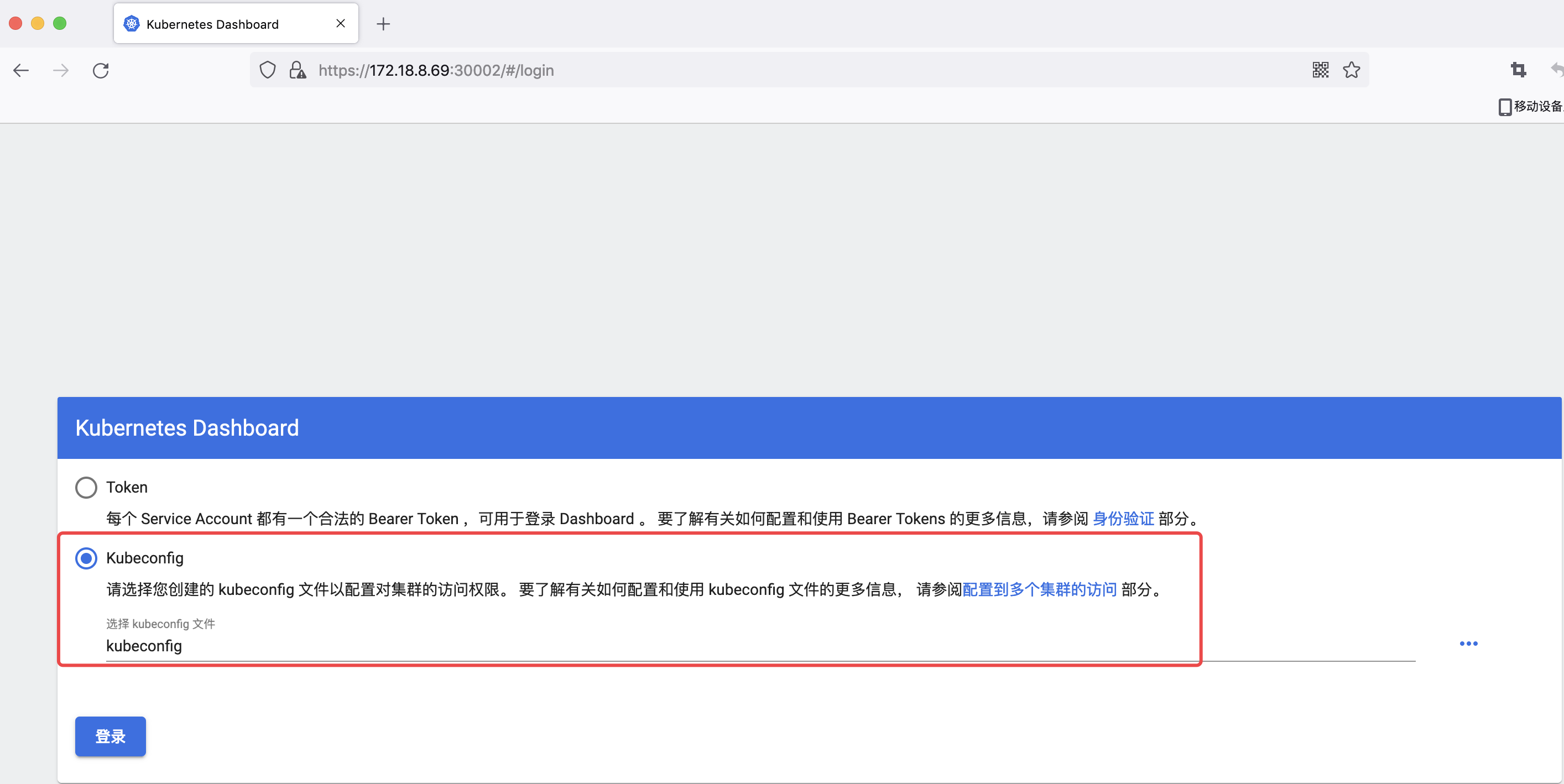

3.4 創建 kubeconfig 檔案以配置對集群的訪問權限

如果什么操作都不做，dashboard 的頁面 15 分鐘后就會退出，就需要再次復制 token，而每次都復制 token 顯得非常麻煩，所以我們可以自己創建 kubeconfig 檔案，放置在桌面上，這樣用起來比較方便

# 將認證資訊復制并重命名
[root@K8s-master1 ~]# cp /root/.kube/config /opt/kubeconfig
# 編輯檔案，將上面的 token 加入到認證檔案中

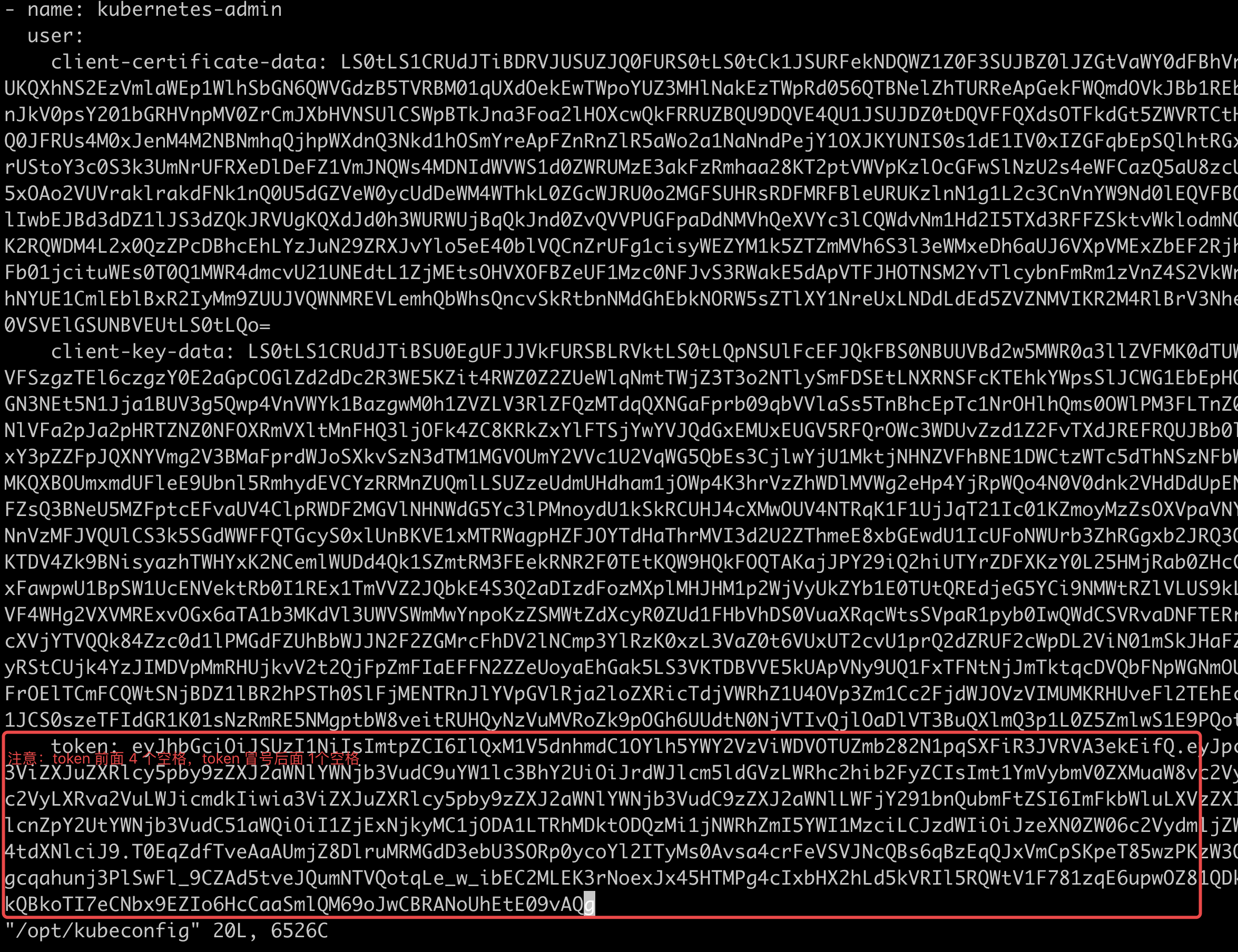

[root@K8s-master1 ~]# vim /opt/kubeconfig

將 kubeconfig 放到電腦桌面，就可以使用 kubeconfig

4 測驗運行 Nginx + Tomcat

https://kubernetes.io/zh/docs/concepts/workloads/controllers/deployment/

測驗運行 Nginx，并最終可以將實作動靜分離

4.1 運行 Nginx

[root@K8s-master1 ~/kubeadm-yaml]# cat /root/kubeadm-yaml/nginx.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: default
  name: nginx-deployment
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: harbor.tech.com/baseimages/nginx:1.18.0
        ports:
        - containerPort: 80

---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: test-nginx-service-label
  name: test-nginx-service
  namespace: default
spec:
  type: NodePort
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 80
    nodePort: 30004
  selector:
    app: nginx
[root@K8s-master1 ~/kubeadm-yaml]#

運行 nginx.yaml

[root@K8s-master1 ~/kubeadm-yaml]# pwd
/root/kubeadm-yaml
[root@K8s-master1 ~/kubeadm-yaml]# kubectl apply -f nginx.yaml
deployment.apps/nginx-deployment created
service/test-nginx-service created

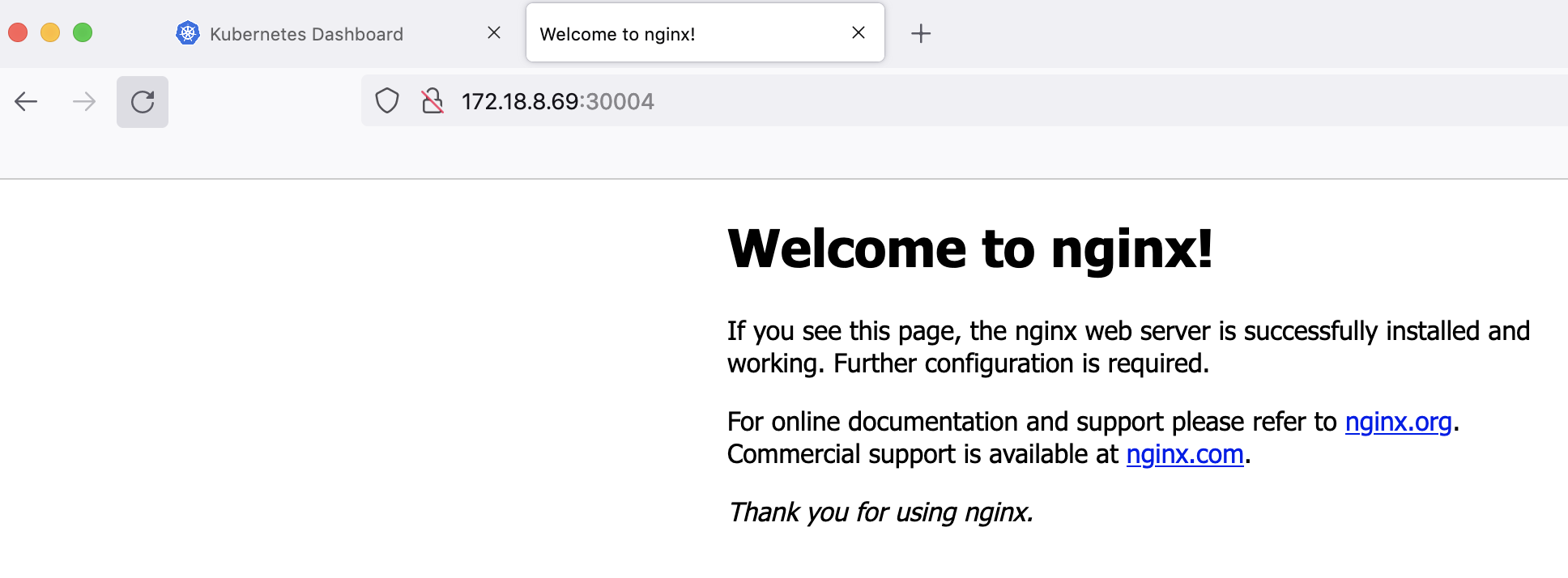

訪問測驗

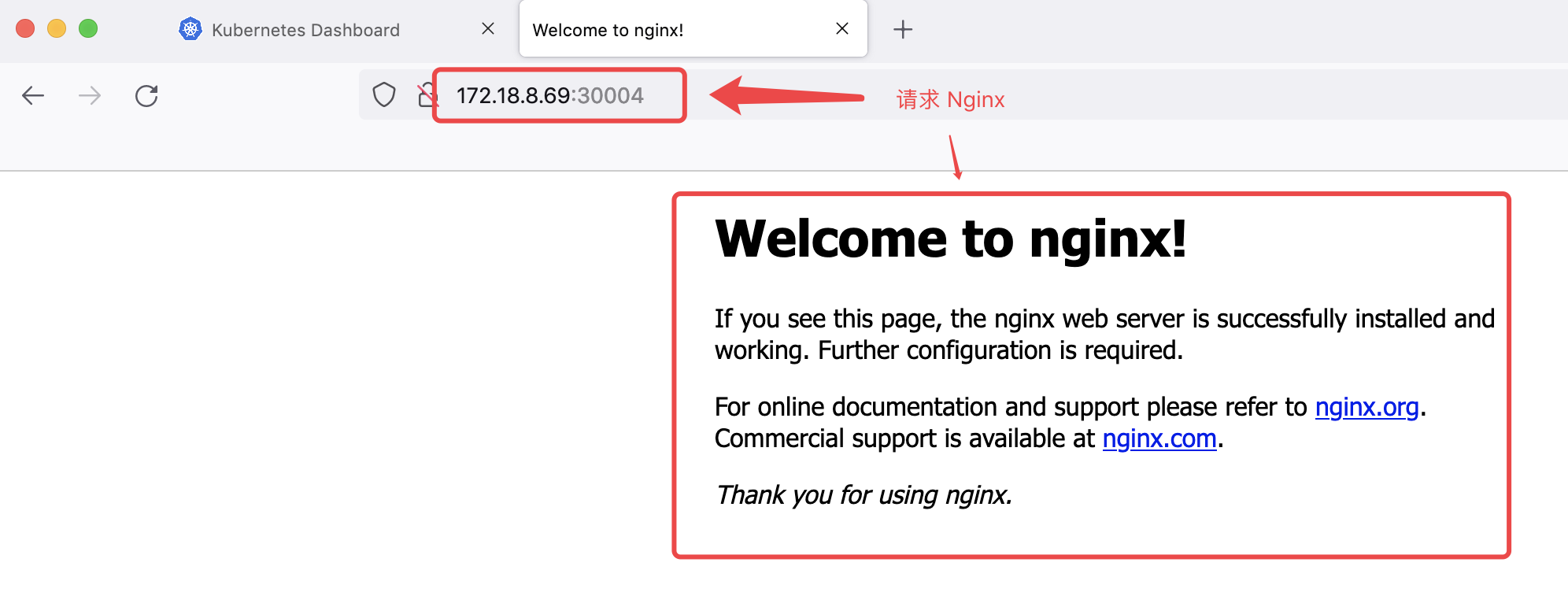

# 任意 node 的IP + Port（30004）
172.18.8.69:30004

4.2 運行 tomcat

[root@K8s-master1 ~/kubeadm-yaml]# cat /root/kubeadm-yaml/tomcat.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: default
  name: tomcat-deployment
  labels:
    app: tomcat
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tomcat
  template:
    metadata:
      labels:
        app: tomcat
    spec:
      containers:
      - name: tomcat
        image: harbor.tech.com/baseimages/tomcat-base:v8.5.45
        ports:
        - containerPort: 8080

---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: test-tomcat-service-label
  name: test-tomcat-service
  namespace: default
spec:
#  type: NodePort
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 8080
#    nodePort: 30005
  selector:
    app: tomcat
[root@K8s-master1 ~/kubeadm-yaml]#

運行 tomcat yml 檔案

[root@K8s-master1 ~/kubeadm-yaml]# pwd
/root/kubeadm-yaml
[root@K8s-master1 ~/kubeadm-yaml]# kubectl apply -f tomcat.yaml
deployment.apps/tomcat-deployment created
service/test-tomcat-service created
[root@K8s-master1 ~/kubeadm-yaml]#

[root@K8s-master1 ~]# kubectl get pod
NAME                                 READY   STATUS    RESTARTS   AGE
net-test1                            1/1     Running   0          125m
net-test2                            1/1     Running   0          125m
nginx-deployment-67dfd6c8f9-q8s72    1/1     Running   0          49m
tomcat-deployment-6c44f58b47-bcwdr   1/1     Running   0          48m
[root@K8s-master1 ~]#

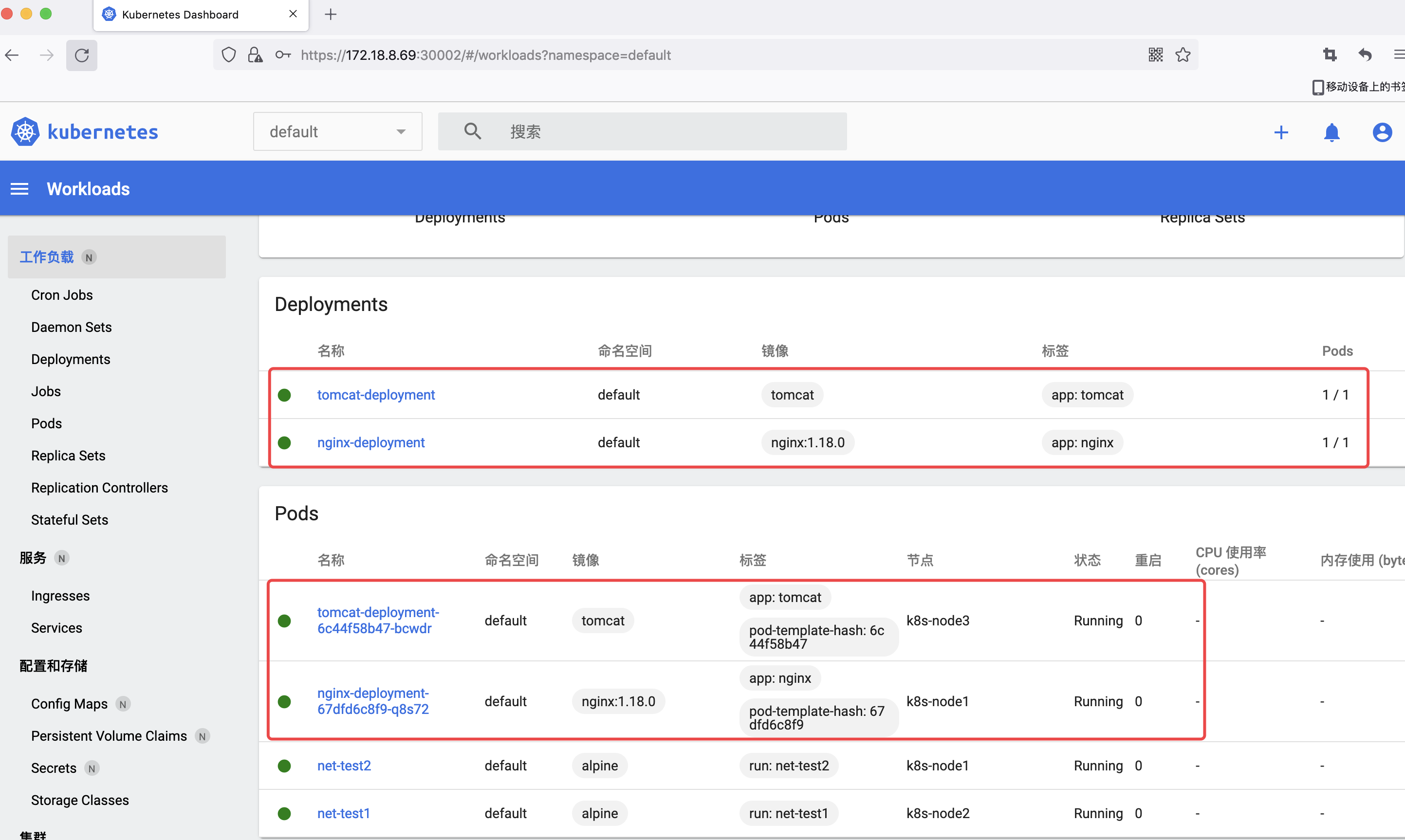

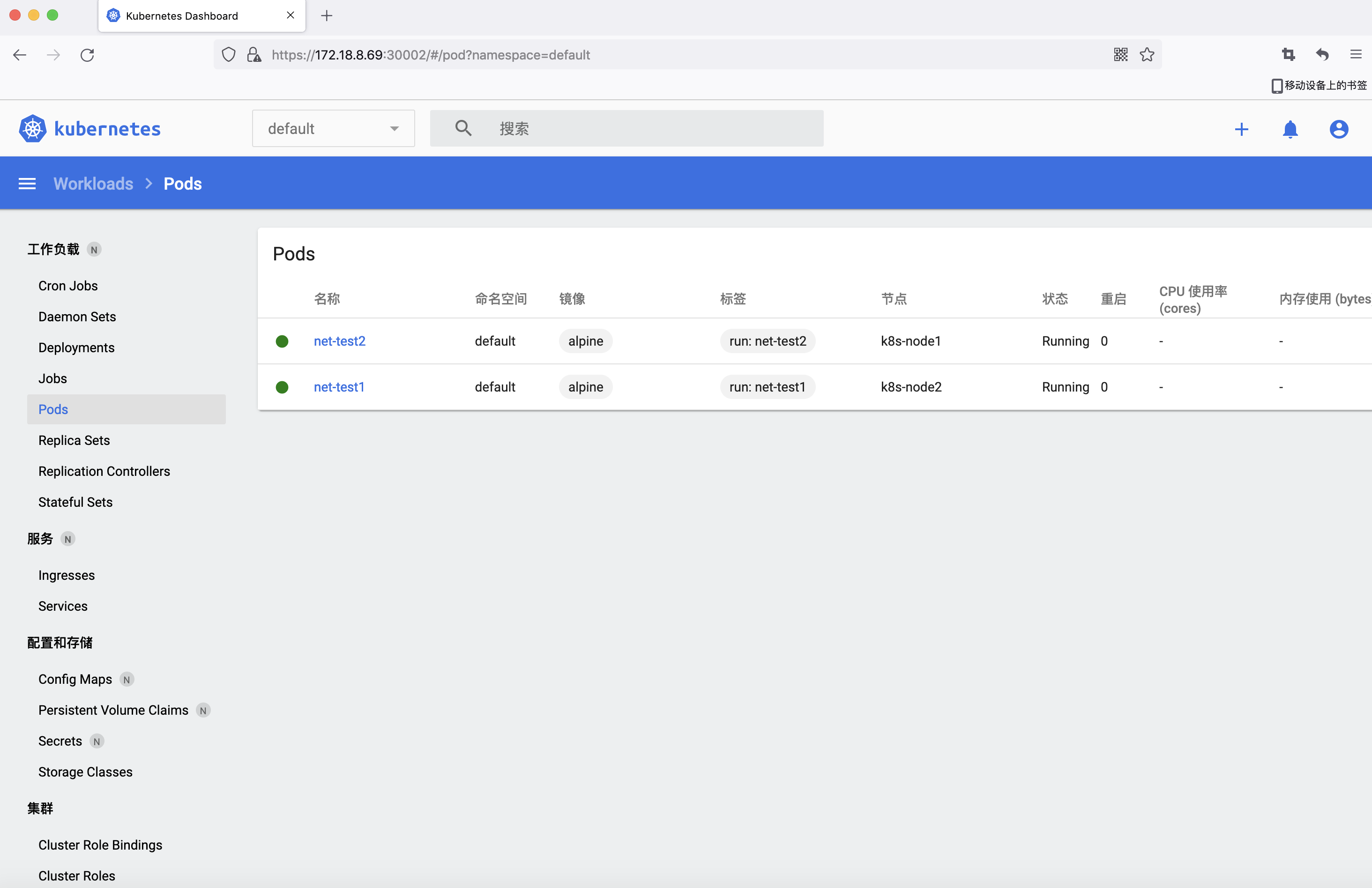

4.3 dashboard 驗證 pod

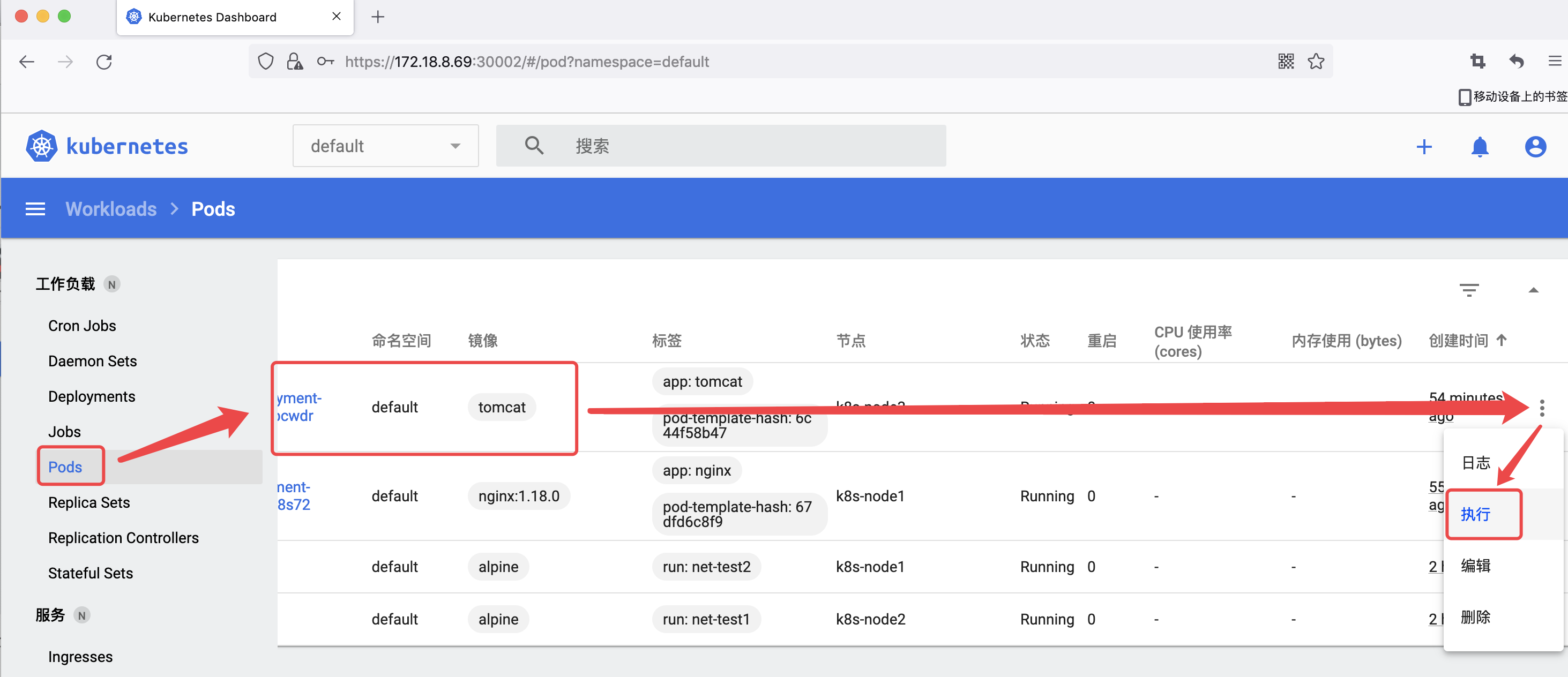

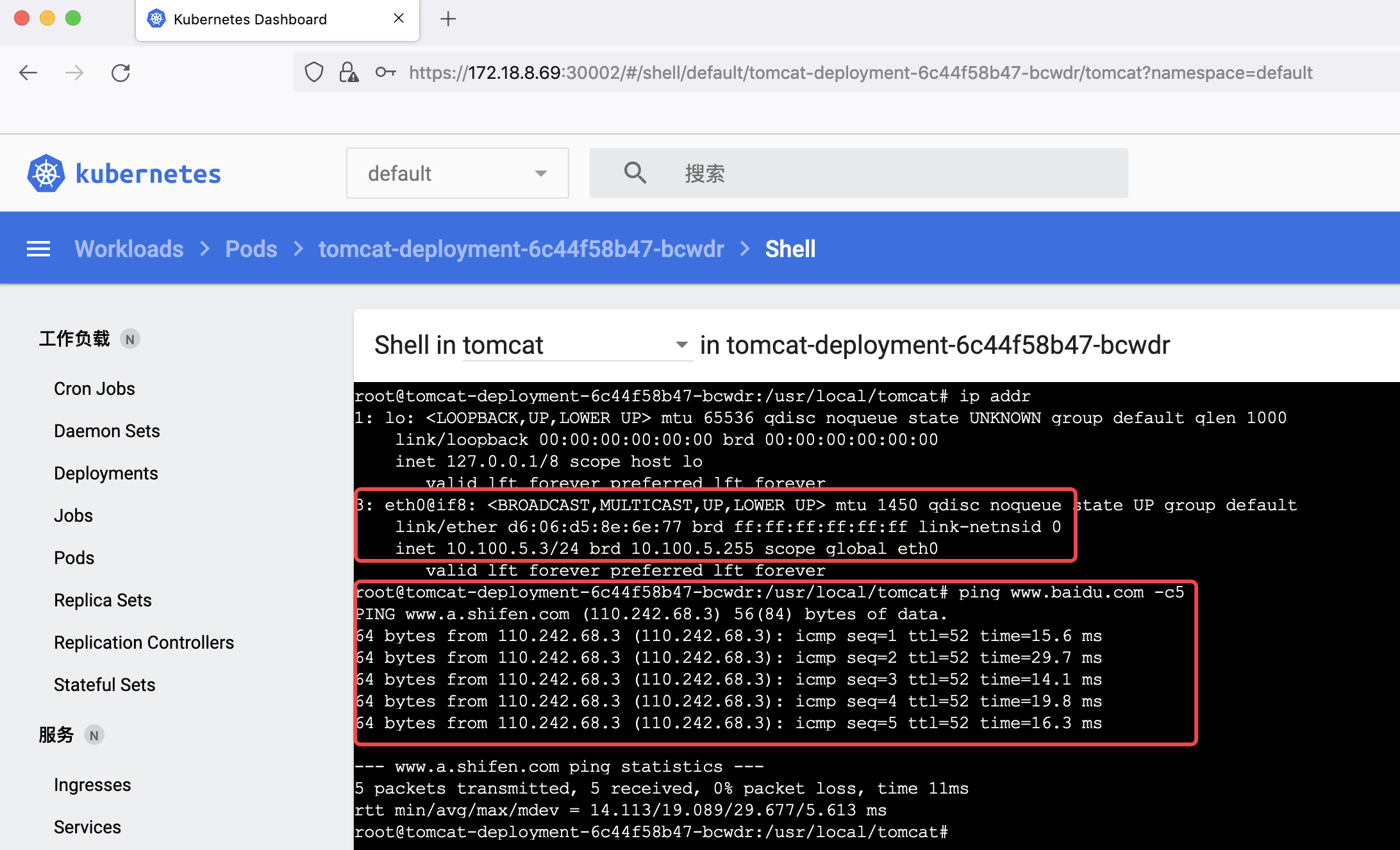

4.4 從 dashboard 進入容器

驗證 pod 通信

4.5 進入 tomcat pod 生成 app

4.5.1 生成 app

[root@K8s-master1 ~]# kubectl get pod
NAME                                 READY   STATUS    RESTARTS   AGE
net-test1                            1/1     Running   0          2d21h
net-test2                            1/1     Running   0          2d21h
nginx-deployment-67dfd6c8f9-q8s72    1/1     Running   0          2d20h
tomcat-deployment-6c44f58b47-f8tk4   1/1     Running   0          6h1m
[root@K8s-master1 ~]# kubectl describe pod tomcat-deployment-6c44f58b47-f8tk4
[root@K8s-master1 ~]# kubectl exec -it tomcat-deployment-6c44f58b47-f8tk4 bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
root@tomcat-deployment-6c44f58b47-f8tk4:/usr/local/tomcat# cd webapps
root@tomcat-deployment-6c44f58b47-f8tk4:/usr/local/tomcat/webapps# mkdir tomcat
root@tomcat-deployment-6c44f58b47-f8tk4:/usr/local/tomcat/webapps# echo "<h1>Tomcat test page for pod</h1>" > tomcat/index.jsp
root@tomcat-deployment-6c44f58b47-f8tk4:/usr/local/tomcat/webapps#

4.6 Nginx 實作動靜分離

4.6.1 Nginx 配置

[root@K8s-master1 ~]# kubectl get pod
NAME                                 READY   STATUS    RESTARTS   AGE
net-test1                            1/1     Running   0          2d21h
net-test2                            1/1     Running   0          2d21h
nginx-deployment-67dfd6c8f9-q8s72    1/1     Running   0          2d20h
tomcat-deployment-6c44f58b47-f8tk4   1/1     Running   0          6h4m
[root@K8s-master1 ~]# kubectl get svc
NAME                  TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
kubernetes            ClusterIP   10.200.0.1       <none>        443/TCP        3d1h
test-nginx-service    NodePort    10.200.150.186   <none>        80:30004/TCP   2d20h
test-tomcat-service   ClusterIP   10.200.83.131    <none>        80/TCP         2d20h
[root@K8s-master1 ~]#

# 進入到 Nginx pod
kubectl exec -it nginx-deployment-67dfd6c8f9-q8s72 bash
cat /etc/issue

# 更新軟體源并安裝基礎命令
apt update
apt install procps vim iputils-ping net-tools curl


# 測驗在 nginx Pod 通過 tomcat pod 的 service 域名訪問
[root@K8s-master1 ~]# kubectl exec -it nginx-deployment-67dfd6c8f9-q8s72 bash
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
root@nginx-deployment-67dfd6c8f9-q8s72:/# ping test-tomcat-service     # 測驗 service 決議
PING test-tomcat-service.default.svc.song.local (10.200.83.131) 56(84) bytes of data.
^C
--- test-tomcat-service.default.svc.song.local ping statistics ---
35 packets transmitted, 0 received, 100% packet loss, time 854ms

root@nginx-deployment-67dfd6c8f9-q8s72:/# curl test-tomcat-service.default.svc.song.local/tomcat/index.jsp
<h1>Tomcat test page for pod</h1>
root@nginx-deployment-67dfd6c8f9-q8s72:/#

# 修改 Nginx 組態檔實作動靜分離，Nginx 一旦接受到 /tomcat 的 uri 就轉發給 tomcat
root@nginx-deployment-67dfd6c8f9-q8s72:/# vim /etc/nginx/conf.d/default.conf
location /tomcat {
    proxy_pass http://test-tomcat-service.default.svc.song.local;
}

# 測驗 nginx 組態檔
root@nginx-deployment-67dfd6c8f9-q8s72:/# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

# 重新加載組態檔
root@nginx-deployment-67dfd6c8f9-q8s72:/# nginx -s reload
2021/07/27 08:29:30 [notice] 602#602: signal process started
root@nginx-deployment-67dfd6c8f9-q8s72:/#

4.6.2 測驗訪問 web 頁面

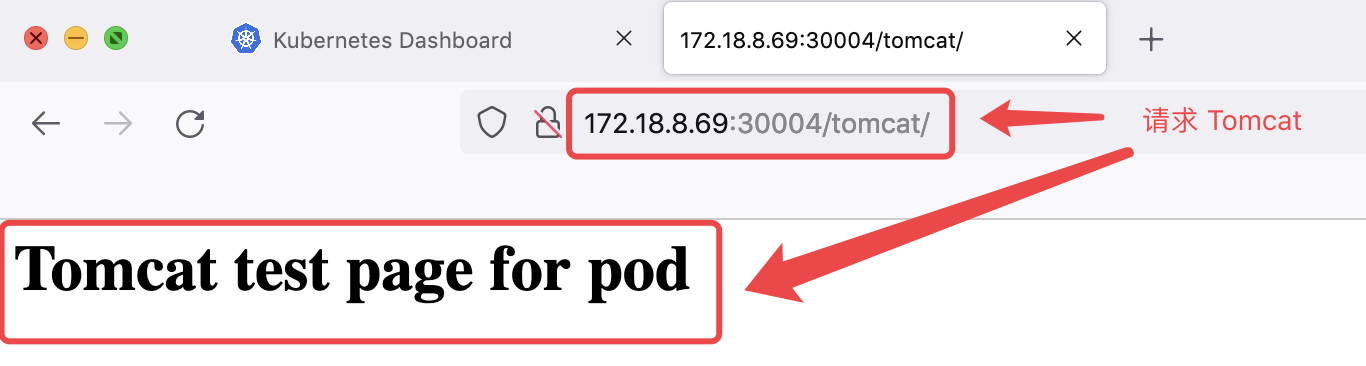

172.18.8.69:30004/tomcat/

172.18.8.69:30004

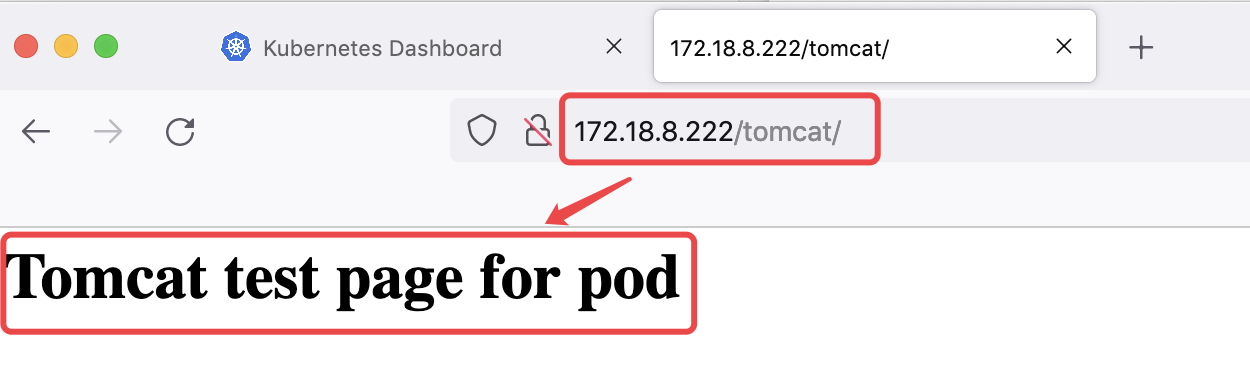

4.7 通過 Haproxy 實作高可用反向代理

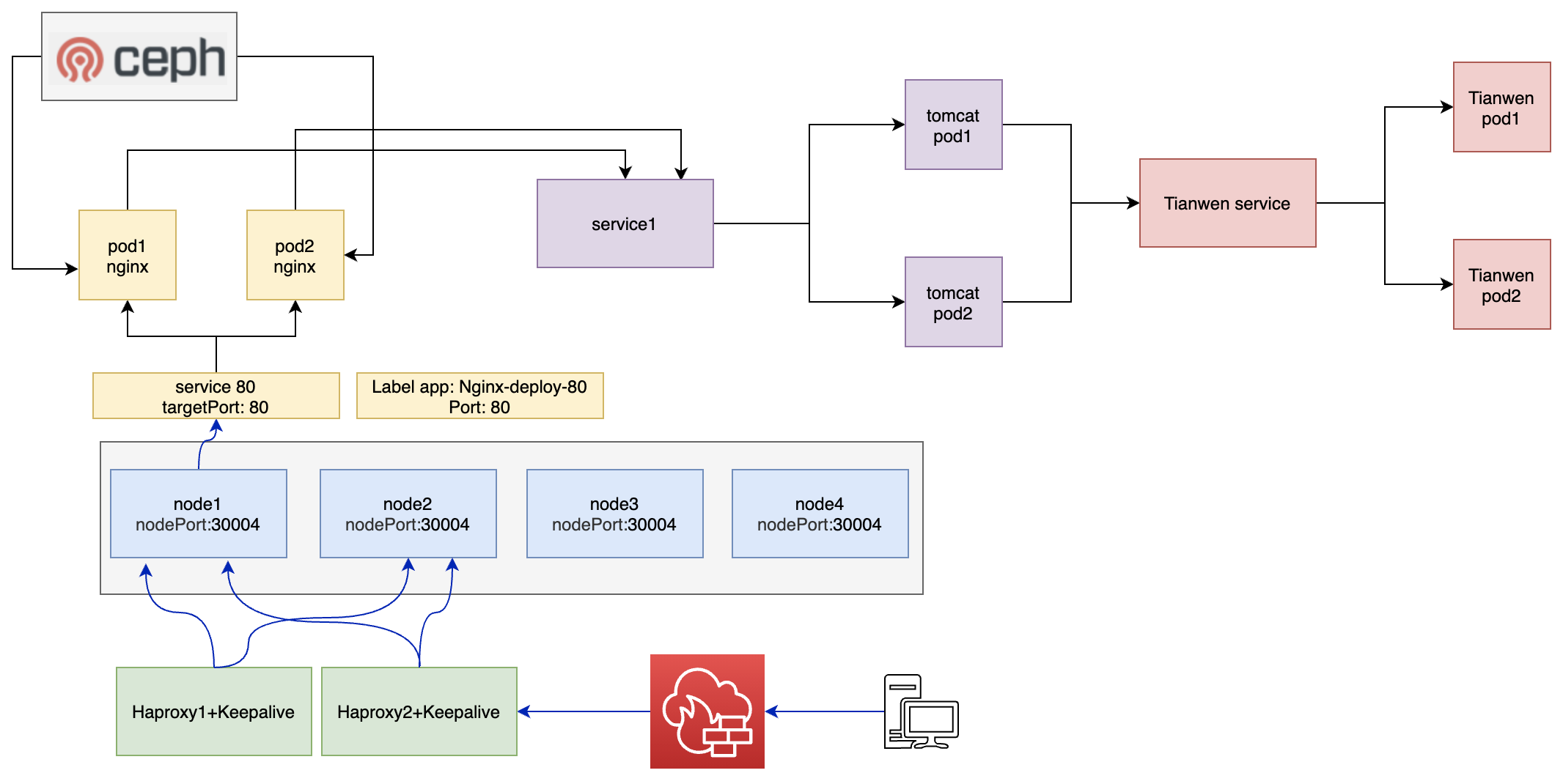

基于 Haproxy 和 keepalived 實作高可用的反向代理，并訪問到運行在 Kubernetes 集群中業務 Pod，反向代理可以復用 K8s 的反向代理環境，生產環境需要配置單獨的反向代理服務器

4.7.1 keepalived VIP 配置

為 k8s 中的服務配置單獨的 VIP

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    garp_master_delay 10
    smtp_alert
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.18.8.111/24 dev eth0 label eth0:1   # haproxy：bind 172.18.8.111:6443

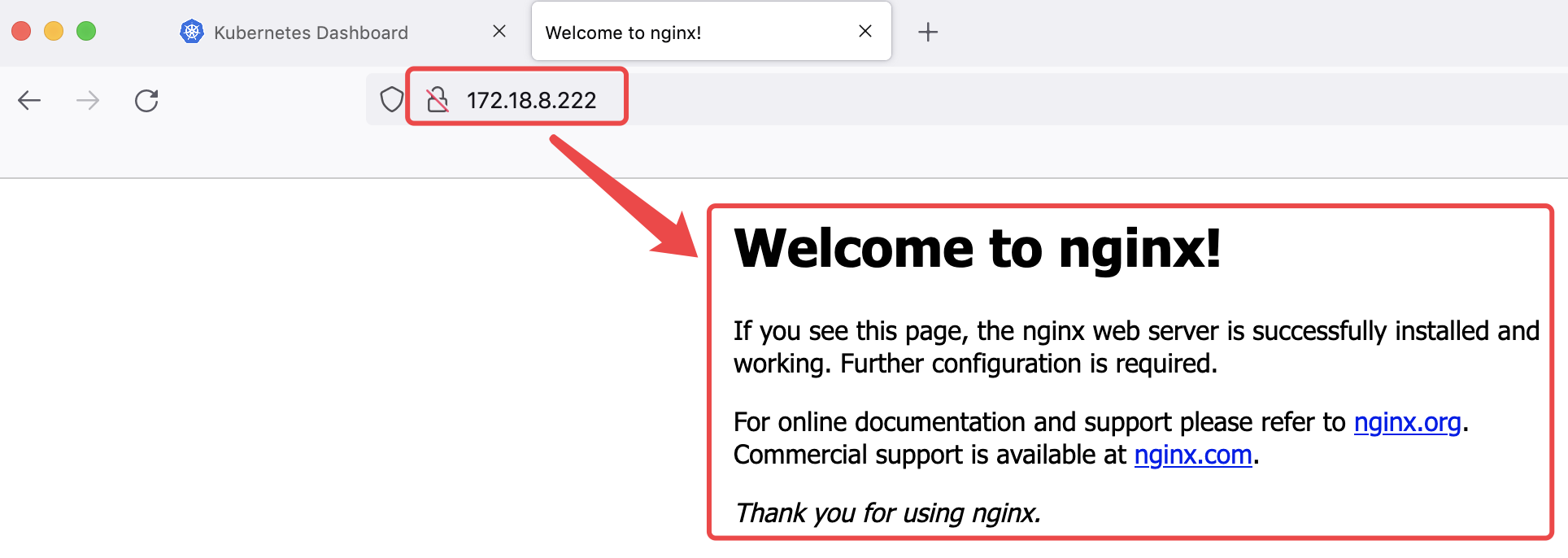

        172.18.8.222/24 dev eth0 label eth0:2   # haproxy：bind 172.18.8.222:80
    }
}

systectl restart keepalived

4.7.2 Haproxy 配置

listen k8s-6443
  bind 172.18.8.111:6443
  mode tcp
  balance roundrobin
  server 172.18.8.9 172.18.8.9:6443 check inter 3s fall 3 rise 5     # k8s-master1
  server 172.18.8.19 172.18.8.19:6443 check inter 3s fall 3 rise 5   # k8s-master2
  server 172.18.8.29 172.18.8.29:6443 check inter 3s fall 3 rise 5   # k8s-master3

listen nginx-80
  bind 172.18.8.222:80
  mode tcp
  balance roundrobin
  server 172.18.8.39 172.18.8.39:30004 check inter 3s fall 3 rise 5  # k8s-node1
  server 172.18.8.49 172.18.8.49:30004 check inter 3s fall 3 rise 5  # k8s-node2
  server 172.18.8.59 172.18.8.59:30004 check inter 3s fall 3 rise 5  # k8s-node3
  server 172.18.8.69 172.18.8.69:30004 check inter 3s fall 3 rise 5  # k8s-node4

4.7.3 測驗通過 VIP 訪問

172.18.8.222/tomcat

172.18.8.222

轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/303845.html

標籤：其他

上一篇：黑色HTML5網站整站原始碼

下一篇：【創業必備企業架構，可開發任意專案】SpringCloud大型企業分布式微服務云架構原始碼
