Turtle 視窗

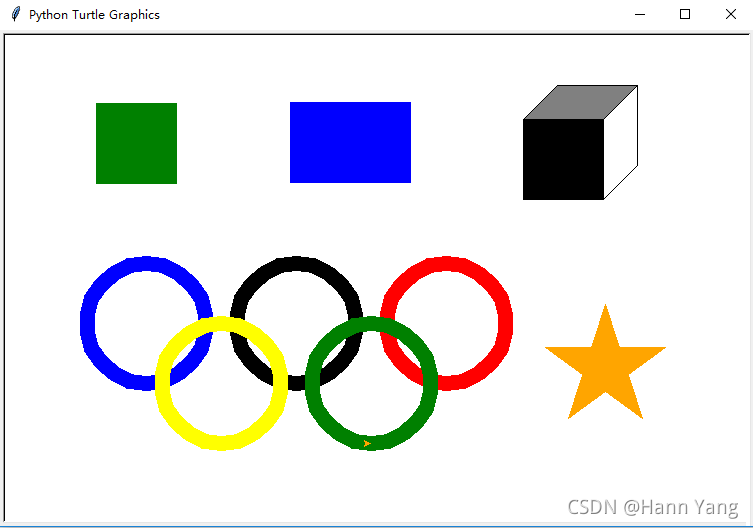

請看下圖，turtle視窗圖示是一片小葉子，估計它就是繼承自 tkinter 庫，
tkinter 視窗
參閱了一些資料，發現 turtle 方法可直接在 tkinter 的畫布Canvas上操作：
源代碼
from tkinter import *
from turtle import RawTurtle
def circ():
tu.penup()
tu.home()
tu.clear()
tu.speed(0)
[x,y,R] = et1.get().split(',')
try:
x = int(x.replace('(',''))
y = int(y.replace(')',''))
R = int(R.strip())
except:
x,y,R = 0,0,50 #輸入錯誤則賦予默認值
tu.goto(x,y-R)
tu.pendown()
tu.circle(R)
def rect():
tu.penup()
tu.home()
tu.clear()
tu.speed(0)
tu.color('red', 'yellow')
tu.begin_fill()
[d,rad] = et2.get().split(',')
try:
d = int(d)
rad = int(rad)
except:
d,rad = 200,216 #輸入錯誤則賦予默認值
tu.pendown()
tu.back(d//5)
while True:
tu.forward(d)
tu.left(rad)
if abs(tu.pos()[0]+d//5)<0.1 and abs(tu.pos()[1])<0.1:
break
tu.end_fill()
def taiji():
tu.penup()
tu.home()
tu.clear()
tu.speed(0)
d = et3.get()
try:
d = int(d)
except:
d = 120 #輸入錯誤則賦予默認值
tu.hideturtle()
tu.goto(d//2,-d)
tu.pendown()
tu.begin_fill()
tu.color('black','black')
tu.circle(d,extent=180)
tu.circle(d//2,extent=180)
tu.circle(-d//2,extent=180)
tu.end_fill()
tu.circle(-d,extent=180)
tu.penup()
tu.goto(d//2,-d//6*4)
tu.pendown()
tu.begin_fill()
tu.fillcolor("black")
tu.circle(d//5,extent=360)
tu.end_fill()
tu.penup()
tu.goto(d//2,d//3)
tu.pendown()
tu.begin_fill()
tu.fillcolor("white")
tu.circle(d//5,extent=360)
tu.end_fill()
tu.penup()
def main():
global tu,et1,et2,et3
root = Tk()
root.geometry('520x520+150+300')
root.title('turtle在tkinter.Canvas上的操作')
root.resizable(False, False)
canvas = Canvas(root, width=640, height=400)
canvas.pack()
tu = RawTurtle(canvas)
tu.hideturtle()
et1 = Entry(root, width=12)
et1.place(x = 30, y = 480)
et1.insert(0,'(50,-20), 100')
bt1 = Button(root,text=' 畫圓 ',command=circ)
bt1.place(x = 60, y = 425)
et2 = Entry(root, width=12)
et2.place(x = 190, y = 480)
et2.insert(0,'200, 216')
bt2 = Button(root,text=' 多角星(或多邊形) ',command=rect)
bt2.place(x = 180, y = 425)
et3 = Entry(root, width=12)
et3.place(x = 360, y = 480)
et3.insert(0,'120')
bt3 = Button(root,text=' 太極 ',command=taiji)
bt3.place(x = 380, y = 425)
root.mainloop()
if __name__ == '__main__':
main()
turtle和tkinter混合使用

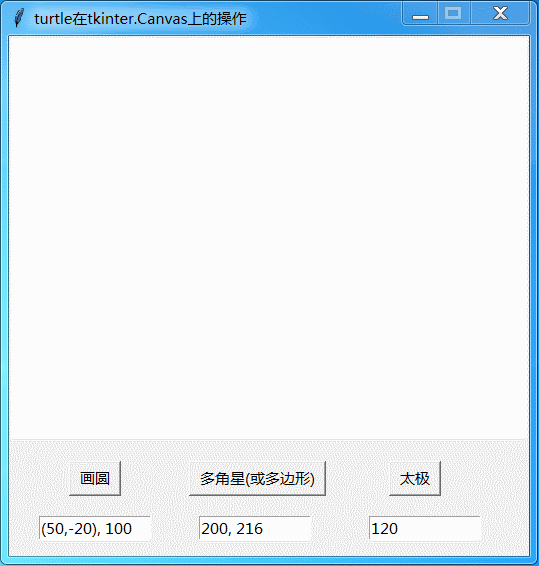

turtle和tkinter兩者搭配使用，使得 turtle 的畫圖引數可以由 tkinter 的控制元件當場設定，這樣就實作了turtle小海龜的現場互動，運行效果見圖二，
三個Entry控制元件，分別設定：
1. 圓心坐標和圓的直徑；
2. 多邊形的邊長和邊的轉動角度；
3. 太極圖的外圓直徑，
(本篇完)
