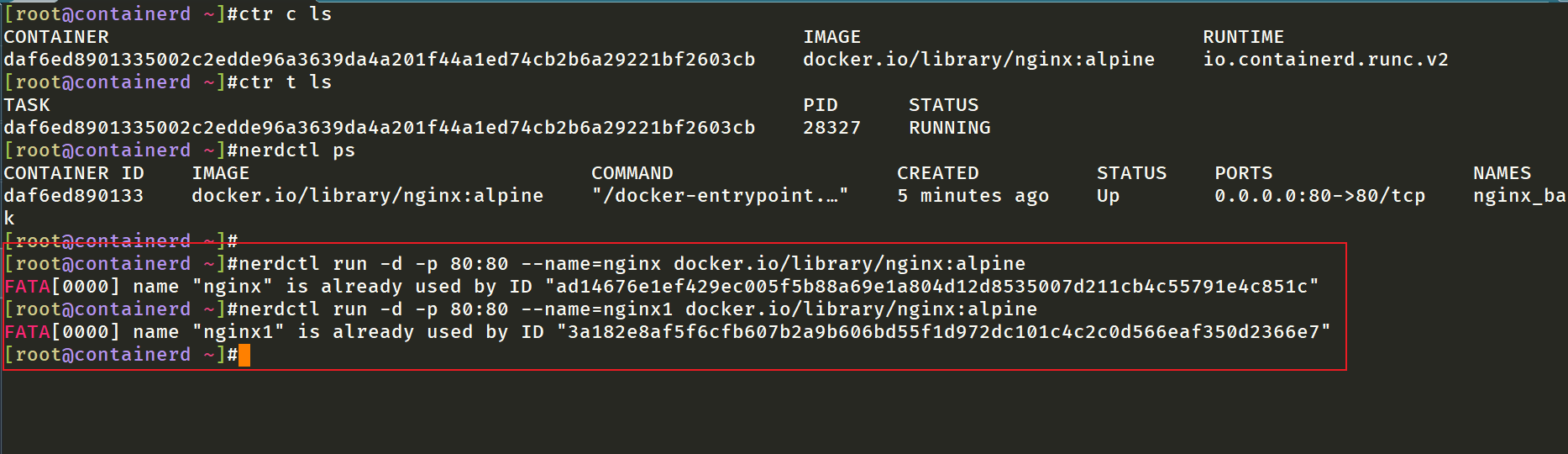

- :question:(待解決)還有個奇怪的問題就是：容器名被占用問題，，，

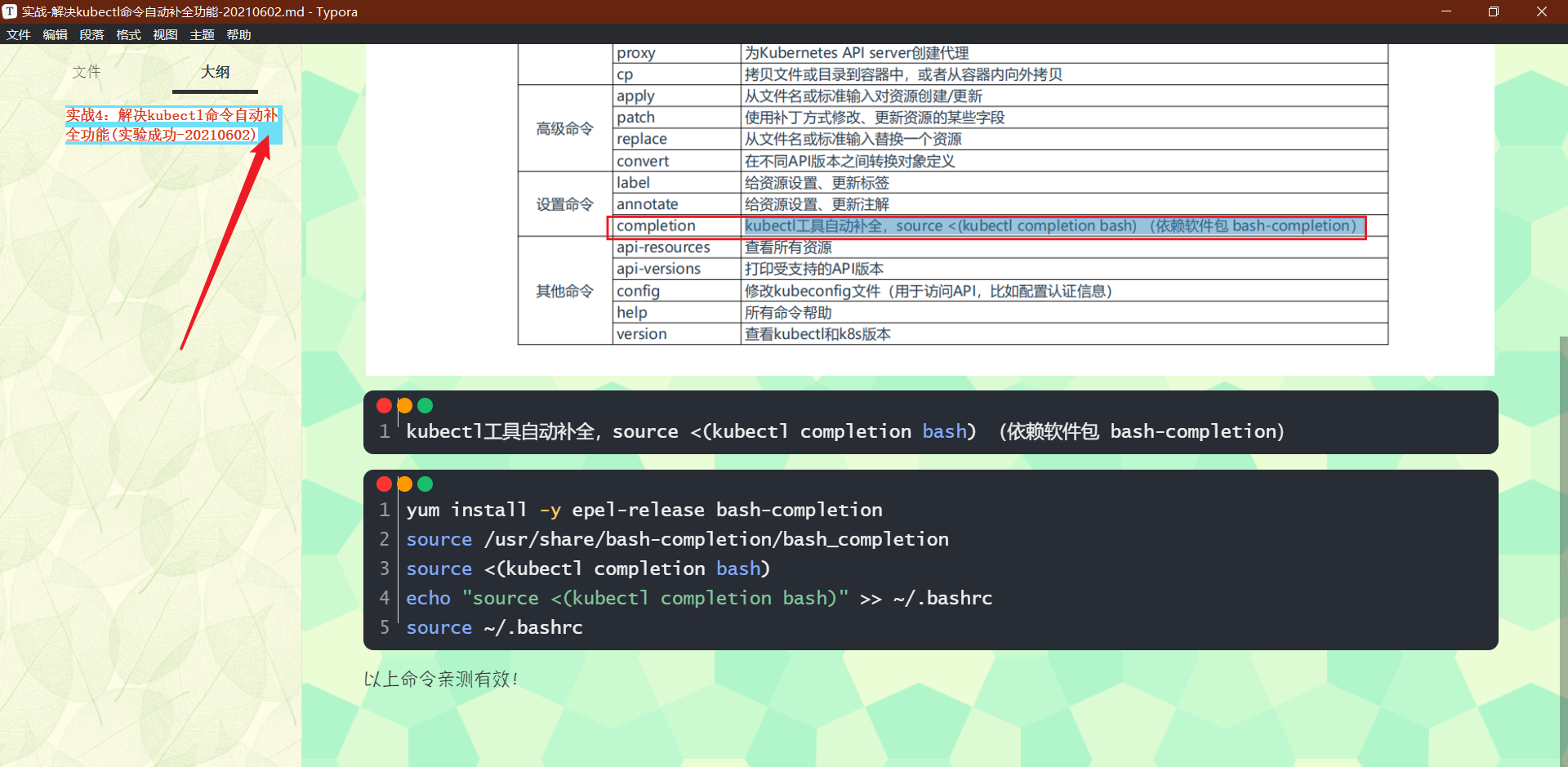

- :heavy_check_mark:(已解決)nerdctl為啥沒有自動補全呢？
- :heavy_check_mark:注意：不推薦使用commit去構建物件，而是要用build去構建物件

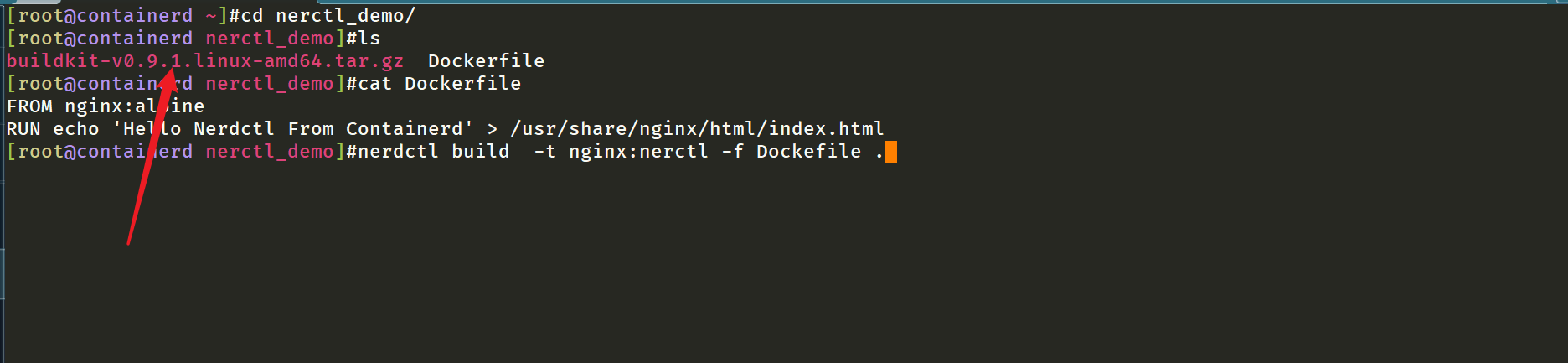

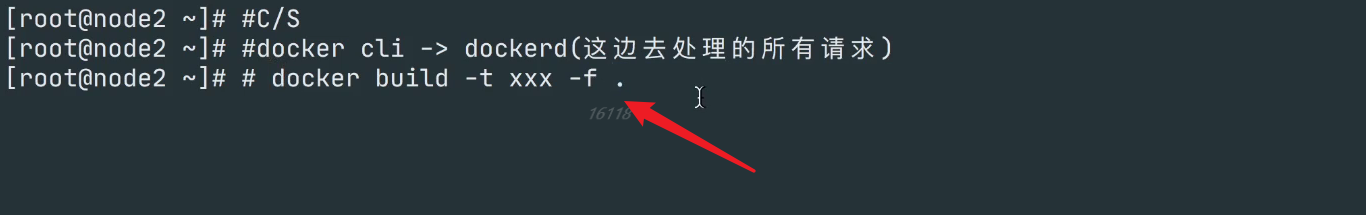

- :heavy_check_mark:注意：用build構建鏡像時，下面這個.問題，

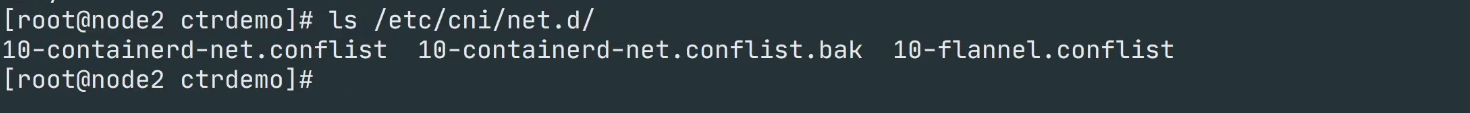

- :heavy_check_mark:注意：containerd網路，它對接的是cni
- :heavy_check_mark:注意：nerdctl在構建鏡像時可以配置.dockerignore檔案的，

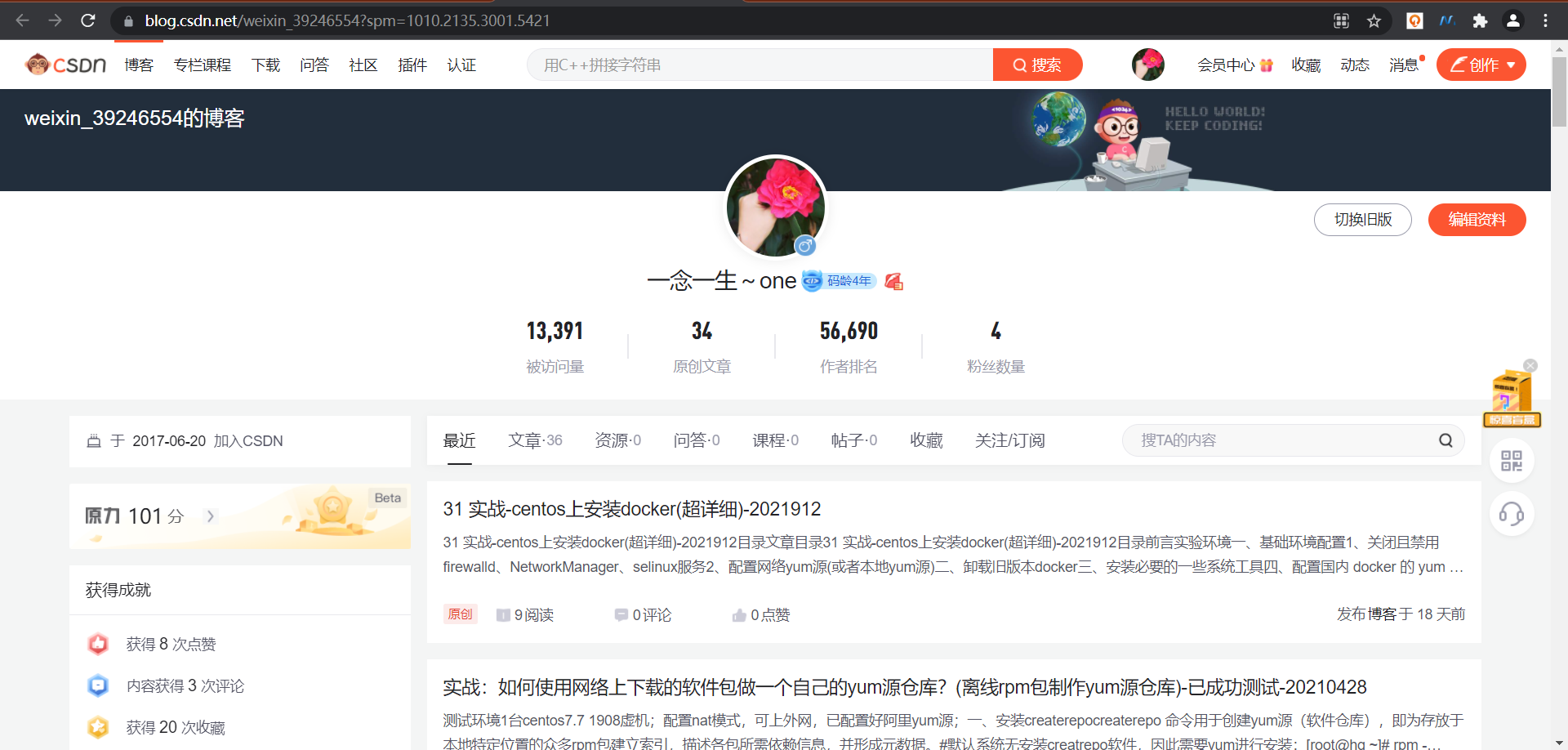

- 關于我
- 總結
實驗環境
實驗環境：
1、win10筆記本
2、1臺centos7.6虛機(vmwrokstation虛機)
cri-containerd-cni-1.5.5-linux-amd64.tar.gz
nerdctl-0.12.1-linux-amd64.tar.gz
實驗軟體
鏈接：https://pan.baidu.com/s/1Im37YWoOibJ009hEAD_HBQ
提取碼：jiik
–來自百度網盤超級會員V6的分享
nerdctl-0.12.1-linux-amd64.tar.gz、buildkit-v0.9.1.linux-amd64.tar.gz
nerdctl安裝

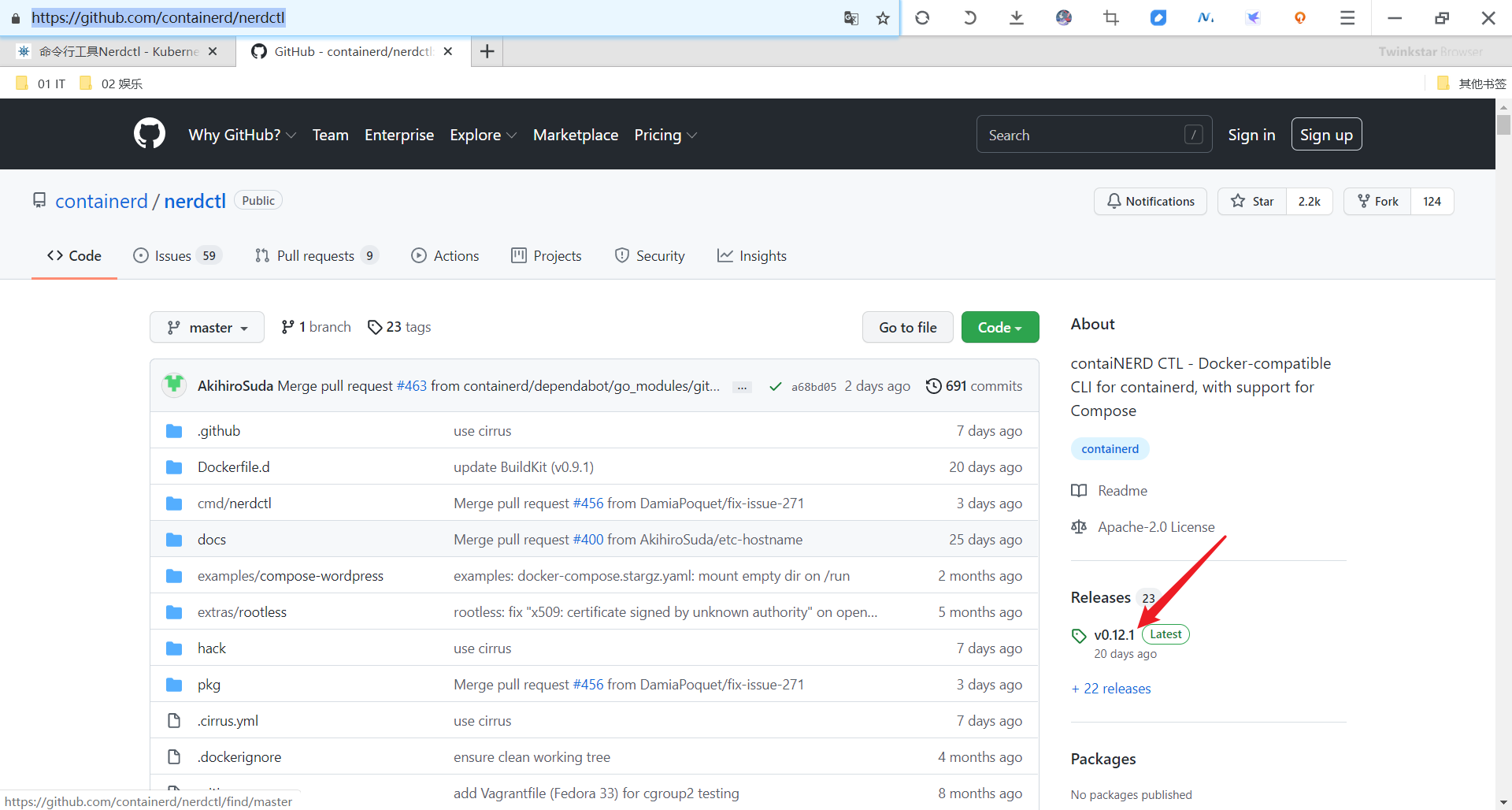

同樣直接在 GitHub Release 頁面下載對應的壓縮包解壓到 PATH 路徑下即可：
https://github.com/containerd/nerdctl

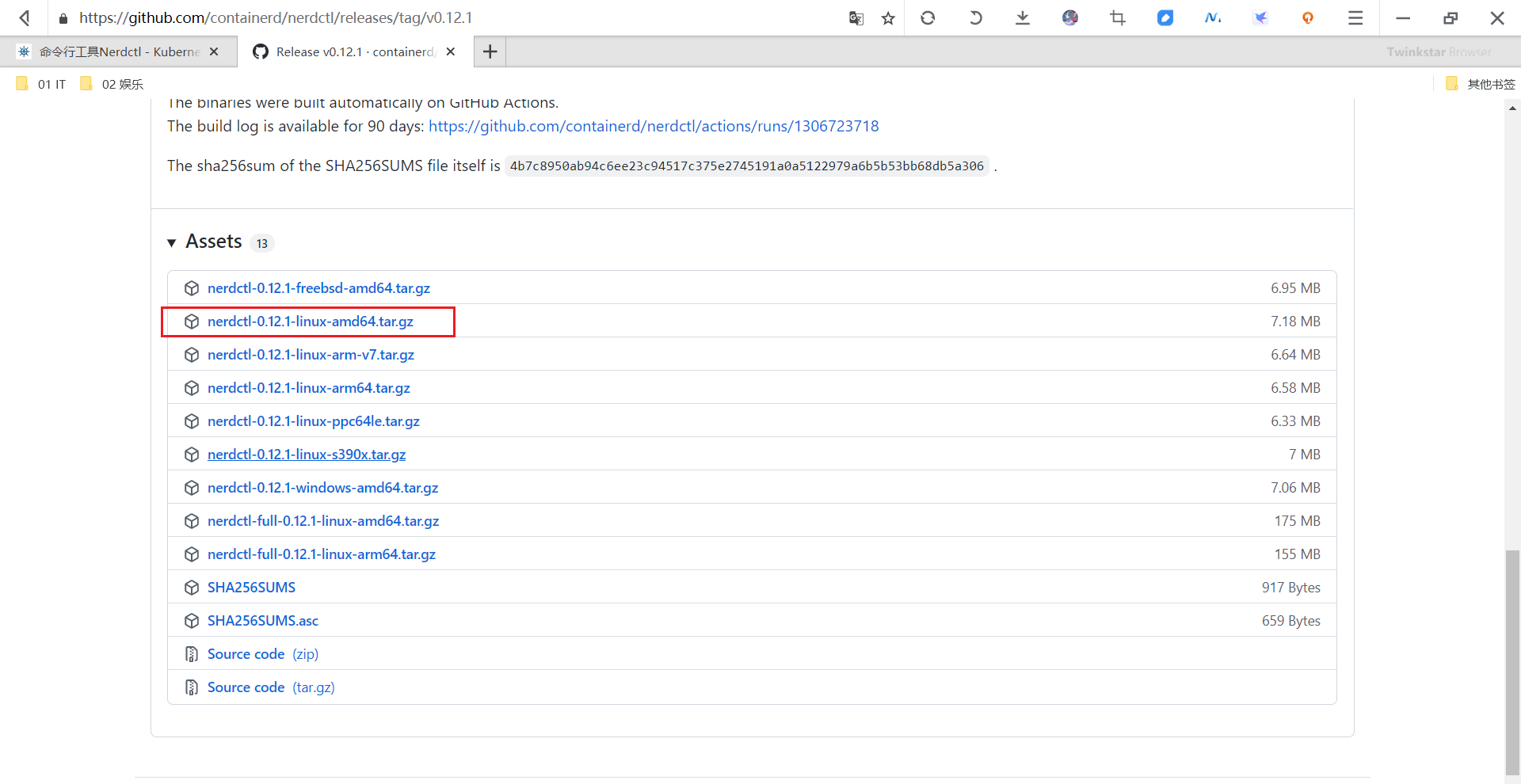

下載nerdctl-0.12.1-linux-amd64.tar.gz軟體包：
# 如果沒有安裝 containerd，則可以下載 nerdctl-full-<VERSION>-linux-amd64.tar.gz 包進行安裝
? ~ wget https://github.com/containerd/nerdctl/releases/download/v0.12.1/nerdctl-0.12.1-linux-amd64.tar.gz
# 如果有限制，也可以替換成下面的 URL 加速下載
[root@containerd ~]#wget https://download.fastgit.org/containerd/nerdctl/releases/download/v0.12.1/nerdctl-0.12.1-linux-amd64.tar.gz
--2021-10-25 13:13:43-- https://download.fastgit.org/containerd/nerdctl/releases/download/v0.12.1/nerdctl-0.12.1-linux-amd64.tar.gz
Resolving download.fastgit.org (download.fastgit.org)... 88.198.10.254
Connecting to download.fastgit.org (download.fastgit.org)|88.198.10.254|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 7528755 (7.2M) [application/octet-stream]
Saving to: ‘nerdctl-0.12.1-linux-amd64.tar.gz’
100%[===============================================================================================================================>] 7,528,755 3.31MB/s in 2.2s
2021-10-25 13:13:46 (3.31 MB/s) - ‘nerdctl-0.12.1-linux-amd64.tar.gz’ saved [7528755/7528755][root@containerd ~]#ll -h nerdctl-0.12.1-linux-amd64.tar.gz
-rw-r--r-- 1 root root 7.2M Oct 5 15:10 nerdctl-0.12.1-linux-amd64.tar.gz
[root@containerd ~]#
解壓軟體包到相應目錄：
[root@containerd ~]#tar tf nerdctl-0.12.1-linux-amd64.tar.gz #先查看下壓縮包檔案內容
nerdctl
containerd-rootless-setuptool.sh
containerd-rootless.sh
[root@containerd ~]#mkdir -p /usr/local/containerd/bin && tar -zxvf nerdctl-0.12.1-linux-amd64.tar.gz nerdctl && mv nerdctl /usr/local/containerd/bin
nerdctl
[root@containerd ~]#ln -s /usr/local/containerd/bin/nerdctl /usr/bin/nerdctl
驗證：
[root@containerd ~]#nerdctl version
Client:
Version: v0.12.1
Git commit: 6f0c8b7bc63270404c9f5810a899e6bae7546608
Server:
containerd:
Version: v1.5.5
GitCommit: 72cec4be58a9eb6b2910f5d10f1c01ca47d231c0
[root@containerd ~]#
至此，nerdctl安裝完成，
安裝完成后接下來學習下 nerdctl 命令列工具的使用，
0、nerd幫助命令
[root@containerd ~]#nerdctl
NAME:
nerdctl - Docker-compatible CLI for containerd
USAGE:
nerdctl [global options] command [command options] [arguments...]
VERSION:
0.12.1
COMMANDS:
run Run a command in a new container
exec Run a command in a running container
ps List containers
logs Fetch the logs of a container. Currently, only containers created with `nerdctl run -d` are supported.
port List port mappings or a specific mapping for the container
stop Stop one or more running containers
start Start one or more running containers
kill Kill one or more running containers
rm Remove one or more containers
pause Pause all processes within one or more containers
unpause Unpause all processes within one or more containers
commit [flags] CONTAINER REPOSITORY[:TAG]
wait Block until one or more containers stop, then print their exit codes.
build Build an image from a Dockerfile. Needs buildkitd to be running.
images List images
pull Pull an image from a registry
push Push an image or a repository to a registry
load Load an image from a tar archive or STDIN
save Save one or more images to a tar archive (streamed to STDOUT by default)
tag Create a tag TARGET_IMAGE that refers to SOURCE_IMAGE
rmi Remove one or more images
events Get real time events from the server
info Display system-wide information
version Show the nerdctl version information
inspect Return low-level information on objects.
top Display the running processes of a container
login Log in to a Docker registry
logout Log out from a Docker registry
compose Compose
completion Show shell completion
help, h Shows a list of commands or help for one command
Management:
container Manage containers
image Manage images
network Manage networks
volume Manage volumes
system Manage containerd
namespace Manage containerd namespaces
GLOBAL OPTIONS:
--debug debug mode (default: false)
--debug-full debug mode (with full output) (default: false)
--address value, -a value, --host value, -H value containerd address, optionally with "unix://" prefix (default: "/run/containerd/containerd.sock") [$CONTAINERD_ADDRESS]
--namespace value, -n value containerd namespace, such as "moby" for Docker, "k8s.io" for Kubernetes (default: "default") [$CONTAINERD_NAMESPACE]
--snapshotter value, --storage-driver value containerd snapshotter (default: "overlayfs") [$CONTAINERD_SNAPSHOTTER]
--cni-path value Set the cni-plugins binary directory (default: "/opt/cni/bin") [$CNI_PATH]
--cni-netconfpath value Set the CNI config directory (default: "/etc/cni/net.d") [$NETCONFPATH]
--data-root value Root directory of persistent nerdctl state (managed by nerdctl, not by containerd) (default: "/var/lib/nerdctl")
--cgroup-manager value Cgroup manager to use ("cgroupfs"|"systemd") (default: "cgroupfs")
--insecure-registry skips verifying HTTPS certs, and allows falling back to plain HTTP (default: false)
--help, -h show help (default: false)
--version, -v print the version (default: false)
[root@containerd ~]#
1、Run&Exec ?
🐳nerdctl run
和 docker run 類似可以使用 nerdctl run 命令運行容器，例如：
? ~ nerdctl run -d -p 80:80 --name=nginx --restart=always nginx:alpine
docker.io/library/nginx:alpine: resolved |++++++++++++++++++++++++++++++++++++++|
index-sha256:bead42240255ae1485653a956ef41c9e458eb077fcb6dc664cbc3aa9701a05ce: done |++++++++++++++++++++++++++++++++++++++| manifest-sha256:ce6ca11a3fa7e0e6b44813901e3289212fc2f327ee8b1366176666e8fb470f24: done |++++++++++++++++++++++++++++++++++++++| config-sha256:7ce0143dee376bfd2937b499a46fb110bda3c629c195b84b1cf6e19be1a9e23b: done |++++++++++++++++++++++++++++++++++++++| elapsed: 5.3 s total: 3.1 Ki (606.0 B/s) 6e489777d2f73dda8a310cdf8da9df38353c1aa2021d3c2270b30eff1806bcf8
可選的引數使用和 docker run 基本一直，比如 -i、-t、--cpus、--memory 等選項，可以使用 nerdctl run --help 獲取可使用的命令選項：
[root@containerd ~]#nerdctl run --help
NAME:
nerdctl run - Run a command in a new container
USAGE:
nerdctl run [command options] [arguments...]
OPTIONS:
--help show help (default: false)
--tty, -t (Currently -t needs to correspond to -i) (default: false)
--interactive, -i Keep STDIN open even if not attached (default: false)
--detach, -d Run container in background and print container ID (default: false)
--restart value Restart policy to apply when a container exits (implemented values: "no"|"always") (default: "no")
--rm Automatically remove the container when it exits (default: false)
--pull value Pull image before running ("always"|"missing"|"never") (default: "missing")
--network value, --net value Connect a container to a network ("bridge"|"host"|"none") (default: "bridge")
--dns value Set custom DNS servers
--publish value, -p value Publish a container's port(s) to the host
--hostname value, -h value Container host name
--cpus value Number of CPUs (default: 0)
--memory value, -m value Memory limit
--pid value PID namespace to use
--pids-limit value Tune container pids limit (set -1 for unlimited) (default: -1)
--cgroupns value Cgroup namespace to use, the default depends on the cgroup version ("host"|"private") (default: "host")
--cpuset-cpus value CPUs in which to allow execution (0-3, 0,1)
--cpu-shares value CPU shares (relative weight) (default: 0)
--device value Add a host device to the container
--user value, -u value Username or UID (format: <name|uid>[:<group|gid>])
--security-opt value Security options
--cap-add value Add Linux capabilities
--cap-drop value Drop Linux capabilities
--privileged Give extended privileges to this container (default: false)
--runtime value Runtime to use for this container, e.g. "crun", or "io.containerd.runsc.v1" (default: "io.containerd.runc.v2")
--sysctl value Sysctl options
--gpus value GPU devices to add to the container ('all' to pass all GPUs)
--volume value, -v value Bind mount a volume
--read-only Mount the container's root filesystem as read only (default: false)
--rootfs The first argument is not an image but the rootfs to the exploded container (default: false)
--entrypoint value Overwrite the default ENTRYPOINT of the image
--workdir value, -w value Working directory inside the container
--env value, -e value Set environment variables
--add-host value Add a custom host-to-IP mapping (host:ip)
--env-file value Set environment variables from file
--name value Assign a name to the container
--label value, -l value Set meta data on a container
--label-file value Read in a line delimited file of labels
--cidfile value Write the container ID to the file
--shm-size value Size of /dev/shm
--pidfile value file path to write the task's pid
--ulimit value Ulimit options
[root@containerd ~]#
🐳nerdctl exec
同樣也可以使用 exec 命令執行容器相關命令，例如：
? ~ nerdctl exec -it nginx /bin/sh
/ # date
Thu Aug 19 06:43:19 UTC 2021
/ #
2、容器管理
🐳nerdctl ps：列出容器
使用 nerdctl ps 命令可以列出所有容器，
? ~ nerdctl ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
6e489777d2f7 docker.io/library/nginx:alpine "/docker-entrypoint.…" 10 minutes ago Up 0.0.0.0:80->80/tcp nginx
同樣可以使用 -a 選項顯示所有的容器串列，默認只顯示正在運行的容器，不過需要注意的是 nerdctl ps 命令并沒有實作 docker ps 下面的 --filter、--format、--last、--size 等選項，
🐳nerdctl inspect：獲取容器的詳細資訊，
? ~ nerdctl inspect nginx
[
{
"Id": "6e489777d2f73dda8a310cdf8da9df38353c1aa2021d3c2270b30eff1806bcf8",
"Created": "2021-08-19T06:35:46.403464674Z",
"Path": "/docker-entrypoint.sh",
"Args": [
"nginx",
"-g",
"daemon off;"
],
"State": {
"Status": "running",
"Running": true,
"Paused": false,
"Pid": 2002,
"ExitCode": 0,
"FinishedAt": "0001-01-01T00:00:00Z"
},
"Image": "docker.io/library/nginx:alpine",
"ResolvConfPath": "/var/lib/nerdctl/1935db59/containers/default/6e489777d2f73dda8a310cdf8da9df38353c1aa2021d3c2270b30eff1806bcf8/resolv.conf",
"LogPath": "/var/lib/nerdctl/1935db59/containers/default/6e489777d2f73dda8a310cdf8da9df38353c1aa2021d3c2270b30eff1806bcf8/6e489777d2f73dda8a310cdf8da9df38353c1aa2021d3c2270b30eff1806bcf8-json.log",
"Name": "nginx",
"Driver": "overlayfs",
"Platform": "linux",
"AppArmorProfile": "nerdctl-default",
"NetworkSettings": {
"Ports": {
"80/tcp": [
{
"HostIp": "0.0.0.0",
"HostPort": "80"
}
]
},
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"IPAddress": "10.4.0.3",
"IPPrefixLen": 24,
"MacAddress": "f2:b1:8e:a2:fe:18",
"Networks": {
"unknown-eth0": {
"IPAddress": "10.4.0.3",
"IPPrefixLen": 24,
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "f2:b1:8e:a2:fe:18"
}
}
}
}
]
可以看到顯示結果和 docker inspect 也基本一致的，
🐳nerdctl logs：獲取容器日志
查看容器日志是我們平時經常會使用到的一個功能，同樣我們可以使用 nerdctl logs 來獲取日志資料：
? ~ nerdctl logs -f nginx
......
2021/08/19 06:35:46 [notice] 1#1: start worker processes
2021/08/19 06:35:46 [notice] 1#1: start worker process 32
2021/08/19 06:35:46 [notice] 1#1: start worker process 33
同樣支持 -f、-t、-n、--since、--until 這些選項，
#-n選項：
[root@containerd ~]#nerdctl logs -n 3 nginx_bak
2021/10/24 23:17:40 [notice] 1#1: start worker process 32
2021/10/24 23:17:40 [notice] 1#1: start worker process 33
10.4.0.1 - - [24/Oct/2021:23:42:57 +0000] "GET / HTTP/1.1" 200 615 "-" "curl/7.29.0" "-"
[root@containerd ~]#
🐳nerdctl stop：停止容器
? ~ nerdctl stop nginx
nginx

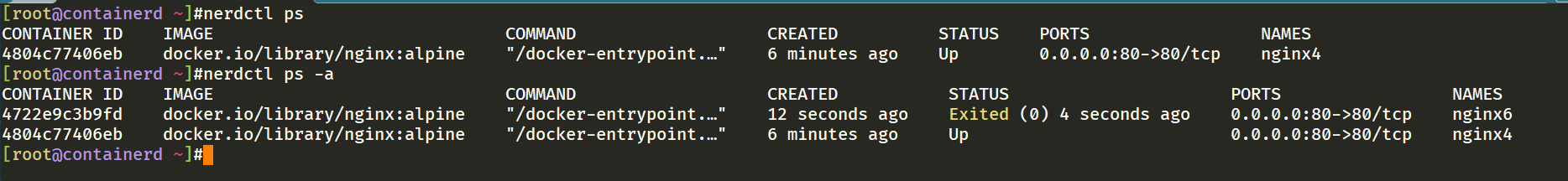

? ~ nerdctl ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
? ~ nerdctl ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
6e489777d2f7 docker.io/library/nginx:alpine "/docker-entrypoint.…" 20 minutes ago Up 0.0.0.0:80->80/tcp nginx
🐳nerdctl rm：洗掉容器
? ~ nerdctl rm nginx
You cannot remove a running container f4ac170235595f28bf962bad68aa81b20fc83b741751e7f3355bd77d8016462d. Stop the container before attempting removal or force remove
? ~ nerdctl rm -f ginx
nginx
? ~ nerdctl ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
要強制洗掉同樣可以使用 -f 或 --force 選項來操作，
3、鏡像管理

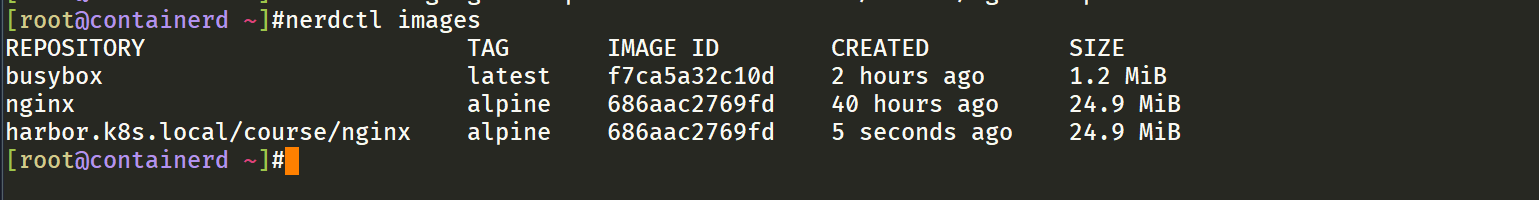

🐳nerdctl images：鏡像串列
? ~ nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
alpine latest eb3e4e175ba6 6 days ago 5.9 MiB
nginx alpine bead42240255 29 minutes ago 16.0 KiB
也需要注意的是沒有實作 docker images 的一些選項，比如 --all、--digests、--filter、--format，
nerdctl images 和 ctr i ls的對比，nerctl更友好：
[root@containerd ~]#nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
nginx alpine 686aac2769fd 38 hours ago 24.9 MiB
[root@containerd ~]#ctr i ls
REF TYPE DIGEST SIZE PLATFORMS LABELS
docker.io/library/nginx:alpine application/vnd.docker.distribution.manifest.list.v2+json sha256:686aac2769fd6e7bab67663fd38750c135b72d993d0bb0a942ab02ef647fc9c3 9.5 MiB linux/386,linux/amd64,linux/arm/v6,linux/arm/v7,linux/arm64/v8,linux/ppc64le,linux/s390x -
[root@containerd ~]#
🐳nerdctl pull：拉取鏡像
[root@containerd ~]#nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
nginx alpine 686aac2769fd 38 hours ago 24.9 MiB
[root@containerd ~]#nerdctl pull busybox #nerdctl很優秀，可以直接接鏡像名的，而不像ctr命令那樣繁瑣，
docker.io/library/busybox:latest: resolved |++++++++++++++++++++++++++++++++++++++|
index-sha256:f7ca5a32c10d51aeda3b4d01c61c6061f497893d7f6628b92f822f7117182a57: done |++++++++++++++++++++++++++++++++++++++|
manifest-sha256:febcf61cd6e1ac9628f6ac14fa40836d16f3c6ddef3b303ff0321606e55ddd0b: done |++++++++++++++++++++++++++++++++++++++|
config-sha256:16ea53ea7c652456803632d67517b78a4f9075a10bfdc4fc6b7b4cbf2bc98497: done |++++++++++++++++++++++++++++++++++++++|
layer-sha256:24fb2886d6f6c5d16481dd7608b47e78a8e92a13d6e64d87d57cb16d5f766d63: done |++++++++++++++++++++++++++++++++++++++|
elapsed: 5.9 s total: 753.5 (127.7 KiB/s)
[root@containerd ~]#nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
busybox latest f7ca5a32c10d 2 seconds ago 1.2 MiB
nginx alpine 686aac2769fd 38 hours ago 24.9 MiB
[root@containerd ~]#
🐳nerdctl push：推送鏡像
當然在推送鏡像之前也可以使用 nerdctl login 命令登錄到鏡像倉庫，然后再執行 push 操作，
可以使用 nerdctl login --username xxx --password xxx 進行登錄，使用 nerdctl logout 可以注銷退出登錄，
[root@containerd ~]#nerdctl push harbor.k8s.local/course/nginx:alpine
[root@containerd ~]#nerdctl login --username xxx --password xxx harbor.k8s.local
[root@containerd ~]#nerdctl logout
Removing login credentials for https://index.docker.io/v1/
[root@containerd ~]#
🐳nerdctl tag：鏡像標簽
使用 tag 命令可以為一個鏡像創建一個別名鏡像：
? ~ nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
busybox latest 0f354ec1728d 6 minutes ago 1.3 MiB
nginx alpine bead42240255 41 minutes ago 16.0 KiB
? ~ nerdctl tag nginx:alpine harbor.k8s.local/course/nginx:alpine
? ~ nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
busybox latest 0f354ec1728d 7 minutes ago 1.3 MiB
nginx alpine bead42240255 41 minutes ago 16.0 KiB
harbor.k8s.local/course/nginx alpine bead42240255 2 seconds ago 16.0 KiB
注意：用tag打的鏡像，其Image ID都是相同的：
🐳nerdctl save：匯出鏡像
使用 save 命令可以匯出鏡像為一個 tar 壓縮包，
? ~ nerdctl save -o busybox.tar.gz busybox:latest
? ~ ls -lh busybox.tar.gz
-rw-r--r-- 1 root root 761K Aug 19 15:19 busybox.tar.gz
🐳nerdctl rmi：洗掉鏡像
? ~ nerdctl rmi busybox
Untagged: docker.io/library/busybox:latest@sha256:0f354ec1728d9ff32edcd7d1b8bbdfc798277ad36120dc3dc683be44524c8b60
Deleted: sha256:5b8c72934dfc08c7d2bd707e93197550f06c0751023dabb3a045b723c5e7b373
🐳nerdctl load：匯入鏡像
使用 load 命令可以將上面匯出的鏡像再次匯入：
? ~ nerdctl load -i busybox.tar.gz
unpacking docker.io/library/busybox:latest (sha256:0f354ec1728d9ff32edcd7d1b8bbdfc798277ad36120dc3dc683be44524c8b60)...done
使用 -i 或 --input 選項指定需要匯入的壓縮包，
4、鏡像構建
鏡像構建是平時我們非常重要的一個需求，我們知道 ctr 并沒有構建鏡像的命令，而現在我們又不使用 Docker 了，那么如何進行鏡像構建了，幸運的是 nerdctl 就提供了 nerdctl build 這樣的鏡像構建命令，
🐳nerdctl build：從 Dockerfile 構建鏡像
比如現在我們定制一個 nginx 鏡像，新建一個如下所示的 Dockerfile 檔案：
[root@containerd ~]#mkdir -p /root/nerctl_demo
[root@containerd ~]#cd /root/nerctl_demo/
[root@containerd nerctl_demo]#cat > Dockerfile <<EOF
> FROM nginx:alpine
> RUN echo 'Hello Nerdctl From Containerd' > /usr/share/nginx/html/index.html
> EOF
[root@containerd nerctl_demo]#cat Dockerfile
FROM nginx:alpine
RUN echo 'Hello Nerdctl From Containerd' > /usr/share/nginx/html/index.html
然后在檔案所在目錄執行鏡像構建命令：
[root@containerd nerctl_demo]#nerdctl build -t nginx:nerctl -f Dockefile .
FATA[0000] `buildctl` needs to be installed and `buildkitd` needs to be running, see https://github.com/moby/buildkit: exec: "buildctl": executable file not found in $PATH
[root@containerd nerctl_demo]#

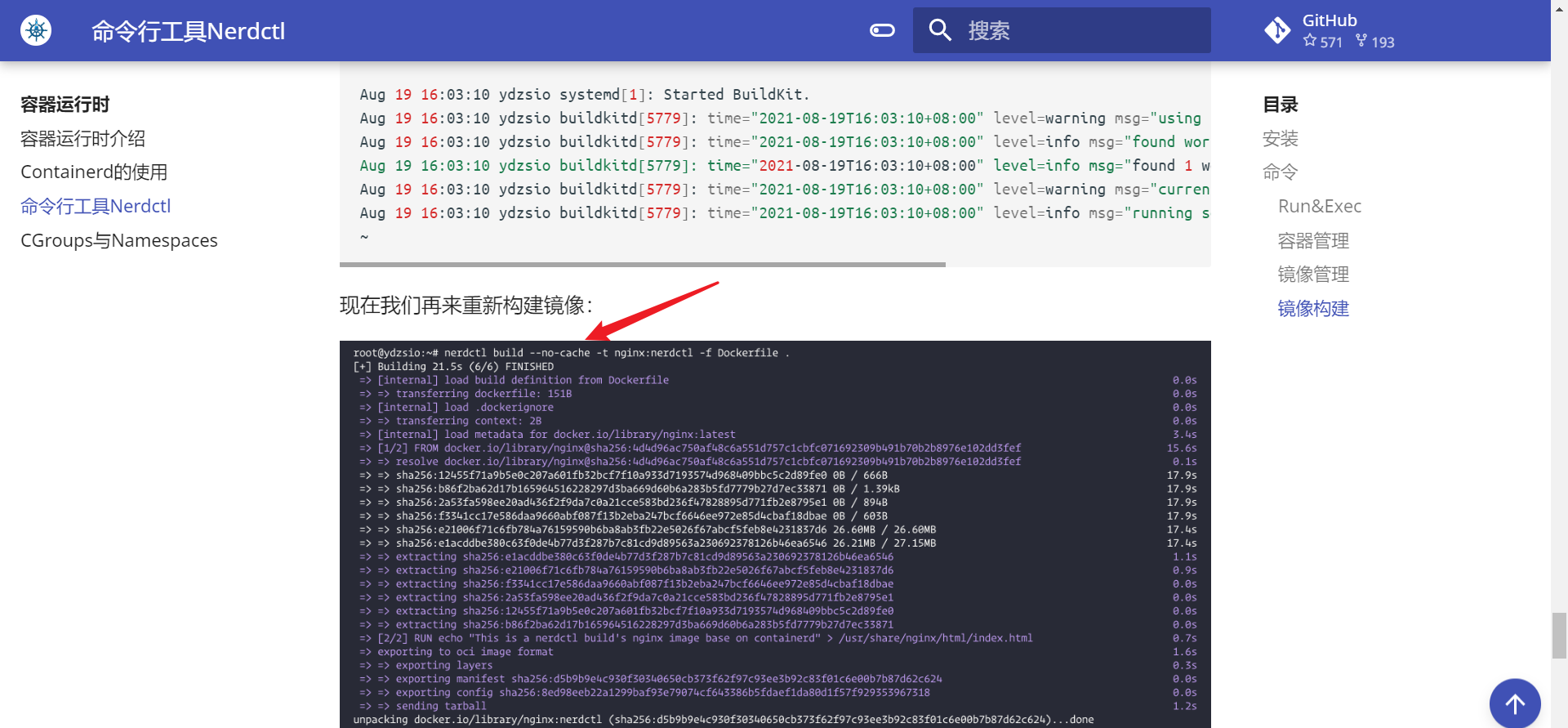

注意：也可以加上這個–no-cache選項
#--no-cache選項
--no-cache Do not use cache when building the image (default: false)

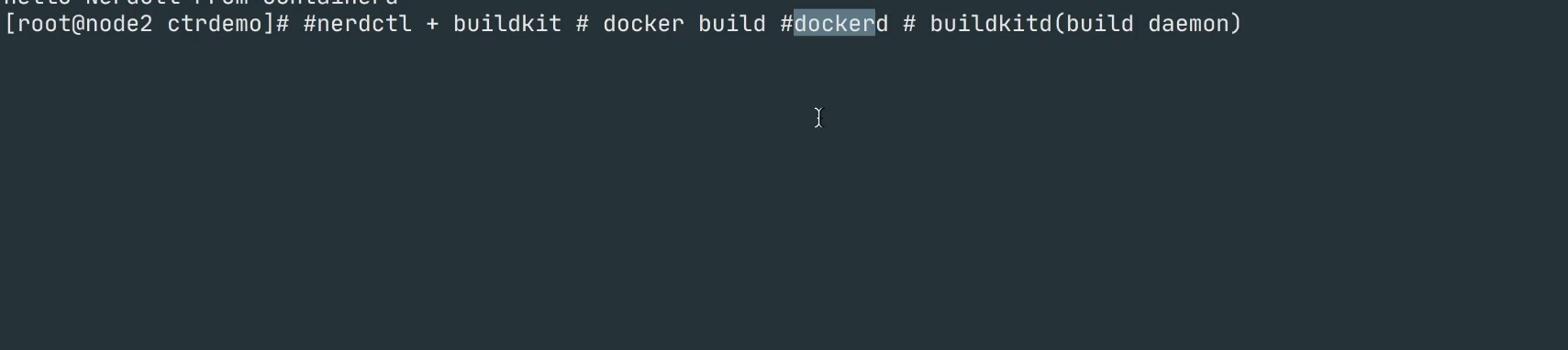

可以看到有一個錯誤提示，需要我們安裝 buildctl 并運行 buildkitd，這是因為 nerdctl build 需要依賴 buildkit 工具，
buildkit 專案也是 Docker 公司開源的一個構建工具包，支持 OCI 標準的鏡像構建，它主要包含以下部分:
- 服務端
buildkitd：當前支持 runc 和 containerd 作為 worker，默認是 runc，我們這里使用 containerd - 客戶端
buildctl：負責決議 Dockerfile，并向服務端 buildkitd 發出構建請求
buildkit 是典型的 C/S 架構，客戶端和服務端是可以不在一臺服務器上，而 nerdctl 在構建鏡像的時候也作為 buildkitd 的客戶端，所以需要我們安裝并運行 buildkitd，

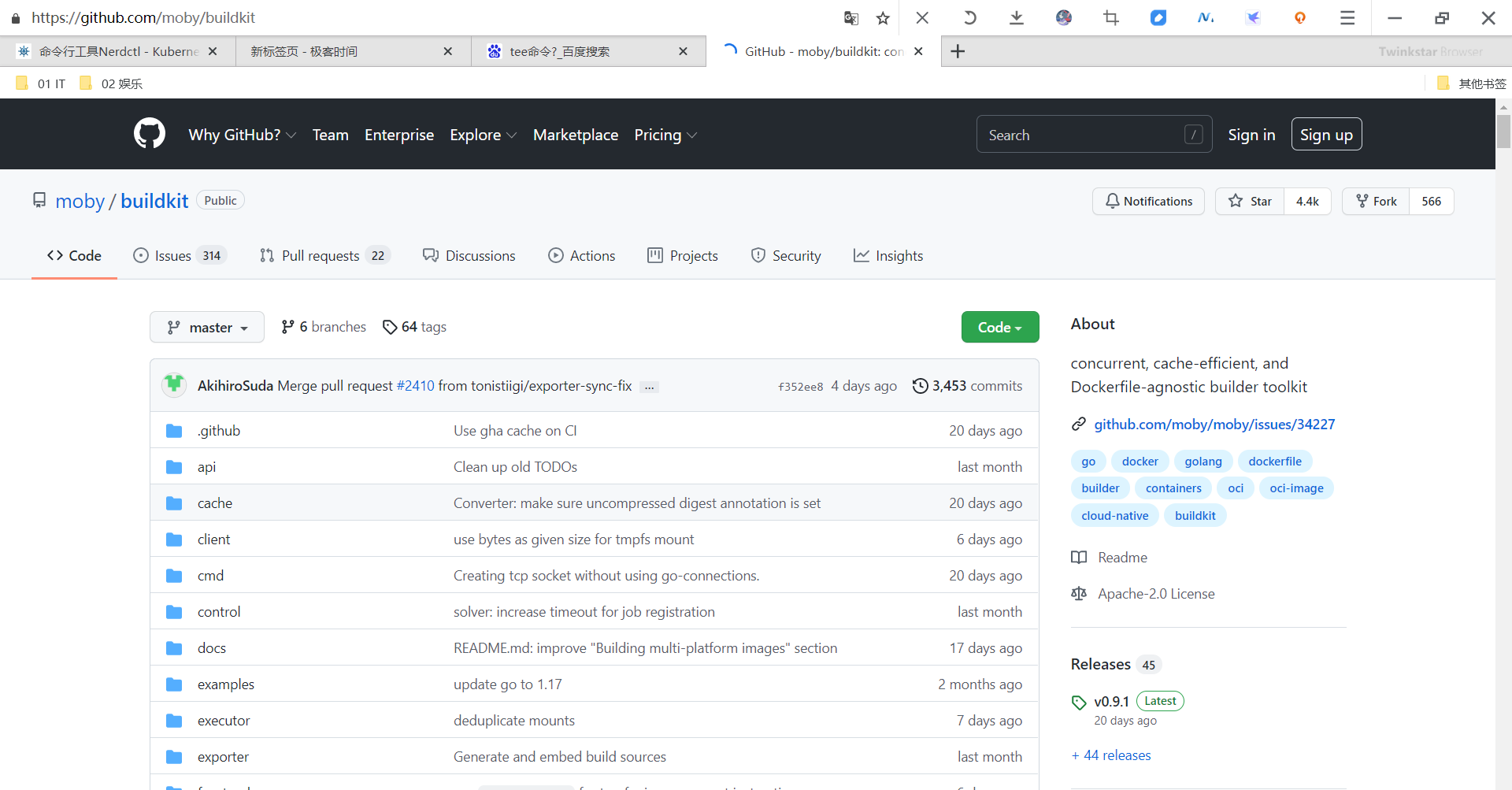

https://github.com/moby/buildkit
所以接下來我們先來安裝 buildkit：
? ~ wget https://github.com/moby/buildkit/releases/download/v0.9.1/buildkit-v0.9.1.linux-amd64.tar.gz
# 如果有限制，也可以替換成下面的 URL 加速下載
# wget https://download.fastgit.org/moby/buildkit/releases/download/v0.9.1/buildkit-v0.9.1.linux-amd64.tar.gz
[root@containerd ~]#ll -h buildkit-v0.9.1.linux-amd64.tar.gz
-rw-r--r-- 1 root root 46M Oct 5 03:51 buildkit-v0.9.1.linux-amd64.tar.gz
[root@containerd ~]#tar tf buildkit-v0.9.1.linux-amd64.tar.gz
bin/
bin/buildctl
bin/buildkit-qemu-aarch64
bin/buildkit-qemu-arm
bin/buildkit-qemu-i386
bin/buildkit-qemu-mips64
bin/buildkit-qemu-mips64el
bin/buildkit-qemu-ppc64le
bin/buildkit-qemu-riscv64
bin/buildkit-qemu-s390x
bin/buildkit-runc
bin/buildkitd
[root@containerd ~]#
? ~ tar -zxvf buildkit-v0.9.1.linux-amd64.tar.gz -C /usr/local/containerd/
bin/
bin/buildctl
bin/buildkit-qemu-aarch64
bin/buildkit-qemu-arm
bin/buildkit-qemu-i386
bin/buildkit-qemu-mips64
bin/buildkit-qemu-mips64el
bin/buildkit-qemu-ppc64le
bin/buildkit-qemu-riscv64
bin/buildkit-qemu-s390x
bin/buildkit-runc
bin/buildkitd
? ~ ln -s /usr/local/containerd/bin/buildkitd /usr/local/bin/buildkitd
? ~ ln -s /usr/local/containerd/bin/buildctl /usr/local/bin/buildctl
這里我們使用 Systemd 來管理 buildkitd，創建如下所示的 systemd unit 檔案：
cat > /etc/systemd/system/buildkit.service <<EOF
[Unit]
Description=BuildKit
Documentation=https://github.com/moby/buildkit
[Service]
ExecStart=/usr/local/bin/buildkitd --oci-worker=false --containerd-worker=true
[Install]
WantedBy=multi-user.target
EOF
然后啟動 buildkitd：
[root@containerd ~]#systemctl deamon-reload
Unknown operation 'deamon-reload'.
[root@containerd ~]#systemctl daemon-reload
[root@containerd ~]#systemctl enable buildkit --now
Created symlink from /etc/systemd/system/multi-user.target.wants/buildkit.service to /etc/systemd/system/buildkit.service.
[root@containerd ~]#systemctl status buildkit
● buildkit.service - BuildKit
Loaded: loaded (/etc/systemd/system/buildkit.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2021-10-25 16:11:47 CST; 13s ago
Docs: https://github.com/moby/buildkit
Main PID: 26680 (buildkitd)
Tasks: 7
Memory: 13.5M
CGroup: /system.slice/buildkit.service
└─26680 /usr/local/bin/buildkitd --oci-worker=false --containerd-worker=true
Oct 25 16:11:47 containerd systemd[1]: Started BuildKit.
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=warning msg="using host network as the default"
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=info msg="found worker \"72ur53vv5olwy9wv0oc46...
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=info msg="found 1 workers, default=\"72u...cc6\""
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=warning msg="currently, only the default...used."
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=info msg="running server on /run/buildki....sock"
Hint: Some lines were ellipsized, use -l to show in full.
[root@containerd ~]#
#可以看下日志
[root@containerd ~]#journalctl -u buildkit
-- Logs begin at Sat 2021-10-23 13:52:41 CST, end at Mon 2021-10-25 16:11:47 CST. --
Oct 25 16:11:47 containerd systemd[1]: Started BuildKit.
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=warning msg="using host network as the default"
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=info msg="found worker \"72ur53vv5olwy9wv0oc46bcc
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=info msg="found 1 workers, default=\"72ur53vv5olw
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=warning msg="currently, only the default worker c
Oct 25 16:11:47 containerd buildkitd[26680]: time="2021-10-25T16:11:47+08:00" level=info msg="running server on /run/buildkit/buildki
lines 1-7/7 (END)

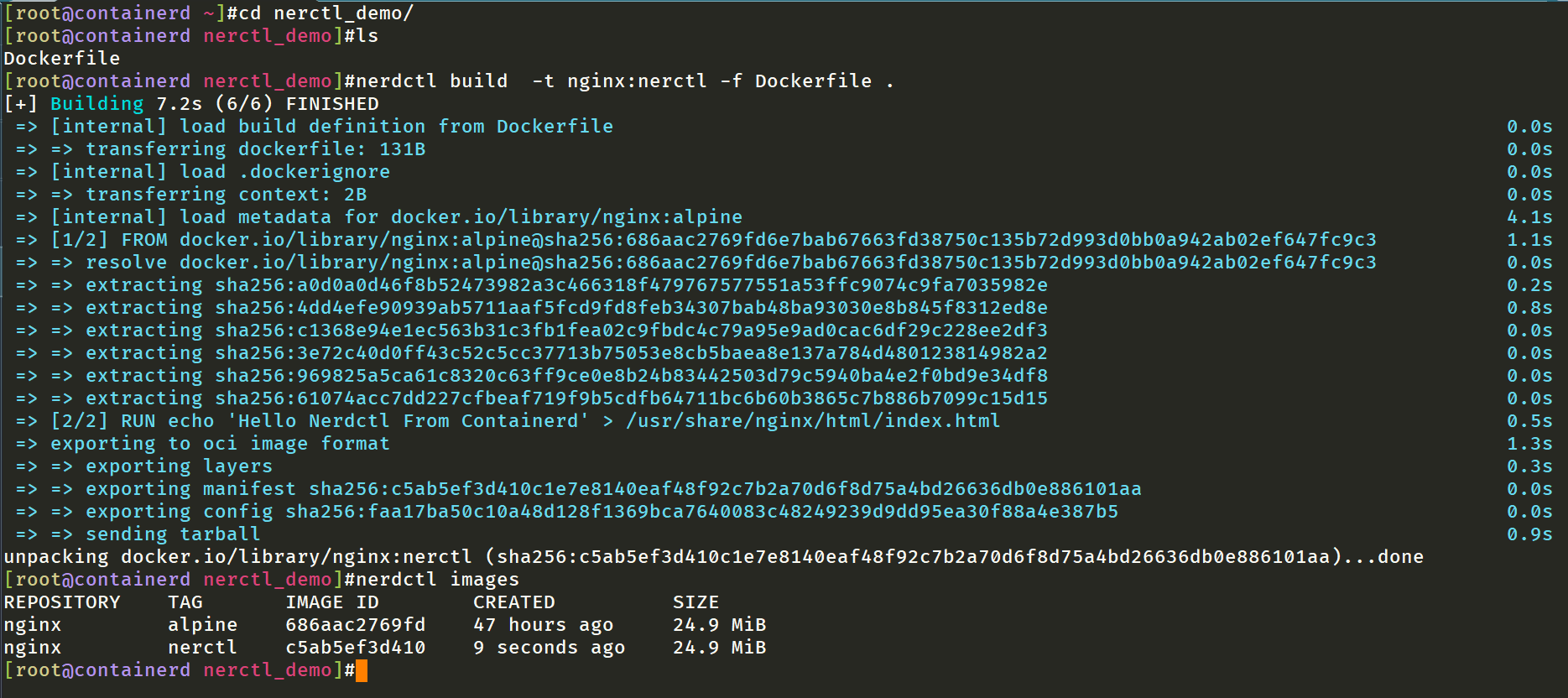

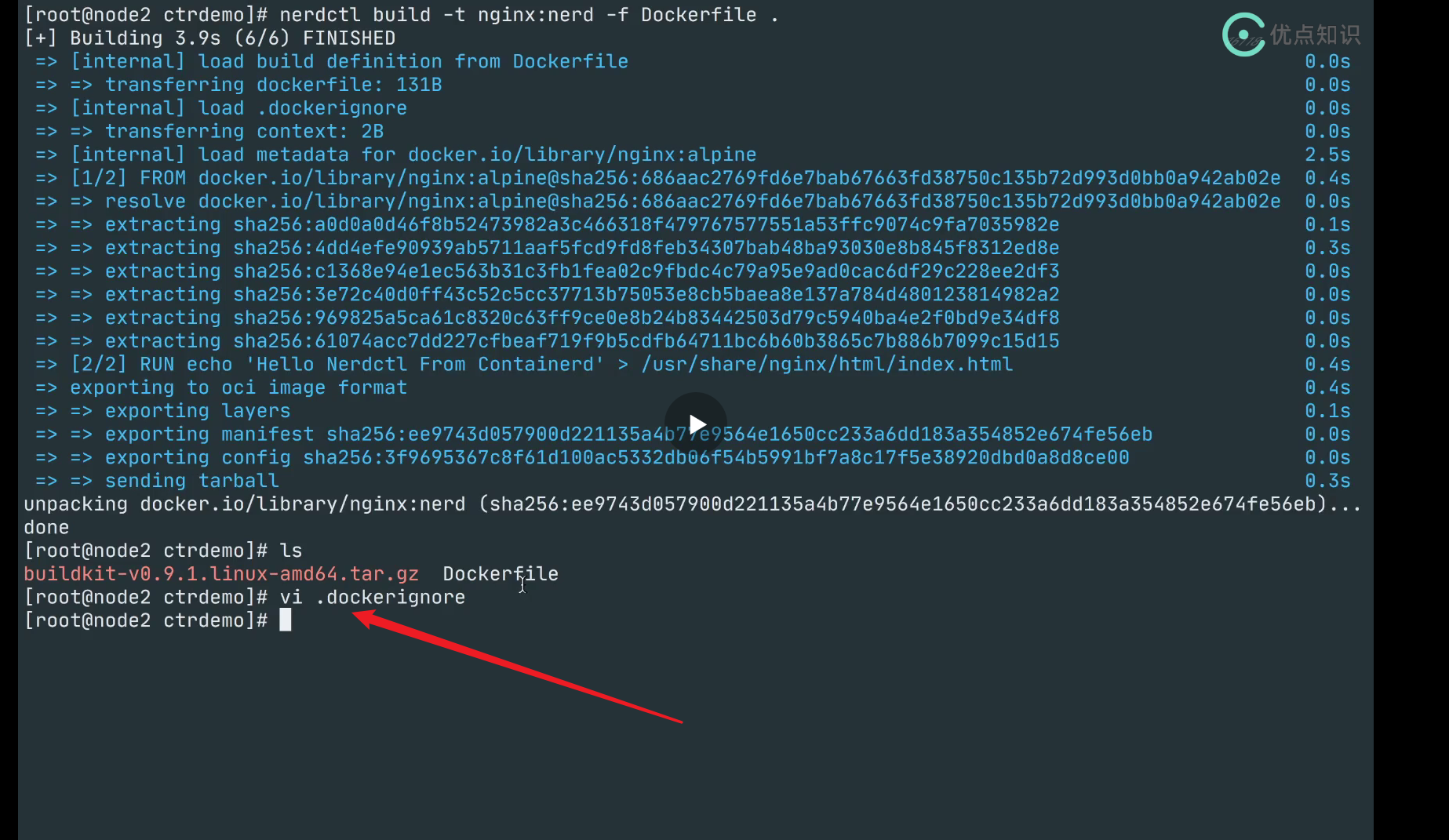

現在我們再來重新構建鏡像：
[root@containerd ~]#cd nerctl_demo/
[root@containerd nerctl_demo]#ls
Dockerfile
[root@containerd nerctl_demo]#nerdctl build -t nginx:nerctl -f Dockerfile .
[+] Building 7.2s (6/6) FINISHED
=> [internal] load build definition from Dockerfile 0.0s
=> => transferring dockerfile: 131B 0.0s
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [internal] load metadata for docker.io/library/nginx:alpine 4.1s
=> [1/2] FROM docker.io/library/nginx:alpine@sha256:686aac2769fd6e7bab67663fd38750c135b72d993d0bb0a942ab02ef647fc9c3 1.1s
=> => resolve docker.io/library/nginx:alpine@sha256:686aac2769fd6e7bab67663fd38750c135b72d993d0bb0a942ab02ef647fc9c3 0.0s
=> => extracting sha256:a0d0a0d46f8b52473982a3c466318f479767577551a53ffc9074c9fa7035982e 0.2s
=> => extracting sha256:4dd4efe90939ab5711aaf5fcd9fd8feb34307bab48ba93030e8b845f8312ed8e 0.8s
=> => extracting sha256:c1368e94e1ec563b31c3fb1fea02c9fbdc4c79a95e9ad0cac6df29c228ee2df3 0.0s
=> => extracting sha256:3e72c40d0ff43c52c5cc37713b75053e8cb5baea8e137a784d480123814982a2 0.0s
=> => extracting sha256:969825a5ca61c8320c63ff9ce0e8b24b83442503d79c5940ba4e2f0bd9e34df8 0.0s
=> => extracting sha256:61074acc7dd227cfbeaf719f9b5cdfb64711bc6b60b3865c7b886b7099c15d15 0.0s
=> [2/2] RUN echo 'Hello Nerdctl From Containerd' > /usr/share/nginx/html/index.html 0.5s
=> exporting to oci image format 1.3s
=> => exporting layers 0.3s
=> => exporting manifest sha256:c5ab5ef3d410c1e7e8140eaf48f92c7b2a70d6f8d75a4bd26636db0e886101aa 0.0s
=> => exporting config sha256:faa17ba50c10a48d128f1369bca7640083c48249239d9dd95ea30f88a4e387b5 0.0s
=> => sending tarball 0.9s
unpacking docker.io/library/nginx:nerctl (sha256:c5ab5ef3d410c1e7e8140eaf48f92c7b2a70d6f8d75a4bd26636db0e886101aa)...done
[root@containerd nerctl_demo]#nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
nginx alpine 686aac2769fd 47 hours ago 24.9 MiB
nginx nerctl c5ab5ef3d410 9 seconds ago 24.9 MiB
[root@containerd nerctl_demo]#
構建完成后查看鏡像是否構建成功：
[root@containerd nerctl_demo]#nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
nginx alpine 686aac2769fd 47 hours ago 24.9 MiB
nginx nerctl c5ab5ef3d410 9 seconds ago 24.9 MiB
[root@containerd nerctl_demo]#

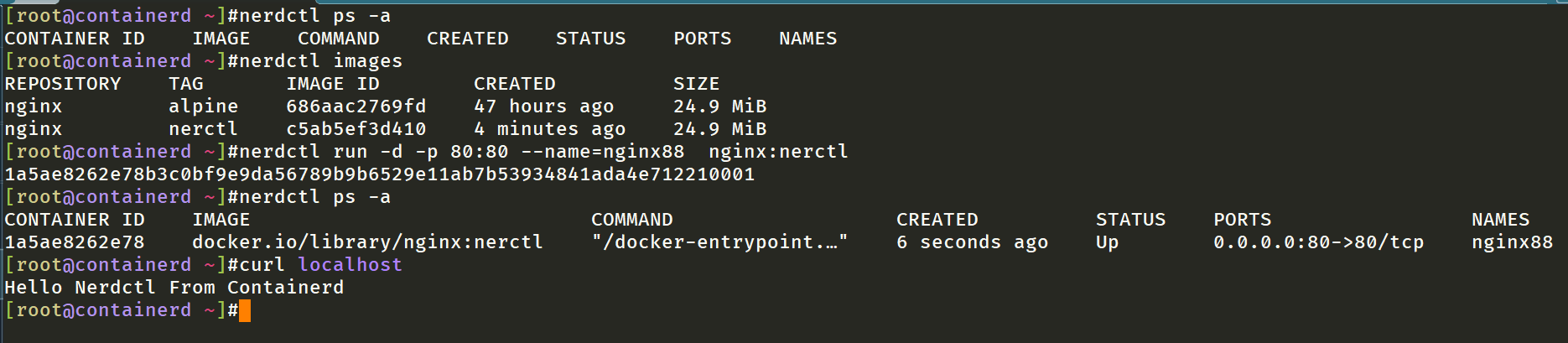

我們可以看到已經有我們構建的 nginx:nerdctl 鏡像了，接下來使用上面我們構建的鏡像來啟動一個容器進行測驗：
[root@containerd ~]#nerdctl ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
[root@containerd ~]#nerdctl images
REPOSITORY TAG IMAGE ID CREATED SIZE
nginx alpine 686aac2769fd 47 hours ago 24.9 MiB
nginx nerctl c5ab5ef3d410 4 minutes ago 24.9 MiB
[root@containerd ~]#nerdctl run -d -p 80:80 --name=nginx88 nginx:nerctl
1a5ae8262e78b3c0bf9e9da56789b9b6529e11ab7b53934841ada4e712210001
[root@containerd ~]#nerdctl ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
1a5ae8262e78 docker.io/library/nginx:nerctl "/docker-entrypoint.…" 6 seconds ago Up 0.0.0.0:80->80/tcp nginx88
[root@containerd ~]#curl localhost
Hello Nerdctl From Containerd
[root@containerd ~]#
這樣我們就使用 nerdctl + buildkitd 輕松完成了容器鏡像的構建，
完美，
當然如果你還想在單機環境下使用 Docker Compose，在 containerd 模式下，我們也可以使用 nerdctl 來兼容該功能，同樣我們可以使用 nerdctl compose、nerdctl compose up、nerdctl compose logs、nerdctl compose build、nerdctl compose down 等命令來管理 Compose 服務，這樣使用 containerd、nerdctl 結合 buildkit 等工具就完全可以替代 docker 在鏡像構建、鏡像容器方面的管理功能了，
[root@containerd ~]#nerdctl volume ls
VOLUME NAME DIRECTORY
[root@containerd ~]#nerdctl network ls
NETWORK ID NAME FILE
0 bridge
containerd-net /etc/cni/net.d/10-containerd-net.conflist
host
none
[root@containerd ~]#nerdctl namespace ls
NAME CONTAINERS IMAGES VOLUMES
buildkit 0 0 0
default 1 2 0
test 0 1 0
[root@containerd ~]#
需要注意的問題
?(待解決)nerdctl run命令創建出的容器在宿主機上看不到埠號，奇怪
- 很奇怪，這個現象：
創建的容器映射到宿主機上的埠，在宿主機上沒有查看的到，–>是個遺留問題，老師說正常情況是可以看到的才對，可能是底層走的是iptables，老師也沒排查出來，當做遺留問題，
測驗程序如下：
查看環境：
[root@containerd ~]#ctr i ls -q
docker.io/library/nginx:alpine
[root@containerd ~]#ctr t ls
TASK PID STATUS
[root@containerd ~]#netstat -ntlp #沒有80埠被占用
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 127.0.0.1:42797 0.0.0.0:* LISTEN 8116/containerd
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 6587/sshd
tcp 0 0 127.0.0.1:25 0.0.0.0:* LISTEN 6858/master
tcp6 0 0 :::22 :::* LISTEN 6587/sshd
tcp6 0 0 ::1:25 :::* LISTEN 6858/master
[root@containerd ~]#
創建容器：
[root@containerd ~]#nerdctl run -d -p 80:80 --name=nginx_bak docker.io/library/nginx:alpine
daf6ed8901335002c2edde96a3639da4a201f44a1ed74cb2b6a29221bf2603cb
[root@containerd ~]#
驗證：

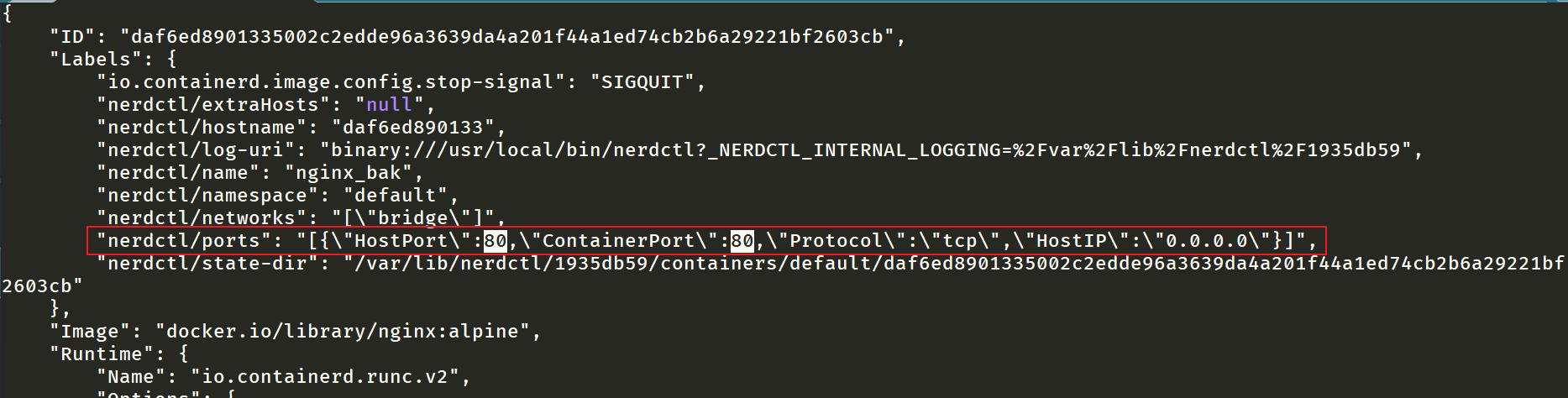

發現容器是創建成功了，但是宿主機上是沒有出現這個80埠，很奇怪：
[root@containerd ~]#ctr t ls
TASK PID STATUS
daf6ed8901335002c2edde96a3639da4a201f44a1ed74cb2b6a29221bf2603cb 28327 RUNNING
[root@containerd ~]#ctr c ls
CONTAINER IMAGE RUNTIME
daf6ed8901335002c2edde96a3639da4a201f44a1ed74cb2b6a29221bf2603cb docker.io/library/nginx:alpine io.containerd.runc.v2
[root@containerd ~]#ps -ef|grep nginx
root 28327 28296 0 07:17 ? 00:00:00 nginx: master process nginx -g daemon off;
101 28441 28327 0 07:17 ? 00:00:00 nginx: worker process
101 28442 28327 0 07:17 ? 00:00:00 nginx: worker process
root 28503 28223 0 07:41 pts/0 00:00:00 grep --color=auto nginx
[root@containerd ~]#
[root@containerd ~]#curl localhost
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
[root@containerd ~]#
[root@containerd ~]#netstat -ntlp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 127.0.0.1:42797 0.0.0.0:* LISTEN 8116/containerd
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 6587/sshd
tcp 0 0 127.0.0.1:25 0.0.0.0:* LISTEN 6858/master
tcp6 0 0 :::22 :::* LISTEN 6587/sshd
tcp6 0 0 ::1:25 :::* LISTEN 6858/master
[root@containerd ~]#ctr c info daf6ed8901335002c2edde96a3639da4a201f44a1ed74cb2b6a29221bf2603cb|less #但是通過ctr c info id也能看到ports的資訊啊，，，
?(待解決)還有個奇怪的問題就是：容器名被占用問題，，，
這個我就想不通，原來創建的容器已經被洗掉了，怎么創建同名的容器還報錯呢，，，
??(已解決)nerdctl為啥沒有自動補全呢？
已解決！
和這個kubectl的一樣，按這個方法配置下就可以自動補全命令了，666.
[root@containerd ~]#yum install -y epel-release bash-completion
[root@containerd ~]#source /usr/share/bash-completion/bash_completion
[root@containerd ~]#source <(nerdctl completion bash)
[root@containerd ~]#echo "source <(nerdctl completion bash)" >> ~/.bashrc
[root@containerd ~]#source ~/.bashrc
[root@containerd ~]#nerdctl r
rm rmi run
[root@containerd ~]#nerdctl r
??注意：不推薦使用commit去構建物件，而是要用build去構建物件
不推薦使用commit去構建物件，而是要用build去構建物件，—>不知道為啥，，，，
build Build an image from a Dockerfile. Needs buildkitd to be running.
commit [flags] CONTAINER REPOSITORY[:TAG]
??注意：用build構建鏡像時，下面這個.問題，
docker的架構是cs架構：all請求，包括構建鏡像
很多同學認為這里的點代表dockerfile的地址，其實這里的.和dockerfile的地址是有區別的：
dockerfile的地址你可以任意去指定；
其實這個點表示：構建背景關系，就是你所要構建檔案背景關系是在哪些地方，就是你dockerfile里面的東西都是相對于你背景關系的，因為你構建背景關系all的事情都是上傳到dockerd后臺的，你不要考慮在本地，

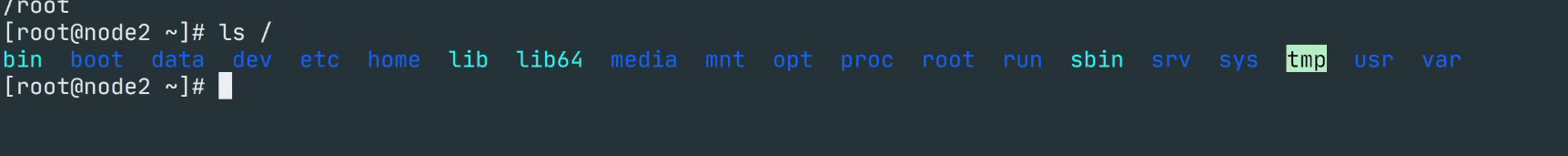

因此，有個不好的情況就是，假如說你的dockerfile檔案在/目錄下：
可想而知，它會把你/目錄下all檔案全部上傳到dockerd上面去，就會特別特別慢，會出問題的，
所以，這里的點構建背景關系并不是隨便指定的，
??注意：containerd網路，它對接的是cni
[root@containerd ~]#nerdctl network ls
NETWORK ID NAME FILE
0 bridge
containerd-net /etc/cni/net.d/10-containerd-net.conflist
host
none
[root@containerd ~]#
/etc/cni/net.d/,這個其實是我們標準CNI的一個配置方式：
就是我們后面要講的flannel都是放在這個下面的，
但是這種情況下，我們直接用這個組態檔去創建我們的k8s集群，即使你是創建的一個flannel網路插件，但是啟動起來pod后，它還是不會使用這個flannel插件的，就是這個目錄下的all conflist cni插件，好像是按這個字母順序來加載的，所以會優先加載這個10-containerd-net.conflist的，也就是containerd本地的一個網路配置：
[root@containerd net.d]#cat 10-containerd-net.conflist
{
"cniVersion": "0.4.0",
"name": "containerd-net",
"plugins": [
{
"type": "bridge",
"bridge": "cni0",
"isGateway": true,
"ipMasq": true,
"promiscMode": true,
"ipam": {
"type": "host-local",
"ranges": [
[{
"subnet": "10.88.0.0/16"
}],
[{
"subnet": "2001:4860:4860::/64"
}]
],
"routes": [
{ "dst": "0.0.0.0/0" },
{ "dst": "::/0" }
]
}
},
{
"type": "portmap",
"capabilities": {"portMappings": true}
}
]
}
[root@containerd net.d]#
就是一個bridge模式，
如果你自己要去創建網路也是可以的啊，和docker一樣，其實都是對接的我們cni，你可以認為它是可以直接去對接的：
[root@containerd ~]#nerdctl network ls
NETWORK ID NAME FILE
0 bridge
containerd-net /etc/cni/net.d/10-containerd-net.conflist
host
none
[root@containerd ~]#
就是你可以把這個/etc/cni/net.d/10-containerd-net.conflist給洗掉掉，然后你自己在下面創建一個cni的配置，也是可以的，
所以，你后面在k8s里如果使用containerd來搭建集群的話，你需要把/etc/cni/net.d/10-containerd-net.conflist這個給移除掉，否則可能你創建出的pod它所使用的網段都是/etc/cni/net.d/10-containerd-net.conflist里面的"subnet": “2001:4860:4860::/64”，沒有使用你的flannel插件配置或者你的其他網路插件，
??注意：nerdctl在構建鏡像時可以配置.dockerignore檔案的，
也就是說在構建鏡像時，可以配置下要忽略的檔案，否則這個檔案也一起會被提交到buildkitd后臺的，
關于我
我的博客主旨：我希望每一個人拿著我的博客都可以做出實驗現象，先把實驗做出來，然后再結合理論知識更深層次去理解技術點，這樣學習起來才有樂趣和動力，并且，我的博客內容步驟是很完整的，也分享原始碼和實驗用到的軟體，希望能和大家一起共同進步！
各位小伙伴在實際操作程序中如有什么疑問，可隨時聯系本人免費幫您解決問題：
-
個人微信二維碼：x2675263825 （舍得）， qq：2675263825，
-
個人博客地址：www.onlyonexl.cn
-
個人微信公眾號：云原生架構師實戰
-
個人csdn
https://blog.csdn.net/weixin_39246554?spm=1010.2135.3001.5421
總結
? 好了，關于實戰Containerd高級命令列工具nerdctl安裝及使用實驗就到這里了，感謝大家閱讀，最后貼上我的美圓photo一張，祝大家生活快樂，每天都過的有意義哦，我們下期見！
轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/338125.html
標籤：其他
上一篇：無法實作for和while回圈以及如何添加要在選項卡面板中顯示的多個輸出
下一篇：如何從API回應中提取陣列
