之前實作的檢驗虛擬盒子雖然實作了串口轉TCP功能，但是缺乏設計，表現為設計太僵硬，只能固定兩三種轉換模式，而且隨著轉換增加復雜度太大，比如要實作某些儀器TCP不能跨網站做TCP直接跳板就難度大大增加，

虛擬盒子體現為代碼力，這次體現為設計力，

原始碼

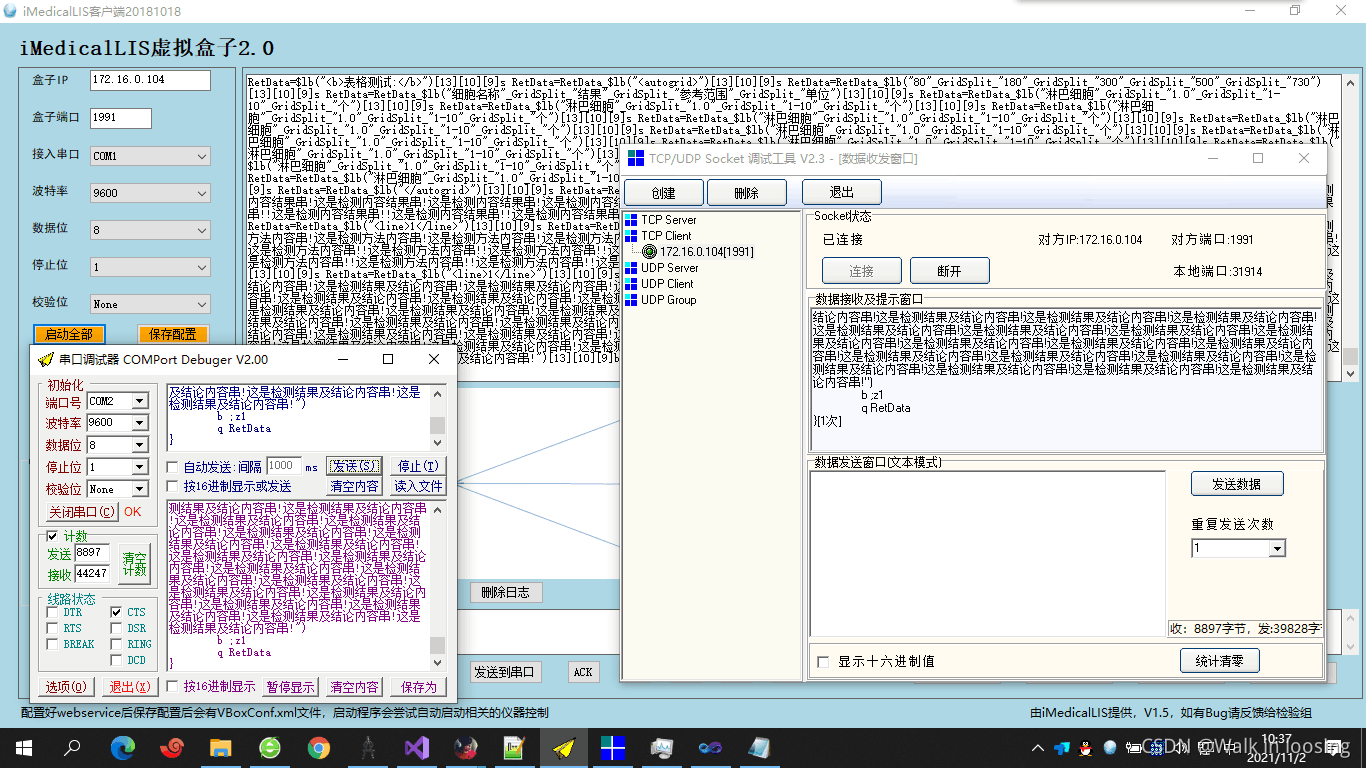

虛擬盒子如下：
在這里插入圖片描述

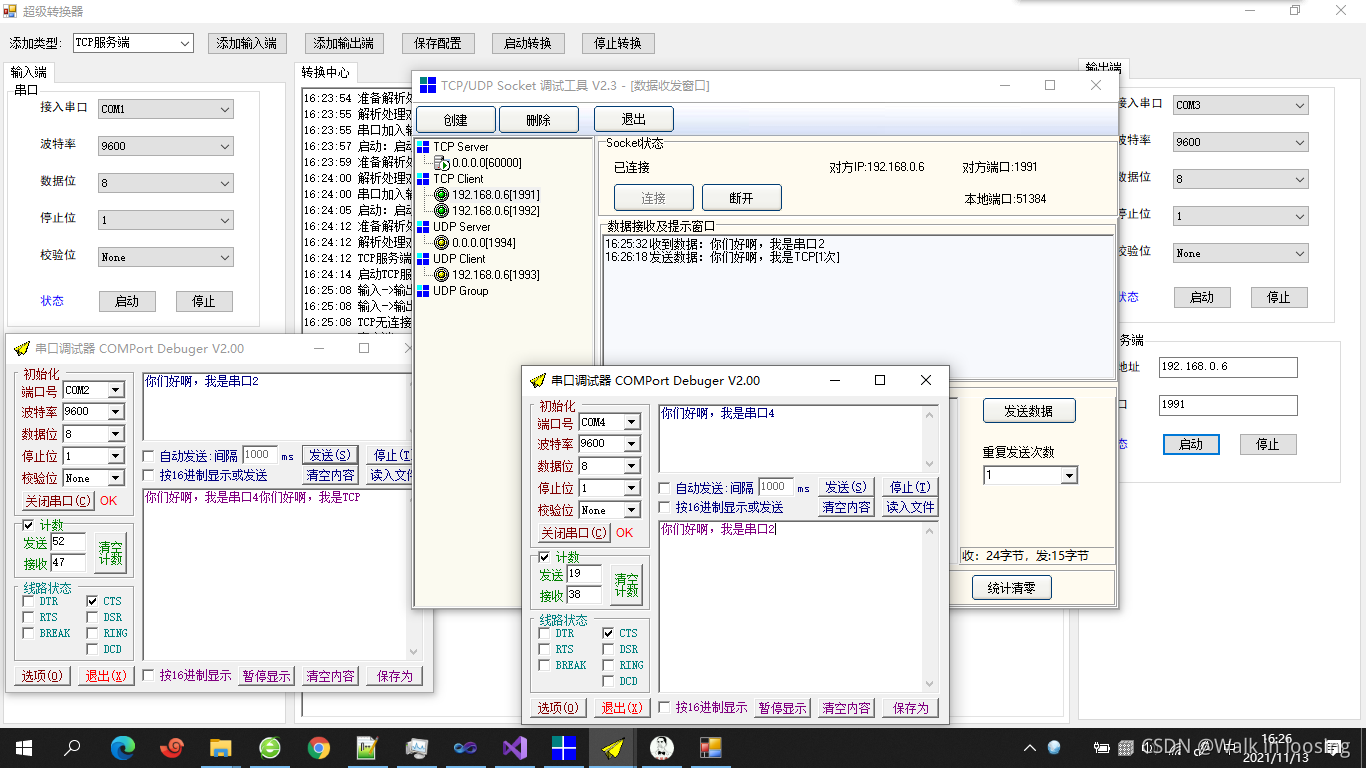

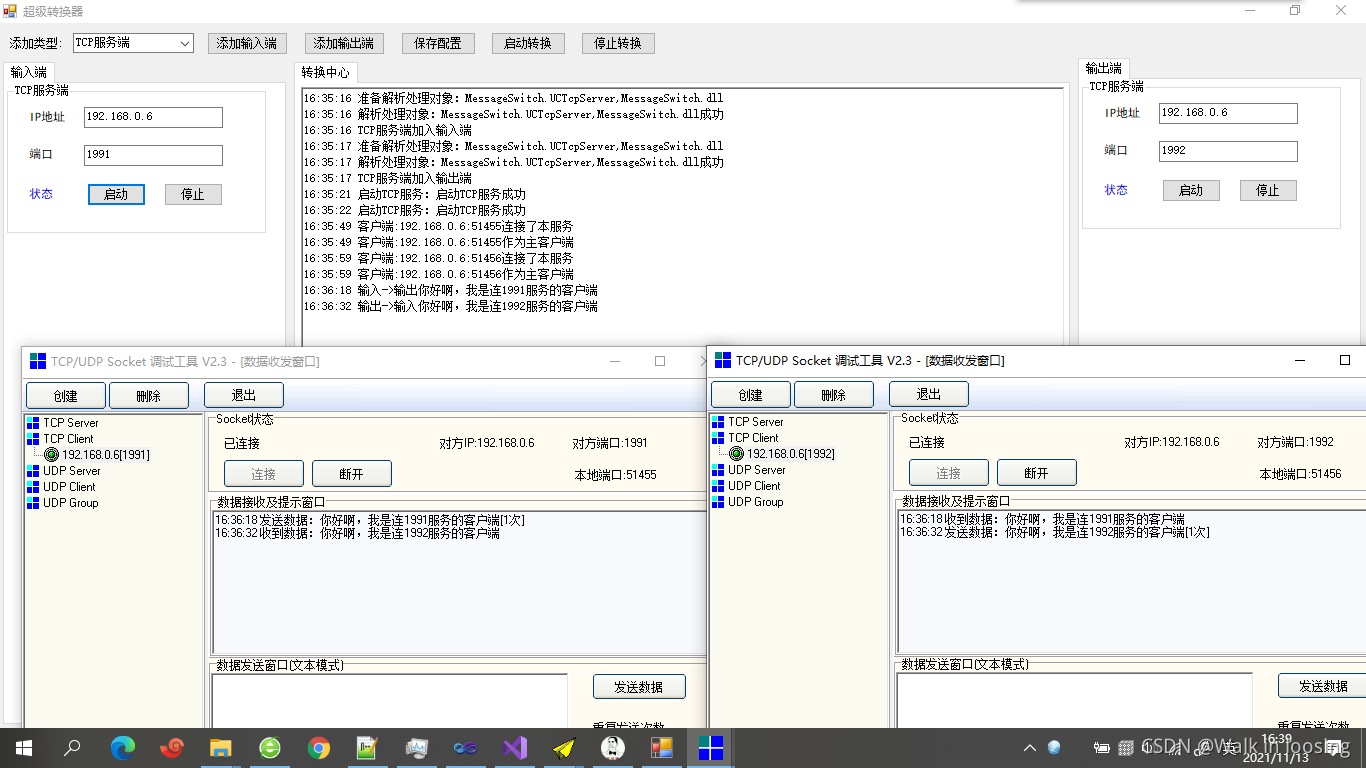

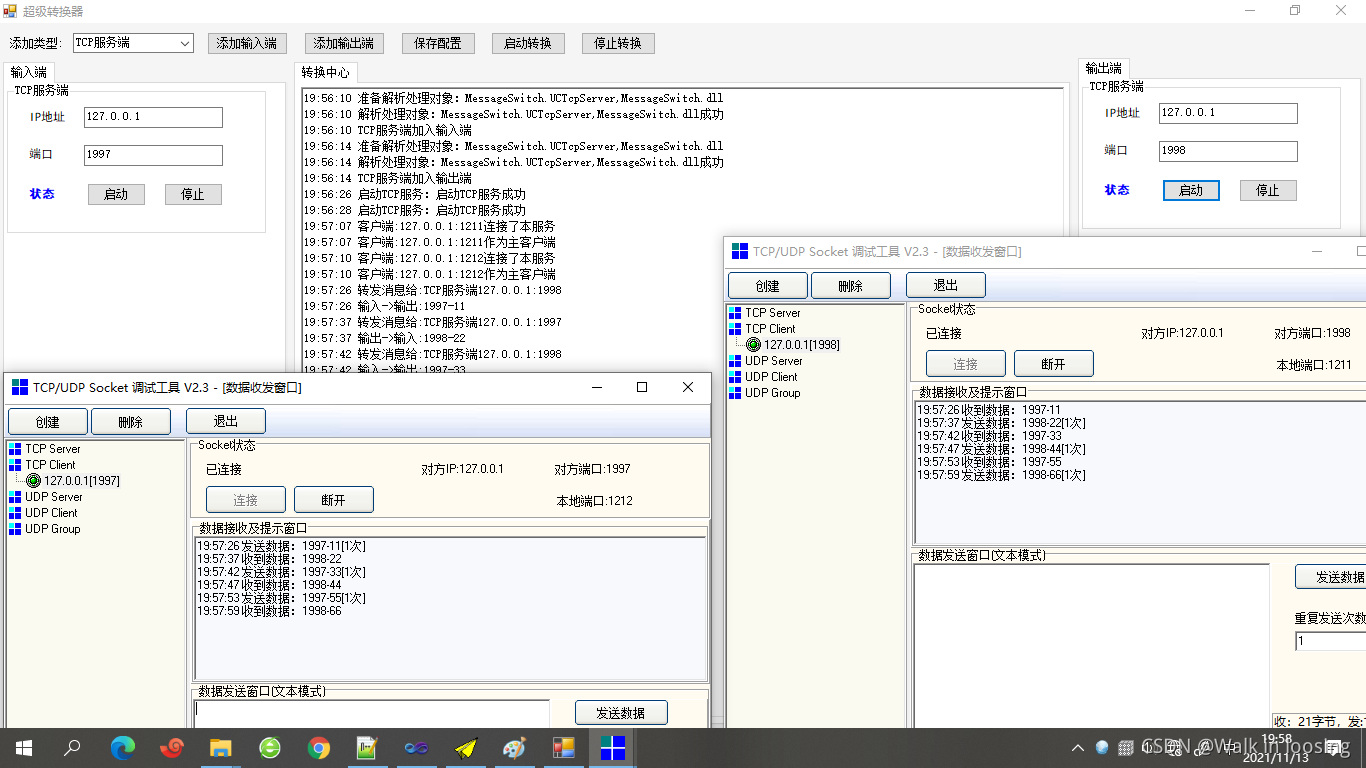

新效果-TCP跳轉示例

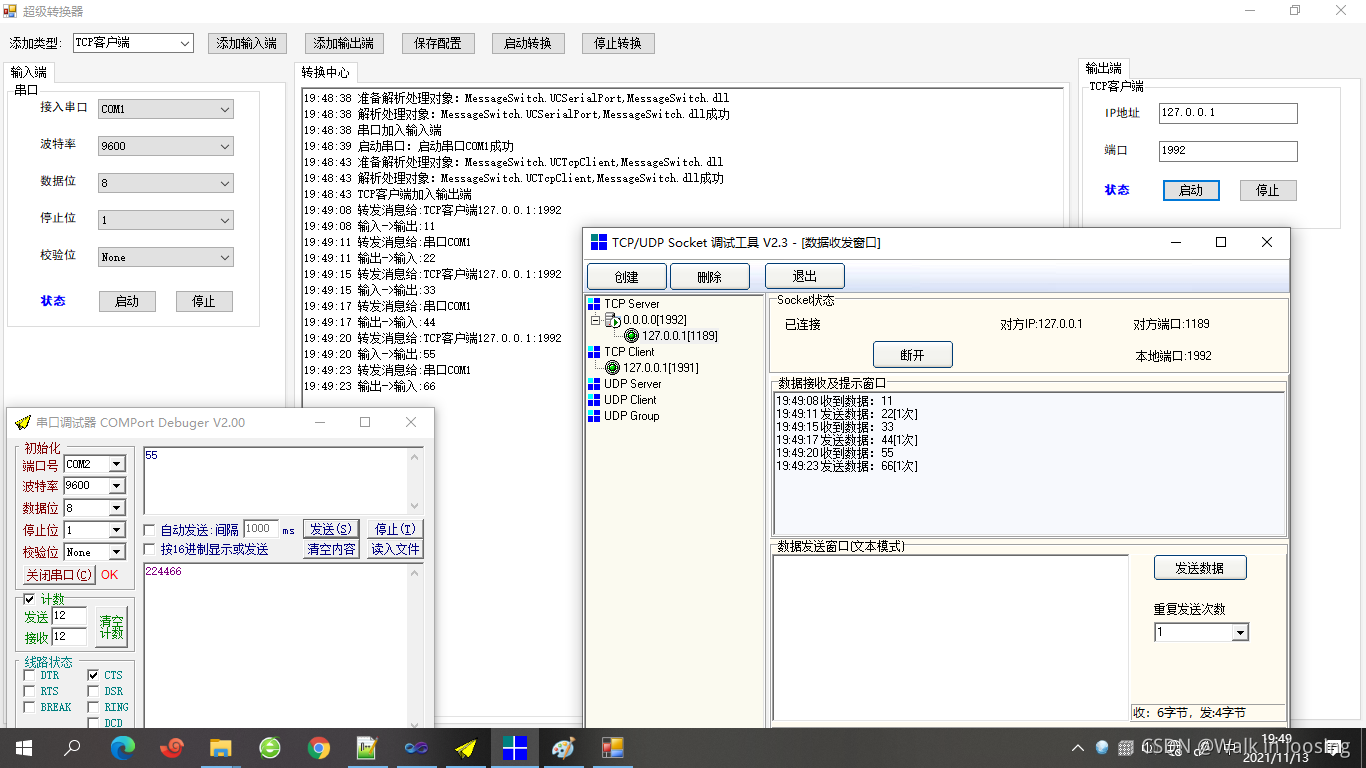

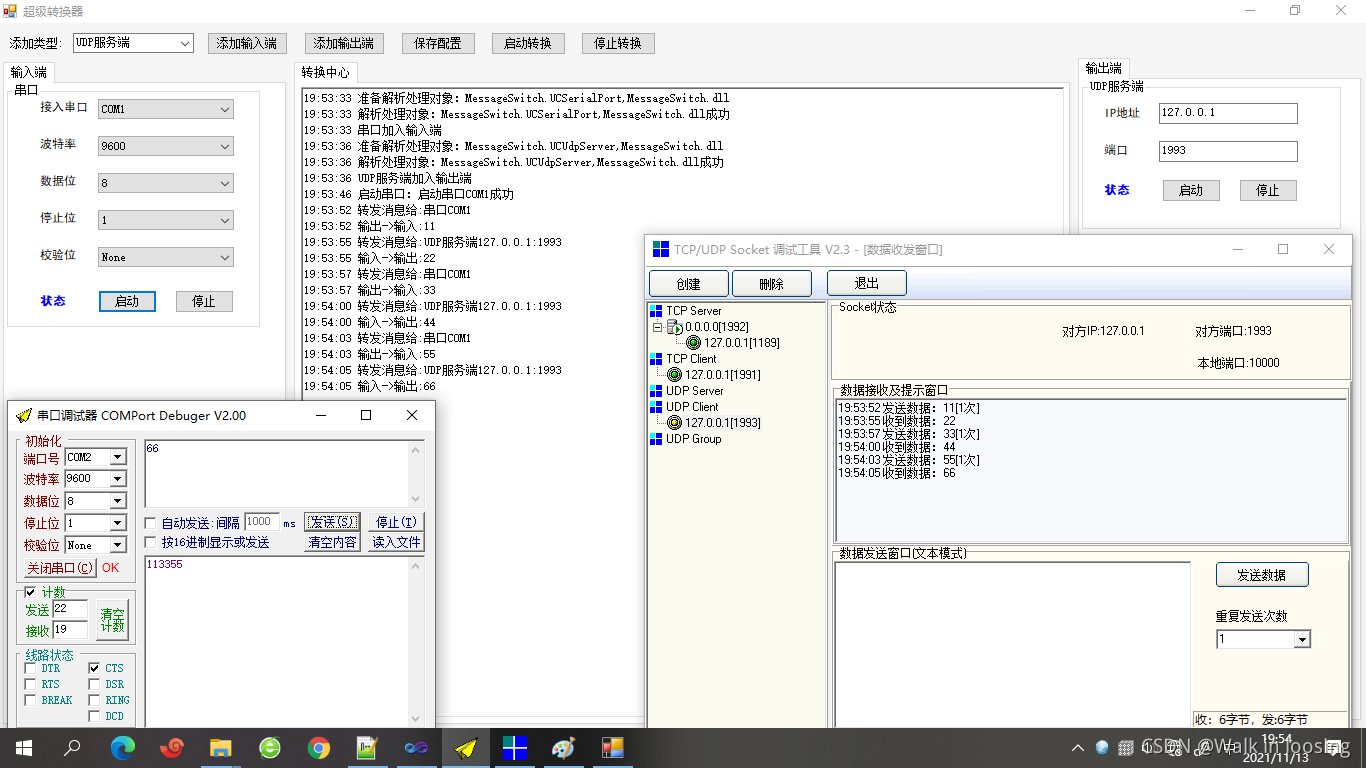

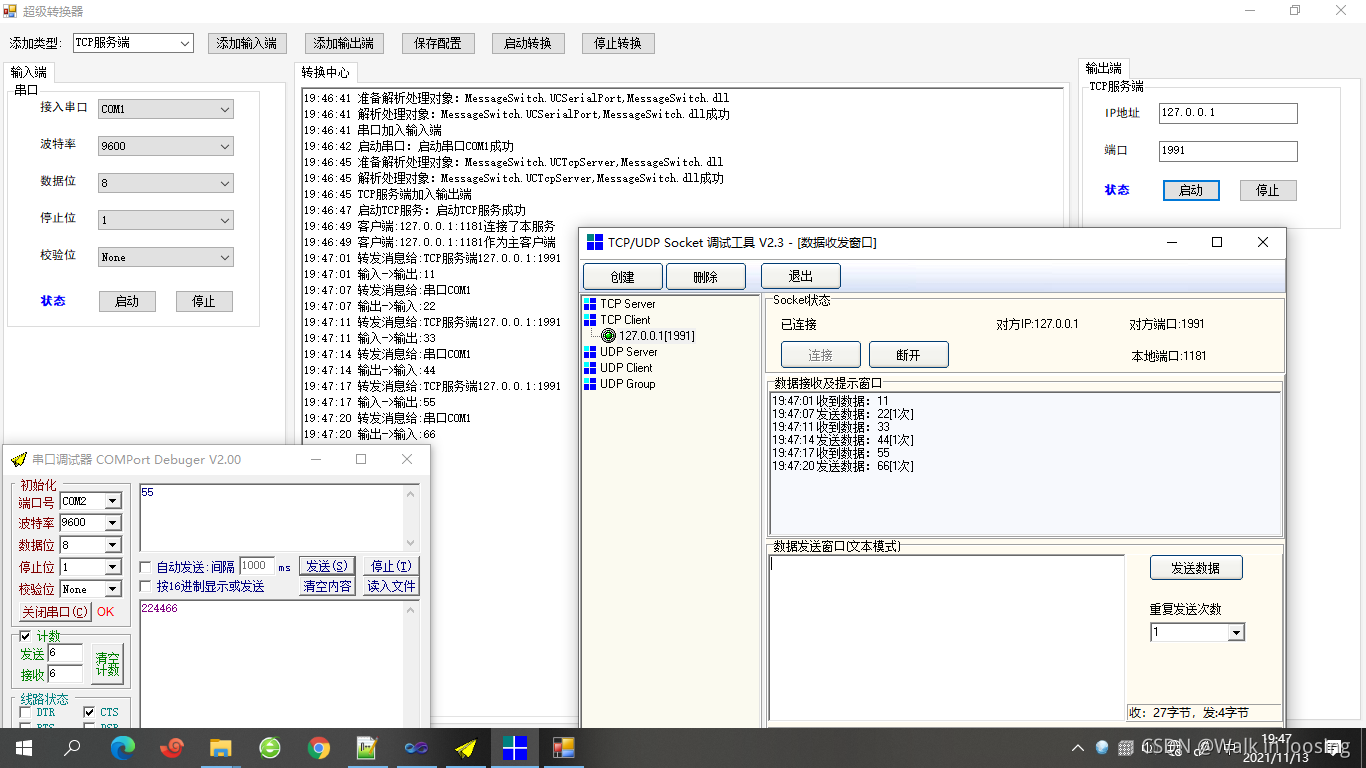

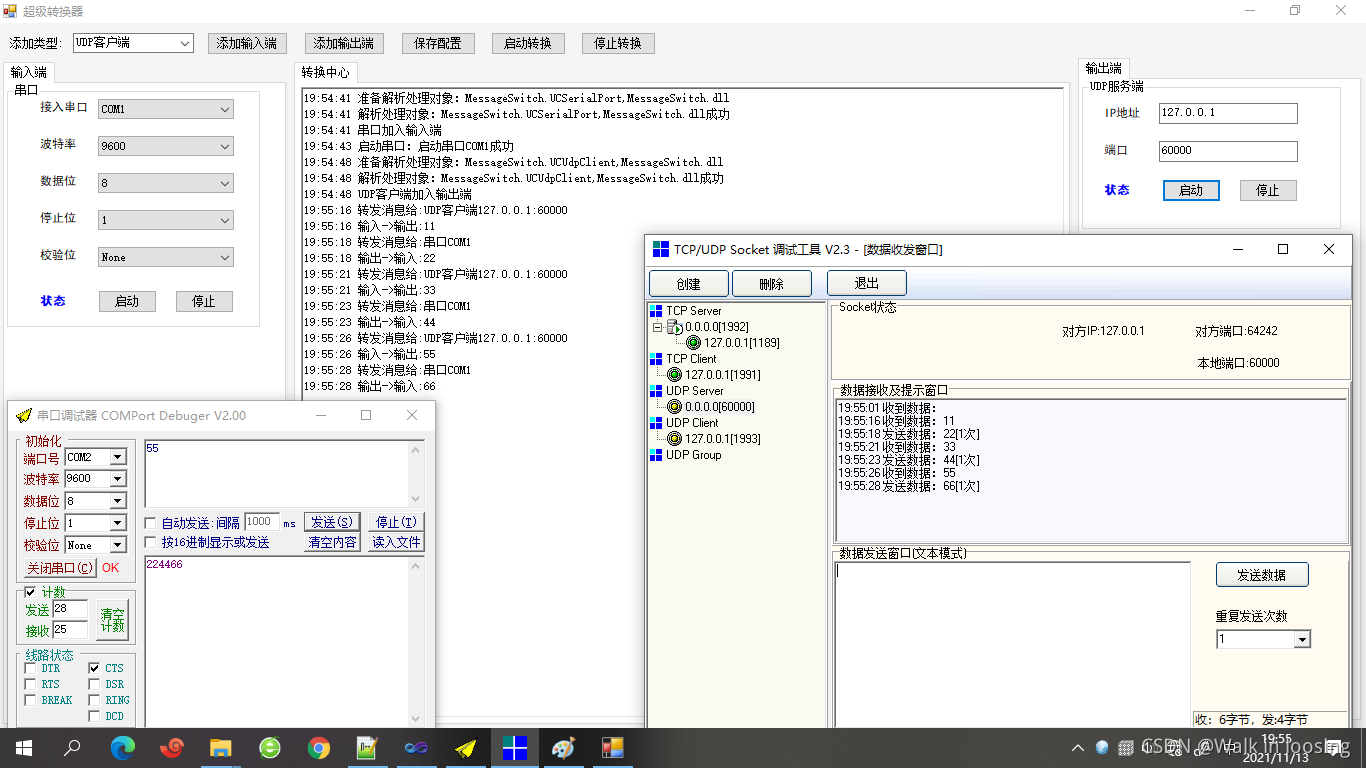

其他測驗

在這里插入圖片描述

為了解決設計不足導致的擴展困難，全新設計了超級轉換器，分享初版代碼，這次抽取了轉換器介面，和提取了委托，實作為一個dll，方便其他exe快速引入，

拿串口端來說，本質就是1.監控串口發來的訊息，然后轉發出去，2.把其他端發來的訊息推送到串口，

拿tcp端來說，本質就是1.監控tcp端發來的訊息，然后轉發出去，2.把其他端發來的訊息轉發給tcp，

默認實作了串口、tcp服務端、tcp客戶端、udp服務端、udp客戶端，也可以實作介面來實作讀寫文本，呼叫webservice等，只要是需要轉發訊息的都可，

抽取介面如下（所有的訊息實作端實作該介面）：

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace MessageSwitch
{
    ///<summary  NoteObject="Class">
    /// [功能描述:訊息轉換器介面，所有訊息用戶控制元件實作該介面，符合該介面的實作可以配置到轉接中心兩端] <para/>
    /// [創建者:zlz] <para/>
    /// [創建時間:2021年11月13日] <para/>
    ///<說明>
    ///  [說明:訊息轉換器介面，所有訊息用戶控制元件實作該介面，符合該介面的實作可以配置到轉接中心兩端]<para/>
    ///</說明>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///</summary>
    public interface IMessageSwitch
    {
        /// <summary>
        /// 得到實作型別的名字，供寫日志用
        /// </summary>
        /// <returns></returns>
        string GetTypeName();

        /// <summary>
        /// 得到配置串
        /// </summary>
        /// <returns>配置串</returns>
        string GetConfig();


        /// <summary>
        /// 設定配置,供主程式把配置設定上去
        /// </summary>
        /// <param name="confStr">配置串</param>
        /// <returns>是否成功</returns>
        bool SetConfig(string confStr);

        /// <summary>
        /// 供轉換中心設定回呼方法給訊息實作
        /// </summary>
        /// <param name="push">推送器</param>
        /// <param name="type">推送端來源</param>
        /// <param name="log">寫日志委托</param>
        /// <returns>是否成功</returns>
        bool SetPushDelegate(PushMessageToSwitch push, SwitchType type, WriteLog log);


        /// <summary>
        /// 啟動
        /// </summary>
        /// <returns>是否成功</returns>
        bool Start();

        /// <summary>
        /// 停止
        /// </summary>
        /// <returns>是否成功</returns>
        bool Stop();

        /// <summary>
        /// 提供轉換中心給改介面推送訊息
        /// </summary>
        /// <param name="msgByteArr">訊息的位元陣列</param>
        /// <returns>是否成功</returns>
        bool SendMessage(byte[] msgByteArr);

        /// <summary>
        /// 得到該物件的反射配置串，供主程式按配置加載，格式：類全名,動態庫名字(不帶dll)
        /// </summary>
        /// <returns></returns>
        string GetReflectStr();

    }
}

轉換器及委托實作轉換邏輯

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Reflection;

namespace MessageSwitch
{
    /// <summary>
    /// 交換型別，標識訊息實作所在的端
    /// </summary>
    public enum SwitchType
    {
        In,
        Out
    }

    /// <summary>
    /// 把收到的訊息推送到轉換器委托，所有訊息介面通過該委托把訊息推送到轉換中心
    /// </summary>
    /// <param name="msgByteArr">訊息</param>
    /// <param name="type">推送端來源</param>
    /// <returns>是否成功</returns>
    public delegate bool PushMessageToSwitch(byte[] msgByteArr,SwitchType type);

    /// <summary>
    /// 寫日志委托
    /// </summary>
    /// <param name="msg">訊息</param>
    public delegate void WriteLog(string msg);

    /// <summary>
    /// 添加轉換器
    /// </summary>
    /// <param name="sw"></param>
    public delegate void AddMessageSwitch(IMessageSwitch sw,SwitchType type);


    ///<summary  NoteObject="Class">
    /// [功能描述:訊息轉換器核心，實作訊息轉換] <para/>
    /// [創建者:zlz] <para/>
    /// [創建時間:2021年11月13日] <para/>
    ///<說明>
    ///  [說明:訊息轉換器核心，實作訊息轉換]<para/>
    ///</說明>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///</summary>
    public class SwitchMian
    {
        /// <summary>
        /// 輸入端介面集合
        /// </summary>
        private List<IMessageSwitch> inList = new List<IMessageSwitch>();

        /// <summary>
        /// 輸出端訊息集合
        /// </summary>
        private List<IMessageSwitch> outList = new List<IMessageSwitch>();

        /// <summary>
        /// 推送訊息委托
        /// </summary>
        private PushMessageToSwitch PushMessage;

        /// <summary>
        /// 寫日志委托
        /// </summary>
        private WriteLog log;


        /// <summary>
        /// 建構式
        /// </summary>
        public SwitchMian(WriteLog logW)
        {
            PushMessage = new PushMessageToSwitch(PushMessageToSwitchDo);
            log = logW;
        }

        /// <summary>
        /// 接收推過來的訊息
        /// </summary>
        /// <param name="msgByteArr">訊息</param>
        /// <param name="type">來源</param>
        /// <returns>是否成功</returns>
        private bool PushMessageToSwitchDo(byte[] msgByteArr, SwitchType type)
        {
            string lineStr = System.Text.Encoding.Default.GetString(msgByteArr);
            //處理不可見字符為可見字符
            lineStr = Util.DealNotSeeToSeeChar(lineStr);
            //訊息來自In就給所有Out推送
            if (type == SwitchType.In)
            {
                if (outList != null && outList.Count > 0)
                {
                    foreach (IMessageSwitch s in outList)
                    {
                        if (log != null)
                        {
                            log("輸入->輸出"+lineStr);
                        }
                        s.SendMessage(msgByteArr);
                    }
                }
            }
            //訊息來自Out就給所有In推送
            if (type == SwitchType.Out)
            {
                if (inList != null && inList.Count > 0)
                {
                    foreach (IMessageSwitch s in inList)
                    {
                        if (log != null)
                        {
                            log("輸出->輸入" + lineStr);
                        }
                        s.SendMessage(msgByteArr);
                    }
                }
            }
            return true;
        }



        /// <summary>
        /// 添加訊息實作到輸入端
        /// </summary>
        /// <param name="obj">訊息實作</param>
        public void AddToIn(IMessageSwitch obj)
        {
            if (log != null)
            {
                log(obj.GetTypeName()+"加入輸入端");
            }
            obj.SetPushDelegate(PushMessage, SwitchType.In,log);
            inList.Add(obj);
        }

        /// <summary>
        /// 添加訊息實作到輸出端
        /// </summary>
        /// <param name="obj">訊息實作</param>
        public void AddToOut(IMessageSwitch obj)
        {
            if (log != null)
            {
                log(obj.GetTypeName() + "加入輸出端");
            }
            obj.SetPushDelegate(PushMessage, SwitchType.Out,log);
            outList.Add(obj);
        }

        /// <summary>
        /// 得到配置
        /// </summary>
        /// <returns>配置串</returns>
        public string  GetConfig()
        {
            List<ConfDto> confList = new List<ConfDto>();
            if (inList != null && inList.Count > 0)
            {
                foreach (IMessageSwitch s in inList)
                {
                    if (log != null)
                    {
                        log("獲取:" + s.GetTypeName()+"配置");
                    }
                    ConfDto dto = new ConfDto();
                    dto.ConfStr = s.GetConfig();
                    dto.ReflectStr = s.GetReflectStr();
                    dto.Type = SwitchType.In;
                    confList.Add(dto);
                }
            }
            if (outList != null && outList.Count > 0)
            {
                foreach (IMessageSwitch s in outList)
                {
                    if (log != null)
                    {
                        log("獲取:" + s.GetTypeName() + "配置");
                    }
                    ConfDto dto = new ConfDto();
                    dto.ConfStr = s.GetConfig();
                    dto.ReflectStr = s.GetReflectStr();
                    dto.Type = SwitchType.Out;
                    confList.Add(dto);
                }
            }
            return Util.Serializer(confList.GetType(), confList);
        }

        /// <summary>
        /// 設定配置
        /// </summary>
        /// <param name="confStr">配置串</param>
        /// <param name="addSw">回呼方法</param>
        public void LoadConfig(string confStr,AddMessageSwitch addSw)
        {
            List<ConfDto> confList = Util.XmlDeserialize<List<ConfDto>>(confStr, Encoding.Default);
            if (confList != null && confList.Count > 0)
            {
                foreach (var v in confList)
                {
                    if (v.Type == SwitchType.In)
                    {
                        object obj = GetObjectByReflectStr(v.ReflectStr);
                        if (obj != null)
                        {
                            IMessageSwitch swi = obj as IMessageSwitch;
                            if (swi != null)
                            {
                                swi.SetConfig(v.ConfStr);
                                if (log != null)
                                {
                                    log("載入:" + swi.GetTypeName() + "物件到輸入端");
                                }
                                AddToIn(swi);
                                //執行回呼
                                if (addSw != null)
                                {
                                    addSw(swi, SwitchType.In);
                                }
                            }
                        }
                    }
                    if (v.Type == SwitchType.Out)
                    {
                        object obj = GetObjectByReflectStr(v.ReflectStr);
                        if (obj != null)
                        {
                            IMessageSwitch swi = obj as IMessageSwitch;
                            if (swi != null)
                            {
                                swi.SetConfig(v.ConfStr);
                                if (log != null)
                                {
                                    log("載入:" + swi.GetTypeName() + "物件到輸出端");
                                }
                                AddToOut(swi);
                                //執行回呼
                                if (addSw != null)
                                {
                                    addSw(swi, SwitchType.Out);
                                }
                            }
                        }
                    }
                }
            }
        }

        /// <summary>
        /// 通過反射串得到物件
        /// </summary>
        /// <param name="reflectStr">反射串</param>
        /// <returns></returns>
        public object GetObjectByReflectStr(string reflectStr)
        {
            try
            {
                if (log != null)
                {
                    log("準備決議處理物件：" + reflectStr);
                }
                string[] strArr = reflectStr.Replace(" ", "").Split(',');
                if (strArr.Length < 2)
                {
                    if (log != null)
                    {
                        log("配置的處理物件錯誤，請采用類全名,動態庫名");
                    }
                }
                if ((strArr.Length) < 2)
                {
                    return null;
                }
                string path = System.IO.Path.Combine(System.AppDomain.CurrentDomain.BaseDirectory,strArr[1]);
                if (!path.Contains(".dll"))
                {
                    path = path + ".dll";
                }
                Assembly assembly = Assembly.LoadFile(path);
                object obj = assembly.CreateInstance(strArr[0], false);
                if (log != null)
                {
                    log("決議處理物件：" + reflectStr + "成功");
                }
                return obj;
            }
            catch (Exception ex)
            {
                if (log != null)
                {
                    log("決議處理物件出錯：" + ex.Message);
                }
                return null;
            }
        }

        /// <summary>
        /// 開啟轉換器
        /// </summary>
        public void StartSwitch()
        {
            if (inList != null && inList.Count > 0)
            {
                foreach (IMessageSwitch s in inList)
                {
                    if (log != null)
                    {
                        log("開啟輸輸入端:" + s.GetTypeName());
                    }
                    s.Start();
                }
            }
            if (outList != null && outList.Count > 0)
            {
                foreach (IMessageSwitch s in outList)
                {
                    if (log != null)
                    {
                        log("開啟輸出端:" + s.GetTypeName());
                    }
                    s.Start();
                }
            }
        }

        /// <summary>
        /// 停止轉換器
        /// </summary>
        public void StopSwitch()
        {
            if (inList != null && inList.Count > 0)
            {
                foreach (IMessageSwitch s in inList)
                {
                    if (log != null)
                    {
                        log("停止輸輸入端:" + s.GetTypeName());
                    }
                    s.Stop();
                }
            }
            if (outList != null && outList.Count > 0)
            {
                foreach (IMessageSwitch s in outList)
                {
                    if (log != null)
                    {
                        log("停止輸出端:" + s.GetTypeName());
                    }
                    s.Stop();
                }
            }
        }
    }

    /// <summary>
    /// 配置物體
    /// </summary>
    public class ConfDto
    {
        /// <summary>
        /// 反射用的串
        /// </summary>
        public string ReflectStr
        {
            get;
            set;
        }

        /// <summary>
        /// 型別
        /// </summary>
        public SwitchType Type
        {
            get;
            set;
        }

        /// <summary>
        /// 配置串
        /// </summary>
        public string ConfStr
        {
            get;
            set;
        }
    }

}

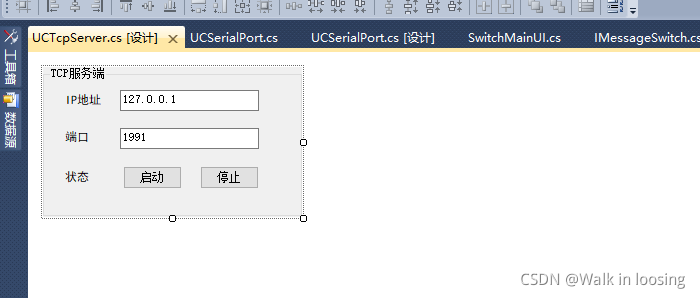

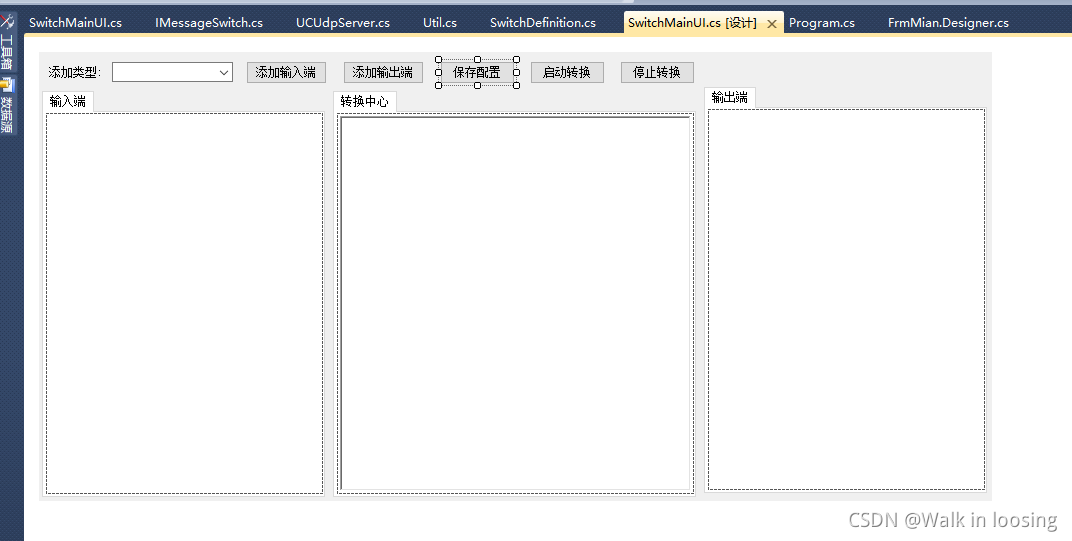

主轉換器用戶控制元件，主轉換器界面實作
在這里插入圖片描述

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Linq;
using System.Text;
using System.Windows.Forms;

namespace MessageSwitch
{
    public partial class SwitchMainUI : UserControl
    {
        /// <summary>
        /// 轉換器主物件
        /// </summary>
        private SwitchMian switchMian =null;

        /// <summary>
        /// 輸入控制元件頂部
        /// </summary>
        private int InTop = 0;

        /// <summary>
        /// 輸出控制元件頂部
        /// </summary>
        private int OutTop = 0;

        public SwitchMainUI()
        {
            InitializeComponent();
        }


        /// <summary>
        /// 添加輸入端
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnAddIn_Click(object sender, EventArgs e)
        {
            object reflectObj = cmbType.SelectedValue;
            if (reflectObj == null)
            {
                MessageBox.Show("請選擇要添加的型別！", "提示");
                return;
            }
            object swiObj = switchMian.GetObjectByReflectStr(reflectObj.ToString());
            IMessageSwitch swi = swiObj as IMessageSwitch;
            UserControl swiu = swiObj as UserControl;
            swiu.Top = InTop;
            InTop += swiu.Height+10;
            tabPageIn.Controls.Add(swiu);
            switchMian.AddToIn(swi);
        }

        /// <summary>
        /// 添加輸出端
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnAddOut_Click(object sender, EventArgs e)
        {
            object reflectObj = cmbType.SelectedValue;
            if (reflectObj == null)
            {
                MessageBox.Show("請選擇要添加的型別！", "提示");
                return;
            }
            object swiObj = switchMian.GetObjectByReflectStr(reflectObj.ToString());
            IMessageSwitch swi = swiObj as IMessageSwitch;
            UserControl swiu = swiObj as UserControl;
            swiu.Top = OutTop;
            OutTop += swiu.Height+10;
            tabPageOut.Controls.Add(swiu);
            switchMian.AddToOut(swi);
        }

        /// <summary>
        /// 保存配置
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnSaveConfig_Click(object sender, EventArgs e)
        {
            string confStr=switchMian.GetConfig();
            string path = System.IO.Path.Combine(System.AppDomain.CurrentDomain.BaseDirectory, "SwitchMian.conf");
            Util.WriteTxt(path, confStr);
            MessageBox.Show("配置保存在SwitchMian.conf！", "提示");
        }

        /// <summary>
        /// 啟動轉換
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnStart_Click(object sender, EventArgs e)
        {
            switchMian.StartSwitch();
        }

        /// <summary>
        /// 停止轉換
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnStop_Click(object sender, EventArgs e)
        {
            switchMian.StopSwitch();
        }

        /// <summary>
        /// 加載方法
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void SwitchMainUI_Load(object sender, EventArgs e)
        {
            switchMian = new SwitchMian(new WriteLog(WritLogs));
            string path = System.IO.Path.Combine(System.AppDomain.CurrentDomain.BaseDirectory, "SwitchType.conf");
            string TypeConfStr = Util.ReadTxt(path);
            if (TypeConfStr != "")
            {
                TypeConfStr = TypeConfStr.Replace("\r\n",(char)0+"");
                string[] arr = TypeConfStr.Split((char)0);
                List<CmbDto> cmbList = new List<CmbDto>();
                foreach(string s in arr)
                {
                    if (s == "")
                    {
                        continue;
                    }
                    string[] arrOne = s.Split('^');
                    if (arrOne.Length != 2)
                    {
                        MessageBox.Show("配置格式不對！格式：名稱^反射串", "提示");
                    }
                    else
                    {
                        CmbDto dto = new CmbDto();
                        dto.Name = arrOne[0];
                        dto.ReflectStr = arrOne[1];
                        cmbList.Add(dto);
                    }
                }
                cmbType.DataSource = cmbList;
                cmbType.ValueMember = "ReflectStr";
                cmbType.DisplayMember = "Name";
            }
            string pathConf = System.IO.Path.Combine(System.AppDomain.CurrentDomain.BaseDirectory, "SwitchMian.conf");
            if(System.IO.File.Exists(pathConf))
            {
                string conf=Util.ReadTxt(pathConf);
                switchMian.LoadConfig(conf, new AddMessageSwitch(AddMessageSwitchDo));
                switchMian.StartSwitch();
            }
        }

        /// <summary>
        /// 添加轉換器
        /// </summary>
        /// <param name="sw"></param>
        public  void AddMessageSwitchDo(IMessageSwitch sw,SwitchType type)
        {
            UserControl swiu = sw as UserControl;
            if (type == SwitchType.In)
            {
                swiu.Top = InTop;
                InTop += swiu.Height + 10;
                tabPageIn.Controls.Add(swiu);
            }
            if (type == SwitchType.Out)
            {
                swiu.Top = OutTop;
                OutTop += swiu.Height + 10;
                tabPageOut.Controls.Add(swiu);
            }
        }


        /// <summary>
        /// 寫日志
        /// </summary>
        /// <param name="log"></param>
        private void WritLogs(string log)
        {
            object [] para=new object[1];
            para[0]=log;
            this.Invoke(new WriteLog(WritLogsDo), para);
        }

        /// <summary>
        /// 寫日志
        /// </summary>
        /// <param name="log"></param>
        private void WritLogsDo(string log)
        {
            txtInfo.Text += DateTime.Now.ToString("HH:mm:ss ")+ log + "\n";
        }

        /// <summary>
        /// 下拉框物體
        /// </summary>
        class CmbDto
        {
            /// <summary>
            /// 顯示名稱
            /// </summary>
            public string Name
            {
                get;
                set;
            }

            /// <summary>
            /// 反射串
            /// </summary>
            public string ReflectStr
            {
                get;
                set;
            }
        }
    }
}

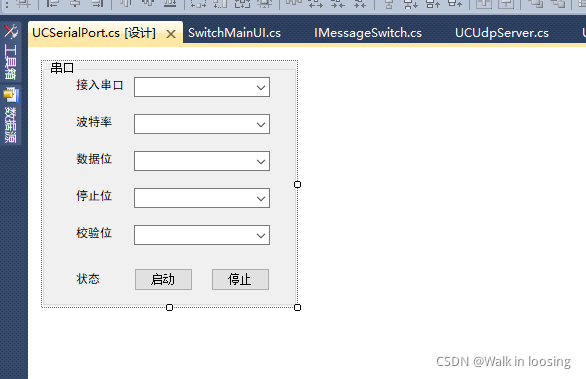

串口實作示例，對接串口訊息
在這里插入圖片描述

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.IO.Ports;

namespace MessageSwitch
{
    ///<summary  NoteObject="Class">
    /// [功能描述:串口實作] <para/>
    /// [創建者:zlz] <para/>
    /// [創建時間:2021年11月13日] <para/>
    ///<說明>
    ///  [說明:串口實作]<para/>
    ///</說明>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///</summary>
    public partial class UCSerialPort : UserControl, IMessageSwitch
    {
        /// <summary>
        /// 串口物件
        /// </summary>
        private SerialPort comm = new SerialPort();

        /// <summary>
        /// 推送器
        /// </summary>
        private PushMessageToSwitch pushToSwitch;

        /// <summary>
        /// 型別
        /// </summary>
        SwitchType type;

        /// <summary>
        /// 寫日志委托
        /// </summary>
        private WriteLog log;

        public UCSerialPort()
        {
            InitializeComponent();
        }

        /// <summary>
        /// 得到型別名字
        /// </summary>
        /// <returns></returns>
        public string GetTypeName()
        {
            return "串口";
        }

        /// <summary>
        /// 得到配置
        /// </summary>
        /// <returns></returns>
        public string GetConfig()
        {
            string confStr = cmbPortName.Text + "#" + cmbBaudrate.Text + "#" + cmbDataBits.Text + "#" + cmbStopBits.Text + "#" + cmbParity.Text;
            return confStr;
        }

        /// <summary>
        /// 設定配置
        /// </summary>
        /// <param name="confStr"></param>
        /// <returns></returns>
        public bool SetConfig(string confStr)
        {
            string[] arr = confStr.Split('#');
            if (arr.Length != 5)
            {
                MessageBox.Show("串口配置格式不對!應該是#分隔的5位", "提示");
                return false;
            }
            cmbPortName.Text = arr[0];
            cmbBaudrate.Text = arr[1];
            cmbDataBits.Text = arr[2];
            cmbStopBits.Text = arr[3];
            cmbParity.Text = arr[4];
            return true;
        }

        /// <summary>
        /// 設定推送委托
        /// </summary>
        /// <param name="push">推送器</param>
        /// <param name="ptype">型別</param>
        /// <param name="plog">日志委托</param>
        /// <returns></returns>
        public bool SetPushDelegate(PushMessageToSwitch push, SwitchType ptype, WriteLog plog)
        {
            pushToSwitch = push;
            type = ptype;
            log = plog;
            return true;
        }

        /// <summary>
        /// 啟動串口
        /// </summary>
        /// <returns></returns>
        public bool Start()
        {
            //根據當前串口物件，來判斷操作
            if (comm.IsOpen)
            {
                //打開時點擊，則關閉串口
                comm.Close();
            }
            //關閉時點擊，則設定好埠，波特率后打開
            comm.PortName = cmbPortName.Text;
            comm.BaudRate = int.Parse(cmbBaudrate.Text);
            comm.DataBits = int.Parse(cmbDataBits.Text);
            //停止位為列舉型別非用戶自定義
            switch (cmbStopBits.Text)
            {
                default:
                    comm.StopBits = StopBits.None;
                    break;
                case "1":
                    comm.StopBits = StopBits.One;
                    break;
                case "2":
                    comm.StopBits = StopBits.Two;
                    break;
                case "1.5":
                    comm.StopBits = StopBits.OnePointFive;
                    break;
            }
            //校驗位同樣非用戶自定義
            switch (cmbParity.Text)
            {
                default:
                    comm.Parity = Parity.None;
                    break;
                case "Odd":
                    comm.Parity = Parity.Odd;
                    break;
                case "Even":
                    comm.Parity = Parity.Even;
                    break;
                case "Mark":
                    comm.Parity = Parity.Mark;
                    break;
                case "Space":
                    comm.Parity = Parity.Space;
                    break;
            }
            try
            {
                comm.Open();
                if (log != null)
                {
                    log("啟動：啟動串口成功");
                    statePortName.ForeColor = Color.Blue;
                }
            }
            catch (Exception ex)
            {
                statePortName.ForeColor = Color.Red;
                //捕獲到例外資訊，創建一個新的comm物件，之前的不能用了，
                comm = new SerialPort();
                //初始化SerialPort物件
                comm.NewLine = "\r\n";
                comm.RtsEnable = true;//根據實際情況吧，
                //添加事件注冊
                comm.DataReceived += cmb_DataReceived;
                //現實體外資訊給客戶，
                MessageBox.Show(ex.Message, "提示", MessageBoxButtons.OK);
                return false;
            }
            return true;
        }

        /// <summary>
        /// 停止串口
        /// </summary>
        /// <returns></returns>
        public bool Stop()
        {
            if (comm.IsOpen)
            {
                comm.Close();
                statePortName.ForeColor = Color.Red;
                if (log != null)
                {
                    log("停止：串口已關閉");
                    statePortName.ForeColor = Color.Blue;
                }
            }
            return true;
        }

        /// <summary>
        /// 給串口發訊息
        /// </summary>
        /// <param name="msgByteArr"></param>
        /// <returns></returns>
        public bool SendMessage(byte[] msgByteArr)
        {
            //串口打開的話就轉給串口
            if (comm.IsOpen)
            {
                //轉發給串口
                comm.Write(msgByteArr, 0, msgByteArr.Count());
            }
            else
            {
                if (log != null)
                {
                    log("串口未打開,無法發送");
                    statePortName.ForeColor = Color.Blue;
                }
            }
            return true;
        }

        /// <summary>
        /// 得到反射串
        /// </summary>
        /// <returns></returns>
        public string GetReflectStr()
        {
            return "MessageSwitch.UCSerialPort,MessageSwitch.dll";
        }

        /// <summary>
        /// 加載函式
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void UCSerialPort_Load(object sender, EventArgs e)
        {
            //初始化下拉串口名稱串列框
            string[] ports = SerialPort.GetPortNames();
            //沒串口提示
            if (ports == null || ports.Count() == 0)
            {
                MessageBox.Show("檢測到當前運行電腦沒有串口！");
            }
            Array.Sort(ports);
            cmbPortName.Items.AddRange(ports);
            //波特率
            string[] baudrates = { "1200", "2400", "4800", "9600", "19200", "38400", "57600", "115200" };
            cmbBaudrate.Items.AddRange(baudrates);
            //資料位
            string[] databits = { "8", "7", "6", "5", "4" };
            cmbDataBits.Items.AddRange(databits);
            //停止位
            string[] stopbits = { "1", "1.5", "2" };
            cmbStopBits.Items.AddRange(stopbits);
            //校驗位
            string[] parity = { "None", "Odd", "Even", "Mark", "Speace" };
            cmbParity.Items.AddRange(parity);

            //默認值設定
            cmbPortName.SelectedIndex = cmbPortName.Items.Count > 0 ? 0 : -1;
            cmbBaudrate.SelectedIndex = cmbBaudrate.Items.IndexOf("9600");
            cmbDataBits.SelectedIndex = cmbDataBits.Items.IndexOf("8");
            cmbStopBits.SelectedIndex = cmbStopBits.Items.IndexOf("1");
            cmbParity.SelectedIndex = cmbParity.Items.IndexOf("None");
            //下拉框只可選擇不可編輯
            cmbPortName.DropDownStyle = ComboBoxStyle.DropDownList;
            cmbBaudrate.DropDownStyle = ComboBoxStyle.DropDownList;
            cmbDataBits.DropDownStyle = ComboBoxStyle.DropDownList;
            cmbStopBits.DropDownStyle = ComboBoxStyle.DropDownList;
            cmbParity.DropDownStyle = ComboBoxStyle.DropDownList;

            //初始化SerialPort物件
            comm.NewLine = "\r\n";
            //根據實際情況吧，
            comm.RtsEnable = true;
            //添加事件注冊
            comm.DataReceived += cmb_DataReceived;
        }

        /// <summary>
        /// Com口接收資料
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        void cmb_DataReceived(object sender, SerialDataReceivedEventArgs e)
        {
            int n = comm.BytesToRead;//先記錄下來，避免某種原因，人為的原因，操作幾次之間時間長，快取不一致
            byte[] buf = new byte[n];//宣告一個臨時陣列存盤當前來的串口資料
            comm.Read(buf, 0, n);//讀取緩沖資料
            string lineStr = System.Text.Encoding.Default.GetString(buf);
            lineStr = Util.DealNotSeeToSeeChar(lineStr);
            if (pushToSwitch != null)
            {
                pushToSwitch(buf, type);
            }


        }

        /// <summary>
        /// 啟動
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnStart_Click(object sender, EventArgs e)
        {
            Start();
        }

        /// <summary>
        /// 停止
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnStop_Click(object sender, EventArgs e)
        {
            Stop();
        }
    }
}

TCP服務端實作示例，實作TCP服務端接收客戶端訊息
在這里插入圖片描述

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Net.Sockets;
using System.Net;
using System.Threading;

namespace MessageSwitch
{
    ///<summary  NoteObject="Class">
    /// [功能描述:TCP服務端實作] <para/>
    /// [創建者:zlz] <para/>
    /// [創建時間:2021年11月13日] <para/>
    ///<說明>
    ///  [說明:TCP服務端實作]<para/>
    ///</說明>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///</summary>
    public partial class UCTcpServer : UserControl, IMessageSwitch
    {
        /// <summary>
        /// 網路服務物件
        /// </summary>
        private Socket socket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);

        /// <summary>
        /// 是否打開
        /// </summary>
        private bool IsOpen = false;

        /// <summary>
        /// 推送器
        /// </summary>
        private PushMessageToSwitch pushToSwitch;

        /// <summary>
        /// 型別
        /// </summary>
        SwitchType type;

        /// <summary>
        /// 寫日志委托
        /// </summary>
        private WriteLog log;

        /// <summary>
        /// 網路客戶端
        /// </summary>
        public Socket mianClient = null;

        /// <summary>
        /// 建構式
        /// </summary>
        public UCTcpServer()
        {
            InitializeComponent();
        }

        /// <summary>
        /// 得到型別名字
        /// </summary>
        /// <returns></returns>
        public string GetTypeName()
        {
            return "TCP服務端";
        }

        /// <summary>
        /// 得到配置
        /// </summary>
        /// <returns></returns>
        public string GetConfig()
        {
            string confStr = txtIp.Text + "#" + txtPort.Text;
            return confStr;
        }

        /// <summary>
        /// 設定配置
        /// </summary>
        /// <param name="confStr"></param>
        /// <returns></returns>
        public bool SetConfig(string confStr)
        {
            string[] arr = confStr.Split('#');
            if (arr.Length != 2)
            {
                MessageBox.Show("TCP配置格式不對!應該是#分隔的2位", "提示");
                return false;
            }
            txtIp.Text = arr[0];
            txtPort.Text = arr[1];
            return true;
        }

        /// <summary>
        /// 設定推送委托
        /// </summary>
        /// <param name="push">推送器</param>
        /// <param name="ptype">型別</param>
        /// <param name="plog">日志委托</param>
        /// <returns></returns>
        public bool SetPushDelegate(PushMessageToSwitch push, SwitchType ptype, WriteLog plog)
        {
            pushToSwitch = push;
            type = ptype;
            log = plog;
            return true;
        }

        /// <summary>
        /// 啟動
        /// </summary>
        /// <returns></returns>
        public bool Start()
        {
            if (txtPort.Text == "")
            {
                if (log != null)
                {
                    log("啟動：沒有設定埠號");
                }
                return false;
            }
            if (txtIp.Text == "")
            {
                if (log != null)
                {
                    log("啟動：沒有設定端IP");
                }
                return false;
            }
            //先釋放
            if (socket != null)
            {
                socket.Close();
                socket.Dispose();
                socket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
                IsOpen = false;
            }
            //系結IP埠
            IPAddress hostIP = IPAddress.Any;
            IPAddress.TryParse(txtIp.Text, out hostIP);
            if (Util.PortInUse(Convert.ToInt32(txtPort.Text)))
            {
                if (log != null)
                {
                    log("啟動TCP服務：當前電腦埠：" + txtPort.Text + "已經被占用");
                }
                //現實體外資訊給客戶，
                MessageBox.Show("當前電腦埠：" + txtPort.Text + "已經被占用", "提示", MessageBoxButtons.OK);
                return false;
            }
            IPEndPoint ep = new IPEndPoint(hostIP, Convert.ToInt32(txtPort.Text));
            socket.Bind(ep);
            try
            {
                //開始偵聽
                socket.Listen(20);
                if (log != null)
                {
                    log("啟動TCP服務：啟動TCP服務成功");
                }
                stateIp.ForeColor = Color.Blue;
                Thread tcpThread = new Thread(new ThreadStart(TcpListenClientConnect));
                IsOpen = true;
                tcpThread.Start();
                return true;
            }
            catch (Exception ex)
            {
                IsOpen = false;
                //現實體外資訊給客戶，
                MessageBox.Show(ex.Message, "提示", MessageBoxButtons.OK);
                return false;
            }
        }

        /// <summary>
        /// 停止
        /// </summary>
        /// <returns></returns>
        public bool Stop()
        {
            if (socket != null)
            {
                socket.Close();
                stateIp.ForeColor = Color.Red;
                socket.Dispose();
                socket = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
                IsOpen = false;
                if (log != null)
                {
                    log("停止TCP服務：TCP已釋放");
                }
            }
            return true;
        }

        /// <summary>
        /// 給tcp發送訊息
        /// </summary>
        /// <param name="msgByteArr"></param>
        /// <returns></returns>
        public bool SendMessage(byte[] msgByteArr)
        {
            //轉發給TCP
            if (mianClient != null)
            {
                mianClient.Send(msgByteArr);
                return true;
            }
            else
            {
                if (log != null)
                {
                    log("TCP無連接客戶端，無法發送，確認防火墻關閉！");
                }
                return false;
            }
        }

        /// <summary>
        /// 得到反射串
        /// </summary>
        /// <returns></returns>
        public string GetReflectStr()
        {
            return "MessageSwitch.UCTcpServer,MessageSwitch.dll";
        }

        /// <summary>
        /// 加載方法
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void UCTcpServer_Load(object sender, EventArgs e)
        {
            txtIp.Text = Util.GetIpv4Str();
        }

        /// <summary>
        /// 監聽客戶端連接
        /// </summary>
        private void TcpListenClientConnect()
        {
            //死回圈偵聽客戶端連接
            while (true)
            {
                try
                {
                    if (IsOpen == false)
                    {
                        break;
                    }
                    //有客戶端連接過來
                    Socket oneClient = socket.Accept();
                    string clentIP = ((IPEndPoint)oneClient.RemoteEndPoint).Address.ToString();
                    string clientPort = ((IPEndPoint)oneClient.RemoteEndPoint).Port.ToString();
                    if (log != null)
                    {
                        log("客戶端:" + clentIP + ":" + clientPort + "連接了本服務");
                    }
                    //服務只接收一個客戶端
                    if (mianClient == null)
                    {
                        if (log != null)
                        {
                            log("客戶端:" + clentIP + ":" + clientPort + "作為主客戶端");
                        }
                        mianClient = oneClient;
                        Thread newThread = new Thread(ListenClientData);
                        newThread.Start();
                    }
                    else
                    {
                        if (log != null)
                        {
                            log("已有客戶端連接本服務，將斷開當前客戶端請求");
                        }
                        //有客戶端連著就不讓其他客戶端連接了
                        byte[] byteArray = System.Text.Encoding.Default.GetBytes("已有連接連上該埠了!");
                        oneClient.Send(byteArray);
                        oneClient.Close();
                    }
                }
                catch (Exception ex)
                {
                    if (log != null)
                    {
                        log("服務端偵聽例外：" + ex.Message);
                    }
                }
            }
        }


        /// <summary>
        /// 偵聽客戶端訊息
        /// </summary>
        public void ListenClientData()
        {
            byte[] bytes = new byte[83886080];
            //數量
            int datai = -1;
            try
            {
                //死回圈偵聽客戶端發來的資料
                while (true)
                {
                    if (IsOpen == false)
                    {
                        break;
                    }
                    datai = mianClient.Receive(bytes);
                    if (datai > 0)
                    {
                        if (pushToSwitch != null)
                        {
                            byte[] buf = new byte[datai];
                            Array.Copy(bytes, buf, datai);
                            pushToSwitch(buf, type);
                        }
                    }

                }
            }
            catch (System.Exception ex)
            {
                if (log != null)
                {
                    log("偵聽客戶端訊息例外：" + ex.Message);
                }
            }
            finally
            {
                if (mianClient != null)
                {
                    mianClient.Close();
                    mianClient.Dispose();
                    mianClient = null;
                }
            }
        }

        /// <summary>
        /// 啟動
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnStart_Click(object sender, EventArgs e)
        {
            Start();
        }

        /// <summary>
        /// 停止
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnStop_Click(object sender, EventArgs e)
        {
            Stop();
        }
    }
}

工具類，共用方法

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.IO;
using System.Xml.Serialization;
using System.Net.NetworkInformation;
using System.Net;

namespace MessageSwitch
{
    ///<summary  NoteObject="Class">
    /// [功能描述:工具類] <para/>
    /// [創建者:zlz] <para/>
    /// [創建時間:2021年11月13日] <para/>
    ///<說明>
    ///  [說明:工具類]<para/>
    ///</說明>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///<修改記錄>
    ///    [修改時間:本次修改時間]<para/>
    ///    [修改內容:本次修改內容]<para/>
    ///</修改記錄>
    ///</summary>
    public class Util
    {
        /// <summary>
        /// 反序列化資料
        /// </summary>
        /// <typeparam name="T"></typeparam>
        /// <param name="path"></param>
        /// <returns></returns>
        public static T ReadLocalData<T>(string path)
        {
            if (File.Exists(path))
            {
                try
                {
                    string str = ReadTxt(path);
                    byte[] arr = Convert.FromBase64String(str);
                    str = System.Text.Encoding.Default.GetString(arr);
                    return XmlDeserialize<T>(str, Encoding.UTF8);
                }
                catch (Exception e)
                {
                    throw e;
                }
            }
            else
            {
                return default(T);
            }
        }

        /// <summary>
        /// 序列化資料
        /// </summary>
        /// <param name="data"></param>
        /// <param name="path"></param>
        /// <returns></returns>
        public static bool WriteLocalData(object data, string path)
        {
            if (File.Exists(path))
            {
                File.Delete(path);
                try
                {
                    string str = Serializer(data.GetType(), data);
                    byte[] arr = System.Text.Encoding.Default.GetBytes(str);
                    str = Convert.ToBase64String(arr);
                    WriteTxt(path, str);
                    return true;
                }
                catch (Exception e)
                {
                    throw e;
                }
            }
            else
            {
                try
                {
                    string str = Serializer(data.GetType(), data);
                    byte[] arr = System.Text.Encoding.Default.GetBytes(str);
                    str = Convert.ToBase64String(arr);
                    WriteTxt(path, str);
                    return true;
                }
                catch (Exception e)
                {
                    throw e;
                }
            }
        }

        /// <summary>
        /// 洗掉本地資料
        /// </summary>
        /// <param name="id">Id</param>
        /// <param name="pat">路徑，不給的話有方法默認決定</param>
        /// <returns>結果</returns>
        public static bool DeleteLocalData(string id, string pat)
        {
            string path = Path.Combine(System.Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments), id + ".aup");
            if (pat != null && pat != string.Empty)
            {
                path = Path.Combine(pat, id + ".aup");
            }
            if (File.Exists(path))
            {
                File.Delete(path);
            }
            return true;
        }

        /// <summary>
        /// 序列化
        /// </summary>
        /// <param name="type">型別</param>
        /// <param name="obj">物件</param>
        /// <returns></returns>
        public static string Serializer(Type type, object obj)
        {
            MemoryStream Stream = new MemoryStream();
            XmlSerializer xml = new XmlSerializer(type);
            try
            {
                //序列化物件
                xml.Serialize(Stream, obj);
            }
            catch (InvalidOperationException)
            {
                throw;
            }
            Stream.Position = 0;
            StreamReader sr = new StreamReader(Stream);
            string str = sr.ReadToEnd();

            sr.Dispose();
            Stream.Dispose();

            return str;
        }

        /// <summary>
        /// 從XML字串中反序列化物件
        /// </summary>
        /// <typeparam name="T">結果物件型別</typeparam>
        /// <param name="s">包含物件的XML字串</param>
        /// <param name="encoding">編碼方式</param>
        /// <returns>反序列化得到的物件</returns>
        public static T XmlDeserialize<T>(string s, Encoding encoding)
        {
            try
            {
                if (string.IsNullOrEmpty(s))
                {
                    throw new ArgumentNullException("s");
                }
                if (encoding == null)
                {
                    throw new ArgumentNullException("encoding");
                }

                XmlSerializer mySerializer = new XmlSerializer(typeof(T));
                using (MemoryStream ms = new MemoryStream(encoding.GetBytes(s)))
                {
                    using (StreamReader sr = new StreamReader(ms, encoding))
                    {
                        return (T)mySerializer.Deserialize(sr);
                    }
                }
            }
            catch (Exception ex)
            {
                return default(T);
            }
        }

        /// <summary>
        /// 讀取檔案資料
        /// </summary>
        /// <param name="path">檔案全路徑</param>
        /// <returns></returns>
        public static string ReadTxt(string path)
        {
            //檔案流
            FileStream fs = null;
            try
            {
                //創建檔案流
                fs = new FileStream(path, FileMode.Open, FileAccess.Read, FileShare.ReadWrite);
                //創建字串讀取器
                StreamReader sr = new StreamReader(fs);
                //讀到尾
                string str = sr.ReadToEnd();
                return str;
            }
            finally
            {
                if (fs != null)
                {
                    fs.Close();
                }
            }
        }

        /// <summary>
        /// 寫入資料到指定檔案
        /// </summary>
        /// <param name="path">檔案全路徑</param>
        /// <param name="str">資料</param>
        /// <param name="isReplace">是否提換，默認為替換，否則為添加</param>
        /// <returns></returns>
        public  static bool WriteTxt(string path, string str)
        {
            FileStream fs = null;
            StreamWriter sw1 = null;
            try
            {
                if (File.Exists(path))
                {
                    File.Delete(path);
                }
                //創建檔案流
                fs = new FileStream(path, FileMode.CreateNew);
                //創建字串寫入器
                sw1 = new StreamWriter(fs);
                //寫入字串
                sw1.Write(str);
                return true;
            }
            catch (Exception ex)
            {
                throw ex;
            }
            finally
            {
                if (sw1 != null)
                {
                    sw1.Close();
                }
                if (fs != null)
                {
                    fs.Close();
                }
            }
        }

        /// <summary>
        /// 處理不可見字符
        /// </summary>
        /// <param name="data">資料</param>
        /// <returns>回傳</returns>
        public static string DealNotSeeToSeeChar(string data)
        {
            for (int i = 0; i <= 31; i++)
            {
                if (i == 6)
                {
                    data = data.Replace((char)i + "", "[ACK]");
                }
                else if (i == 5)
                {
                    data = data.Replace((char)i + "", "[ENQ]");
                }
                else if (i == 4)
                {
                    data = data.Replace((char)i + "", "[EOT]");
                }
                else if (i == 3)
                {
                    data = data.Replace((char)i + "", "[ETX]");
                }
                else if (i == 2)
                {
                    data = data.Replace((char)i + "", "[STX]");
                }
                else
                {
                    data = data.Replace((char)i + "", "[" + i + "]");
                }
            }
            data.Replace((char)127 + "", "[127]");
            return data;
        }

        /// <summary>
        /// 判斷埠是否被占用
        /// </summary>
        /// <param name="port">埠</param>
        /// <returns></returns>
        public static bool PortInUse(int port)
        {
            bool inUse = false;

            IPGlobalProperties ipProperties = IPGlobalProperties.GetIPGlobalProperties();
            IPEndPoint[] ipEndPoints = ipProperties.GetActiveTcpListeners();

            foreach (IPEndPoint endPoint in ipEndPoints)
            {
                if (endPoint.Port == port)
                {
                    inUse = true;
                    break;
                }
            }
            return inUse;
        }

        /// <summary>
        /// 獲得當前機器的ip4串
        /// </summary>
        /// <returns></returns>
        public static string GetIpv4Str()
        {
            System.Net.IPAddress[] arrIPAddresses = System.Net.Dns.GetHostAddresses(System.Net.Dns.GetHostName());
            foreach (System.Net.IPAddress ip in arrIPAddresses)
            {
                if (ip.AddressFamily.Equals(System.Net.Sockets.AddressFamily.InterNetwork))
                {
                    return ip.ToString();
                }
            }
            return string.Empty;
        }
    }
}

運行效果-串口轉串口和TCP服務
在這里插入圖片描述

這樣就可以任意組合轉換器兩端的協議了，可以串口轉串口，串口轉tcp，tcp轉tcp，tcp轉tdp，串口轉udp====，而且每端可以配置多種協議，所以把這個稱為超級轉換器，分為轉換中心和轉換實作，

善于抽取共性，就能大大降低復雜度，實作靈活又強大的功能，面向介面編程的好處，

轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/356941.html

標籤：其他

上一篇：可靠資料傳輸原理詳細圖解

下一篇：網路技術——路由器及其配置
