ggplot：按月在同一圖上的多個時間段

我試圖按月在同一個時間序列圖上繪制多個時間段。這是我的資料：

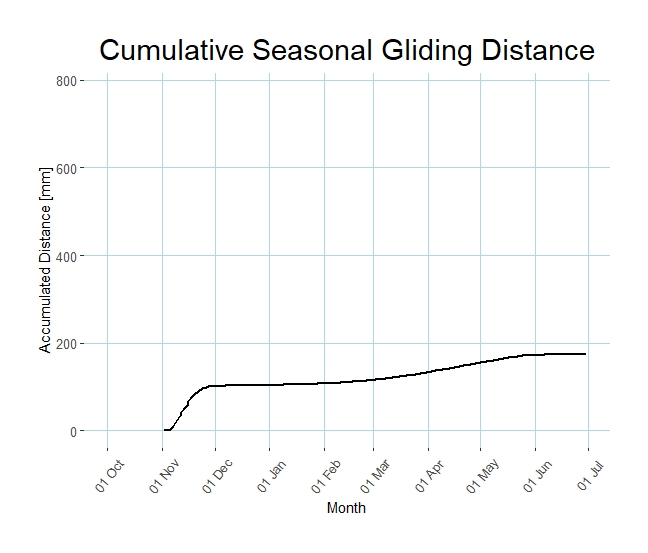

這實際上在視覺上效果很好，因為 x 軸根據需要從 10 月到 6 月；然而，我是通過設定限制來做到的，

startTime <- as.Date("2016-10-01")
endTime <- as.Date("2017-06-30")
start_end <- c(startTime,endTime)

然后設定 1 個月的休息時間。

scale_x_date(limits=start_end,breaks=date_breaks("1 month"),labels=date_format("%d %b"))

It is needless to say that this technique will not work if I would like to include other winter seasons and a legend.

I also tried to assign a season to certain time periods and then use them as a factor:

master_dataset <- master_dataset %>%
  mutate(season = case_when(date>=as.Date('2015-11-02')&date<=as.Date('2016-06-30')~"season 2015-16",
                            date>=as.Date('2016-11-02')&date<=as.Date('2017-06-30')~"season 2016-17",
                            date>=as.Date('2017-10-13')&date<=as.Date('2018-06-30')~"season 2017-18",
                            date>=as.Date('2018-10-18')&date<=as.Date('2019-06-30')~"season 2018-19"))

ggplot(master_dataset, aes(month(date, label=TRUE, abbr=TRUE), fl_all_cumsum, group=factor(season),colour=factor(season)))
  geom_line()
  labs(x="Month", colour="Season")
  theme_classic()

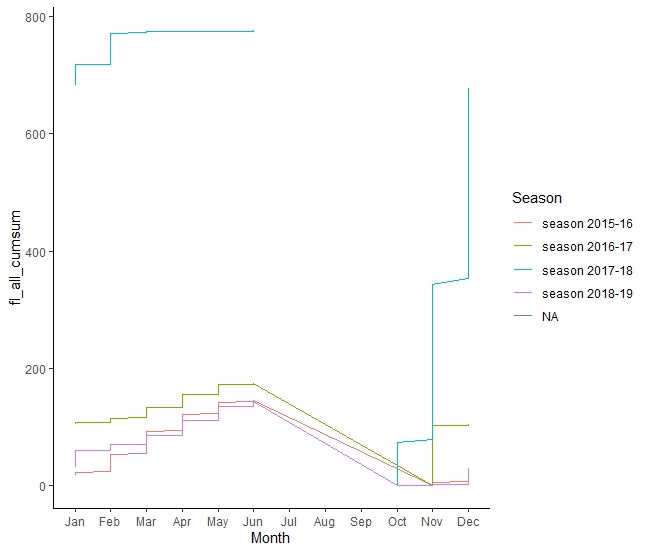

As you can see, I managed to include the other seasons in the graph but there are several issues now:

1. grouped by month it aggregates the daily values and I lose the daily dynamic in the graph (look how it is based on monthly steps)
2. the x-axis goes in chronological order which messes up my visualization (remember I care for the winter season development so I need the x-axis to go from October-End of June; see the first graph I produced)
3. Not big of an issue but because the data has NA gaps, the legend also shows a factor "NA"

我不是程式員，所以我無法思考如何為這樣的問題編碼。在一個完美的世界中，我想要像我制作的第一個圖表一樣的東西，但包括所有的冬季和一個傳說。有人對此有解決方案嗎？提前致謝。

佐林

uj5u.com熱心網友回復：

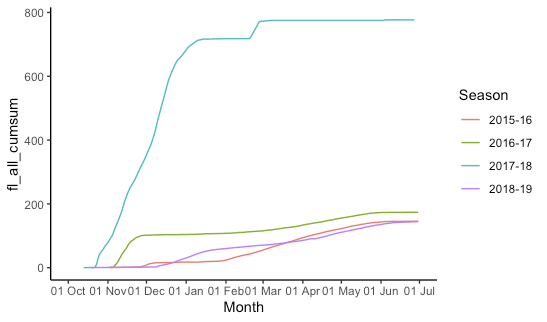

這確實是一種痛苦，而且相當繁瑣。我創建了與您的date專欄相同的“假日期” ，但年份設定為 2015/2016（使用 2016 表示將落在 2 月的日期，因此閏日不會丟失）。然后我們繪制所有資料，告訴 ggplot 它都是 2015-2016 年，所以它被繪制在同一軸上，但我們不標記年份。（使用季節標簽，不是“假的”。）

## Configure some constants:
start_month = 10  # first month on x-axis
end_month = 6     # last month on x-axis
fake_year_start = 2015  # year we'll use for start_month-December
fake_year_end = fake_year_start   1 # year we'll use for January-end_month
fake_limits = c(   # x-axis limits for plot
  ymd(paste(fake_year_start, start_month, "01", sep = "-")),
  ceiling_date(ymd(paste(fake_year_end, end_month, "01", sep = "-")), unit = "month")
)

df = df %>%
  mutate(
    ## add (real) year and month columns
    year = year(date),
    month = month(date),
    ## add the year for the season start and end
    season_start = ifelse(month >= start_month, year, year - 1),
    season_end = season_start   1,
    ## create season label
    season = paste(season_start, substr(season_end, 3, 4), sep = "-"),
    ## add the appropriate fake year
    fake_year = ifelse(month >= start_month, fake_year_start, fake_year_end),
    ## make a fake_date that is the same as the real date
    ## except set all the years to the fake_year
    fake_date = date,
    fake_date = "year<-"(fake_date, fake_year)
  ) %>%
  filter(
    ## drop irrelevant data
    month >= start_month | month <= end_month,
    !is.na(fl_all_cumsum)
  )


ggplot(df, aes(x = fake_date, y = fl_all_cumsum, group = season,colour= season))
  geom_line()
  labs(x="Month", colour = "Season")
  scale_x_date(
    limits = fake_limits,
    breaks = scales::date_breaks("1 month"),
    labels = scales::date_format("%d %b")
  )
  theme_classic()

標籤：r 日期 ggplot2 时间序列
