如何從ggplot2scale_color_manual()中洗掉未使用的值？

我認為 ggplot2 中最近的一個變化是 scale_manual 函式中定義的所有值都包含在圖例中，但我只想要圖例中資料集中的值。

下面是一個最小示例，其中從資料集中過濾了“C”，但仍出現在圖例中。有沒有簡單的方法可以從圖例中洗掉“C”？

library(ggplot2)
library(dplyr)

df_dummy <- tribble(
    ~label, ~x, ~y,
    "A",     1,  1,
    "B",     2,  2,
    "C",     3,  3,
    "D",     4,  4
)

myColors <- viridis::viridis_pal(option = "H")(4)
names(myColors) <- factor(df_dummy$label)
dummy_col_scale <- scale_color_manual(name = "Legend", values = myColors)

df_dummy %>%
    filter(label != "C") %>%
    ggplot(aes(x, y, color = label))
    geom_point()
    dummy_col_scale

sessionInfo()

R version 4.0.3 (2020-10-10)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 19044)

Matrix products: default

locale:
[1] LC_COLLATE=English_Australia.1252
[2] LC_CTYPE=English_Australia.1252
[3] LC_MONETARY=English_Australia.1252
[4] LC_NUMERIC=C
[5] LC_TIME=English_Australia.1252

attached base packages:
[1] stats     graphics  grDevices utils
[5] datasets  methods   base

other attached packages:
[1] dplyr_1.0.5   ggplot2_3.3.5

loaded via a namespace (and not attached):
 [1] rstudioapi_0.13   magrittr_2.0.1
 [3] tidyselect_1.1.1  munsell_0.5.0
 [5] cowplot_1.1.1     viridisLite_0.4.0
 [7] colorspace_2.0-2  R6_2.5.1
 [9] rlang_0.4.10      fansi_0.4.2
[11] tools_4.0.3       grid_4.0.3
[13] gtable_0.3.0      utf8_1.2.1
[15] cli_3.0.1         DBI_1.1.1
[17] withr_2.4.2       ellipsis_0.3.2
[19] digest_0.6.27     assertthat_0.2.1
[21] tibble_3.1.1      lifecycle_1.0.1
[23] crayon_1.4.1      gridExtra_2.3
[25] farver_2.1.0      purrr_0.3.4
[27] viridis_0.6.0     vctrs_0.3.8
[29] glue_1.4.2        labeling_0.4.2
[31] compiler_4.0.3    pillar_1.6.4
[33] generics_0.1.0    scales_1.1.1
[35] pkgconfig_2.0.3

uj5u.com熱心網友回復：

另一種選擇是limits = force在scale_color_manual.

dummy_col_scale <-
  scale_color_manual(name = "Legend",
                     values = myColors,
                     limits = force)

df_dummy %>%
  filter(label != "C") %>%
  ggplot(aes(x, y, color = label))
  geom_point()

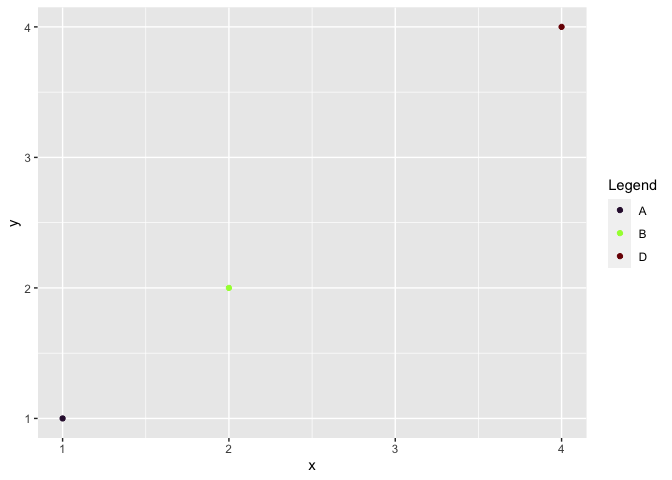

輸出

uj5u.com熱心網友回復：

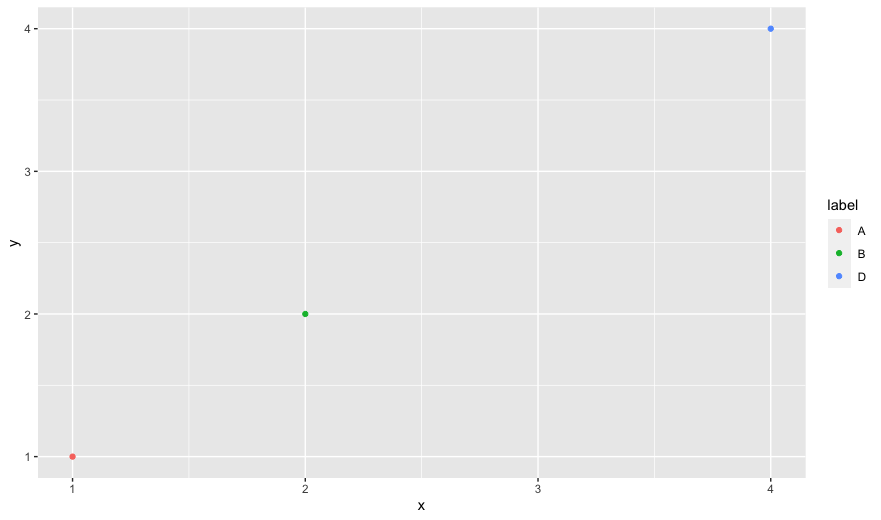

我相信有一些解決方案可以解決您的問題。一種可能的解決方案是先進行過濾，然后選擇 3 種顏色：

library(ggplot2)
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union

df_dummy <- tribble(
  ~label, ~x, ~y,
  "A",     1,  1,
  "B",     2,  2,
  "C",     3,  3,
  "D",     4,  4
)

df2 <- df_dummy %>%
  filter(label != "C")

myColors <- viridis::viridis_pal(option = "H")(3)
names(myColors) <- factor(df2$label)
dummy_col_scale <- scale_color_manual(name = "Legend", values = myColors)

df2 %>%
  ggplot(aes(x, y, color = label))
  geom_point()
  dummy_col_scale

另一種選擇是在 dummy_col_scale 中設定限制，即

df_dummy <- tribble(
  ~label, ~x, ~y,
  "A",     1,  1,
  "B",     2,  2,
  "C",     3,  3,
  "D",     4,  4
)

df2 <- df_dummy %>%
  filter(label != "C")

myColors <- viridis::viridis_pal(option = "H")(4)
names(myColors) <- factor(df2$label)
dummy_col_scale <- scale_color_manual(name = "Legend", values = myColors,
                                      limits = c("A", "B", "D"))

df2 %>%
  ggplot(aes(x, y, color = label))
  geom_point()
  dummy_col_scale
