將ggplot圖例與不同的標簽結合起來

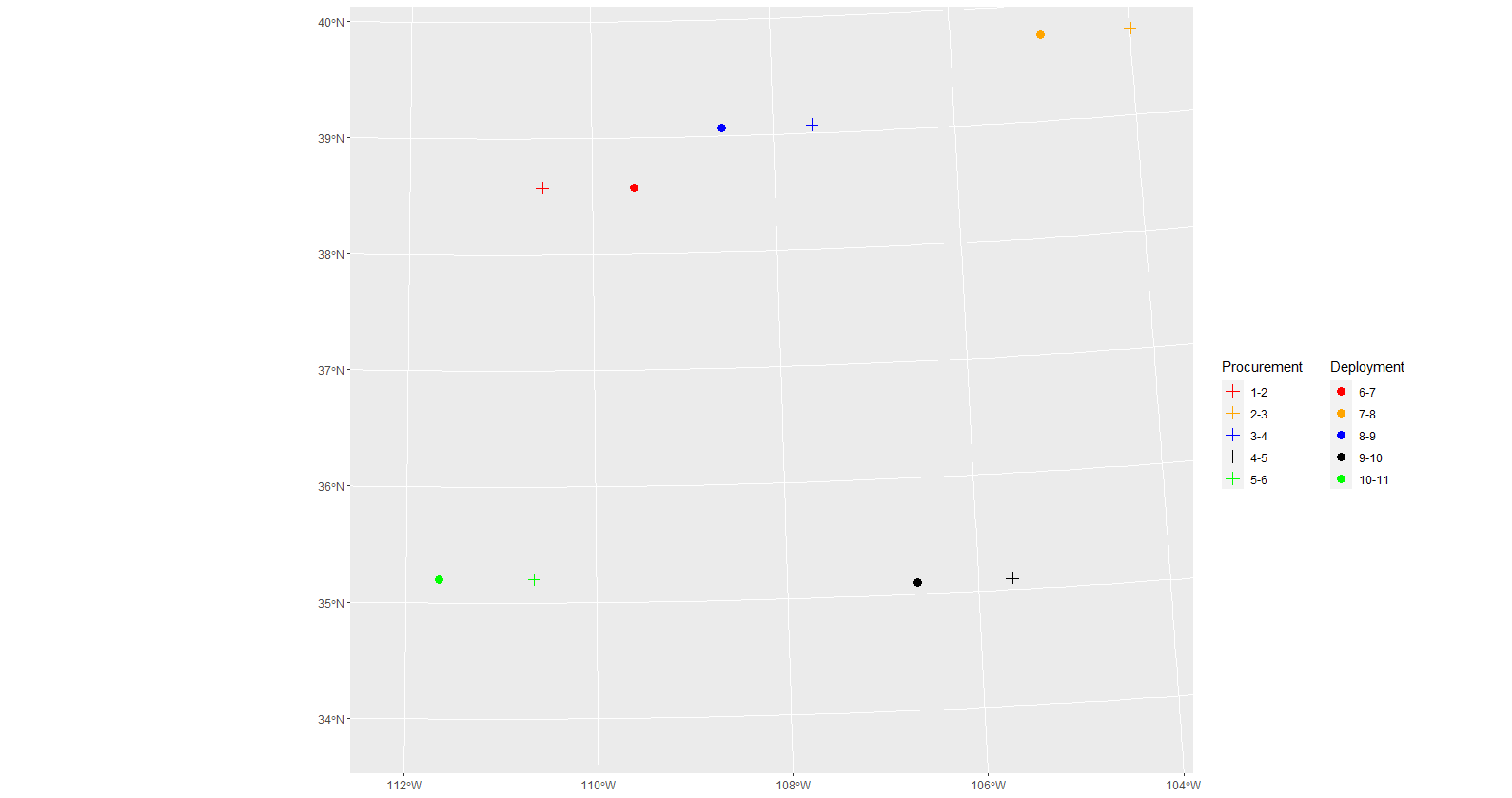

我們想要創建一個圖形/圖例，它使用形狀對一個因素進行編碼，并為另一個因素編碼顏色，并具有像表格一樣的圖例，一個因素的列和另一個因素的行。訣竅是，兩列中的圖例標簽必須不同，就像這個模型：

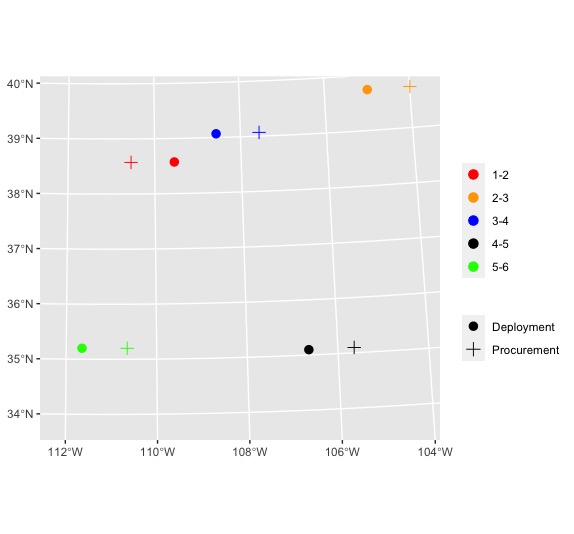

這是測驗資料和失敗的嘗試。因子“fromto”代表列；“匹配”行，鏈接應該具有相同顏色的兩個元素。

library(ggplot2)
library(sf)

# Map limits
XLIM <- c( -112.2, -104 )
YLIM <- c( 33.8, 39.8 )

# DUMMY DATA
DAT <- "fromto match label lat long
Procurement flaghi 1-2 39.73921 -103.99030
Procurement flaglo 2-3 39.06831 -107.56443
Procurement pine 3-4 35.09633 -105.64020
Procurement taos 4-5 35.19934 -110.65155
Procurement crip 5-6 38.57335 -110.54645
Deployment flaghi 6-7 39.73921 -104.99030
Deployment flaglo 7-8 39.06831 -108.56443
Deployment pine 8-9 35.09633 -106.64020
Deployment taos 9-10 35.19934 -111.65155
Deployment crip 10-11 38.57335 -109.54645"

DAT <- read.table( text=DAT, header=TRUE, stringsAsFactors=FALSE )
DAT <- st_as_sf(x = DAT,
                coords = c("long", "lat"),
                crs = 4326 )
DAT$fromto <- factor(DAT$fromto)
DAT$match <- factor(DAT$match)
DAT$label <- factor(DAT$label)

p <- ggplot()

geom_sf( DAT, mapping=aes( shape=fromto, color=match ), size=3 )
  scale_shape_manual( values=c(16,3), name=NULL )
  scale_color_manual( values=c("red", "orange", "blue", "black", "green"),
                      labels=DAT$label, name=NULL )
  coord_sf( xlim=XLIM, ylim=YLIM, crs=26912, default_crs=4326 )
p

uj5u.com熱心網友回復：

使用ggnewscale你可以嘗試...

library(ggplot2)
library(sf)
library(ggnewscale)

# Map limits
XLIM <- c( -112.2, -104 )
YLIM <- c( 33.8, 39.8 )

# DUMMY DATA
DAT <- "fromto match label lat long
Procurement flaghi 1-2 39.73921 -103.99030
Procurement flaglo 2-3 39.06831 -107.56443
Procurement pine 3-4 35.09633 -105.64020
Procurement taos 4-5 35.19934 -110.65155
Procurement crip 5-6 38.57335 -110.54645
Deployment flaghi 6-7 39.73921 -104.99030
Deployment flaglo 7-8 39.06831 -108.56443
Deployment pine 8-9 35.09633 -106.64020
Deployment taos 9-10 35.19934 -111.65155
Deployment crip 10-11 38.57335 -109.54645"

DAT <- read.table(text = DAT, header = TRUE)
DAT <- st_as_sf(x = DAT,
                coords = c("long", "lat"),
                crs = 4326 )

# split data for to enable dual legend based on colour
dat_p <- DAT[DAT$fromto == "Procurement", ]
dat_d <- DAT[DAT$fromto == "Deployment", ]

ggplot()
  geom_sf(dat_p, mapping = aes(color = match), shape = 3 , size=3 )
  scale_color_manual(values = c("red", "orange", "blue", "black", "green"),
                     labels = dat_p$label,
                     name = "Procurement" )
  new_scale_colour()
  geom_sf(dat_d, mapping = aes(color = match), size=3 )
  scale_color_manual( values = c("red", "orange", "blue", "black", "green"),
                      labels = dat_d$label,
                      name = "Deployment" )
  coord_sf(xlim = XLIM,
           ylim = YLIM,
           crs = 26912,
           default_crs = 4326)
  theme(legend.direction = "vertical",
        legend.box = "horizontal",
        legend.position = c(1.025, 0.55),
        legend.justification = c(0, 1))

^{由reprex 包(v2.0.1)于 2021 年 12 月 24 日創建}
