R（ggplot）中反雙曲正弦刻度上的分位數資料標簽

為了在繪圖上獲得更好的可見性，我在 ggplot 中將比例轉換為反雙曲正弦（偽負對數比例），并使用了箱形圖和小提琴圖。我無法為該比例的分位數添加資料標簽。每當我嘗試以下腳本時，顯示的數字與實際分位數不匹配。如果有人可以幫助我，我將不勝感激。示例資料可在此處訪問：

https://drive.google.com/file/d/1WTjiV1Q3HqlMXAjdrDSdcskc3uXxxRMt/view?usp=sharing

    library(scales)
asinh_trans <- scales::trans_new(
  "inverse_hyperbolic_sine",
  transform = function(x) {asinh(x)},
  inverse = function(x) {sinh(x)}
)

XData <- as.data.frame(read.csv("Sample.csv", header = TRUE))

XDataS1 <- subset.data.frame(XData, XData$Setup == "ND2" & XData$SensorLocation == "Head")

CheckData <- fivenum(XDataS1$Strain)
CheckData

NPlot <- ggplot(XData, aes(fill = `Setup`, x = `SensorLocation`, y = `Strain`))   geom_violin(trim = TRUE, fill = "lightgray")
  labs(x = "Sensor Location", y = "Strain (\u03BC\u03B5)\n- inverse hyperbolic sine scale")
  geom_boxplot(width=0.2)
#This where I tried sinh(asinh(..y..)) and ln(..y..   sqrt(1   (..y..^2))) to add the quantile data labels
  stat_summary(geom="text", fun=fivenum,
               aes(label=sprintf("%.1f", log(..y..   sqrt(1   (..y..^2)))), color=factor(`Setup`)),
               position=position_nudge(x=0.33), size=3.5)
  theme_bw()
  #coord_cartesian(ylim = quantile(XData$Bstrain, c(0, 1)))
  scale_y_continuous(trans = asinh_trans, breaks = c(-1000, -100, -10, -1, -0.1))
  theme(axis.title = element_text(size = 12))
  theme(axis.text = element_text(size = 12, color = "black"))
  theme(axis.title.x = element_text(vjust = -3))
  theme(axis.text.x = element_text(vjust = -1.5))
  theme(panel.grid.major = element_line(size = 0.5, linetype = 'dashed', color = "dark grey"),
        panel.grid.minor = element_line(size = 0.5, linetype = 'dashed', color = "grey"),
        panel.background = element_rect(colour = "black", size=1))
  theme(legend.position = "bottom")
    guides(fill=guide_legend(title="Test Setup"),
           colour = guide_legend(title="Test Setup"))

####
NPlot

uj5u.com熱心網友回復：

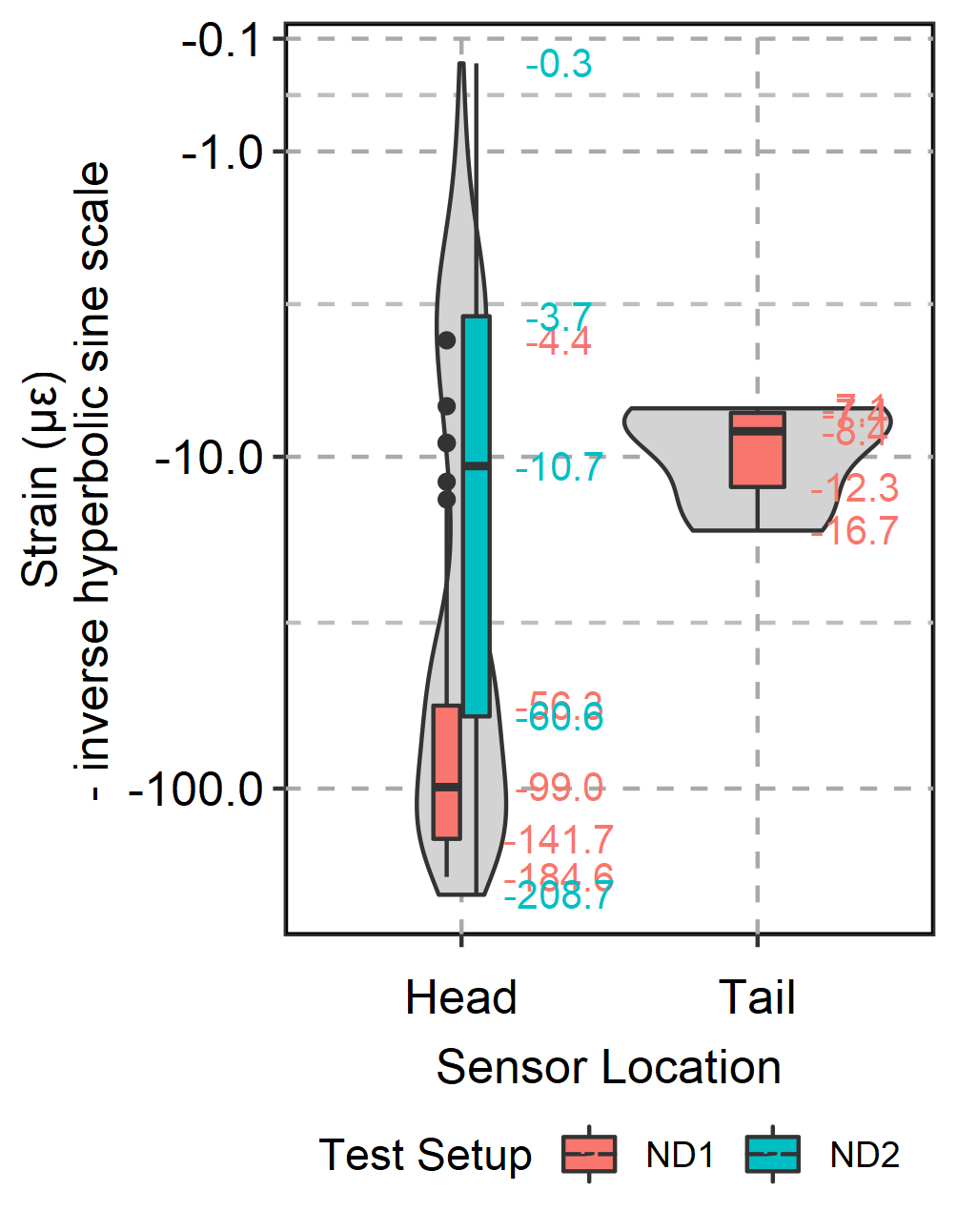

在繪圖之前將分位數標簽放在單獨的資料框中可能更簡單，然后將分位數資料框傳遞給 的data引數geom_text：

library(tidyverse)
library(scales)

XDataFiveNum <- XData %>%
  group_by(SensorLocation, Setup) %>%
  summarize(Strain = fivenum(Strain), .groups = "drop")

NPlot <- ggplot(XData, aes(fill = `Setup`, x = `SensorLocation`, y = `Strain`))
  geom_violin(trim = TRUE, fill = "lightgray")
  labs(x = "Sensor Location", y = "Strain (\u03BC\u03B5)\n- inverse hyperbolic sine scale")
  geom_boxplot(width=0.2)
  geom_text(
    data = XDataFiveNum,
    aes(label = sprintf("%.1f", Strain), color = Setup),
    position=position_nudge(x=0.33),
    size=3.5
  )
  theme_bw()
  #coord_cartesian(ylim = quantile(XData$Bstrain, c(0, 1)))
  scale_y_continuous(trans = asinh_trans, breaks = c(-1000, -100, -10, -1, -0.1))
  theme(axis.title = element_text(size = 12))
  theme(axis.text = element_text(size = 12, color = "black"))
  theme(axis.title.x = element_text(vjust = -3))
  theme(axis.text.x = element_text(vjust = -1.5))
  theme(panel.grid.major = element_line(size = 0.5, linetype = 'dashed', color = "dark grey"),
        panel.grid.minor = element_line(size = 0.5, linetype = 'dashed', color = "grey"),
        panel.background = element_rect(colour = "black", size=1))
  theme(legend.position = "bottom")
  guides(fill=guide_legend(title="Test Setup"),
         colour = guide_legend(title="Test Setup"))
