theme_void上的Rgeom_tile在繪圖上方和下方有空白區域

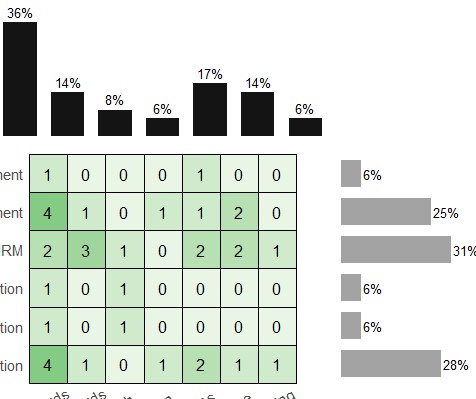

當使用 geom_tile() 使用 theme_void() 制作 ggplot 物件時，繪圖的頂部和底部有空白區域，并且當使用拼湊添加碎片時，這些會導致右側邊緣條的不對齊（如附加的螢屏截圖所示） .

請問有沒有辦法消除空格？我嘗試了一個自定義主題（下面的代碼）但它沒有幫助（有時也會在左側/右側放置空間）

library(tidyverse)
library(grid)
library(patchwork)

long <- dget('long.txt')

# Summarise data for marginal plots
in_y_df <- long %>%
  group_by(in_y) %>%
  summarise(value = sum(value)) %>%
  mutate(value = value / sum(value)) %>%
  mutate(str = paste0( round(value * 100, digits=0), '%' ))

out_x_df <- long %>%
  group_by(out_x) %>%
  summarise(value = sum(value)) %>%
  mutate(value = value / sum(value)) %>%
  mutate(str = paste0( round(value * 100, digits=0), '%' ))

# Marginal plots
py <- ggplot(in_y_df, aes(value, in_y))
  geom_col(width = .7, fill = 'gray64')
  geom_text(aes(label = str), hjust = -0.1, size = 10 / .pt)
  scale_x_continuous(expand = expansion(mult = c(.0, .25)))
  theme_void()
  theme(plot.margin = unit(c(0,0,0,0), "mm"))

px <- ggplot(out_x_df, aes(out_x, value))
  geom_col(width = .7, fill = 'gray8')
  geom_text(aes(label = str), vjust = -0.5, size = 10 / .pt)
  scale_y_continuous(expand = expansion(mult = c(.0, .25)))
  theme_void()
  theme(plot.margin = unit(c(0,0,0,0), "mm"))

h2 <- ggplot(long, aes(out_x, in_y, fill = value))
  geom_tile(color = 'black', size = 0.2)
  coord_equal()
  geom_text(aes(label = value), size = 12 / .pt)
  scale_fill_gradient(low = "#E9F6E5", high = "#84CB83")
  theme_void()
  theme(legend.position = 0)
  labs(x = NULL, y = NULL, fill = NULL)

heatmap_minus_axisText <- h2

# Version with axis labels not in heatplot
yLabelsPlot <- plot_spacer()
xLabelsPlot <- plot_spacer()

squarePlot <- plot_spacer()   px   plot_spacer()
  yLabelsPlot   heatmap_minus_axisText   py
  plot_spacer()   xLabelsPlot   plot_spacer()
  plot_layout(ncol = 3, widths = c(1, 2, 1.4), heights = c(1.2, 2, 1.3))
squarePlot

軸標簽（尚未制作）將單獨完成，因為當包含在熱圖物件中時，它們會在拼湊后導致頂欄錯位，如第二張圖片所示。

heatPlot <- plot_spacer()   px   plot_spacer()
  plot_spacer()   ph   py
  plot_layout(ncol = 3, widths = c(1, 2, 0.8), heights = c(1.2, 2))

這是 dget() 制作假資料框的檔案：

structure(list(in_y = structure(c(4L, 3L, 6L, 2L, 1L, 5L, 4L,
3L, 6L, 2L, 1L, 5L, 4L, 3L, 6L, 2L, 1L, 5L, 4L, 3L, 6L, 2L, 1L,
5L, 4L, 3L, 6L, 2L, 1L, 5L, 4L, 3L, 6L, 2L, 1L, 5L, 4L, 3L, 6L,
2L, 1L, 5L), .Label = c("R5BnqKkCI3iHHfBDOd3D", "pJoPxfMkRaLbl2ESDD3s",
"8vXGhUVjAubzkubDQft5", "rtUdC7ZmBc8GfiyyJ9DF", "teSB1z4wpHzLLmqwLR4t",
"55G18mbzeqajtzO7WLLM"), class = "factor"), out_x = structure(c(1L,
1L, 1L, 1L, 1L, 1L, 4L, 4L, 4L, 4L, 4L, 4L, 6L, 6L, 6L, 6L, 6L,
6L, 3L, 3L, 3L, 3L, 3L, 3L, 2L, 2L, 2L, 2L, 2L, 2L, 5L, 5L, 5L,
5L, 5L, 5L, 7L, 7L, 7L, 7L, 7L, 7L), .Label = c("MCbgrg3f1oVlszlUUddq",
"yjqUPElzDhsAHKpVPLo6", "j3tZCBrw6qY9X2pYDc9Y", "iW2TVkR3NawpBC8p59F2",
"L1Ai51LaakWu0b47zypc", "HjkPWE5auDZ0dOH3G1L1", "WEfxf3XV0CMSWRRLHheY"
), class = "factor"), value = c(2L, 1L, 1L, 1L, 4L, 4L, 0L, 0L,
0L, 0L, 1L, 1L, 2L, 0L, 0L, 0L, 1L, 2L, 1L, 1L, 0L, 1L, 0L, 0L,
3L, 0L, 0L, 0L, 1L, 1L, 2L, 0L, 1L, 0L, 2L, 1L, 1L, 0L, 0L, 0L,
1L, 0L)), row.names = c(NA, -42L), class = "data.frame")

自定義主題

heatmap_theme <-  theme(
      axis.title.x = element_blank(),
      axis.title.y = element_blank(),
      axis.ticks.x = element_blank(),
      axis.ticks.y = element_blank(),
      axis.ticks.length = unit(0, "pt"),
      legend.position = "none",
      panel.grid.major = element_blank(),
      panel.grid.minor = element_blank(),
      panel.background = element_blank(),
      plot.margin = unit(c(0,0,0,0), "mm"),
      panel.spacing = unit(c(0,0,0,0), "mm")
    )

uj5u.com熱心網友回復：

您可以嘗試指定軸限制并禁止自動軸擴展。為因子設定軸范圍更直接：如果需要，將數字平鋪坐標轉換為字符 ( as.character) 或因子 ( as.factor)。同時洗掉圖例。

剝離熱圖示例：

data.frame(
    x = c('col_1','col_2','col_1','col_2'),
    y = c('row_1','row_1','row_2','row_2'),
    value = runif(4)
) %>%
    ggplot()
    geom_tile(aes(x, y, fill = value))
    scale_x_discrete(limits = c('col_1','col_2'), expand = c(0,0))
    scale_y_discrete(limits = c('row_1','row_2'), expand = c(0,0))
    scale_fill_continuous(guide = 'none')
    theme_void()

編輯：對于復合圖表，還有cowplot
