我正在使用ggplot2and處理影片情節gganimate。情節和影片作業正常，但我想添加一種在每幀渲染后顯示/保持點的方法。接下來使用的資料（dput()最后添加）：
df
# A tibble: 30 x 3
# Groups: year [10]
year type Sales
<int> <chr> <dbl>
1 2011 A 4123
2 2011 B 525
3 2011 C 1153
4 2012 A 4698
5 2012 B 533
6 2012 C 1434
7 2013 A 5028
8 2013 B 601
9 2013 C 1629
10 2014 A 5536
# ... with 20 more rows
這是一個關于不同年份銷售額的三個時間序列。現在情節的代碼是下一個：
library(ggplot2)
library(gganimate)
#Plot
G1 <- ggplot(df,aes(x=year,y=Sales,color=type,
group=type))
geom_point(size=2)
geom_line(size=1)
scale_x_continuous(breaks = c(2011:2020))
scale_y_continuous(labels = scales::comma)
geom_segment(aes(xend = 2019.75, yend = Sales), linetype = 2, colour = 'grey')
geom_text(aes(x = 2019.75, label = sprintf("%5.0f", Sales)), hjust = 0,show.legend = F,fontface='bold',color='black')
theme(axis.text.x = element_text(face = 'bold',color='black'),
axis.text.y = element_text(face = 'bold',color='black'),
legend.text = element_text(face = 'bold',color='black'),
axis.title = element_text(face = 'bold',color='black'),
legend.position = 'bottom',
legend.title = element_text(face = 'bold',color='black'),
legend.justification = 'center')
transition_reveal(year)
view_follow(fixed_x = TRUE,fixed_y = TRUE)

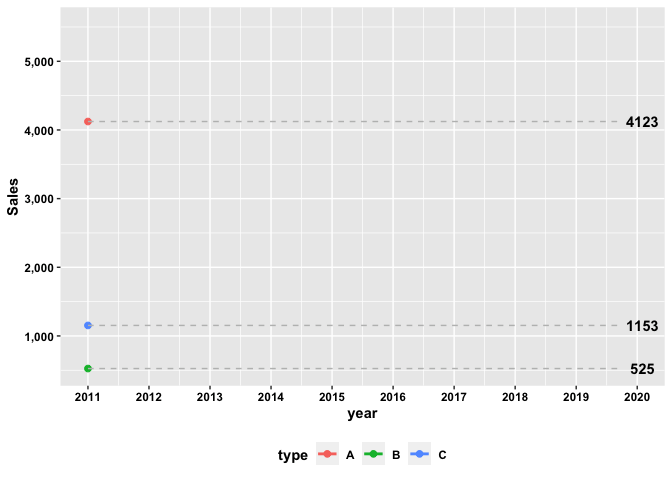

這會產生結果：
我的問題是：我需要在代碼中添加什么才能在每年顯示后顯示/保持要點？例如，線從 2011 移動到 2012 后，2011 上的點應該出現并保留在圖上。2012 年也是如此，以此類推。我的意思是，在每一年過去之后，我該如何表明這一點？
此外，是否可以在達到最后一年時停止情節并保留所有細節？
非常感謝您的時間。
接下來是資料df：
#Data
df <- structure(list(year = c(2011L, 2011L, 2011L, 2012L, 2012L, 2012L,
2013L, 2013L, 2013L, 2014L, 2014L, 2014L, 2015L, 2015L, 2015L,
2016L, 2016L, 2016L, 2017L, 2017L, 2017L, 2018L, 2018L, 2018L,
2019L, 2019L, 2019L, 2020L, 2020L, 2020L), type = c("A", "B",
"C", "A", "B", "C", "A", "B", "C", "A", "B", "C", "A", "B", "C",
"A", "B", "C", "A", "B", "C", "A", "B", "C", "A", "B", "C", "A",
"B", "C"), Sales = c(4123, 525, 1153, 4698, 533, 1434, 5028,
601, 1629, 5536, 614, 1580, 4989, 589, 1567, 4191, 579, 1521,
4527, 571, 1504, 5096, 612, 1606, 5331, 595, 1616, 3895, 584,
976)), class = c("grouped_df", "tbl_df", "tbl", "data.frame"), row.names = c(NA,
-30L), groups = structure(list(year = 2011:2020, .rows = structure(list(
1:3, 4:6, 7:9, 10:12, 13:15, 16:18, 19:21, 22:24, 25:27,
28:30), ptype = integer(0), class = c("vctrs_list_of", "vctrs_vctr",
"list"))), class = c("tbl_df", "tbl", "data.frame"), row.names = c(NA,
-10L), .drop = TRUE))
uj5u.com熱心網友回復：

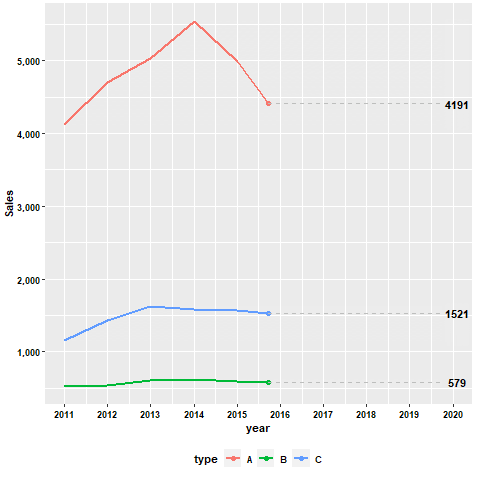

我想這就是你要找的。默認情況下，geom likegeom_point只顯示當前位置，而不是過去的位置。您可以通過為 s 分配一個獨特的組來解決此問題geom_point。
library(ggplot2)
library(gganimate)
library(tibble)
df <- tribble(
~year, ~type, ~Sales,
2011L, "A", 4123L,
2011L, "B", 525L,
2011L, "C", 1153L,
2012L, "A", 4698L,
2012L, "B", 533L,
2012L, "C", 1434L,
2013L, "A", 5028L,
2013L, "B", 601L,
2013L, "C", 1629L,
2014L, "A", 5536L,
2014L, "B", 614L,
2014L, "C", 1580L,
2015L, "A", 4989L,
2015L, "B", 589L,
2015L, "C", 1567L,
2016L, "A", 4191L,
2016L, "B", 579L,
2016L, "C", 1521L,
2017L, "A", 4527L,
2017L, "B", 571L,
2017L, "C", 1504L,
2018L, "A", 5096L,
2018L, "B", 612L,
2018L, "C", 1606L,
2019L, "A", 5331L,
2019L, "B", 595L,
2019L, "C", 1616L,
2020L, "A", 3895L,
2020L, "B", 584L,
2020L, "C", 976L
)
G1 <- ggplot(df,aes(x=year,y=Sales,color=type,
group=type))
geom_point(size=2,
# Create a distinct grouping variable for geom_point
aes(group = seq_along(year)))
geom_line(size=1)
scale_x_continuous(breaks = c(2011:2020))
scale_y_continuous(labels = scales::comma)
geom_segment(aes(xend = 2019.75, yend = Sales), linetype = 2, colour = 'grey')
geom_text(aes(x = 2019.75, label = sprintf("%5.0f", Sales)), hjust = 0,show.legend = F,fontface='bold',color='black')
theme(axis.text.x = element_text(face = 'bold',color='black'),
axis.text.y = element_text(face = 'bold',color='black'),
legend.text = element_text(face = 'bold',color='black'),
axis.title = element_text(face = 'bold',color='black'),
legend.position = 'bottom',
legend.title = element_text(face = 'bold',color='black'),
legend.justification = 'center')
transition_reveal(year)
view_follow(fixed_x = TRUE,fixed_y = TRUE)
# Animate without rewinding
animate(G1, rewind = FALSE)
由reprex 包于 2022-03-15 創建(v2.0.1)
