我嘗試使用 ggplot2 制作十行，資料來自 15*10 矩陣，我想使用矩陣的第一列繪制第 1 行，使用矩陣的第二列繪制第 2 行等。我的代碼看起來像這樣，但是輸出真的很奇怪。
代碼是：
prop_df <- data.frame(prop_combined)
colnames(prop_df) <- c('Q1', 'Q2', 'Q3', 'Q4', 'Q5', 'Q6', 'Q7', 'Q8', 'Qinf', 'Qhyb')
prop_df <- stack(as.data.frame(prop_combined))
prop_df$x <- (rep(seq_len(nrow(prop_combined)), ncol(prop_combined))-1)/10
ggplot(data = prop_df, aes(x = x, y = values), group = ind)
geom_line()
geom_point()
labs(color='Gamma')
ylim(0, 80)
xlab(TeX("$tau$"))
ylab("Power")
prop_df 看起來像：
values ind x
1 8.6 Q1 0.0
2 10.7 Q1 0.1
3 11.8 Q1 0.2
4 11.2 Q1 0.3
5 13.0 Q1 0.4
6 15.6 Q1 0.5
7 21.4 Q1 0.6
8 25.0 Q1 0.7
9 28.8 Q1 0.8
10 34.2 Q1 0.9
11 39.5 Q1 1.0
12 48.2 Q1 1.1
13 55.2 Q1 1.2
14 61.6 Q1 1.3
15 67.2 Q1 1.4
16 71.7 Q1 1.5
17 8.8 Q2 0.0
18 11.0 Q2 0.1
19 10.7 Q2 0.2
輸出是：
uj5u.com熱心網友回復：
除了@Freguglia 的建議之外，我還進行了一些更改以創建清晰的情節。我使用Cairo()庫來命名 x 軸。
示例代碼：
library(ggplot2)
library(Cairo) # to define the greek letters
prop_df <- data.frame(prop_df)
#colnames(prop_df) <- c('Q1', 'Q2', 'Q3', 'Q4', 'Q5', 'Q6', 'Q7', 'Q8', 'Qinf', 'Qhyb') # for this example you don't need this line
#prop_df <- stack(as.data.frame(prop_combined)) # this was already
#prop_df$x <- (rep(seq_len(nrow(prop_combined)), ncol(prop_combined))-1)/10
prop_df$values=factor(prop_df$values, levels=c("8.6","8.8", "11", "10.7", "11.2", "11.8", "13", "15.6" ,"21.4" ,"25", "28.8", "34.2", "39.5", "48.2", "55.2", "61.6", "67.2", "71.7"))
prop_df$x=factor(prop_df$x, levels=c("0", "0.1","0.2","0.3","0.4","0.5","0.6","0.7","0.8","0.9","1","1.1","1.2","1.3","1.4","1.5"))
ggplot(data = prop_df, aes(x = x, y = values, group = ind))
geom_line(lwd=2)
geom_point(aes(color=ind), size=6)
labs( y="Power",color="Conditions", x=paste(expression("\u03A4")))
theme_minimal()

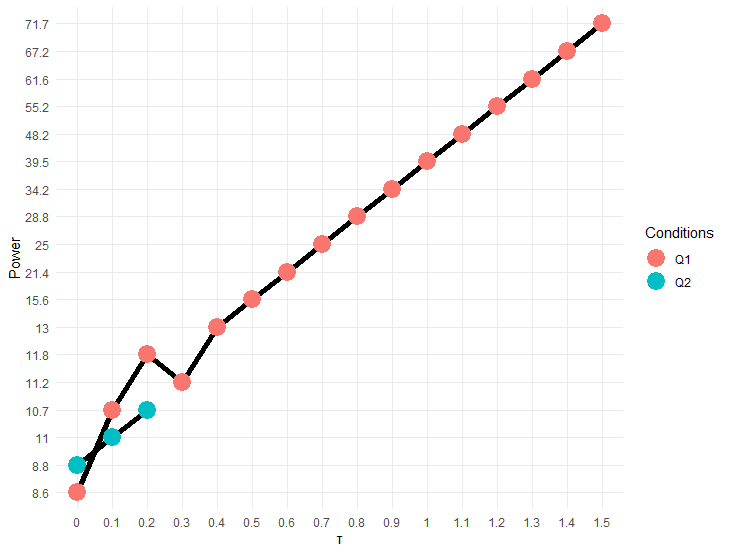

陰謀：
樣本資料：
values=c(8.6,10.7, 11.8, 11.2, 13.00,15.6,21.4, 25.00, 28.8,34.2, 39.5, 48.2, 55.2,61.6,67.2, 71.7,8.8, 11.00, 10.7)
x=c(0, 0.1,0.2,0.3,0.4,0.5,0.6,0.7,0.8,0.9,1,1.1,1.2,1.3,1.4,1.5, 0.00, 0.1, 0.2)
ind=c("Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q1","Q2","Q2","Q2")
prop_df<-cbind(values, ind,x)
