我正在嘗試使用顏色檢測物件。下面是代碼和圖片
import cv2
import numpy as np
img = cv2.imread('image2.jpeg')
img1 = img[157:498, 212:705]
hsv = cv2.cvtColor(img1, cv2.COLOR_BGR2HSV)
lower_bound = np.array([0, 20, 20])
upper_bound = np.array([20, 255, 255])
origMask = cv2.inRange(hsv, lower_bound, upper_bound)
kernel = np.ones((7, 7), np.uint8)
mask = cv2.morphologyEx(origMask, cv2.MORPH_CLOSE, kernel)
mask = cv2.morphologyEx(mask, cv2.MORPH_OPEN, kernel)
cv2.imshow("Mask", mask)
cv2.imshow("Crop Image", img1)
cv2.imshow("Orig Image", img)
cv2.waitKey(0)
cv2.destroyAllWindows()

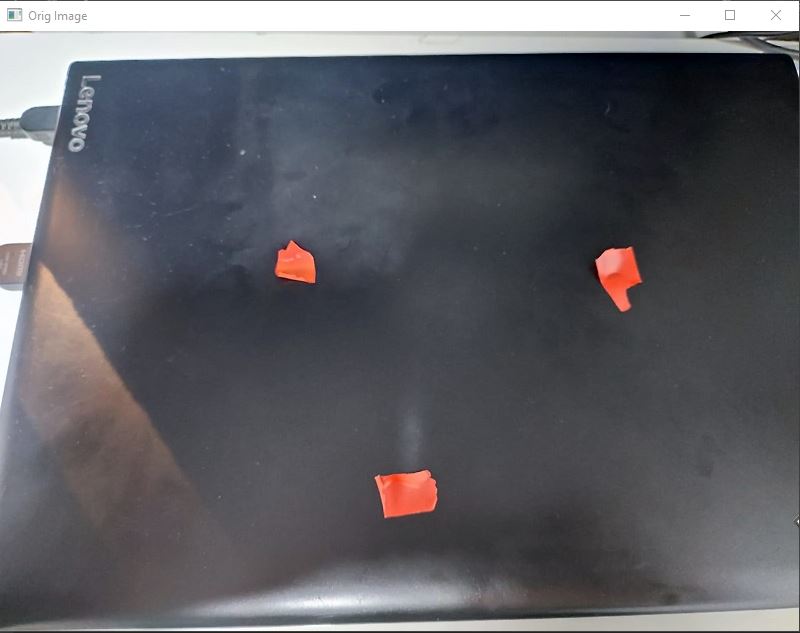

所以在上面的代碼中，我首先加載影像。然后將其裁剪到所需區域，然后執行 HSV 以查找橙色物件。下面是原圖
下面是裁剪后的影像
下面是hsv之后的掩碼圖
我想知道如何計算蒙版影像中的物件數量。例如，在這種情況下它是 3。在數完之后，如何在原始影像上的這些顏色物件上繪制邊界框。請幫忙。謝謝
uj5u.com熱心網友回復：
您可以使用二進制掩碼來獲取影像的輪廓。然后，您可以計算屬于每個輪廓的邊界矩形。假設輸入是您的二進制掩碼，腳本應如下所示：
# imports:
import cv2
# image path
path = "D://opencvImages//"
fileName = "objectsMask.png" # This is your binary mask
# Reading an image in default mode:
inputImage = cv2.imread(path fileName)
# Deep copy for results:
inputImageCopy = inputImage.copy()
# Convert RGB to grayscale:
grayscaleImage = cv2.cvtColor(inputImage, cv2.COLOR_BGR2GRAY)
# Find the contours on the binary image:
contours, hierarchy = cv2.findContours(grayscaleImage, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
# Store bounding rectangles and object id here:
objectData = []
# ObjectCounter:
objectCounter = 1
# Look for the outer bounding boxes (no children):
for _, c in enumerate(contours):
# Get the contour's bounding rectangle:
boundRect = cv2.boundingRect(c)
# Store in list:
objectData.append((objectCounter, boundRect))
# Get the dimensions of the bounding rect:
rectX = boundRect[0]
rectY = boundRect[1]
rectWidth = boundRect[2]
rectHeight = boundRect[3]
# Draw bounding rect:
color = (0, 0, 255)
cv2.rectangle(inputImageCopy, (int(rectX), int(rectY)),
(int(rectX rectWidth), int(rectY rectHeight)), color, 2)
# Draw object counter:
font = cv2.FONT_HERSHEY_SIMPLEX
fontScale = 1
fontThickness = 2
color = (0, 255, 0)
cv2.putText(inputImageCopy, str(objectCounter), (int(rectX), int(rectY)),
font, fontScale, color, fontThickness)
# Increment object counter
objectCounter = 1
cv2.imshow("Rectangles", inputImageCopy)
cv2.waitKey(0)

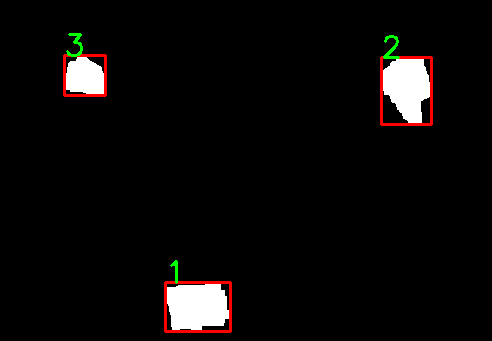

我正在創建一個名為objectData. 在這里，我存盤了物件的“id”（只是一個物件計數器）及其邊界矩形。這是輸出：
