14、Ribbon整合斷路器監控Hystrix Dashboard-有解無憂

上一篇只是大概介紹了一下斷路器Hystrix Dashboard監控，如何使用Hystrix Dashboard監控微服務的狀態呢？這篇看看Ribbon如何整合斷路器監控Hystrix Dashboard，今天的專案主要整合sc-eureka-client-consumer-ribbon-hystrix專案和sc-hystrix-dashboard專案

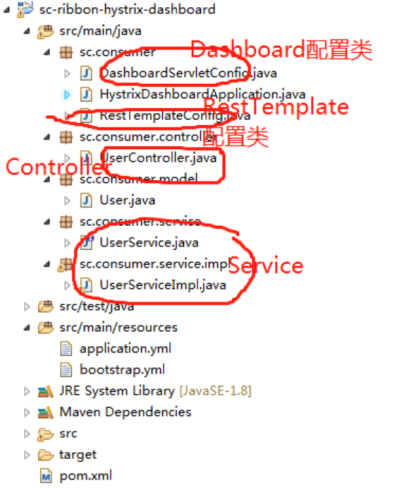

1、新建專案sc-ribbon-hystrix-dashboard，對應的pom.xml檔案

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  <modelVersion>4.0.0</modelVersion>



  <groupId>spring-cloud</groupId>

  <artifactId>sc-ribbon-hystrix-dashboard</artifactId>

  <version>0.0.1-SNAPSHOT</version>

  <packaging>jar</packaging>



  <parent>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-parent</artifactId>

<version>2.0.4.RELEASE</version>

</parent>



<dependencyManagement>

<dependencies>

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-dependencies</artifactId>

<version>Finchley.RELEASE</version>

<type>pom</type>

<scope>import</scope>

</dependency>



</dependencies>

</dependencyManagement>



<properties>

<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

<maven.compiler.source>1.8</maven.compiler.source>

<maven.compiler.target>1.8</maven.compiler.target>

</properties>



<dependencies>

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>

</dependency>



<!-- <dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-ribbon</artifactId>

    <version>1.4.5.RELEASE</version>

</dependency> -->



<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-netflix-ribbon</artifactId>

</dependency>



<dependency>

    <groupId>org.springframework.boot</groupId>

    <artifactId>spring-boot-starter-web</artifactId>

</dependency>





<!--

<dependency>

    <groupId>org.springframework.cloud</groupId>

    <artifactId>spring-cloud-starter-hystrix</artifactId>

    <version>1.4.5.RELEASE</version>

</dependency> -->



<dependency>

    <groupId>org.springframework.cloud</groupId>

    <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>

</dependency>



<!-- <dependency>

    <groupId>org.springframework.cloud</groupId>

    <artifactId>spring-cloud-starter-hystrix-dashboard</artifactId>

    <version>1.4.5.RELEASE</version>

</dependency> -->





<dependency>

    <groupId>org.springframework.cloud</groupId>

    <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>

</dependency>



<dependency>

    <groupId>org.springframework.boot</groupId>

    <artifactId>spring-boot-starter-actuator</artifactId>

</dependency>



</dependencies>

</project>

可以看到這個pom.xml檔案是sc-eureka-client-consumer-ribbon-hstrix專案和sc-hystrix-dashboard專案的pom.xml的并集

2、新建spring boot 啟動類HystrixDashboardApplication.java

package sc.consumer;



import org.springframework.boot.SpringApplication;

import org.springframework.boot.autoconfigure.SpringBootApplication;

import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

import org.springframework.cloud.netflix.hystrix.EnableHystrix;

import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;



@SpringBootApplication

@EnableEurekaClient

@EnableHystrix

@EnableHystrixDashboard

public class HystrixDashboardApplication {



public static void main(String[] args) {



SpringApplication.run(HystrixDashboardApplication.class, args);



}



}
