我是機械工程專業的學生，??我正在嘗試用 Python 為矩圖創建一個腳本。我的代碼中缺少的是如何定位矩函式以便像門戶框架一樣對齊。
Mpilar1 是第一列的矩函式（從左到右）。
Masna1 是第一個梁的力矩函式（從左到右）。
Masna2 是第二個梁的力矩函式（從左到右）。
Mpilar2 是第二列（從左到右）的矩函式。
代碼：
import math as mt
import numpy as np
import warnings
import matplotlib.pyplot as plt
warnings.filterwarnings("ignore", category=np.VisibleDeprecationWarning)
#Definir parametros do pavilh?o
v = 20 #(V?o em metros)
h = 6 #("Altura do pilar em metros:")
ht = 8 #("Altura total metros:")
alfa = (mt.atan((int(ht)-int(h))/(int(v)/2)))*180/((mt.pi))
print("?ngulo da vertente:", round(alfa, 1), "o")
lasna = ((v/2) ** 2 (ht-h) ** 2) ** 0.5
print("Comprimento de cada asna: ", round(lasna, 2), "m")
h1 = np.arange(0, h 1, 1)
ha1 = np.arange(0, lasna, 0.1)
def draw_line():
x_number_list = [0, 0, (v/2), v, v]
y_number_list = [0, h, ht, h, 0]
plt.plot(x_number_list, y_number_list, linewidth=3)
plt.title("Pórtico", fontsize=15)
plt.xlabel("V?o (m)", fontsize=10)
plt.ylabel("Altura (m)", fontsize=10)
plt.tick_params(axis='both', labelsize=9)
plt.show()
if __name__ == '__main__':
draw_line()
Mpilar1 = 1500 * h1 ** 2 350 * h1
Masna1 = 300 * ha1 ** 2 15 * ha1
Masna2 = 200 * ha1 ** 2 15 * ha1
Mpilar2 = 1400 * h1 ** 2 10 * h1
plt.plot(h1, Mpilar1)
plt.plot(ha1, Masna1)
plt.plot(ha1, Masna2)
plt.plot(h1, Mpilar2)
uj5u.com熱心網友回復：
您必須在代表曲線的點上使用變換矩陣。特別是，您必須使用旋轉平移矩陣來旋轉曲線并將其平移到正確的位置和方向，并且您可能必須應用鏡像矩陣來根據您的慣例對齊力矩。
請注意，我的結構工程時代已經一去不復返了，所以我不記得正確定位這些時刻的慣例。這留給你作為練習。
import math as mt
import numpy as np
import warnings
import matplotlib.pyplot as plt
warnings.filterwarnings("ignore", category=np.VisibleDeprecationWarning)
#Definir parametros do pavilh?o
v = 20 #(V?o em metros)
h = 6 #("Altura do pilar em metros:")
ht = 8 #("Altura total metros:")
alfa_rad = mt.atan((int(ht)-int(h))/(int(v)/2))
alfa_deg = alfa_rad*180/mt.pi
print("?ngulo da vertente:", round(alfa_deg, 1), "o")
lasna = ((v/2) ** 2 (ht-h) ** 2) ** 0.5
print("Comprimento de cada asna: ", round(lasna, 2), "m")
h1 = np.arange(0, h 1, 1)
ha1 = np.arange(0, lasna, 0.1)
# Roto-translation matrix:
# Rotates the points by an angle theta and translates
# them by x in the horizontal direction, and y in the
# vertical direction
R = lambda x, y, theta: np.array([
[np.cos(theta), np.sin(theta), x],
[-np.sin(theta), np.cos(theta), y],
[0, 0, 1],
])
# mirror matrix about the x-axis
Mx = np.array([
[1, 0, 0], [0, -1, 0], [0, 0, 1]
])
# mirror matrix about the y-axis
My = np.array([
[-1, 0, 0], [0, 1, 0], [0, 0, 1]
])
Mpilar1 = 1500 * h1 ** 2 350 * h1
Masna1 = 300 * ha1 ** 2 15 * ha1
Masna2 = 200 * ha1 ** 2 15 * ha1
Mpilar2 = 1400 * h1 ** 2 10 * h1
def draw_line():
plt.figure()
x_number_list = [0, 0, (v/2), v, v]
y_number_list = [0, h, ht, h, 0]
plt.plot(x_number_list, y_number_list, linewidth=3)
# left column

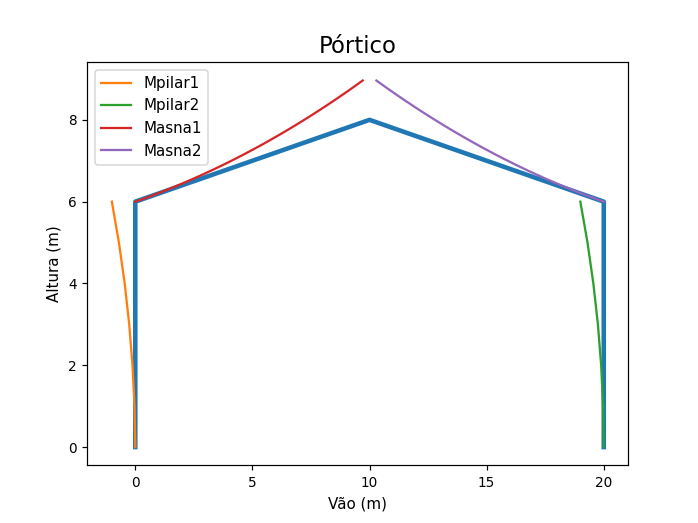

points1 = np.stack([h1, Mpilar1 / max(Mpilar1), np.ones_like(h1)])
points1 = np.matmul(R(0, 0, -np.pi/2), points1)
plt.plot(points1[0, :], points1[1, :], label="Mpilar1")
# right column
points2 = np.stack([h1, Mpilar2 / max(Mpilar2), np.ones_like(h1)])
points2 = np.matmul(R(20, 0, -np.pi/2), points2)
plt.plot(points2[0, :], points2[1, :], label="Mpilar2")
# left asna
points3 = np.stack([ha1, Masna1 / max(Masna1), np.ones_like(ha1)])
points3 = np.matmul(R(0, 6, -alfa_rad), points3)
plt.plot(points3[0, :], points3[1, :], label="Masna1")
# right asna
points4 = np.stack([ha1, Masna2 / max(Masna2), np.ones_like(ha1)])
points4 = np.matmul(np.matmul(R(20, 6, alfa_rad), My), points4)
plt.plot(points4[0, :], points4[1, :], label="Masna2")
plt.title("Pórtico", fontsize=15)
plt.xlabel("V?o (m)", fontsize=10)
plt.ylabel("Altura (m)", fontsize=10)
plt.tick_params(axis='both', labelsize=9)
plt.legend()
plt.show()
draw_line()
上面的代碼有幾點需要注意：
讓我們考慮一下
points1 = np.stack([h1, Mpilar1 / max(Mpilar1), np.ones_like(h1)])。它創建了一個 3xn 坐標矩陣。第一行是 x 坐標，h1。第二行是此刻的 y 坐標，Mpilar1 / max(Mpilar1)（請注意，我已經對它進行了維度化以適合圖表）。第三行是 1，能夠應用平移矩陣是一個技巧。在繪圖命令中，我們將只使用第一行和第二行（x 和 y 坐標）。points4 = np.matmul(np.matmul(R(20, 6, alfa_rad), My), points4)在這里，我首先鏡像關于 y 軸的點，然后應用旋轉和平移。你必須玩才能正確定位這一刻！
uj5u.com熱心網友回復：
該解決方案有效，但在這種情況下，我無法獲得正確的矩圖。
代碼：
import math as mt
import numpy as np
import warnings
import matplotlib.pyplot as plt
warnings.filterwarnings("ignore", category=np.VisibleDeprecationWarning)
#Definir parametros do pavilh?o
v = 20 #(V?o em metros)
h = 6 #("Altura do pilar em metros:")
ht = 8 #("Altura total metros:")
nm = 7 #("Número de madres por asna:")
npo = 5 #("Número de pórticos:")
dp = 5 #("Distancia entre pórticos em metros:")
alfa_rad = mt.atan((int(ht)-int(h))/(int(v)/2))
alfa_deg = alfa_rad*180/mt.pi
alfa = (mt.atan((int(ht)-int(h))/(int(v)/2)))*180/((mt.pi))
print("?ngulo da vertente:", round(alfa, 1), "o")
lasna = ((v/2) ** 2 (ht-h) ** 2) ** 0.5
print("Comprimento de cada asna: ", round(lasna, 2), "m")
dm = lasna / nm
print(("Distancia entre madres da cobertura em metros:"), round(dm, 2), "m")
lp = npo * dp
print("Comprimento total do pavilh?o:", round(lp, 1), "m")
def draw_line():
# x axis value list.
x_number_list = [0, 0, (v/2), v, v]
# y axis value list.
y_number_list = [0, h, ht, h, 0]
# Plot the number in the list and set the line thickness.
plt.plot(x_number_list, y_number_list, linewidth=3)
# Set the line chart title and the text font size.
plt.title("Pórtico", fontsize=15)
# Set x axis label.
plt.xlabel("V?o (m)", fontsize=10)
# Set y axis label.
plt.ylabel("Altura (m)", fontsize=10)
# Set the x, y axis tick marks text size.
plt.tick_params(axis='both', labelsize=9)
# Display the plot in the matplotlib's viewer.
plt.show()
if __name__ == '__main__':
draw_line()
#EXEMPLO - IPE 100
pppilar = 8.1 #variavel do peso próprio do pilar
arpilar = 10.32 * 10 ** -4 #variavél da área de sec??o do pilar - m^2
inypilar = 171 * 10 ** -8 #variavél da inércia pilar segundo y - m^4
ppasna = 8.1 #variavel do peso próprio da asna
arasna = 10.32 * 10 ** -4 #variavél da área de sec??o do pilar - m^2
inyasna = 171 * 10 ** -8 #variavél da inércia pilar - m^4
pesomadre = 4.84 #(Peso linear das madres de cobertura em kg/m)
pesopainel = 11.2 #(Peso painel revestimento kg/m2)
rotulado = 1
base = rotulado
#Definir a??es
ppcobertura = (pesopainel * dp ((pesomadre*dp)/dm) ppasna) * 9.81 / 1000 #kN/m
#print("Peso próprio da cobertura:", round(ppcobertura, 1), "kN/m")
#Sobrecarga
qk = 0.4 #Sobrecarga em kN/m2
sb = qk * dp #Sobrecarga em kN/m
#Neve
Sk = 0.5 #Neve em kN/m2
ne = Sk * dp #Neve em kN/m
#Vento
Qp1 = 0.5 #Vento pilar 1 em kN/m2
vnp1 = Qp1 * dp #Vento pilar 1 em kN/m
Qp2 = 0.5 #Vento pilar 2 em kN/m2
vnp2 = Qp2 * dp #Vento pilar 2 em kN/m
Qa1 = 0.5 #Vento asna 1 em kN/m2
vna1 = Qa1 * dp #Vento asna 1 em kN/m
Qa2 = 0.5 #Vento asna 2 em kN/m2
vna2 = Qa2 * dp #Vento asna 2 em kN/m
#Decompor as a??es em normal e tagencial
ppcoberturan = ppcobertura * mt.cos(alfa*mt.pi/180)
ppcoberturat = ppcobertura * mt.sin(alfa*mt.pi/180)
sbn = sb * mt.cos(alfa*mt.pi/180) * mt.cos(alfa*mt.pi/180)
sbt = sb * mt.cos(alfa*mt.pi/180) * mt.sin(alfa*mt.pi/180)
nen = ne * mt.cos(alfa*mt.pi/180) * mt.cos(alfa*mt.pi/180)
net = ne * mt.cos(alfa*mt.pi/180) * mt.sin(alfa*mt.pi/180)
#Coeficientes de majora??o
psipp = 1.35
#print("\u03A8 peso próprio:", psipp)
psi0sb = 0
#print("\u03A8 0 sobrecarga:", psi0sb)
psi1sb = 0
#print("\u03A8 1 sobrecarga:", psi1sb)
psi2sb = 0
#print("\u03A8 2 sobrecarga:", psi2sb)
ne1 = 1
ne2 = 2
nete = ne1
if nete == ne1:
psi0ne = 0.5
#print("\u03A8 0 neve:", psi0ne)
psi1ne = 0.2
#print("\u03A8 1 neve:", psi1ne)
psi2ne = 0
#print("\u03A8 2 neve:", psi2ne)
psi0vn = 0.6
#print("\u03A8 0 vento:", psi0vn)
psi1vn = 0.2
#print("\u03A8 1 vento:", psi1vn)
psi2vn = 0
#print("\u03A8 2 vento:", psi2vn)
#Combina??o das a??es para a cobertura - ELU - asna 1 - normal
comb_sbn = (psipp * ppcoberturan sbn * 1.5 (1.5 * psi0ne * nen 1.5 * psi0vn * vna1)) * 1000 #N/m
comb_vnn = (psipp * ppcoberturan vna1 * 1.5 (1.5 * psi0ne * nen 1.5 * sbn * psi0sb)) * 1000 #N/m
comb_nen =( psipp * ppcoberturan nen * 1.5 (1.5 * psi0vn * vna1 1.5 * sbn * psi0sb)) * 1000 #N/m
if (comb_sbn >= comb_vnn) and (comb_sbn >= comb_nen):
comb_a1n = comb_sbn
elif (comb_vnn >= comb_sbn) and (comb_vnn >= comb_nen):
comb_a1n = comb_vnn
else:
comb_a1n = comb_nen
#Combina??o das a??es para a cobertura - ELU - asna 1 - tangencial
comb_sbt = (psipp * ppcoberturat sbt * 1.5 (1.5 * psi0ne * net 1.5 * psi0vn * 0)) * 1000 #N/m
comb_vnt = (psipp * ppcoberturat 0 * 1.5 (1.5 * psi0ne * net 1.5 * sbt * psi0sb)) * 1000 #N/m
comb_net = (psipp * ppcoberturat net * 1.5 (1.5 * psi0vn * 0 1.5 * sbt * psi0sb)) * 1000 #N/m
if (comb_sbn >= comb_vnn) and (comb_sbn >= comb_nen):
comb_a1t = comb_sbt
elif (comb_vnn >= comb_sbn) and (comb_vnn >= comb_nen):
comb_a1t = comb_vnt
else:
comb_a1t = comb_net
#Combina??o das a??es para a cobertura - ELU - asna 2 - normal
comb_sb2n = (psipp * ppcoberturan sbn * 1.5 (1.5 * psi0ne * nen 1.5 * psi0vn * vna2)) * 1000 #N/m
comb_vn2n = (psipp * ppcoberturan vna2 * 1.5 (1.5 * psi0ne * nen 1.5 * sbn * psi0sb)) * 1000 #N/m
comb_ne2n = (psipp * ppcoberturan nen * 1.5 (1.5 * psi0vn * vna2 1.5 * sbn * psi0sb)) * 1000 #N/m
if (comb_sb2n >= comb_vn2n) and (comb_sb2n >= comb_ne2n):
comb_a2n = comb_sb2n
elif (comb_vn2n >= comb_sb2n) and (comb_vn2n >= comb_ne2n):
comb_a2n = comb_vn2n
else:
comb_a2n = comb_ne2n
#Combina??o das a??es para a cobertura - ELU - asna 2 - tangencial
comb_sbt2 = (psipp * ppcoberturat sbt * 1.5 (1.5 * psi0ne * net 1.5 * psi0vn * 0)) * 1000 #N/m
comb_vnt2 = (psipp * ppcoberturat 0 * 1.5 (1.5 * psi0ne * net 1.5 * sbt * psi0sb)) * 1000 #N/m
comb_net2 = (psipp * ppcoberturat net * 1.5 (1.5 * psi0vn * 0 1.5 * sbt * psi0sb)) * 1000 #N/m
if (comb_sb2n >= comb_vn2n) and (comb_sb2n >= comb_ne2n):
comb_a2t = comb_sbt2
elif (comb_vn2n >= comb_sb2n) and (comb_vn2n >= comb_ne2n):
comb_a2t = comb_vnt2
else:
comb_a2t = comb_net2
#Elementos finitos - Rea??es e deslocamentos
E = 210 * 10 ** 9 #módulo de elasticidade do a?o em Pa
#Elemento 1 - asna1
a1 = E * arpilar / h
b1 = 12 * E * inypilar / h**3
c1 = 6 * E * inypilar / h**2
d1 = 4 * E * inypilar / h
e1 = 2 * E * inypilar / h
alfa1 = 90 * mt.pi / 180
l1 = mt.cos(alfa1)
m1 = mt.sin(alfa1)
t1 = np.matrix([[l1, m1, 0, 0, 0, 0],
[-m1, l1, 0, 0, 0, 0],
[0, 0 , 1, 0, 0, 0],
[0, 0, 0, l1, m1, 0],
[0, 0, 0, -m1, l1, 0],
[0 , 0, 0, 0, 0, 1]])
k1local = np.matrix([[a1, 0, 0, -a1, 0, 0],
[0, b1, c1, 0, -b1, c1],
[0, c1, d1, 0, -c1, e1],
[-a1, 0, 0, a1, 0, 0],
[0, -b1, -c1, 0, b1, -c1],
[0, c1, e1, 0, -c1, d1]])
invt1 = np.matrix.transpose(t1)
k1global = np.linalg.multi_dot([invt1, k1local, t1])
#Elmento 2 - asna 1
a2 = E * arasna / lasna
b2 = 12 * E *inyasna / lasna**3
c2 = 6 * E * inyasna / lasna**2
d2 = 4 * E * inyasna / lasna
e2 = 2 * E *inyasna / lasna
alfa2 = ((alfa) * mt.pi) / 180
l2 = mt.cos(alfa2)
m2 = mt.sin(alfa2)
t2 = np.matrix([[l2, m2, 0, 0, 0, 0],
[-m2, l2, 0, 0, 0, 0],
[0, 0 , 1, 0, 0, 0],
[0, 0, 0, l2, m2, 0],
[0, 0, 0, -m2, l2, 0],
[0 , 0, 0, 0, 0, 1]])
k2local = np.matrix([[a2, 0, 0, -a2, 0, 0],
[0, b2, c2, 0, -b2, c2],
[0, c2, d2, 0, -c2, e2],
[-a2, 0, 0, a2, 0, 0],
[0, -b2, -c2, 0, b2, -c2],
[0, c2, e2, 0, -c2, d2]])
invt2 = np.matrix.transpose(t2)
k2global = np.linalg.multi_dot([invt2, k2local, t2])
#Elmento 3 - asna 2
a3 = E * arasna / lasna
b3 = 12 * E *inyasna / lasna**3
c3 = 6 * E * inyasna / lasna**2
d3 = 4 * E * inyasna / lasna
e3 = 2 * E *inyasna / lasna
alfa3 = -alfa2
l3 = mt.cos(alfa3)
m3 = mt.sin(alfa3)
t3 = np.matrix([[l3, m3, 0, 0, 0, 0],
[-m3, l3, 0, 0, 0, 0],
[0, 0 , 1, 0, 0, 0],
[0, 0, 0, l3, m3, 0],
[0, 0, 0, -m3, l3, 0],
[0 , 0, 0, 0, 0, 1]])
k3local = np.matrix([[a3, 0, 0, -a3, 0, 0],
[0, b3, c3, 0, -b3, c3],
[0, c3, d3, 0, -c3, e3],
[-a3, 0, 0, a3, 0, 0],
[0, -b3, -c3, 0, b3, -c3],
[0, c3, e3, 0, -c3, d3]])
invt3 = np.matrix.transpose(t3)
k3global = np.linalg.multi_dot([invt3, k3local, t3])
#Elmento 4 - pilar 2
a4 = E * arpilar / h
b4 = 12 * E *inypilar / h**3
c4 = 6 * E * inypilar / h**2
d4 = 4 * E * inypilar / h
e4 = 2 * E *inypilar / h
alfa4 = -(90 * mt.pi/180)
l4 = mt.cos(alfa4)
m4 = mt.sin(alfa4)
t4 = np.matrix([[l4, m4, 0, 0, 0, 0],
[-m4, l4, 0, 0, 0, 0],
[0, 0 , 1, 0, 0, 0],
[0, 0, 0, l4, m4, 0],
[0, 0, 0, -m4, l4, 0],
[0 , 0, 0, 0, 0, 1]])
k4local = np.matrix([[a4, 0, 0, -a4, 0, 0],
[0, b4, c4, 0, -b4, c4],
[0, c4, d4, 0, -c4, e4],
[-a4, 0, 0, a4, 0, 0],
[0, -b4, -c4, 0, b4, -c4],
[0, c4, e4, 0, -c4, d4]])
invt4 = np.matrix.transpose(t4)
k4global = np.linalg.multi_dot([invt4, k4local, t4])
k = [k1global, k2global, k3global, k4global]
kportico = np.zeros([15,15])
for i,m in enumerate(k):
kportico[i*3:i*3 6,i*3:i*3 6] = m
#[K] * {U} = {F} - ELU
F12x = (comb_a1n * lasna / 2) * mt.sin((alfa*mt.pi) / 180)
F12y = (comb_a1n * lasna / 2) * mt.cos((alfa*mt.pi) / 180)
F22x = (comb_a1t * lasna / 2) * mt.cos((alfa*mt.pi) / 180)
F22y = (comb_a1t* lasna / 2) * mt.sin((alfa*mt.pi) / 180)
F13x = F12x
F13y = F12y
F23x = F22x
F23y = F22y
F33x = (comb_a2n * lasna / 2) * mt.sin((alfa*mt.pi) / 180)
F33y = (comb_a2n * lasna / 2) * mt.cos((alfa*mt.pi) / 180)
F43x = (comb_a2t * lasna / 2) * mt.cos((alfa*mt.pi) / 180)
F43y = (comb_a2t * lasna / 2) * mt.sin((alfa*mt.pi) / 180)
F14x = F33x
F14y = F33y
F24x = F43x
F24y = F43y
F1x = (vnp1 * 1000 * h) / 2
F1y = 0
M1 = -(vnp1 * 1000 * h ** 2) / 12
F2x = int((vnp1 * 1000 * h / 2) F12x - F22x)
F2y = - F12y - F22y
M2 = ((vnp1 * 1000 * h ** 2) / 12) - ((comb_a1n * lasna ** 2) / 12)
F3x = F13x - F23x - F33x F43x
F3y = -F13y - F23y - F33y - F43y
M3 = ((comb_a1n * lasna ** 2) / 12) - ((comb_a2n * lasna ** 2) / 12)
F4x = (vnp2 * h * 1000 / 2) F24x - F14x
F4y = - F14y - F24y
M4 = - ((vnp2 * 1000 * h ** 2) / 12) ((comb_a2n * lasna ** 2) / 12)
F5x = (vnp2 * 1000 * h) / 2
F5y = 0
M5 = (vnp2 * 1000 * h ** 2) / 12
f = np.array([[F1x],
[F1y],
[M1],
[F2x],
[F2y],
[M2],
[F3x],
[F3y],
[M3],
[F4x],
[F4y],
[M4],
[F5x],
[F5y],
[M5]])
fel1 = np.array([[(vnp1 * 1000 * h) / 2],
[0],
[-(vnp1 * 1000 * h ** 2) / 12],
[(vnp1 * 1000 * h) / 2],
[0],
[(vnp1 * 1000 * h ** 2) / 12]])
fel2 = np.array([[(comb_a1n * lasna / 2) * mt.sin(alfa2) - (comb_a1t * lasna / 2) * mt.cos(alfa2)],
[- (comb_a1n * lasna / 2) * mt.cos(alfa2) - (comb_a1t * lasna / 2) * mt.sin(alfa2)],
[-(comb_a1n * lasna ** 2) / 12],
[(comb_a1n * lasna / 2) * mt.sin(alfa2) - (comb_a1t * lasna / 2) * mt.cos(alfa2)],
[- (comb_a1n * lasna / 2) * mt.cos(alfa2) - (comb_a1t * lasna / 2) * mt.sin(alfa2)],
[(comb_a1n * lasna ** 2) / 12]])
fel3 = np.array([[( - comb_a2n * lasna / 2) * mt.sin(-alfa3) (comb_a2t * lasna / 2) * mt.cos(-alfa3)],
[( - comb_a2n * lasna / 2) * mt.cos(-alfa3) - (comb_a2t * lasna / 2) * mt.sin(-alfa3)],
[-(comb_a2n * lasna ** 2) / 12],
[( - comb_a2n * lasna / 2) * mt.sin(-alfa3) (comb_a2t * lasna / 2) * mt.cos(-alfa3)],
[( - comb_a2n * lasna / 2) * mt.cos(-alfa3) - (comb_a2t * lasna / 2) * mt.sin(-alfa3)],
[(comb_a2n * lasna ** 2) / 12]])
fel4 = np.array([[(vnp2 * 1000 * h) / 2],
[0],
[-(vnp2 * 1000 * h ** 2) / 12],
[(vnp2 * 1000 * h) / 2],
[0],
[(vnp2 * 1000 * h ** 2) / 12]])
if base == rotulado:
u = np.dot(np.linalg.pinv(kportico[np.ix_([2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 14], [2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 14])]), f[np.ix_([2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 14])])
utotal = np.array([[0],
[0],
[u[0]],
[u[1]],
[u[2]],
[u[3]],
[u[4]],
[u[5]],
[u[6]],
[u[7]],
[u[8]],
[u[9]],
[0],
[0],
[u[10]]])
r = np.dot(kportico, utotal) - f
rp = np.array([[r[0]],
[r[1]],
[r[12]],
[r[13]]])
rv = np.array([["R1x ="],
["R1y ="],
["R5x ="],
["R5y ="]])
uni = np.array([["N"],
["N"],
["N"],
["N"]])
size = len(rv)
print(" ")
print(" ")
if len(rv) == len(rp) and len(rv) == len(uni):
for x in range(size):
print(rv[x],rp[x],uni[x])
Fpilar1 = np.dot(k1global, utotal[0:6]) - fel1 #ESFOR?OS NóS PILAR 1
Fasna1 = np.dot(k2global, utotal[3:9]) - fel2 #ESFOR?OS NóS ASNA 1
Fasna2 = np.dot(k3global, utotal[6:12]) - fel3 #ESFOR?OS NóS ASNA 2
Fpilar2 = np.dot(k4global, utotal[9:15]) - fel4 #ESFOR?OS NóS PILAR 2
#Diagrama de esfor?o transverso e momentos fletores
fig, ax = plt.subplots()
h1 = np.arange(0, h 1, 1)
ha1 = np.arange(0, lasna, 0.1)
ha2 = np.arange(0, lasna, 0.1)
hp2 = np.arange(0, h 1, 1)
Mpilar1 = ((-vnp1 * 1000 * h1 ** 2 / 2) - float(Fpilar1[0]) * h1 - float(Fpilar1[2])) / 1000
Masna1 = (((- comb_a1n * ha1 ** 2 ) / 2) (float(Fasna1[1]) * mt.cos(alfa2) - float(Fasna1[0]) * mt.sin(alfa2)) * ha1 - float(Fasna1[2])) / 1000
Masna2 = (((- comb_a2n * ha2 ** 2 ) / 2) (float(Fasna2[1]) * mt.cos(alfa2) float(Fasna2[0]) * mt.sin(alfa2)) * ha2 - float(Fasna2[2])) / 1000
Mpilar2 = ((vnp2 * 1000 * hp2 ** 2 / 2) float(Fpilar2[0]) * hp2 - float(Fpilar2[2])) / 1000
# Roto-translation matrix:
# Rotates the points by an angle theta and translates
# them by x in the horizontal direction, and y in the
# vertical direction
R = lambda x, y, theta: np.array([
[np.cos(theta), np.sin(theta), x],
[-np.sin(theta), np.cos(theta), y],
[0, 0, 1],
])
# mirror matrix about the x-axis
Mx = np.array([
[1, 0, 0], [0, -1, 0], [0, 0, 1]
])
# mirror matrix about the y-axis
My = np.array([
[-1, 0, 0], [0, 1, 0], [0, 0, 1]
])
def draw_line():
plt.figure()
x_number_list = [0, 0, (v/2), v, v]
y_number_list = [0, h, ht, h, 0]
plt.plot(x_number_list, y_number_list, linewidth=3)
# left column
points1 = np.stack([h1, Mpilar1 / max(Mpilar1), np.ones_like(h1)])
points1 = np.matmul(R(0, 0, -np.pi/2), points1)
plt.plot(points1[0, :], points1[1, :], label="Mpilar1")
# right column
points2 = np.stack([h1, Mpilar2 / max(Mpilar2), np.ones_like(h1)])
points2 = np.matmul(R(20, 0, -np.pi/2), points2)
plt.plot(points2[0, :], points2[1, :], label="Mpilar2")
# left asna
points3 = np.stack([ha1, Masna1 / max(Masna1), np.ones_like(ha1)])
points3 = np.matmul(R(0, 6, -alfa_rad), points3)
plt.plot(points3[0, :], points3[1, :], label="Masna1")
# right asna
points4 = np.stack([ha1, Masna2 / max(Masna2), np.ones_like(ha1)])
points4 = np.matmul(np.matmul(R(20, 6, alfa_rad), My), points4)
plt.plot(points4[0, :], points4[1, :], label="Masna2")
plt.title("Pórtico", fontsize=15)
plt.xlabel("V?o (m)", fontsize=10)
plt.ylabel("Altura (m)", fontsize=10)
plt.tick_params(axis='both', labelsize=9)
plt.legend()
plt.show()
draw_line()
轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/473862.html
標籤：Python matplotlib 阴谋
