如何自定義雙軸條形圖？

這是這個 R 的后續問題

uj5u.com熱心網友回復：

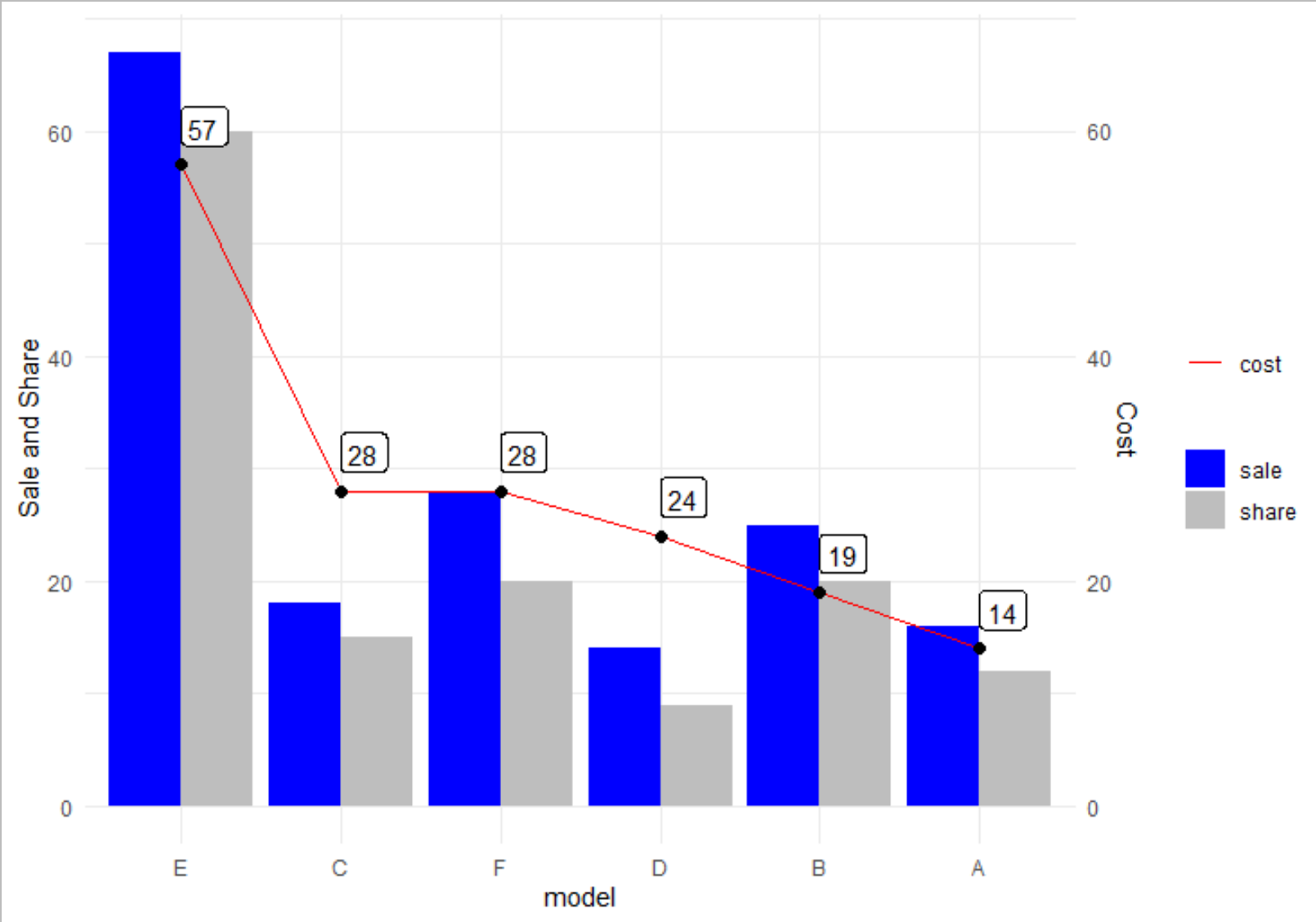

modelby的順序cost可以通過設定因子的水平來完成。更改geom_text為geom_label創建的框，而不是純粹顯示文本。我不確定“。我自己手動指定每個條的顏色”是什么意思。你的意思是填充？顏色現在由您的因素決定，可以通過 更改scale_fill_manual，但您已經這樣做了。

#data
df <- data.frame (model  = c("A", "B", "C","D","E","F"),
                  share = c(12,20,15,9,60,20),
                  sale = c(16,25,18,14,67,28),
                  cost = c(14,19,28,24,57,28))

#set levels of model by cost
df$model <- factor(df$model, levels = arrange(df, desc(df$cost))$model)

#set to long format
df_long <- df %>%
  pivot_longer(
    cols = -model
  )

#plot (changed geom_text to geom_label)
ggplot(df_long, aes(x = model, y= value, label=value))
  geom_col(data = filter(df_long, name != "cost"), aes(fill=name), position = position_dodge())
  scale_fill_manual(values = c("blue", "grey"))
  geom_line(data = filter(df_long, name == "cost"), aes(color = name, group = 1), size = 0.5)
  scale_color_manual(values = "red")
  geom_point(data = filter(df_long, name == "cost"), size = 2)
  geom_label(data = filter(df_long, name == "cost"), hjust=0, vjust=-0.5)
  scale_y_continuous(
    name = "Sale and Share",
    sec.axis = sec_axis(~., name ="Cost")
  )
  theme_minimal()
  theme(legend.title=element_blank())

uj5u.com熱心網友回復：

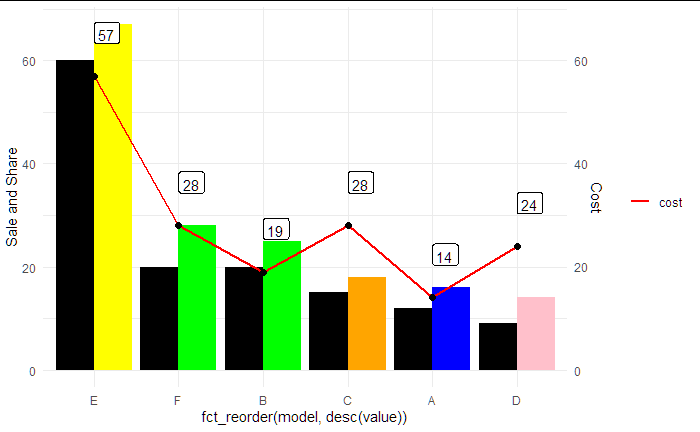

更新：用你喜歡的顏色定義一個向量，然后使用scale_fill_identity：

colors <- c("black","blue","black","green","black","orange",
            "black","pink","black", "yellow", "black","green")

library(tidyverse)

df_long <- df %>%
  pivot_longer(
    cols = -model
  )


ggplot(df_long, aes(x = fct_reorder(model,desc(value)), y= value, label=value))
  geom_col(data = filter(df_long, name != "cost"), aes(fill=colors), position = position_dodge())
  scale_fill_identity()
  geom_line(data = filter(df_long, name == "cost"), aes(color = name, group = 1), size = 1)
  scale_color_manual(values = "red")
  geom_point(data = filter(df_long, name == "cost"), size = 2)
  geom_label(data = filter(df_long, name == "cost"), hjust=0, vjust=-1.5)
  scale_y_continuous(
    name = "Sale and Share",
    sec.axis = sec_axis(~., name ="Cost")
  )
  theme_minimal()
  theme(legend.title=element_blank())

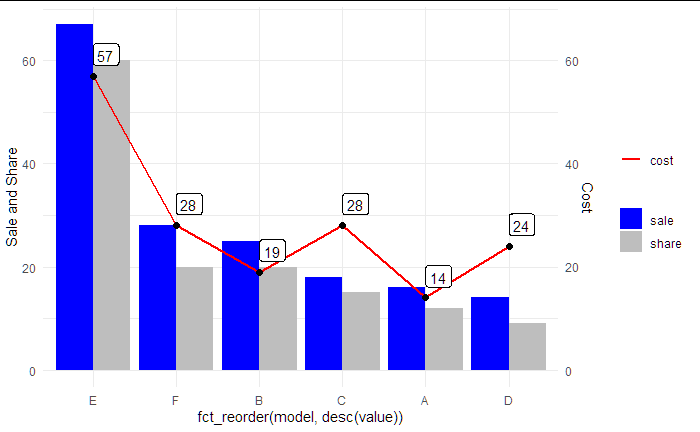

第一個答案： 我們可以fct_reorder從forcats它所在的包中使用tidyverse

library(tidyverse)

df_long <- df %>%
  pivot_longer(
    cols = -model
  )


ggplot(df_long, aes(x = fct_reorder(model, desc(value)), y= value, label=value))
  geom_col(data = filter(df_long, name != "cost"), aes(fill=name), position = position_dodge())
  scale_fill_manual(values = c("blue", "grey"))
  geom_line(data = filter(df_long, name == "cost"), aes(color = name, group = 1), size = 1)
  scale_color_manual(values = "red")
  geom_point(data = filter(df_long, name == "cost"), size = 2)
  geom_label(data = filter(df_long, name == "cost"), hjust=0, vjust=-0.5)
  scale_y_continuous(
    name = "Sale and Share",
    sec.axis = sec_axis(~., name ="Cost")
  )
  theme_minimal()
  theme(legend.title=element_blank())
