簡介

組合模式（Composite Pattern），又叫部分整體模式，是一種結構型設計模式，用于把一組類似的物件當作一個單一的物件來看，組合模式依據樹形結構來組合物件，用不同組件來構建某個部分或整體物件，

如果你需要實作樹狀物件結構，可以使用組合模式，如果你希望客戶端代碼以相同方式處理簡單和復雜元素，可以使用該模式，

作用

1. 符合開閉原則，無需更改現有代碼，就可以在應用中添加新元素，使之成為物件樹的一部分，
2. 模糊了簡單元素和復雜元素的概念，程式可以像處理簡單元素一樣來處理復雜元素，從而使得程式與復雜元素的內部結構解耦，

實作步驟

1. 創建抽象構件（Component）介面，用于宣告樹葉構件和樹枝構件的默認行為，
2. 創建樹枝構件（Composite）角色 / 中間構件：是組合中的分支節點物件，它有子節點，用于繼承和實作抽象構件，它的主要作用是存盤和管理子部件，通常包含 Add()、Remove()、GetChild() 等方法，
3. 定義樹葉構件（Leaf）角色：是組合中的葉子節點物件，它沒有子節點，用于繼承或實作抽象構件，

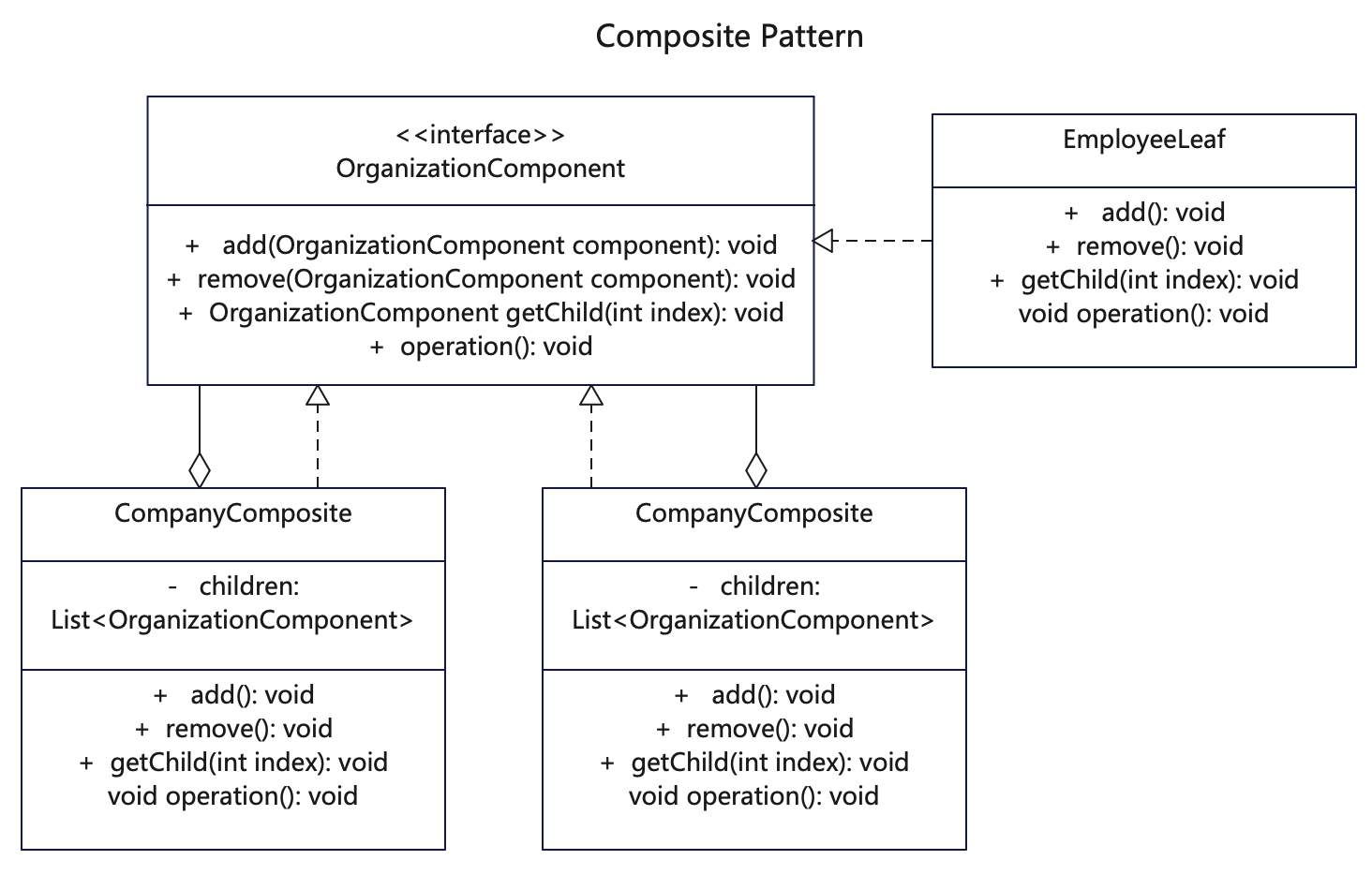

UML

Java語言代碼

基礎部件介面

// OrganizationComponent.java 定義部件介面或抽象類，分支和葉子節點遵循該類約定
public interface OrganizationComponent {
   public void add(OrganizationComponent component);

   public void remove(OrganizationComponent component);

   public OrganizationComponent getChild(int index);

   public void operation();

   public String getName();
}

具體部件實作

// CompanyComposite.java 實作部件的樹枝構件1
public class CompanyComposite implements OrganizationComponent {

   private String name;
   private List<OrganizationComponent> children = new ArrayList<OrganizationComponent>();

   public CompanyComposite(String name) {
      this.name = name;
   }

   public void add(OrganizationComponent component) {
      children.add(component);
   }

   public void remove(OrganizationComponent component) {
      children.remove(component);
   }

   public OrganizationComponent getChild(int index) {
      return children.get(index);
   }

   public void operation() {
      System.out.println(this.getClass().getName() + " CompanyComposite::operation() " + this.name);
      for (Object component : children) {
         ((OrganizationComponent) component).operation();
      }
   }

   public String getName() {
      return name;
   }
}

// DepartmentComposite.java  實作部件的樹枝構件2
public class DepartmentComposite implements OrganizationComponent {

   private String name;
   private List<OrganizationComponent> children = new ArrayList<OrganizationComponent>();

   public DepartmentComposite(String name) {
      this.name = name;
   }

   public void add(OrganizationComponent component) {
      children.add(component);
   }

   public void remove(OrganizationComponent component) {
      children.remove(component);
   }

   public OrganizationComponent getChild(int index) {
      return children.get(index);
   }

   public void operation() {
      System.out.println(this.getClass().getName() + " DepartmentComposite::operation() " + this.name);
      for (Object component : children) {
         ((OrganizationComponent) component).operation();
      }
   }

   public String getName() {
      return name;
   }
}

// EmployeeLeaf.java 實作部件的葉子節點，葉子節點不能再含有子節點
public class EmployeeLeaf implements OrganizationComponent {

   private String name;

   public EmployeeLeaf(String name) {
      this.name = name;
   }

   // 葉子節點不能再增加內容
   public void add(OrganizationComponent component) {
      System.out.println("Leaf can't add.");
   }

   // 葉子節點沒有移除內容
   public void remove(OrganizationComponent component) {
      System.out.println("Leaf can't remove.");
   }

   // 葉子節點無獲取子節點
   public OrganizationComponent getChild(int index) {
      System.out.println("Leaf can't getChild.");
      return null;
   }

   public void operation() {
      System.out.println(this.getClass().getName() + " EmployeeLeaf::operation() " + this.name);
   }

   public String getName() {
      return name;
   }
}

測驗呼叫

    /**
     * 組合模式依據樹形結構來組合物件，用不同組件來構建整體物件，
     * 不同組件之間有相同的介面約束，有不同的具體實作，
     * 先定義頂級節點，然后陸續加入枝葉節點和葉子節點，這樣不斷添加，將零散的個體組成一個整體，
     */

    // 通過組合模型組合了一個部件，分支和節點可以隨意增刪
    OrganizationComponent com = new CompanyComposite("西天旅游有限公司");
    OrganizationComponent com1 = new DepartmentComposite("總裁辦");
    OrganizationComponent com2 = new DepartmentComposite("行動隊");
    OrganizationComponent com3 = new DepartmentComposite("后勤組");
    OrganizationComponent leaf1 = new EmployeeLeaf("唐三藏");
    OrganizationComponent leaf2 = new EmployeeLeaf("孫悟空");
    OrganizationComponent leaf3 = new EmployeeLeaf("豬悟能");
    OrganizationComponent leaf4 = new EmployeeLeaf("沙悟凈");

    com.add(com1);
    com.add(com2);
    com.add(com3);

    // leaf1屬于com1
    com1.add(leaf1);
    // leaf2, leaf3屬于com2
    com2.add(leaf2);
    com2.add(leaf3);

    // 添加再洗掉
    DepartmentComposite dept1 = new DepartmentComposite("小分隊");
    com2.add(dept1);
    EmployeeLeaf tmp1 = new EmployeeLeaf("臨時工");
    dept1.add(tmp1);
    dept1.remove(tmp1);

    // leaf4屬于com3
    com3.add(leaf4);

    // 執行全部節點動作
    com.operation();

    // 獲取某個節點
    OrganizationComponent employee = (EmployeeLeaf) com.getChild(1).getChild(0);
    System.out.println(employee.getName());

C語言代碼

func.h 自定義頭檔案
#include <stdio.h>
#include <stdlib.h>
#include <stdbool.h>
#include <string.h>

// 定義部件介面或抽象類，分支和葉子節點遵循該類約定
typedef struct OrganizationComponent
{
    char name[200];
    void (*add)(struct OrganizationComponent *, struct OrganizationComponent *);
    void (*remove)(struct OrganizationComponent *, struct OrganizationComponent *);
    struct OrganizationComponent *(*get_child)(struct OrganizationComponent *, int);
    void (*operation)(struct OrganizationComponent *);
    int children_size;
    struct OrganizationComponent **children;
    // 如果是柔型陣列，則自動擴展陣列長度，但可能導致出現亂碼現象，故采取固定長度陣列
    // struct OrganizationComponent *children[];
} OrganizationComponent;
void add_component(OrganizationComponent *, OrganizationComponent *);
void remove_component(OrganizationComponent *, OrganizationComponent *);
OrganizationComponent *get_child_component(OrganizationComponent *, int);
void print_children(OrganizationComponent *children[], int children_size);

// 實作部件的樹枝構件1
typedef struct CompanyComposite
{
    char name[200];
    void (*add)(struct OrganizationComponent *, struct OrganizationComponent *);
    void (*remove)(struct OrganizationComponent *, struct OrganizationComponent *);
    struct OrganizationComponent *(*get_child)(struct OrganizationComponent *, int);
    void (*operation)(struct CompanyComposite *);
    int children_size;
    struct OrganizationComponent **children;
} CompanyComposite;
CompanyComposite *company_composite_constructor(char *name);

// 實作部件的樹枝構件2
typedef struct DepartmentComposite
{
    char name[200];
    void (*add)(struct OrganizationComponent *, struct OrganizationComponent *);
    void (*remove)(struct OrganizationComponent *, struct OrganizationComponent *);
    struct OrganizationComponent *(*get_child)(struct OrganizationComponent *, int);
    void (*operation)(struct DepartmentComposite *);
    int children_size;
    struct OrganizationComponent **children;
} DepartmentComposite;
DepartmentComposite *department_composite_constructor(char *name);

// 實作部件的葉子節點，葉子節點不能再含有子節點
typedef struct EmployeeLeaf
{
    char name[200];
    void (*add)(struct OrganizationComponent *, struct OrganizationComponent *);
    void (*remove)(struct OrganizationComponent *, struct OrganizationComponent *);
    struct OrganizationComponent *(*get_child)(struct OrganizationComponent *, int);
    void (*operation)(struct EmployeeLeaf *);
    int children_size;
    struct OrganizationComponent **children;
} EmployeeLeaf;
EmployeeLeaf *employee_leaf_constructor(char *name);

基礎部件介面

// organization_component.c 定義部件介面或抽象類，分支和葉子節點遵循該類約定
#include "func.h"

// 定義部件介面或抽象類，分支和葉子節點遵循該類約定
// C語言沒有介面和抽象類，用struct替代，同時把公共函式宣告在這里

// 添加一個組件到子節點中
void add_component(OrganizationComponent *parent, OrganizationComponent *component)
{
  // 先將原陣列保留下來
  OrganizationComponent **old_children = parent->children;
  parent->children_size += 1;
  // 新申請空間給子節點陣列
  parent->children = (OrganizationComponent **)calloc(parent->children_size, sizeof(OrganizationComponent *));
  for (int i = 0; i < parent->children_size - 1; i++)
  {
    parent->children[i] = old_children[i];
  }
  // 將組件追加到子節點陣列中
  parent->children[parent->children_size - 1] = component;
  free(old_children);
}

// 移除第一個匹配的子節點
void remove_component(OrganizationComponent *parent, OrganizationComponent *component)
{
  int size = parent->children_size;
  // 初始化組件id大于陣列長度
  int com_idx = size;
  for (int i = 0; i < size; i++)
  {
    // 找到第一個匹配的組件下標
    if (parent->children[i] == component)
    {
      com_idx = i;
    }

    // 自匹配項開始，后項逐個往前移動1位
    if (i >= com_idx)
    {
      parent->children[i] = parent->children[i + 1];
      // 最后一項置空且總長度減少1位
      if (i == size - 1)
      {
        parent->children[i] = NULL;
        parent->children_size -= 1;
      }
    }
  }
}

// 列印全部子節點
void print_children(OrganizationComponent *children[], int children_size)
{
  for (int i = 0; i < children_size; i++)
  {
    printf("\r\n    children[%d]=%s", i, children[i]->name);
  }
}

// 根據下標獲取子節點
OrganizationComponent *get_child_component(OrganizationComponent *component, int index)
{
  return component->children[index];
}

具體部件實作

// company_composite.c 實作部件的樹枝構件1
#include "func.h"

// 實作部件的樹枝構件1
void company_composite_operation(CompanyComposite *component)
{
  printf("\r\n CompanyComposite::operation() [name=%s]", component->name);
  print_children(component->children, component->children_size);
  for (int i = 0; i < component->children_size; i++)
  {
    if (component->children[i] != NULL)
    {
      component->children[i]->operation(component->children[i]);
    }
  }
}

// 創建CompanyComposite物件
CompanyComposite *company_composite_constructor(char *name)
{
  OrganizationComponent *component = (OrganizationComponent *)malloc(sizeof(OrganizationComponent));
  strncpy(component->name, name, 200);
  component->add = &add_component;
  component->remove = &remove_component;
  component->children_size = 0;
  component->get_child = &get_child_component;
  // 轉為CompanyComposite
  CompanyComposite *company_composite = (CompanyComposite *)component;
  company_composite->operation = &company_composite_operation;
  return company_composite;
}


// department_composite.c  實作部件的樹枝構件2
#include "func.h"

// 實作部件的樹枝構件2
void department_composite_operation(DepartmentComposite *component)
{
  printf("\r\n DepartmentComposite::operation() [name=%s]", component->name);
  print_children(component->children, component->children_size);
  for (int i = 0; i < component->children_size; i++)
  {
    if (component->children[i] != NULL)
    {
      component->children[i]->operation(component->children[i]);
    }
  }
}

// 創建DepartmentComposite物件
DepartmentComposite *department_composite_constructor(char *name)
{
  OrganizationComponent *component = (OrganizationComponent *)malloc(sizeof(OrganizationComponent));
  strncpy(component->name, name, 200);
  component->add = &add_component;
  component->remove = &remove_component;
  component->children_size = 0;
  component->get_child = &get_child_component;
  // 轉為DepartmentComposite
  DepartmentComposite *department_composite = (DepartmentComposite *)component;
  department_composite->operation = &department_composite_operation;
  return department_composite;
}


// employee_leaf.c 實作部件的葉子節點，葉子節點不能再含有子節點
#include "func.h"

// 實作部件的葉子節點，葉子節點不能再含有子節點

// 葉子節點不能再增加內容
void add_leaf_component(OrganizationComponent *parent, OrganizationComponent *component)
{
  printf("\r\n Leaf can't add.");
}

// 葉子節點沒有移除內容
void remove_leaf_component(OrganizationComponent *parent, OrganizationComponent *component)
{
  printf("\r\n Leaf can't remove.");
}

// 葉子節點不能獲取子節點
OrganizationComponent *get_leaf_child_component(OrganizationComponent *component, int index)
{
  printf("\r\n Leaf can't get_child.");
  return NULL;
}

// 子節點的操作函式
void employee_leaf_operation(EmployeeLeaf *component)
{
  printf("\r\n EmployeeLeaf::operation() [name=%s]", component->name);
}

// 創建EmployeeLeaf物件
EmployeeLeaf *employee_leaf_constructor(char *name)
{
  OrganizationComponent *component = (OrganizationComponent *)malloc(sizeof(OrganizationComponent));
  strncpy(component->name, name, 200);
  component->children_size = 0;
  component->add = &add_leaf_component;
  component->remove = &remove_leaf_component;
  component->get_child = &get_leaf_child_component;
  // 轉為EmployeeLeaf
  EmployeeLeaf *employee_leaf = (EmployeeLeaf *)component;
  employee_leaf->operation = &employee_leaf_operation;
  return employee_leaf;
}

測驗呼叫

   /**
    * 組合模式依據樹形結構來組合物件，用不同組件來構建整體物件，
    * 不同組件之間有相同的介面約束，有不同的具體實作，
    * 先定義頂級節點，然后陸續加入枝葉節點和葉子節點，這樣不斷添加，將零散的個體組成一個整體，ss
    */

   // 通過組合模型組合了一個部件，分支和節點可以隨意增刪
   OrganizationComponent *com = (OrganizationComponent *)company_composite_constructor("西天旅游有限公司");
   OrganizationComponent *com1 = (OrganizationComponent *)department_composite_constructor("總裁辦");
   OrganizationComponent *com2 = (OrganizationComponent *)department_composite_constructor("行動隊");
   OrganizationComponent *com3 = (OrganizationComponent *)department_composite_constructor("后勤組");

   OrganizationComponent *leaf1 = (OrganizationComponent *)employee_leaf_constructor("唐三藏");
   OrganizationComponent *leaf2 = (OrganizationComponent *)employee_leaf_constructor("孫悟空");
   OrganizationComponent *leaf3 = (OrganizationComponent *)employee_leaf_constructor("豬悟能");
   OrganizationComponent *leaf4 = (OrganizationComponent *)employee_leaf_constructor("沙悟凈");

   com->add(com, com1);
   com->add(com, com2);
   com->add(com, com3);

   // leaf1屬于com1
   com1->add(com1, leaf1);
   // leaf2, leaf3屬于com2
   com2->add(com2, leaf2);
   com2->add(com2, leaf3);

   // 添加再洗掉
   DepartmentComposite *dept1 = department_composite_constructor("小分隊");
   com2->add(com2, (OrganizationComponent *)dept1);
   EmployeeLeaf *tmp1 = employee_leaf_constructor("臨時工");
   dept1->add((OrganizationComponent *)dept1, (OrganizationComponent *)tmp1);
   dept1->remove((OrganizationComponent *)dept1, (OrganizationComponent *)tmp1);

   // leaf4屬于com3
   com3->add(com3, leaf4);

   // 執行全部節點動作
   com->operation(com);

   // 獲取某個節點
   OrganizationComponent *dept2 = com->get_child(com, 1);
   EmployeeLeaf *employee_child1 = (EmployeeLeaf *)dept2->get_child(dept2, 0);
   printf("\r\n [employee->name=%s]", employee_child1->name);

更多語言版本

不同語言實作設計模式原始碼，請查看：https://github.com/microwind/design-pattern

標籤：其他

上一篇：【Design Pattern 23種經典設計模式原始碼詳解】Java/JS/TS/Python/Go不同語言實作

下一篇：9款日志采集&管理工具對比，選型必備！
