初識鴻蒙OS 2.0

華為的鴻蒙OS 2.0是目前唯一個有希望和安卓、IOS對抗的全新生態系統，9月10日，在東莞正式發布，華為喊出了“HarmonyOS 2.0 連接無限可能”的口號，將是未來十年很有競爭力的優秀作業系統，

自定義Component

這里我撰寫一個簡易的畫板，

1.新建一個類DrawComponment 繼承自Componment；
2.實作Component.TouchEventListener，用于對touch事件生成相應的path；
3.實作Component.DrawTask，用于把path畫到螢屏上；

代碼

DrawComponment

package com.quqx.draw;

import ohos.agp.components.Component;
import ohos.agp.render.Canvas;
import ohos.agp.render.Paint;
import ohos.agp.render.Path;
import ohos.agp.utils.Color;
import ohos.agp.utils.Point;
import ohos.app.Context;
import ohos.hiviewdfx.HiLog;
import ohos.hiviewdfx.HiLogLabel;
import ohos.media.image.PixelMap;
import ohos.multimodalinput.event.MmiPoint;
import ohos.multimodalinput.event.TouchEvent;

public class DrawComponment extends Component implements Component.DrawTask, Component.TouchEventListener {
    private static final String TAG = "DrawComponment";
    PixelMap mPixelMap;
    Canvas mCanvas;
    Path mPath = new Path();
    Paint mPaint;
    Point mPrePoint = new Point();
    Point mPreCtrlPoint = new Point();

    public DrawComponment(Context context) {
        super(context);
        //初始化paint
        mPaint = new Paint();
        mPaint.setColor(Color.WHITE);
        mPaint.setStrokeWidth(5f);
        mPaint.setStyle(Paint.Style.STROKE_STYLE);
        //添加繪制任務
        addDrawTask(this::onDraw);
        //設定TouchEvent監聽
        setTouchEventListener(this::onTouchEvent);
    }

    @Override
    public void onDraw(Component component, Canvas canvas) {
        canvas.drawPath(mPath, mPaint);
    }


    @Override
    public boolean onTouchEvent(Component component, TouchEvent touchEvent) {
        switch (touchEvent.getAction()) {
            case TouchEvent.PRIMARY_POINT_DOWN: {
                //鴻蒙Log工具
                HiLog.debug(new HiLogLabel(0, 0, TAG), "TouchEvent.PRIMARY_POINT_DOWN");
                //獲取點資訊
                MmiPoint point = touchEvent.getPointerPosition(touchEvent.getIndex());
                mPath.reset();
                mPath.moveTo(point.getX(), point.getY());
                mPrePoint.position[0] = point.getX();
                mPrePoint.position[1] = point.getY();
                mPreCtrlPoint.position[0] = point.getX();
                mPreCtrlPoint.position[1] = point.getY();
                //PRIMARY_POINT_DOWN 一定要回傳true
                return true;
            }
            case TouchEvent.PRIMARY_POINT_UP:

                break;
            case TouchEvent.POINT_MOVE: {
                HiLog.debug(new HiLogLabel(0, 0, TAG), "TouchEvent.POINT_MOVE");
                MmiPoint point = touchEvent.getPointerPosition(touchEvent.getIndex());
                Point currCtrlPoint = new Point((point.getX() + mPrePoint.position[0]) / 2,
                        (point.getY() + mPrePoint.position[1]) / 2);
                //繪制三階貝塞爾曲線
                mPath.cubicTo(mPrePoint, mPreCtrlPoint, currCtrlPoint);
                mPreCtrlPoint.position[0] = currCtrlPoint.position[0];
                mPreCtrlPoint.position[1] = currCtrlPoint.position[1];
                mPrePoint.position[0] = point.getX();
                mPrePoint.position[1] = point.getY();
                //更新顯示
                invalidate();
                break;
            }

        }
        return false;
    }
}

MainAbilitySlice

package com.quqx.draw.slice;

import com.quqx.draw.DrawComponment;
import ohos.aafwk.ability.AbilitySlice;
import ohos.aafwk.content.Intent;

import ohos.agp.components.DirectionalLayout;
import ohos.agp.components.DirectionalLayout.LayoutConfig;
import ohos.agp.components.Text;
import ohos.agp.colors.RgbColor;
import ohos.agp.components.element.ShapeElement;
import ohos.agp.utils.Color;
import ohos.agp.utils.TextAlignment;

public class MainAbilitySlice extends AbilitySlice {

    private DirectionalLayout myLayout = new DirectionalLayout(this);

    @Override
    public void onStart(Intent intent) {
        super.onStart(intent);
        LayoutConfig config = new LayoutConfig(LayoutConfig.MATCH_PARENT, LayoutConfig.MATCH_PARENT);
        myLayout.setLayoutConfig(config);

        DrawComponment drawComponment = new DrawComponment(this);
        drawComponment.setLayoutConfig(config);
        ShapeElement element = new ShapeElement();
        element.setRgbColor(new RgbColor(0, 0, 0));
        drawComponment.setBackground(element);
        myLayout.addComponent(drawComponment);

        super.setUIContent(myLayout);
    }

    @Override
    public void onActive() {
        super.onActive();
    }

    @Override
    public void onForeground(Intent intent) {
        super.onForeground(intent);
    }
}

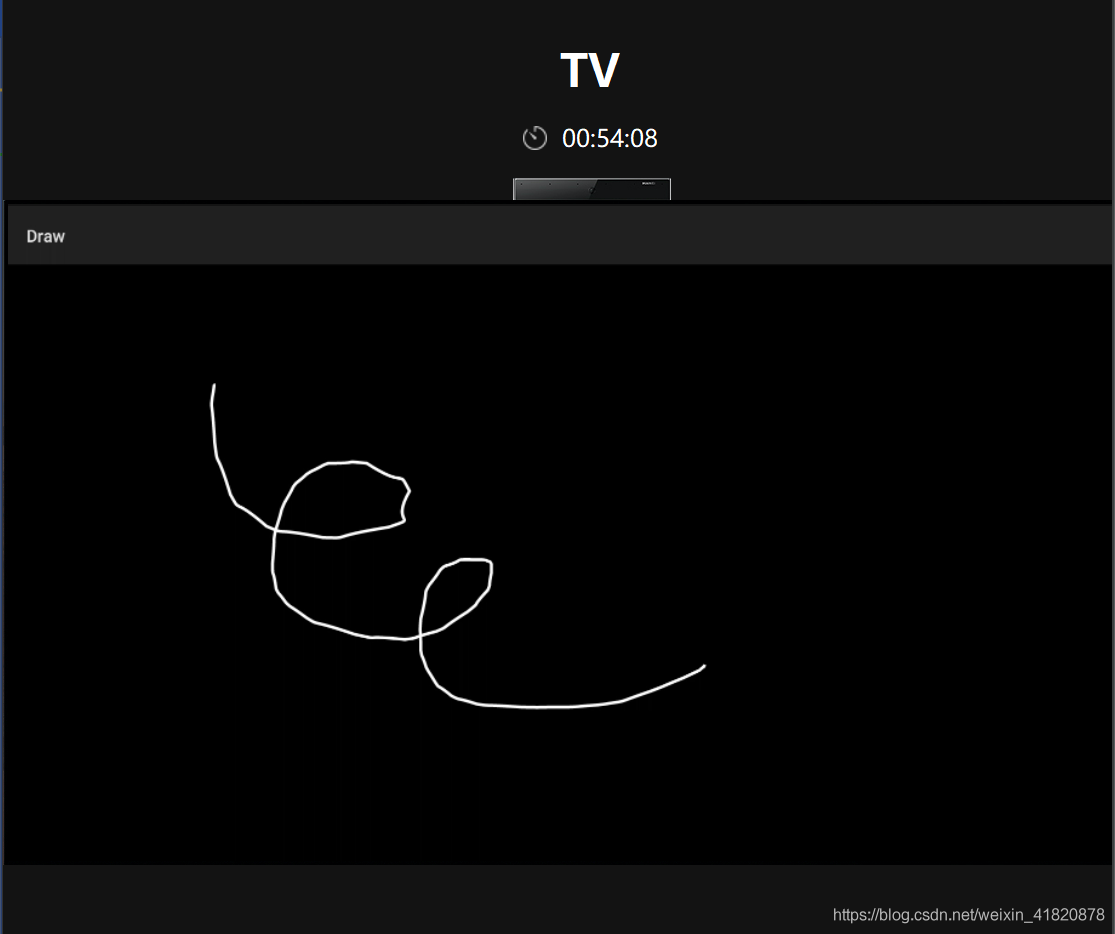

效果
