base.py依賴的python包（Queue，threading，os，signal，subprocess/subprocess32，sys，time，warnings，paramiko，getpass），依賴的gp包（gplog，gpsubprocess，pygresql），pygresql匯入陳述句的是from pygresql.pg import DB，主要使用的DB是SQLCommand類，這個類先不用關注，gpsubprocess是對subprocess的封裝，可以看到這里使用了兩個子行程包gpsubprocess和subprocess，

代碼分析

WorkerPool類

先看WorkPool類定義，類實體包含了存放worker實體的串列、存放帶執行Command的work_queue佇列、存放執行完Command的completed_queue佇列，WorkerPool中的worker實體的數量是在建構式就給定的，初始化后worker實體會一直運行，圖中的start就是在建構式中完成的，Worker實體從work_queue佇列中取作業項Command的函式是getNetWorkItem，

def getNextWorkItem(self):
    return self.work_queue.get(block=True)

Worker實體處理完成work_queue中所有命令之后，取不到命令或取到的命令是halt_command，或者任務池標志了should_stop之后，使用markTaskDone函式告知WorkPool該任務完成，

def markTaskDone(self):
    self.work_queue.task_done()

clsSystemState.py的GpSystemStateProgram類中run函式中有base檔案中類的使用示例，簡化如下，通過這些示例來學習任務池的使用：

dispatchCount = 0
pool = base.WorkerPool(parallelDegree) #parallelDegree給定worker個數
for hostName, segments in ...:
  cmd = ...
  hostNameToCmd[hostName] = cmd
  pool.addCommand(cmd)
  dispatchCount+=1
pool.wait_and_printdots(dispatchCount)
hostNameToResults = {}
for hostName, cmd in hostNameToCmd.iteritems():
  hostNameToResults[hostName] = cmd.decodeResults() #取出結果集
pool.haltWork()

主要流程：通過addCommand函式向佇列(work_queue)中添加作業負載（WorkerPool類可以通過建構式向佇列中添加多個命令（串列形式），或者通過addCommand函式添加單個命令），針對work_queue佇列由三種join的方法，代碼如下，hostNameCmd是一個字典，鍵為hostName，值為cmd，通過cmd.decodeResults函式取出結果集，

def join(self):
    self.work_queue.join()
    return True
def _join_work_queue_with_timeout(self, timeout):
        """
        Queue.join() unfortunately doesn't take a timeout (see
        https://bugs.python.org/issue9634). Fake it here, with a solution
        inspired by notes on that bug report.
        XXX This solution uses undocumented Queue internals (though they are not
        underscore-prefixed...).
        """
    done_condition = self.work_queue.all_tasks_done
    done_condition.acquire()
    try:
      while self.work_queue.unfinished_tasks:
        if (timeout <= 0):
          # Timed out.
          return

        start_time = time.time()
        done_condition.wait(timeout)
        timeout -= (time.time() - start_time)
    finally:
        done_condition.release()
def wait_and_printdots(self, command_count, quiet=True):
  while self.completed_queue.qsize() < command_count:
    time.sleep(1)

    if not quiet:
      sys.stdout.write(".")
      sys.stdout.flush()
  if not quiet:
    print " "
  self.join()

Queue/queue模塊的類

屬性 描述
Queue(maxsize=0) 創建一個先入先出佇列，如果給定最大值，則在佇列沒有空間時阻塞；否則，為無限佇列
LifoQueue(maxsize=0) 創建一個后入先出佇列，如果給定最大值，則在佇列沒有空間時阻塞；否則，為無限佇列
PriorityQueue(maxsize=0) 創建一個優先級佇列，如果給定最大值，則在佇列沒有空間時阻塞，否則，為無限佇列
Queue/queue例外
屬性 描述
Empty
當對孔佇列呼叫get*()方法時拋出例外
Full 當對已滿的佇列呼叫put*()方法時拋出例外

Worker類

worker類繼承自threading模塊中的Thread類，run函式先使用getNextWorkItem函式取得command，總共有四種情況：任務池中沒有command，該Worker示例需要向任務池標記任務完成；如果取得的命令是pool.halt_command，該Worker示例需要向任務池標記任務完成；如果任務池標記了should_stop，該Worker示例需要向任務池標記任務完成；下面是正常流程，執行命令，并將命令放入任務池完成佇列，

class Woker(Thread):
    ...
    def run(self):
        while True:
            try:
                try:
                    self.cmd = self.pool.getNextWorkItem()
                except TypeError:
                    # misleading exception raised during interpreter shutdown
                    return
                # we must have got a command to run here
                if self.cmd is None:
                    self.logger.debug("[%s] got a None cmd" % self.name)
                    self.pool.markTaskDone()
                elif self.cmd is self.pool.halt_command:
                    self.logger.debug("[%s] got a halt cmd" % self.name)
                    self.pool.markTaskDone()
                    self.cmd = None
                    return
                elif self.pool.should_stop:
                    self.logger.debug("[%s] got cmd and pool is stopped: %s" % (self.name, self.cmd))
                    self.pool.markTaskDone()
                    self.cmd = None
                else:
                    self.logger.debug("[%s] got cmd: %s" % (self.name, self.cmd.cmdStr))
                    self.cmd.run()
                    self.logger.debug("[%s] finished cmd: %s" % (self.name, self.cmd))
                    self.pool.addFinishedWorkItem(self.cmd)
                    self.cmd = None
            except Exception, e:
                self.logger.exception(e)
                if self.cmd:
                    self.logger.debug("[%s] finished cmd with exception: %s" % (self.name, self.cmd))
                    self.pool.addFinishedWorkItem(self.cmd)
                    self.cmd = None
    def haltWork(self):
        self.logger.debug("[%s] haltWork" % self.name)
        c = self.cmd
        if c is not None and isinstance(c, Command):
            c.interrupt()
            c.cancel()

threading模塊的Thread類實體化表示一個執行執行緒的物件，擁有的資料屬性name(執行緒名)、ident(執行緒的識別符號)、daemon(布爾標志，表示這個執行緒是否是守護執行緒)，方法如下：
Thread物件方法描述
_ini_(group=None, target=None, name=None, args=(), kwargs={}, verbose=None, daemon=None) 實體化一個執行緒物件，需要有一個可呼叫的target，以及其引數args或kwargs，還可以傳遞name或group引數，不過后者還未實作，此外，verbose標志也是可以接受的，而daemon的值將會設定thread.daemon屬性/標志

使用Thread類可以有很多方法創建執行緒，這里介紹三種方法：1. 創建Thread的實體，傳給它一個函式；2. 創建Thread的實體，傳給它一個可呼叫的類實體；3.派生Thread的子類，并創建子類的實體，

Command類

Command類有兩個執行函式runNoWait和run函式，runNoWait函式通過呼叫exec_context.execute(self,wait=False)函式執行命令，并回傳proc；run函式直接呼叫exec_context.execute(self)函式，

    def runNoWait(self):
        faultPoint = os.getenv('GP_COMMAND_FAULT_POINT')
        if not faultPoint or (self.name and not self.name.startswith(faultPoint)):
            self.exec_context.execute(self, wait=False)
            return self.exec_context.proc
    def run(self, validateAfter=False):
        faultPoint = os.getenv('GP_COMMAND_FAULT_POINT')
        if not faultPoint or (self.name and not self.name.startswith(faultPoint)):
            self.exec_context.execute(self)
        else:
            # simulate error
            self.results = CommandResult(1, 'Fault Injection', 'Fault Injection', False, True)
        if validateAfter:
            self.validate()
        pass

ExecutionContext類

以RemoteExecutionContext執行背景關系類為例，引數是以以下方法處理的
keys = sorted(cmd.propagate_env_map.keys(), reverse=True) for k in keys: cmd.cmdStr = "%s=%s && %s" % (k, cmd.propagate_env_map[k], cmd.cmdStr)，將引數序列化到cmdStr中，對于LocalExecutionContext來說，呼叫如下命令執行命令：self.proc = gpsubprocess.Popen(cmd.cmdStr, env=None, shell=True,executable='/bin/bash',stdin=subprocess.PIPE,stderr=subprocess.PIPE,stdout=subprocess.PIPE, close_fds=True)，對GP封裝的subprocess模式請參見相應其他系列的博客，如果需要等待子行程，則呼叫(rc, stdout_value, stderr_value) = self.proc.communicate2(input=self.stdin)，然后使用cmd.set_results(CommandResult( rc, "".join(stdout_value), "".join(stderr_value), self.completed, self.halt)) def cancel(self, cmd):封裝命令回傳的結果，

class LocalExecutionContext(ExecutionContext):
    proc = None
    halt = False
    completed = False
    def __init__(self, stdin):
        ExecutionContext.__init__(self)
        self.stdin = stdin
        pass
    def execute(self, cmd, wait=True):
        # prepend env. variables from ExcecutionContext.propagate_env_map
        # e.g. Given {'FOO': 1, 'BAR': 2}, we'll produce "FOO=1 BAR=2 ..."
        # also propagate env from command instance specific map
        keys = sorted(cmd.propagate_env_map.keys(), reverse=True)
        for k in keys:
            cmd.cmdStr = "%s=%s && %s" % (k, cmd.propagate_env_map[k], cmd.cmdStr)
        # executable='/bin/bash' is to ensure the shell is bash.  bash isn't the
        # actual command executed, but the shell that command string runs under.
        self.proc = gpsubprocess.Popen(cmd.cmdStr, env=None, shell=True,executable='/bin/bash',stdin=subprocess.PIPE,stderr=subprocess.PIPE,stdout=subprocess.PIPE, close_fds=True)
        cmd.pid = self.proc.pid
        if wait:
            (rc, stdout_value, stderr_value) = self.proc.communicate2(input=self.stdin)
            self.completed = True
            cmd.set_results(CommandResult(
                rc, "".join(stdout_value), "".join(stderr_value), self.completed, self.halt))
    def cancel(self, cmd):
        if self.proc:
            try:
                os.kill(self.proc.pid, signal.SIGTERM)
            except OSError:
                pass
    def interrupt(self, cmd):
        self.halt = True
        if self.proc:
            self.proc.cancel()

class RemoteExecutionContext(LocalExecutionContext):
    trail = set()
    def __init__(self, targetHost, stdin, gphome=None):
        LocalExecutionContext.__init__(self, stdin)
        self.targetHost = targetHost
        if gphome:
            self.gphome = gphome
        else:
            self.gphome = GPHOME
    def execute(self, cmd):
        # prepend env. variables from ExcecutionContext.propagate_env_map
        # e.g. Given {'FOO': 1, 'BAR': 2}, we'll produce "FOO=1 BAR=2 ..."
        self.__class__.trail.add(self.targetHost)
        # also propagate env from command instance specific map
        keys = sorted(cmd.propagate_env_map.keys(), reverse=True)
        for k in keys:
            cmd.cmdStr = "%s=%s && %s" % (k, cmd.propagate_env_map[k], cmd.cmdStr)
        # Escape " for remote execution otherwise it interferes with ssh
        cmd.cmdStr = cmd.cmdStr.replace('"', '\\"')
        cmd.cmdStr = "ssh -o StrictHostKeyChecking=no -o ServerAliveInterval=60 " \
                     "{targethost} \"{gphome} {cmdstr}\"".format(targethost=self.targetHost,
                                                                 gphome=". %s/greenplum_path.sh;" % self.gphome,
                                                                 cmdstr=cmd.cmdStr)
        LocalExecutionContext.execute(self, cmd)
        if (cmd.get_results().stderr.startswith('ssh_exchange_identification: Connection closed by remote host')):
            self.__retry(cmd)
        pass
    def __retry(self, cmd, count=0):
        if count == SSH_MAX_RETRY:
            return
        time.sleep(SSH_RETRY_DELAY)
        LocalExecutionContext.execute(self, cmd)
        if (cmd.get_results().stderr.startswith('ssh_exchange_identification: Connection closed by remote host')):
            self.__retry(cmd, count + 1)

而RemoteExecutionContext先對引數進行格式化后，還需要對雙引號使用雙斜線進行替換后，然后添加ssh相關命令選項，代碼如下所示：cmd.cmdStr = cmd.cmdStr.replace('"', '\\"') cmd.cmdStr = "ssh -o StrictHostKeyChecking=no -o ServerAliveInterval=60 {targethost} \"{gphome} {cmdstr}\"".format(targethost=self.targetHost, gphome=". %s/greenplum_path.sh;" % self.gphome, cmdstr=cmd.cmdStr)，然后呼叫LocalExecutionContext父類的execute函式，如果回傳的結果包含ssh_exchange_identification: Connection closed by remote host，則需要進行等待相應的時間，然后進行重試，

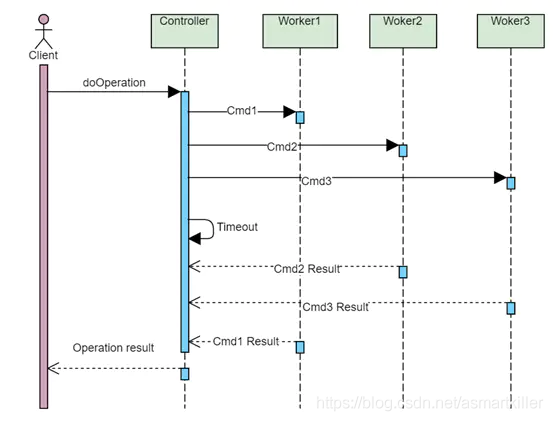

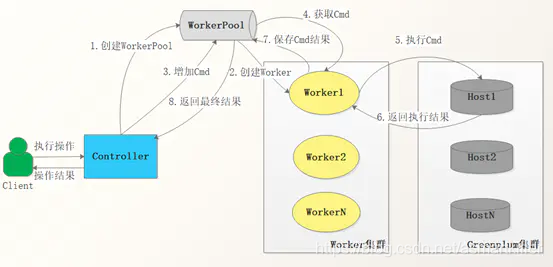

Controller-Worker架構模式

輔助說明：
Controller-Worker是一種組合架構模式，Controller基于Client的引數動態生成Woker數量，并控制Woker的生命周期，如創建和終止，
Controller屬性：
Controller事先知道自身擁有的Woker型別，
Controller依賴一個作業任務池，通過作業任務池Controller監控整體任務執行情況，
Worker屬性：
Worker并行消費作業任務池中任務，并把執行結果回傳到任務池中，
Worker彼此間沒有任何耦合，

輔組說明：
Controller通過WorkerPool和Worker進行命令傳遞，
Controller通過超時機制，保證最后一定有命令結果回傳給Client
Controller通過halt命令，停止所有的Woker
Worker采用Thread方式來實作，
Worker1、Worker2、WorkerN無差別，根據獲取的Cmd，通過ssh方式在對應的Host執行命令，
