一、前言

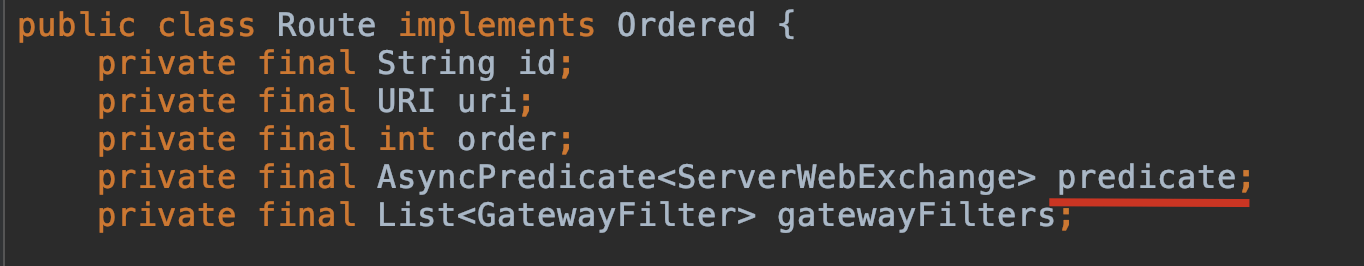

我們上一篇Spring Cloud Gateway 原始碼剖析之Route資料模型中講到了 Route 資料模型，其中有 Predicate 屬性，
在這里插入圖片描述

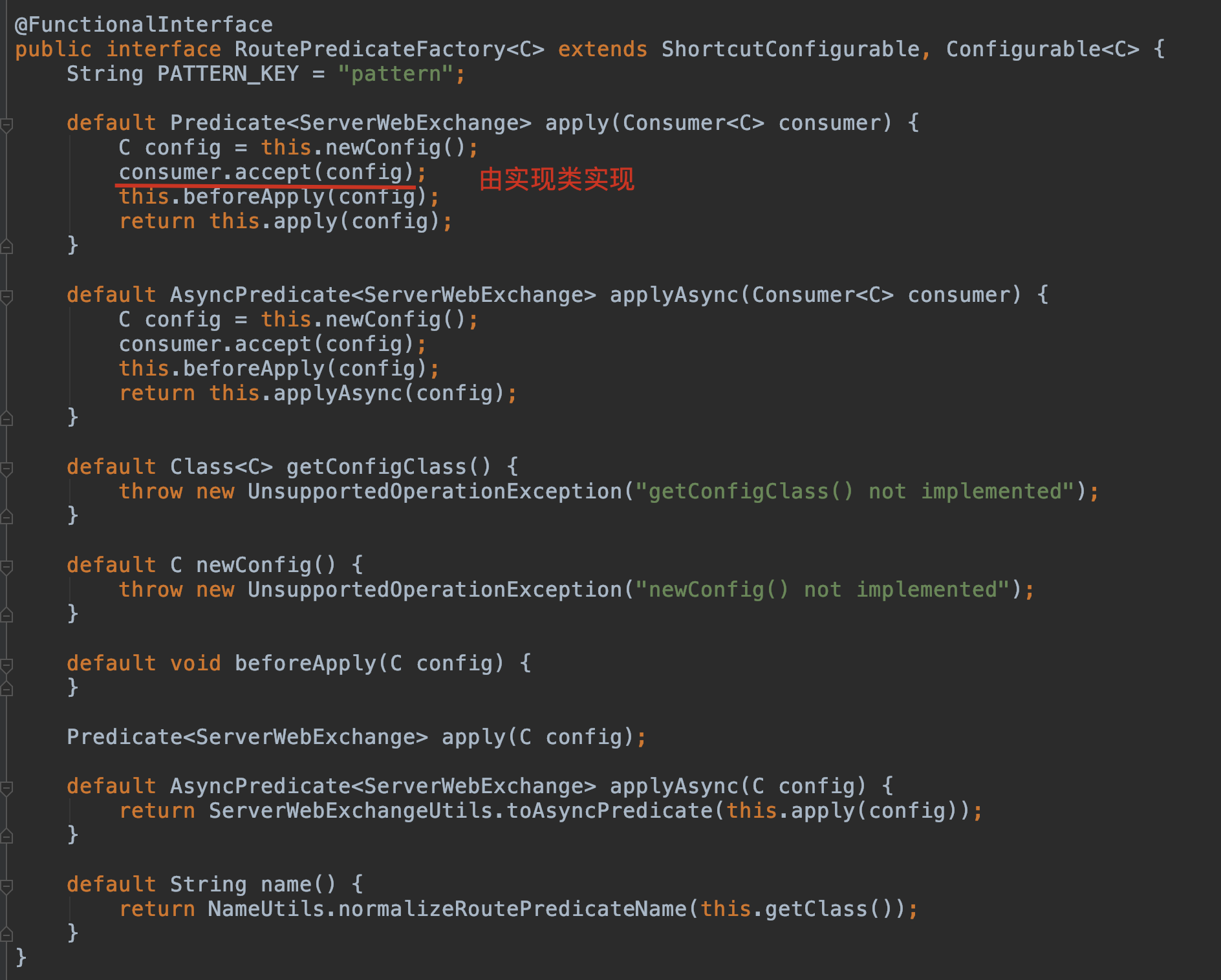

這一篇我們就來講一講 Predicate 謂詞相關原始碼，Predicate 物件是由 RoutePredicateFactory 工廠類創建，那我們就來看下 RoutePredicateFactory 是如何創建 Predicate 的，

在這里插入圖片描述

二、RoutePredicateFactory

從上圖可知

#name() 默認方法，呼叫 NameUtils#normalizePredicateName(Class) 方法，獲得 RoutePredicateFactory 的名字，該方法截取類名前半段，例如 QueryRoutePredicateFactory 的結果為 Query ，
#apply() 介面方法，創建 Predicate ，

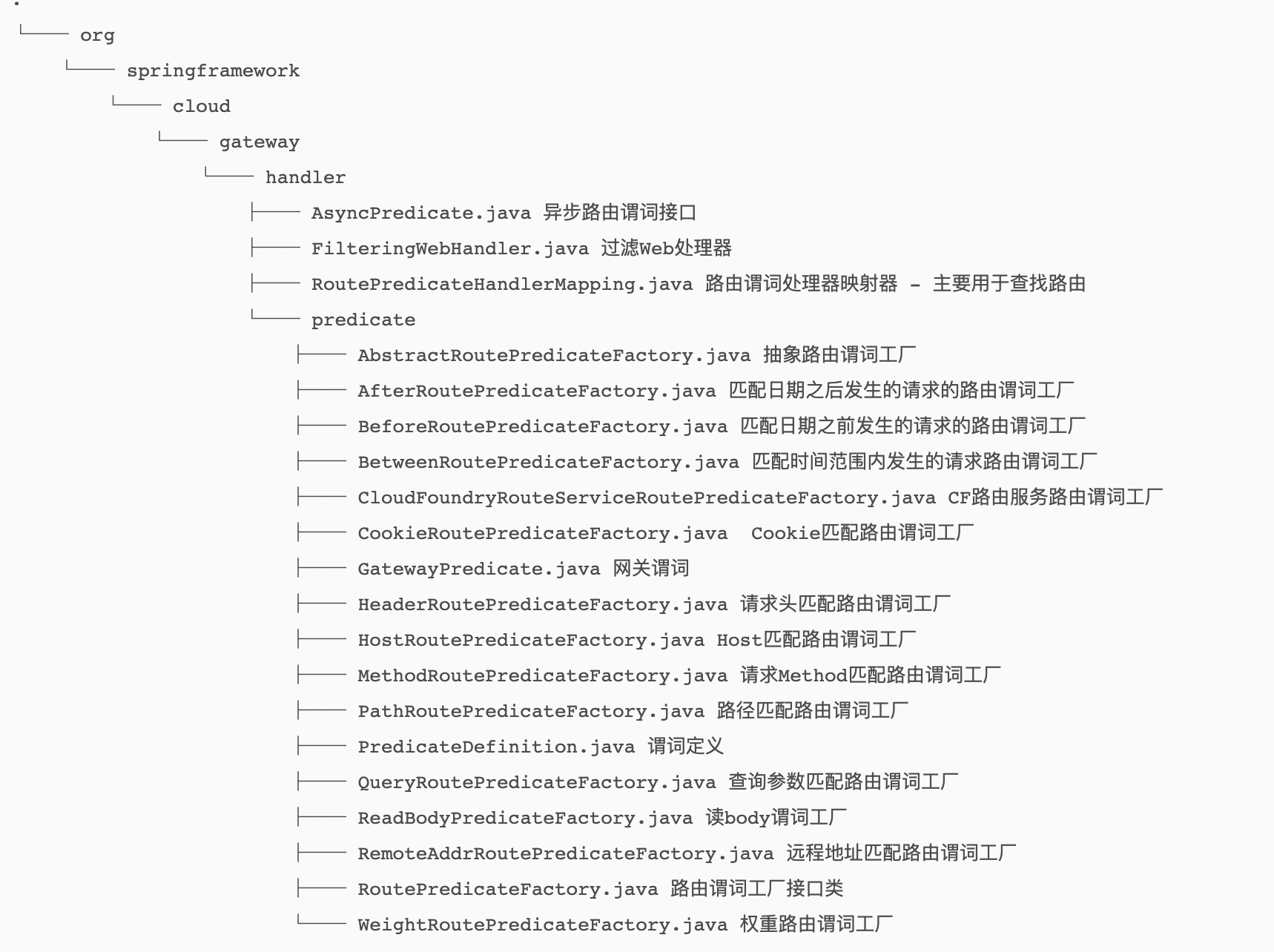

可以直接看到處理器類與相關謂詞工廠類如下
在這里插入圖片描述

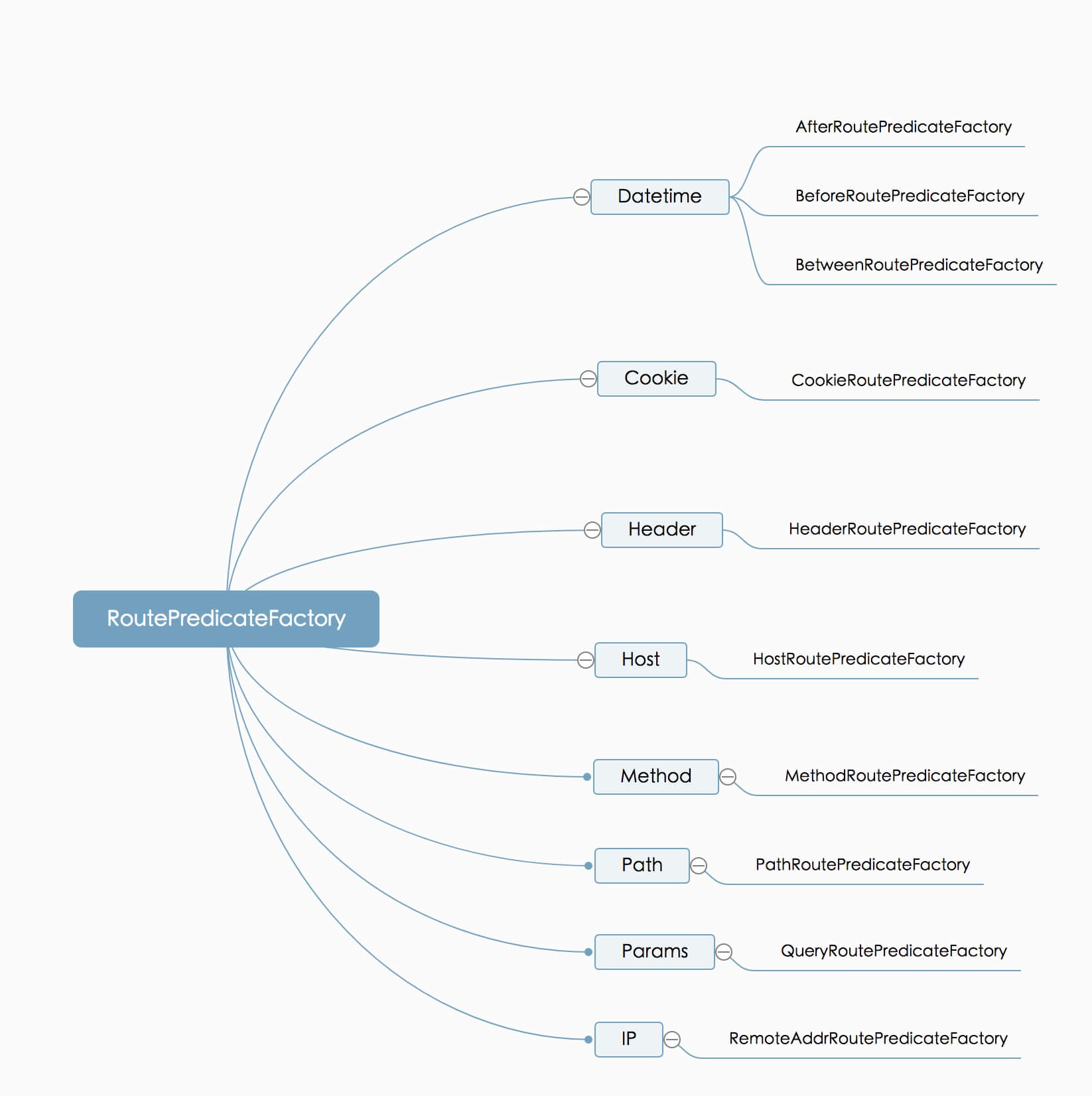

這里再對相關謂詞工廠進行分類：

在這里插入圖片描述
2.1 AfterRoutePredicateFactory

Route 匹配：請求時間滿足在配置時間之后

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: after_route
        uri: http://example.org
        predicates:
        - After=2017-01-20T17:42:47.789-07:00[America/Denver]

代碼：

public Predicate<ServerWebExchange> apply(AfterRoutePredicateFactory.Config config) {
    ZonedDateTime datetime = config.getDatetime();
    return (exchange) -> {
        ZonedDateTime now = ZonedDateTime.now();
        return now.isAfter(datetime);
    };
}

2.2 BeforeRoutePredicateFactory

Route 匹配：請求時間滿足在配置時間之前

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: before_route
        uri: http://example.org
        predicates:
        - Before=2017-01-20T17:42:47.789-07:00[America/Denver]

代碼：

public Predicate<ServerWebExchange> apply(BeforeRoutePredicateFactory.Config config) {
    ZonedDateTime datetime = config.getDatetime();
    return (exchange) -> {
        ZonedDateTime now = ZonedDateTime.now();
        return now.isBefore(datetime);
    };
}

2.3 BetweenRoutePredicateFactory

Route 匹配：請求時間滿足在配置時間之間

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: between_route
        uri: http://example.org
        predicates:
        - Betweeen=2017-01-20T17:42:47.789-07:00[America/Denver], 2017-01-21T17:42:47.789-07:00[America/Denver]

代碼：

public Predicate<ServerWebExchange> apply(BetweenRoutePredicateFactory.Config config) {
    ZonedDateTime datetime1 = config.datetime1;
    ZonedDateTime datetime2 = config.datetime2;
    Assert.isTrue(datetime1.isBefore(datetime2), config.datetime1 + " must be before " + config.datetime2);
    return (exchange) -> {
        ZonedDateTime now = ZonedDateTime.now();
        return now.isAfter(datetime1) && now.isBefore(datetime2);
    };
}

2.4 CookieRoutePredicateFactory

Route 匹配：請求指定 Cookie 正則匹配指定值，

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: cookie_route
        uri: http://example.org
        predicates:
        - Cookie=chocolate, ch.p

代碼：

public Predicate<ServerWebExchange> apply(CookieRoutePredicateFactory.Config config) {
    return (exchange) -> {
        List<HttpCookie> cookies = (List)exchange.getRequest().getCookies().get(config.name);
        if (cookies == null) {
            return false;
        } else {
            Iterator var3 = cookies.iterator();

            HttpCookie cookie;
            do {
                if (!var3.hasNext()) {
                    return false;
                }

                cookie = (HttpCookie)var3.next();
            } while(!cookie.getValue().matches(config.regexp));

            return true;
        }
    };
}

2.5 HeaderRoutePredicateFactory

Route 匹配：請求頭滿足匹配

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: header_route
        uri: http://example.org
        predicates:
        - Header=X-Request-Id, \d+

代碼：

public Predicate<ServerWebExchange> apply(HeaderRoutePredicateFactory.Config config) {
    boolean hasRegex = !StringUtils.isEmpty(config.regexp);
    return (exchange) -> {
        List<String> values = (List)exchange.getRequest().getHeaders().getOrDefault(config.header, Collections.emptyList());
        if (values.isEmpty()) {
            return false;
        } else {
            return hasRegex ? values.stream().anyMatch((value) -> {
                return value.matches(config.regexp);
            }) : true;
        }
    };
}

2.6 HostRoutePredicateFactory

Route 匹配：請求 Host 匹配指定值

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: host_route
        uri: http://example.org
        predicates:
        - Host=**.somehost.org

代碼：

public Predicate<ServerWebExchange> apply(HostRoutePredicateFactory.Config config) {
    return (exchange) -> {
        String host = exchange.getRequest().getHeaders().getFirst("Host");
        Optional<String> optionalPattern = config.getPatterns().stream().filter((pattern) -> {
            return this.pathMatcher.match(pattern, host);
        }).findFirst();
        if (optionalPattern.isPresent()) {
            Map<String, String> variables = this.pathMatcher.extractUriTemplateVariables((String)optionalPattern.get(), host);
            ServerWebExchangeUtils.putUriTemplateVariables(exchange, variables);
            return true;
        } else {
            return false;
        }
    };
}

2.7 MethodRoutePredicateFactory

Route 匹配：請求 Method 匹配指定值

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: method_route
        uri: http://example.org
        predicates:
        - Method=GET

代碼：

public Predicate<ServerWebExchange> apply(MethodRoutePredicateFactory.Config config) {
    return (exchange) -> {
        HttpMethod requestMethod = exchange.getRequest().getMethod();
        return requestMethod == config.getMethod();
    };
}

2.8 PathRoutePredicateFactory

Route 匹配：請求 Path 匹配指定值

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: host_route
        uri: http://example.org
        predicates:
        - Path=/foo/{segment}

代碼：

public Predicate<ServerWebExchange> apply(PathRoutePredicateFactory.Config config) {
    ArrayList<PathPattern> pathPatterns = new ArrayList();
    synchronized(this.pathPatternParser) {
        this.pathPatternParser.setMatchOptionalTrailingSeparator(config.isMatchOptionalTrailingSeparator());
        config.getPatterns().forEach((pattern) -> {
            PathPattern pathPattern = this.pathPatternParser.parse(pattern);
            pathPatterns.add(pathPattern);
        });
    }

    return (exchange) -> {
        PathContainer path = PathContainer.parsePath(exchange.getRequest().getURI().getPath());
        Optional<PathPattern> optionalPathPattern = pathPatterns.stream().filter((pattern) -> {
            return pattern.matches(path);
        }).findFirst();
        if (optionalPathPattern.isPresent()) {
            PathPattern pathPattern = (PathPattern)optionalPathPattern.get();
            traceMatch("Pattern", pathPattern.getPatternString(), path, true);
            PathMatchInfo pathMatchInfo = pathPattern.matchAndExtract(path);
            ServerWebExchangeUtils.putUriTemplateVariables(exchange, pathMatchInfo.getUriVariables());
            return true;
        } else {
            traceMatch("Pattern", config.getPatterns(), path, false);
            return false;
        }
    };
}

2.9 QueryRoutePredicateFactory

Route 匹配：請求 QueryParam 匹配指定值

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: query_route
        uri: http://example.org
        predicates:
        - Query=baz
        - Query=foo, ba.

代碼：

public Predicate<ServerWebExchange> apply(QueryRoutePredicateFactory.Config config) {
    return (exchange) -> {
        if (!StringUtils.hasText(config.regexp)) {
            return exchange.getRequest().getQueryParams().containsKey(config.param);
        } else {
            List<String> values = (List)exchange.getRequest().getQueryParams().get(config.param);
            if (values == null) {
                return false;
            } else {
                Iterator var3 = values.iterator();

                String value;
                do {
                    if (!var3.hasNext()) {
                        return false;
                    }

                    value = (String)var3.next();
                } while(value == null || !value.matches(config.regexp));

                return true;
            }
        }
    };
}

2.10 RemoteAddrRoutePredicateFactory

Route 匹配：請求來源 IP 在指定范圍內

配置：

spring:
  cloud:
    gateway:
      routes:
      - id: remoteaddr_route
        uri: http://example.org
        predicates:
        - RemoteAddr=192.168.1.1/24

代碼：

public Predicate<ServerWebExchange> apply(RemoteAddrRoutePredicateFactory.Config config) {
    List<IpSubnetFilterRule> sources = this.convert(config.sources);
    return (exchange) -> {
        InetSocketAddress remoteAddress = config.remoteAddressResolver.resolve(exchange);
        if (remoteAddress != null && remoteAddress.getAddress() != null) {
            String hostAddress = remoteAddress.getAddress().getHostAddress();
            String host = exchange.getRequest().getURI().getHost();
            if (log.isDebugEnabled() && !hostAddress.equals(host)) {
                log.debug("Remote addresses didn't match " + hostAddress + " != " + host);
            }

            Iterator var6 = sources.iterator();

            while(var6.hasNext()) {
                IpSubnetFilterRule source = (IpSubnetFilterRule)var6.next();
                if (source.matches(remoteAddress)) {
                    return true;
                }
            }
        }

        return false;
    };
}

三、RoutePredicateHandlerMapping

我們先來看下 Spring Cloud Gateway 官網提供的架構圖：

在這里插入圖片描述

上一節講完了常見分類的 Predicate 匹配規則，客戶端發送請求過來，通過 HandlerMapping 進行 predicate 的匹配，匹配成功再進行下面的處理，

3.1 org.springframework.web.reactive.DispatcherHandler

接收到請求，匹配 HandlerMapping ，此處會匹配到 RoutePredicateHandlerMapping，由于 Gateway 是構建在 reactive 上的，所以這邊的 web 型別就是 reactive，

public class DispatcherHandler implements WebHandler, ApplicationContextAware {
    private static final Exception HANDLER_NOT_FOUND_EXCEPTION;
    @Nullable
    private List<HandlerMapping> handlerMappings;
    @Nullable
    private List<HandlerAdapter> handlerAdapters;
    @Nullable
    private List<HandlerResultHandler> resultHandlers;

    public Mono<Void> handle(ServerWebExchange exchange) {
        return this.handlerMappings == null ? this.createNotFoundError() :
        // 順序使用 handlerMappings 獲得對應的 WebHandler
		Flux.fromIterable(this.handlerMappings).concatMap((mapping) -> {
			// 獲得 Handler
            return mapping.getHandler(exchange);
        // 如果匹配不到 WebHandler ，回傳 HANDLER_NOT_FOUND_EXCEPTION ，
        }).next().switchIfEmpty(this.createNotFoundError()).flatMap((handler) -> {
        	// 呼叫 invokeHandler() 方法，執行 Handler ，
            return this.invokeHandler(exchange, handler);
        }).flatMap((result) -> {
        	// 呼叫 handleResult() 方法，處理結果
            return this.handleResult(exchange, result);
        });
    }

	...
}

繼續跟一下 invokeHandler() 方法：

private Mono<HandlerResult> invokeHandler(ServerWebExchange exchange, Object handler) {
    if (this.handlerAdapters != null) {
    	// 獲取Adapters， WebHandler 的處理器配接器，
        Iterator var3 = this.handlerAdapters.iterator();

        while(var3.hasNext()) {
            HandlerAdapter handlerAdapter = (HandlerAdapter)var3.next();
            // 呼叫support方法 ，是否支持 WebHandler
            if (handlerAdapter.supports(handler)) {
            	// 呼叫handle 方法，執行處理器
                return handlerAdapter.handle(exchange, handler);
            }
        }
    }

    return Mono.error(new IllegalStateException("No HandlerAdapter: " + handler));
}

public boolean supports(Object handler) {
    return WebHandler.class.isAssignableFrom(handler.getClass());
}

public Mono<HandlerResult> handle(ServerWebExchange exchange, Object handler) {
    WebHandler webHandler = (WebHandler)handler;
    // 執行處理器，例如，WebHandler 為 FilteringWebHandler 時，獲得 Route 的 GatewayFilter 陣列，創建 GatewayFilterChain 處理請求，
    Mono<Void> mono = webHandler.handle(exchange);
    // 在 WebHandler 執行完后 #then(Mongo)，然后回傳 Mono.empty() ，
    return mono.then(Mono.empty());
}

SimpleHandlerAdapter 回傳的是 Mono.empty() ，所以不會觸發該方法，

private Mono<Void> handleResult(ServerWebExchange exchange, HandlerResult result) {
    return this.getResultHandler(result).handleResult(exchange, result).onErrorResume((ex) -> {
        return result.applyExceptionHandler(ex).flatMap((exceptionResult) -> {
            return this.getResultHandler(exceptionResult).handleResult(exchange, exceptionResult);
        });
    });
}

3.2 org.springframework.cloud.gateway.handler.RoutePredicateHandlerMapping

接收到請求，匹配 Route ，并回傳處理 Route 的 FilteringWebHandler，

SimpleHandlerAdapter#handle(ServerWebExchange, Object) 呼叫 FilteringWebHandler#handle(ServerWebExchange) 方法，處理請求，

public class RoutePredicateHandlerMapping extends AbstractHandlerMapping {
    private final FilteringWebHandler webHandler;
    private final RouteLocator routeLocator;
    private final Integer managmentPort;

    public RoutePredicateHandlerMapping(FilteringWebHandler webHandler, RouteLocator routeLocator, GlobalCorsProperties globalCorsProperties, Environment environment) {
        this.webHandler = webHandler;
        this.routeLocator = routeLocator;
        if (environment.containsProperty("management.server.port")) {
            this.managmentPort = new Integer(environment.getProperty("management.server.port"));
        } else {
            this.managmentPort = null;
        }
		// RequestMappingHandlerMapping 之后
        this.setOrder(1);
        this.setCorsConfigurations(globalCorsProperties.getCorsConfigurations());
    }

    protected Mono<?> getHandlerInternal(ServerWebExchange exchange) {
        if (this.managmentPort != null && exchange.getRequest().getURI().getPort() == this.managmentPort) {
            return Mono.empty();
        } else {
            // 設定 GATEWAY_HANDLER_MAPPER_ATTR 為
            RoutePredicateHandlerMappingexchange.getAttributes().put(ServerWebExchangeUtils.GATEWAY_HANDLER_MAPPER_ATTR, this.getSimpleName());
            // 匹配路由
            return this.lookupRoute(exchange).flatMap((r) -> {
                exchange.getAttributes().remove(ServerWebExchangeUtils.GATEWAY_PREDICATE_ROUTE_ATTR);
                if (this.logger.isDebugEnabled()) {
                    this.logger.debug("Mapping [" + this.getExchangeDesc(exchange) + "] to " + r);
                }
				// 設定 GATEWAY_ROUTE_ATTR 為 匹配的 Route
                exchange.getAttributes().put(ServerWebExchangeUtils.GATEWAY_ROUTE_ATTR, r);
                return Mono.just(this.webHandler);
            }).switchIfEmpty(Mono.empty().then(Mono.fromRunnable(() -> { //匹配不到回傳
                exchange.getAttributes().remove(ServerWebExchangeUtils.GATEWAY_PREDICATE_ROUTE_ATTR);
                if (this.logger.isTraceEnabled()) {
                    this.logger.trace("No RouteDefinition found for [" + this.getExchangeDesc(exchange) + "]");
                }

            })));
        }
    }
}

跟一下 lookupRoute 匹配路由，這個方法是網關的核心，像我們自研的網關，如果你剛接手公司中的網關專案，找到匹配路由再展開，能幫你省很多時間，快速熟悉公司中網關的專案，

protected Mono<Route> lookupRoute(ServerWebExchange exchange) {
	// 獲取所有路由
    return this.routeLocator.getRoutes().concatMap((route) -> {
        return Mono.just(route).filterWhen((r) -> {
            exchange.getAttributes().put(ServerWebExchangeUtils.GATEWAY_PREDICATE_ROUTE_ATTR, r.getId());
            // 并呼叫 Predicate#apply(ServerWebExchange) 方法，順序匹配一個 Route，
            return (Publisher)r.getPredicate().apply(exchange);
        // 未來會增加匹配程序中發生例外的處理，目前，任何一個 Predicate#test(ServerWebExchange) 的方法呼叫發生例外時，都會導致匹配不到 Route，一定要注意，
        }).doOnError((e) -> {
            this.logger.error("Error applying predicate for route: " + route.getId(), e);
        }).onErrorResume((e) -> {
            return Mono.empty();
        });
    }).next().map((route) -> {
        if (this.logger.isDebugEnabled()) {
            this.logger.debug("Route matched: " + route.getId());
        }

        this.validateRoute(route, exchange);
        return route;
    });
}

3.3 org.springframework.cloud.gateway.handler.FilteringWebHandler

獲得 Route 的 GatewayFilter 陣列，創建 GatewayFilterChain 處理請求，這里我們放到下一篇來講，下一篇也很重要，從原理來說也不是很難理解，就是一個過濾器鏈，但從 Gateway 的兩大核心：路由+過濾鏈來說，這又很重要，

歡迎大家關注我的公眾號【老周聊架構】，Java后端主流技術堆疊的原理、原始碼分析、架構以及各種互聯網高并發、高性能、高可用的解決方案，

在這里插入圖片描述
喜歡的話，一鍵三連走一波，

轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/272640.html

標籤：其他

上一篇：淺談單體向微服務架構的演進

下一篇：MySQL--buffer pool、redo log、undo log、binlog
