springcloud(二) 微服務架構編碼構建

1 基礎知識

1.1 版本

springcloud : CURRENT

springboot : 2.4.3

2 微服務cloud整體聚合父工程Project

2.1 new project

2.2 字符編碼設定 utf-8

2.3 pom.xml

 <!-- 統一管理jar包和版本 -->
  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <junit.version>4.12</junit.version>
    <mysql.version>8.0.16</mysql.version>
    <druid.verison>1.1.16</druid.verison>
    <mybatis.spring.boot.verison>2.1.0</mybatis.spring.boot.verison>
    <lombok.version>1.18.10</lombok.version>
    <junit.version>4.12</junit.version>
    <log4j.version>1.2.17</log4j.version>
  </properties>


  <!--  子模塊繼承后提供作用，鎖定版本+子modlue,不用寫groupid和version  -->
  <dependencyManagement>
     <dependencies>
       <!--       springboot2.4.3-->
       <dependency>
         <groupId>org.springframework.boot</groupId>
         <artifactId>spring-boot-dependencies</artifactId>
         <version>2.4.3</version>
         <type>pom</type>
         <scope>import</scope>
       </dependency>

       <!--  springcloud  CURRENT版本  -->
       <dependency>
         <groupId>org.springframework.cloud</groupId>
         <artifactId>spring-cloud-dependencies</artifactId>
         <version>CURRENT</version>
         <type>pom</type>
       </dependency>

       <!--  spring cloud alibaba   2.1.0.RELEASE  -->
       <dependency>
         <groupId>com.alibaba.cloud</groupId>
         <artifactId>spring-cloud-alibaba-dependencies</artifactId>
         <version>2.1.0.RELEASE</version>
         <type>pom</type>
         <scope>import</scope>
       </dependency>

       <!--    junit   -->
       <dependency>
         <groupId>junit</groupId>
         <artifactId>junit</artifactId>
         <version>${junit.version}</version>
       </dependency>

       <!--    mysql 8.0.16-->
       <dependency>
         <groupId>mysql</groupId>
         <artifactId>mysql-connector-java</artifactId>
         <version>${mysql.version}</version>
       </dependency>

       <!-- Druid -->
       <dependency>
         <groupId>com.alibaba</groupId>
         <artifactId>druid-spring-boot-starter</artifactId>
         <version>${druid.verison}</version>
       </dependency>

       <!-- mybatis-springboot整合 -->
       <dependency>
         <groupId>org.mybatis.spring.boot</groupId>
         <artifactId>mybatis-spring-boot-starter</artifactId>
         <version>${mybatis.spring.boot.verison}</version>
       </dependency>

       <!--  lombok  1.18.10     -->
       <dependency>
         <groupId>org.projectlombok</groupId>
         <artifactId>lombok</artifactId>
         <version>${lombok.version}</version>
       </dependency>

       <!--  junit 4.12     -->
       <dependency>
         <groupId>junit</groupId>
         <artifactId>junit</artifactId>
         <version>${junit.version}</version>
       </dependency>

       <!--   log4j 1.2.17   -->
       <dependency>
         <groupId>log4j</groupId>
         <artifactId>log4j</artifactId>
         <version>${log4j.verson}</version>
       </dependency>

     </dependencies>
  </dependencyManagement>

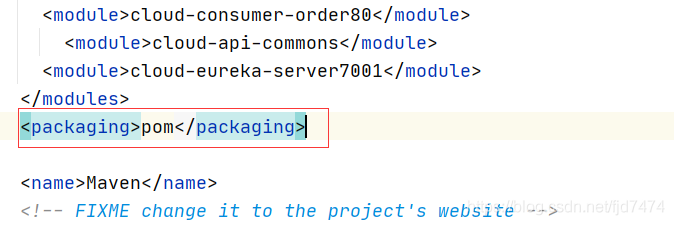

加一個這個<packaging>pom</packaging>

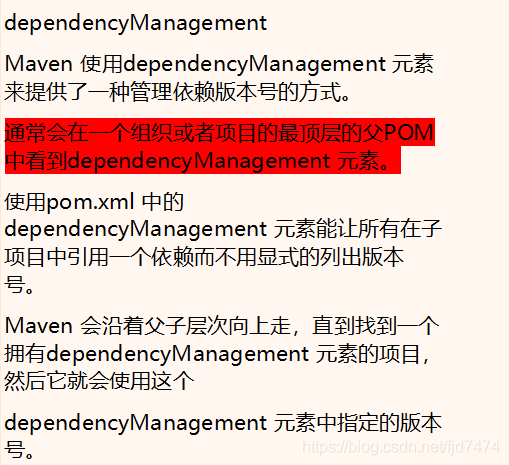

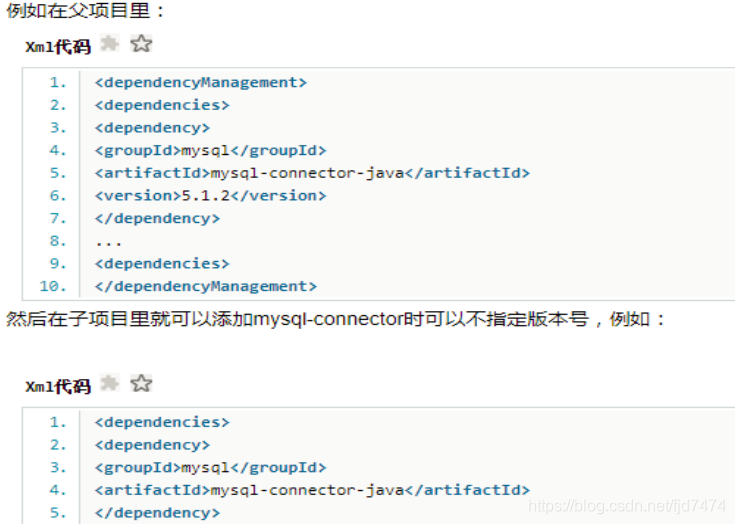

問題：Maven中的DependencyManagement和Dependencies區別

2.4 父工程創建完成執行mvn:install將父工程發布到倉庫方便子工程繼承

3 cloud-provider-payment8001微服務提供者支付Module模塊

3.1 建cloud-provider-payment8001

3.2 改POM

 <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

3.3 寫yml

server:
  port: 8001

spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource            # 當前資料源操作型別
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/db2021?useUnicode=true&characterEncoding=utf8&serverTimezone=UTC
    username: root
    password: 18170021

mybatis:
  mapperLocations: classpath:mapper/*.xml
  type-aliases-package: com.wang.entity

3.4 主啟動

@SpringBootApplication
public class PaymentMain8001 {

    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
    }
}

3.5 資料庫

3.6 entity

Payment類

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {

    private Long id;
    private String serial;
}

CommonResult類
Json封裝體CommonResult

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T> {

    private Integer code;
    private String messag;
    private T data;

    public CommonResult(Integer code, String messag){
        this.code = code;
        this.messag = messag;
    }

}

3.7 dao

3.8 service

3.9 controller

@RestController
@Slf4j
public class PaymentController {

    @Autowired
    private PaymentService paymentService;

    @PostMapping(value = "/payment/create")
    public CommonResult create(@RequestBody Payment payment) {
        int result = paymentService.create(payment);
        log.info("*******插入結果" + result);

        if(result > 0){
            return new CommonResult(200, "插入成功", result);
        }else {
            return new CommonResult(444, "插入失敗", null);
        }
    }

    @GetMapping(value = "/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") Long id){

        Payment payment = paymentService.getPaymentById(id);
        if(payment != null){
            return new CommonResult(200, "查詢成功", payment);
        }else{
            return new CommonResult(444, "查詢失敗", null);
        }
    }
}

4 cloud-consumer-order80 微服務消費者訂單Module模塊

4.1 建cloud-consumer-order80

4.2 改POM

 <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

4.3 寫YML

server:
  port: 8082

4.4 主啟動

//因為消費者不需要寫dao層資料庫操作 所以yml檔案中沒有資料庫配置，不加后面的就報錯
@SpringBootApplication(exclude={DataSourceAutoConfiguration.class, HibernateJpaAutoConfiguration.class})
public class OrderMain80 {

    public static void main(String[] args) {
        SpringApplication.run(OrderMain80.class, args);
    }
}

4.5 業務類

4.5.1 entity (同上)

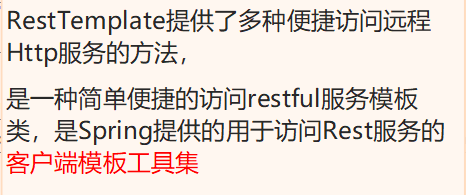

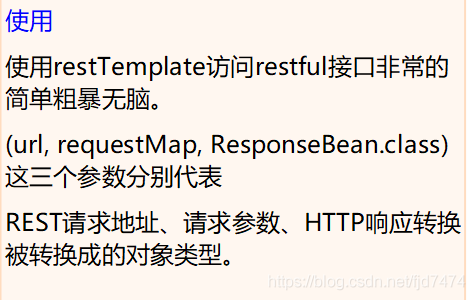

4.5.2 RestTemplate使用

(1) config配置類注冊restTemplate

@Configuration
public class ApplicationContextConfig {

    //applicationContext.xml  <bean id=? ..... >
    @Bean
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }

}

4.5.3 controller

@RestController
@Slf4j
public class OrderController {

    private static final String PAYMENT_URL = "http://localhost:8001";
    @Autowired
    private RestTemplate restTemplate;


    @GetMapping(value = "/consumer/payment/create")
    public CommonResult<Payment> create(Payment payment){
        return restTemplate.postForObject(PAYMENT_URL + "/payment/create", payment, CommonResult.class);
    }

    @GetMapping(value = "/consumer/payment/get/{id}")
    public CommonResult<Payment> getPayment(@PathVariable("id") Long id){

        return restTemplate.getForObject(PAYMENT_URL + "/payment/get/" + id, CommonResult.class);
    }
}

5 工程重構

系統中有entity重復

5.1 新建工程 cloud-api-commons

5.2 pom

 <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.6.3</version>
        </dependency>
    </dependencies>

5.3 entity

5.4 maven命令clean install

5.5 訂單80和支付8001分別改造

5.5.1 洗掉各自的原先有過的entity檔案夾

5.5.2 各自粘貼POM內容

 <!--    引入自己的定義的api通用包,可以使用payment支付的entity-->
        <dependency>
            <groupId>com.wang</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
