在云服務器上做的，由于白嫖的云服務器性能比較差，就設計了如下架構，

功能與設計

(大資料集群+架構設計+功能分析與設計)

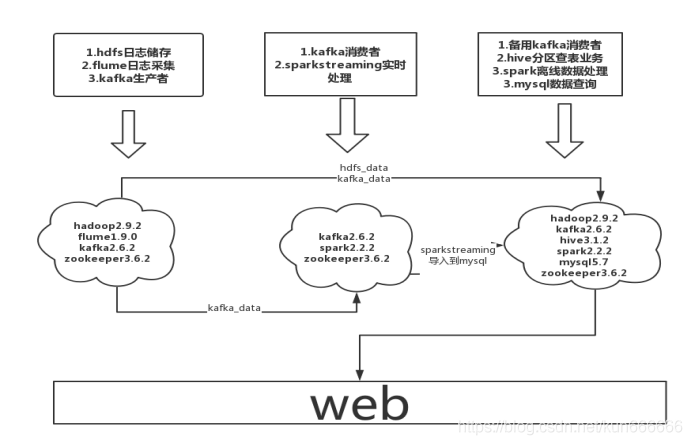

總體架構圖

功能：
訂單成交量統計分析
歷史成交總金額
熱門分類的實時和離線統計分析
熱門商品的實時和離線統計分析
活躍用戶統計分析

專案實作

SpringBoot tmall商城部署

在服務器git拉取tmall springboot專案到本地，配置mysql，創建對應資料庫，運行sql檔案，復制資料庫，運行springboot專案，生成日志檔案到/root/log/info/下

flume采集

flume采集資料有兩個流向，一個存入hdfs，另一個為kafkachannel，
資料存入hdfs的用作離線分析，kafkachannel則將資料給到sparkstreaming實時處理

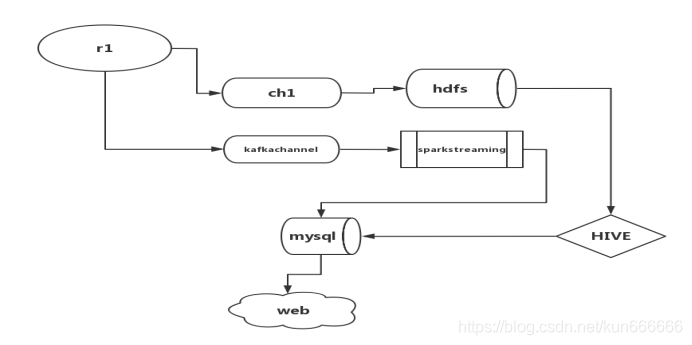

資料流向

flume采集方案組態檔如下：

# example.conf: A single-node Flume configuration
# Name the components on this agent
a3.sources = r3
a3.sinks = sinkhdfs
a3.channels = ch1 kafka-channel

# Define an Avro source called avro-source1 on a3 and tell it
a3.sources.r3.channels = ch1 kafka-channel
#a3.sources.r3.type = spooldir
#a3.sources.r3.spoolDir = /root/logs/info
#a3.sources.r3.ignorePattern = ^(.)*\\.tmp$
a3.sources.r3.type = exec
a3.sources.r3.command = tail -F /root/logs/info/info.log

# Define a memory channel called ch1 on a3
a3.channels.ch1.type = memory
a3.channels.ch1.capacity = 10000000
a3.channels.ch1.transactionCapacity = 100000
a3.channels.ch1.keep-alive = 10

a3.channels.kafka-channel.type = org.apache.flume.channel.kafka.KafkaChannel
a3.channels.kafka-channel.kafka.bootstrap.servers = master:9092,slave2:9092
a3.channels.kafka-channel.kafka.topic = tmalllog
a3.channels.kafka-channel.kafka.producer.acks = 1
a3.sinks.k1.serializer.class=kafka.serializer.StringEncoder
a3.channels.kafka-channel.parseAsFlumeEvent = false

kafka-streaming實時處理

需搭建zookeeper、kafka集群，消費來自kafka生產者的訊息
撰寫sparkstreaming應用程式
（1）添加kafka的pom依賴

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cn.hgu</groupId>
    <artifactId>sparkDemo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <scala.version>2.11.8</scala.version>
        <spark.version>2.2.3</spark.version>
        <hadoop.version>2.9.2</hadoop.version>
        <encoding>UTF-8</encoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.10</version>
            <scope>provided</scope>
        </dependency>
        <!-- 匯入scala的依賴 -->
        <dependency>
            <groupId>org.scala-lang</groupId>
            <artifactId>scala-library</artifactId>
            <version>${scala.version}</version>
        </dependency>
        <!-- 匯入spark的依賴 -->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.11</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.11</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming_2.11</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming-kafka-0-10_2.11</artifactId>
            <version>2.2.3</version>
        </dependency>
        <!-- 指定hadoop-client API的版本 -->
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>${hadoop.version}</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.47</version>
        </dependency>

    </dependencies>

    <build>
        <pluginManagement>
            <plugins>
                <!-- 編譯scala的插件 -->
                <plugin>
                    <groupId>net.alchim31.maven</groupId>
                    <artifactId>scala-maven-plugin</artifactId>
                    <version>3.2.2</version>
                </plugin>
                <!-- 編譯java的插件 -->
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.5.1</version>
                </plugin>
            </plugins>
        </pluginManagement>
        <plugins>
            <plugin>
                <groupId>net.alchim31.maven</groupId>
                <artifactId>scala-maven-plugin</artifactId>
                <executions>
                    <execution>
                        <id>scala-compile-first</id>
                        <phase>process-resources</phase>
                        <goals>
                            <goal>add-source</goal>
                            <goal>compile</goal>
                        </goals>
                    </execution>
                    <execution>
                        <id>scala-test-compile</id>
                        <phase>process-test-resources</phase>
                        <goals>
                            <goal>testCompile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>compile</phase>
                        <goals>
                            <goal>compile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <!-- 打jar插件 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>2.4.3</version>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <filters>
                                <filter>
                                    <artifact>*:*</artifact>
                                    <excludes>
                                        <exclude>META-INF/*.SF</exclude>
                                        <exclude>META-INF/*.DSA</exclude>
                                        <exclude>META-INF/*.RSA</exclude>
                                    </excludes>
                                </filter>
                                <filter>
                                    <artifact>junit:junit</artifact>
                                    <includes>
                                        <include>junit/framework/**</include>
                                        <include>org/junit/**</include>
                                    </includes>
                                    <excludes>
                                        <exclude>org/junit/experimental/**</exclude>
                                        <exclude>org/junit/runners/**</exclude>
                                    </excludes>
                                </filter>
                            </filters>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

實時處理代碼

import org.apache.kafka.clients.consumer.ConsumerConfig
import org.apache.kafka.common.serialization.StringDeserializer
import org.apache.spark.sql.SparkSession
import org.apache.spark.sql.functions.regexp_extract
import org.apache.spark.streaming.kafka010.{ConsumerStrategies, KafkaUtils, LocationStrategies}
import org.apache.spark.streaming.{Seconds, StreamingContext}
import org.apache.spark.{SparkConf, SparkContext}

import java.util.{Date, Properties}

object Kafka_spark_streaming {

  def main(args: Array[String]): Unit = {
    // offset保存路徑
    val checkpointPath = "file:///export/data/kafka/checkpoint/kafka-direct"

    val conf = new SparkConf()
      .setAppName("ScalaKafkaStreaming")
      .setMaster("local[2]")

    val sc = new SparkContext(conf)
    sc.setLogLevel("WARN")

    val ssc = new StreamingContext(sc, Seconds(5))
    ssc.checkpoint(checkpointPath)
    val spark: SparkSession = new SparkSession.Builder().master("local").appName("sqlDemo").getOrCreate()
    val bootstrapServers = "master:9092,slave1:9092,slave2:9092"
    val groupId = "flume"
    val topicName = "tmalllog"
    val maxPoll = 500

    val kafkaParams = Map(
      ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG -> bootstrapServers,
      ConsumerConfig.GROUP_ID_CONFIG -> groupId,
      ConsumerConfig.MAX_POLL_RECORDS_CONFIG -> maxPoll.toString,
      ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG -> classOf[StringDeserializer],
      ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG -> classOf[StringDeserializer]
    )
    case class schema(mytime: String, action: String, frequency: Int)
    val kafkaTopicDS = KafkaUtils.createDirectStream(ssc, LocationStrategies.PreferConsistent,
      ConsumerStrategies.Subscribe[String, String](Set(topicName), kafkaParams))
    import spark.implicits._
    val properties = new Properties()
    properties.setProperty("user", "root")
    properties.setProperty("password", "kun/roo123")
    properties.setProperty("driver", "com.mysql.jdbc.Driver")
    val uri = "jdbc:mysql://slave2:3306/tmalldata?useSSL=false"

    kafkaTopicDS.foreachRDD(
      foreachFunc = rdd => if (!rdd.isEmpty()) {
        //資料業務邏輯處理
        val now: Long = new Date().getTime
        val now2: String = now.toString
        val action_df = rdd.map(_.value)
          .map(_.split("-"))
          .filter(x => x.length == 3)
          .map(x => x(2))
          .map(x => (x, 1))
          .reduceByKey(_ + _)
          .map(x => (now2, x._1, x._2))
          .toDF("mytime", "action", "frequency")
        val top_category = action_df.select("*").where("action  like '%分類ID為%'").orderBy(action_df("frequency").desc)

        if (top_category.count()>0){
          top_category.show()
          top_category.write.mode("append").jdbc(uri, "category", properties)}
        val product_Popular_Buy = action_df.select("*").where("action  like '%通過產品ID獲取產品資訊%'").orderBy(action_df("frequency").desc)
        if (product_Popular_Buy.count()>0){product_Popular_Buy.show()
          product_Popular_Buy.write.mode("append").jdbc(uri, "product", properties)}

        val Active_users = action_df.select("*").where("action  like '%用戶已登錄，用戶ID%'").orderBy(action_df("frequency"))
        if(Active_users.count()>0){
          Active_users.show()
          Active_users.write.mode("append").jdbc(uri, "activeusers", properties)}

        val money = action_df.select("*").where("action  like '%總共支付金額為%'").orderBy(action_df("frequency").desc)
        val money2 = money.withColumn("single_transaction", regexp_extract($"action", "/d+", 0))
        if(money2.count()>0){
          money2.show()
          money2.write.mode("append").jdbc(uri, "trading", properties)
        }
      }
    )
    ssc.start()
    ssc.awaitTermination()
  }

}

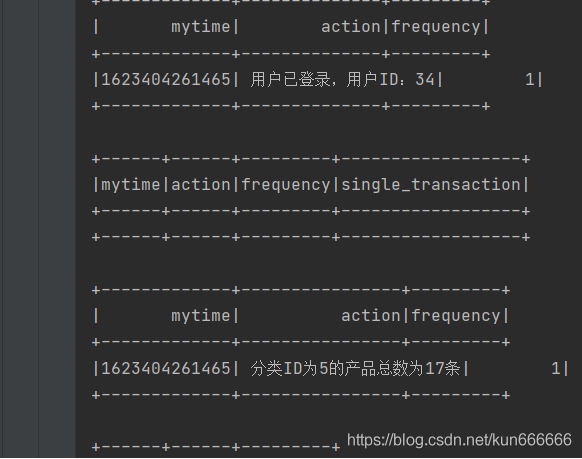

運行查看控制臺輸出結果

再idea打包jar，上傳服務器，sparksubmit提交任務可將實時資料寫入mysql資料庫

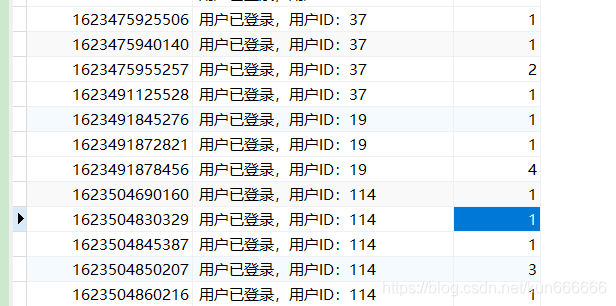

當前登錄用戶
user

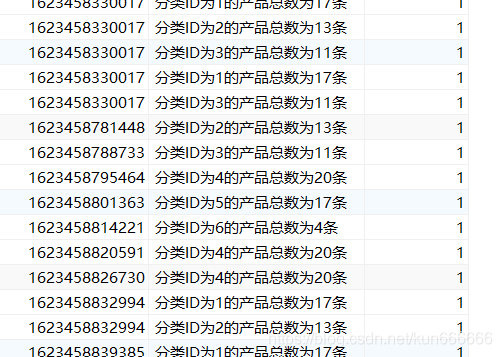

當前熱門分類
category

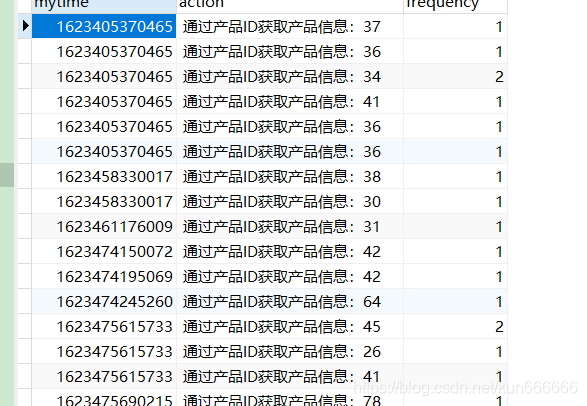

當前熱門商品
product
訂單數量
在這里插入圖片描述

spark離線資料分析

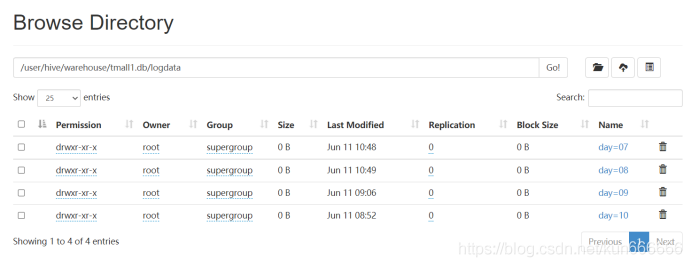

3.4 創建hive表磁區
hive磁區
訂單總量統計
熱門分類統計
熱門商品統計
活躍用戶統計
四、資料可視化

五、經驗總結
云服務器環境搭建問題（主要）
1、zookeeper、kafka、hadoop集群搭建時公網ip與內網ip的問題，導致無法識別，
通過對網上資料及博客的查閱發現是云服務器中只有一塊內網網卡，外網地址不是直接配置在云服務器中，程式無法系結公網IP地址，所以需要對/etc/hosts檔案進行修改，如下，
解決方法：本服務器配內網ip，其他服務器配公網ip

2、hadoop高可用問題，hadoop高可用環境導致flume日志采集失敗，
解決方法：添加hadoop組態檔到flume/lib下，
3、埠問題，因為服務器的埠未打開，導致部分行程無法啟動，
解決方法：在服務器安全組以及寶塔開放埠，
搭建環境常用的默認埠
hadoop 9000 50070 50010
zookeeper 2181 2888 3888
kafka 9092
mysql 3306
spark 7077
