專案場景：

使用ffmpeg拉取rtsp服務器的碼流，并且推rtmp流到nginx，web前端使用flv碼流進行點播；
拉流以及推流使用的是ffmpeg原生介面；
點播服務器使用是NGINX，并集成了http-flv模塊（可以參考我的其他檔案，）

問題描述：

ffmpeg打開rtsp的url，從in_stream的碼流中，復制所需要的h264編碼資訊；然后寫入對應的rtmp流（out_stream）中，結果發現寫入函式av_interleaved_write_frame一直例外，無法寫入？并且錯誤資訊為“ Broke Pipe"?

        AVStream *in_stream = ifmt_ctx->streams[videoindex];
        AVStream *out_stream = avformat_new_stream(ofmt_ctx, in_stream->codec->codec);
       ......
        //復制AVCodecContext的設定（Copy the settings of AVCodecContext）
        ret = avcodec_copy_context(out_stream->codec, in_stream->codec);
       ......
       //緊接著呼叫打開、寫入頭、設定一些引數、回圈讀取資料、寫入資料
        ret = avio_open(&ofmt_ctx->pb, out_filename, AVIO_FLAG_WRITE);
       ......
        ret = avformat_write_header(ofmt_ctx, /*NULL*/&options);
     	......
         av_dump_format(ofmt_ctx, 0, out_filename, 1);
       ......
        while (m_bRun)
        {
            AVStream *in_stream, *out_stream;
            ret = av_read_frame(ifmt_ctx, &pkt);
            if (ret < 0)
            {
                int err_code = ret;
                char buf[1024] = { 0 };
                if (ret < 0) {
                    av_strerror(err_code, buf, 1024);
                    qDebug()<<buf;						//在此處報錯

                }
            }
			......
            ret = av_interleaved_write_frame(ofmt_ctx, &pkt);
        }

原因分析：

常規分析手段：

抓包分析

通過抓包看，是nginx服務器主動結束了連接；
分析nginx日志
由于是在 av_interleaved_write_frame函式發生了例外，該函式直接作用是將“h264資料”送至nginx服務器，所以進一步打開nginx debug日志等級，錯誤日志如下：

2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 02 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 0A ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (10) 6F 6E 4D 65 74 61 44 61 74 61 ‘onMetaData’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 03 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 06 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (6) 53 65 72 76 65 72 ‘Server’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 02 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 44 ‘?D’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (68) 4E 47 49 4E 58 20 48 54 54 50 2D 46 4C 56 20 28 ‘NGINX HTTP-FLV (’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 05 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (5) 77 69 64 74 68 ‘width’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 40 84 00 00 00 00 00 00 ‘@???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 06 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (6) 68 65 69 67 68 74 ‘height’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 40 7E 00 00 00 00 00 00 ‘@~???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 0C ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (12) 64 69 73 70 6C 61 79 57 69 64 74 68 ‘displayWidth’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 40 84 00 00 00 00 00 00 ‘@???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 0D ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (13) 64 69 73 70 6C 61 79 48 65 69 67 68 74 ‘displayHeight’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 40 7E 00 00 00 00 00 00 ‘@~???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 08 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 64 75 72 61 74 69 6F 6E ‘duration’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 00 00 00 00 00 00 00 00 ‘???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 09 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (9) 66 72 61 6D 65 72 61 74 65 ‘framerate’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 00 00 00 00 00 00 00 00 ‘???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 03 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (3) 66 70 73 ‘fps’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 00 00 00 00 00 00 00 00 ‘???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 0D ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (13) 76 69 64 65 6F 64 61 74 61 72 61 74 65 ‘videodatarate’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 00 00 00 00 00 00 00 00 ‘???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 0C ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (12) 76 69 64 65 6F 63 6F 64 65 63 69 64 ‘videocodecid’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 40 1C 00 00 00 00 00 00 ‘@???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 0D ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (13) 61 75 64 69 6F 64 61 74 61 72 61 74 65 ‘audiodatarate’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 00 00 00 00 00 00 00 00 ‘???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 0C ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (12) 61 75 64 69 6F 63 6F 64 65 63 69 64 ‘audiocodecid’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 00 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (8) 00 00 00 00 00 00 00 00 ‘???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 07 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (7) 70 72 6F 66 69 6C 65 ‘profile’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 02 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 20 '? ’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (32) 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ‘???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 05 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (5) 6C 65 76 65 6C ‘level’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 02 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 20 '? ’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (32) 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ‘???’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (2) 00 00 ‘??’
2021/09/22 20:07:50 [debug] 1729538#0: *17 AMF write (1) 09 ‘?’
2021/09/22 20:07:50 [debug] 1729538#0: *17 RTMP prep amf_meta (18) fmt=0 csid=5 timestamp=0 mlen=409 msid=1 nbufs=4
2021/09/22 20:07:50 [debug] 1729538#0: *17 reusing formerly read data: 17
2021/09/22 20:07:50 [debug] 1729538#0: *17 RTMP bheader fmt=0 csid=6
2021/09/22 20:07:50 [debug] 1729538#0: *17 RTMP mheader fmt=0 video (9) time=0+0 mlen=5 len=0 msid=1
2021/09/22 20:07:50 [debug] 1729538#0: *17 RTMP recv video (9) csid=6 timestamp=0 mlen=5 msid=1 nbufs=1
2021/09/22 20:07:50 [debug] 1729538#0: *17 nhandlers: 6
2021/09/22 20:07:50 [debug] 1729538#0: *17 calling handler 0
2021/09/22 20:07:50 [debug] 1729538#0: *17 codec: avc header 1700000000
2021/09/22 20:07:50 [error] 1729538#0: *17 123456 codec: invalid video codec header size=5, client: 172.21.34.145, server: 0.0.0.0:1935
2021/09/22 20:07:50 [debug] 1729538#0: *17 handler 0 failed
2021/09/22 20:07:50 [debug] 1729538#0: *17 finalize session
2021/09/22 20:07:50 [debug] 1729538#0: *17 post event 0000000001654C48
2021/09/22 20:07:50 [debug] 1729538#0: timer delta: 42
2021/09/22 20:07:50 [debug] 1729538#0: posted event 0000000001654C48
2021/09/22 20:07:50 [debug] 1729538#0: *17 delete posted event 0000000001654C48
2021/09/22 20:07:50 [debug] 1729538#0: *17 close session
2021/09/22 20:07:50 [info] 1729538#0: *17 disconnect, client: 172.21.34.145, server: 0.0.0.0:1935

這段日志中，明顯可以看到的操作是在寫 flv 的包頭；舉個例子，其中“onMetaData”等均是flv 包頭格式；onMetaData是FLV檔案中的第一個Tag, 用來表示當前檔案的一些基本資訊: 比如視音頻的編碼型別id、視頻的寬和高、檔案大小、視頻長度、創建日期等，順著日志往下閱讀，發現下面兩行日志：

2021/09/22 20:07:50 [debug] 1729538#0: *17 codec: avc header 1700000000
2021/09/22 20:07:50 [error] 1729538#0: *17 123456 codec: invalid video codec header size=5, client: 172.21.34.145, server: 0.0.0.0:1935

avc header 是h264的編碼頭，這一段是無效資料，導致了例外，以及后面的close session;

ffmpeg 函式對應的avc header是哪？
對應下面資料結構中的“ extradata”；

typedef struct AVCodecParameters {
    /**
     * General type of the encoded data.
     */
    enum AVMediaType codec_type;
    /**
     * Specific type of the encoded data (the codec used).
     */
    enum AVCodecID   codec_id;
    /**
     * Additional information about the codec (corresponds to the AVI FOURCC).
     */
    uint32_t         codec_tag;

    /**
     * Extra binary data needed for initializing the decoder, codec-dependent.
     *
     * Must be allocated with av_malloc() and will be freed by
     * avcodec_parameters_free(). The allocated size of extradata must be at
     * least extradata_size + AV_INPUT_BUFFER_PADDING_SIZE, with the padding
     * bytes zeroed.
     */
    uint8_t *extradata;
    /**
     * Size of the extradata content in bytes.
     */
    int      extradata_size;

    /**
     * - video: the pixel format, the value corresponds to enum AVPixelFormat.
     * - audio: the sample format, the value corresponds to enum AVSampleFormat.
     */
    int format;

    /**
     * The average bitrate of the encoded data (in bits per second).
     */
    int64_t bit_rate;

    /**
     * The number of bits per sample in the codedwords.
     *
     * This is basically the bitrate per sample. It is mandatory for a bunch of
     * formats to actually decode them. It's the number of bits for one sample in
     * the actual coded bitstream.
     *
     * This could be for example 4 for ADPCM
     * For PCM formats this matches bits_per_raw_sample
     * Can be 0
     */
    int bits_per_coded_sample;

    /**
     * This is the number of valid bits in each output sample. If the
     * sample format has more bits, the least significant bits are additional
     * padding bits, which are always 0. Use right shifts to reduce the sample
     * to its actual size. For example, audio formats with 24 bit samples will
     * have bits_per_raw_sample set to 24, and format set to AV_SAMPLE_FMT_S32.
     * To get the original sample use "(int32_t)sample >> 8"."
     *
     * For ADPCM this might be 12 or 16 or similar
     * Can be 0
     */
    int bits_per_raw_sample;

    /**
     * Codec-specific bitstream restrictions that the stream conforms to.
     */
    int profile;
    int level;

    /**
     * Video only. The dimensions of the video frame in pixels.
     */
    int width;
    int height;

    /**
     * Video only. The aspect ratio (width / height) which a single pixel
     * should have when displayed.
     *
     * When the aspect ratio is unknown / undefined, the numerator should be
     * set to 0 (the denominator may have any value).
     */
    AVRational sample_aspect_ratio;

    /**
     * Video only. The order of the fields in interlaced video.
     */
    enum AVFieldOrder                  field_order;

    /**
     * Video only. Additional colorspace characteristics.
     */
    enum AVColorRange                  color_range;
    enum AVColorPrimaries              color_primaries;
    enum AVColorTransferCharacteristic color_trc;
    enum AVColorSpace                  color_space;
    enum AVChromaLocation              chroma_location;

    /**
     * Video only. Number of delayed frames.
     */
    int video_delay;

    /**
     * Audio only. The channel layout bitmask. May be 0 if the channel layout is
     * unknown or unspecified, otherwise the number of bits set must be equal to
     * the channels field.
     */
    uint64_t channel_layout;
    /**
     * Audio only. The number of audio channels.
     */
    int      channels;
    /**
     * Audio only. The number of audio samples per second.
     */
    int      sample_rate;
    /**
     * Audio only. The number of bytes per coded audio frame, required by some
     * formats.
     *
     * Corresponds to nBlockAlign in WAVEFORMATEX.
     */
    int      block_align;
    /**
     * Audio only. Audio frame size, if known. Required by some formats to be static.
     */
    int      frame_size;

    /**
     * Audio only. The amount of padding (in samples) inserted by the encoder at
     * the beginning of the audio. I.e. this number of leading decoded samples
     * must be discarded by the caller to get the original audio without leading
     * padding.
     */
    int initial_padding;
    /**
     * Audio only. The amount of padding (in samples) appended by the encoder to
     * the end of the audio. I.e. this number of decoded samples must be
     * discarded by the caller from the end of the stream to get the original
     * audio without any trailing padding.
     */
    int trailing_padding;
    /**
     * Audio only. Number of samples to skip after a discontinuity.
     */
    int seek_preroll;
} AVCodecParameters;

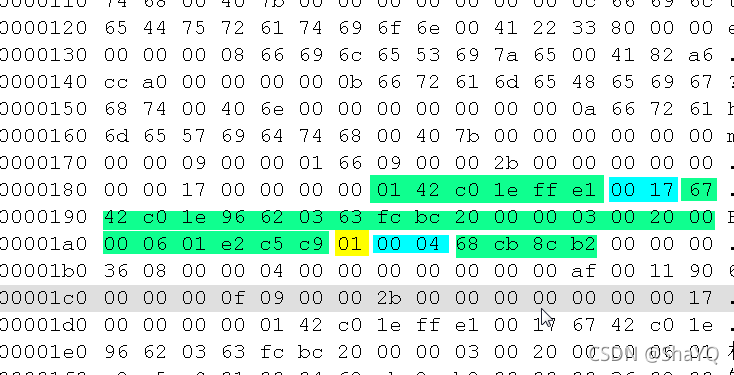

常規手段之，列印分析in_stream 以及out_stream的對應的parameter引數中的exteradata欄位；
加入以下代碼，將

void myprintf(uint8_t* data,int len)
{

    QString disp_string,S;
    QByteArray ba;
    ba.resize(len);

    QString m_strMSG = QString("myprintf len=:%1").arg(len);
    for (int i = 0 ;i < len; i++)
    {
        ba[i] = data[i];

    }
    for(int i=0;i<ba.size();i++)
    {
        S.sprintf("0x%02x, ", (unsigned char)ba.at(i));
        disp_string += S;
    }
    qDebug()<<m_strMSG<<"\n";
    qDebug()<<disp_string<<"\n";
}

......

//進行列印
 myprintf(out_stream->codecpar->extradata,out_stream->codecpar->extradata_size);

解決方案：

發現，從in_stream中獲取的AVCodecParameters中的extradata是一串無效值；那么只需要將這個欄位重新填入正確的值即可；這段值應該填入正確的sps\pps等資訊，剩下的就是編碼實作了；舉個例子，下面資料 17 00 00 00 00 就是video tag標簽，后面圈出來的資料，就是對應的avc heaer資訊，其中包含了正確的h264所需要的sps\pps等資料；

在這里插入圖片描述

文章的最后：如果需要研究flv封裝格式的特點，可以具體搜索網路資源，

轉載請註明出處，本文鏈接：https://www.uj5u.com/ruanti/302482.html

標籤：其他

上一篇：Gen-Z 可擴展連接器和SFF-TA-1002規范。

下一篇：億級流量系統架構演進之路

2021-09-23 基于ffmpeg+nginx+rtsp的http-flv點播方案-推流失敗問題分析

專案場景：

問題描述：

原因分析：

解決方案：
