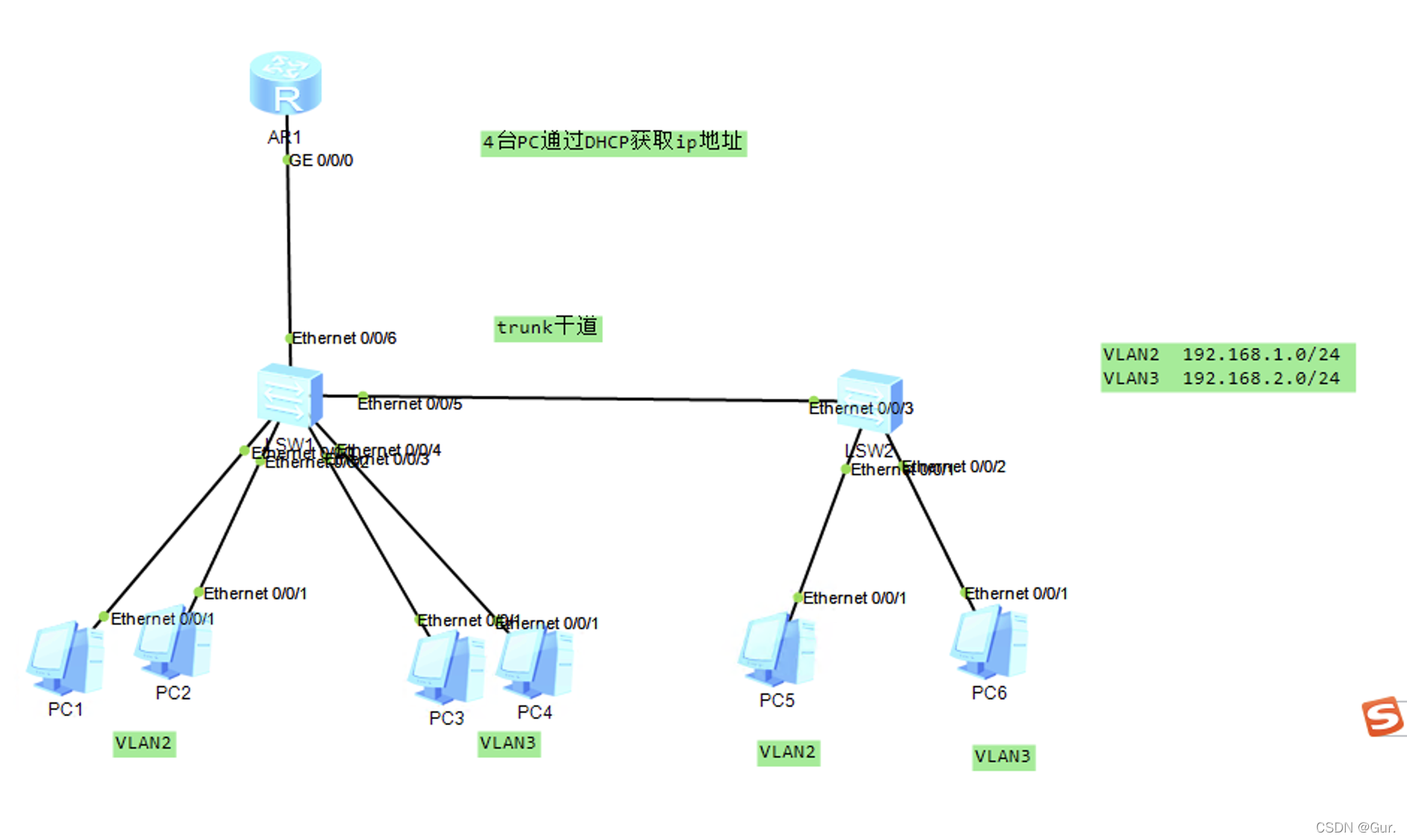

要求如下
在交換機上創建vlan2，vlan3 分別把對應介面劃分到對應vlan
[Huawei]vlan batch 2 to 3
[Huawei]port-group group-member Ethernet 0/0/1 to Ethernet 0/0/2
[Huawei-port-group]port link-type access
[Huawei-port-group]port default vlan 2
[Huawei-port-group]q
[Huawei]port-group group-member Ethernet 0/0/3 to Ethernet 0/0/4
[Huawei-port-group]port link-type access
[Huawei-port-group]port default vlan 3
[Huawei-port-group]q建立trunk干道，如下圖交換機1的配置
[Huawei-Ethernet0/0/5]port link-type trunk
[Huawei-Ethernet0/0/5]port trunk allow-pass vlan 2 to 3
[Huawei]interface Ethernet0/0/6
[Huawei-Ethernet0/0/6]port link-type trunk
[Huawei-Ethernet0/0/6]port trunk allow-pass vlan 2 to 3
給路由器放兩個子介面
[Huawei]interface GigabitEthernet 0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]dot1q termination vid 2
[Huawei-GigabitEthernet0/0/0.1]ip add 192.168.1.1 24
[Huawei-GigabitEthernet0/0/0.1]arp broadcast enable
[Huawei]interface GigabitEthernet 0/0/0.2
[Huawei-GigabitEthernet0/0/0.2]dot1q termination vid 3
[Huawei-GigabitEthernet0/0/0.2]ip add 192.168.2.1 24
[Huawei-GigabitEthernet0/0/0.2]arp broadcast enable題目還要求DHCP自動獲取ip，可以在路由器中進行配置
[Huawei]dhcp enable
[Huawei]ip pool a
[Huawei-ip-pool-a]network 192.168.1.0 mask 24
[Huawei-ip-pool-a]gateway-list 192.168.1.1
[Huawei-ip-pool-a]dns-list 114.114.114.114
[Huawei-ip-pool-a]q
[Huawei]ip pool b
[Huawei-ip-pool-b]network 192.168.1.0 mask 24
[Huawei-ip-pool-b]gateway-list 192.168.2.1
[Huawei-ip-pool-b]dns-list 114.114.114.114
[Huawei-ip-pool-b]q
[Huawei]interface GigabitEthernet 0/0/0.1
[Huawei-GigabitEthernet0/0/0.1]dhcp select global
[Huawei-GigabitEthernet0/0/0.1]q
[Huawei]interface GigabitEthernet 0/0/0.2
[Huawei-GigabitEthernet0/0/0.2]dhcp select global
[Huawei-GigabitEthernet0/0/0.2]q

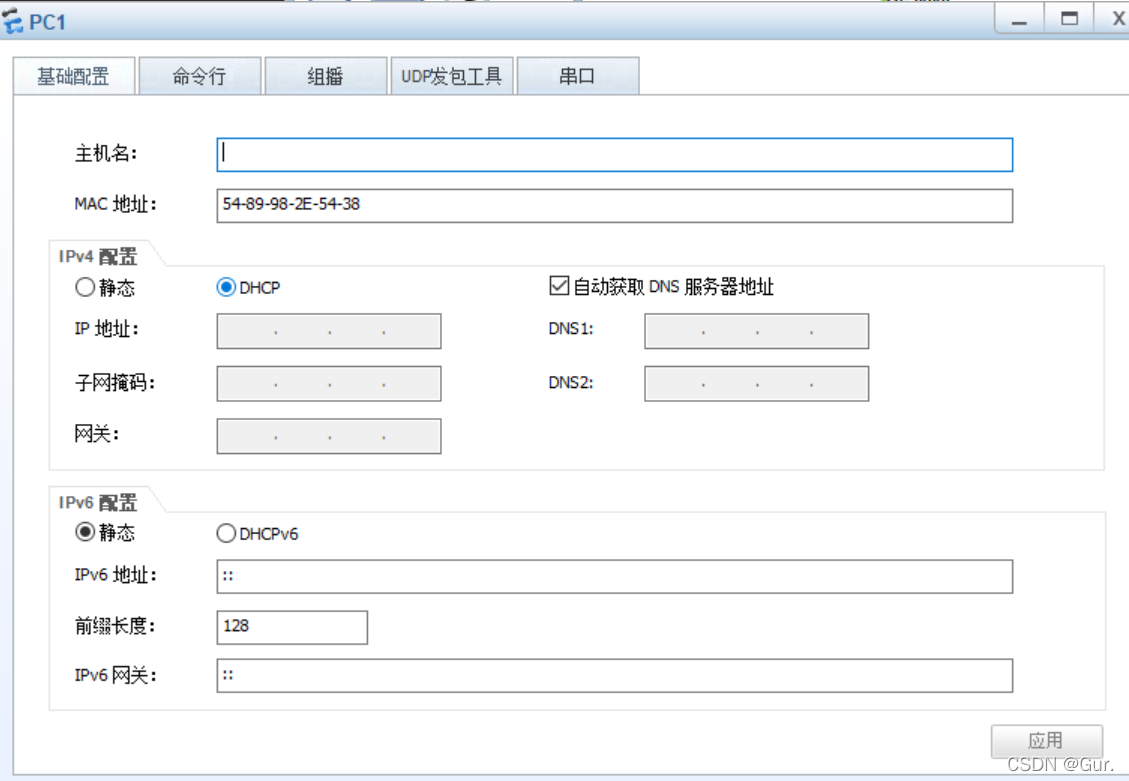

最后在電腦上開啟DHCP服務

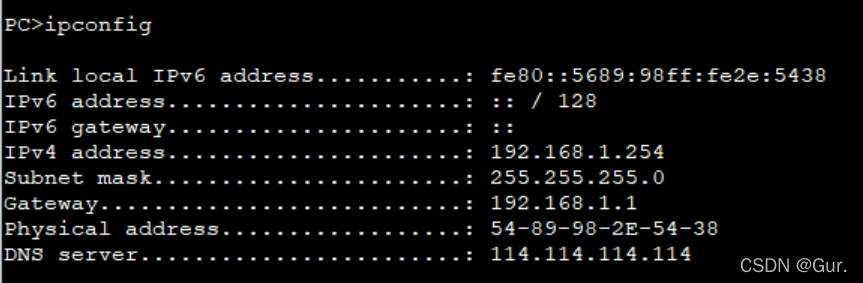

可以看到已經成功自動獲取IP

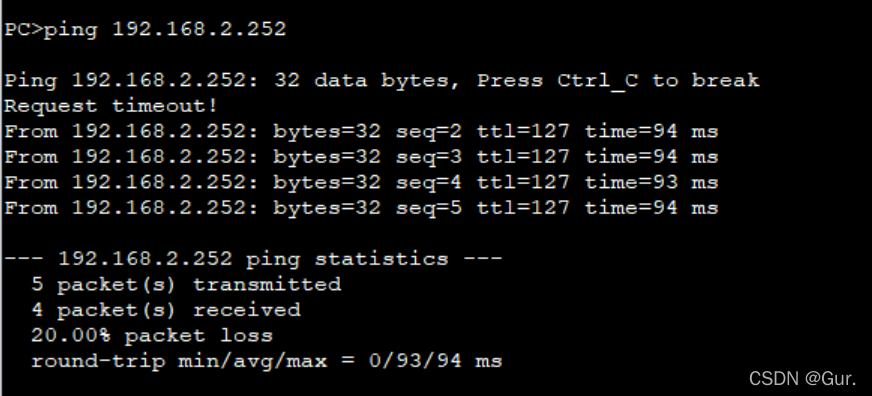

最終再用第一個電腦ping一下最后一個電腦
此時這個實驗完美結束
